The text with this installment was pretty bland, so I did a Wiki search and found some really interesting facts about these Super Guns.



The Paris Gun (German: Paris-Geschütz) was the name given to a type of German long-range siege gun, several of which were used to bombard Paris during World War I. They were in service from March to August 1918. When first employed, Parisians believed they had been bombed by a high-altitude Zeppelin, as neither the sound of an airplane nor a gun could be heard. They were the largest pieces of artillery used during the war by barrel length if not caliber, and are considered to be superguns. The Paris Guns hold a significant place in the history of astronautics, as their shells were the first man-made objects to reach the stratosphere.



Also called the "Kaiser Wilhelm Geschütz" ("Emperor William Gun"), they were often confused with Big Bertha, the German howitzer used against the Liège forts in 1914; indeed, the French called them by this name, as well. They were also confused with the smaller "Langer Max" (Long Max) cannon, from which they were derived; although the famous Krupp-family artillery makers produced all these guns, the resemblance ended there.



As military weapons, the Paris Guns were not a great success: the payload was minuscule, the barrel required frequent replacement and its accuracy was only good enough for city-sized targets. The German objective was to build a psychological weapon to attack the morale of the Parisians, not to destroy the city itself.



The Paris Gun was a weapon like no other, but its capabilities are not known with full certainty. This is due to the weapon's apparent total destruction by the Germans in the face of the Allied offensive. Figures stated for the weapon's size, range, and performance varied widely depending on the source — not even the number of shells fired is certain. With the discovery (in the 1980s) and publication (in the Bull and Murphy book) of a long note on the gun written shortly before his death in 1926 by Dr. Fritz Rausenberger, who was in charge of its development at Krupp, the details of its design and capabilities were considerably clarified.



The gun was capable of firing a 106-kilogram (234 lb) shell to a range of 130 kilometers (81 mi) and a maximum altitude of 42.3 kilometers (26.3 mi) — the greatest height reached by a human-made projectile until the first successful V-2 flight test in October 1942. At the start of its 182-second trajectory, each shell from the Paris Gun reached a speed of 1,640 meters per second (5,400 ft/s).

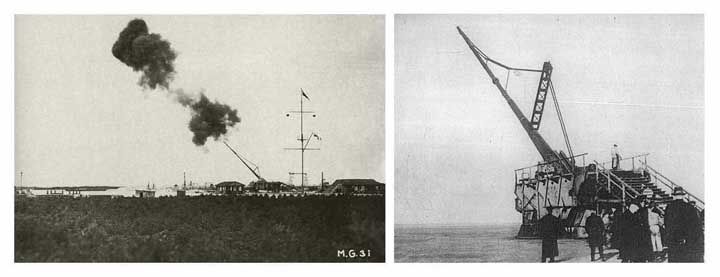

Seven barrels were constructed. They used worn–out 38 cm SK L/45 "Max" gun barrels that were fitted with an internal tube that reduced the caliber from 380 millimeters (15 in) to 210 millimeters (8 in). [A large surprise to me. I had always felt that an enormous gun fired an enormous shell. In reality, it fired a modest shell a very long way. Hauksbee] The tube was 21 meters (69 ft) long and projected 3.9 meters (13 ft) out of the end of the gun, so an extension was bolted to the old gun-muzzle to cover and reinforce the lining tube. A further, 12-meter long smooth–bore extension was attached to the end of this, giving a total barrel length of 34 meters (112 ft). This smooth section was intended to improve accuracy and reduce the dispersion of the shells, as it reduced the slight yaw a shell might have immediately after leaving the gun barrel, that is produced by the gun's rifling. The barrel was braced to counteract barrel droop due to its length and weight, and vibrations while firing; it was mounted on a special rail-transportable carriage and fired from a prepared, concrete emplacement with a turntable. The original breech of the old 38 cm gun did not require modification or reinforcement.



Since it was based on a naval weapon, the gun was manned by a crew of 80 Imperial Navy sailors under the command of Vice-Admiral Rogge, chief of the Ordnance branch of the Admiralty. It was surrounded by several batteries of standard army artillery to create a "noise-screen" chorus around the big gun so that it could not be located by French and British spotters.



The projectile was the first human-made object to reach the stratosphere. The historian Adam Hochschild put it this way: "It took about three minutes for each giant shell to cover the distance to the city, climbing to an altitude of 25 miles at the top of its trajectory. This was by far the highest point ever reached by a man-made object, so high that gunners, in calculating where the shells would land, had to take into account the rotation of the Earth. [This made gun-laying Tables so complex that it spurred the development of mechanical computers. Hauksbee] For the first time in warfare, deadly projectiles rained down on civilians from the stratosphere." This reduced drag from air resistance, allowing the shell to achieve a range of over 130 kilometres (81 mi). The Paris Gun was the largest gun built at the time, but it was surpassed by the Schwerer Gustav of World War 2. This fired shells up to 70 times heavier, but with only around half the muzzle velocity and less than one third the range.



The Paris Gun shells weighed 106 kg (234 lb). The shells initially used had a diameter of 216 mm (8.5 in) and a length of 960 mm (38 in). The main body of the shell was composed of thick steel, containing 7 kg (15 lb) of TNT. The small amount of explosive – around 6.6% of the weight of the shell – meant that the effect of its shellburst was small for the shell's size. The thickness of the shell casing, to withstand the forces of firing, meant that shells would explode into a comparatively small number of large fragments, limiting their destructive effect. A crater produced by a shell falling in the Tuileries Garden was described by an eye–witness as being 10 to 12 ft (3.0 to 3.7 m) across and 4 ft (1.2 m) deep.



The shells were propelled at such a high velocity that each successive shot wore away a considerable amount of steel from the rifled bore. Each shell was sequentially numbered according to its increasing diameter, and had to be fired in numeric order, lest the projectile lodge in the bore, and the gun explode. Also, when the shell was rammed into the gun, the chamber was precisely measured to determine the difference in its length: a few inches off would cause a great variance in the velocity, and with it, the range. Then, with the variance determined, the additional quantity of propellant was calculated, and its measure taken from a special car and added to the regular charge. After 65 rounds had been fired, each of progressively larger caliber to allow for wear, the barrel was sent back to Krupp and rebored to a caliber of 238 mm (9.4 in) with a new set of shells.



The shell's explosive was contained in two compartments, separated by a wall. This strengthened the shell and supported the explosive charge under the acceleration of firing. One of the shell's two fuses was mounted in the wall, with the other in the base of the shell. The shell's nose was fitted with a streamlined, lightweight, ballistic cap – a highly unusual feature for the time – and the side had grooves that engaged with the rifling of the gun barrel, spinning the shell as it was fired so its flight was stable. Two copper driving bands provided a gas-tight seal against the gun barrel during firing.



The Paris gun emplacement was dug out of the north side of the wooded hill at Coucy-le-Château-Auffrique. The gun was mounted on heavy steel rails embedded in concrete, facing Paris. The Paris gun was used to shell Paris at a range of 120 km (75 mi). The distance was so far that the Coriolis effect — the rotation of the Earth — was substantial enough to affect trajectory calculations. The gun was fired at an azimuth of 232 degrees (west-southwest) from Crépy-en-Laon, which was at a latitude of 49.5 degrees North.



The gun was fired from the forest of Coucy and the first shell landed at 7:18 a.m. on 21 March 1918 on the Quai de la Seine, the explosion being heard across the city. Shells continued to land at 15 minute intervals, with 21 counted on the first day. The initial assumption was these were bombs dropped from an airplane or Zeppelin flying too high to be seen or heard. But within a few hours, sufficient casing fragments had been collected to show that the explosions were the result of shells, not bombs. By the end of the day, military authorities were aware the shells were being fired from behind German lines by a new long-range gun, although there was initially wild press speculation on the origin of the shells. This included the theory they were being fired by German agents close by Paris, or even within the city itself, so abandoned quarries close to the city were searched for a hidden gun. However, the actual gun was found within days by the French air reconnaissance aviator Didier Daurat.



A total of around 320 to 367 shells were fired, at a maximum rate of around 20 per day. The shells killed 250 people and wounded 620, and caused considerable damage to property. The worst incident was on 29 March 1918, when a single shell hit the roof of the St-Gervais-et-St-Protais Church, collapsing the entire roof on to the congregation then hearing the Good Friday service. A total of 91 people were killed and 68 were wounded. The gun was taken back to Germany in August 1918 as Allied advances threatened its security. The gun was never captured by the Allies. It is believed that near the end of the war it was completely destroyed by the Germans. One spare mounting was captured by American troops near Château-Thierry, but the gun was never found; the construction plans seem to have been destroyed as well.



In the 1930s, the German Army became interested in rockets for long range artillery as a replacement for the Paris Gun—which was specifically banned under the Versailles Treaty. This work would eventually lead to the V-2 rocket that was used in World War 2.
