Howdy-



Anybody know where I can get some good 3-views (with dimension, if possible) of a Le Rhone 9J?



In return, I've found some good drawings of several important machineguns:



http://www.arizonamodels.com/index.php/cPath/34_39



There are pages for Spanau, Parabellum, Vickers, Lewis, and Schwartzlose. Click on each gun type, and at the bottom of the page to order the kit, click on the link for the instruction manual. This brings up a PDF that includes good original drawings of the guns, as well as instructions to build the kits sold here.

Share this post


Link to post
Share on other sites

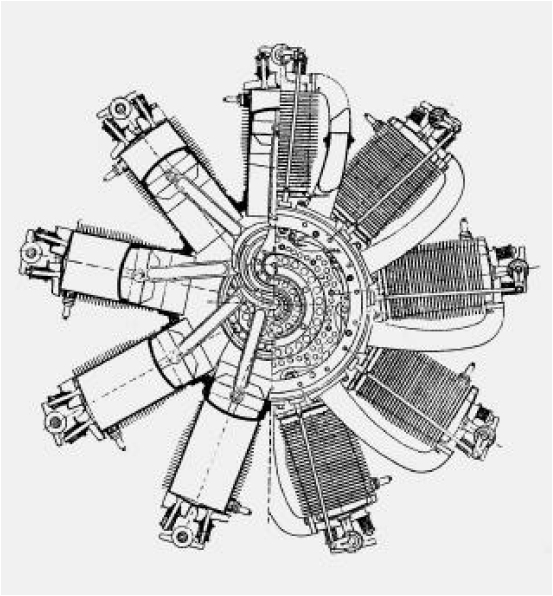

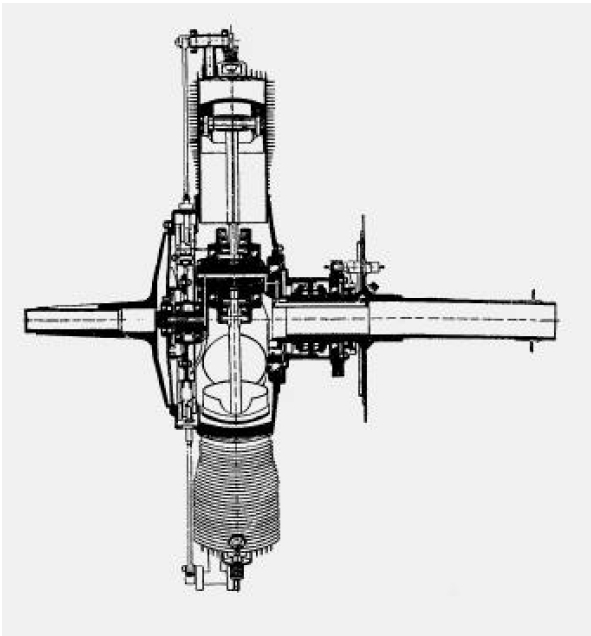

Can you make any use of these Bullethead?



Yeah, those are better than what I had--I can work off them. Thanks muchos. Now I just need the dimension so I can scale the thing. I can't find all the necessary dimensions, either.

Edited by Bullethead

Share this post


Link to post
Share on other sites

While we're on this subject, anybody got a pilot/observer figure they'd be interested in giving away?

Share this post


Link to post
Share on other sites

Well I searched around for awhile and I can't find any dimensions for the Le Rhone either. Just the bore and stroke.



-Rooster

Share this post


Link to post
Share on other sites

Well I searched around for awhile and I can't find any dimensions for the Le Rhone either. Just the bore and stroke.



Strange, ain't it? I can't even find any model kits of it, which would be the next best thing.



Maybe we can talk OBD into releasing Gmax versions of their detail parts for us to use..... I'm going to email them with that question right now. An OFF SDK as it were :).
