Yak-27R Aft Cameras Operation

[+FLOGGER23 3,064]

Hey guys, been working on this, kinda mysterious plane, and have just had little information, scarce pics (from a prototype)

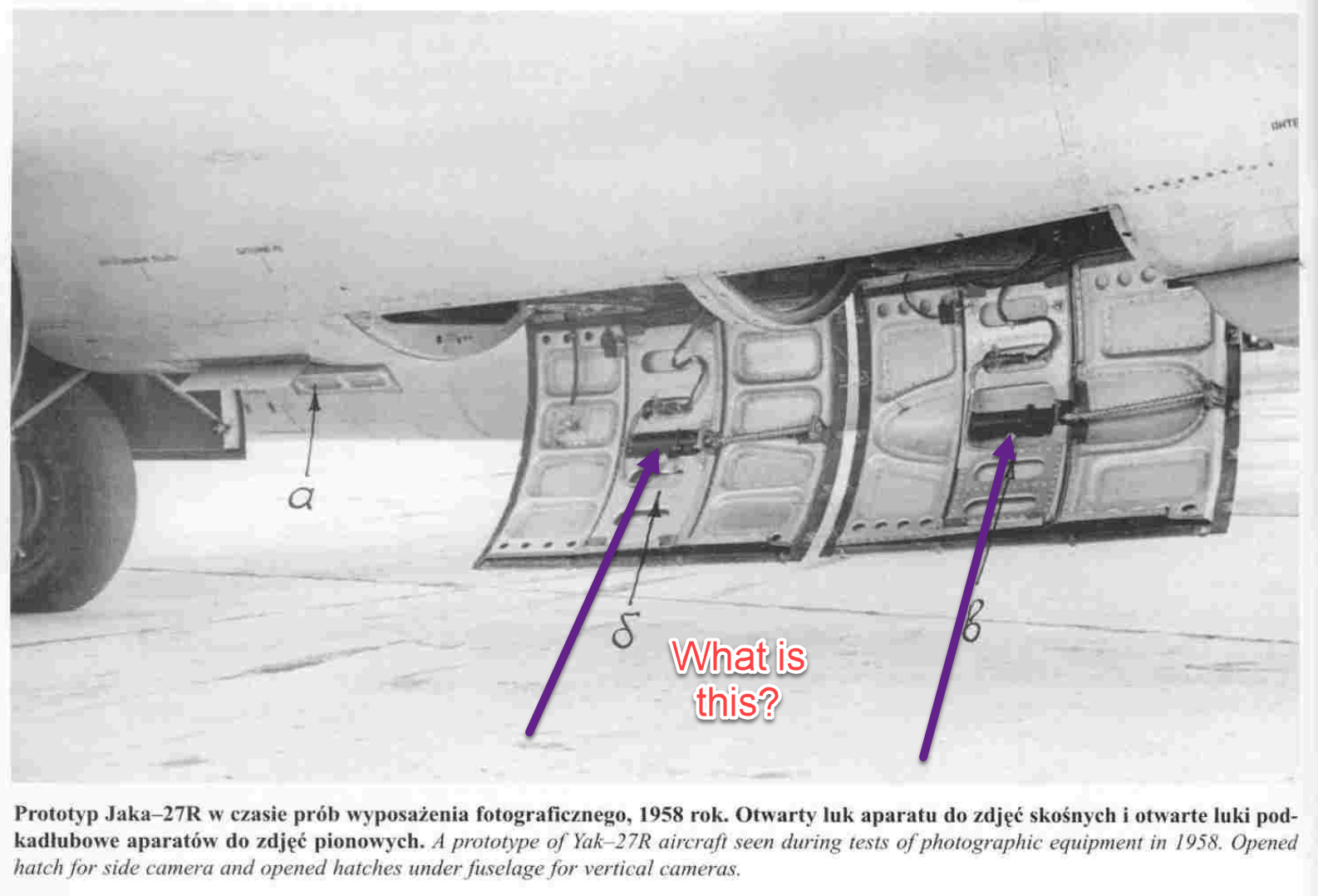

As you can see, i don´t think the door opened like this in flight, there seem to be a mechanism, but is all i have...

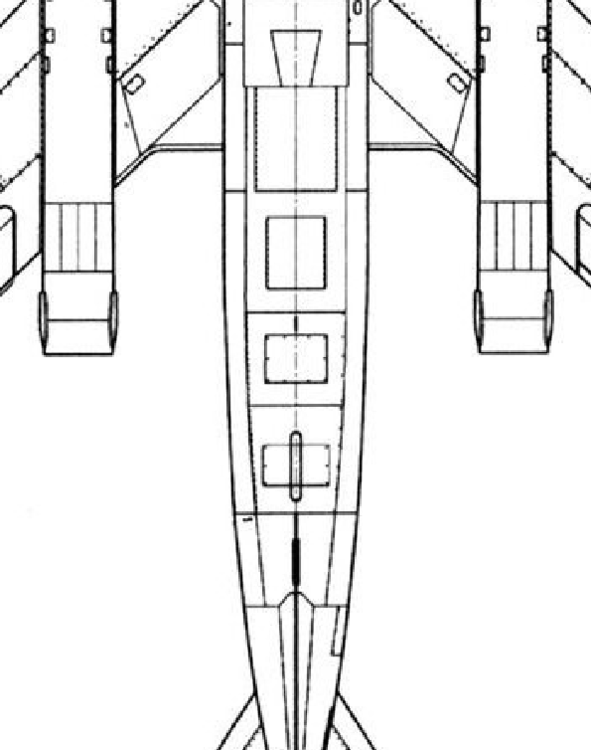

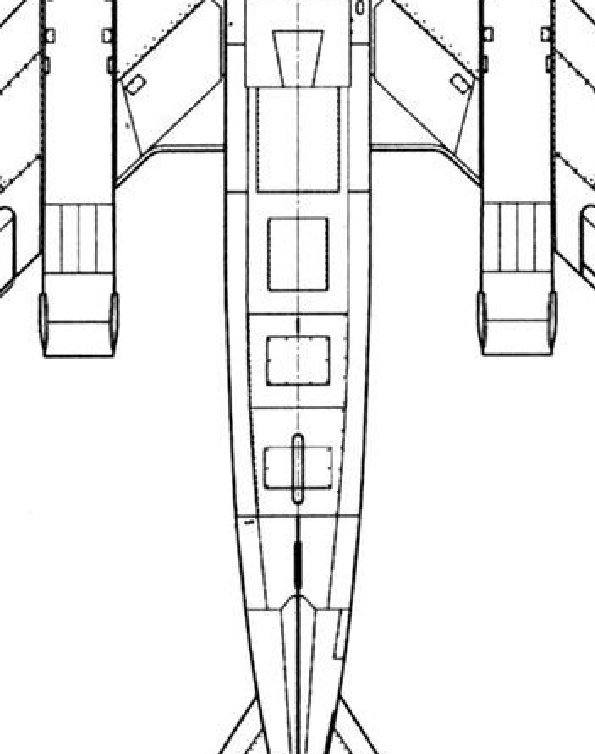

Sadly, the blueprints doesn´t help either

Any Help you may shed me i will greatly appreciate it.

[KJakker 902]

Looks like it might be some kind of actuator for sliding shutters on the inside of the panels that can be opened to expose the camera lenses in flight.

[+FLOGGER23 3,064]

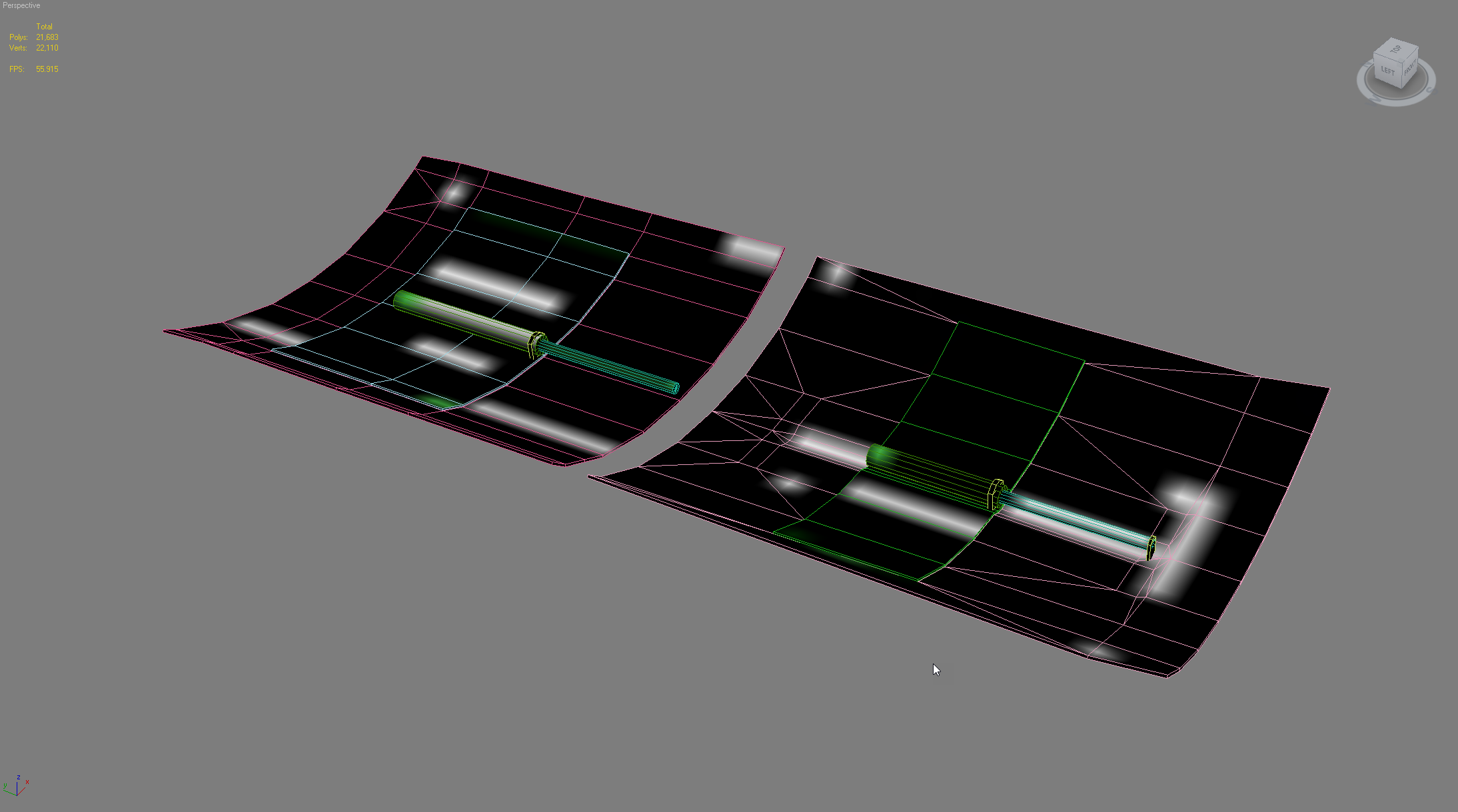

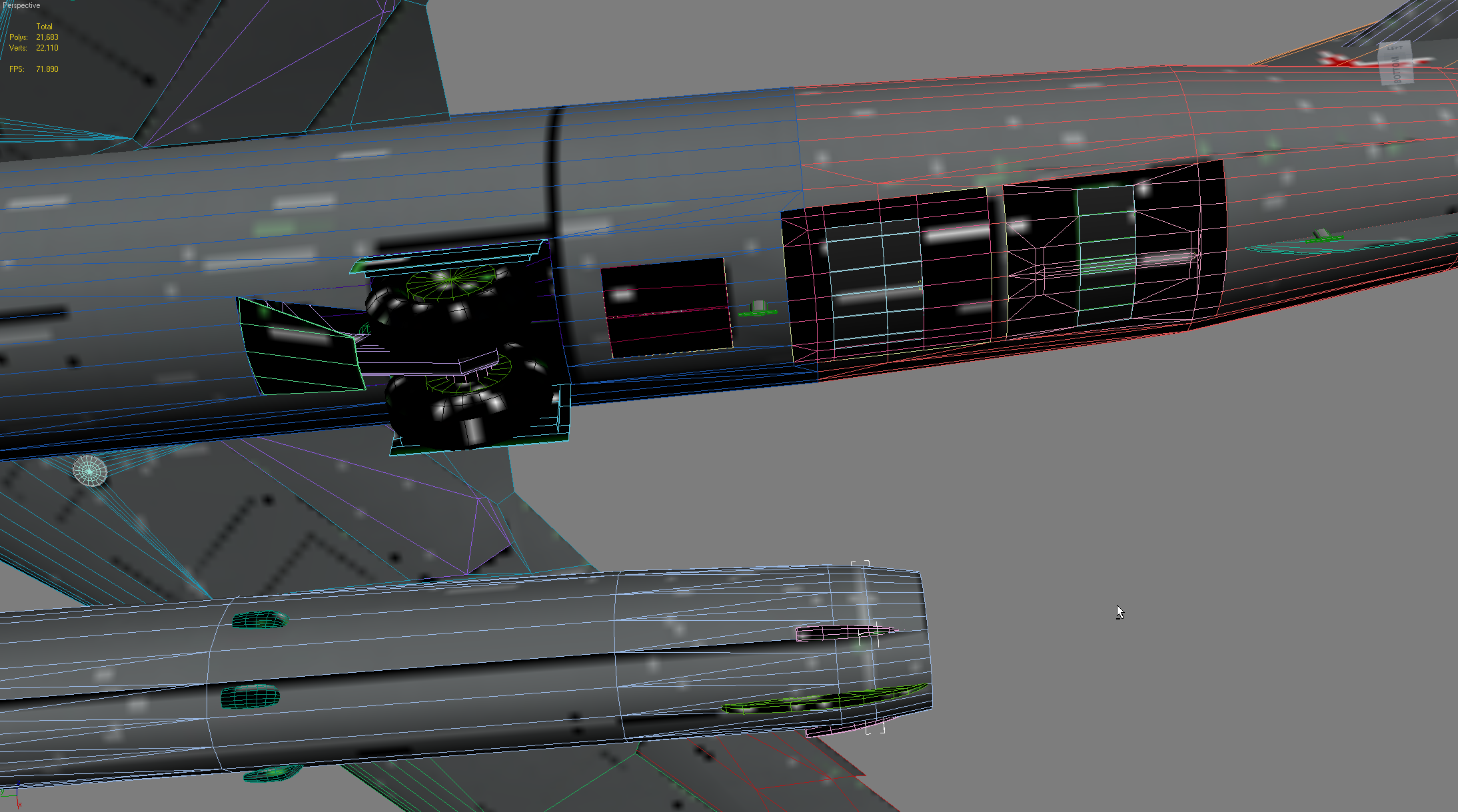

Should it be like this?

This Pic Should have the slide doors close of course :)

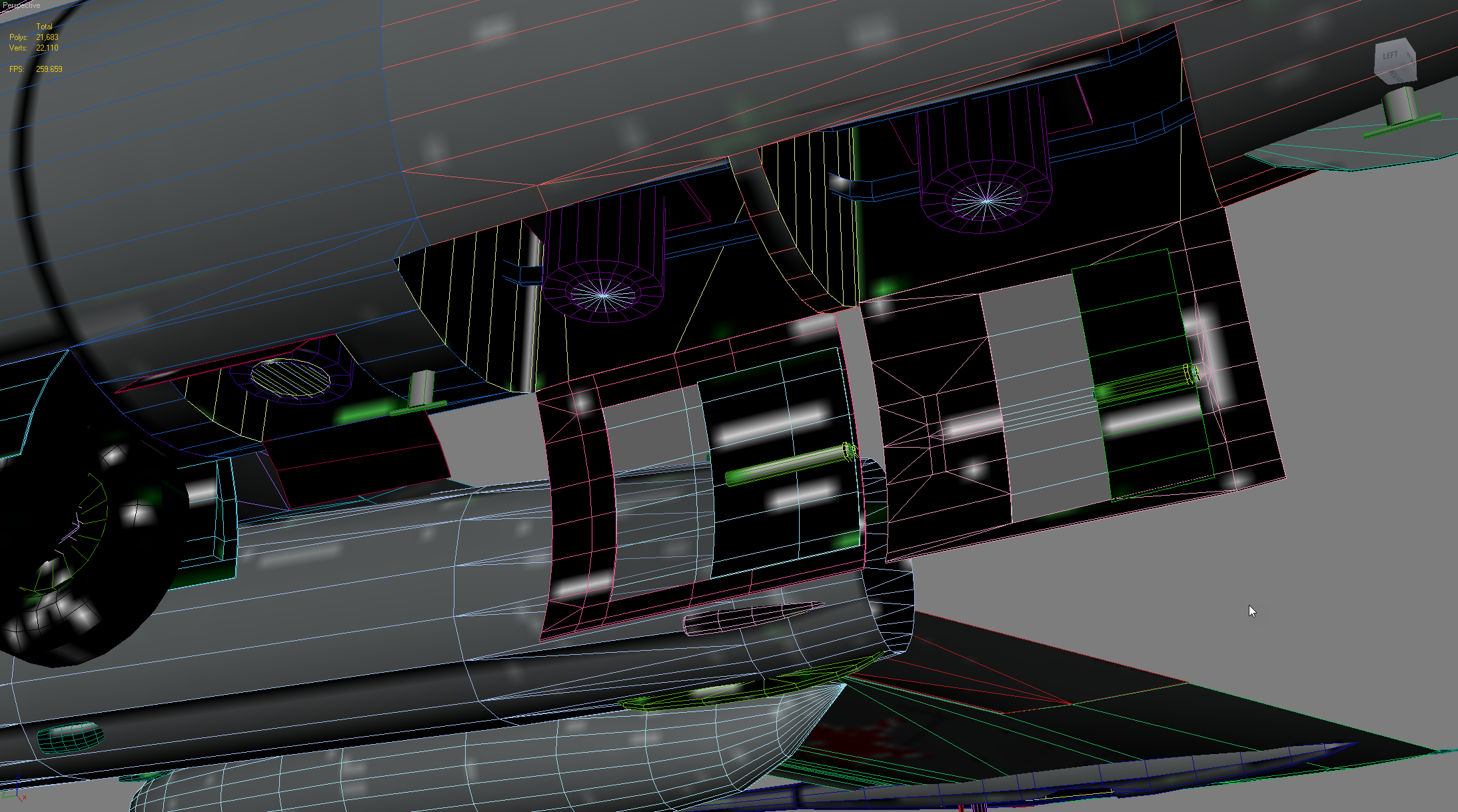

Like this
