JASDF F-4EJ threat display panel

ravenclaw_007
 Share

Recommended Posts

ravenclaw_007 Enthusiast

+ravenclaw_007

Posted
Posted

does anybody have some information of this Threat Display Panel from a JASDF  F-4EJ , i found almost all of the instrument / panels information to built that JASDF  F-4EJ_84 cockpit the only item that i have no clue what it actually shows is this panel

so PLEASE if you have some info or pictures showing that panel with all lights on posted here or send it to me  , THANK YOU

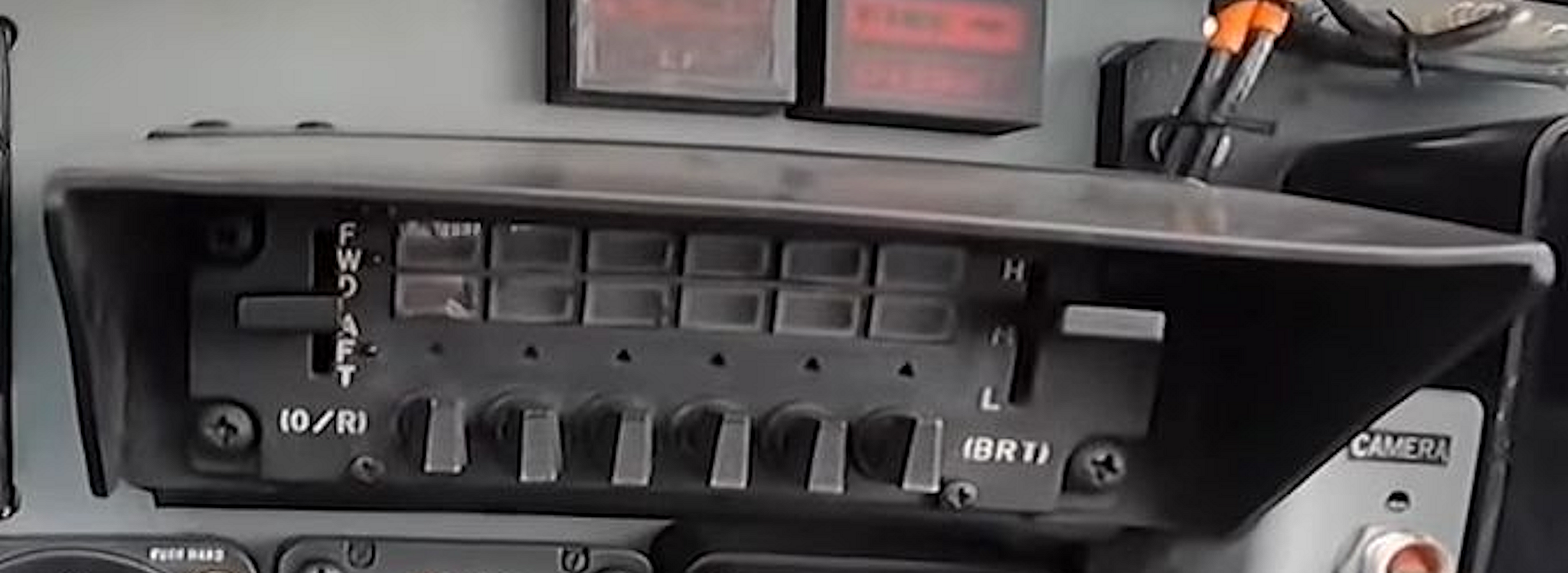

threat display panel from the rear cockpit
