3ds max help

[+Sundowner]

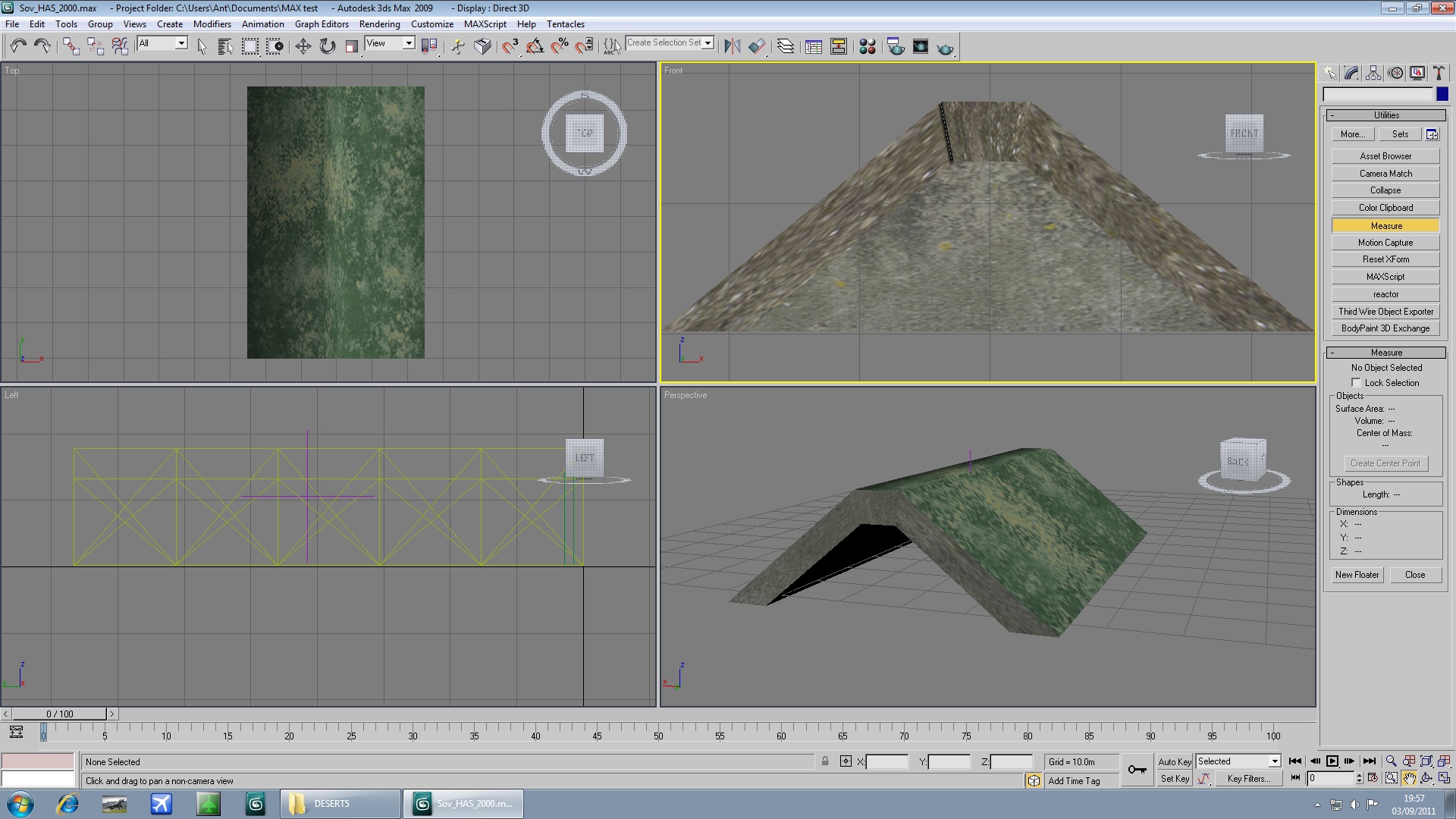

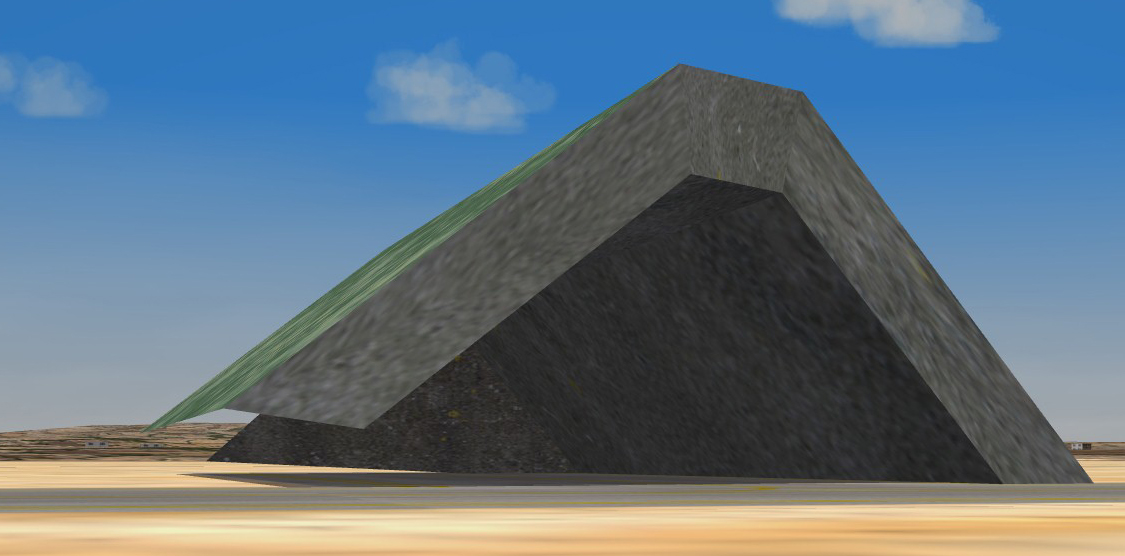

Ok guys be gentle with me here, I've made another hangar & in max itself everything looks fine to me but in game its tilted over to one side, I've tried 2 or 3 variations of it but I always end up with the same problem, strange as all the others turned out ok.



Have I done summat stupidly wrong & its staring me in the face..........





[+FastCargo]

Ant,



Have you done a Reset XForm? (Save the file first!)



Then, once you're done, make sure to do a proper Transform with the pivot point.



Also, if this is a multiple mesh model, unlink all the parts first, then Reset XForm each part, then Transform the pivots, THEN relink the parts.



FC

[+Sundowner]

Blimey m8....all way above my head, But I'll look into it.....thanks.

[+Sundowner]

Well Harold, I owe you one m8, I had'nt got a clue what you were on about but with the help of the 3ds help files I did everything you said and all is now good.





Many thanks m8.

[Heretic]

"Reset pivot" and "Reset XForm" can do wonders. :D



But there's nothing worse than modeling an aircraft, exporting it to the sim and noticing that it's backwards because the root node hasn't been oriented correctly.







- Edit:

Nice shelter, btw.





I still have models for grass walls in various lengths, Warsaw Pact style hardened shelters (open/closed), concrete blast deflector walls in various lengths and GDR style ramp lights in 3DS Max 9 formats that got used in a never released Trollenhagen airbase scenery in FSX.



If anyone wants them for SFP1/2 use, gimme a shout.

Edited March 10, 2011 by Heretic

[+Dels]

Another technique I use is to create a new mesh (usually a box) and set the pivot for it how I need it.

Then I attach the object I want to the box I have just made. (It takes on the pivot from the box)

Finally, I delete the verticies or faces for the box leaving only the object I want with the correct pivot.



Long winded but works for me when Reset Pivot or Reset XForm don't.



Dels
