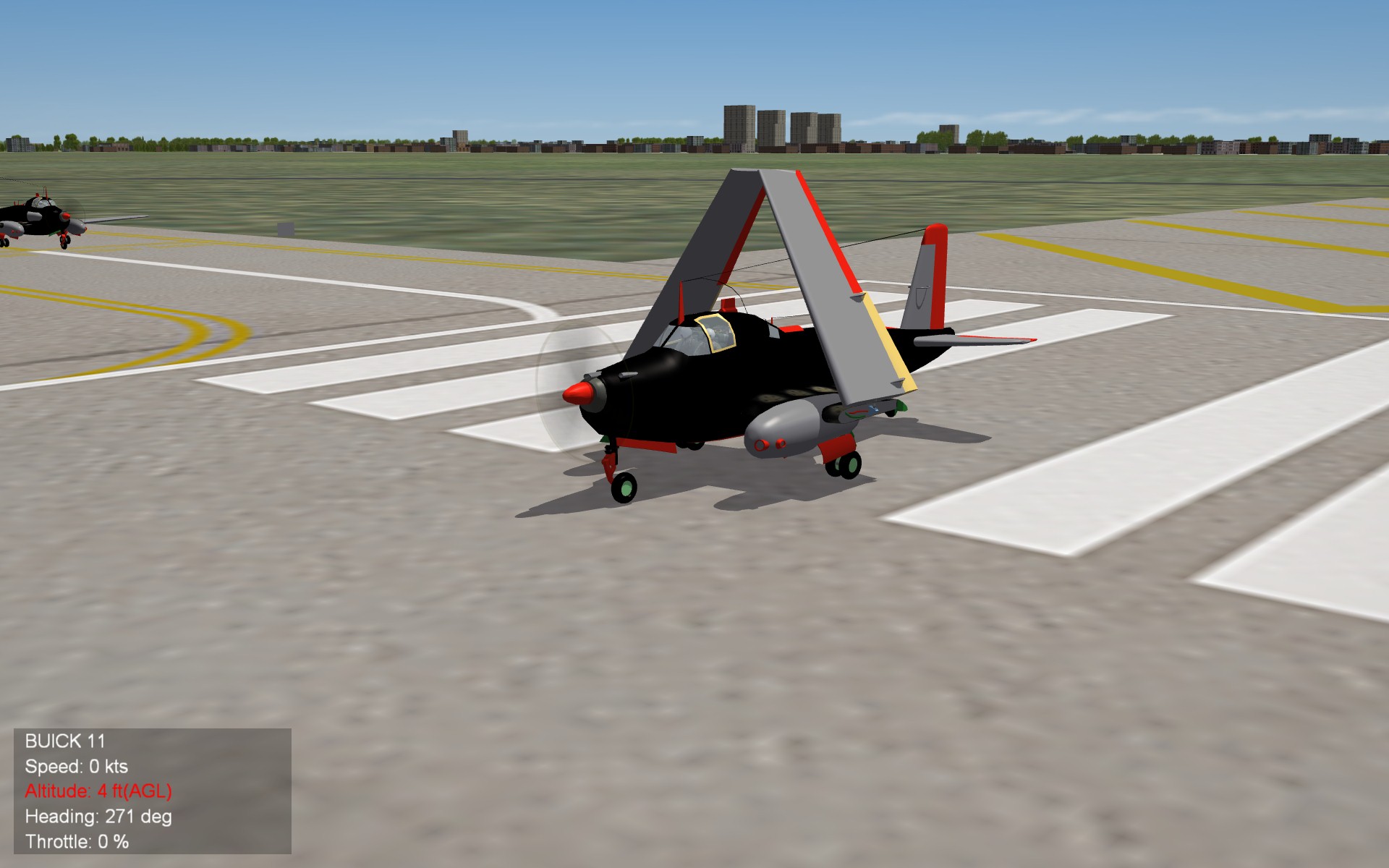

The minute the game loads before I can even take off, the plane gets damaged on the runway. what can cause this ? Collisin points ?, aircraft position in MAX ?


Posted

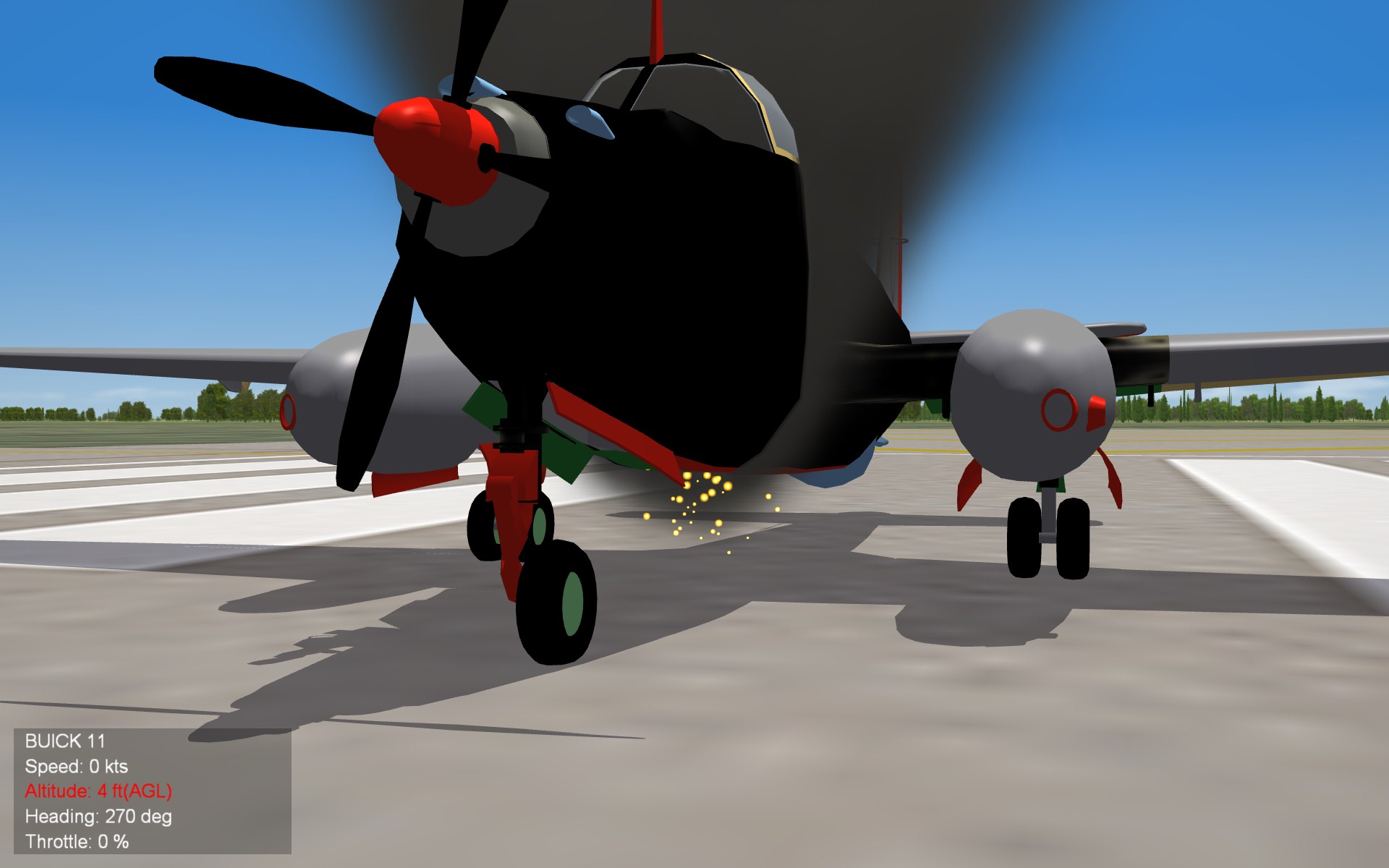

Ed, check the Prop Diameter in the Data.ini! Looking at the pic, the engine is damaged and most of the time it´s the diameter. Not sure why, but i got sometimes this result even with diameters that should work, but have success with values that are way to small. :grin:

Posted

this is the engine Specs



SystemType=PROP_ENGINE

InputName=THROTTLE_CONTROL

EngineID=1

SLPowerDry=1063000.00

ThrustAngles=0.0,0.0,0.0

ThrustPosition=0.0000,0.000,0.000

ThrottleRate=0.5

AltitudeTableNumData=10

AltitudeTableDeltaX=1524

AltitudeTableStartX=0.0

AltitudeTableData=1.000,0.990,0.990,0.990,0.990,0.990,0.970,0.700,0.100,0.000

TSFCM0=0.90

TSFCM1=1.26

SpinnerNodeName=Spinner

StaticPropNodeName=Prop

SlowPropNodeName=SlowProp

FastPropNodeName=FastProp

SlowPropRPM=600

FastPropRPM=2500

MaxPropRPM=3000

IdlePropRPM=500

BSFC=0.010

ExhaustEmitterName=CleanExhaustEmitter

ExhaustPosition=-0.5839,2.2828,-0.0172

FireSuppression=TRUE

MinExtentPosition=-0.69,2.12,-0.648

MaxExtentPosition=0.66,3.12,0.702

; new entries

AnimationID=

MaxPowerAnimationTime=0.1

MinPowerAnimationTime=0.3

PropRotationDirection=

ReversePropOrientation=FALSE

ConstantSpeed=TRUE

NumBlades=5

PropDiameter=2.00

MomentOfInertia=2.25

PropEfficiencyAdvanceRatioTableNumData=11

PropEfficiencyAdvanceRatioTableDeltaX=0.2

PropEfficiencyAdvanceRatioTableStartX=0.0

PropEfficiencyAdvanceRatioTableData=0.023,0.39,0.60,0.80,0.86,0.87,0.87,0.87,0.87,0.86,0.85

Posted

Try lowering the Prop Diameter:

Change PropDiameter=2.00 to PropDiameter=1.00 and see what happens. If the Problem still exists, play with the collision points or min max extension values.

Posted

Try lowering the Prop Diameter:

Change PropDiameter=2.00 to PropDiameter=1.00 and see what happens. If the Problem still exists, play with the collision points or min max extension values.





Yep thank you :salute:
