Construction cockpit Super Étendard - need documents

[+denissoliveira]

Construction cockpit Dassault-Breguet Super Étendard - need documents-

I need help with photos and documentation to end panel construction (cockpit) Super Étendard and Super Étendard Modernisé.

I need Manuel and photos in high resolution, who can help me.



(I can not create knowledge forum)

[Peugeot205]

Try this one:



http://www.avialogs.com/en/aircraft/france/dassault/superetendard/manuel-pilote-super-etendard-tome-1.html

[+denissoliveira]

I thank you !

Now I need the SEM - Super Etendard modernized

[Peugeot205]



I thank you !

Now I need the SEM - Super Etendard modernized





I would contact with the original creators of the fsx add-on.



http://www.mirage4fs.com/etendard_all.html



Ask for Romain Lucas or Laurent Lucas .

[jeanba]

You can post on C6 :

http://www.checksix-forums.com/viewforum.php?f=279

It is french and some poeple know very well the Super Etendard, you can post in english

If you want, I can post too

[+denissoliveira]

jeanba, could post in chh Forum about images and documentation from the cockpit of the SEM(Super Etendard modernized)? I need the weapons too SE (Super Etendard), sits just below the radar, on the right side.





FRPignon - contact by email usually takes, but if you can help me ...

[+Crusader]

I made a SuE HUD , radar still to do.

SEM HUD + radar is wip.



"weapons" .. in the SuE, the things below the radar are the RWR and the fuel tank transfer lights.

Those are wrong in the present (old) cockpit.

[+denissoliveira]

I'm also building a cockpit to SE and SEM, you have documentation of SEM?

[jeanba]

jeanba, could post in chh Forum about images and documentation from the cockpit of the SEM(Super Etendard modernized)? I need the weapons too SE (Super Etendard), sits just below the radar, on the right side.





FRPignon - contact by email usually takes, but if you can help me ...

Don't take it bad but I absolutly do not understand what you want me to ask about the supercetendard : pictural info ?

It is ok That you want pictures of sem cockpit

Edited August 18, 2016 by jeanba

[+denissoliveira]

I need the manual and photos of SEM instruments, the SE I have, but the SEM have little, want a more detailed cockpit SEM



Already complete cockpit Etendard IVM, and starting the SE, now the SEM do not have much details, pictures of low resolution only

[Eole]

Denis a useful link for the SEM weapons



http://www.ffaa.net/aircraft/super-etendard/caracteristiques.htm



as requested all the SEM cockpit I've got



some samples









SEM Cockpit views.7z



Still investigating for more ...

[+denissoliveira]

Friend, I was what I needed !!!! thank you so much !!! big !!!!! Perfect !!!!
Just need to know what would be the empty space, which instrument had there?

I already have the SE documentation, but would this resolution photo for SE?

Edited August 18, 2016 by denissoliveira

[Eole]

"Friend, I was what I needed !!!! thank you so much !!! big !!!!! Perfect !!!!"

You're welcomed

"Just need to know what would be the empty space, which instrument had there?"

none ... this space gained by the new SEM digital avionics replacing some old instruments.

I will search high resolution pictures for SE Std1 (Before the SEM upgrade)

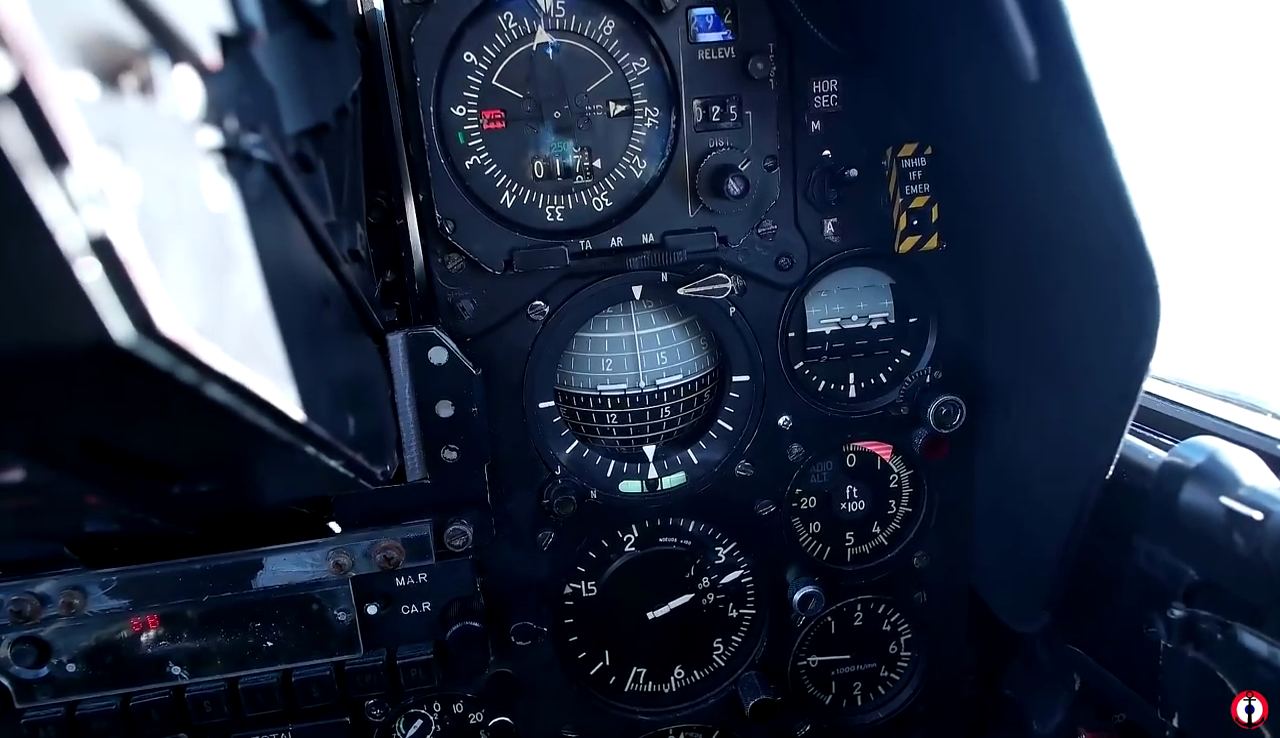

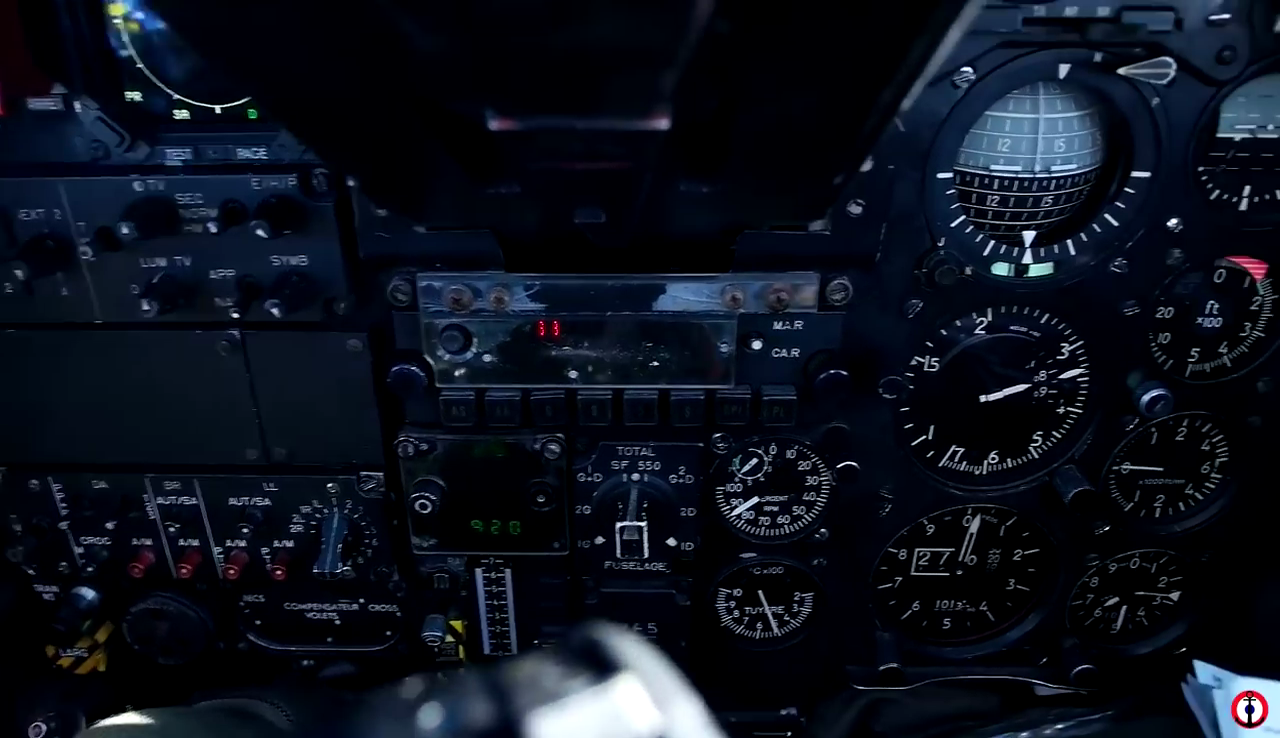

Here some close up views of the SEM



Prewiew

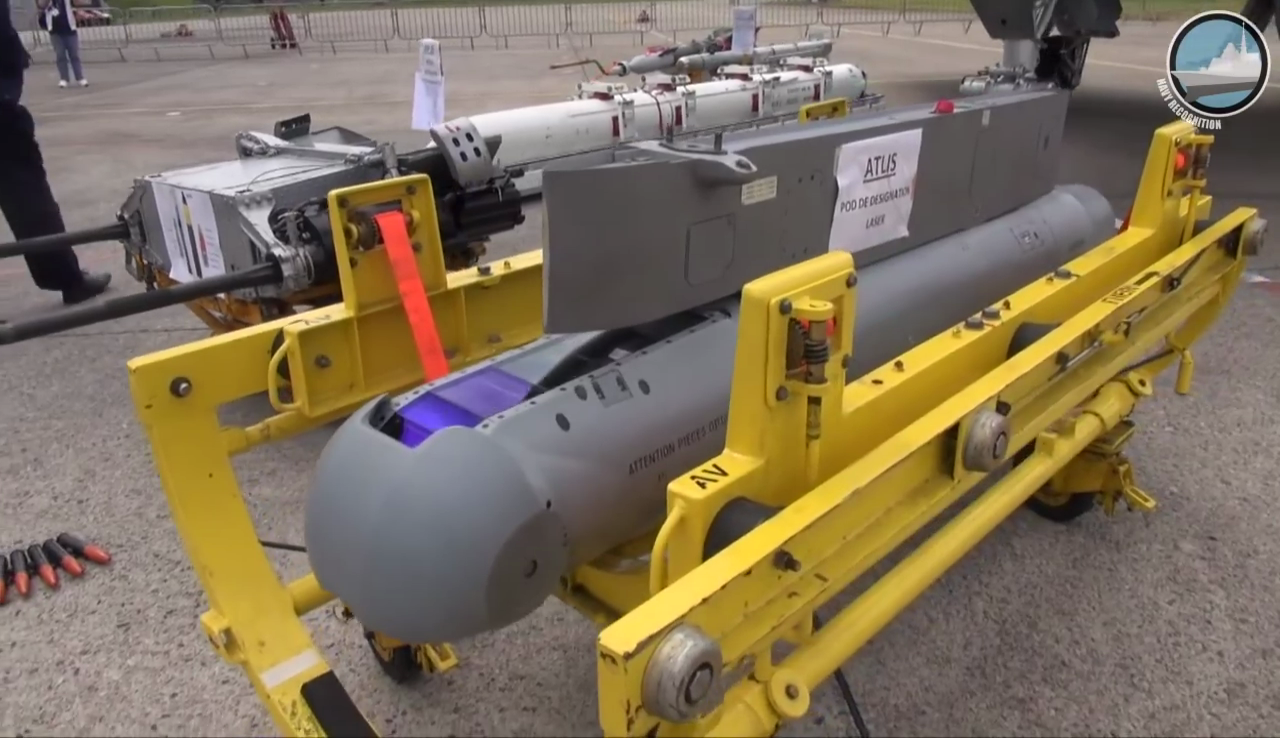

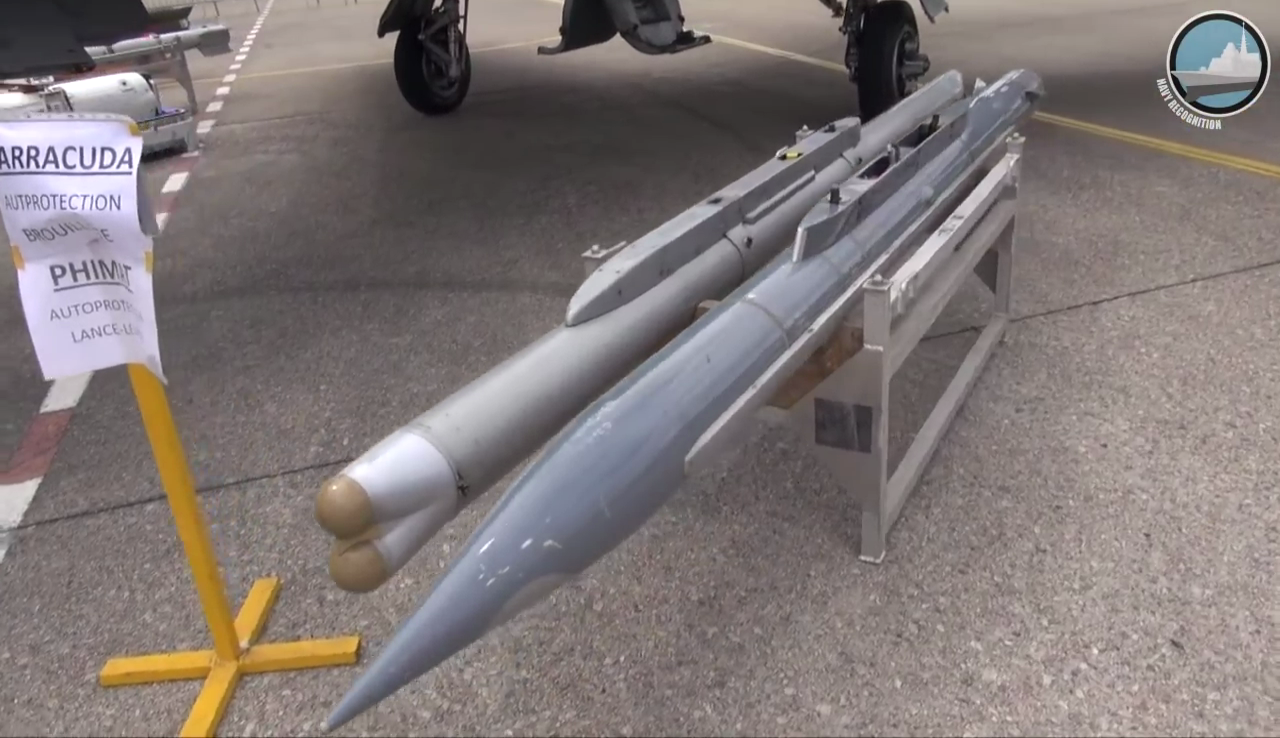

Weapons

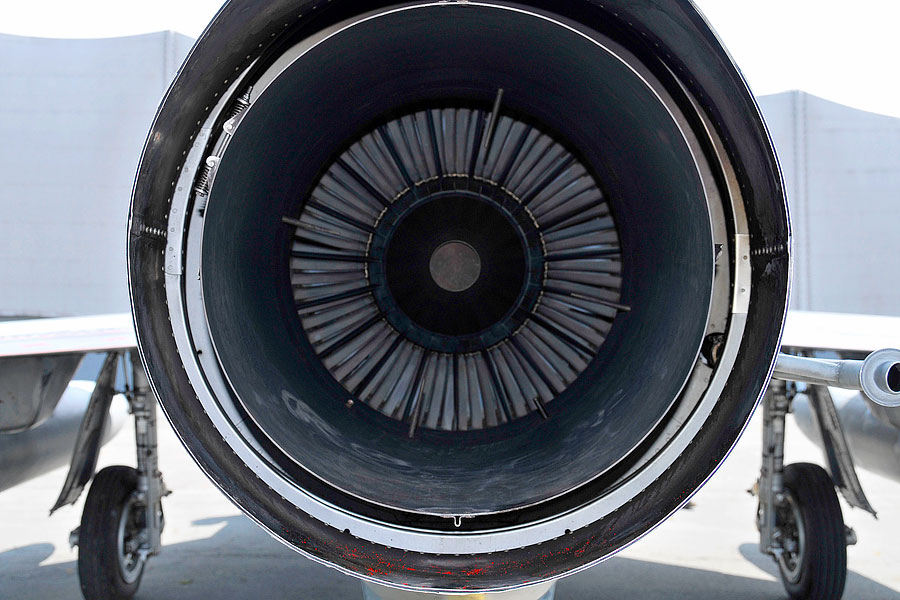

Engine rear view





1 - Close-Up.7z



Drawings



2 - Drawings.7z



Now for the skin part



1 - Profiles.7z





[+denissoliveira]

Now what I need is more pictures in HD panel of the SE (find SEM also worth) and central pilon of bomb for SE (2BR to create in SP2)



Thank you all for help!



[Eole]

From an old Falcon 4.0 - FreeFalcon 2D pit project 2005 (java scripted, GIF pictures format ... the good old times)



Edited August 24, 2016 by Eole

[+denissoliveira]

Need HD Photo the SE.

Etendard 4PM Cockpit



[+Crusader]

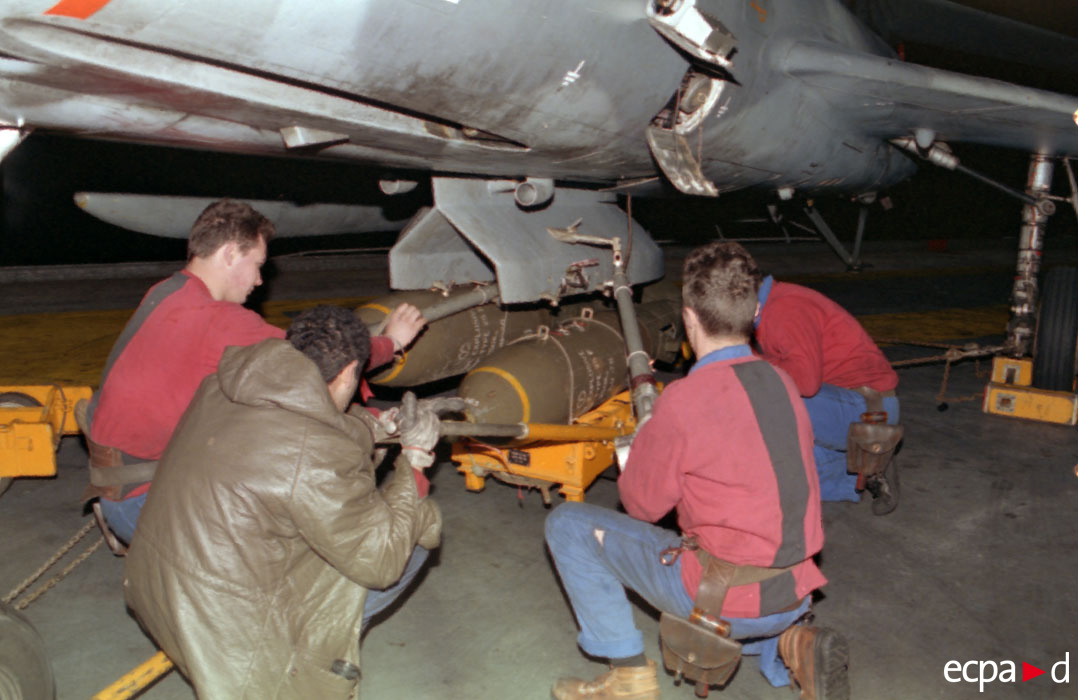

SuE fuselage bombrack, picture from ecpad.fr archive

[+denissoliveira]

Thank you !!!!!!!!!!!!!!!!!!!!!

[+denissoliveira]

I need more details RADAR

[Jimbib]

Page 247 at the following link may help...



http://www.avialogs.com/viewer/avialogs-documentviewer.php?id=1890

[+denissoliveira]

I need image to be able to create textures

[+Crusader]

CLB2  fuselage bombrack side-view



And SuE cockpit photo from the manual

[+denissoliveira]

I can access this manual with that image resolution? any link?

[+Crusader]

I have the hi-res manual, but its in my archive somewhere.

[+denissoliveira]

Friends, thank you !!! Already all right !!! Finished!
