I would like to finish this soviet / russian S-24 rocket and all i need to do ist the lettering of the skin



i have o make a skin for the

S-24................with blast-fragmentation warhead

S-24N.............with blast-fragmentation warhead with proximity fuse

S-24B.............penetrating warhead

S-24BNK........with shaped charge warhead



anybody who could translate this lettering to me and what exact rocket is this

and how the lettering for the rockets listed above look like , any hint is welcome

-






i´m almost finish with the 3d work for the S-24 only some minor items are missing

-



  • Like 1

Share this post


Link to post
Share on other sites

it is a S-24B (C-24Б) on your pic



S-24 = C-24

S-24B = C-24Б

S-24N = C-24Н

S-24BNK = C-24БНK



penaratahiti

Share this post


Link to post
Share on other sites

Thanks :good:



the other letters can be used for all other versions or are there any that needs changing ???

Share this post


Link to post
Share on other sites

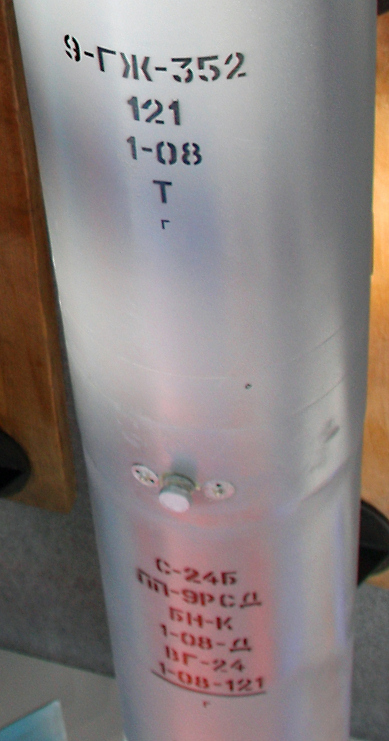

9-GŽ-352

121

1-08

T

G





S-24B

PP-9RSD

BN-K

1-08-D

VG-24

1-08-121

Share this post


Link to post
Share on other sites

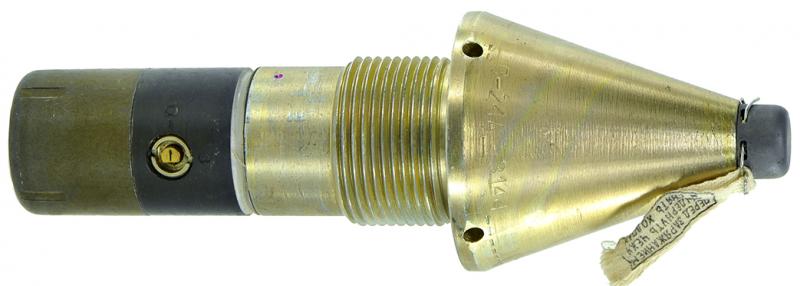

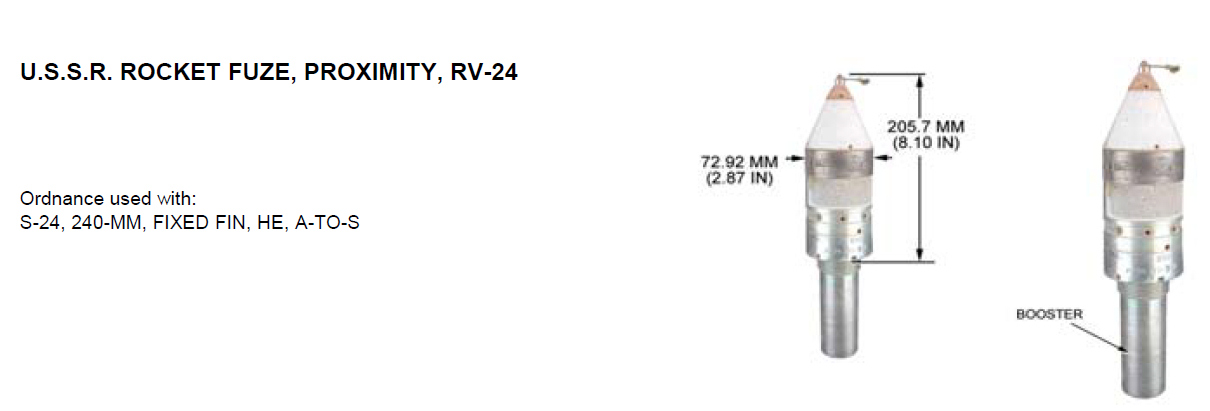

anybody with a good picture of the russian RV-24 proximity fuze ??? all i have is this picture

-




for the V-24A fuze i found some good pictures but none for the RV-24

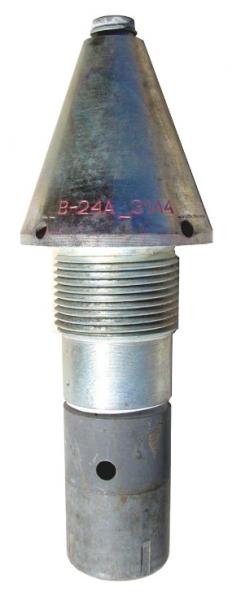

V-24A fuze

-







the S-24 looks like this now

-
