AA-9 AMOS

[+Veltro2k 6,351]

.....

Edited December 20, 2006 by Veltro2k

[+Dave 2,322]

God that is a big missile.

[+Veltro2k 6,351]

God that is a big missile.



Yep...its BIG!!!





[Anhnguyen 0]

Here's some pics

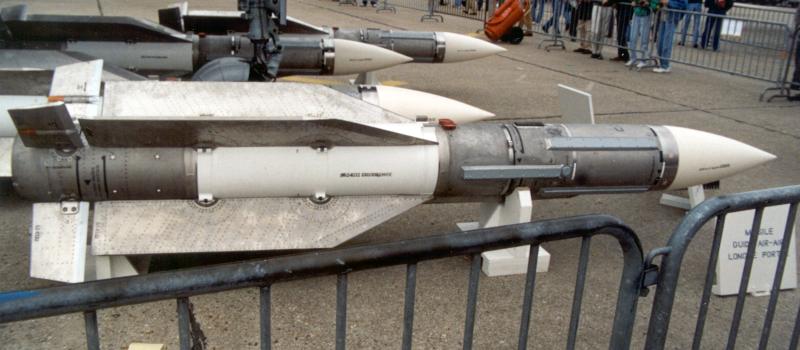

Vympel R-33 Amos



Comparation between MiG-31 and AA-9, 6 can be carries on MiG-31



Amos



1.GCN(?)

2.Reception Aerial RV

3.Отрывной разъем (?)

4.Contact device

5.Radio Detonator

6.Autopilot

7.Executive Mechanism

8.Fighting part

9.Transferring aerial RV

10.Forward ski lift with contact of start RDTT

11.Solid Rocket Engine RDTT

12.Back ski lift

13.Razo(?) Generator

14.The block of disclosing of a rudder

15.Steering drive

16.The aerial of basic signal RLS(?)

Edited December 23, 2006 by Anhnguyen

[Platinum Rogue 48]

Phoenix-ski! If they shoot these at you, you want to be somewhere else, very fast Had a lot of fun dodging them in Flanker 2
