kukulino Posted November 29, 2007 Posted November 29, 2007 (edited) Hi pilots again I got drawning Su-22M4 gunsight from czechoslovak pilot (he flew Mig-21, L-29, L-39, Su-22). We have Su-17, I know. But no problem I think :yes: So, look on this drawning. On first drawning is cannon gunsight, on second gunsight for rockets, bombs and cannon too. It is not coplicated, I think. On third drawning are gunsight controls, on fourth are weaponstations signals (they are working on Su-17 pit). Notes are in slovak language. What do you thing, guys? Edited November 29, 2007 by kukulino Quote
kukulino Posted November 29, 2007 Author Posted November 29, 2007 (edited) Thanx. I am happy. But you can be happy too We can make new gunsights for Fitter I do not understand that .inis and .tgas and avionic files. But I can share with you guys with this picture, and we will see :yes: I sent this picture to my friend gerald14. So he can make something like that drawnings, I hope. If he has time for it. We have many HUD gurus here :fans: Edited November 29, 2007 by kukulino Quote
Silverbolt Posted November 29, 2007 Posted November 29, 2007 xD so we are 2 :( Su-22 in SEAD missions, the great soviet WW classic as F-4 xD Quote
Viggen Posted November 29, 2007 Posted November 29, 2007 Ah finally, people who would like the Su-22 as much as me. I'll do as much as possible to make our export Fitter come to life. Quote
kukulino Posted November 29, 2007 Author Posted November 29, 2007 (edited) xDso we are 2 :( Su-22 in SEAD missions, the great soviet WW classic as F-4 xD Do not be afraid man We have many friends here (modders, .ini gurus). And there are many pilots which love Fitters, here on CA :pioneer: Edited November 29, 2007 by kukulino Quote
kukulino Posted November 29, 2007 Author Posted November 29, 2007 (edited) I have some notes for Su-22 ground attack tactics. They are translated to english by dannn. VERY BIG THANX TO HIM!!! SU-22 M4 is equipped with container KDS-23 firing infra red and atiradar rounds and can, as well, use the antiradar unguided rockets and rounds of the NR-30 cannon or GS-23 cannon pod for its own protection. KDS-23 - two cartridges, each loaded by six of infra red (flares?) or anti radar rounds or their combination. Anti radar rounds - to avoid automatic tracking of an aircraft by the radar of an enemy aircraft, four rounds are fired in an interval of 0.05 sec. Two rounds are enough to avoid tracking by anti-aircraft missile base radar. Infra-red rounds - to avoid automatic tracking by anti-aircraft missiles, one round is fired before and one after the launch of the missile. Two rounds are fired as a defence against guided missiles. 0.3 sec after the round has been fired, a source of infra-red radiation is created near the aircraft to which the missile is redirected. The compound burns for at least 8 sec. Anti radar rockets and rounds (in the wing station containers) - 2-4 unguided S-5P1 rockets or 5-6 NR-30 cannon rounds or 8-10 GS-23 cannon pod rounds are fired to create clouds of the dipolar refractors in the distance of 3-5 km from the firing point. The store of the unguided rockets is depleted within 8 trigger squeezes. The store of the rounds is depleted within 10-14 short bursts. The required time of the radar jamming effect is managed by two salvoes of S-5P1 rockets (two bursts) in the interval of 1-2 sec. in between. Characteristics of formation of two aircraft in cooperative defence: While using SPS-141 – 250-300m between the aircraft with monitoring angle of 30 degrees and inclination 50-100m While using anti radar rockets and rounds – 200m between the aircraft with monitoring angle of 30 degrees and inclination 0m While using the container KDS-23 with infra-red and anti radar rounds – 100m between the aircraft with monitoring angle of 30 degrees and inclination 50m Formation is “staggered to the right”. THANX dannn AGAIN Edited November 29, 2007 by kukulino Quote
+nele Posted November 29, 2007 Posted November 29, 2007 There's a problem with Su's, since it is harder to get manuals or "behavior" info. It seems that "Fitter" was quite "boring" Quote
gerald14 Posted November 29, 2007 Posted November 29, 2007 There's a problem with Su's, since it is harder to get manuals or "behavior" info. It seems that "Fitter" was quite "boring" Yeah that's true. I have a Russian friend who flew the Su-17M-4 (S-54) Fitter K and then the Su-25 but I didn't really talk to him in long time. I'll see if he got some pics and info on this bird. Same thing for the Su-7 Quote
Viggen Posted November 30, 2007 Posted November 30, 2007 I've got a book that has about 6 pages on Fitters. Lemme know if you need anything in them Quote
+Crusader Posted November 30, 2007 Posted November 30, 2007 (edited) -- Edited November 30, 2007 by Crusader Quote
gerald14 Posted November 30, 2007 Posted November 30, 2007 (edited) I made this december 2006 ... That's nice! I am making the Rocket,bomb and cannon sight. I am not sure what color it is. Also the sight you make needs the range bar and range setting also. Edited November 30, 2007 by gerald14 Quote
+Crusader Posted November 30, 2007 Posted November 30, 2007 it has the rangebar.. the pic shows CCIP Quote
gerald14 Posted November 30, 2007 Posted November 30, 2007 My bad! I didn't read or see it well then! Any way nice work! Quote
kukulino Posted November 30, 2007 Author Posted November 30, 2007 (edited) That's nice! I am making the Rocket,bomb and cannon sight. I am not sure what color it is.Also the sight you make needs the range bar and range setting also. I am sorry, I forgot say anything about colour It is yellow colour. I found one Su-7 pit, I mean picture: http://www.aviation.ru/jno/Prague98/su7bkl_cockpit.jpg It is ooooold poster. Edited November 30, 2007 by kukulino Quote
+Soulfreak Posted November 30, 2007 Posted November 30, 2007 I would be happy to see a more realistic SU-22. But i´m no 3d- or iniguru... :( Quote
kukulino Posted November 30, 2007 Author Posted November 30, 2007 (edited) I would be happy to see a more realistic SU-22.But i´m no 3d- or iniguru... :( Ohh, you are paint guru Edited November 30, 2007 by kukulino Quote

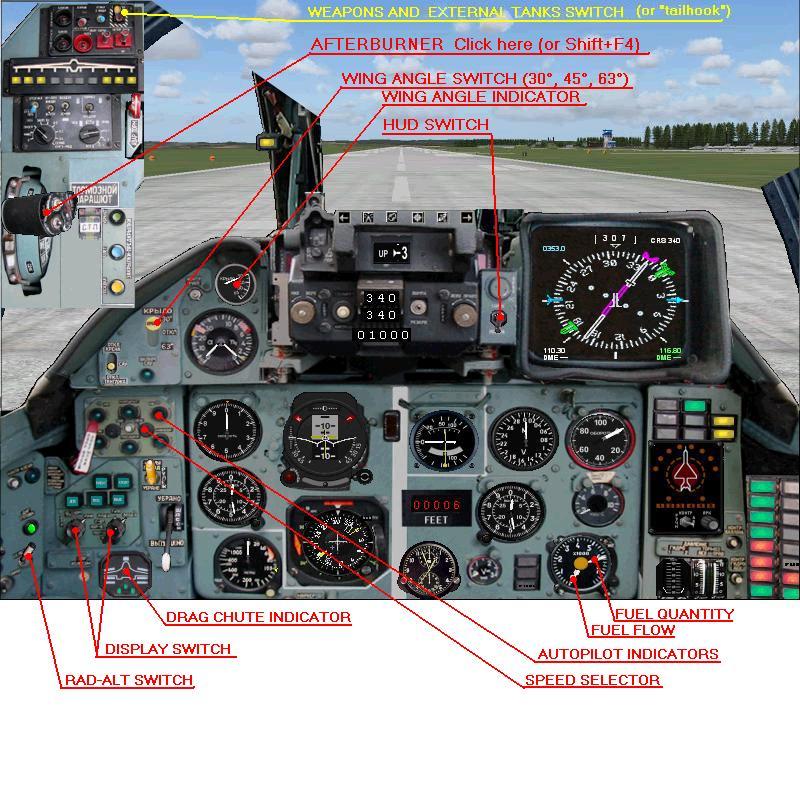

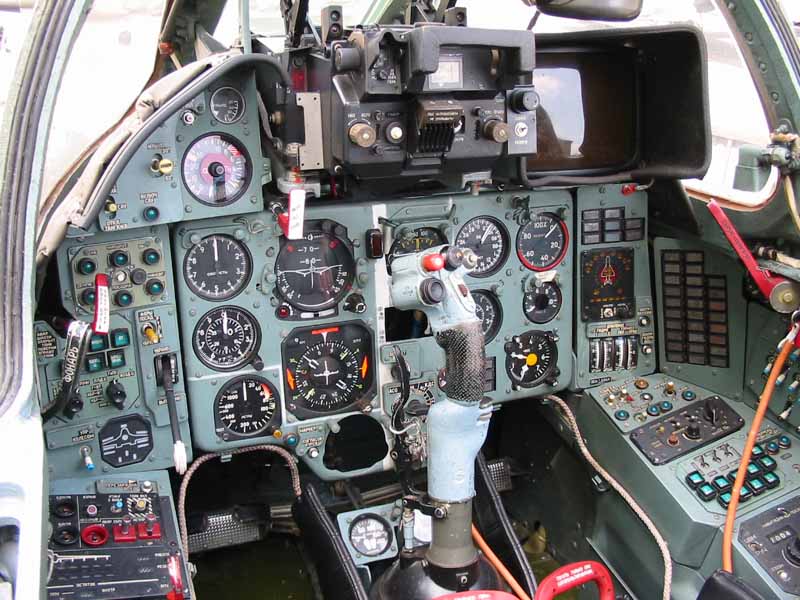

Ice999man Posted June 16, 2008 Posted June 16, 2008 Hi. Here a photo real su22m4 and su22 from MFS... If you make it for VOI, there will be cool! My father the former pilot Su22m4. It can give recommendations about all questions. Quote
Erwin_Hans Posted January 21, 2009 Posted January 21, 2009 Hi. Here a photo real su22m4 and su22 from MFS... If you make it for VOI, there will be cool! My father the former pilot Su22m4. It can give recommendations about all questions. WOW! Quote
+krizis Posted January 21, 2009 Posted January 21, 2009 Hi. Here a photo real su22m4 and su22 from MFS... If you make it for VOI, there will be cool! You have a 2D cockpit only, right? Have no clue how can it work in any TW sim. PS. calm down guys, I'm planning to do completely new cockpits for some soviet planes including Su-17. With time. Quote
+76.IAP-Blackbird Posted January 21, 2009 Posted January 21, 2009 new pits are always welcomed!!! Quote

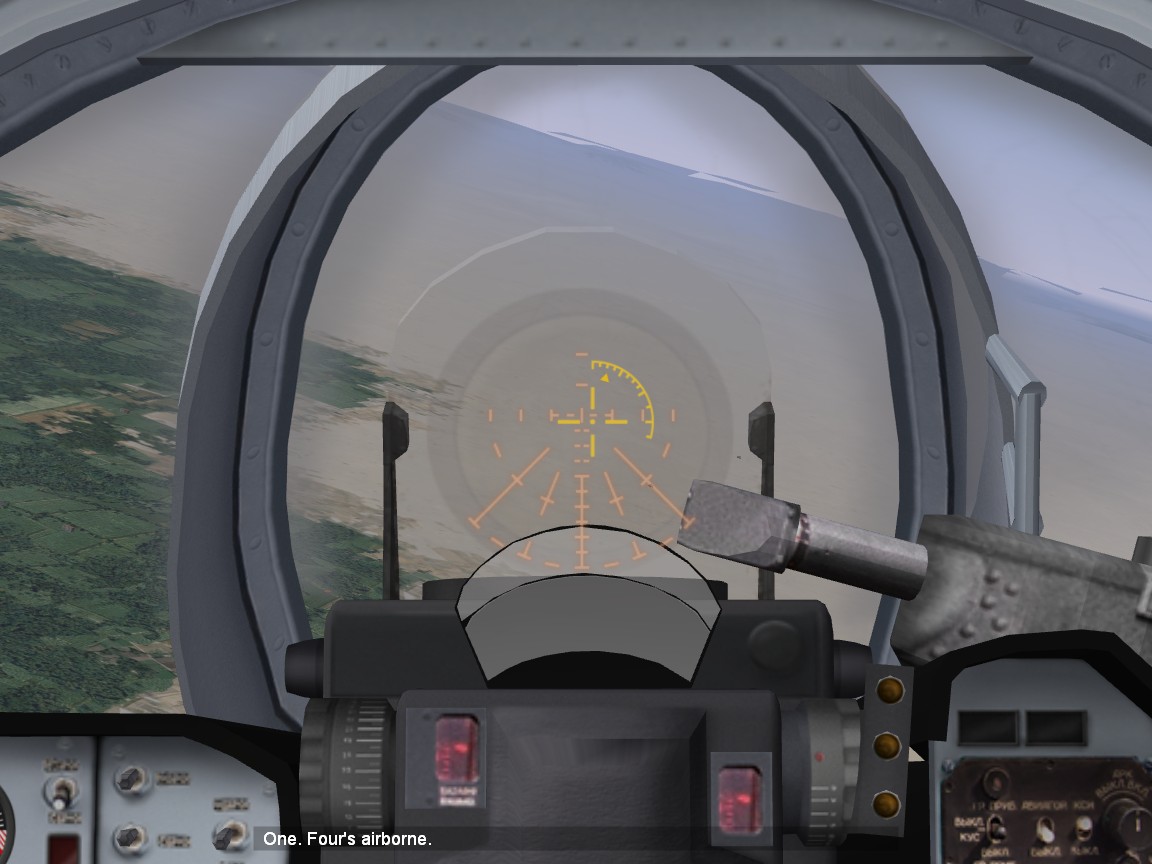

+The Trooper Posted January 21, 2009 Posted January 21, 2009 Does anybody know how to make the rangebar work in A/G mode? Quote
Erwin_Hans Posted January 22, 2009 Posted January 22, 2009 Hi. Here a photo real su22m4 and su22 from MFS... If you make it for VOI, there will be cool! My father the former pilot Su22m4. It can give recommendations about all questions. I mean, isn't it looks like Su-39Pit? Quote
+krizis Posted January 22, 2009 Posted January 22, 2009 Negative. They could seem similar at first glance only. There are a lot of differences, not only in the instrument layouts. Quote
