jcpuccio

f-4 phantom II air intake

Recommended Posts

post-59847-12735549731705.jpg Does anyone here, (maybe a Phantom pilot) know what purpose that small piece of metal next to the air intakes had???....it looks like it's almost made to cover up the air intake from air flow but that couldn't be i don't think...also, does it move at all?...thanks - jcpuccio

Share this post


Link to post
Share on other sites

That's not an F-4, it's an F/A-18F Super Hornet.



Secondly, can you point out the specific intake and specific 'piece of metal' you are talking about?



FC

Share this post


Link to post
Share on other sites

I think he means this bit, F-4 Phantom Intake i think it's to slow air intake speed at MACH?

Share this post


Link to post
Share on other sites

Possibly serves to separate normal intake airflow from the air streaming along the nose. At least on Flogger it does just that.

Share this post


Link to post
Share on other sites

it was movable and served to reduce the effective airtake aperture, in accordance of the air speed.other aircrafts such as f104, mirages and mig 21 used cones or semi-cones that moved in front in high speds and back to low speeds, for the same reason

Share this post


Link to post
Share on other sites

Turbojet and turbofan engines cannot effectively use supersonic air. The front blades on the compressors set up shockwaves and the engines compressor stall or flameout.

The air coming in the intake has to be slowed to subsonic speed for the engines to use it effectively.

You will see that all supersonic capable aircraft have some sort of device in or near the intakes to slow or change the airflow.

The devices on the F-4's were variable inlet doors.

They would move the supersonic shockwave far enough out front of the intakes.

They would also slow the air to subsonic speed.

If you ever heard that high pitched whistling noise on an F-4 or any supersonic capable aircraft in the landing pattern,it's the variable inlet doors moving to disrupt the airflow for the engines to use the air more effectively.(It's the air molecules screaming in pain) :rofl:

At least that's what they taught me in F-4 NATOPS training.

Share this post


Link to post
Share on other sites

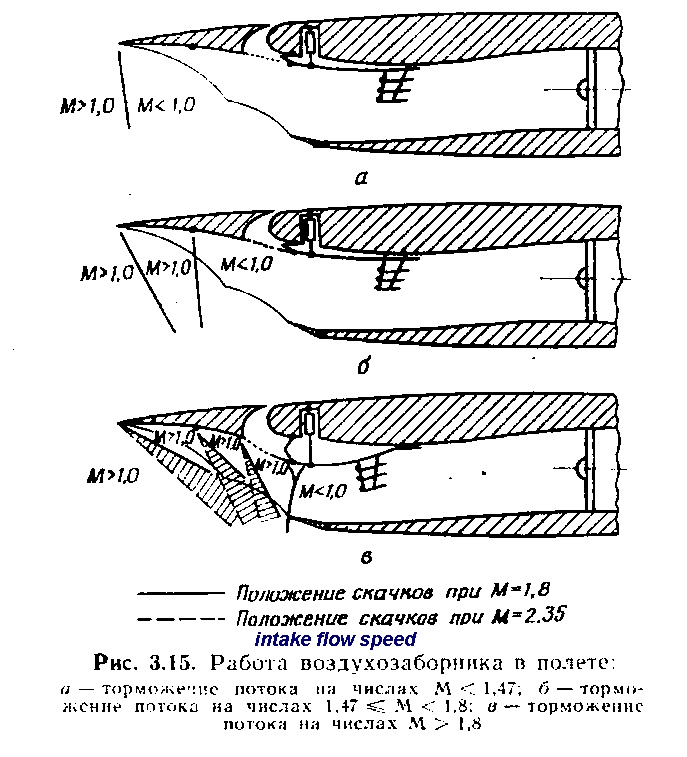

That's how it works on MiG-25. Airflow is slowing down in stages.




BUT, the shield there also separates intake air from boundary layer.

Share this post


Link to post
Share on other sites

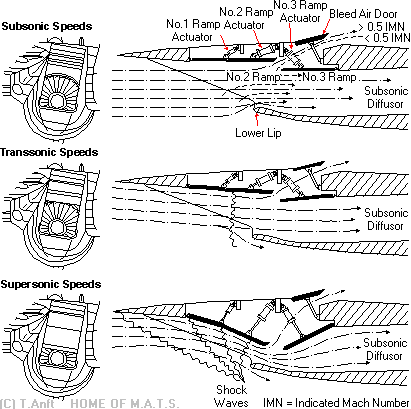

The F-14 uses a similar method for the same reasons.



Graphic from Torsten Anft's MATS.


Share this post


Link to post
Share on other sites

That's the unique part of a scramjet...it can use supersonic air.

Share this post


Link to post
Share on other sites

Doesn't a scramjet require supersonic air?

Share this post


Link to post
Share on other sites

Yes, otherwise it's just a ramjet. :biggrin:

Share this post


Link to post
Share on other sites

Ramjet, Scramjet, Ram Jam, it's all good to me! :cool:
