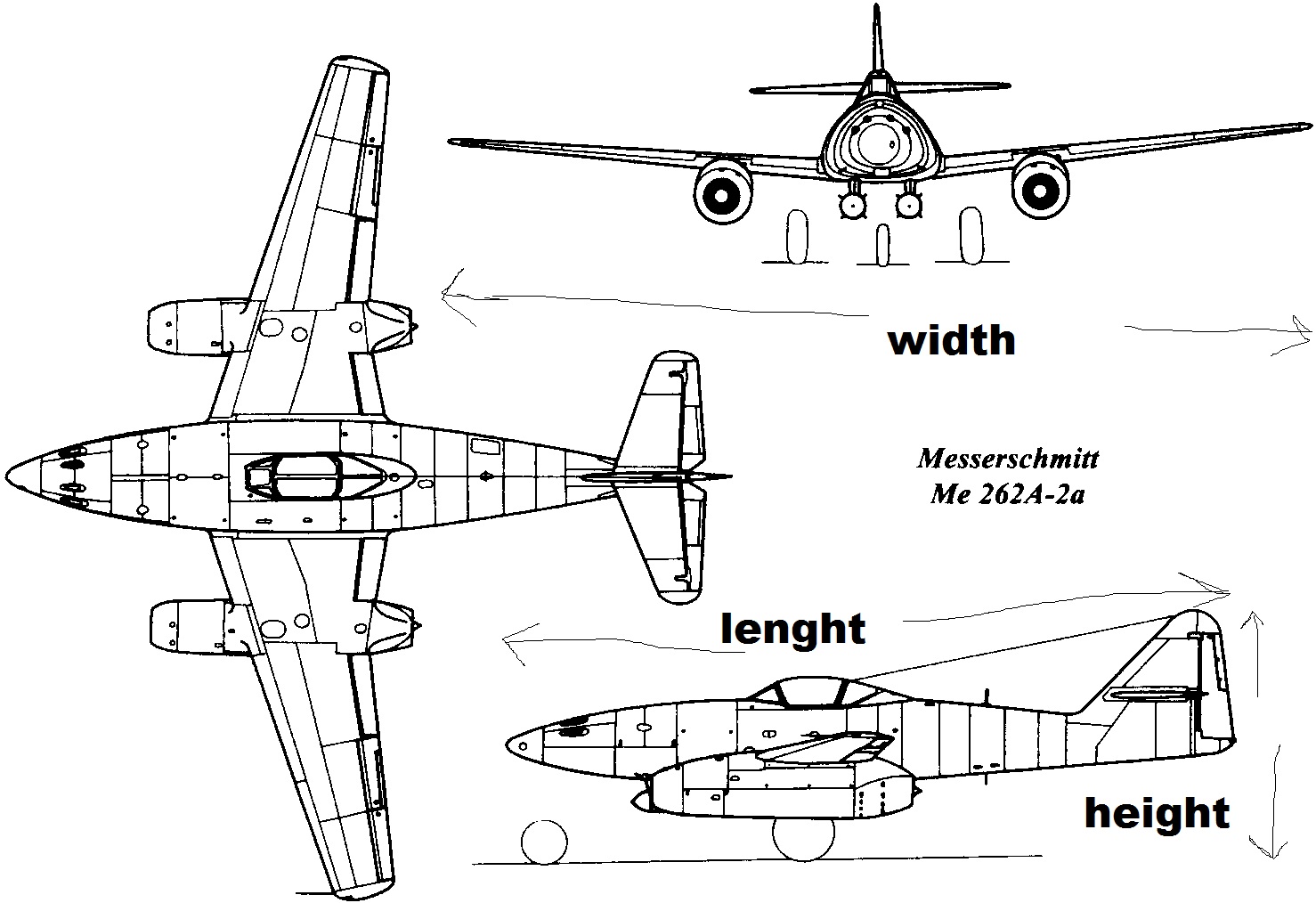

when I make my 3-views I use this method



Length =Prop hub tip to back of vertical tail

Width = wing tip to wing tip



Height = Bottom of mail wheels to top of vertical tail



I am doing this right correct ?






Share this post


Link to post
Share on other sites

yes has far i my own expericence says

but i remenber at least one odite the spifire Mk5 height dint macht no matter how hard i was trying until on cutting the front 3 views i include the prop disc arc then i had to ajust the canvas size in pixels from left view to macht the height of the front view image

Share this post


Link to post
Share on other sites

I make a box the aircrafts size...and adjust the left.right.top,front views to fit.

when I make a 3 view,ie front view...I make note of image size...say front view image is 2046x1234 pixels  in max make it 20.46 metres by 12.34 metres...then images are same scale in max...then I link them and make them fit the box I made...so the a\c is more or less exact scale\size.

Edited by russouk2004

Share this post


Link to post
Share on other sites

Autodecks and MAX are the same thing.....
