i´m looking for info on the M117 conical fin assembly , there are 2 versions and i found this 2 designations M131 and MAU-103 the only problem is that there are no pictures to the designation

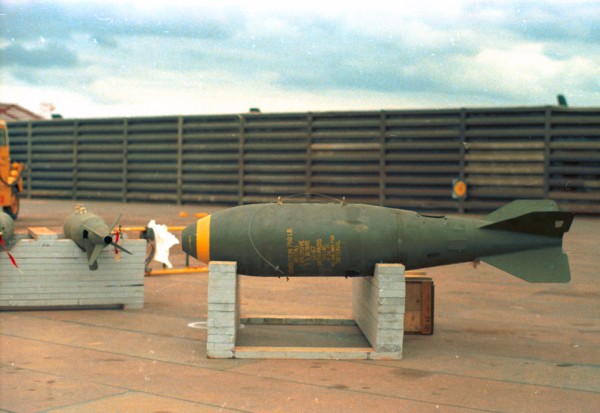

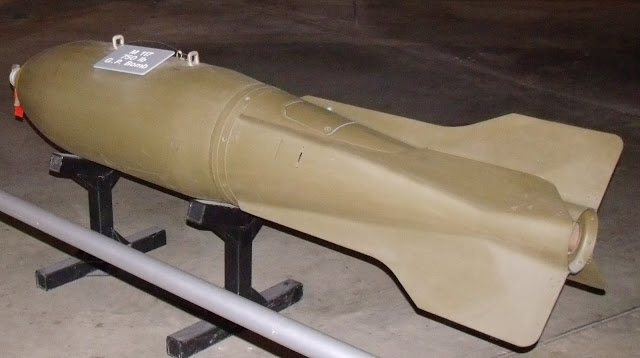

here are the 2 versions





if anybody could give me a hint what assembly is the M131 or the MAU-103 that would help me a lot



and if possible what would be the bomb designation with the different fin assemblys



Share this post


Link to post
Share on other sites

Both are low drag options as much as I figured here's the excerpt from the text:





Originally, low-drag M117s were fitted with 52-lb M131 conical fins that were 49 in(124 cm) long with a 23-in (58-cm) fin span. In the early 1970s, the 64-lb MAU-103/B conical fin was introduced, featuring strakes, a 50-in (127-cm) length, and a 19-in(48-cm) fin span. A modified version of this fin, the MAU-103A/B increased fin-span to 22 in (56 cm).

The high-drag bomb, commonly known as the M117R, used the 117-lb MAU-91A/B





EDIT: Now that I think of it, why not attaching the whole document :D

Hope it can help...found in somewhere on the net, lost the link...

US Air Force Weapons.7z

Edited by Brain32
  • Like 2

Share this post


Link to post
Share on other sites

Awesome Volker, this is just what's been missing to finish this up - keep up the great work and thanks!

Thanks goes to B32 too for sharing the references!
