hanriot hd.1

[+christian59]

hello



some drawing you need to work on this plane



from Windsock Datafile n°12 - hanriot hd.1



one more time thank for your work

[+EmlD]

Very nice!



Thank you!!



EmlD

[Alexander51]

Can't wait to see this beautfiful aeroplane roll out of

EmlD's Aviation Hangar!!

[+sinbad]

Some inspiration which may be helpful. This looks like it will be fun to skin!



sinbad

[+peter01]

Its a real looker - would be fantastic to have in FE. And the Italians loved them....



Now, who's doing Alpine terrain?

Edited November 6, 2007 by peter01

[+whiteknight06604]

Its a real looker - would be fantastic to have in FE. And the Italians loved them....



Now, who's doing Alpine terrain?



lots of us are hopeing for Austro-Italian stuff.Slowly some stuff is sneaking out.

[Guest Alligator Devil]

MEANWHILE....

PAPER MODEL:



Edited November 6, 2007 by Alligator Devil

[Longestpants]

MORE:



[+EmlD]

Hi, i compared a few Hanriot data... found in web

Every new place gives different size data...



So i will use this:

I think the language does not matter ... it is easy to understand .. which value is where

[Heck]

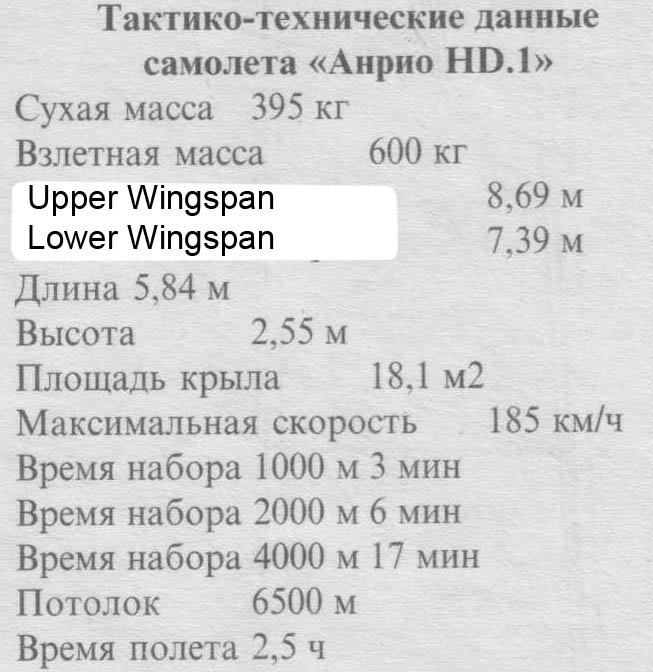

These figures are from Profile Publications #109 by J.M. Bruce. He also mentions the wide variation in published figures, but gives these as probably the most accurate. Sorry I had to type them, but my scanner is kaput.



Span upper: 28' 6.4"

Span lower: 24' 3.25"

Chord upper: 4' 1.2"

Chord lower: 3' 9.25"

Wing area (including ailerons): 194.5 sq ft

Gap: minimum 3' 6" maximum 4'

Stagger: 2' 1"

dihedral: 4 degrees upper, nil lower

length: 19' 1.875"

aileron area: 11.2 sq ft each

tailplane: 16.4 sq ft

elevators: 12.8 sq ft

fin: 2.9 sq ft

rudder: 7.9 sq ft



Hope this helps you. Your models are fantastic. I've enjoyed them all. Thanks for all your hard work. Really looking forward to this one, even if no one comes up with an alps terrain. This aircraft, and the Belgians, have been overlooked for too long.



Heck

[+EmlD]

Hi! Hanriot look like this:



EmlD

[+whiteknight06604]

Please keep up the excellent work.

[+christian59]

always a pleasure to see the work go head



thank you

[+EmlD]

Hi!

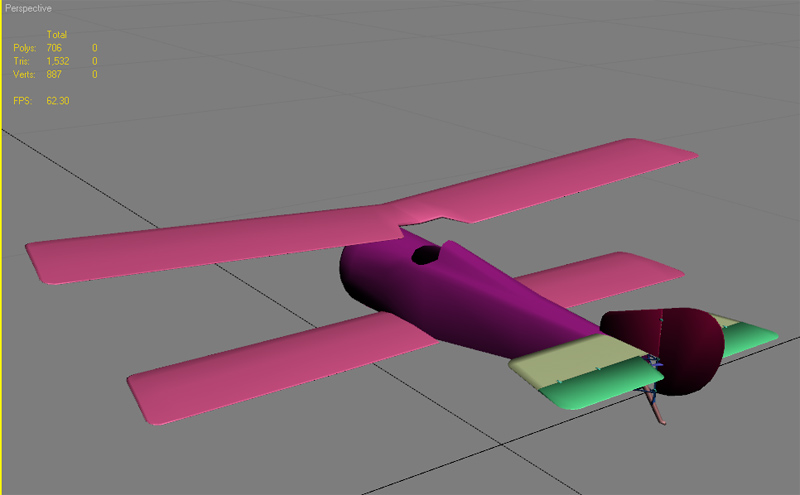

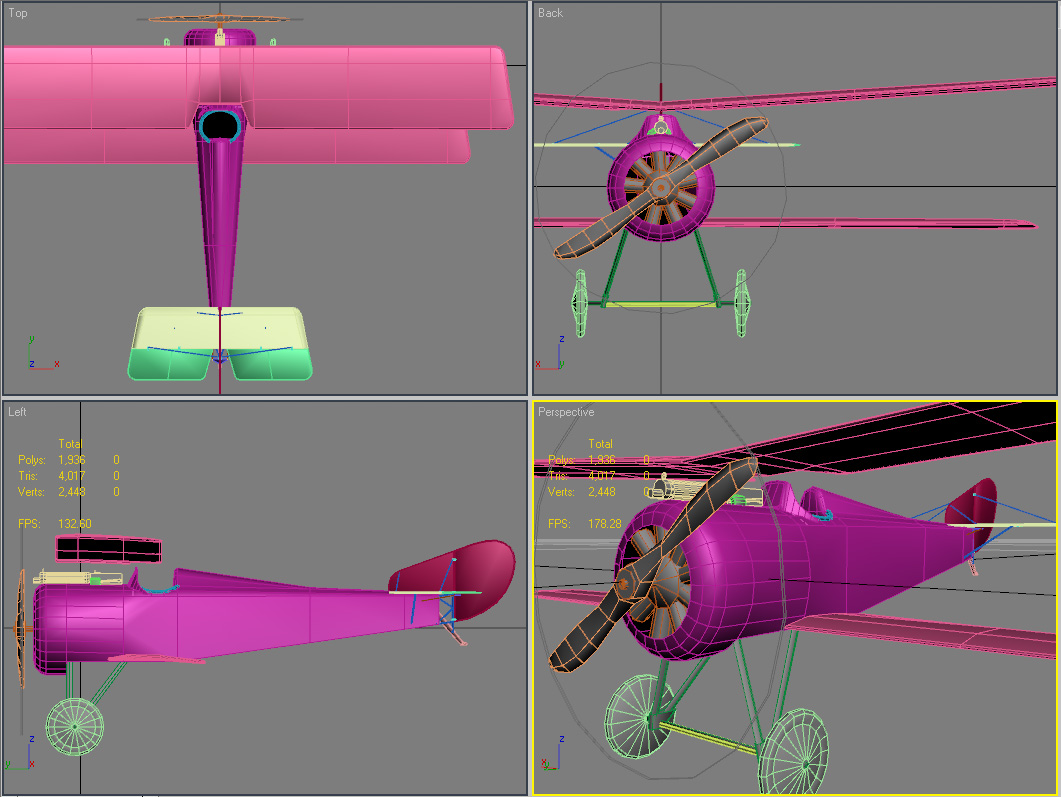

If someone is curious, here an update.



EmlD

[Heck]

Beautiful work, EmlD. Can't wait to fly her.



Heck

[+EmlD]

Hi.



LOD0 is done.



In a few days there will be the camo template ready.



I will draw only a single French camo for Hanriot.



Do someone wont to start working on another camo.... before the plane is ready?



I know, there is a lot camo experts and beginners here around.. .... write me a PM.



So to the upload moment we will have already 2 camo-textures for the Hanriot HD-1





EmlD

[gambit168]

wish I could , give it a lika paint

But RL has deaths grip on me right now

For any1 that has the time to do 1, A great source is

http://www.eduard.cz/

Do a search (bottom left) for the hanriot there are 4 1/48th kits, so open the ( intruction sheet )

in Acrobat and pick the (last Page and work back) as they are the camos for the kit

Cheers guys, Hope i can get some time on skinnin the han , when I can get some free time

Edited November 15, 2007 by gambit168

[+pcpilot]

Looking forward to this plane Emil. I really like the work you do. :moil:

[+sinbad]

wish I could , give it a lika paint

But RL has deaths grip on me right now

For any1 that has the time to do 1, A great source is

http://www.eduard.cz/

Do a search (bottom left) for the hanriot there are 4 1/48th kits, so open the ( intruction sheet )

in Acrobat and pick the (last Page and work back) as they are the camos for the kit

Cheers guys, Hope i can get some time on skinnin the han , when I can get some free time





Thanks for the link. This is really a great resource, and not just for the Hanroit.



I would never have discovered this without your help.

[gambit168]

Glad 2 help sinbad

the Dva's of Jatsa 5 are real nice also

[+EmlD]

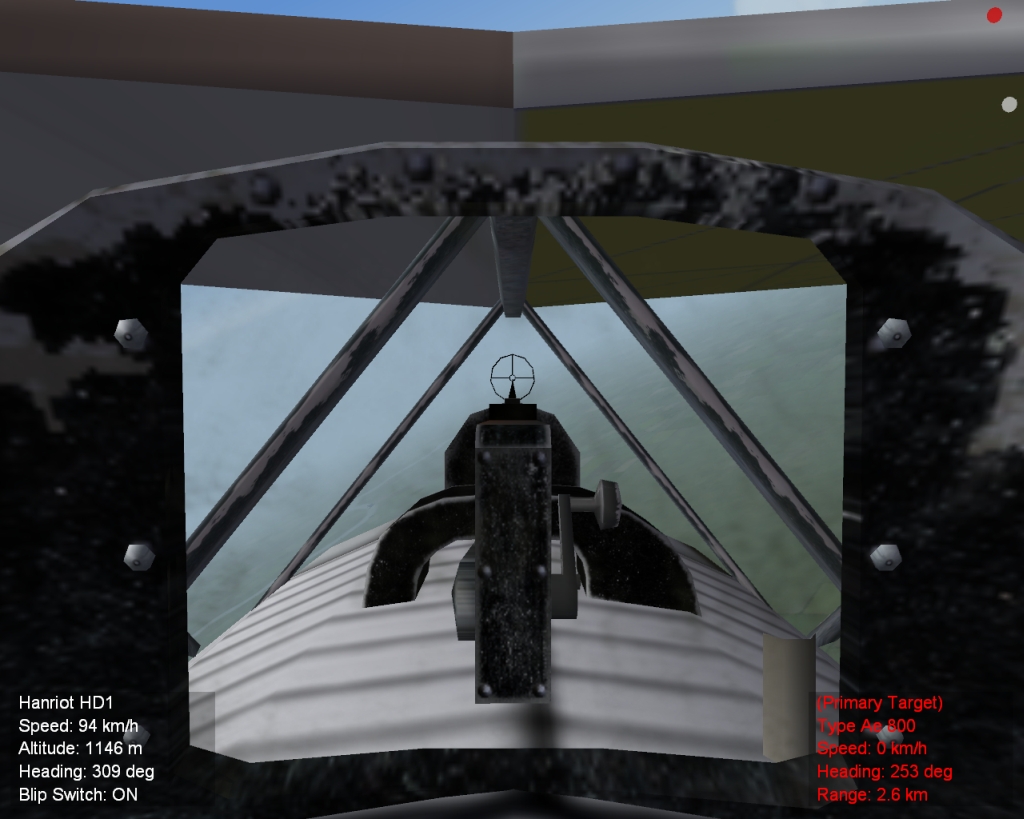

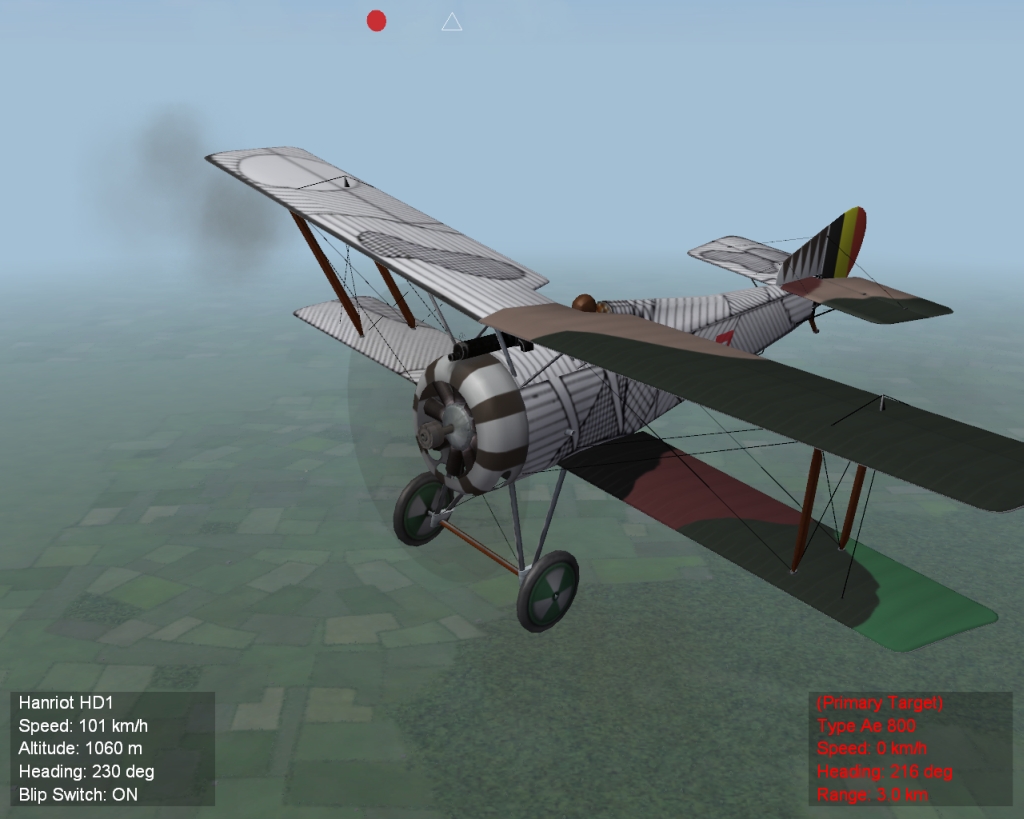

Hi, here some updates....



hope..you will like aiming with Hanriot



EmlD

[Heck]

You do such absolutely beautiful work. This is well worth the wait. Personally, I love the cockpit screenshot. It has a good claustrophobic feel to it. Just get very close. Then a gunsight doesn't really matter much.

[+peter01]

Really superb EmID, plane and gunsight.

[Barkhorn1x]

Nice work for a sweet ride!



Thanks.

[Wireman]

Sweet ride.
