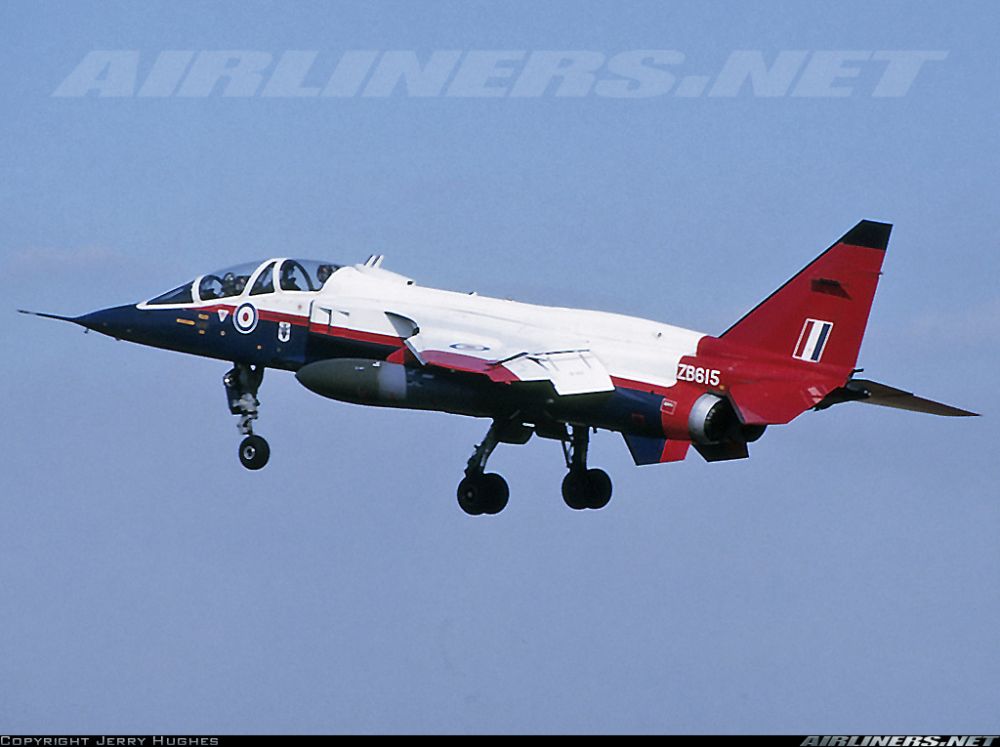

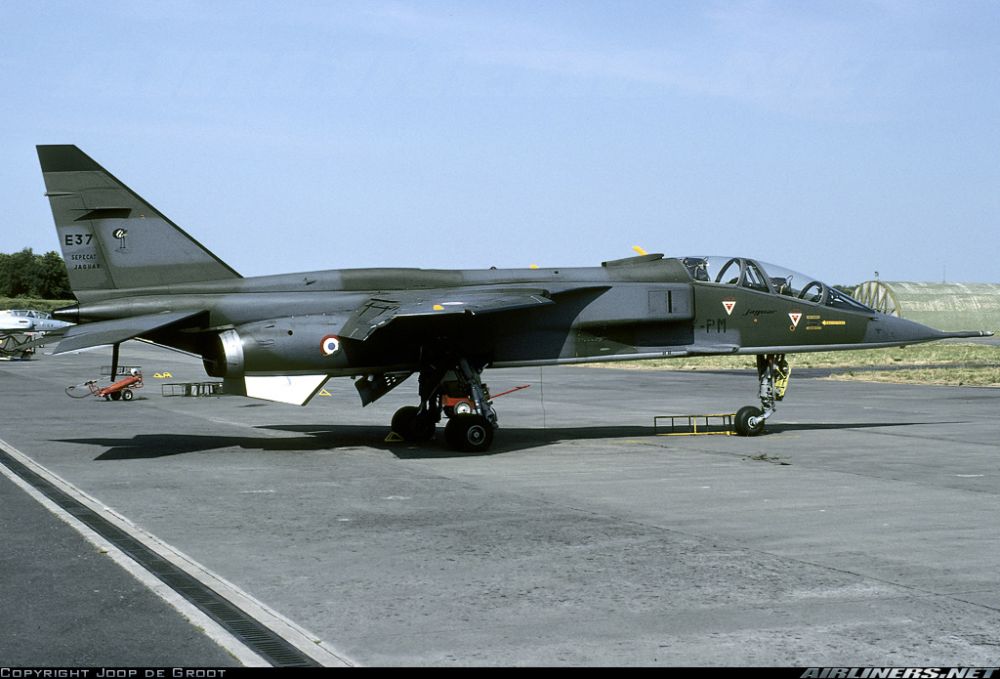

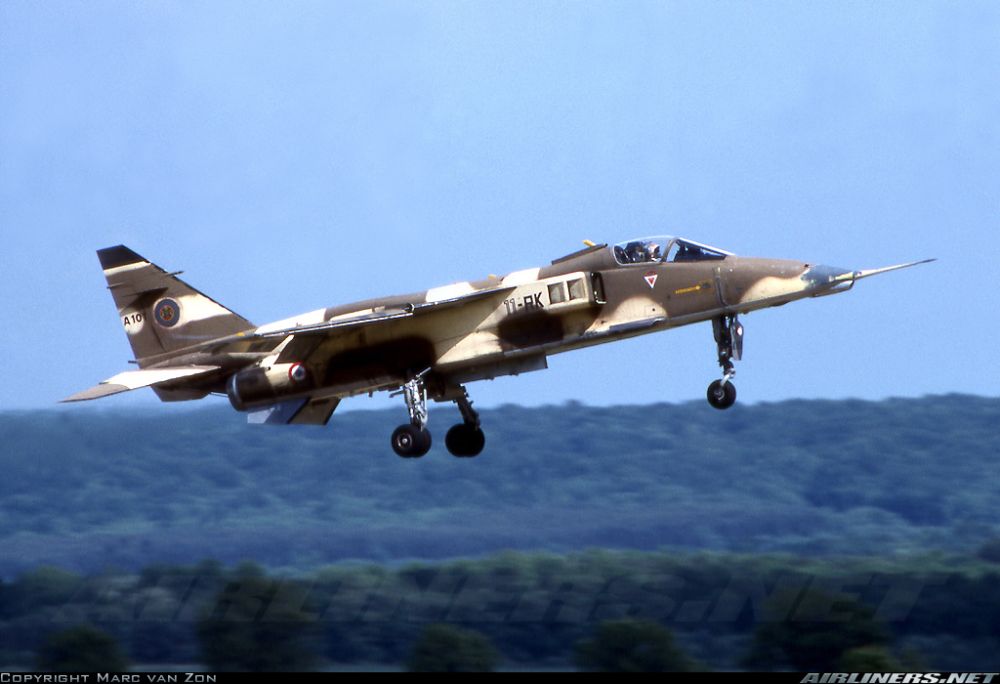

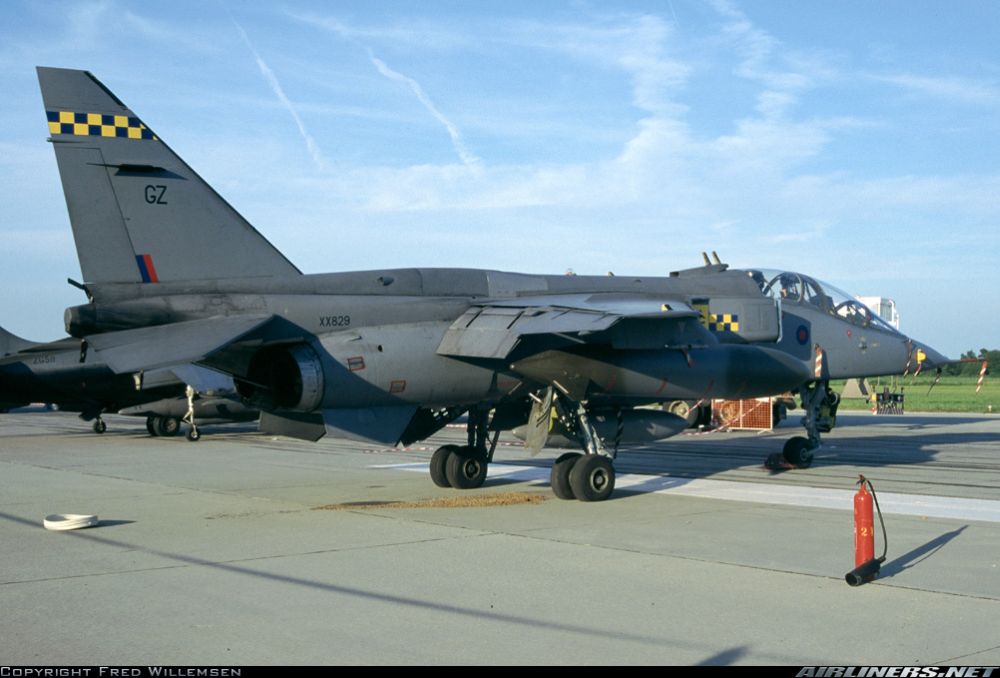

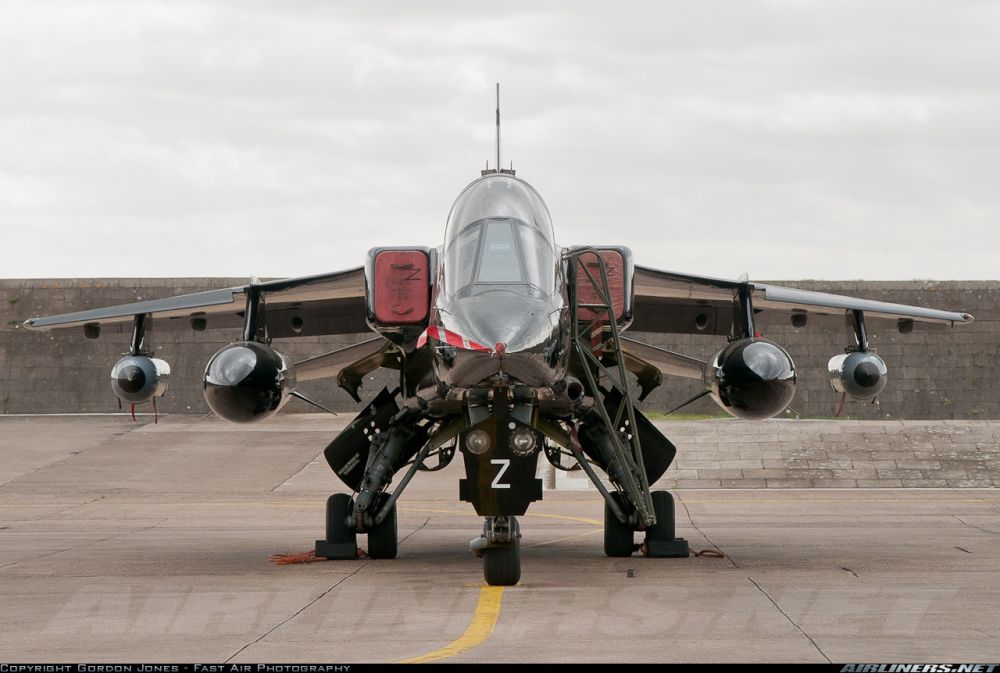

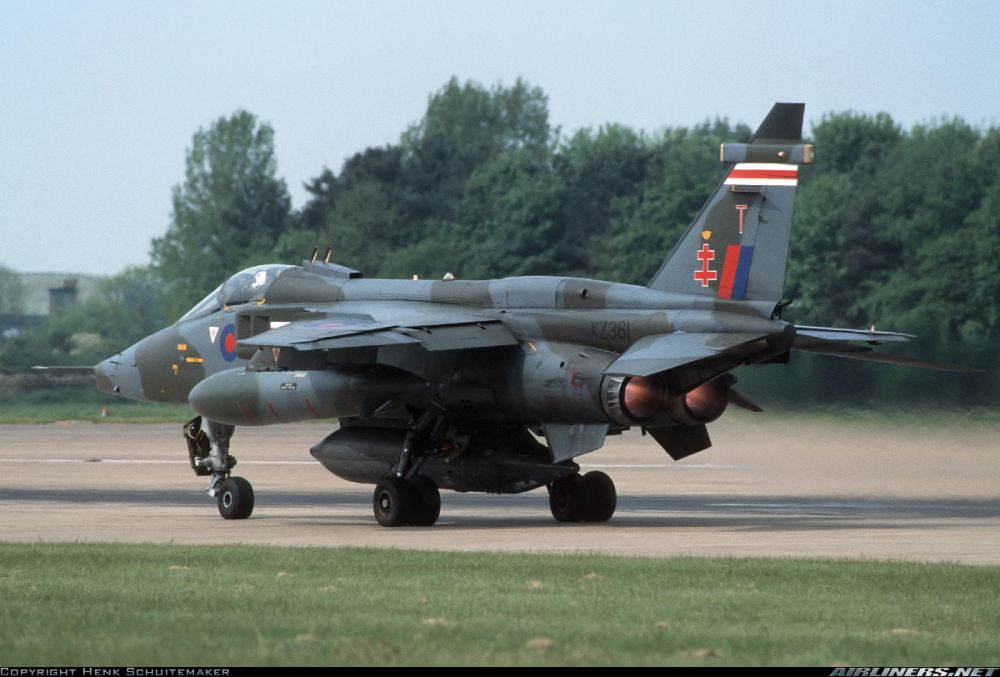

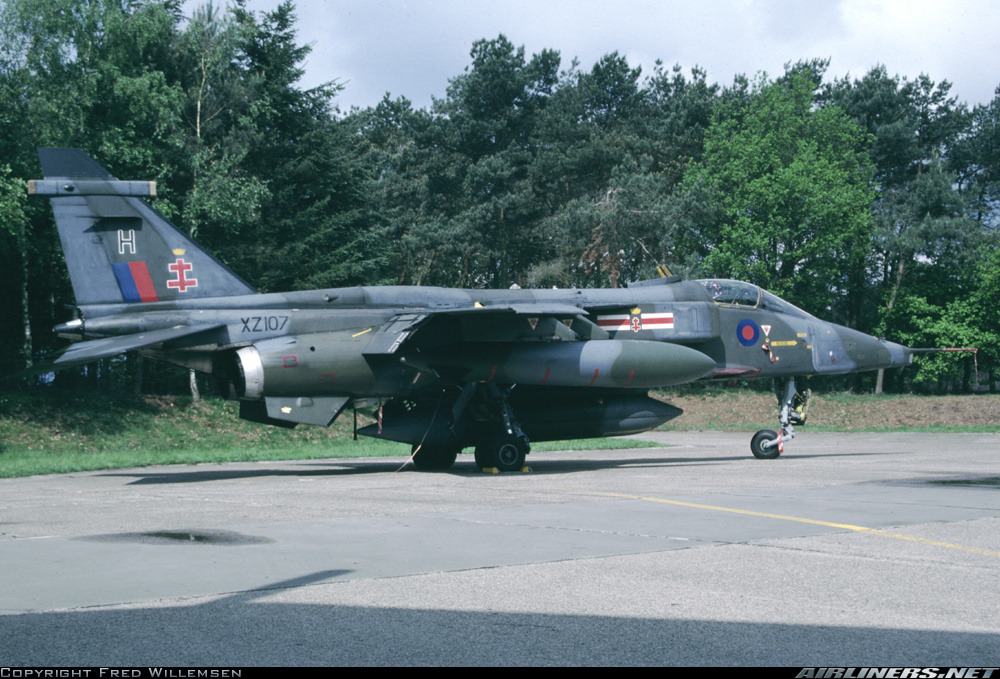

I was wondering about the flaps extent angles of the Jaguar, and the difference between inner flaps and outer flaps.

And I thought it was a good enough reason to post some shots : )



All from www.airliners.net



























Nice!!!

Edited by Cliff7600
  • Like 1

Share this post


Link to post
Share on other sites

A pair of fangs, strong legs and a well-bred look... the last true felid !

  • Like 1

Share this post


Link to post
Share on other sites

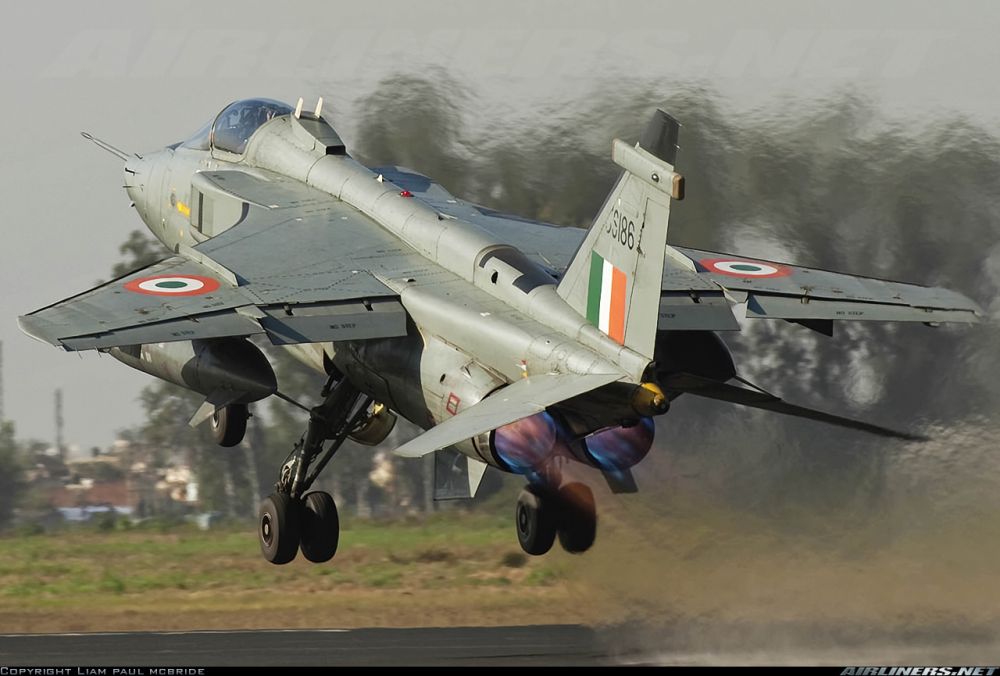

sure those outers aren't just drooping ailerons?? look at the Indian Jag.

Share this post


Link to post
Share on other sites

sure those outers aren't just drooping ailerons?? look at the Indian Jag.

ReverseModelOrientation=TRUE



should work ok now :wink:



seriously I think you're right

Share this post


Link to post
Share on other sites

sure those outers aren't just drooping ailerons??



http://www.airvectors.net/avjag.html



"The Jaguar A had a high-mounted wing with a sweep of 40 degrees and an anhedral droop of 3 degrees, with relatively small wing area for a smoother ride at low altitude. There was a leading-edge flap along the outboard section of each wing, and large, double slotted trailing edge flaps on both the outboard and inboard sections of each wing. There was a "dogtooth" between the outboard and inboard sections of the wing.



There were no ailerons, roll control being provided by a two-section spoiler on top of each wing, just forward of the outboard flaps. There was a prominent "fence" between the inboard and outboard sections of the wing. Along with a conventional tail assembly, with all-moving one-piece tailplanes, there were two ventral fins. There were twin hydraulically-operated perforated airbrakes ahead of the ventral fins, under the wings. The hydraulic system was dual-redundant."



...as modeled in the current SF2 Jaguar A.



Unless you have other sources that talk about some "wing ailerons of the Jaguar"?

Edited by Cliff7600
