Right.....im fekkin baffled.....Radome refuses to rotate in Z-axis



Radome links to a cylinder (spinner)

then spinner to fuselage



I have reset xform all parts,axis are aligned correctly...when I check all the parts,the axis seem ok...checked them in local and world,and view views....and the axis\pivot seems fine..

I copied veltros radome and data.ini entries and it refuses to rotate correctly...

it rotates round the y axis,when I link it to fuselage,then rotates thru x axis when linked to the radome support..

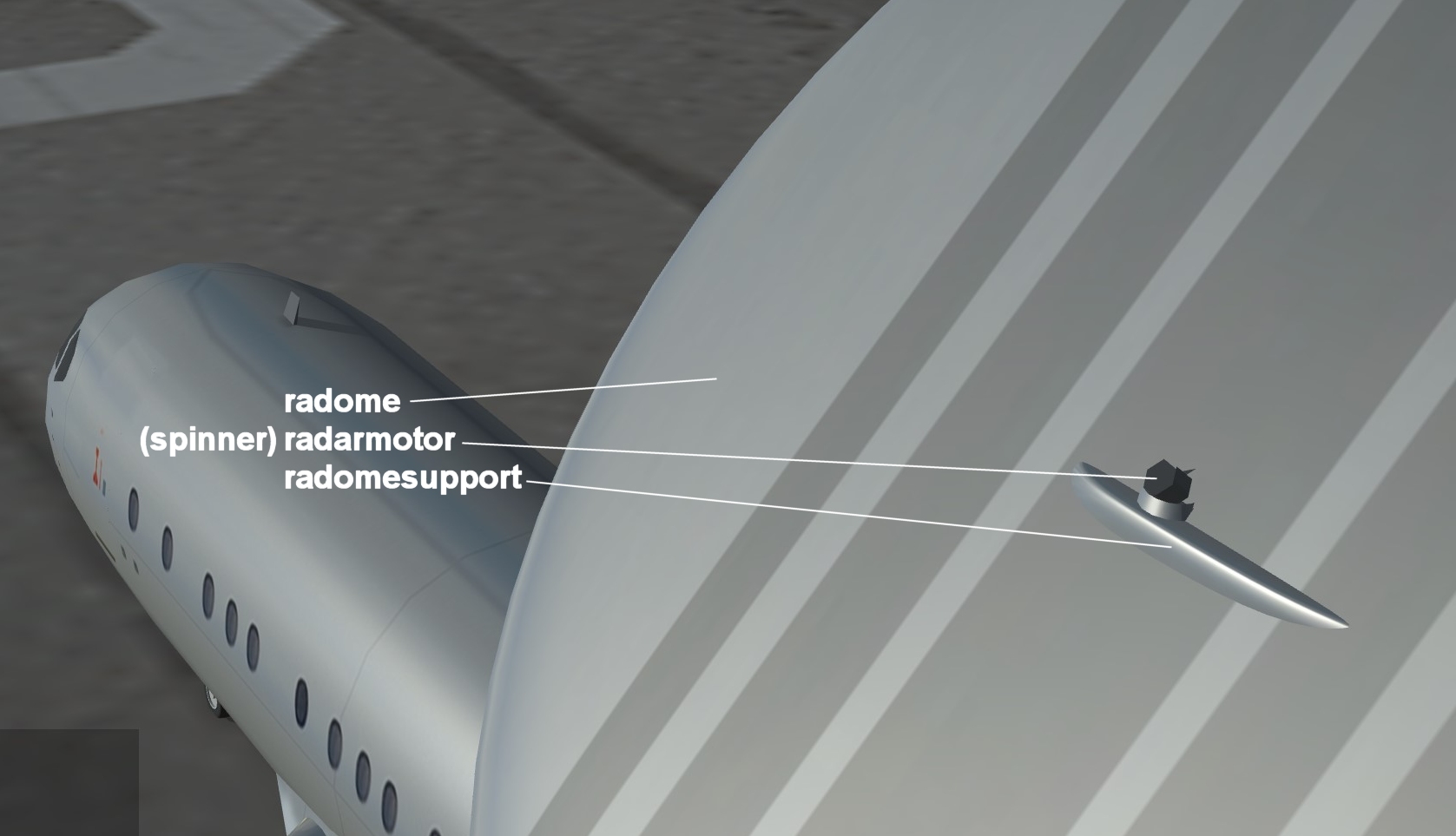

Radome>Radomemotor(spinner)>Radomesupport>fuselage..

neither way works correctly...

data for spinner linked direct to fuselage...



Ed sent me his max file of the sentry radome parts...did mine same way and no go...

fuselage section ...



same as veltros apart from names



SystemName[001]=Pilot1
SystemName[002]=Pilot2
SystemName[003]=FuselageFuelCell
SystemName[004]=crewdoor
SystemName[005]=Nosegear
SystemName[006]=landinglight1
SystemName[007]=landinglight2
SystemName[008]=TopFuselageLight
SystemName[009]=BottomFuselageLight
SystemName[010]=Radome





then fake engine...

same as veltros apart from names



[Radome]
SystemType=PROP_ENGINE
InputName=THROTTLE_CONTROL
EngineID=9
SLPowerDry=1.0
SpinnerNodeName=Radarmotor
StaticPropNodeName=
SlowPropNodeName=
FastPropNodeName=
SlowPropRPM=10
FastPropRPM=10
MaxPropRPM=10
IdlePropRPM=10
BSFC=0.00298
ExhaustEmitterName=
ExhaustPosition=
FireSuppression=TRUE
MinExtentPosition=-0.056,-3.648,5.383
MaxExtentPosition=0.056,-3.535,5.383
ConstantSpeed=FALSE
RotationAxis=Z-Axis





any ideas...spot a typo?...i fekkin give up


Edited by russouk2004
Posted (edited)

You're gonna kick yourself but the mesh for all engines need to be set with the Y axis aligned for their rotation regardless of their real world position. This is because the game will always spin them around their Y axis. So in this case you will need to have the radome mesh pivot with the Y axis pointing up. (or the radome motor mesh if you want that to spin too)



Dels

Edited by Dels
Posted (edited)

OMG consider ass kicked......I didnt think of that...and I knew it.....helos....doh....

thnx dels....

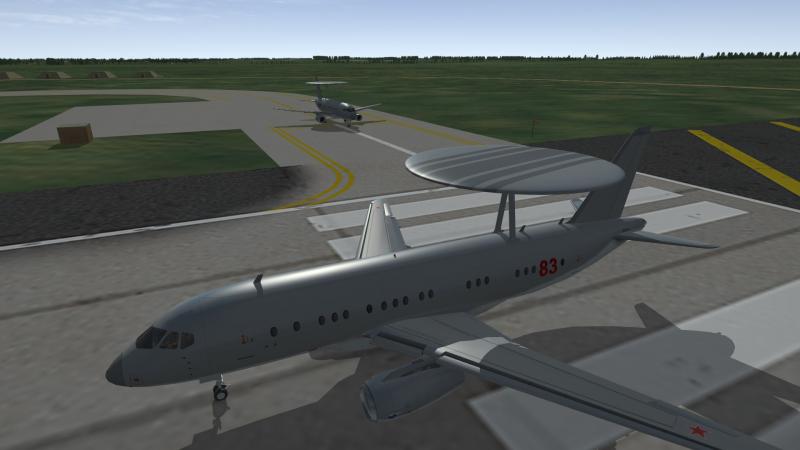

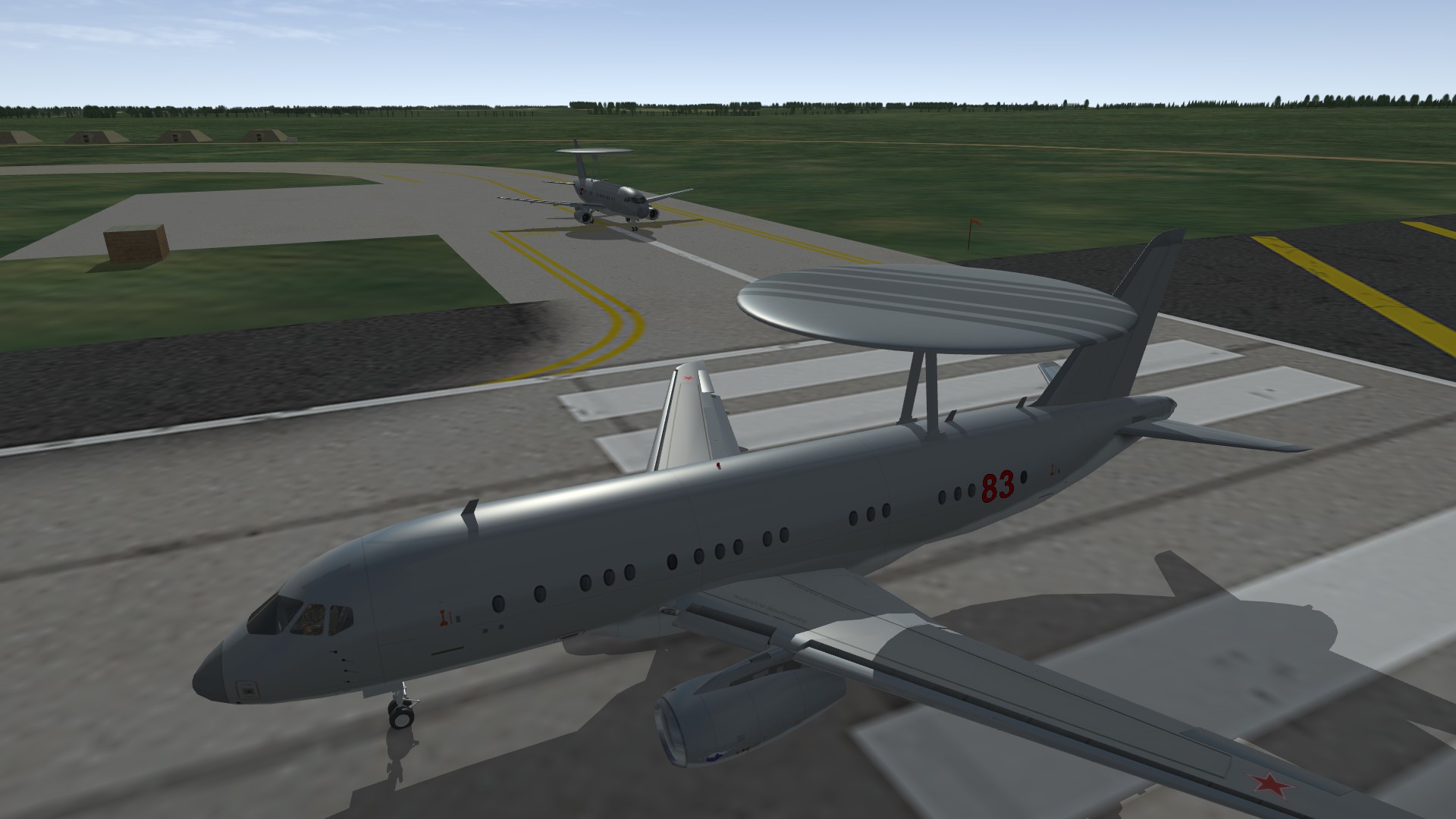

One Radome...rotating...!





Edited by russouk2004
  • Like 5
Posted

RAVEN, if you take "rule" to mean: The way things must be regardless of what happens in reality, then yes. And this game has bucket loads of them...



Russo, happy to help. (I'm sure it won't be long before I'm posting a similar topic due to short term memory loss)



Dels

Posted

Just curious here but is this a real or fictional aircraft? I'm only asking because the radar really looks way to large for the spindly supports to my untrained eye that is. So if it's a fictional work I humbly suggest beefing up the supports a bit if it's real then I'm wanting to know what the hell they are made of .

Posted



Just curious here but is this a real or fictional aircraft? I'm only asking because the radar really looks way to large for the spindly supports to my untrained eye that is. So if it's a fictional work I humbly suggest beefing up the supports a bit if it's real then I'm wanting to know what the hell they are made of .

Real aircraft but as of now commercial liner...my awacs is a what if...seems a good airframe for such a thing...

you are right about the supports...its not finished....im going by some info ive gleaned...

Posted

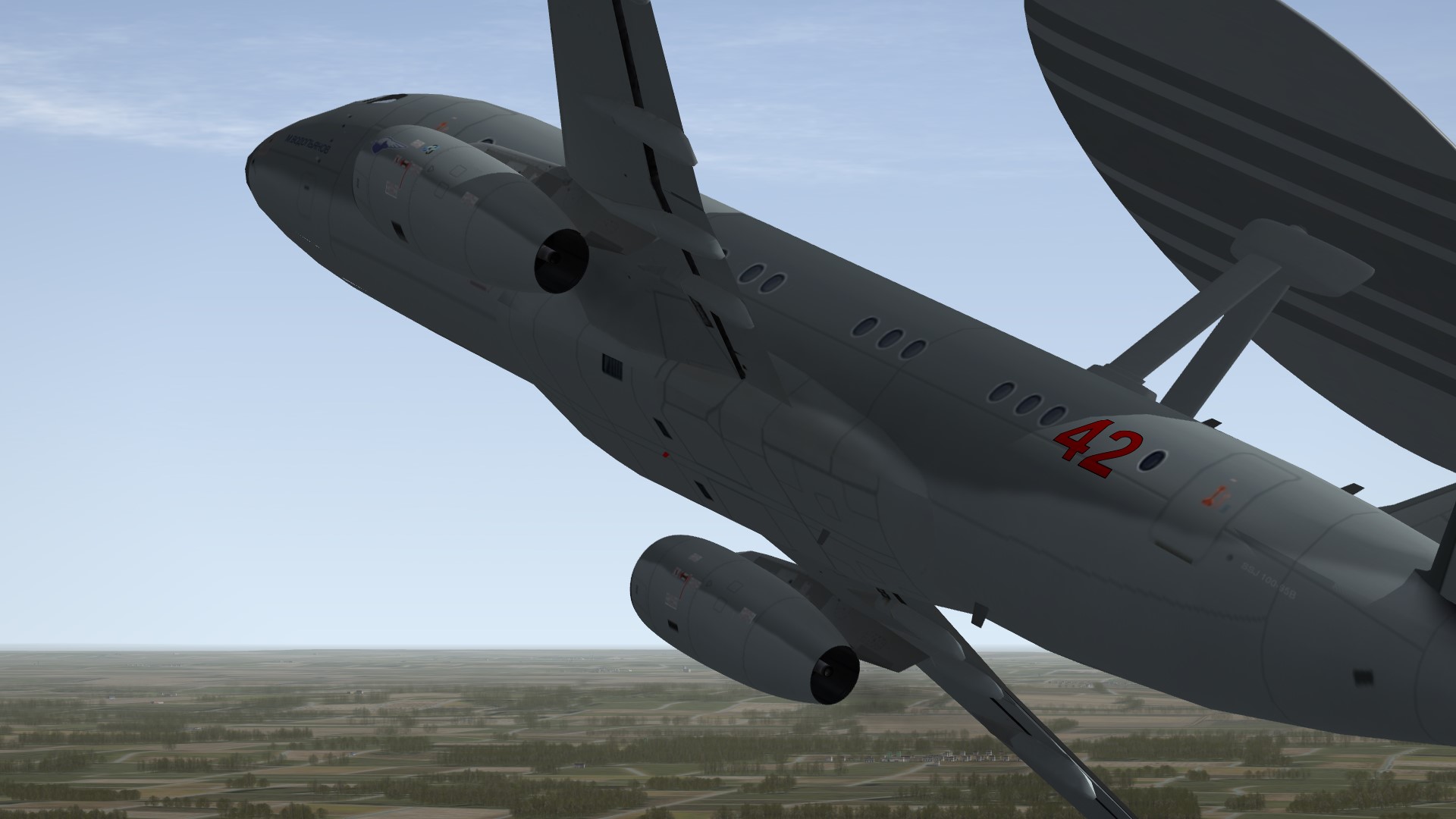

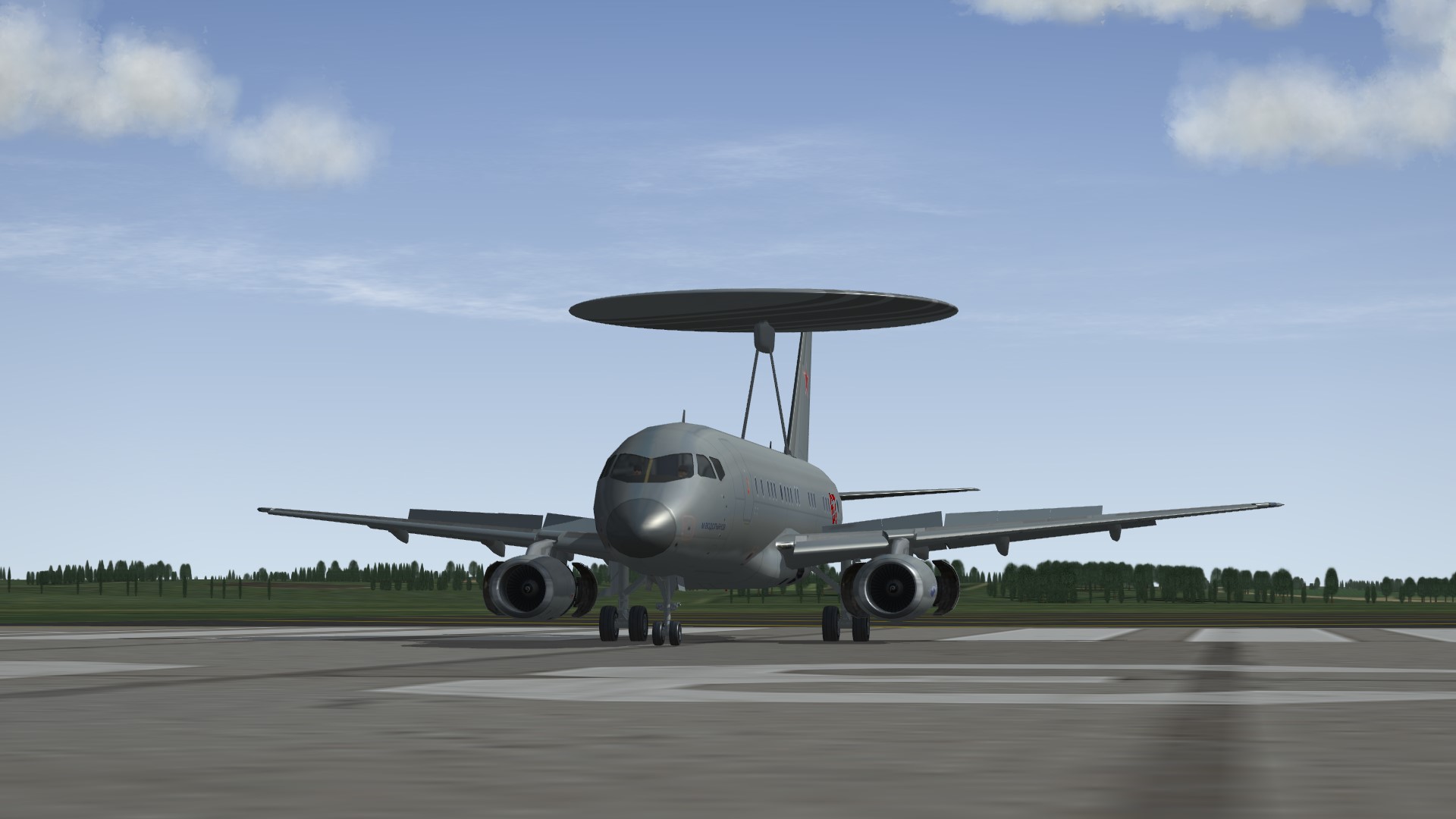

Better,was going to add tension wires but thought better...

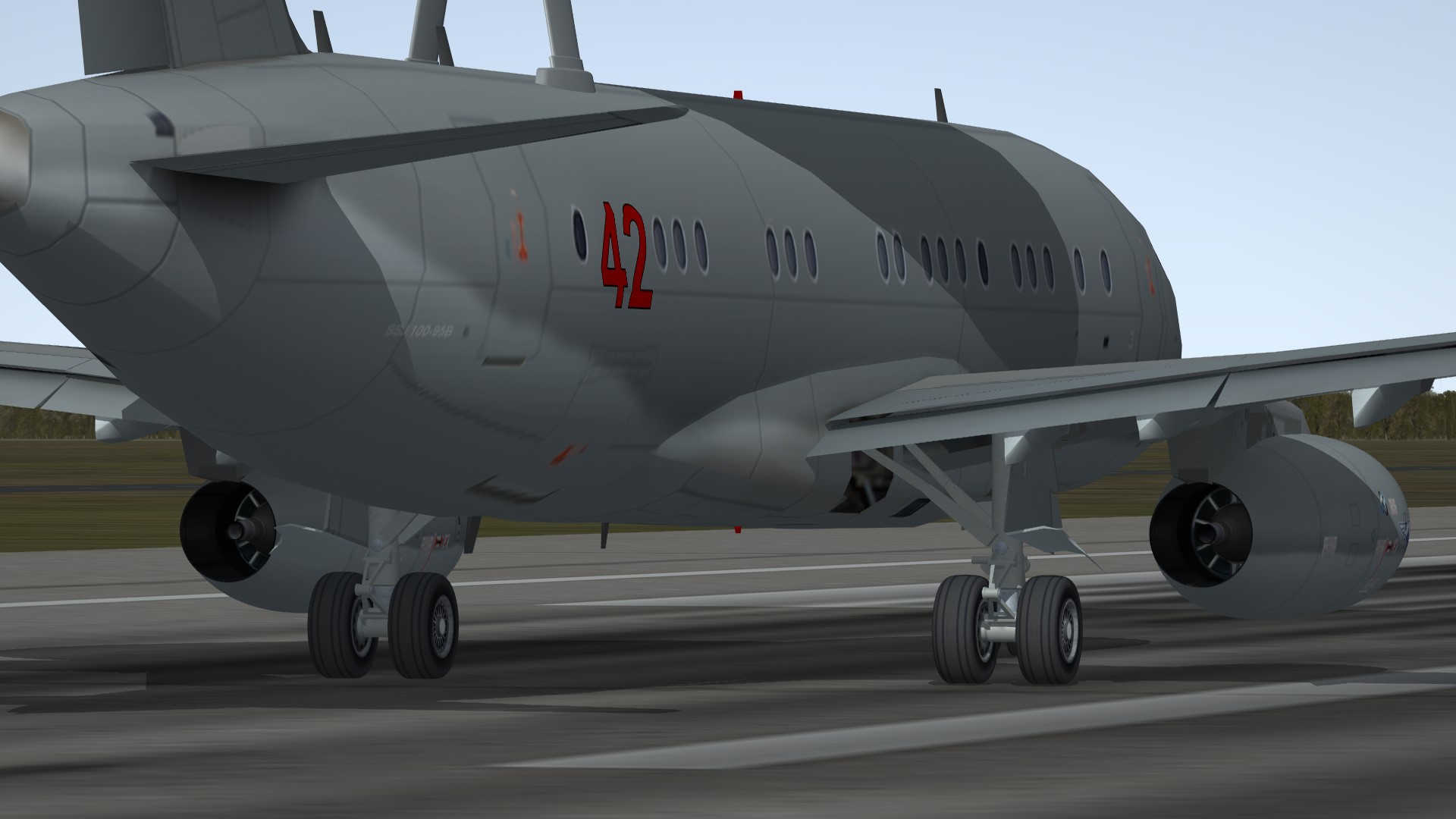

New gears...engine details...better textures,fixed some mapping items...need to move\hide huds in pit....wrench will know...

working engine reversers  on ground only,
