charlielima

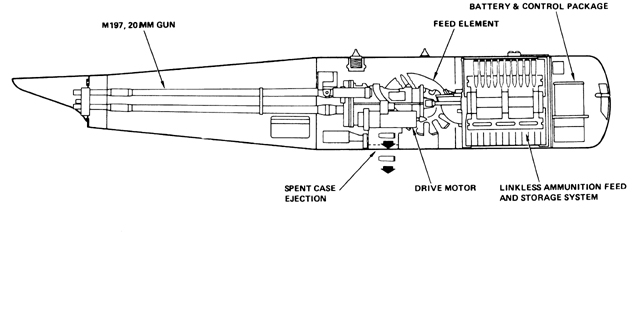

I think we need this in a Gun Pod

Recommended Posts

For our helos, A-1s, T-28s, OV-10s, A-37s and what.

And this also.

CL

Edited by charlielima
  • Like 2

Share this post


Link to post
Share on other sites

Yes

Its on ravenclaws endless list .. :blink:

oh yah.



from SF1 site.

http://combatace.com/topic/53750-20mm-for-ov-10s/



Killerbee allready did the data :

CL,

Make a Folder in Your Weapons called "GPU-2/A" and add a copy of the suu11.LOD in it. then use the Info below for the Data.ini.



[WeaponData001]

TypeName=GPU-2/A

FullName=GPU-2/A Gun Pod

ModelName=suu11

Mass=266.000000

Diameter=0.300000

Length=2.150000

SubsonicDragCoeff=0.200000

SupersonicDragCoeff=0.770000

AttachmentType=USAF

SpecificStationCode=

NationName=USAF,USN

StartYear=1965

EndYear=1985

Availability=2

BaseQuantity=24

Exported=FALSE

ExportStartYear=0

ExportEndYear=0

ExportAvailability=0

WeaponDataType=3

GunTypeName=20MM_M197

MaxRounds=300

MuzzlePosition=0.000000,1.000000,0.000000

LightPosition=0.000000,1.150000,0.000000

AimDirection=0.000000,1.000000,0.000000

EjectShells=1

EjectPosition=0.000000,-0.550000,-0.100000

EjectVelocity=0.000000,0.000000,-2.000000



Now You'll need the Gun Info and put it in Your "Gun" Folder.....



[GunData]

ObjectFullName=20mm M197

ObjectDataFile=20mm_M197_data.INI



[GunData001]

TypeName=20MM_M197

FullName=20mm M197

Caliber=20.000000

ROF=1500.000000 < 700 or 1500 ROF

MuzzleVel=1030.000000

AmmoWt=0.101000

WarheadWt=0.010100

Reliability=100.000000

Accuracy=70.000000

AddLight=TRUE

MaxLightRange=1000.000000

FireColor=0.500000,0.450000,0.320000

GunFireEffect=20mmFireEffect

GunFireSound=Vulcan

EffectClassName=20mmEffects

EffectTime=0.100000

TracerTexture=Tracer.tga

TracerSize=0.150000

TracerDistFactor=0.002000

TracerLength=0.015000

MaxVisibleDist=8000.000000

MaxStreakVisibleDist=1000.000000

TimeFuzed=FALSE



Now, Increase the load Limit on the Centerline Pylon from 600Kg to 800Kg in the OV-10A_Data.ini. It will give You below.

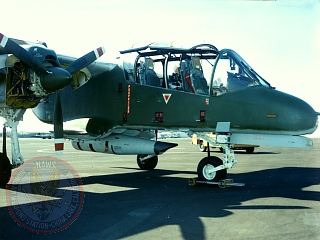

From your video link it appears the GPU-2A does not need us to increase the pylon load limit. the OV-10a had 2 strapped on.

I have been dreaming about the GPU-2A for awhile but I thought a fictional 50 Cal GAU-19 stuffed in a SUU-11 pod body could be sooner obtainable with data ini tweaking and give us more bang bang then 7.62 does.

Bitchin' video link Crusader. I never saw that one before.

CL

Edited by charlielima

Share this post


Link to post
Share on other sites

i do have some pretty ggod pictures and drawings for the SUU-11A but almost nothing for the GPU-2a



if someone has the dimensions ( diameter / lenght ) of the GAU-2A and some real good pictures that could help me making one

  • Like 1

Share this post


Link to post
