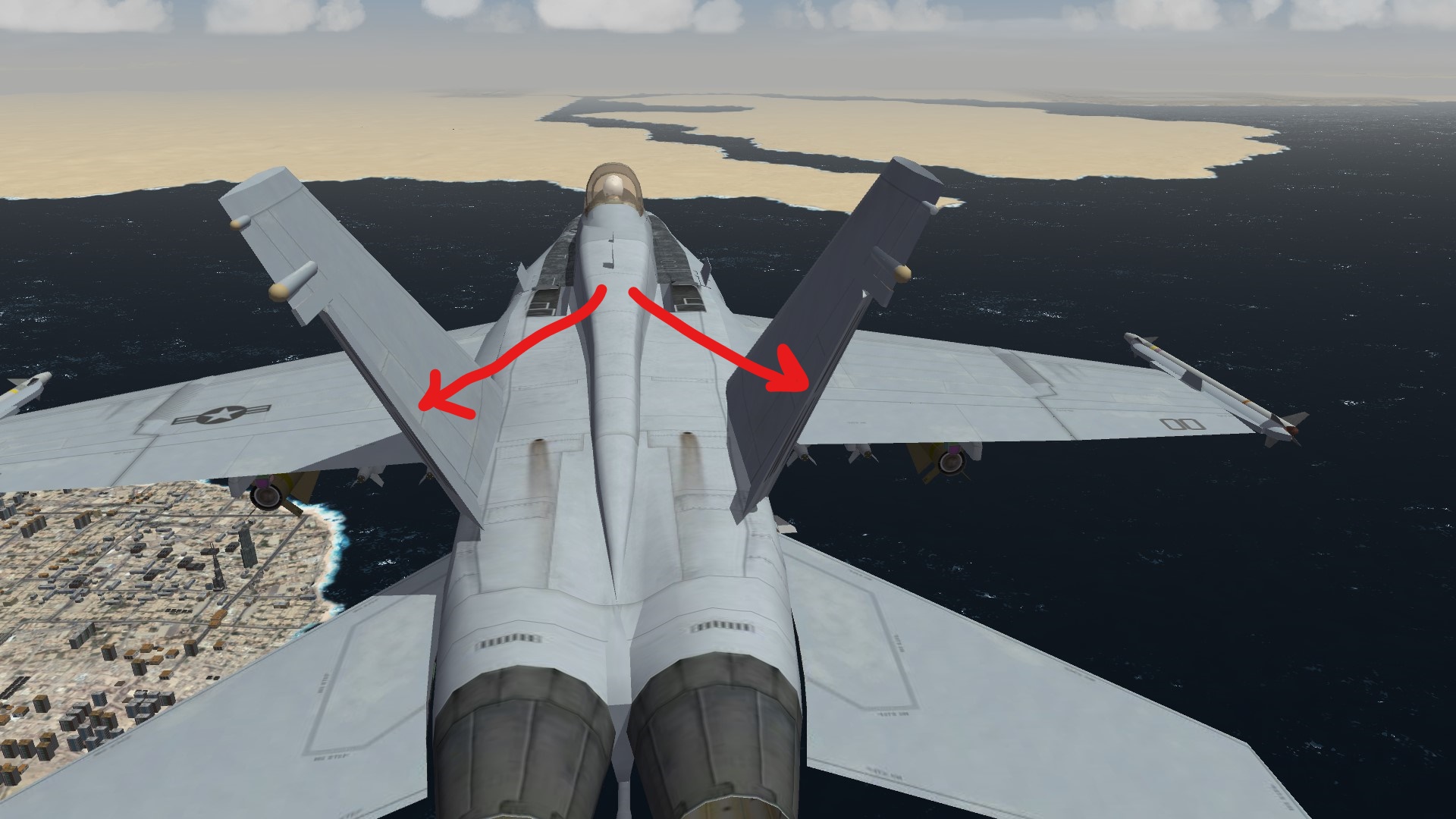

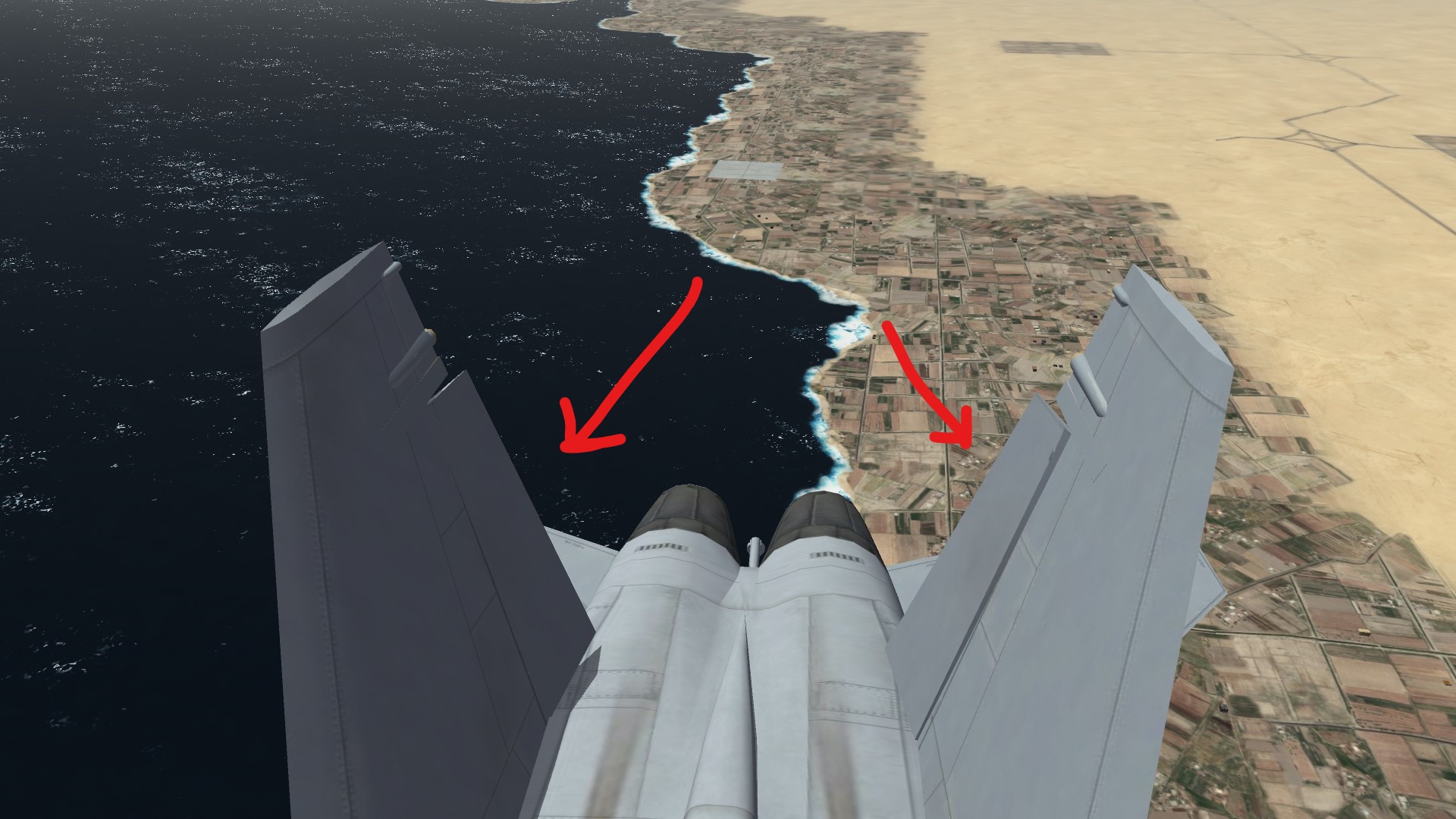

F/A-18B/D rudder issue

GKABS
 Share

Recommended Posts

GKABS Enthusiast

+GKABS

Posted
  • Author
Posted
17 minutes ago, EricJ said:

It happens to me as well.

That is strange, I wonder what is causing the issue!



EricJ Enthusiast

+EricJ

Posted
Posted

It's a setting for the rudders I believe, and unfortunately I don't know how to fix it, I just know it's a setting that somehow got stuck in that position.

Coupi Apprentice

+Coupi

Posted
Posted (edited)

Hello,

I don't remember exactly where the fix comes from but in my install I've modified the Data.ini of the TMF F/A-18A like this :

!!!Before test Back up your file !!!

Component changing

[LeftVertTail]
ParentComponentName=Fuselage
ModelNodeName=LeftVertail
DestroyedNodeName=DAM_LeftVertail
ShowFromCockpit=TRUE
DetachWhenDestroyed=TRUE
DamageRating=DESTROYED
MassFraction=0.040
HasAeroCoefficients=TRUE
CD0=0.0008
Cyb=-0.3848
Cyp=0.0285
Cyr=0.4093
Clb=-0.0007
Clr=0.0008
Cnb=0.2046
Cnp=-0.0152
Cnr=-1.1912
CD0MachTableNumData=7
CD0MachTableDeltaX=0.40
CD0MachTableStartX=0.00
CD0MachTableData=1.444,1.000,1.016,2.120,1.809,1.738,1.690
ClbAlphaTableNumData=15
ClbAlphaTableDeltaX=4.00
ClbAlphaTableStartX=-28.00
ClbAlphaTableData=146.829,130.212,433.298,334.687,240.272,148.968,60.124,20.214,1.000,-18.219,-37.349,-56.297,-74.970,-93.279,-111.133
ClrAlphaTableNumData=15
ClrAlphaTableDeltaX=4.00
ClrAlphaTableStartX=-28.00
ClrAlphaTableData=124.236,114.749,103.028,89.302,73.837,56.936,38.927,20.159,1.000,-18.179,-37.004,-55.109,-72.141,-87.769,-101.689
CnbAlphaTableNumData=15
CnbAlphaTableDeltaX=4.00
CnbAlphaTableStartX=-28.00
CnbAlphaTableData=0.846,0.881,0.912,0.938,0.960,0.977,0.990,0.997,1.000,0.998,0.991,0.979,0.962,0.941,0.915
CnpAlphaTableNumData=15
CnpAlphaTableDeltaX=4.00
CnpAlphaTableStartX=-28.00
CnpAlphaTableData=-5.576,-5.045,-4.403,-3.660,-2.833,-1.935,-0.985,0.000,1.000,1.996,2.968,3.898,4.767,5.558,6.255
CnrAlphaTableNumData=15
CnrAlphaTableDeltaX=4.00
CnrAlphaTableStartX=-28.00
CnrAlphaTableData=0.131,0.142,0.401,0.557,0.696,0.818,0.922,1.006,1.000,0.973,0.856,0.720,0.565,0.392,0.153
MinExtentPosition=-1.868,-6.41,0.048
MaxExtentPosition=-0.919,-3.162,2.421
CollisionPoint[001]=-1.868,-6.41,0.048
CollisionPoint[002]=-0.919,-3.162,2.421
SystemName[001]=LeftRudder
SystemName[002]=LeftTailLight
SystemName[003]=LeftPositionLight4
SystemName[004]=BottomTailLight1
SystemName[005]=//LeftRudderToeOut
SystemName[006]=LeftRudderToeIn
SystemName[007]=LeftTailSlimer
HasVortexEmitter=TRUE
VortexEmitterName=WingtipVortexEmitter
VortexPosition=-1.80,-6.35,2.35
VortexG=4.5
HasArmor=TRUE
ArmorMaterial=ALUMINUM
Armor[FRONT].Thickness=4
Armor

.Thickness=4
Armor
.Thickness=4

Armor[REAR].Thickness=4
Armor[TOP].Thickness=4
Armor[BOTTOM].Thickness=4

[RightVertTail]
ParentComponentName=Fuselage
ModelNodeName=RightVertail
DestroyedNodeName=DAM_RightVertail
ShowFromCockpit=TRUE
DetachWhenDestroyed=TRUE
DamageRating=DESTROYED
MassFraction=0.040
HasAeroCoefficients=TRUE
CD0=0.0008
Cyb=-0.3848
Cyp=0.0285
Cyr=0.4093
Clb=-0.0007
Clr=0.0008
Cnb=0.2046
Cnp=-0.0152
Cnr=-1.1912
CD0MachTableNumData=7
CD0MachTableDeltaX=0.40
CD0MachTableStartX=0.00
CD0MachTableData=1.444,1.000,1.016,2.120,1.809,1.738,1.690
ClbAlphaTableNumData=15
ClbAlphaTableDeltaX=4.00
ClbAlphaTableStartX=-28.00
ClbAlphaTableData=146.829,130.212,433.298,334.687,240.272,148.968,60.124,20.214,1.000,-18.219,-37.349,-56.297,-74.970,-93.279,-111.133
ClrAlphaTableNumData=15
ClrAlphaTableDeltaX=4.00
ClrAlphaTableStartX=-28.00
ClrAlphaTableData=124.236,114.749,103.028,89.302,73.837,56.936,38.927,20.159,1.000,-18.179,-37.004,-55.109,-72.141,-87.769,-101.689
CnbAlphaTableNumData=15
CnbAlphaTableDeltaX=4.00
CnbAlphaTableStartX=-28.00
CnbAlphaTableData=0.846,0.881,0.912,0.938,0.960,0.977,0.990,0.997,1.000,0.998,0.991,0.979,0.962,0.941,0.915
CnpAlphaTableNumData=15
CnpAlphaTableDeltaX=4.00
CnpAlphaTableStartX=-28.00
CnpAlphaTableData=-5.576,-5.045,-4.403,-3.660,-2.833,-1.935,-0.985,0.000,1.000,1.996,2.968,3.898,4.767,5.558,6.255
CnrAlphaTableNumData=15
CnrAlphaTableDeltaX=4.00
CnrAlphaTableStartX=-28.00
CnrAlphaTableData=0.131,0.142,0.401,0.557,0.696,0.818,0.922,1.006,1.000,0.973,0.856,0.720,0.565,0.392,0.153
MinExtentPosition= 1.868,-6.41,0.048
MaxExtentPosition= 0.919,-3.162,2.421
CollisionPoint[001]= 1.868,-6.41,0.048
CollisionPoint[002]= 0.919,-3.162,2.421
SystemName[001]=RightRudder
SystemName[002]=RightTailLight
SystemName[003]=RightPositionLight4
SystemName[004]=BottomTailLight2
SystemName[005]=//RightRudderToeOut
SystemName[006]=RightRudderToeIn
SystemName[007]=RightTailSlimer
HasVortexEmitter=TRUE
VortexEmitterName=WingtipVortexEmitter
VortexPosition=1.80,-6.35,2.35
VortexG=4.5
HasArmor=TRUE
ArmorMaterial=ALUMINUM
Armor[FRONT].Thickness=4
Armor

.Thickness=4
Armor
.Thickness=4
Armor[REAR].Thickness=4
Armor[TOP].Thickness=4
Armor[BOTTOM].Thickness=4

SystemName Changing

[LeftRudder]
SystemType=CONTROL_SURFACE
InputName=YAW_CONTROL
ReverseInput=TRUE
MaxDeflection=30.0
MinDeflection=-30.0
CDdc=0.0144
Cydc=0.1224
Cldc=0.0255
Cndc=-0.0330
CldcAlphaTableNumData=15
CldcAlphaTableDeltaX=4.00
CldcAlphaTableStartX=-28.00
CldcAlphaTableData=1.095,0.958,0.817,0.672,0.524,0.373,0.367,0.739,1.000,0.695,-0.227,-0.419,-0.666,-0.838,-0.978
CndcAlphaTableNumData=15
CndcAlphaTableDeltaX=4.00
CndcAlphaTableStartX=-28.00
CndcAlphaTableData=0.435,0.559,0.744,0.935,0.972,0.986,0.996,1.000,1.000,0.995,0.985,0.952,0.760,0.574,0.449
ControlRate=5.0
MaxControlSpeed=128
ModelNodeName=RudderLeft
RotationAxis=Z-AXIS
ReverseModelOrientation=TRUE
MinExtentPosition=-1.588,-6.302,0.108
MaxExtentPosition=-0.935,-5.493,1.714

[RightRudder]
SystemType=CONTROL_SURFACE
InputName=YAW_CONTROL
ReverseInput=TRUE
MaxDeflection=30.0
MinDeflection=-30.0
CDdc=0.0144
Cydc=0.1224
Cldc=0.0255
Cndc=-0.0330
CldcAlphaTableNumData=15
CldcAlphaTableDeltaX=4.00
CldcAlphaTableStartX=-28.00
CldcAlphaTableData=1.095,0.958,0.817,0.672,0.524,0.373,0.367,0.739,1.000,0.695,-0.227,-0.419,-0.666,-0.838,-0.978
CndcAlphaTableNumData=15
CndcAlphaTableDeltaX=4.00
CndcAlphaTableStartX=-28.00
CndcAlphaTableData=0.435,0.559,0.744,0.935,0.972,0.986,0.996,1.000,1.000,0.995,0.985,0.952,0.760,0.574,0.449
ControlRate=5.0
MaxControlSpeed=128
ModelNodeName=RudderRight
RotationAxis=Z-AXIS
ReverseModelOrientation=FALSE
MinExtentPosition= 1.588,-6.302,0.108
MaxExtentPosition= 0.935,-5.493,1.714

[LeftRudderToeOut]
SystemType=HIGHLIFT_DEVICE
CLiftdc=
CDdc=
Cmdc=
DeltaStallAlpha=
AreaRatio=
DeploymentMethod=AUTOMATIC_ANGLE_OF_ATTACK
Setting[1].Angle=20.0
Setting[1].DeployValue=8.0
Setting[1].RetractValue=7.9
MaxDeflection=20.0
MinDeflection=0.0
ControlRate=4.0
ModelNodeName=Leftrudder_brake
RotationAxis=X-AXIS
MaxControlSpeed=97.74
MaxDeploySpeed=97.74
BlowbackSpeed=97.74
LockoutSpeed=97.74
LockoutMach=0.4
//DeploymentMethod=AUTOMATIC_SPEED
//Setting[1].Angle=0.0
//Setting[1].DeployValue=114.0
//Setting[1].RetractValue=128.0
//Setting[2].Angle=20.0
//Setting[2].DeployValue=77.17
//Setting[2].RetractValue=97.74
//MaxDeflection=20.0
//MinDeflection=0.0
//MaxDeploySpeed=114.0
//BlowbackSpeed=128.0

[RightRudderToeOut]
SystemType=HIGHLIFT_DEVICE
CLiftdc=
CDdc=
Cmdc=
DeltaStallAlpha=
AreaRatio=
DeploymentMethod=AUTOMATIC_ANGLE_OF_ATTACK
Setting[1].Angle=20.0
Setting[1].DeployValue=8.0
Setting[1].RetractValue=7.9
MaxDeflection=20.0
MinDeflection=0.0
ControlRate=4.0
ModelNodeName=Rightrudder_brake
ReverseModelOrientation=TRUE
RotationAxis=X-AXIS
MaxControlSpeed=97.74
MaxDeploySpeed=97.74
BlowbackSpeed=97.74
LockoutSpeed=97.74
LockoutMach=0.4
//DeploymentMethod=AUTOMATIC_SPEED
//Setting[1].Angle=0.0
//Setting[1].DeployValue=114.0
//Setting[1].RetractValue=128.0
//Setting[2].Angle=20.0
//Setting[2].DeployValue=77.17
//Setting[2].RetractValue=97.74
//MaxDeflection=20.0
//MinDeflection=0.0
//MaxDeploySpeed=114.0
//BlowbackSpeed=128.0

//[LeftRudderToeIn]
//SystemType=HIGHLIFT_DEVICE
//DeploymentMethod=AUTOMATIC_ANGLE_OF_ATTACK
//Setting[1].Angle=20.0
//Setting[1].DeployValue=7.9
//Setting[1].RetractValue=8.0
//MaxDeflection=20.0
//MinDeflection=0.0
//ControlRate=4.0
//ModelNodeName=Leftrudder_brake1
//ReverseModelOrientation=TRUE
//RotationAxis=X-AXIS
//MaxControlSpeed=97.74
//MaxDeploySpeed=97.74
//BlowbackSpeed=97.74
//LockoutSpeed=97.74
//LockoutMach=0.4
//FullyDeployOnGround=TRUE

[LeftRudderToeIn]
SystemType=HIGHLIFT_DEVICE
CLiftdc=
CDdc=
Cmdc=
DeltaStallAlpha=
AreaRatio=
DeploymentMethod=AUTOMATIC_AERODYNAMIC_LOAD
Setting[1].Angle=0.0
Setting[1].DeployValue=114.0
Setting[1].RetractValue=128.0
Setting[2].Angle=20.0
Setting[2].DeployValue=77.17
Setting[2].RetractValue=97.74
MaxDeflection=20.0
MinDeflection=0.0
ControlRate=4.0
ModelNodeName=Leftrudder_brake1
ReverseModelOrientation=TRUE
RotationAxis=X-AXIS
MinExtentPosition=-1.59,-6.076,0.531
MaxExtentPosition=-0.941,-4.884,2.324

//[RightRudderToeIn]
//SystemType=HIGHLIFT_DEVICE
//DeploymentMethod=AUTOMATIC_ANGLE_OF_ATTACK
//Setting[1].Angle=20.0
//Setting[1].DeployValue=7.9
//Setting[1].RetractValue=8.0
//MaxDeflection=20.0
//MinDeflection=0.0
//ControlRate=4.0
//ModelNodeName=Rightrudder_brake1
//RotationAxis=X-AXIS
//MaxControlSpeed=97.74
//MaxDeploySpeed=97.74
//BlowbackSpeed=97.74
//LockoutSpeed=97.74
//LockoutMach=0.4
//FullyDeployOnGround=TRUE

[RightRudderToeIn]
SystemType=HIGHLIFT_DEVICE
CLiftdc=
CDdc=
Cmdc=
DeltaStallAlpha=
AreaRatio=
DeploymentMethod=AUTOMATIC_AERODYNAMIC_LOAD
Setting[1].Angle=0.0
Setting[1].DeployValue=114.0
Setting[1].RetractValue=128.0
Setting[2].Angle=20.0
Setting[2].DeployValue=77.17
Setting[2].RetractValue=97.74
MaxDeflection=20.0
MinDeflection=0.0
ControlRate=4.0
ModelNodeName=Rightrudder_brake1
RotationAxis=X-AXIS
//ReverseModelOrientation=TRUE
MinExtentPosition=1.59,-6.076,0.531
MaxExtentPosition=0.941,-4.884,2.324

//[LeftOuterSlat]
//SystemType=HIGHLIFT_DEVICE
//CLiftdc=-0.0062
//CDdc=0.0017
//FullyDeployOnGround=TRUE
//DeltaStallAlpha=2.39
//AreaRatio=1.010
//DeploymentMethod=AUTOMATIC_ANGLE_OF_ATTACK
//Setting[1].Angle=10
//Setting[1].DeployValue=9.7
//Setting[1].RetractValue=7.7
//Setting[2].Angle=30
//Setting[2].DeployValue=13.8
//Setting[2].RetractValue=12.7
//MaxDeflection=30.0
//MinDeflection=0.0
//ControlRate=3.0
//AnimationID=5
//ModelNodeName=LeftOuterSlat
//LockoutMach=1.15
//MinExtentPosition=-5.763,-2.635,-0.324
//MaxExtentPosition=-4.215,-1.497,-0.163
//RotationAxis=Y-AXIS

//[RightOuterSlat]
//SystemType=HIGHLIFT_DEVICE
//CLiftdc=-0.0062
//CDdc=0.0017
//FullyDeployOnGround=TRUE
//DeltaStallAlpha=2.39
//AreaRatio=1.010
//DeploymentMethod=AUTOMATIC_ANGLE_OF_ATTACK
//Setting[1].Angle=10
//Setting[1].DeployValue=9.7
//Setting[1].RetractValue=7.7
//Setting[2].Angle=30
//Setting[2].DeployValue=13.8
//Setting[2].RetractValue=12.7
//MaxDeflection=30.0
//MinDeflection=0.0
//ControlRate=3.0
//AnimationID=5
//ModelNodeName=RightOuterSlat
//LockoutMach=1.15
//MinExtentPosition= 5.763,-2.635,-0.324
//MaxExtentPosition= 4.215,-1.497,-0.163
//RotationAxis=Y-AXIS


Edited by Coupi
  • Like 4

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.
Note: Your post will require moderator approval before it will be visible.

Guest
Unfortunately, your content contains terms that we do not allow. Please edit your content to remove the highlighted words below.
Reply to this topic...

×   Pasted as rich text.   Paste as plain text instead

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.

×
 Share
Go to topic listing
×
×
  • Create New...

Important Information

By using this site, you agree to our Terms of Use, Privacy Policy, and We have placed cookies on your device to help make this website better. You can adjust your cookie settings, otherwise we'll assume you're okay to continue..
