by working on my F-4E/G cockpits and  try to improve them more and more i got some help from Pvince  , so far i was using Avioncs60.dll for the avionics but Pvince suggested to use Avionics70.dll since the DSCG radar display is a digital display  and Avionics70.dll would be more suited for it especially the VC display ( velocity closure ) in the upper right of the display would be only possible with the Avionics70.dll

Pvince made all the changes and got the F-4E avionics70.dll cockpit working , so that is what we got now

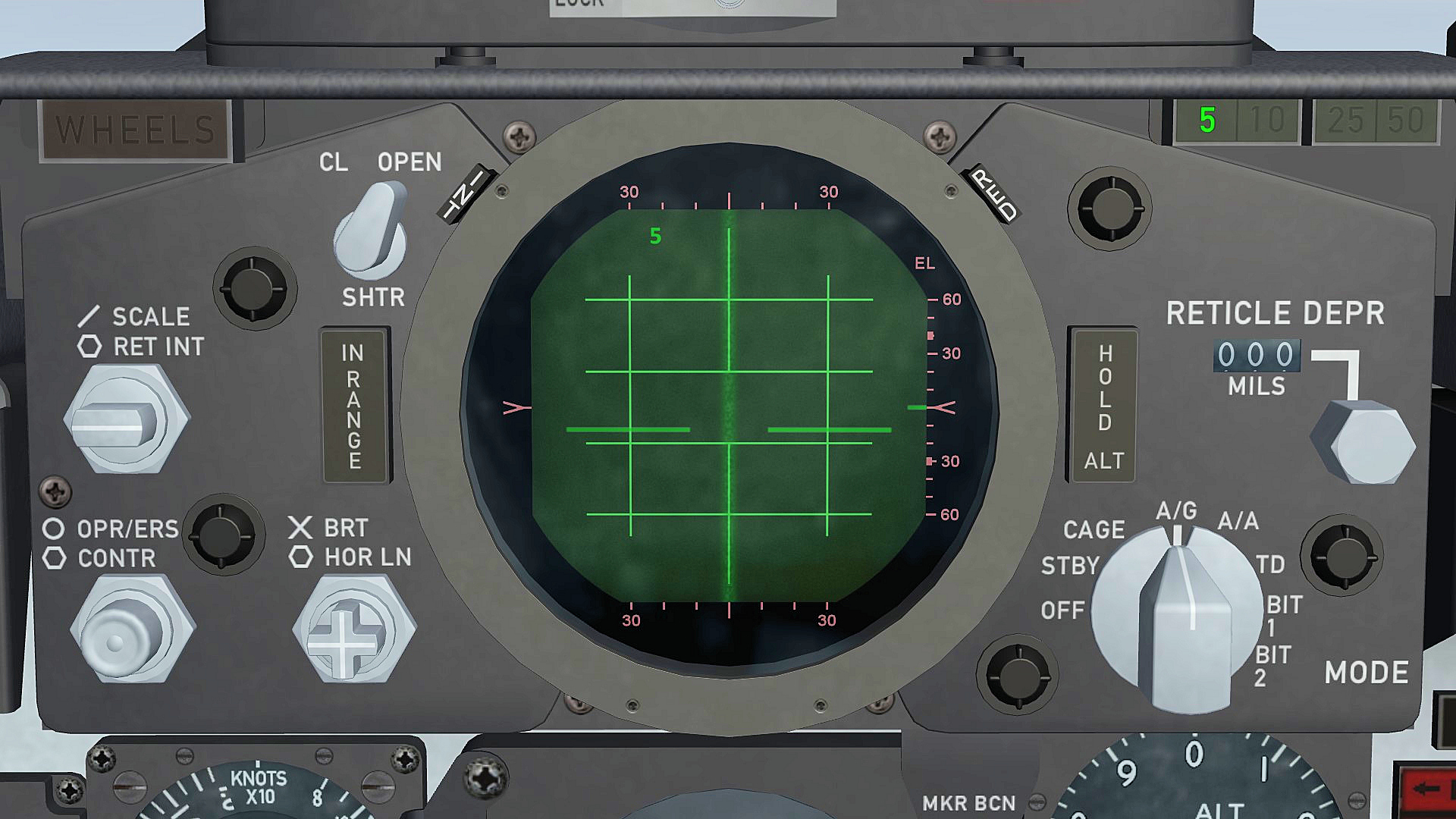

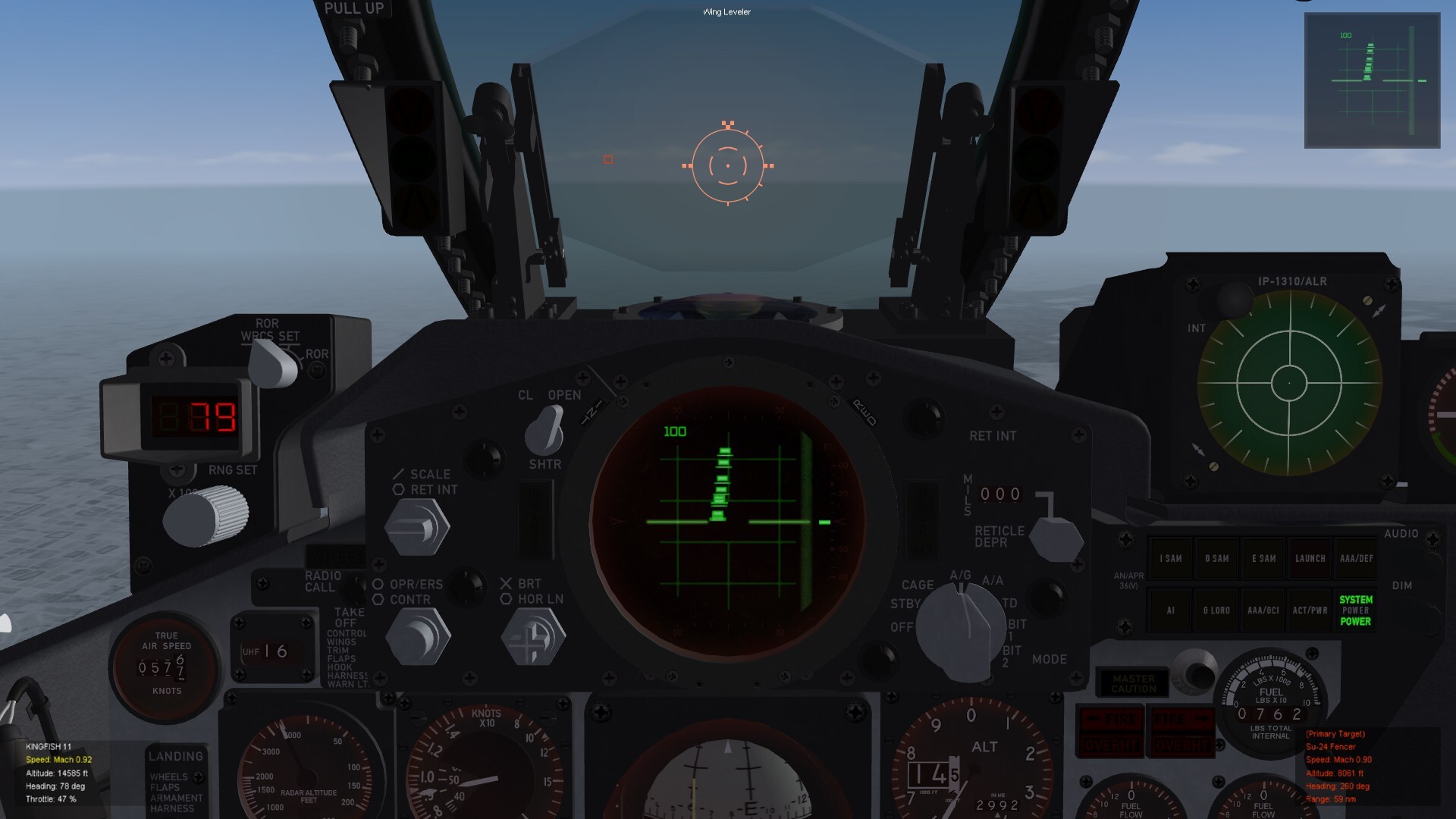

Search with radar range display

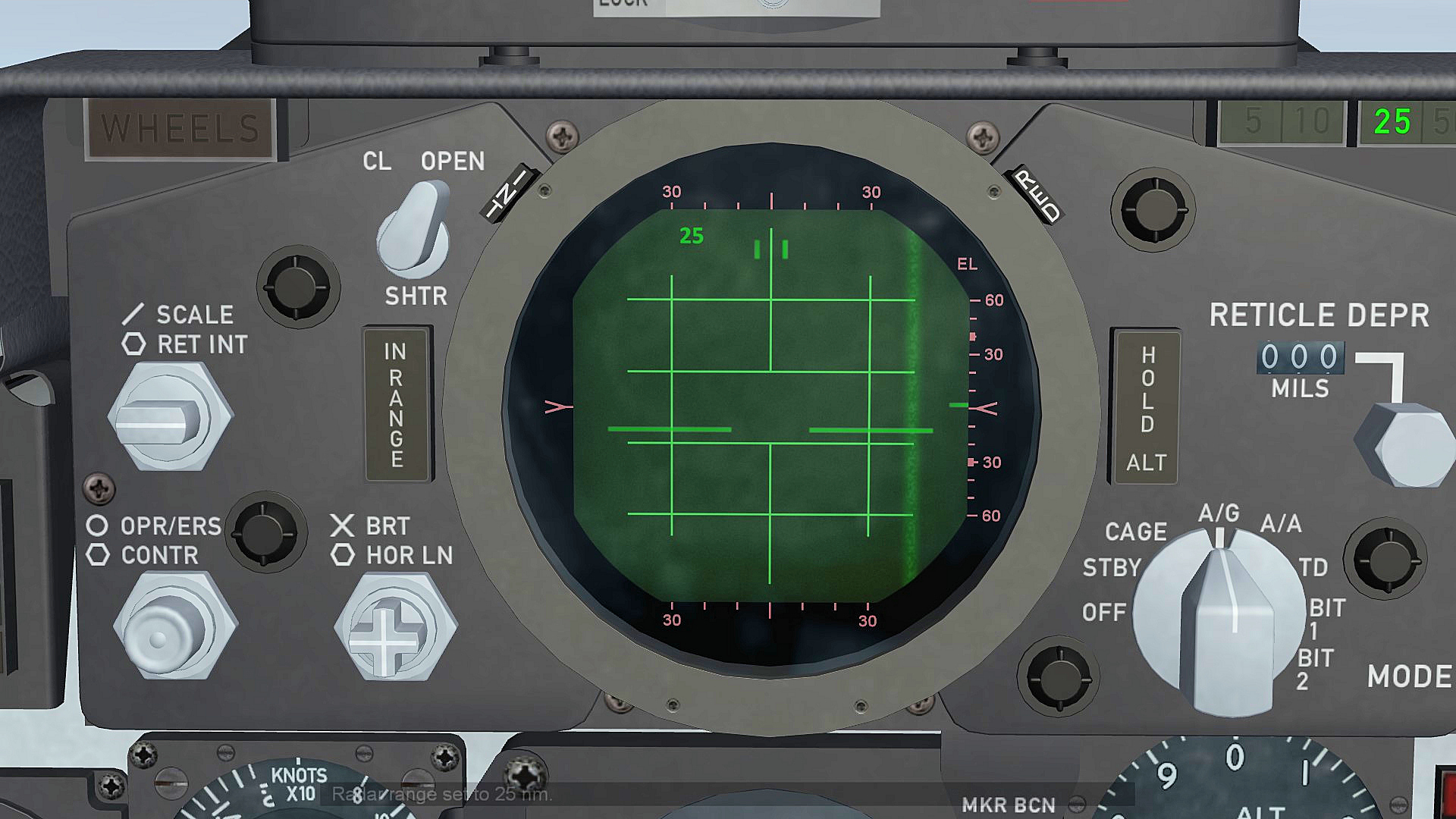

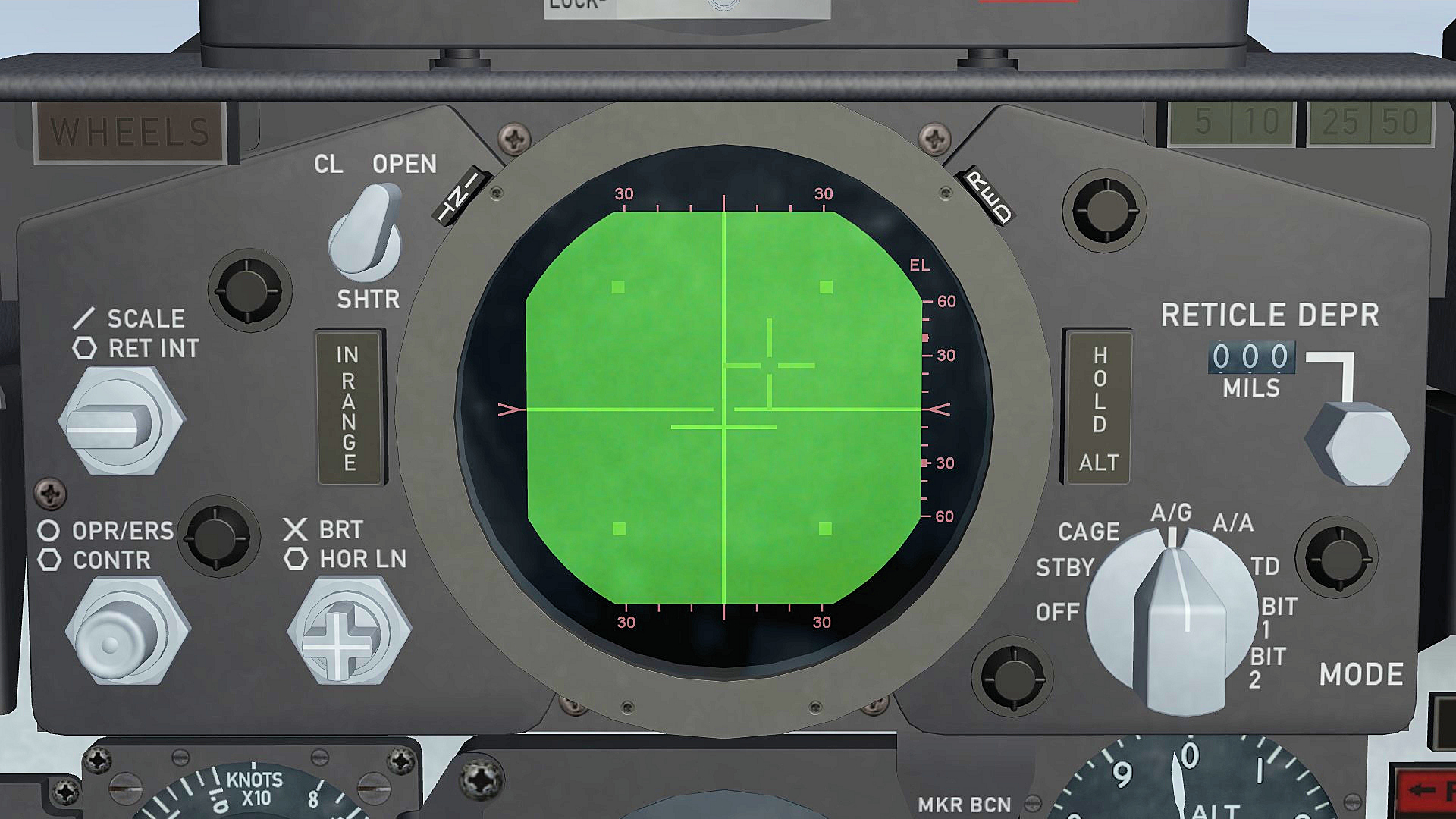

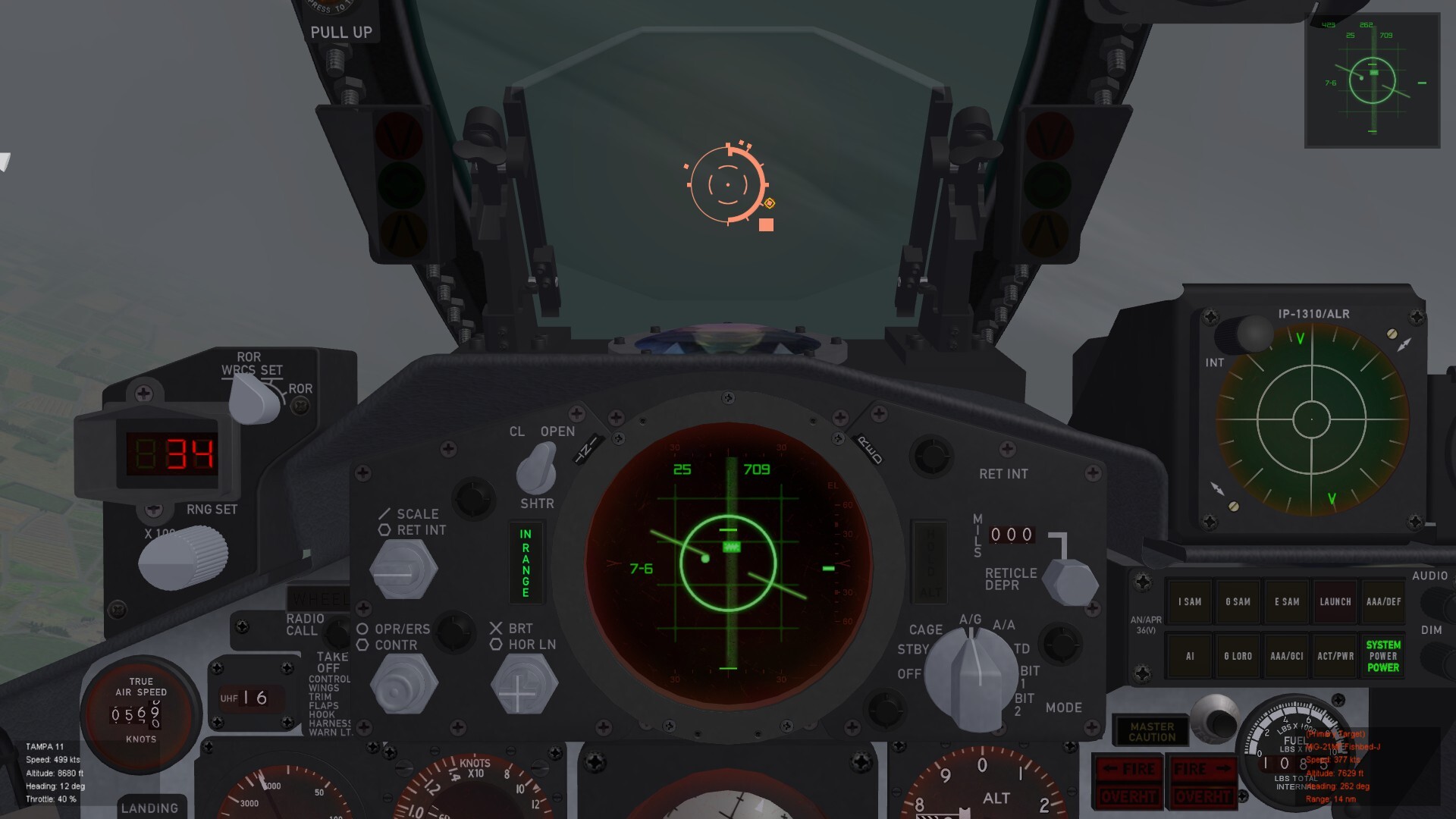

Boresight with radar range display

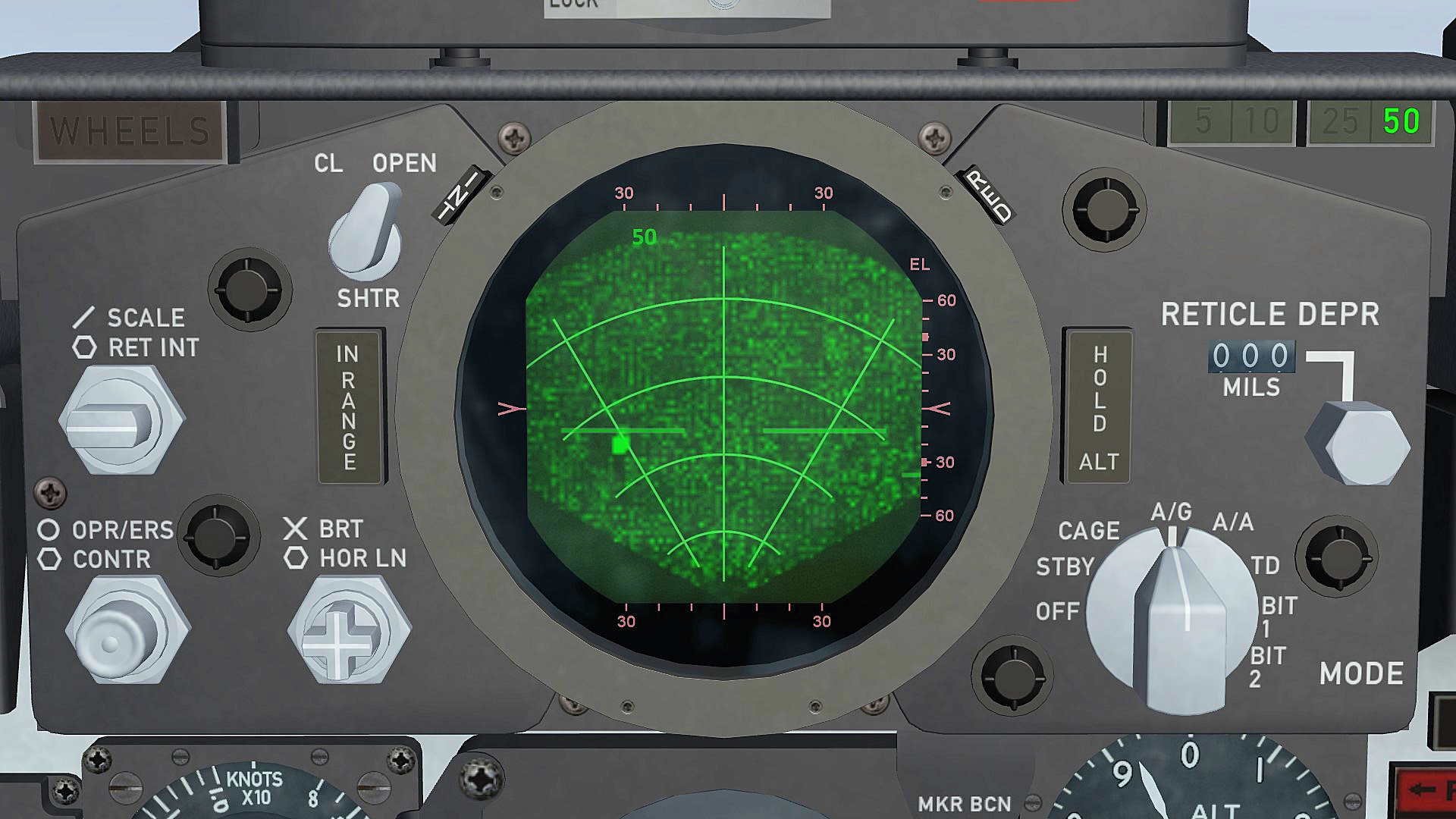

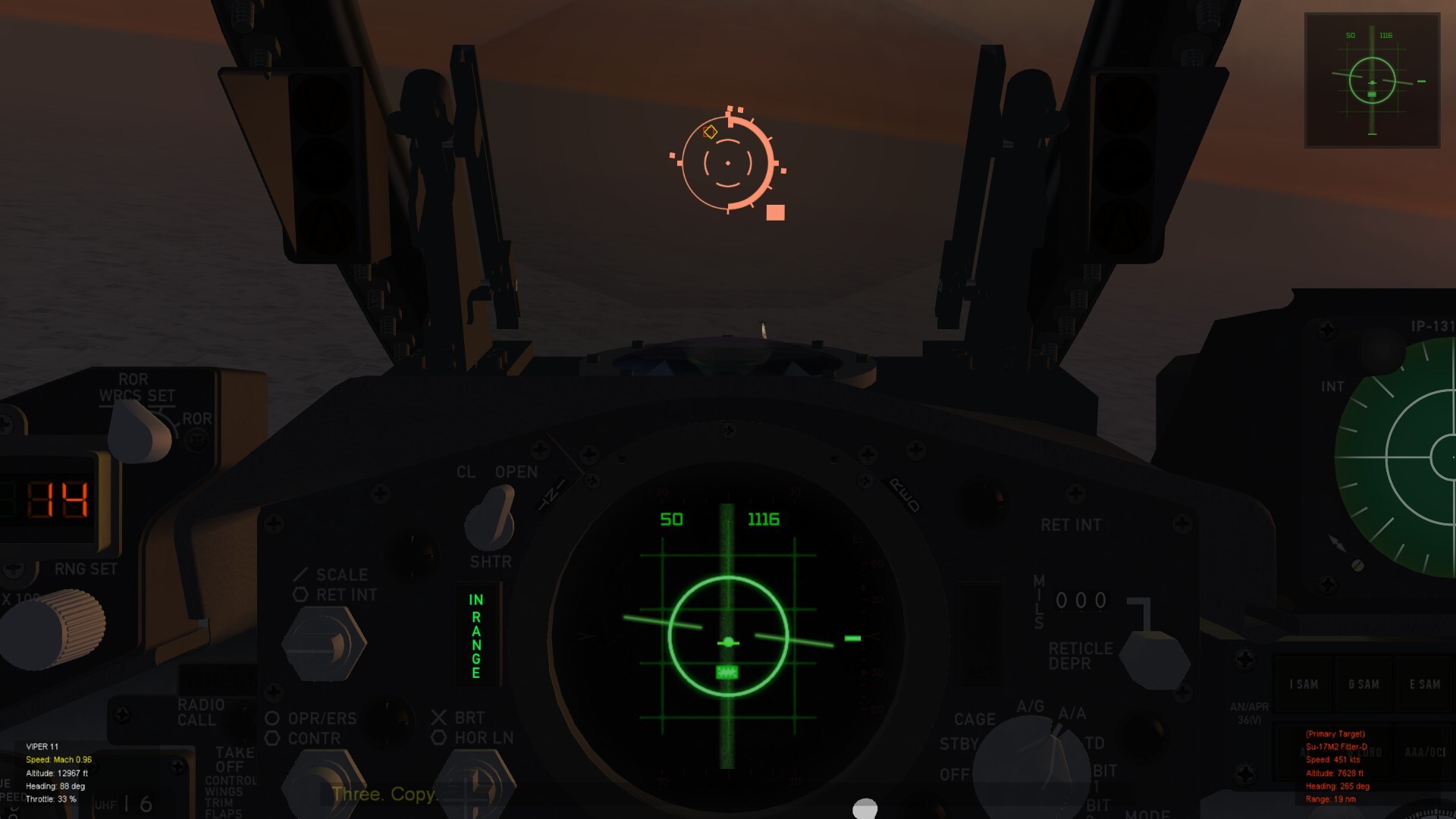

lock on with radar range display an VC display

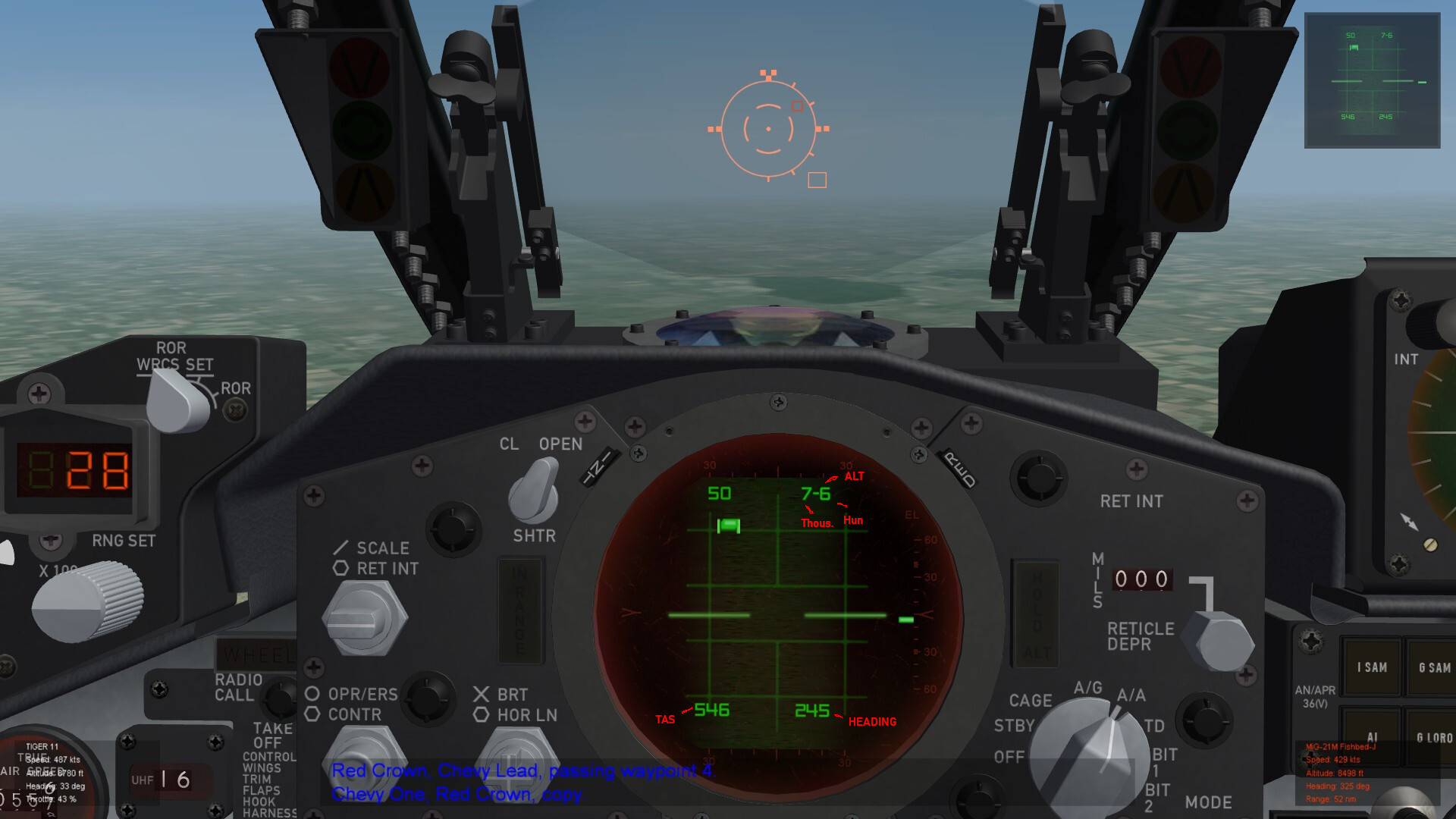

PPI with radar range display

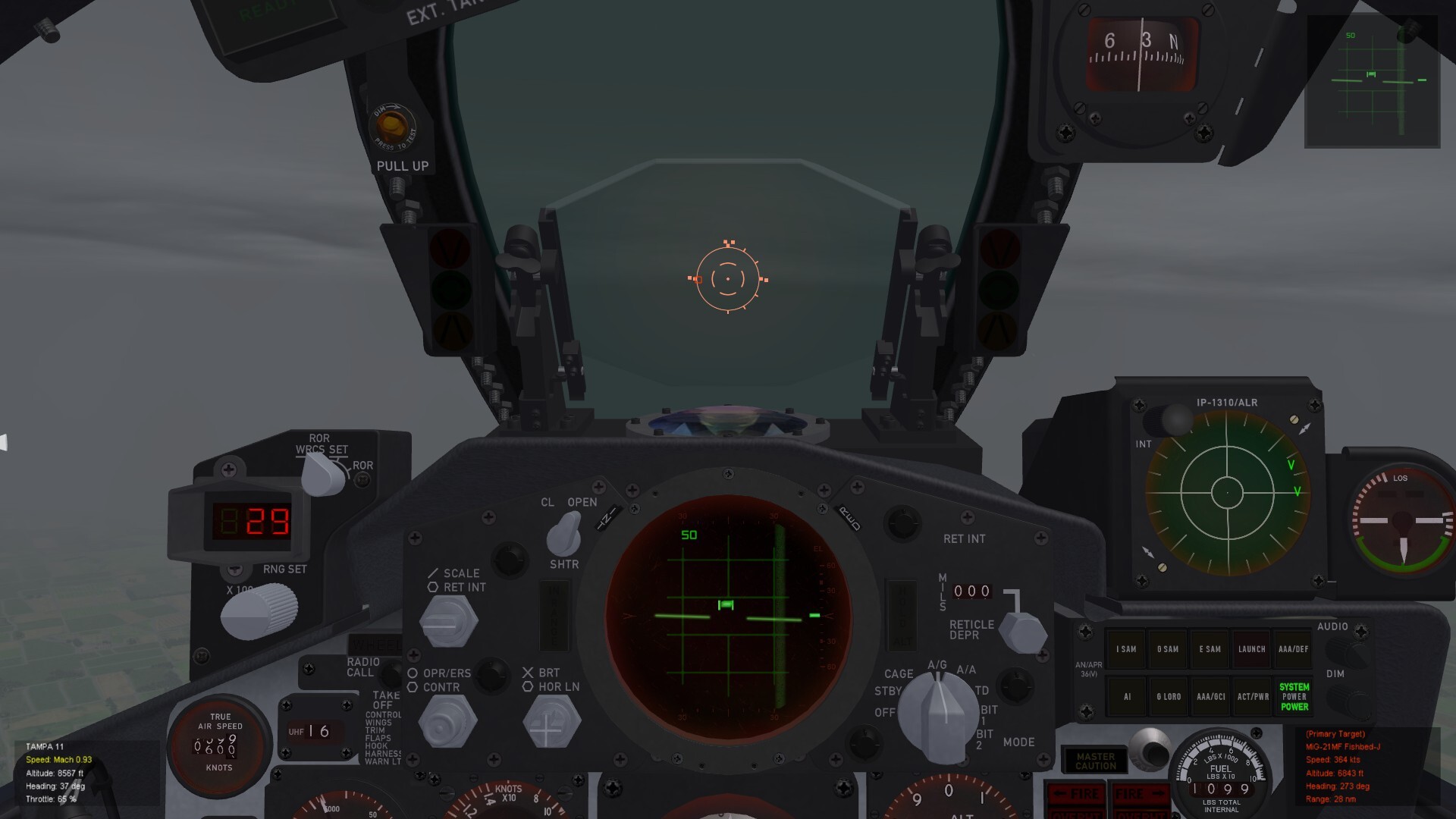

TISEO




one problem is still remaining  , the F-4E with DMAS / ARN-101 is using CCIP but with out a fall line , so if you select a  bomb the gun-sight  disappears from the HUD if you are close to the target the gun-sight com`s back up and you can attack your target

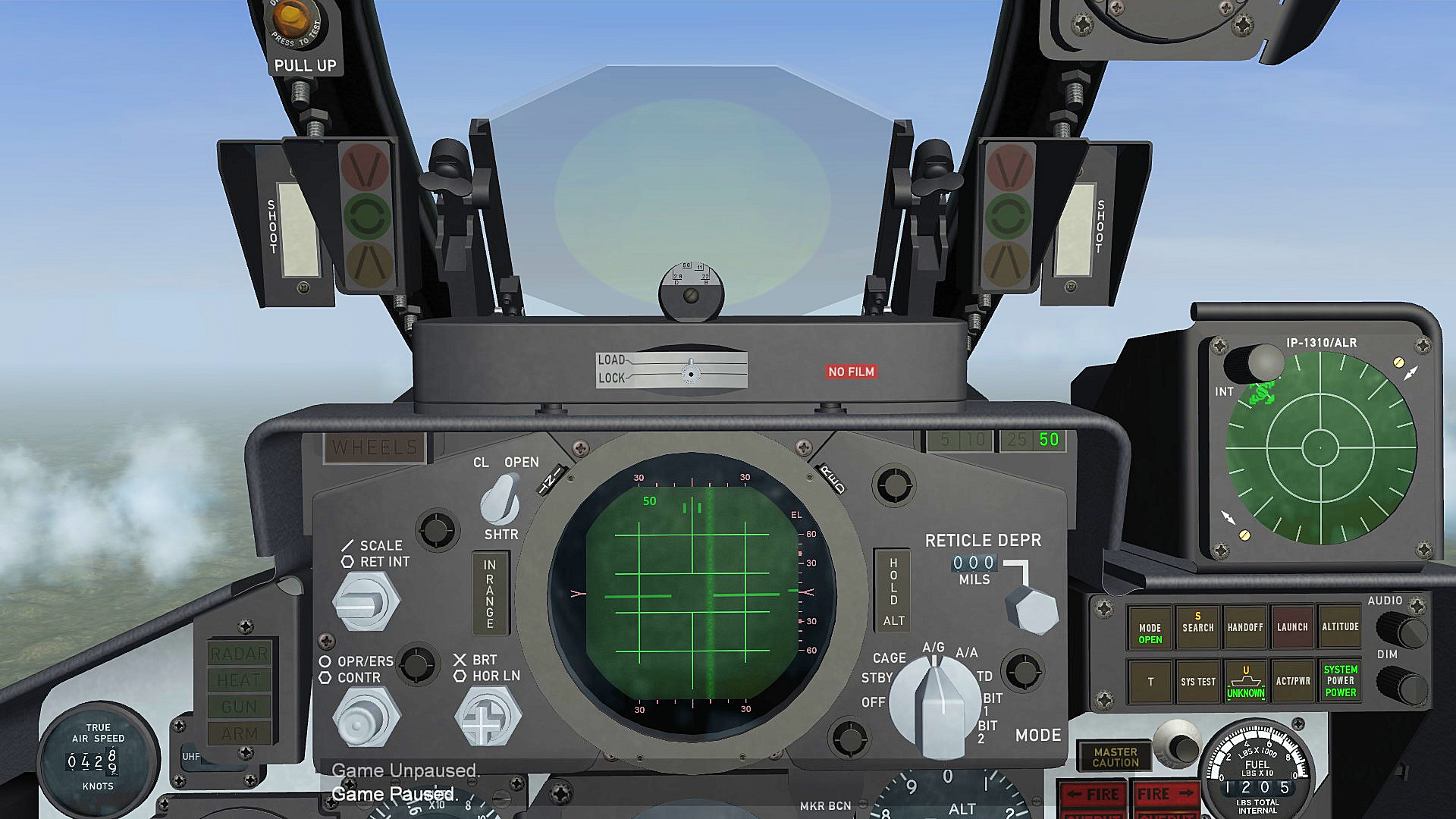

normal view

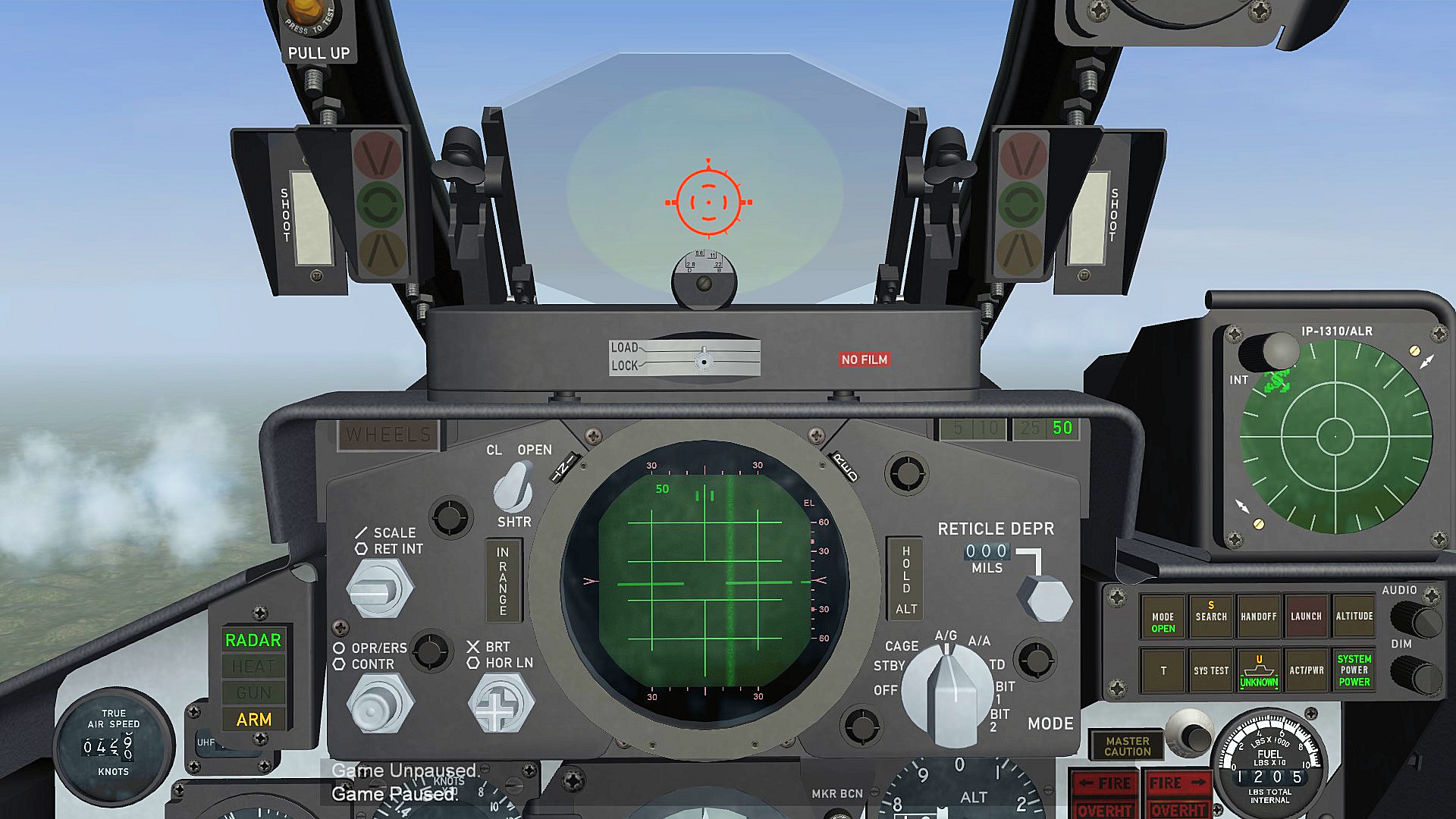

Bombs selected , gun-sight disappears

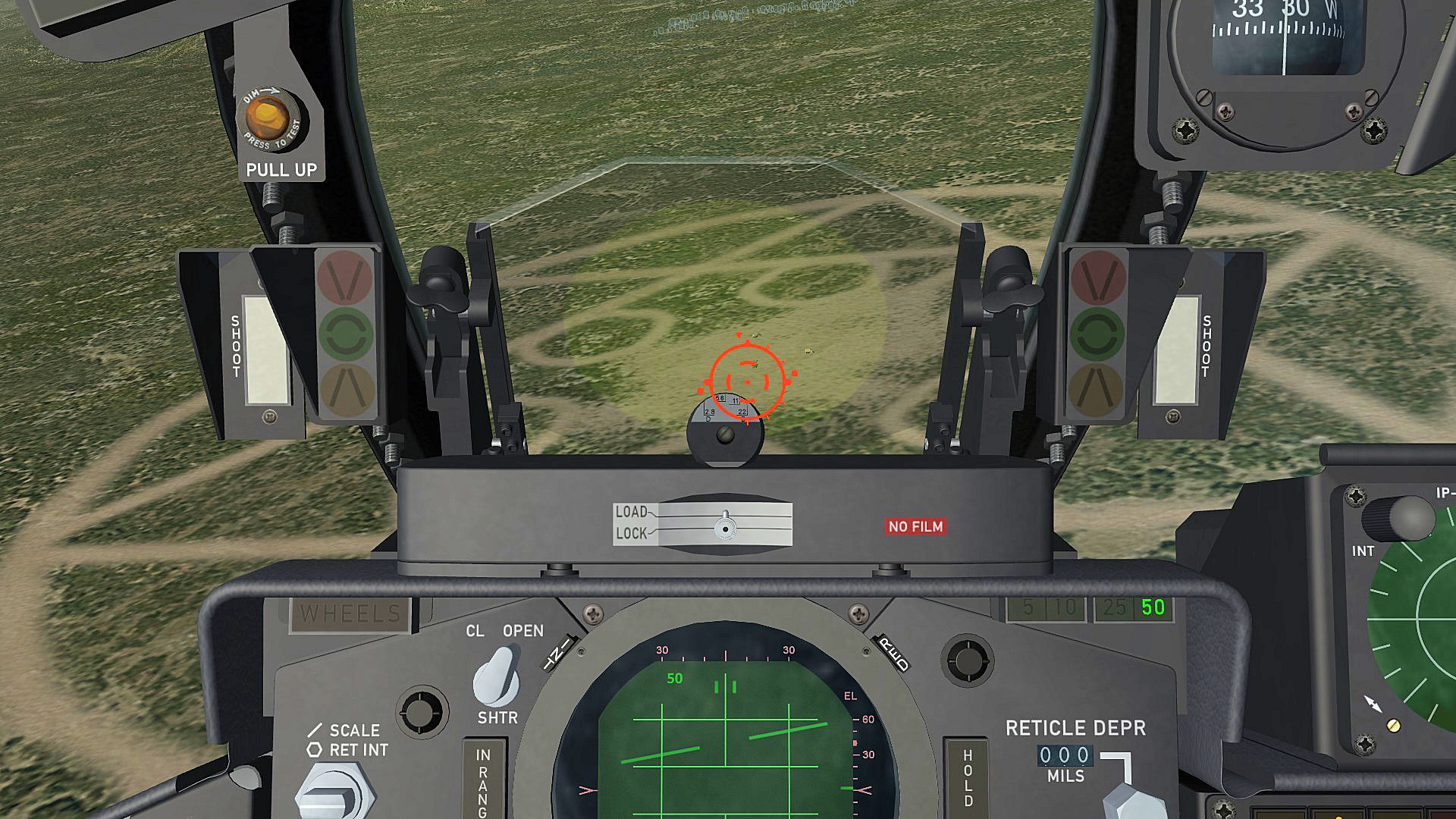

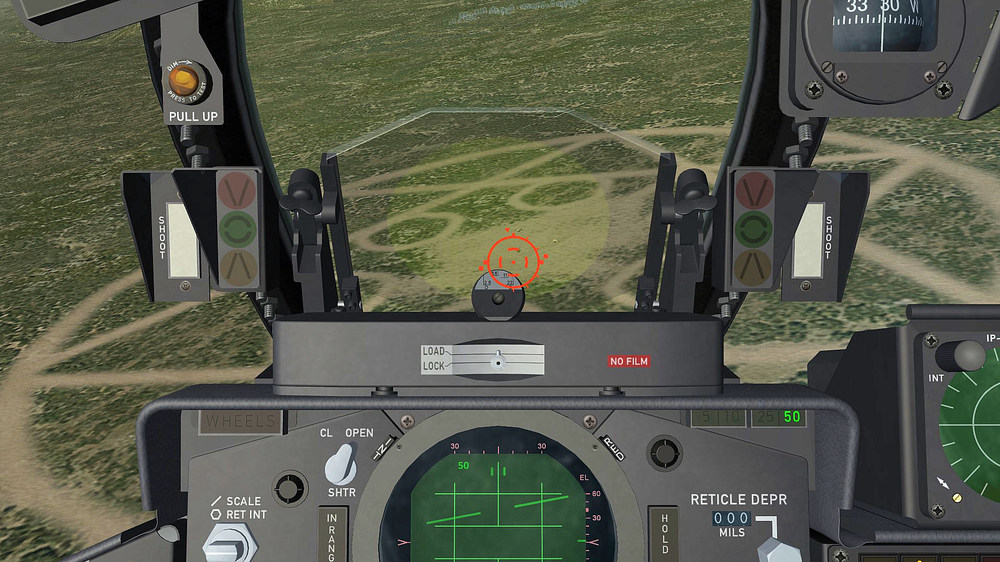

close to target




dont know if i should keep that CCIP or just use the normal gun sight



Edited by ravenclaw_007
  • Like 10
Posted (edited)

Radar looks good, my vote is keep the CCIP as it was a serious tactical improvement for the Phantoms upgraded with it. Other than the gun sight not 'waiting' for you at the bottom of the HUD for you to fly the correct dive angle it is functioning exactly as it did in real life.  So it's far more accurate than just a stationary depressed gunsight for bombing.

Edited by dtmdragon
  • Thanks 1
  • 4 weeks later...
Posted
On 6/20/2025 at 10:59 PM, ravenclaw_007 said:






dont know if i should keep that CCIP or just use the normal gun sight



wow ,that's a great work.
About CCIP, they added CCIP mode to the phantom in DMAS upgrade, so you can keep it.
and one more thing, since you are use Avionics70.dll, can you add IFF? ( F-4E in DSCG & DMAS use APX-80 IFF INTERROGATOR SET)


  • Like 1
