For those who may be interested...
this is what I found out about the tod file format.
Maybe someone can help me to fill the gaps.

number            variable type            description
of bytes

4                integer                  number of solid objects
4                integer                  number of alpha objects
n                                         objects data (see below)

for each object:
4                integer                  ?
4                integer                  number of vertices
4                integer                  number of triangle vertices = 3 * number of triangles
4                integer                  texture id ?
32 * number of vertices                   vertex data (see below)
2 * number of triangle vertices           triangle data (see below)
4                float                    ?
4                float                    object width ?
4                float                    object length ?
4                float                    object height ?
4                float                    rotation angle around z axis (in radians) ?
4                float                    ?
4                float                    object center position x ?
4                float                    object center position y ?
4                float                    ?
4                float                    ?

for each vertex
4                float                    position x
4                float                    position y
4                float                    position z
4                float                    normal x
4                float                    normal y
4                float                    normal z
4                float                    texture coordinate u ?
4                float                    texture coordinate v ?

for each triangle
2                short integer            vertex index
2                short integer            vertex index
2                short integer            vertex index

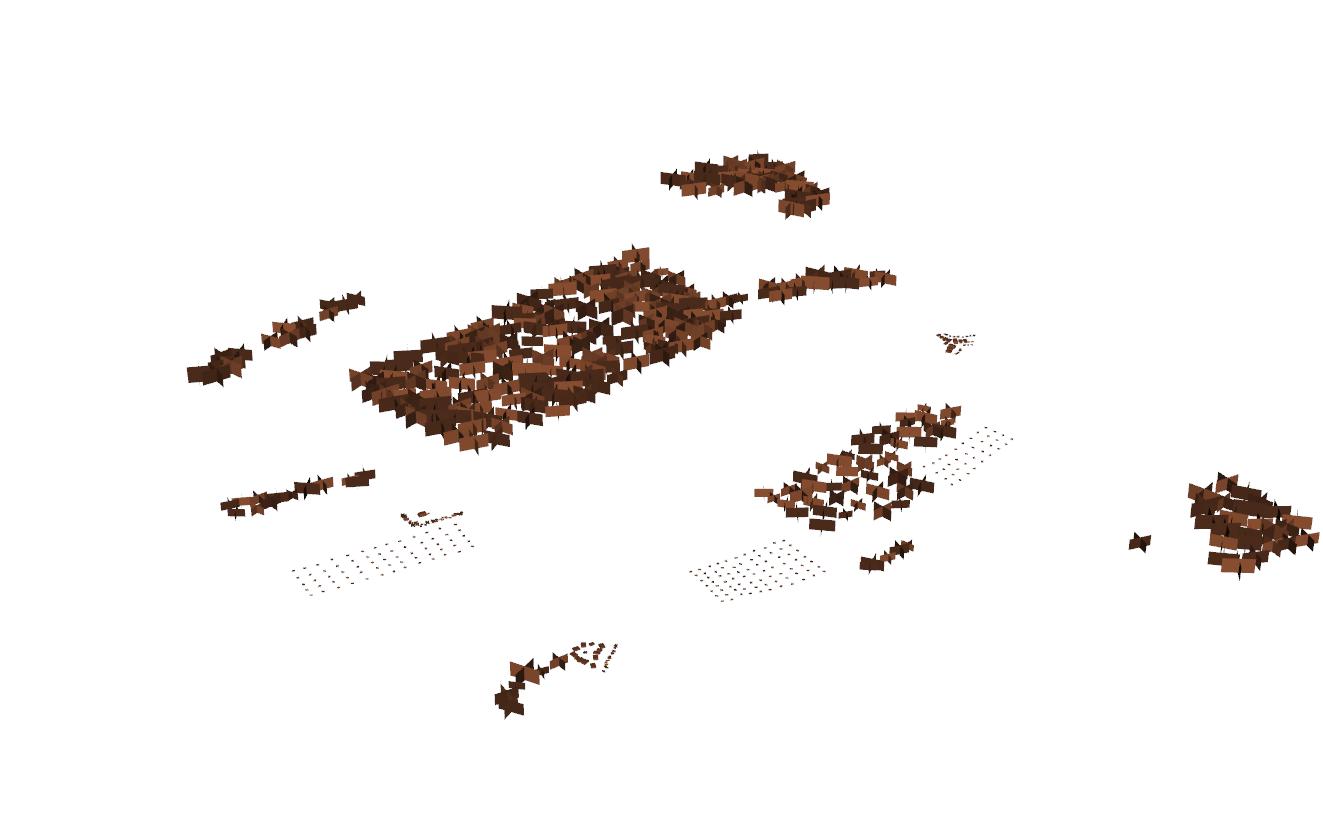

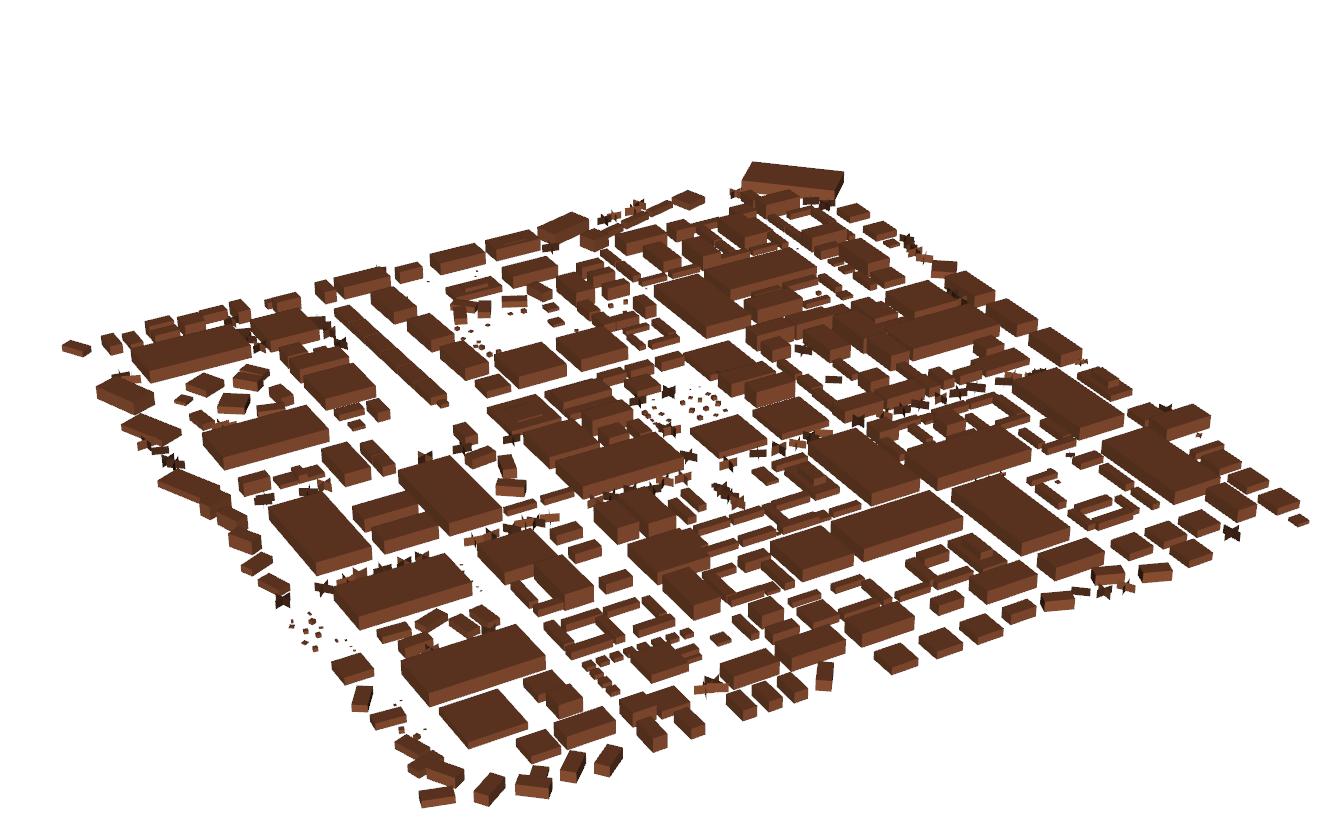

For testing purposes I extracted and displayed the object meshes from the vietnamC1.tod and vietnamG1.tod files (I think from the vietnam expansion pack). See the pictures below.










  • Like 2

Share this post


Link to post
Share on other sites

don't forget, those shown are NOT the stock TODs. The location and size of the buildings and trees show they're Stary's. His city items tend to be one or more very large groups of buildings, unlike the stock single buildings.

What isn't shown are the locations (x/y coordinates), that are only available in that particular tiles tod ini.



But still, a good find!!

Share this post


Link to post
Share on other sites

don't forget, those shown are NOT the stock TODs. The location and size of the buildings and trees show they're Stary's. His city items tend to be one or more very large groups of buildings, unlike the stock single buildings.

What isn't shown are the locations (x/y coordinates), that are only available in that particular tiles tod ini.



But still, a good find!!



Sorry, I don't understand what you want to say?

There is no difference between stock and modded TODs. Both have the same format. Both are created by the Terrain Editor and can be read by the game engine.

The object coordinates can be read from the TODs. In the format description above I named them "object center position x" and "object center position y".

Share this post


Link to post
Share on other sites

ah! I must have read over that part! 'Cause I don't see the actual x/y references in the display above.



this is what I meant:





[VIETNAMC1-RR.bmp]
ObjectCount=432
Object000.TypeName=BoxBuilding1
Object000.MapClass=0
Object000.Chance=100
Object000.PositionX=5.250000
Object000.PositionY=128.750000
Object000.Angle=0.000000
Object001.TypeName=BoxBuilding1
Object001.MapClass=0
Object001.Chance=100
Object001.PositionX=16.750000
Object001.PositionY=120.000000
Object001.Angle=0.000000
Object002.TypeName=BoxBuilding1
Object002.MapClass=0
Object002.Chance=100
Object002.PositionX=38.250000
Object002.PositionY=128.250000
Object002.Angle=0.000000
Object003.TypeName=BoxBuilding1
Object003.MapClass=0
Object003.Chance=100
Object003.PositionX=30.500000
Object003.PositionY=103.750000
Object003.Angle=0.000000
Object004.TypeName=BoxBuilding2
Object004.MapClass=0
Object004.Chance=100
Object004.PositionX=27.500000
Object004.PositionY=231.750000
Object004.Angle=0.000000
Object005.TypeName=BoxBuilding2
Object005.MapClass=0
Object005.Chance=100
Object005.PositionX=53.000000
Object005.PositionY=252.250000
Object005.Angle=0.000000
Object006.TypeName=BoxBuilding2
Object006.MapClass=0
Object006.Chance=100
Object006.PositionX=13.000000
Object006.PositionY=204.000000
Object006.Angle=0.000000
Object007.TypeName=BoxBuilding2
Object007.MapClass=0
Object007.Chance=100
Object007.PositionX=9.750000
Object007.PositionY=223.500000
Object007.Angle=0.000000
Object008.TypeName=FlatBuilding3
Object008.MapClass=0
Object008.Chance=100
Object008.PositionX=16.250000
Object008.PositionY=244.250000
Object008.Angle=0.000000
Object009.TypeName=FlatBuilding3
Object009.MapClass=0
Object009.Chance=100
Object009.PositionX=3.500000
Object009.PositionY=245.250000
Object009.Angle=0.000000
Object010.TypeName=FlatBuilding3
Object010.MapClass=0
Object010.Chance=100
Object010.PositionX=4.250000
Object010.PositionY=252.750000
Object010.Angle=0.000000
Object011.TypeName=FlatBuilding3
Object011.MapClass=0
Object011.Chance=100
Object011.PositionX=3.750000
Object011.PositionY=195.250000
Object011.Angle=0.000000
Object012.TypeName=FlatBuilding2
Object012.MapClass=0
Object012.Chance=100
Object012.PositionX=62.750000
Object012.PositionY=228.750000
Object012.Angle=0.000000
Object013.TypeName=FlatBuilding2
Object013.MapClass=0
Object013.Chance=100
Object013.PositionX=77.500000
Object013.PositionY=249.750000
Object013.Angle=0.000000
Object014.TypeName=FlatBuilding2
Object014.MapClass=0
Object014.Chance=100
Object014.PositionX=53.500000
Object014.PositionY=236.500000
Object014.Angle=0.000000
Object015.TypeName=LongBuilding1
Object015.MapClass=0
Object015.Chance=100
Object015.PositionX=73.000000
Object015.PositionY=216.750000
Object015.Angle=0.000000
Object016.TypeName=LongBuilding1
Object016.MapClass=0
Object016.Chance=100
Object016.PositionX=73.000000
Object016.PositionY=233.250000
Object016.Angle=0.000000
Object017.TypeName=BoxBuilding3
Object017.MapClass=0
Object017.Chance=100
Object017.PositionX=53.250000
Object017.PositionY=214.750000
Object017.Angle=0.000000
Object018.TypeName=BoxBuilding3
Object018.MapClass=0
Object018.Chance=100
Object018.PositionX=38.000000
Object018.PositionY=212.000000
Object018.Angle=0.000000
Object019.TypeName=BoxBuilding3
Object019.MapClass=0
Object019.Chance=100
Object019.PositionX=107.250000
Object019.PositionY=218.750000
Object019.Angle=0.000000
Object020.TypeName=BoxBuilding3
Object020.MapClass=0
Object020.Chance=100
Object020.PositionX=96.500000
Object020.PositionY=229.750000
Object020.Angle=0.000000
Object021.TypeName=BoxBuilding2
Object021.MapClass=0
Object021.Chance=100
Object021.PositionX=107.250000
Object021.PositionY=230.000000
Object021.Angle=0.000000
Object022.TypeName=BoxBuilding2
Object022.MapClass=0
Object022.Chance=100
Object022.PositionX=96.250000
Object022.PositionY=219.000000
Object022.Angle=0.000000
Object023.TypeName=BoxBuilding2
Object023.MapClass=0
Object023.Chance=100
Object023.PositionX=120.250000
Object023.PositionY=221.500000
Object023.Angle=0.000000
Object024.TypeName=BoxBuilding2
Object024.MapClass=0
Object024.Chance=100
Object024.PositionX=140.750000
Object024.PositionY=234.250000
Object024.Angle=0.000000
Object025.TypeName=LongBuilding1
Object025.MapClass=0
Object025.Chance=100
Object025.PositionX=125.500000
Object025.PositionY=252.750000
Object025.Angle=0.000000
Object026.TypeName=BoxBuilding1
Object026.MapClass=0
Object026.Chance=100
Object026.PositionX=139.750000
Object026.PositionY=242.000000
Object026.Angle=0.000000
Object027.TypeName=BoxBuilding1
Object027.MapClass=0
Object027.Chance=100
Object027.PositionX=98.500000
Object027.PositionY=247.500000
Object027.Angle=0.000000
Object028.TypeName=BoxBuilding1
Object028.MapClass=0
Object028.Chance=100
Object028.PositionX=177.500000
Object028.PositionY=234.500000
Object028.Angle=0.000000
Object029.TypeName=BoxBuilding1
Object029.MapClass=0
Object029.Chance=100
Object029.PositionX=183.000000
Object029.PositionY=243.750000
Object029.Angle=0.000000
Object030.TypeName=BoxBuilding1
Object030.MapClass=0
Object030.Chance=100
Object030.PositionX=190.750000
Object030.PositionY=253.000000
Object030.Angle=0.000000
Object031.TypeName=FlatBuilding2
Object031.MapClass=0
Object031.Chance=100
Object031.PositionX=168.000000
Object031.PositionY=245.750000
Object031.Angle=0.000000
Object032.TypeName=FlatBuilding2
Object032.MapClass=0
Object032.Chance=100
Object032.PositionX=167.000000
Object032.PositionY=210.000000
Object032.Angle=0.000000
Object033.TypeName=BoxBuilding1
Object033.MapClass=0
Object033.Chance=100
Object033.PositionX=168.500000
Object033.PositionY=224.250000
Object033.Angle=0.000000
Object034.TypeName=BoxBuilding1
Object034.MapClass=0
Object034.Chance=100
Object034.PositionX=158.250000
Object034.PositionY=252.750000
Object034.Angle=0.000000
Object035.TypeName=BoxBuilding1
Object035.MapClass=0
Object035.Chance=100
Object035.PositionX=243.000000
Object035.PositionY=200.750000
Object035.Angle=0.000000
Object036.TypeName=BoxBuilding1
Object036.MapClass=0
Object036.Chance=100
Object036.PositionX=246.500000
Object036.PositionY=221.750000
Object036.Angle=0.000000
Object037.TypeName=BoxBuilding1
Object037.MapClass=0
Object037.Chance=100
Object037.PositionX=249.000000
Object037.PositionY=235.750000
Object037.Angle=0.000000
Object038.TypeName=BoxBuilding1
Object038.MapClass=0
Object038.Chance=100
Object038.PositionX=241.750000
Object038.PositionY=236.500000
Object038.Angle=0.000000
Object039.TypeName=BoxBuilding1
Object039.MapClass=0
Object039.Chance=100
Object039.PositionX=251.750000
Object039.PositionY=252.500000
Object039.Angle=0.000000
Object040.TypeName=FlatBuilding1
Object040.MapClass=0
Object040.Chance=100
Object040.PositionX=240.500000
Object040.PositionY=227.250000
Object040.Angle=0.000000
Object041.TypeName=FlatBuilding1
Object041.MapClass=0
Object041.Chance=100
Object041.PositionX=240.750000
Object041.PositionY=210.750000
Object041.Angle=0.000000
Object042.TypeName=FlatBuilding1
Object042.MapClass=0
Object042.Chance=100
Object042.PositionX=250.250000
Object042.PositionY=210.750000
Object042.Angle=0.000000
Object043.TypeName=FlatBuilding1
Object043.MapClass=0
Object043.Chance=100
Object043.PositionX=241.000000
Object043.PositionY=244.500000
Object043.Angle=0.000000
Object044.TypeName=FlatBuilding1
Object044.MapClass=0
Object044.Chance=100
Object044.PositionX=243.500000
Object044.PositionY=253.250000
Object044.Angle=0.000000
Object045.TypeName=FlatBuilding1
Object045.MapClass=0
Object045.Chance=100
Object045.PositionX=209.000000
Object045.PositionY=129.500000
Object045.Angle=0.000000
Object046.TypeName=FlatBuilding1
Object046.MapClass=0
Object046.Chance=100
Object046.PositionX=211.250000
Object046.PositionY=135.750000
Object046.Angle=0.000000
Object047.TypeName=FlatBuilding1
Object047.MapClass=0
Object047.Chance=100
Object047.PositionX=214.250000
Object047.PositionY=142.750000
Object047.Angle=0.000000
Object048.TypeName=FlatBuilding1
Object048.MapClass=0
Object048.Chance=100
Object048.PositionX=217.750000
Object048.PositionY=152.000000
Object048.Angle=0.000000
Object049.TypeName=FlatBuilding1
Object049.MapClass=0
Object049.Chance=100
Object049.PositionX=221.000000
Object049.PositionY=157.500000
Object049.Angle=0.000000
Object050.TypeName=FlatBuilding1
Object050.MapClass=0
Object050.Chance=100
Object050.PositionX=223.500000
Object050.PositionY=162.250000
Object050.Angle=0.000000
Object051.TypeName=BoxBuilding1
Object051.MapClass=0
Object051.Chance=100
Object051.PositionX=196.750000
Object051.PositionY=134.750000
Object051.Angle=0.000000
Object052.TypeName=BoxBuilding1
Object052.MapClass=0
Object052.Chance=100
Object052.PositionX=200.750000
Object052.PositionY=143.000000
Object052.Angle=0.000000
Object053.TypeName=BoxBuilding1
Object053.MapClass=0
Object053.Chance=100
Object053.PositionX=205.750000
Object053.PositionY=153.750000
Object053.Angle=0.000000
Object054.TypeName=BoxBuilding1
Object054.MapClass=0
Object054.Chance=100
Object054.PositionX=210.750000
Object054.PositionY=163.500000
Object054.Angle=0.000000
Object055.TypeName=FlatBuilding3
Object055.MapClass=0
Object055.Chance=100
Object055.PositionX=203.500000
Object055.PositionY=133.000000
Object055.Angle=0.000000
Object056.TypeName=FlatBuilding3
Object056.MapClass=0
Object056.Chance=100
Object056.PositionX=206.750000
Object056.PositionY=143.750000
Object056.Angle=0.000000
Object057.TypeName=FlatBuilding3
Object057.MapClass=0
Object057.Chance=100
Object057.PositionX=211.750000
Object057.PositionY=152.500000
Object057.Angle=0.000000
Object058.TypeName=FlatBuilding3
Object058.MapClass=0
Object058.Chance=100
Object058.PositionX=216.250000
Object058.PositionY=162.500000
Object058.Angle=0.000000
Object059.TypeName=FlatBuilding3
Object059.MapClass=0
Object059.Chance=100
Object059.PositionX=237.000000
Object059.PositionY=125.750000
Object059.Angle=0.000000
Object060.TypeName=FlatBuilding3
Object060.MapClass=0
Object060.Chance=100
Object060.PositionX=240.250000
Object060.PositionY=162.250000
Object060.Angle=0.000000
Object061.TypeName=FlatBuilding3
Object061.MapClass=0
Object061.Chance=100
Object061.PositionX=251.000000
Object061.PositionY=126.000000
Object061.Angle=0.000000
Object062.TypeName=BoxBuilding2
Object062.MapClass=0
Object062.Chance=100
Object062.PositionX=242.250000
Object062.PositionY=136.000000
Object062.Angle=0.000000
Object063.TypeName=BoxBuilding2
Object063.MapClass=0
Object063.Chance=100
Object063.PositionX=225.250000
Object063.PositionY=135.000000
Object063.Angle=0.000000
Object064.TypeName=BoxBuilding2
Object064.MapClass=0
Object064.Chance=100
Object064.PositionX=251.500000
Object064.PositionY=176.250000
Object064.Angle=0.000000
Object065.TypeName=BoxBuilding2
Object065.MapClass=0
Object065.Chance=100
Object065.PositionX=229.750000
Object065.PositionY=186.750000
Object065.Angle=0.000000
Object066.TypeName=BoxBuilding2
Object066.MapClass=0
Object066.Chance=100
Object066.PositionX=213.750000
Object066.PositionY=179.000000
Object066.Angle=0.000000
Object067.TypeName=BoxBuilding2
Object067.MapClass=0
Object067.Chance=100
Object067.PositionX=251.000000
Object067.PositionY=116.500000
Object067.Angle=0.000000
Object068.TypeName=BoxBuilding2
Object068.MapClass=0
Object068.Chance=100
Object068.PositionX=250.500000
Object068.PositionY=107.500000
Object068.Angle=0.000000
Object069.TypeName=BoxBuilding2
Object069.MapClass=0
Object069.Chance=100
Object069.PositionX=247.000000
Object069.PositionY=86.750000
Object069.Angle=0.000000
Object070.TypeName=BoxBuilding1
Object070.MapClass=0
Object070.Chance=100
Object070.PositionX=249.250000
Object070.PositionY=26.250000
Object070.Angle=0.000000
Object071.TypeName=BoxBuilding1
Object071.MapClass=0
Object071.Chance=100
Object071.PositionX=249.500000
Object071.PositionY=45.250000
Object071.Angle=0.000000
Object072.TypeName=BoxBuilding1
Object072.MapClass=0
Object072.Chance=100
Object072.PositionX=251.750000
Object072.PositionY=55.500000
Object072.Angle=0.000000
Object073.TypeName=BoxBuilding1
Object073.MapClass=0
Object073.Chance=100
Object073.PositionX=242.500000
Object073.PositionY=54.500000
Object073.Angle=0.000000
Object074.TypeName=BoxBuilding1
Object074.MapClass=0
Object074.Chance=100
Object074.PositionX=253.000000
Object074.PositionY=72.750000
Object074.Angle=0.000000
Object075.TypeName=LongBuilding1
Object075.MapClass=0
Object075.Chance=100
Object075.PositionX=243.500000
Object075.PositionY=79.000000
Object075.Angle=0.000000
Object076.TypeName=LongBuilding1
Object076.MapClass=0
Object076.Chance=100
Object076.PositionX=246.250000
Object076.PositionY=15.500000
Object076.Angle=0.000000
Object077.TypeName=LongBuilding1
Object077.MapClass=0
Object077.Chance=100
Object077.PositionX=245.000000
Object077.PositionY=34.250000
Object077.Angle=0.000000
Object078.TypeName=LongBuilding1
Object078.MapClass=0
Object078.Chance=100
Object078.PositionX=180.500000
Object078.PositionY=16.750000
Object078.Angle=0.000000
Object079.TypeName=LongBuilding1
Object079.MapClass=0
Object079.Chance=100
Object079.PositionX=192.250000
Object079.PositionY=17.000000
Object079.Angle=0.000000
Object080.TypeName=BoxBuilding1
Object080.MapClass=0
Object080.Chance=100
Object080.PositionX=192.500000
Object080.PositionY=24.500000
Object080.Angle=0.000000
Object081.TypeName=BoxBuilding1
Object081.MapClass=0
Object081.Chance=100
Object081.PositionX=179.750000
Object081.PositionY=35.250000
Object081.Angle=0.000000
Object082.TypeName=BoxBuilding1
Object082.MapClass=0
Object082.Chance=100
Object082.PositionX=195.500000
Object082.PositionY=44.500000
Object082.Angle=0.000000
Object083.TypeName=BoxBuilding1
Object083.MapClass=0
Object083.Chance=100
Object083.PositionX=195.500000
Object083.PositionY=55.000000
Object083.Angle=0.000000
Object084.TypeName=BoxBuilding1
Object084.MapClass=0
Object084.Chance=100
Object084.PositionX=185.750000
Object084.PositionY=52.000000
Object084.Angle=0.000000
Object085.TypeName=BoxBuilding2
Object085.MapClass=0
Object085.Chance=100
Object085.PositionX=188.000000
Object085.PositionY=70.250000
Object085.Angle=0.000000
Object086.TypeName=BoxBuilding2
Object086.MapClass=0
Object086.Chance=100
Object086.PositionX=188.750000
Object086.PositionY=90.500000
Object086.Angle=0.000000
Object087.TypeName=BoxBuilding2
Object087.MapClass=0
Object087.Chance=100
Object087.PositionX=189.500000
Object087.PositionY=112.750000
Object087.Angle=0.000000
Object088.TypeName=FlatBuilding2
Object088.MapClass=0
Object088.Chance=100
Object088.PositionX=202.250000
Object088.PositionY=117.250000
Object088.Angle=0.000000
Object089.TypeName=FlatBuilding2
Object089.MapClass=0
Object089.Chance=100
Object089.PositionX=179.750000
Object089.PositionY=25.250000
Object089.Angle=0.000000
Object090.TypeName=FlatBuilding2
Object090.MapClass=0
Object090.Chance=100
Object090.PositionX=163.750000
Object090.PositionY=9.000000
Object090.Angle=0.000000
Object091.TypeName=FlatBuilding2
Object091.MapClass=0
Object091.Chance=100
Object091.PositionX=149.500000
Object091.PositionY=15.000000
Object091.Angle=0.000000
Object092.TypeName=BoxBuilding3
Object092.MapClass=0
Object092.Chance=100
Object092.PositionX=158.500000
Object092.PositionY=34.000000
Object092.Angle=0.000000
Object093.TypeName=BoxBuilding3
Object093.MapClass=0
Object093.Chance=100
Object093.PositionX=141.750000
Object093.PositionY=54.250000
Object093.Angle=0.000000
Object094.TypeName=BoxBuilding1
Object094.MapClass=0
Object094.Chance=100
Object094.PositionX=127.750000
Object094.PositionY=4.250000
Object094.Angle=0.000000
Object095.TypeName=BoxBuilding1
Object095.MapClass=0
Object095.Chance=100
Object095.PositionX=135.750000
Object095.PositionY=11.750000
Object095.Angle=0.000000
Object096.TypeName=BoxBuilding1
Object096.MapClass=0
Object096.Chance=100
Object096.PositionX=168.250000
Object096.PositionY=23.000000
Object096.Angle=0.000000
Object097.TypeName=BoxBuilding1
Object097.MapClass=0
Object097.Chance=100
Object097.PositionX=159.750000
Object097.PositionY=45.750000
Object097.Angle=0.000000
Object098.TypeName=BoxBuilding1
Object098.MapClass=0
Object098.Chance=100
Object098.PositionX=176.500000
Object098.PositionY=65.500000
Object098.Angle=0.000000
Object099.TypeName=BoxBuilding1
Object099.MapClass=0
Object099.Chance=100
Object099.PositionX=174.750000
Object099.PositionY=77.750000
Object099.Angle=0.000000
Object100.TypeName=FlatBuilding3
Object100.MapClass=0
Object100.Chance=100
Object100.PositionX=166.500000
Object100.PositionY=97.500000
Object100.Angle=0.000000
Object101.TypeName=FlatBuilding3
Object101.MapClass=0
Object101.Chance=100
Object101.PositionX=178.500000
Object101.PositionY=86.000000
Object101.Angle=0.000000
Object102.TypeName=FlatBuilding3
Object102.MapClass=0
Object102.Chance=100
Object102.PositionX=146.750000
Object102.PositionY=67.250000
Object102.Angle=0.000000
Object103.TypeName=FlatBuilding3
Object103.MapClass=0
Object103.Chance=100
Object103.PositionX=148.000000
Object103.PositionY=84.250000
Object103.Angle=0.000000
Object104.TypeName=BoxBuilding1
Object104.MapClass=0
Object104.Chance=100
Object104.PositionX=178.000000
Object104.PositionY=117.750000
Object104.Angle=0.000000
Object105.TypeName=BoxBuilding1
Object105.MapClass=0
Object105.Chance=100
Object105.PositionX=178.250000
Object105.PositionY=107.000000
Object105.Angle=0.000000
Object106.TypeName=BoxBuilding1
Object106.MapClass=0
Object106.Chance=100
Object106.PositionX=166.500000
Object106.PositionY=106.750000
Object106.Angle=0.000000
Object107.TypeName=BoxBuilding1
Object107.MapClass=0
Object107.Chance=100
Object107.PositionX=174.750000
Object107.PositionY=97.250000
Object107.Angle=0.000000
Object108.TypeName=BoxBuilding1
Object108.MapClass=0
Object108.Chance=100
Object108.PositionX=166.500000
Object108.PositionY=116.750000
Object108.Angle=0.000000
Object109.TypeName=BoxBuilding1
Object109.MapClass=0
Object109.Chance=100
Object109.PositionX=177.000000
Object109.PositionY=131.000000
Object109.Angle=0.000000
Object110.TypeName=BoxBuilding1
Object110.MapClass=0
Object110.Chance=100
Object110.PositionX=149.000000
Object110.PositionY=187.750000
Object110.Angle=0.000000
Object111.TypeName=BoxBuilding1
Object111.MapClass=0
Object111.Chance=100
Object111.PositionX=158.750000
Object111.PositionY=194.750000
Object111.Angle=0.000000
Object112.TypeName=BoxBuilding1
Object112.MapClass=0
Object112.Chance=100
Object112.PositionX=155.500000
Object112.PositionY=202.250000
Object112.Angle=0.000000
Object113.TypeName=BoxBuilding1
Object113.MapClass=0
Object113.Chance=100
Object113.PositionX=169.750000
Object113.PositionY=182.250000
Object113.Angle=0.000000
Object114.TypeName=BoxBuilding1
Object114.MapClass=0
Object114.Chance=100
Object114.PositionX=174.000000
Object114.PositionY=192.250000
Object114.Angle=0.000000
Object115.TypeName=BoxBuilding1
Object115.MapClass=0
Object115.Chance=100
Object115.PositionX=176.500000
Object115.PositionY=162.750000
Object115.Angle=0.000000
Object116.TypeName=BoxBuilding1
Object116.MapClass=0
Object116.Chance=100
Object116.PositionX=186.000000
Object116.PositionY=183.250000
Object116.Angle=0.000000
Object117.TypeName=BoxBuilding1
Object117.MapClass=0
Object117.Chance=100
Object117.PositionX=189.250000
Object117.PositionY=209.250000
Object117.Angle=0.000000
Object118.TypeName=BoxBuilding1
Object118.MapClass=0
Object118.Chance=100
Object118.PositionX=188.500000
Object118.PositionY=141.750000
Object118.Angle=0.000000
Object119.TypeName=BoxBuilding1
Object119.MapClass=0
Object119.Chance=100
Object119.PositionX=165.000000
Object119.PositionY=164.500000
Object119.Angle=0.000000
Object120.TypeName=BoxBuilding1
Object120.MapClass=0
Object120.Chance=100
Object120.PositionX=147.250000
Object120.PositionY=216.250000
Object120.Angle=0.000000
Object121.TypeName=BoxBuilding1
Object121.MapClass=0
Object121.Chance=100
Object121.PositionX=143.000000
Object121.PositionY=200.500000
Object121.Angle=0.000000
Object122.TypeName=BoxBuilding1
Object122.MapClass=0
Object122.Chance=100
Object122.PositionX=138.000000
Object122.PositionY=191.000000
Object122.Angle=0.000000
Object123.TypeName=BoxBuilding1
Object123.MapClass=0
Object123.Chance=100
Object123.PositionX=124.250000
Object123.PositionY=195.500000
Object123.Angle=0.000000
Object124.TypeName=BoxBuilding1
Object124.MapClass=0
Object124.Chance=100
Object124.PositionX=125.250000
Object124.PositionY=203.000000
Object124.Angle=0.000000
Object125.TypeName=BoxBuilding2
Object125.MapClass=0
Object125.Chance=100
Object125.PositionX=135.000000
Object125.PositionY=212.750000
Object125.Angle=0.000000
Object126.TypeName=BoxBuilding2
Object126.MapClass=0
Object126.Chance=100
Object126.PositionX=119.000000
Object126.PositionY=158.000000
Object126.Angle=0.000000
Object127.TypeName=BoxBuilding2
Object127.MapClass=0
Object127.Chance=100
Object127.PositionX=121.500000
Object127.PositionY=168.500000
Object127.Angle=0.000000
Object128.TypeName=FlatBuilding1
Object128.MapClass=0
Object128.Chance=100
Object128.PositionX=121.500000
Object128.PositionY=176.750000
Object128.Angle=0.000000
Object129.TypeName=FlatBuilding1
Object129.MapClass=0
Object129.Chance=100
Object129.PositionX=148.500000
Object129.PositionY=176.500000
Object129.Angle=0.000000
Object130.TypeName=FlatBuilding1
Object130.MapClass=0
Object130.Chance=100
Object130.PositionX=148.250000
Object130.PositionY=170.250000
Object130.Angle=0.000000
Object131.TypeName=FlatBuilding1
Object131.MapClass=0
Object131.Chance=100
Object131.PositionX=121.750000
Object131.PositionY=185.000000
Object131.Angle=0.000000
Object132.TypeName=FlatBuilding1
Object132.MapClass=0
Object132.Chance=100
Object132.PositionX=136.000000
Object132.PositionY=182.000000
Object132.Angle=0.000000
Object133.TypeName=BoxBuilding1
Object133.MapClass=0
Object133.Chance=100
Object133.PositionX=132.750000
Object133.PositionY=174.000000
Object133.Angle=0.000000
Object134.TypeName=BoxBuilding1
Object134.MapClass=0
Object134.Chance=100
Object134.PositionX=129.500000
Object134.PositionY=156.750000
Object134.Angle=0.000000
Object135.TypeName=BoxBuilding1
Object135.MapClass=0
Object135.Chance=100
Object135.PositionX=127.250000
Object135.PositionY=114.250000
Object135.Angle=0.000000
Object136.TypeName=BoxBuilding1
Object136.MapClass=0
Object136.Chance=100
Object136.PositionX=148.750000
Object136.PositionY=116.000000
Object136.Angle=0.000000
Object137.TypeName=BoxBuilding1
Object137.MapClass=0
Object137.Chance=100
Object137.PositionX=157.750000
Object137.PositionY=108.500000
Object137.Angle=0.000000
Object138.TypeName=BoxBuilding1
Object138.MapClass=0
Object138.Chance=100
Object138.PositionX=156.750000
Object138.PositionY=94.750000
Object138.Angle=0.000000
Object139.TypeName=LongBuilding1
Object139.MapClass=0
Object139.Chance=100
Object139.PositionX=125.250000
Object139.PositionY=103.250000
Object139.Angle=0.000000
Object140.TypeName=LongBuilding1
Object140.MapClass=0
Object140.Chance=100
Object140.PositionX=136.500000
Object140.PositionY=102.750000
Object140.Angle=0.000000
Object141.TypeName=LongBuilding1
Object141.MapClass=0
Object141.Chance=100
Object141.PositionX=127.250000
Object141.PositionY=122.750000
Object141.Angle=0.000000
Object142.TypeName=LongBuilding1
Object142.MapClass=0
Object142.Chance=100
Object142.PositionX=115.750000
Object142.PositionY=138.750000
Object142.Angle=90.000000
Object143.TypeName=BoxBuilding1
Object143.MapClass=0
Object143.Chance=100
Object143.PositionX=107.000000
Object143.PositionY=123.250000
Object143.Angle=0.000000
Object144.TypeName=BoxBuilding1
Object144.MapClass=0
Object144.Chance=100
Object144.PositionX=104.500000
Object144.PositionY=105.500000
Object144.Angle=0.000000
Object145.TypeName=BoxBuilding1
Object145.MapClass=0
Object145.Chance=100
Object145.PositionX=131.000000
Object145.PositionY=77.500000
Object145.Angle=0.000000
Object146.TypeName=BoxBuilding1
Object146.MapClass=0
Object146.Chance=100
Object146.PositionX=134.500000
Object146.PositionY=63.500000
Object146.Angle=0.000000
Object147.TypeName=BoxBuilding1
Object147.MapClass=0
Object147.Chance=100
Object147.PositionX=125.250000
Object147.PositionY=71.250000
Object147.Angle=0.000000
Object148.TypeName=FlatBuilding2
Object148.MapClass=0
Object148.Chance=100
Object148.PositionX=126.500000
Object148.PositionY=92.000000
Object148.Angle=0.000000
Object149.TypeName=FlatBuilding2
Object149.MapClass=0
Object149.Chance=100
Object149.PositionX=106.250000
Object149.PositionY=86.750000
Object149.Angle=0.000000
Object150.TypeName=BoxBuilding2
Object150.MapClass=0
Object150.Chance=100
Object150.PositionX=105.250000
Object150.PositionY=4.500000
Object150.Angle=0.000000
Object151.TypeName=BoxBuilding3
Object151.MapClass=0
Object151.Chance=100
Object151.PositionX=118.000000
Object151.PositionY=14.500000
Object151.Angle=0.000000
Object152.TypeName=FlatBuilding2
Object152.MapClass=0
Object152.Chance=100
Object152.PositionX=106.250000
Object152.PositionY=14.000000
Object152.Angle=0.000000
Object153.TypeName=FlatBuilding3
Object153.MapClass=0
Object153.Chance=100
Object153.PositionX=117.500000
Object153.PositionY=44.750000
Object153.Angle=0.000000
Object154.TypeName=FlatBuilding3
Object154.MapClass=0
Object154.Chance=100
Object154.PositionX=104.750000
Object154.PositionY=46.500000
Object154.Angle=0.000000
Object155.TypeName=FlatBuilding3
Object155.MapClass=0
Object155.Chance=100
Object155.PositionX=93.500000
Object155.PositionY=58.250000
Object155.Angle=0.000000
Object156.TypeName=FlatBuilding3
Object156.MapClass=0
Object156.Chance=100
Object156.PositionX=94.000000
Object156.PositionY=73.000000
Object156.Angle=0.000000
Object157.TypeName=FlatBuilding3
Object157.MapClass=0
Object157.Chance=100
Object157.PositionX=104.750000
Object157.PositionY=62.750000
Object157.Angle=0.000000
Object158.TypeName=FlatBuilding3
Object158.MapClass=0
Object158.Chance=100
Object158.PositionX=117.000000
Object158.PositionY=63.250000
Object158.Angle=0.000000
Object159.TypeName=BoxBuilding1
Object159.MapClass=0
Object159.Chance=100
Object159.PositionX=95.250000
Object159.PositionY=161.000000
Object159.Angle=0.000000
Object160.TypeName=BoxBuilding1
Object160.MapClass=0
Object160.Chance=100
Object160.PositionX=108.500000
Object160.PositionY=170.750000
Object160.Angle=0.000000
Object161.TypeName=BoxBuilding1
Object161.MapClass=0
Object161.Chance=100
Object161.PositionX=95.500000
Object161.PositionY=171.500000
Object161.Angle=0.000000
Object162.TypeName=BoxBuilding1
Object162.MapClass=0
Object162.Chance=100
Object162.PositionX=95.250000
Object162.PositionY=182.750000
Object162.Angle=0.000000
Object163.TypeName=LongBuilding1
Object163.MapClass=0
Object163.Chance=100
Object163.PositionX=89.250000
Object163.PositionY=199.500000
Object163.Angle=0.000000
Object164.TypeName=LongBuilding1
Object164.MapClass=0
Object164.Chance=100
Object164.PositionX=84.000000
Object164.PositionY=216.250000
Object164.Angle=0.000000
Object165.TypeName=BoxBuilding2
Object165.MapClass=0
Object165.Chance=100
Object165.PositionX=103.750000
Object165.PositionY=204.500000
Object165.Angle=0.000000
Object166.TypeName=BoxBuilding2
Object166.MapClass=0
Object166.Chance=100
Object166.PositionX=71.000000
Object166.PositionY=173.000000
Object166.Angle=0.000000
Object167.TypeName=BoxBuilding2
Object167.MapClass=0
Object167.Chance=100
Object167.PositionX=70.000000
Object167.PositionY=163.500000
Object167.Angle=0.000000
Object168.TypeName=BoxBuilding2
Object168.MapClass=0
Object168.Chance=100
Object168.PositionX=68.750000
Object168.PositionY=142.500000
Object168.Angle=0.000000
Object169.TypeName=FlatBuilding1
Object169.MapClass=0
Object169.Chance=100
Object169.PositionX=69.500000
Object169.PositionY=154.250000
Object169.Angle=0.000000
Object170.TypeName=FlatBuilding1
Object170.MapClass=0
Object170.Chance=100
Object170.PositionX=108.500000
Object170.PositionY=159.000000
Object170.Angle=0.000000
Object171.TypeName=BoxBuilding1
Object171.MapClass=0
Object171.Chance=100
Object171.PositionX=95.000000
Object171.PositionY=140.500000
Object171.Angle=0.000000
Object172.TypeName=BoxBuilding1
Object172.MapClass=0
Object172.Chance=100
Object172.PositionX=108.250000
Object172.PositionY=150.500000
Object172.Angle=0.000000
Object173.TypeName=BoxBuilding1
Object173.MapClass=0
Object173.Chance=100
Object173.PositionX=86.750000
Object173.PositionY=120.750000
Object173.Angle=0.000000
Object174.TypeName=BoxBuilding1
Object174.MapClass=0
Object174.Chance=100
Object174.PositionX=96.500000
Object174.PositionY=117.500000
Object174.Angle=0.000000
Object175.TypeName=BoxBuilding1
Object175.MapClass=0
Object175.Chance=100
Object175.PositionX=96.250000
Object175.PositionY=131.500000
Object175.Angle=0.000000
Object176.TypeName=BoxBuilding1
Object176.MapClass=0
Object176.Chance=100
Object176.PositionX=87.250000
Object176.PositionY=129.750000
Object176.Angle=0.000000
Object177.TypeName=BoxBuilding1
Object177.MapClass=0
Object177.Chance=100
Object177.PositionX=96.000000
Object177.PositionY=97.500000
Object177.Angle=0.000000
Object178.TypeName=BoxBuilding1
Object178.MapClass=0
Object178.Chance=100
Object178.PositionX=72.250000
Object178.PositionY=103.750000
Object178.Angle=0.000000
Object179.TypeName=BoxBuilding1
Object179.MapClass=0
Object179.Chance=100
Object179.PositionX=78.750000
Object179.PositionY=99.250000
Object179.Angle=0.000000
Object180.TypeName=BoxBuilding1
Object180.MapClass=0
Object180.Chance=100
Object180.PositionX=70.250000
Object180.PositionY=89.500000
Object180.Angle=0.000000
Object181.TypeName=BoxBuilding1
Object181.MapClass=0
Object181.Chance=100
Object181.PositionX=76.500000
Object181.PositionY=81.000000
Object181.Angle=0.000000
Object182.TypeName=LongBuilding1
Object182.MapClass=0
Object182.Chance=100
Object182.PositionX=91.250000
Object182.PositionY=85.750000
Object182.Angle=0.000000
Object183.TypeName=LongBuilding1
Object183.MapClass=0
Object183.Chance=100
Object183.PositionX=71.750000
Object183.PositionY=15.250000
Object183.Angle=0.000000
Object184.TypeName=LongBuilding1
Object184.MapClass=0
Object184.Chance=100
Object184.PositionX=94.750000
Object184.PositionY=13.250000
Object184.Angle=0.000000
Object185.TypeName=LongBuilding1
Object185.MapClass=0
Object185.Chance=100
Object185.PositionX=57.000000
Object185.PositionY=28.750000
Object185.Angle=0.000000
Object186.TypeName=BoxBuilding1
Object186.MapClass=0
Object186.Chance=100
Object186.PositionX=74.000000
Object186.PositionY=23.250000
Object186.Angle=0.000000
Object187.TypeName=BoxBuilding1
Object187.MapClass=0
Object187.Chance=100
Object187.PositionX=91.500000
Object187.PositionY=35.250000
Object187.Angle=0.000000
Object188.TypeName=BoxBuilding1
Object188.MapClass=0
Object188.Chance=100
Object188.PositionX=66.500000
Object188.PositionY=43.500000
Object188.Angle=0.000000
Object189.TypeName=BoxBuilding1
Object189.MapClass=0
Object189.Chance=100
Object189.PositionX=67.500000
Object189.PositionY=60.250000
Object189.Angle=0.000000
Object190.TypeName=BoxBuilding1
Object190.MapClass=0
Object190.Chance=100
Object190.PositionX=86.000000
Object190.PositionY=47.000000
Object190.Angle=0.000000
Object191.TypeName=BoxBuilding1
Object191.MapClass=0
Object191.Chance=100
Object191.PositionX=85.250000
Object191.PositionY=65.500000
Object191.Angle=0.000000
Object192.TypeName=FlatBuilding2
Object192.MapClass=0
Object192.Chance=100
Object192.PositionX=77.250000
Object192.PositionY=34.750000
Object192.Angle=0.000000
Object193.TypeName=FlatBuilding2
Object193.MapClass=0
Object193.Chance=100
Object193.PositionX=27.750000
Object193.PositionY=16.250000
Object193.Angle=0.000000
Object194.TypeName=FlatBuilding3
Object194.MapClass=0
Object194.Chance=100
Object194.PositionX=21.500000
Object194.PositionY=27.750000
Object194.Angle=0.000000
Object195.TypeName=FlatBuilding3
Object195.MapClass=0
Object195.Chance=100
Object195.PositionX=31.000000
Object195.PositionY=3.000000
Object195.Angle=0.000000
Object196.TypeName=FlatBuilding3
Object196.MapClass=0
Object196.Chance=100
Object196.PositionX=22.500000
Object196.PositionY=3.750000
Object196.Angle=0.000000
Object197.TypeName=FlatBuilding3
Object197.MapClass=0
Object197.Chance=100
Object197.PositionX=13.250000
Object197.PositionY=30.000000
Object197.Angle=0.000000
Object198.TypeName=BoxBuilding3
Object198.MapClass=0
Object198.Chance=100
Object198.PositionX=14.250000
Object198.PositionY=53.250000
Object198.Angle=0.000000
Object199.TypeName=BoxBuilding3
Object199.MapClass=0
Object199.Chance=100
Object199.PositionX=4.750000
Object199.PositionY=39.500000
Object199.Angle=0.000000
Object200.TypeName=BoxBuilding1
Object200.MapClass=0
Object200.Chance=100
Object200.PositionX=22.750000
Object200.PositionY=39.750000
Object200.Angle=0.000000
Object201.TypeName=BoxBuilding1
Object201.MapClass=0
Object201.Chance=100
Object201.PositionX=35.250000
Object201.PositionY=61.000000
Object201.Angle=0.000000
Object202.TypeName=BoxBuilding1
Object202.MapClass=0
Object202.Chance=100
Object202.PositionX=33.000000
Object202.PositionY=74.000000
Object202.Angle=0.000000
Object203.TypeName=BoxBuilding1
Object203.MapClass=0
Object203.Chance=100
Object203.PositionX=24.750000
Object203.PositionY=68.500000
Object203.Angle=0.000000
Object204.TypeName=BoxBuilding1
Object204.MapClass=0
Object204.Chance=100
Object204.PositionX=48.000000
Object204.PositionY=79.500000
Object204.Angle=0.000000
Object205.TypeName=BoxBuilding1
Object205.MapClass=0
Object205.Chance=100
Object205.PositionX=56.000000
Object205.PositionY=79.750000
Object205.Angle=0.000000
Object206.TypeName=BoxBuilding1
Object206.MapClass=0
Object206.Chance=100
Object206.PositionX=47.500000
Object206.PositionY=61.000000
Object206.Angle=0.000000
Object207.TypeName=BoxBuilding1
Object207.MapClass=0
Object207.Chance=100
Object207.PositionX=47.500000
Object207.PositionY=70.750000
Object207.Angle=0.000000
Object208.TypeName=FlatBuilding2
Object208.MapClass=0
Object208.Chance=100
Object208.PositionX=15.500000
Object208.PositionY=75.750000
Object208.Angle=0.000000
Object209.TypeName=FlatBuilding2
Object209.MapClass=0
Object209.Chance=100
Object209.PositionX=3.250000
Object209.PositionY=97.750000
Object209.Angle=0.000000
Object210.TypeName=BoxBuilding1
Object210.MapClass=0
Object210.Chance=100
Object210.PositionX=4.500000
Object210.PositionY=117.500000
Object210.Angle=0.000000
Object211.TypeName=BoxBuilding1
Object211.MapClass=0
Object211.Chance=100
Object211.PositionX=50.250000
Object211.PositionY=127.000000
Object211.Angle=0.000000
Object212.TypeName=BoxBuilding1
Object212.MapClass=0
Object212.Chance=100
Object212.PositionX=50.000000
Object212.PositionY=144.000000
Object212.Angle=0.000000
Object213.TypeName=BoxBuilding1
Object213.MapClass=0
Object213.Chance=100
Object213.PositionX=61.750000
Object213.PositionY=124.500000
Object213.Angle=0.000000
Object214.TypeName=FlatBuilding3
Object214.MapClass=0
Object214.Chance=100
Object214.PositionX=62.000000
Object214.PositionY=134.500000
Object214.Angle=0.000000
Object215.TypeName=FlatBuilding3
Object215.MapClass=0
Object215.Chance=100
Object215.PositionX=6.000000
Object215.PositionY=150.250000
Object215.Angle=0.000000
Object216.TypeName=FlatBuilding3
Object216.MapClass=0
Object216.Chance=100
Object216.PositionX=32.250000
Object216.PositionY=137.000000
Object216.Angle=0.000000
Object217.TypeName=FlatBuilding2
Object217.MapClass=0
Object217.Chance=100
Object217.PositionX=33.500000
Object217.PositionY=147.000000
Object217.Angle=0.000000
Object218.TypeName=BoxBuilding2
Object218.MapClass=0
Object218.Chance=100
Object218.PositionX=48.250000
Object218.PositionY=165.000000
Object218.Angle=0.000000
Object219.TypeName=BoxBuilding1
Object219.MapClass=0
Object219.Chance=100
Object219.PositionX=15.000000
Object219.PositionY=172.000000
Object219.Angle=0.000000
Object220.TypeName=BoxBuilding1
Object220.MapClass=0
Object220.Chance=100
Object220.PositionX=3.750000
Object220.PositionY=185.000000
Object220.Angle=0.000000
Object221.TypeName=BoxBuilding1
Object221.MapClass=0
Object221.Chance=100
Object221.PositionX=15.750000
Object221.PositionY=183.500000
Object221.Angle=0.000000
Object222.TypeName=BoxBuilding1
Object222.MapClass=0
Object222.Chance=100
Object222.PositionX=18.000000
Object222.PositionY=144.500000
Object222.Angle=0.000000
Object223.TypeName=BoxBuilding1
Object223.MapClass=0
Object223.Chance=100
Object223.PositionX=48.250000
Object223.PositionY=194.500000
Object223.Angle=0.000000
Object224.TypeName=FlatBuilding2
Object224.MapClass=0
Object224.Chance=100
Object224.PositionX=50.000000
Object224.PositionY=183.250000
Object224.Angle=0.000000
Object225.TypeName=FlatBuilding3
Object225.MapClass=0
Object225.Chance=100
Object225.PositionX=41.000000
Object225.PositionY=220.000000
Object225.Angle=0.000000
Object226.TypeName=FlatBuilding3
Object226.MapClass=0
Object226.Chance=100
Object226.PositionX=42.000000
Object226.PositionY=231.000000
Object226.Angle=0.000000
Object227.TypeName=FlatBuilding3
Object227.MapClass=0
Object227.Chance=100
Object227.PositionX=59.250000
Object227.PositionY=39.250000
Object227.Angle=0.000000
Object228.TypeName=Tree1
Object228.MapClass=1
Object228.Chance=100
Object228.PositionX=24.500000
Object228.PositionY=221.750000
Object228.Angle=336.000000
Object229.TypeName=Tree1
Object229.MapClass=1
Object229.Chance=100
Object229.PositionX=25.000000
Object229.PositionY=220.000000
Object229.Angle=238.000000
Object230.TypeName=Tree1
Object230.MapClass=1
Object230.Chance=100
Object230.PositionX=24.750000
Object230.PositionY=212.250000
Object230.Angle=46.000000
Object231.TypeName=Tree1
Object231.MapClass=1
Object231.Chance=100
Object231.PositionX=24.750000
Object231.PositionY=210.500000
Object231.Angle=296.000000
Object232.TypeName=Tree1
Object232.MapClass=1
Object232.Chance=100
Object232.PositionX=24.750000
Object232.PositionY=209.500000
Object232.Angle=296.000000
Object233.TypeName=Tree1
Object233.MapClass=1
Object233.Chance=100
Object233.PositionX=24.500000
Object233.PositionY=206.500000
Object233.Angle=262.000000
Object234.TypeName=Tree1
Object234.MapClass=1
Object234.Chance=100
Object234.PositionX=34.750000
Object234.PositionY=222.250000
Object234.Angle=109.000000
Object235.TypeName=Tree1
Object235.MapClass=1
Object235.Chance=100
Object235.PositionX=37.000000
Object235.PositionY=222.000000
Object235.Angle=161.000000
Object236.TypeName=Tree1
Object236.MapClass=1
Object236.Chance=100
Object236.PositionX=35.750000
Object236.PositionY=220.500000
Object236.Angle=156.000000
Object237.TypeName=Tree1
Object237.MapClass=1
Object237.Chance=100
Object237.PositionX=52.000000
Object237.PositionY=225.750000
Object237.Angle=98.000000
Object238.TypeName=Tree1
Object238.MapClass=1
Object238.Chance=100
Object238.PositionX=53.000000
Object238.PositionY=231.000000
Object238.Angle=271.000000
Object239.TypeName=Tree1
Object239.MapClass=1
Object239.Chance=100
Object239.PositionX=20.000000
Object239.PositionY=181.000000
Object239.Angle=193.000000
Object240.TypeName=Tree1
Object240.MapClass=1
Object240.Chance=100
Object240.PositionX=19.500000
Object240.PositionY=185.000000
Object240.Angle=187.000000
Object241.TypeName=Tree1
Object241.MapClass=1
Object241.Chance=100
Object241.PositionX=13.000000
Object241.PositionY=193.750000
Object241.Angle=21.000000
Object242.TypeName=Tree1
Object242.MapClass=1
Object242.Chance=100
Object242.PositionX=74.500000
Object242.PositionY=207.250000
Object242.Angle=352.000000
Object243.TypeName=Tree1
Object243.MapClass=1
Object243.Chance=100
Object243.PositionX=71.250000
Object243.PositionY=208.500000
Object243.Angle=289.000000
Object244.TypeName=Tree1
Object244.MapClass=1
Object244.Chance=100
Object244.PositionX=85.250000
Object244.PositionY=208.250000
Object244.Angle=243.000000
Object245.TypeName=Tree1
Object245.MapClass=1
Object245.Chance=100
Object245.PositionX=84.750000
Object245.PositionY=203.250000
Object245.Angle=218.000000
Object246.TypeName=Tree1
Object246.MapClass=1
Object246.Chance=100
Object246.PositionX=84.750000
Object246.PositionY=199.500000
Object246.Angle=1.000000
Object247.TypeName=Tree1
Object247.MapClass=1
Object247.Chance=100
Object247.PositionX=120.500000
Object247.PositionY=203.750000
Object247.Angle=6.000000
Object248.TypeName=Tree1
Object248.MapClass=1
Object248.Chance=100
Object248.PositionX=119.500000
Object248.PositionY=205.250000
Object248.Angle=193.000000
Object249.TypeName=Tree1
Object249.MapClass=1
Object249.Chance=100
Object249.PositionX=111.500000
Object249.PositionY=206.750000
Object249.Angle=203.000000
Object250.TypeName=Tree1
Object250.MapClass=1
Object250.Chance=100
Object250.PositionX=111.500000
Object250.PositionY=203.500000
Object250.Angle=212.000000
Object251.TypeName=Tree1
Object251.MapClass=1
Object251.Chance=100
Object251.PositionX=111.500000
Object251.PositionY=198.500000
Object251.Angle=64.000000
Object252.TypeName=Tree1
Object252.MapClass=1
Object252.Chance=100
Object252.PositionX=132.250000
Object252.PositionY=181.250000
Object252.Angle=260.000000
Object253.TypeName=Tree1
Object253.MapClass=1
Object253.Chance=100
Object253.PositionX=137.250000
Object253.PositionY=177.750000
Object253.Angle=279.000000
Object254.TypeName=Tree1
Object254.MapClass=1
Object254.Chance=100
Object254.PositionX=129.500000
Object254.PositionY=183.500000
Object254.Angle=160.000000
Object255.TypeName=Tree1
Object255.MapClass=1
Object255.Chance=100
Object255.PositionX=143.750000
Object255.PositionY=225.750000
Object255.Angle=280.000000
Object256.TypeName=Tree1
Object256.MapClass=1
Object256.Chance=100
Object256.PositionX=141.500000
Object256.PositionY=227.500000
Object256.Angle=99.000000
Object257.TypeName=Tree1
Object257.MapClass=1
Object257.Chance=100
Object257.PositionX=143.500000
Object257.PositionY=217.250000
Object257.Angle=321.000000
Object258.TypeName=Tree1
Object258.MapClass=1
Object258.Chance=100
Object258.PositionX=140.250000
Object258.PositionY=214.250000
Object258.Angle=305.000000
Object259.TypeName=Tree1
Object259.MapClass=1
Object259.Chance=100
Object259.PositionX=135.750000
Object259.PositionY=229.750000
Object259.Angle=353.000000
Object260.TypeName=Tree1
Object260.MapClass=1
Object260.Chance=100
Object260.PositionX=189.000000
Object260.PositionY=203.250000
Object260.Angle=275.000000
Object261.TypeName=Tree1
Object261.MapClass=1
Object261.Chance=100
Object261.PositionX=189.750000
Object261.PositionY=201.750000
Object261.Angle=311.000000
Object262.TypeName=Tree1
Object262.MapClass=1
Object262.Chance=100
Object262.PositionX=189.500000
Object262.PositionY=200.750000
Object262.Angle=180.000000
Object263.TypeName=Tree1
Object263.MapClass=1
Object263.Chance=100
Object263.PositionX=188.750000
Object263.PositionY=199.250000
Object263.Angle=149.000000
Object264.TypeName=Tree1
Object264.MapClass=1
Object264.Chance=100
Object264.PositionX=187.250000
Object264.PositionY=197.500000
Object264.Angle=325.000000
Object265.TypeName=Tree1
Object265.MapClass=1
Object265.Chance=100
Object265.PositionX=185.750000
Object265.PositionY=197.000000
Object265.Angle=8.000000
Object266.TypeName=Tree1
Object266.MapClass=1
Object266.Chance=100
Object266.PositionX=186.500000
Object266.PositionY=177.750000
Object266.Angle=193.000000
Object267.TypeName=Tree1
Object267.MapClass=1
Object267.Chance=100
Object267.PositionX=182.000000
Object267.PositionY=183.250000
Object267.Angle=243.000000
Object268.TypeName=Tree1
Object268.MapClass=1
Object268.Chance=100
Object268.PositionX=177.250000
Object268.PositionY=190.000000
Object268.Angle=248.000000
Object269.TypeName=Tree1
Object269.MapClass=1
Object269.Chance=100
Object269.PositionX=174.500000
Object269.PositionY=195.250000
Object269.Angle=169.000000
Object270.TypeName=Tree1
Object270.MapClass=1
Object270.Chance=100
Object270.PositionX=157.750000
Object270.PositionY=198.250000
Object270.Angle=18.000000
Object271.TypeName=Tree1
Object271.MapClass=1
Object271.Chance=100
Object271.PositionX=158.000000
Object271.PositionY=189.750000
Object271.Angle=96.000000
Object272.TypeName=Tree1
Object272.MapClass=1
Object272.Chance=100
Object272.PositionX=204.500000
Object272.PositionY=233.500000
Object272.Angle=3.000000
Object273.TypeName=Tree1
Object273.MapClass=1
Object273.Chance=100
Object273.PositionX=204.000000
Object273.PositionY=229.250000
Object273.Angle=18.000000
Object274.TypeName=Tree1
Object274.MapClass=1
Object274.Chance=100
Object274.PositionX=204.500000
Object274.PositionY=227.750000
Object274.Angle=11.000000
Object275.TypeName=Tree1
Object275.MapClass=1
Object275.Chance=100
Object275.PositionX=205.500000
Object275.PositionY=226.500000
Object275.Angle=205.000000
Object276.TypeName=Tree1
Object276.MapClass=1
Object276.Chance=100
Object276.PositionX=210.500000
Object276.PositionY=230.000000
Object276.Angle=310.000000
Object277.TypeName=Tree1
Object277.MapClass=1
Object277.Chance=100
Object277.PositionX=210.250000
Object277.PositionY=227.750000
Object277.Angle=332.000000
Object278.TypeName=Tree1
Object278.MapClass=1
Object278.Chance=100
Object278.PositionX=209.500000
Object278.PositionY=226.500000
Object278.Angle=227.000000
Object279.TypeName=Tree1
Object279.MapClass=1
Object279.Chance=100
Object279.PositionX=208.500000
Object279.PositionY=225.250000
Object279.Angle=71.000000
Object280.TypeName=Tree1
Object280.MapClass=1
Object280.Chance=100
Object280.PositionX=206.750000
Object280.PositionY=231.000000
Object280.Angle=249.000000
Object281.TypeName=Tree1
Object281.MapClass=1
Object281.Chance=100
Object281.PositionX=199.500000
Object281.PositionY=223.000000
Object281.Angle=318.000000
Object282.TypeName=Tree1
Object282.MapClass=1
Object282.Chance=100
Object282.PositionX=199.250000
Object282.PositionY=221.000000
Object282.Angle=2.000000
Object283.TypeName=Tree1
Object283.MapClass=1
Object283.Chance=100
Object283.PositionX=200.500000
Object283.PositionY=219.250000
Object283.Angle=76.000000
Object284.TypeName=Tree1
Object284.MapClass=1
Object284.Chance=100
Object284.PositionX=203.250000
Object284.PositionY=217.250000
Object284.Angle=180.000000
Object285.TypeName=Tree1
Object285.MapClass=1
Object285.Chance=100
Object285.PositionX=200.750000
Object285.PositionY=211.750000
Object285.Angle=161.000000
Object286.TypeName=Tree1
Object286.MapClass=1
Object286.Chance=100
Object286.PositionX=199.500000
Object286.PositionY=210.250000
Object286.Angle=339.000000
Object287.TypeName=Tree1
Object287.MapClass=1
Object287.Chance=100
Object287.PositionX=198.750000
Object287.PositionY=208.250000
Object287.Angle=12.000000
Object288.TypeName=Tree1
Object288.MapClass=1
Object288.Chance=100
Object288.PositionX=198.250000
Object288.PositionY=206.500000
Object288.Angle=353.000000
Object289.TypeName=Tree1
Object289.MapClass=1
Object289.Chance=100
Object289.PositionX=201.250000
Object289.PositionY=209.250000
Object289.Angle=320.000000
Object290.TypeName=Tree1
Object290.MapClass=1
Object290.Chance=100
Object290.PositionX=200.250000
Object290.PositionY=207.000000
Object290.Angle=228.000000
Object291.TypeName=Tree1
Object291.MapClass=1
Object291.Chance=100
Object291.PositionX=198.750000
Object291.PositionY=205.000000
Object291.Angle=22.000000
Object292.TypeName=Tree1
Object292.MapClass=1
Object292.Chance=100
Object292.PositionX=252.250000
Object292.PositionY=180.500000
Object292.Angle=103.000000
Object293.TypeName=Tree1
Object293.MapClass=1
Object293.Chance=100
Object293.PositionX=248.500000
Object293.PositionY=188.750000
Object293.Angle=84.000000
Object294.TypeName=Tree1
Object294.MapClass=1
Object294.Chance=100
Object294.PositionX=246.500000
Object294.PositionY=189.000000
Object294.Angle=227.000000
Object295.TypeName=Tree1
Object295.MapClass=1
Object295.Chance=100
Object295.PositionX=241.250000
Object295.PositionY=214.750000
Object295.Angle=326.000000
Object296.TypeName=Tree1
Object296.MapClass=1
Object296.Chance=100
Object296.PositionX=249.000000
Object296.PositionY=214.000000
Object296.Angle=281.000000
Object297.TypeName=Tree1
Object297.MapClass=1
Object297.Chance=100
Object297.PositionX=251.750000
Object297.PositionY=214.500000
Object297.Angle=143.000000
Object298.TypeName=Tree1
Object298.MapClass=1
Object298.Chance=100
Object298.PositionX=252.500000
Object298.PositionY=220.000000
Object298.Angle=92.000000
Object299.TypeName=Tree1
Object299.MapClass=1
Object299.Chance=100
Object299.PositionX=234.750000
Object299.PositionY=177.500000
Object299.Angle=227.000000
Object300.TypeName=Tree1
Object300.MapClass=1
Object300.Chance=100
Object300.PositionX=251.250000
Object300.PositionY=243.500000
Object300.Angle=151.000000
Object301.TypeName=Tree1
Object301.MapClass=1
Object301.Chance=100
Object301.PositionX=250.750000
Object301.PositionY=242.000000
Object301.Angle=127.000000
Object302.TypeName=Tree1
Object302.MapClass=1
Object302.Chance=100
Object302.PositionX=251.500000
Object302.PositionY=246.250000
Object302.Angle=240.000000
Object303.TypeName=Tree1
Object303.MapClass=1
Object303.Chance=100
Object303.PositionX=224.000000
Object303.PositionY=143.000000
Object303.Angle=205.000000
Object304.TypeName=Tree1
Object304.MapClass=1
Object304.Chance=100
Object304.PositionX=227.250000
Object304.PositionY=142.750000
Object304.Angle=2.000000
Object305.TypeName=Tree1
Object305.MapClass=1
Object305.Chance=100
Object305.PositionX=215.250000
Object305.PositionY=146.000000
Object305.Angle=350.000000
Object306.TypeName=Tree1
Object306.MapClass=1
Object306.Chance=100
Object306.PositionX=208.000000
Object306.PositionY=148.500000
Object306.Angle=48.000000
Object307.TypeName=Tree1
Object307.MapClass=1
Object307.Chance=100
Object307.PositionX=203.000000
Object307.PositionY=151.000000
Object307.Angle=286.000000
Object308.TypeName=Tree1
Object308.MapClass=1
Object308.Chance=100
Object308.PositionX=203.750000
Object308.PositionY=121.750000
Object308.Angle=349.000000
Object309.TypeName=Tree1
Object309.MapClass=1
Object309.Chance=100
Object309.PositionX=243.500000
Object309.PositionY=130.000000
Object309.Angle=199.000000
Object310.TypeName=Tree1
Object310.MapClass=1
Object310.Chance=100
Object310.PositionX=249.500000
Object310.PositionY=157.750000
Object310.Angle=314.000000
Object311.TypeName=Tree1
Object311.MapClass=1
Object311.Chance=100
Object311.PositionX=247.250000
Object311.PositionY=111.250000
Object311.Angle=216.000000
Object312.TypeName=Tree1
Object312.MapClass=1
Object312.Chance=100
Object312.PositionX=246.250000
Object312.PositionY=108.000000
Object312.Angle=51.000000
Object313.TypeName=Tree1
Object313.MapClass=1
Object313.Chance=100
Object313.PositionX=203.500000
Object313.PositionY=96.500000
Object313.Angle=259.000000
Object314.TypeName=Tree1
Object314.MapClass=1
Object314.Chance=100
Object314.PositionX=203.750000
Object314.PositionY=94.000000
Object314.Angle=323.000000
Object315.TypeName=Tree1
Object315.MapClass=1
Object315.Chance=100
Object315.PositionX=203.500000
Object315.PositionY=91.500000
Object315.Angle=280.000000
Object316.TypeName=Tree1
Object316.MapClass=1
Object316.Chance=100
Object316.PositionX=203.250000
Object316.PositionY=88.500000
Object316.Angle=260.000000
Object317.TypeName=Tree1
Object317.MapClass=1
Object317.Chance=100
Object317.PositionX=239.250000
Object317.PositionY=74.250000
Object317.Angle=326.000000
Object318.TypeName=Tree1
Object318.MapClass=1
Object318.Chance=100
Object318.PositionX=242.750000
Object318.PositionY=74.500000
Object318.Angle=326.000000
Object319.TypeName=Tree1
Object319.MapClass=1
Object319.Chance=100
Object319.PositionX=244.250000
Object319.PositionY=74.250000
Object319.Angle=98.000000
Object320.TypeName=Tree1
Object320.MapClass=1
Object320.Chance=100
Object320.PositionX=243.500000
Object320.PositionY=45.500000
Object320.Angle=116.000000
Object321.TypeName=Tree1
Object321.MapClass=1
Object321.Chance=100
Object321.PositionX=240.750000
Object321.PositionY=58.250000
Object321.Angle=131.000000
Object322.TypeName=Tree1
Object322.MapClass=1
Object322.Chance=100
Object322.PositionX=253.500000
Object322.PositionY=59.000000
Object322.Angle=84.000000
Object323.TypeName=Tree1
Object323.MapClass=1
Object323.Chance=100
Object323.PositionX=247.500000
Object323.PositionY=58.500000
Object323.Angle=86.000000
Object324.TypeName=Tree1
Object324.MapClass=1
Object324.Chance=100
Object324.PositionX=253.750000
Object324.PositionY=43.000000
Object324.Angle=85.000000
Object325.TypeName=Tree1
Object325.MapClass=1
Object325.Chance=100
Object325.PositionX=243.000000
Object325.PositionY=36.750000
Object325.Angle=111.000000
Object326.TypeName=Tree1
Object326.MapClass=1
Object326.Chance=100
Object326.PositionX=251.250000
Object326.PositionY=11.000000
Object326.Angle=252.000000
Object327.TypeName=Tree1
Object327.MapClass=1
Object327.Chance=100
Object327.PositionX=201.250000
Object327.PositionY=16.000000
Object327.Angle=177.000000
Object328.TypeName=Tree1
Object328.MapClass=1
Object328.Chance=100
Object328.PositionX=201.500000
Object328.PositionY=12.750000
Object328.Angle=211.000000
Object329.TypeName=Tree1
Object329.MapClass=1
Object329.Chance=100
Object329.PositionX=201.000000
Object329.PositionY=9.500000
Object329.Angle=92.000000
Object330.TypeName=Tree1
Object330.MapClass=1
Object330.Chance=100
Object330.PositionX=201.250000
Object330.PositionY=37.250000
Object330.Angle=285.000000
Object331.TypeName=Tree1
Object331.MapClass=1
Object331.Chance=100
Object331.PositionX=201.000000
Object331.PositionY=33.250000
Object331.Angle=326.000000
Object332.TypeName=Tree1
Object332.MapClass=1
Object332.Chance=100
Object332.PositionX=201.000000
Object332.PositionY=30.500000
Object332.Angle=192.000000
Object333.TypeName=Tree1
Object333.MapClass=1
Object333.Chance=100
Object333.PositionX=200.750000
Object333.PositionY=27.250000
Object333.Angle=20.000000
Object334.TypeName=Tree1
Object334.MapClass=1
Object334.Chance=100
Object334.PositionX=202.000000
Object334.PositionY=50.000000
Object334.Angle=58.000000
Object335.TypeName=Tree1
Object335.MapClass=1
Object335.Chance=100
Object335.PositionX=201.250000
Object335.PositionY=44.250000
Object335.Angle=238.000000
Object336.TypeName=Tree1
Object336.MapClass=1
Object336.Chance=100
Object336.PositionX=201.250000
Object336.PositionY=42.750000
Object336.Angle=210.000000
Object337.TypeName=Tree1
Object337.MapClass=1
Object337.Chance=100
Object337.PositionX=246.000000
Object337.PositionY=1.500000
Object337.Angle=66.000000
Object338.TypeName=Tree1
Object338.MapClass=1
Object338.Chance=100
Object338.PositionX=247.750000
Object338.PositionY=6.250000
Object338.Angle=301.000000
Object339.TypeName=Tree1
Object339.MapClass=1
Object339.Chance=100
Object339.PositionX=194.500000
Object339.PositionY=71.250000
Object339.Angle=166.000000
Object340.TypeName=Tree1
Object340.MapClass=1
Object340.Chance=100
Object340.PositionX=194.000000
Object340.PositionY=69.250000
Object340.Angle=282.000000
Object341.TypeName=Tree1
Object341.MapClass=1
Object341.Chance=100
Object341.PositionX=151.000000
Object341.PositionY=33.250000
Object341.Angle=339.000000
Object342.TypeName=Tree1
Object342.MapClass=1
Object342.Chance=100
Object342.PositionX=150.000000
Object342.PositionY=32.000000
Object342.Angle=119.000000
Object343.TypeName=Tree1
Object343.MapClass=1
Object343.Chance=100
Object343.PositionX=150.750000
Object343.PositionY=30.250000
Object343.Angle=57.000000
Object344.TypeName=Tree1
Object344.MapClass=1
Object344.Chance=100
Object344.PositionX=132.500000
Object344.PositionY=8.000000
Object344.Angle=271.000000
Object345.TypeName=Tree1
Object345.MapClass=1
Object345.Chance=100
Object345.PositionX=131.000000
Object345.PositionY=9.000000
Object345.Angle=34.000000
Object346.TypeName=Tree1
Object346.MapClass=1
Object346.Chance=100
Object346.PositionX=170.250000
Object346.PositionY=5.000000
Object346.Angle=310.000000
Object347.TypeName=Tree1
Object347.MapClass=1
Object347.Chance=100
Object347.PositionX=171.000000
Object347.PositionY=9.500000
Object347.Angle=349.000000
Object348.TypeName=Tree1
Object348.MapClass=1
Object348.Chance=100
Object348.PositionX=171.000000
Object348.PositionY=14.750000
Object348.Angle=282.000000
Object349.TypeName=Tree1
Object349.MapClass=1
Object349.Chance=100
Object349.PositionX=175.750000
Object349.PositionY=32.000000
Object349.Angle=205.000000
Object350.TypeName=Tree1
Object350.MapClass=1
Object350.Chance=100
Object350.PositionX=162.000000
Object350.PositionY=40.500000
Object350.Angle=288.000000
Object351.TypeName=Tree1
Object351.MapClass=1
Object351.Chance=100
Object351.PositionX=149.250000
Object351.PositionY=55.500000
Object351.Angle=338.000000
Object352.TypeName=Tree1
Object352.MapClass=1
Object352.Chance=100
Object352.PositionX=147.500000
Object352.PositionY=53.000000
Object352.Angle=242.000000
Object353.TypeName=Tree1
Object353.MapClass=1
Object353.Chance=100
Object353.PositionX=148.000000
Object353.PositionY=51.500000
Object353.Angle=290.000000
Object354.TypeName=Tree1
Object354.MapClass=1
Object354.Chance=100
Object354.PositionX=153.500000
Object354.PositionY=79.000000
Object354.Angle=312.000000
Object355.TypeName=Tree1
Object355.MapClass=1
Object355.Chance=100
Object355.PositionX=153.000000
Object355.PositionY=76.500000
Object355.Angle=160.000000
Object356.TypeName=Tree1
Object356.MapClass=1
Object356.Chance=100
Object356.PositionX=153.000000
Object356.PositionY=75.500000
Object356.Angle=171.000000
Object357.TypeName=Tree1
Object357.MapClass=1
Object357.Chance=100
Object357.PositionX=155.500000
Object357.PositionY=74.750000
Object357.Angle=118.000000
Object358.TypeName=Tree1
Object358.MapClass=1
Object358.Chance=100
Object358.PositionX=160.250000
Object358.PositionY=78.250000
Object358.Angle=255.000000
Object359.TypeName=Tree1
Object359.MapClass=1
Object359.Chance=100
Object359.PositionX=157.750000
Object359.PositionY=79.750000
Object359.Angle=328.000000
Object360.TypeName=Tree1
Object360.MapClass=1
Object360.Chance=100
Object360.PositionX=157.750000
Object360.PositionY=66.250000
Object360.Angle=347.000000
Object361.TypeName=Tree1
Object361.MapClass=1
Object361.Chance=100
Object361.PositionX=153.750000
Object361.PositionY=66.250000
Object361.Angle=111.000000
Object362.TypeName=Tree1
Object362.MapClass=1
Object362.Chance=100
Object362.PositionX=152.500000
Object362.PositionY=66.250000
Object362.Angle=332.000000
Object363.TypeName=Tree1
Object363.MapClass=1
Object363.Chance=100
Object363.PositionX=137.250000
Object363.PositionY=109.750000
Object363.Angle=30.000000
Object364.TypeName=Tree1
Object364.MapClass=1
Object364.Chance=100
Object364.PositionX=171.250000
Object364.PositionY=250.250000
Object364.Angle=5.000000
Object365.TypeName=Tree1
Object365.MapClass=1
Object365.Chance=100
Object365.PositionX=109.000000
Object365.PositionY=254.000000
Object365.Angle=112.000000
Object366.TypeName=Tree1
Object366.MapClass=1
Object366.Chance=100
Object366.PositionX=104.500000
Object366.PositionY=253.750000
Object366.Angle=311.000000
Object367.TypeName=Tree1
Object367.MapClass=1
Object367.Chance=100
Object367.PositionX=98.500000
Object367.PositionY=253.750000
Object367.Angle=77.000000
Object368.TypeName=Tree1
Object368.MapClass=1
Object368.Chance=100
Object368.PositionX=131.000000
Object368.PositionY=248.500000
Object368.Angle=186.000000
Object369.TypeName=Tree1
Object369.MapClass=1
Object369.Chance=100
Object369.PositionX=130.500000
Object369.PositionY=244.750000
Object369.Angle=117.000000
Object370.TypeName=Tree1
Object370.MapClass=1
Object370.Chance=100
Object370.PositionX=128.000000
Object370.PositionY=247.250000
Object370.Angle=34.000000
Object371.TypeName=Tree1
Object371.MapClass=1
Object371.Chance=100
Object371.PositionX=106.000000
Object371.PositionY=141.000000
Object371.Angle=188.000000
Object372.TypeName=Tree1
Object372.MapClass=1
Object372.Chance=100
Object372.PositionX=106.250000
Object372.PositionY=142.500000
Object372.Angle=76.000000
Object373.TypeName=Tree1
Object373.MapClass=1
Object373.Chance=100
Object373.PositionX=99.250000
Object373.PositionY=145.250000
Object373.Angle=56.000000
Object374.TypeName=Tree1
Object374.MapClass=1
Object374.Chance=100
Object374.PositionX=109.250000
Object374.PositionY=144.750000
Object374.Angle=153.000000
Object375.TypeName=Tree1
Object375.MapClass=1
Object375.Chance=100
Object375.PositionX=107.000000
Object375.PositionY=146.500000
Object375.Angle=104.000000
Object376.TypeName=Tree1
Object376.MapClass=1
Object376.Chance=100
Object376.PositionX=111.500000
Object376.PositionY=108.250000
Object376.Angle=12.000000
Object377.TypeName=Tree1
Object377.MapClass=1
Object377.Chance=100
Object377.PositionX=115.250000
Object377.PositionY=108.000000
Object377.Angle=123.000000
Object378.TypeName=Tree1
Object378.MapClass=1
Object378.Chance=100
Object378.PositionX=98.000000
Object378.PositionY=83.250000
Object378.Angle=268.000000
Object379.TypeName=Tree1
Object379.MapClass=1
Object379.Chance=100
Object379.PositionX=129.250000
Object379.PositionY=86.500000
Object379.Angle=306.000000
Object380.TypeName=Tree1
Object380.MapClass=1
Object380.Chance=100
Object380.PositionX=121.250000
Object380.PositionY=53.500000
Object380.Angle=87.000000
Object381.TypeName=Tree1
Object381.MapClass=1
Object381.Chance=100
Object381.PositionX=119.000000
Object381.PositionY=54.000000
Object381.Angle=223.000000
Object382.TypeName=Tree1
Object382.MapClass=1
Object382.Chance=100
Object382.PositionX=115.000000
Object382.PositionY=53.750000
Object382.Angle=330.000000
Object383.TypeName=Tree1
Object383.MapClass=1
Object383.Chance=100
Object383.PositionX=111.250000
Object383.PositionY=67.500000
Object383.Angle=346.000000
Object384.TypeName=Tree1
Object384.MapClass=1
Object384.Chance=100
Object384.PositionX=113.250000
Object384.PositionY=67.500000
Object384.Angle=13.000000
Object385.TypeName=Tree1
Object385.MapClass=1
Object385.Chance=100
Object385.PositionX=134.750000
Object385.PositionY=70.000000
Object385.Angle=325.000000
Object386.TypeName=Tree1
Object386.MapClass=1
Object386.Chance=100
Object386.PositionX=132.500000
Object386.PositionY=73.000000
Object386.Angle=48.000000
Object387.TypeName=Tree1
Object387.MapClass=1
Object387.Chance=100
Object387.PositionX=130.500000
Object387.PositionY=63.500000
Object387.Angle=236.000000
Object388.TypeName=Tree1
Object388.MapClass=1
Object388.Chance=100
Object388.PositionX=121.000000
Object388.PositionY=3.500000
Object388.Angle=315.000000
Object389.TypeName=Tree1
Object389.MapClass=1
Object389.Chance=100
Object389.PositionX=74.500000
Object389.PositionY=4.250000
Object389.Angle=90.000000
Object390.TypeName=Tree1
Object390.MapClass=1
Object390.Chance=100
Object390.PositionX=78.750000
Object390.PositionY=5.250000
Object390.Angle=195.000000
Object391.TypeName=Tree1
Object391.MapClass=1
Object391.Chance=100
Object391.PositionX=89.750000
Object391.PositionY=18.750000
Object391.Angle=106.000000
Object392.TypeName=Tree1
Object392.MapClass=1
Object392.Chance=100
Object392.PositionX=86.500000
Object392.PositionY=26.000000
Object392.Angle=81.000000
Object393.TypeName=Tree1
Object393.MapClass=1
Object393.Chance=100
Object393.PositionX=86.500000
Object393.PositionY=38.250000
Object393.Angle=160.000000
Object394.TypeName=Tree1
Object394.MapClass=1
Object394.Chance=100
Object394.PositionX=91.250000
Object394.PositionY=44.000000
Object394.Angle=250.000000
Object395.TypeName=Tree1
Object395.MapClass=1
Object395.Chance=100
Object395.PositionX=68.250000
Object395.PositionY=36.750000
Object395.Angle=266.000000
Object396.TypeName=Tree1
Object396.MapClass=1
Object396.Chance=100
Object396.PositionX=65.750000
Object396.PositionY=31.000000
Object396.Angle=333.000000
Object397.TypeName=Tree1
Object397.MapClass=1
Object397.Chance=100
Object397.PositionX=27.750000
Object397.PositionY=60.500000
Object397.Angle=251.000000
Object398.TypeName=Tree1
Object398.MapClass=1
Object398.Chance=100
Object398.PositionX=25.500000
Object398.PositionY=58.500000
Object398.Angle=352.000000
Object399.TypeName=Tree1
Object399.MapClass=1
Object399.Chance=100
Object399.PositionX=24.750000
Object399.PositionY=56.750000
Object399.Angle=130.000000
Object400.TypeName=Tree1
Object400.MapClass=1
Object400.Chance=100
Object400.PositionX=31.250000
Object400.PositionY=60.000000
Object400.Angle=25.000000
Object401.TypeName=Tree1
Object401.MapClass=1
Object401.Chance=100
Object401.PositionX=31.000000
Object401.PositionY=56.500000
Object401.Angle=73.000000
Object402.TypeName=Tree1
Object402.MapClass=1
Object402.Chance=100
Object402.PositionX=29.000000
Object402.PositionY=55.750000
Object402.Angle=72.000000
Object403.TypeName=Tree1
Object403.MapClass=1
Object403.Chance=100
Object403.PositionX=27.000000
Object403.PositionY=55.500000
Object403.Angle=329.000000
Object404.TypeName=Tree1
Object404.MapClass=1
Object404.Chance=100
Object404.PositionX=52.250000
Object404.PositionY=38.000000
Object404.Angle=67.000000
Object405.TypeName=Tree1
Object405.MapClass=1
Object405.Chance=100
Object405.PositionX=47.000000
Object405.PositionY=36.750000
Object405.Angle=6.000000
Object406.TypeName=Tree1
Object406.MapClass=1
Object406.Chance=100
Object406.PositionX=50.000000
Object406.PositionY=56.500000
Object406.Angle=169.000000
Object407.TypeName=Tree1
Object407.MapClass=1
Object407.Chance=100
Object407.PositionX=54.500000
Object407.PositionY=58.250000
Object407.Angle=311.000000
Object408.TypeName=Tree1
Object408.MapClass=1
Object408.Chance=100
Object408.PositionX=13.750000
Object408.PositionY=34.750000
Object408.Angle=20.000000
Object409.TypeName=Tree1
Object409.MapClass=1
Object409.Chance=100
Object409.PositionX=8.500000
Object409.PositionY=89.750000
Object409.Angle=342.000000
Object410.TypeName=Tree1
Object410.MapClass=1
Object410.Chance=100
Object410.PositionX=9.250000
Object410.PositionY=85.500000
Object410.Angle=284.000000
Object411.TypeName=Tree1
Object411.MapClass=1
Object411.Chance=100
Object411.PositionX=11.000000
Object411.PositionY=83.750000
Object411.Angle=176.000000
Object412.TypeName=Tree1
Object412.MapClass=1
Object412.Chance=100
Object412.PositionX=3.250000
Object412.PositionY=79.500000
Object412.Angle=260.000000
Object413.TypeName=Tree1
Object413.MapClass=1
Object413.Chance=100
Object413.PositionX=3.000000
Object413.PositionY=77.250000
Object413.Angle=340.000000
Object414.TypeName=Tree1
Object414.MapClass=1
Object414.Chance=100
Object414.PositionX=3.500000
Object414.PositionY=75.250000
Object414.Angle=132.000000
Object415.TypeName=Tree1
Object415.MapClass=1
Object415.Chance=100
Object415.PositionX=6.750000
Object415.PositionY=79.250000
Object415.Angle=252.000000
Object416.TypeName=Tree1
Object416.MapClass=1
Object416.Chance=100
Object416.PositionX=6.500000
Object416.PositionY=76.000000
Object416.Angle=20.000000
Object417.TypeName=Tree1
Object417.MapClass=1
Object417.Chance=100
Object417.PositionX=18.750000
Object417.PositionY=86.250000
Object417.Angle=227.000000
Object418.TypeName=Tree1
Object418.MapClass=1
Object418.Chance=100
Object418.PositionX=18.500000
Object418.PositionY=83.000000
Object418.Angle=14.000000
Object419.TypeName=Tree1
Object419.MapClass=1
Object419.Chance=100
Object419.PositionX=17.250000
Object419.PositionY=80.500000
Object419.Angle=275.000000
Object420.TypeName=Tree1
Object420.MapClass=1
Object420.Chance=100
Object420.PositionX=15.250000
Object420.PositionY=79.750000
Object420.Angle=187.000000
Object421.TypeName=Tree1
Object421.MapClass=1
Object421.Chance=100
Object421.PositionX=11.000000
Object421.PositionY=80.000000
Object421.Angle=275.000000
Object422.TypeName=Tree1
Object422.MapClass=1
Object422.Chance=100
Object422.PositionX=15.250000
Object422.PositionY=87.250000
Object422.Angle=320.000000
Object423.TypeName=Tree1
Object423.MapClass=1
Object423.Chance=100
Object423.PositionX=13.500000
Object423.PositionY=89.000000
Object423.Angle=88.000000
Object424.TypeName=Tree1
Object424.MapClass=1
Object424.Chance=100
Object424.PositionX=11.750000
Object424.PositionY=90.000000
Object424.Angle=85.000000
Object425.TypeName=Tree1
Object425.MapClass=1
Object425.Chance=100
Object425.PositionX=61.250000
Object425.PositionY=76.250000
Object425.Angle=279.000000
Object426.TypeName=Tree1
Object426.MapClass=1
Object426.Chance=100
Object426.PositionX=61.500000
Object426.PositionY=77.750000
Object426.Angle=183.000000
Object427.TypeName=Tree1
Object427.MapClass=1
Object427.Chance=100
Object427.PositionX=14.500000
Object427.PositionY=102.000000
Object427.Angle=147.000000
Object428.TypeName=Tree1
Object428.MapClass=1
Object428.Chance=100
Object428.PositionX=19.250000
Object428.PositionY=101.000000
Object428.Angle=168.000000
Object429.TypeName=Tree1
Object429.MapClass=1
Object429.Chance=100
Object429.PositionX=11.500000
Object429.PositionY=108.000000
Object429.Angle=140.000000
Object430.TypeName=Tree1
Object430.MapClass=1
Object430.Chance=100
Object430.PositionX=52.500000
Object430.PositionY=168.500000
Object430.Angle=196.000000
Object431.TypeName=Tree1
Object431.MapClass=1
Object431.Chance=100
Object431.PositionX=54.000000
Object431.PositionY=166.250000
Object431.Angle=259.000000







that's what the inside of a tod ini looks like

Share this post


Link to post
Share on other sites

By the way, what das "ObjectXXX.Chance=100" in the tod.ini mean?



Back to the tod format:

I wonder why the object dimension, angle and position are in the tod file. For display purposes the vertex and triangle data should be sufficient.

Probably for height adjustment in the terrain or for collision detection? Are tod object collidable or destroyable?

Share this post


Link to post
Share on other sites

Neither collidable nor destroyable. Been a very large sore point with 99.9% of players since 2002.



Object Chance, is exactly what it says it is. TOD objects are present 100% of the time, as they are for all intents and purposes,  permanent terrain objects.



the position is the x/y coordinate for that particular tile; most probably, like the terrains themselves, measured from the lower left corner

the angle is the compass direction in degrees (north, 0, is always the "top" of the tile)

map class 0 is a "Solid Object"

map class 1 is an "Alpha Object" (obviously the tree tgas)



heights make no difference, as the TOD objects are always vertical with respect to the center of planetary mass (meaning: they point up no matter what the curves, ridges, valleys, mountains do. you can, and will, have things looking quite odd on hillsides at times)

Share this post


Link to post
Share on other sites

Object Chance, is exactly what it says it is. TOD objects are present 100% of the time, as they are for all intents and purposes,  permanent terrain objects.



Is the 100% probability always used for tod objects or are there also tod objects with a probability other than 100%?

I ask because a for me unknown data in the tod files always has the value 100, so maybe this data is this "chance" value.

Share this post


Link to post
Share on other sites

I think so. Every other tod ini I've seen (or created) always seems to have it



the only one that might be able to answer it is TK. But don't hold your breath



EDIT:



you made me look! Indeed, it IS adjustable, as shown below in the TE's object placement dialogue. But, what would be the point of having it randomly appear? One needs all the object present when placing the target objects, otherwise you may wind up with a factory with building growing out of the top or side?

Share this post


Link to post
Share on other sites

Some updated information about the tod file format:

number			variable type			description
of bytes

4				integer				number of solid objects
4				integer				number of alpha objects
n									objects data (see below)

for each object:
4				integer				chance in % (probability of appearance)
4				integer				number of vertices
4				integer				number of triangle vertices = 3 * number of triangles
4				integer				number of triangles
32 * number of vertices					vertex data (see below)
2 * number of triangle vertices			triangle data (see below)
4				integer				0 = don't cast shadow and no shadow data follows, 1 = cast shadow and 292 bytes shadow data follows
0 or 292		73 floats ?				shadow data (8 vertices + additional information) ?
4				float					object width / 2
4				float					object length / 2
4				float					object height
4				float					rotation angle around z axis (in radians)
4				float					max. horizontal extension / 2
4				float					object center position x
4				float					object center position y
4				float/integer			0 ?
4				float/integer			0 ?

for each vertex
4				float					position x
4				float					position y
4				float					position z
4				float					normal x
4				float					normal y
4				float					normal z
4				float					texture coordinate u
4				float					texture coordinate v

for each triangle
2				short integer			vertex index
2				short integer			vertex index
2				short integer			vertex index

Share this post


Link to post
Share on other sites

The only missing/unknown parts are the exact format of the shadow data and the 8 bytes after the object center position (These 8 bytes were alway zero btw.). I think with the current info it should be possible to write a tod editor (at least for non shadow casting objects).



While I played with the terrain editor I found the following: If I placed y-trees on a tile the terrain editor created a tod file, whose format didn't matched my findings. So my question is: Has anyone created a tod file with y-trees? And does this tod file work in the game engine?

Share this post


Link to post
Share on other sites

MOST interesting finds there!!!



Mue, the Y-trees seem not to work any longer for me, with the 2006 version of TE


I wonder Mue if we could do some sort of (any popular 3D format here) converter to finally have real 3D custom objects as TOD files? Or as I see it, engine "on the fly" creates the meshes from TOD files? Hmmm... I got plenty of unused 3D stuff done for SF/SF2 that could have use of this

  • Like 1

Share this post


Link to post
Share on other sites

MOST interesting finds there!!!



Mue, the Y-trees seem not to work any longer for me, with the 2006 version of TE

I wonder Mue if we could do some sort of (any popular 3D format here) converter to finally have real 3D custom objects as TOD files? Or as I see it, engine "on the fly" creates the meshes from TOD files? Hmmm... I got plenty of unused 3D stuff done for SF/SF2 that could have use of this



Thanks for the confirmation that y-trees don't work.



Yes, to write a converter for creating tod files should be possible. But currently I'm busy with another project.



What do you mean with "engine on the fly creates the meshes from TOD files". Can you explain it in more detail?

Share this post


Link to post
Share on other sites

Mue I might phrased it bit misleadingly but I think the engine populates the tiles with the TOD objects on the fly when the scene limits allow so -the terrains in the old pre NA format have statements about the maximum numbers of possible TOD objects spawned around player in the terrqain's _DATA.INI:

example here:

SolidObjectVertexCount=12288
SolidObjectIndexCount=18432
AlphaObjectVertexCount=8192
AlphaObjectIndexCount=12288



in my treemods I usually up these values twice or more as the draw ranges are now increased (via FLIGHTENGINE.INI DetailMeshSize= statements) to draw the TODs further away (thanks for your shaders too!) BUT when I lowered these values to zero I got no TOD objects, when it was small amounts only some of the meshes displayed on given corresponding tile. So I think the sim engine treats the TOD as more of objects data pool it uses to spawn the individual trees or buildings (or more accurately solidobjects and alphaobjects) on the given underlying tile, NOT as a single object- that also would make impossible to have the TODs populate slopes of any angle other than 0 degree of course.

What is the biggest unknown for me, and your data seems to indicate is possible is if the TODs can have real 3D vertices orientation, meaning allowing more complex shapes than cubic/box ones (that can be done with 2.5D engine)

As for "chance" value I do use it in some of my treemods for some buildings I for example don't want to spawn on every single tile in case that would create too obvious patterns. Say a barn near the field and such. That entry makes minimal usage though.



Sorry Mue if I didn't make myself clear, am bit sleepy today


Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
Sign in to follow this

×

Important Information

By using this site, you agree to our Terms of Use, Privacy Policy, and We have placed cookies on your device to help make this website better. You can adjust your cookie settings, otherwise we'll assume you're okay to continue..
