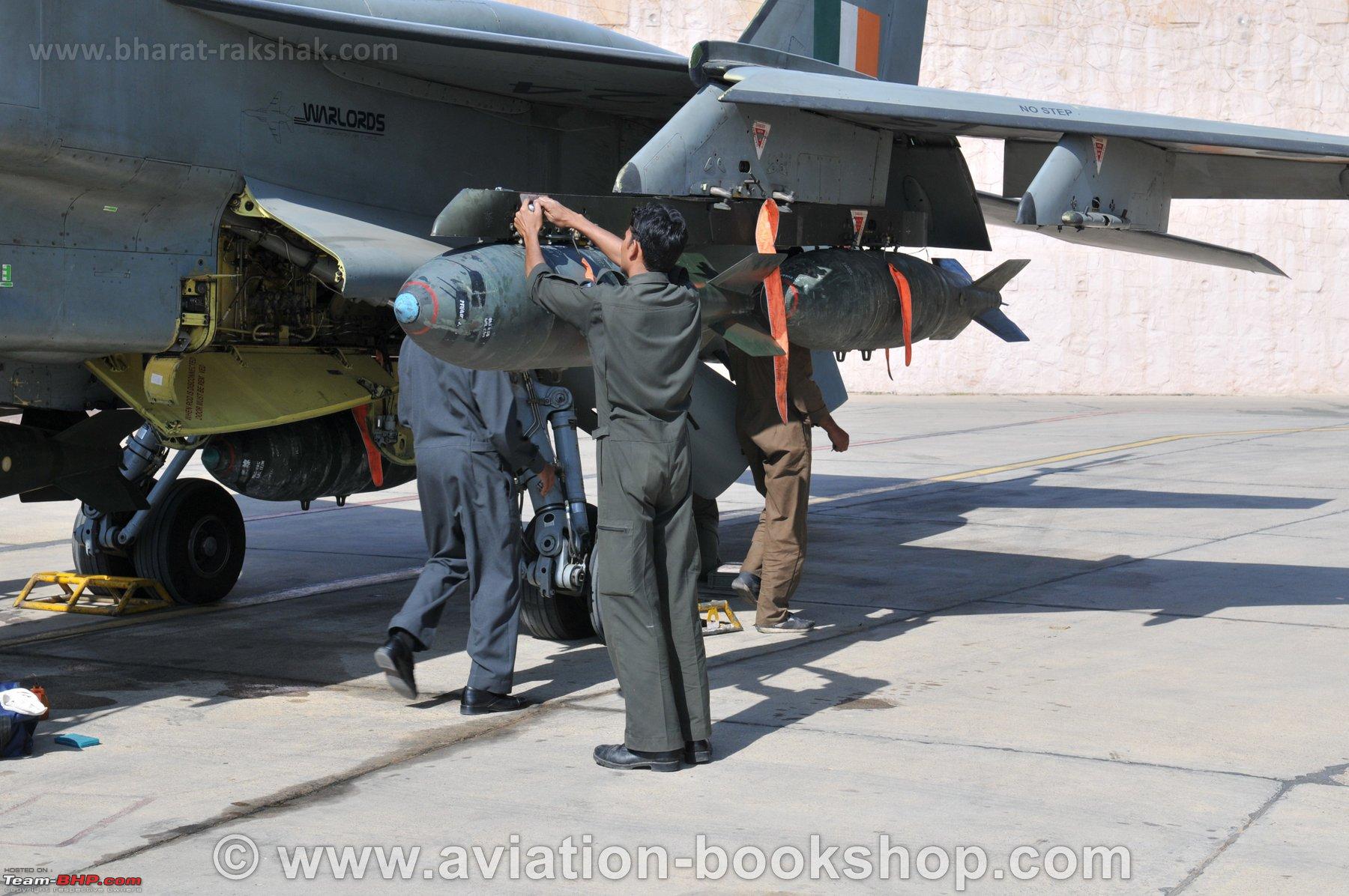

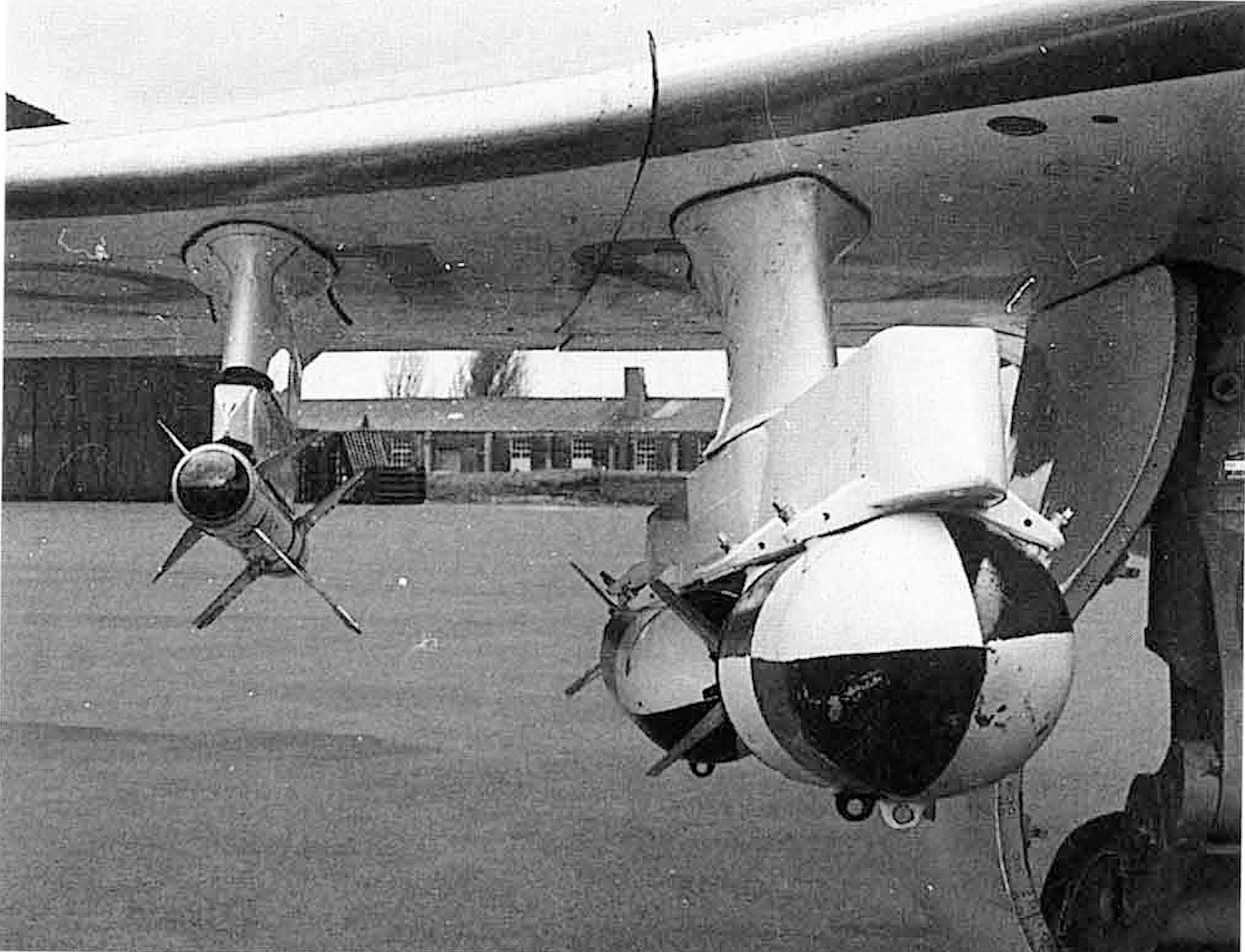

+ravenclaw_007 Posted July 27, 2024 Posted July 27, 2024 (edited) does anybody have some better pictures of this dual bomb rack for the SEPECAT Jaguar ??? i need the dimensions for this dual bomb rack as well , so any info on dimensions are more than welcome , and was that only to carry the 540 lb GP bombs or what other bombs could be carried with them so if you have any info or good pictures please share them with me this is are picture from a similar bomb rack on a Buccaneer , any picture or info on this one are welcome to Edited July 27, 2024 by ravenclaw_007 Quote
Nightshade/PR Posted July 28, 2024 Posted July 28, 2024 Still looking, but info on this is harder to come by than the truth about Bigfoot. 1 Quote

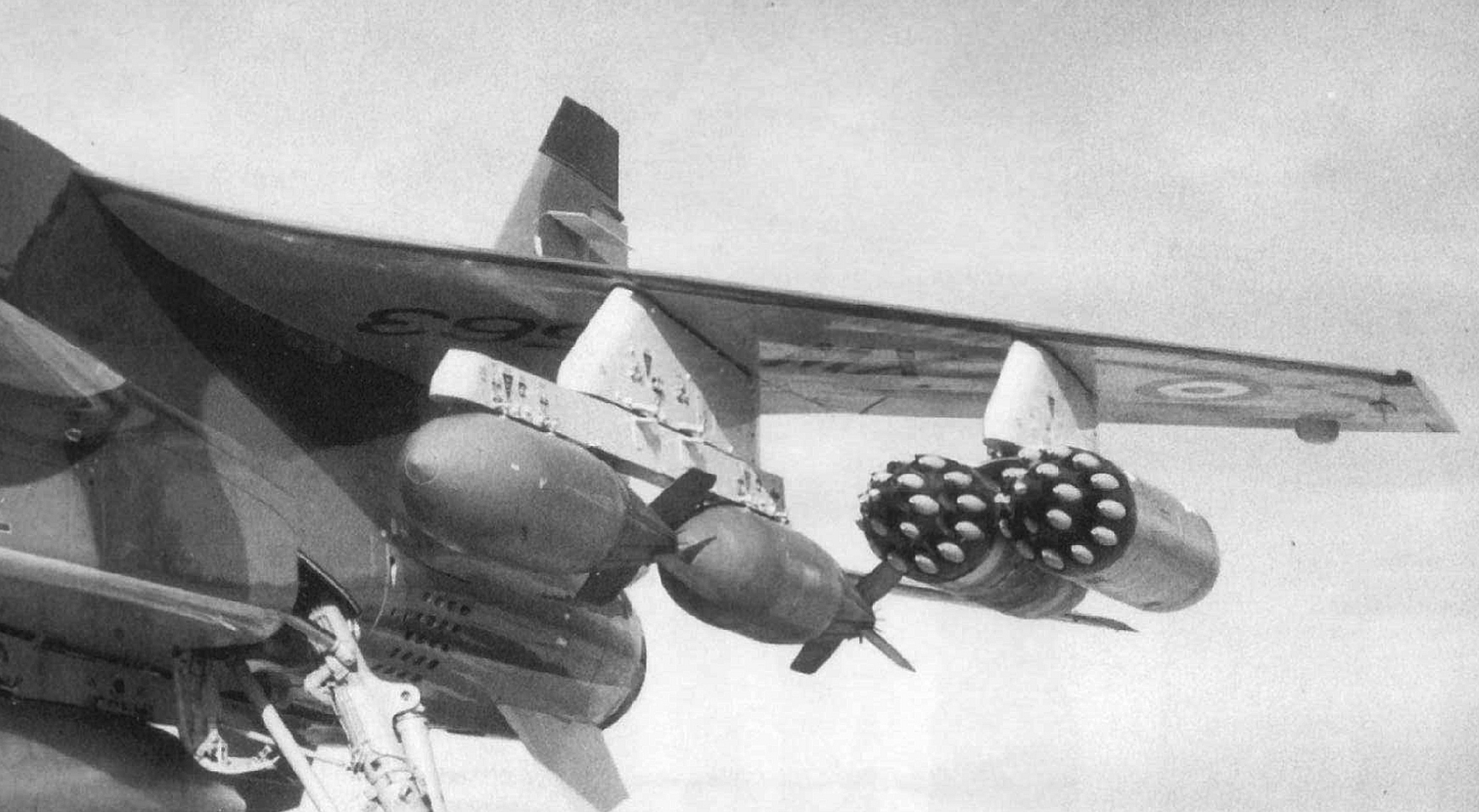

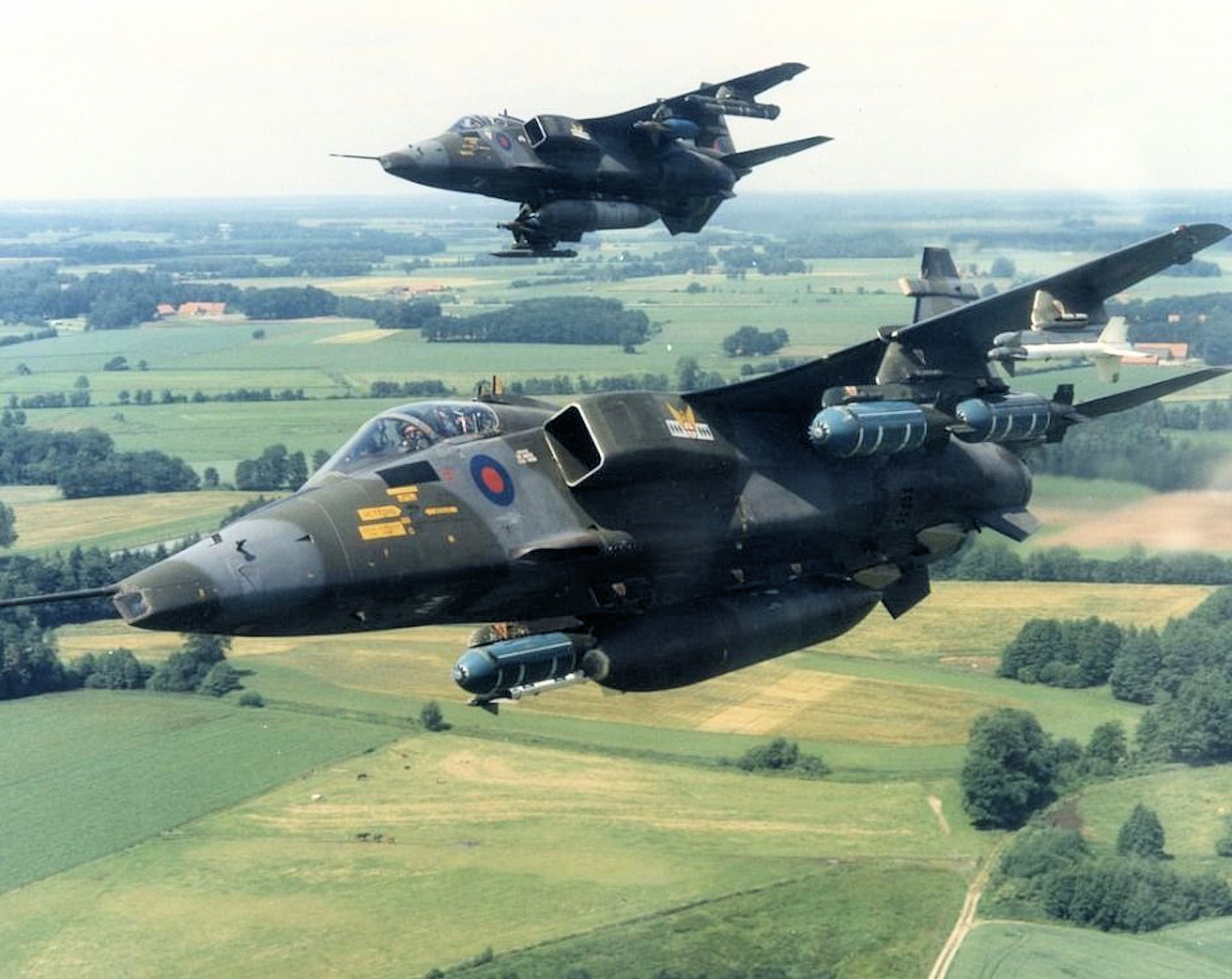

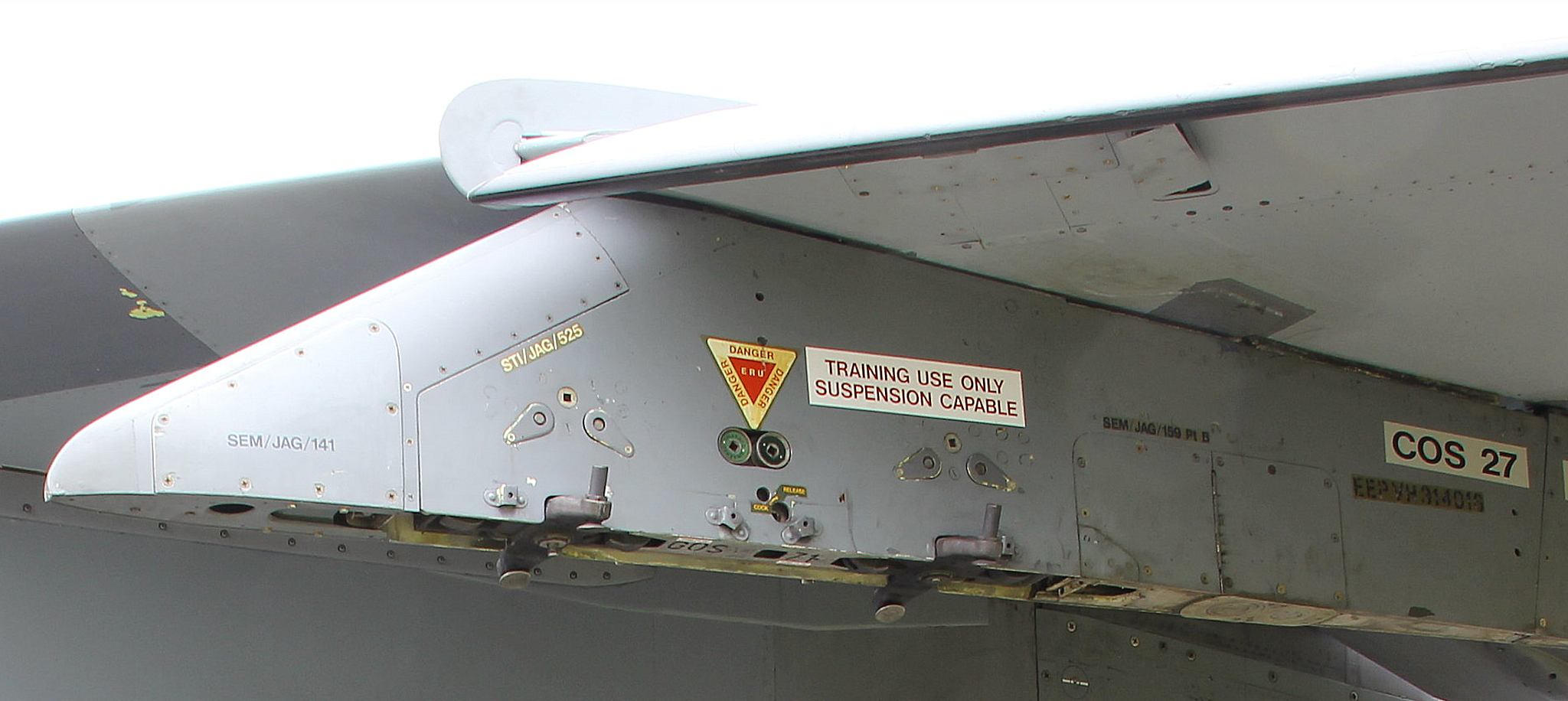

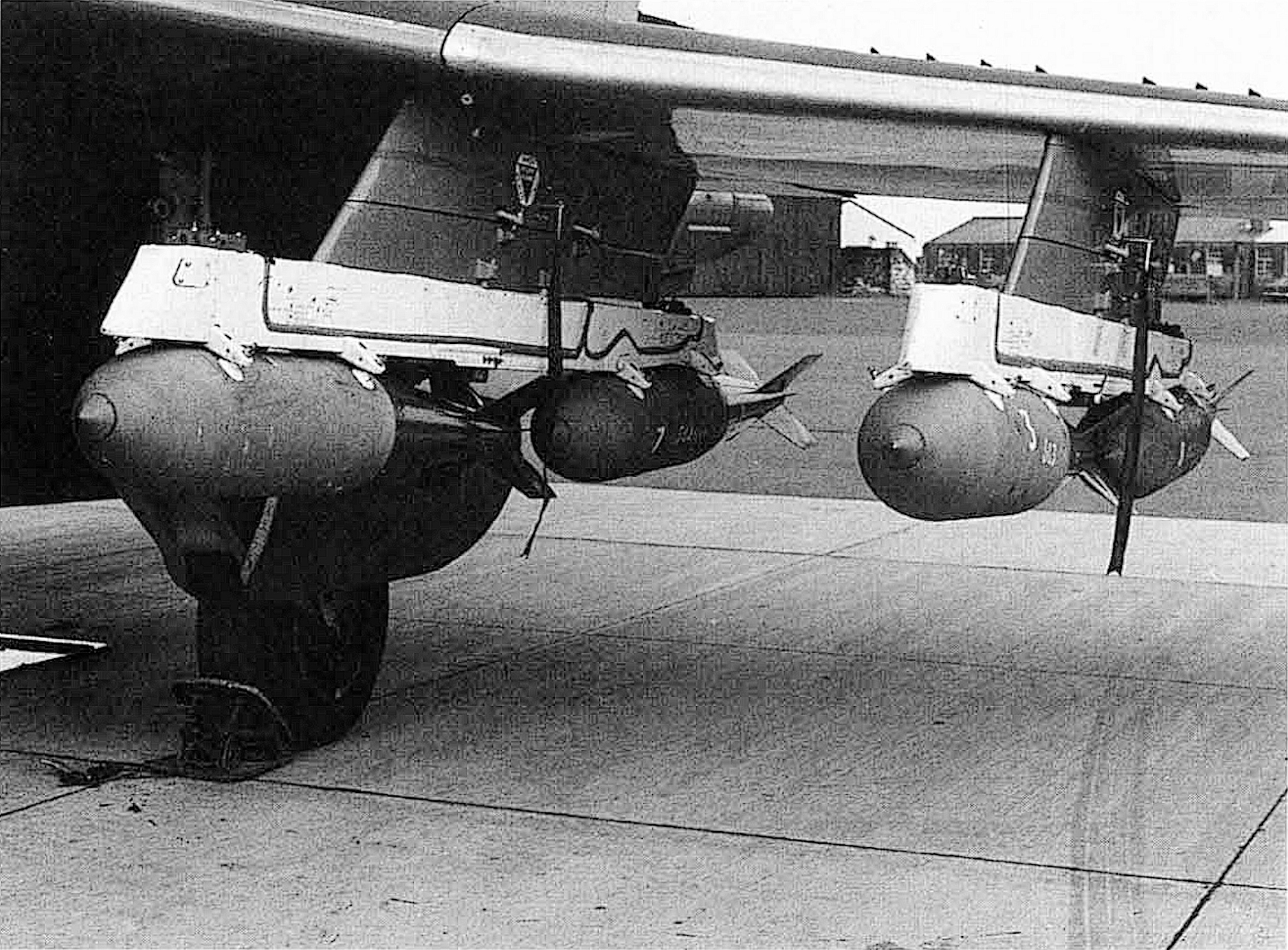

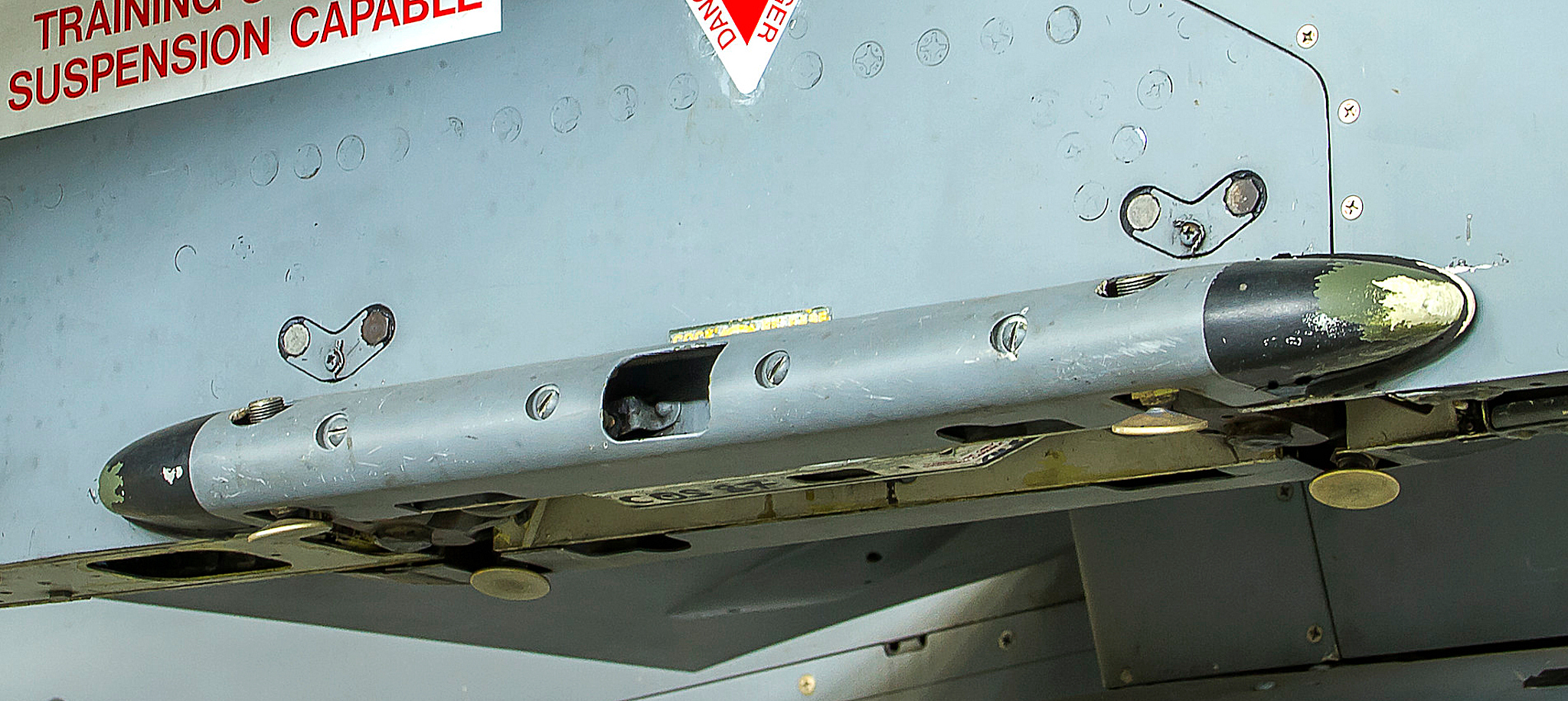

+ravenclaw_007 Posted July 28, 2024 Author Posted July 28, 2024 i found some more pictures of it and that the Jaguar could carry 2 x 1000 lb bombs with that bomb rack an other thing i notice is that this sway brace covers where not always present , like on the Jaguar pylon it self , some had it some not , first i thought that this are 2 different types of bomb racks but after i found this close up pictures of the Jaguar pylon and compare it with the pictures i had from the dual bomb rack i´m convinced that they just removed this sway brace cover for what ever reson , this covers where just screwed on by 4 screws with out cover with cover Quote

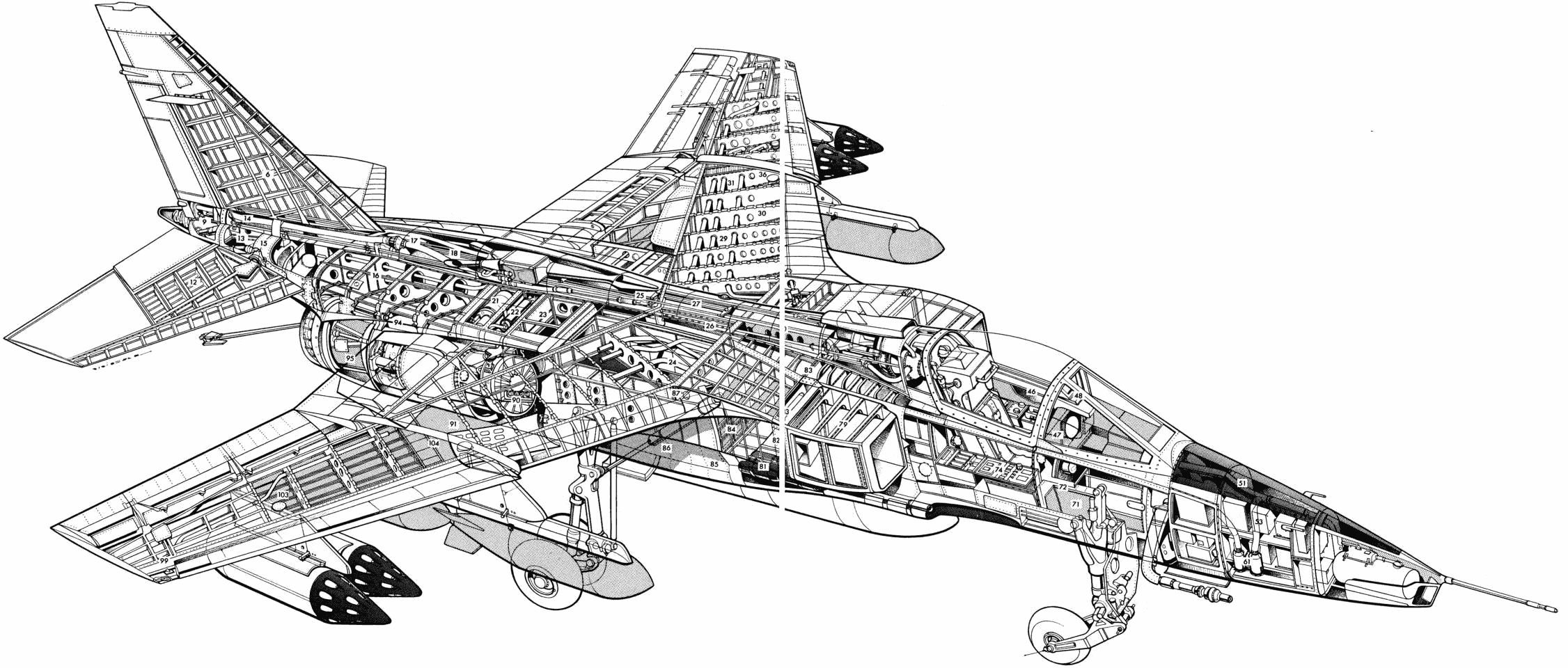

Nightshade/PR Posted July 28, 2024 Posted July 28, 2024 I found this blueprint, but it doesn't give any dimensions. Quote
+ravenclaw_007 Posted July 28, 2024 Author Posted July 28, 2024 i do have the dimensions of the 1000 lb and the 540 lb as well as from the BL755 bomb , so i think i can use them as reference and come up with something ( i hope ) Quote
+Soulfreak Posted July 30, 2024 Posted July 30, 2024 On 27.7.2024 at 11:35 AM, ravenclaw_007 said: does anybody have some better pictures of this dual bomb rack for the SEPECAT Jaguar ??? i need the dimensions for this dual bomb rack as well , so any info on dimensions are more than welcome , and was that only to carry the 540 lb GP bombs or what other bombs could be carried with them so if you have any info or good pictures please share them with me Hello Volker, I have this book @ home: Sepecat Jaguar: Aircraft in Detail (Duke Hawkins, 1, Band 1) : Pied, Robert, Deboeck, Nicolas: Amazon.de: Bücher Will check if there are good pictures etc in it and scan for you. Give me 1 - 2 days. ;-) Quote

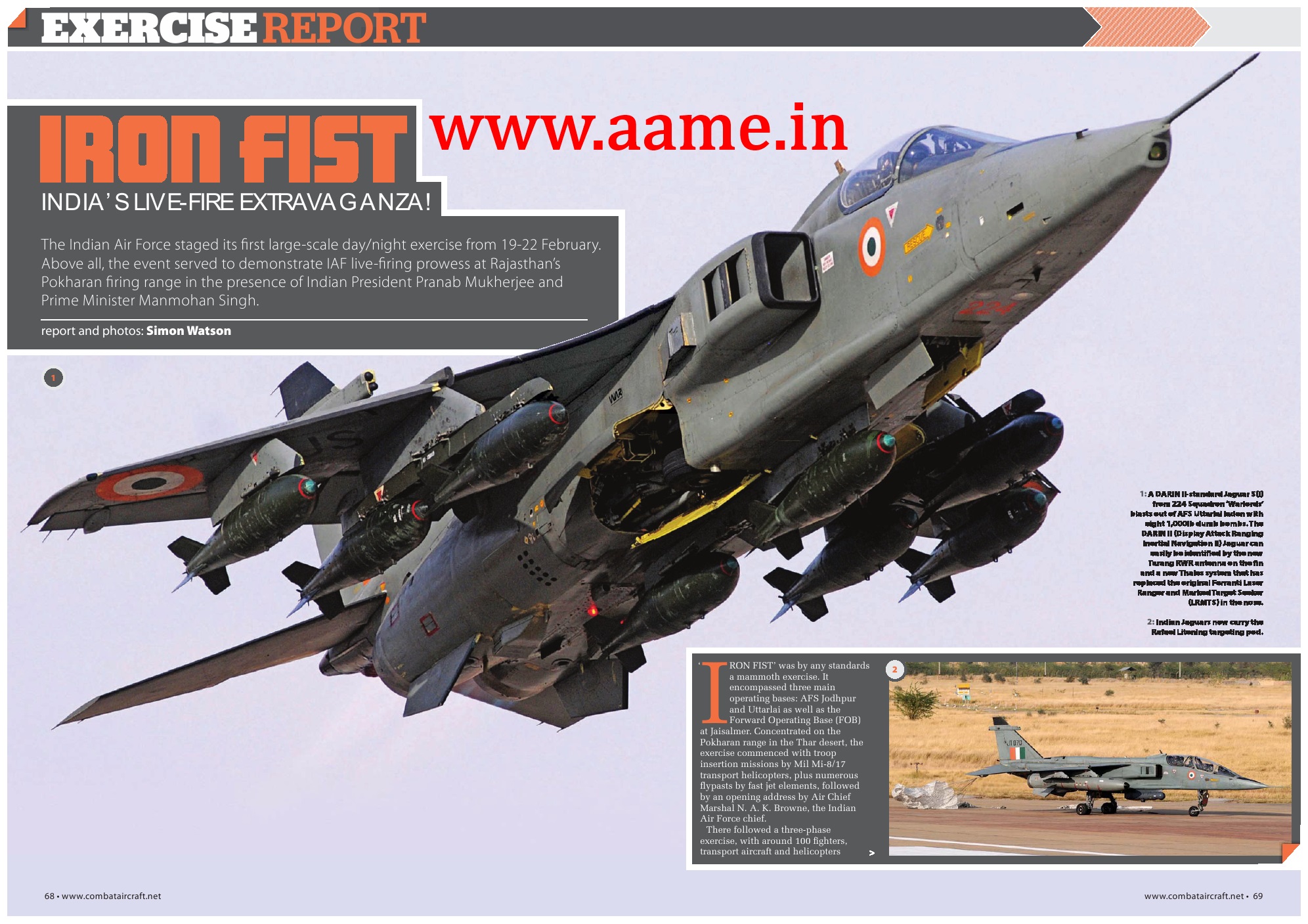

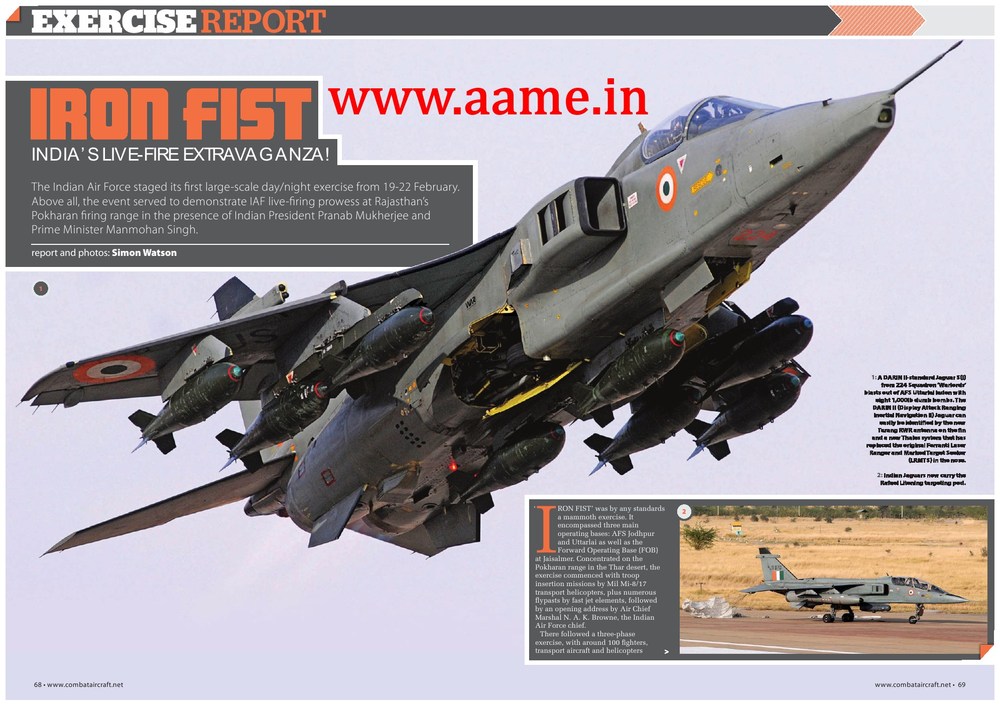

TaktischesGenie Posted July 31, 2024 Posted July 31, 2024 it has the dual rack embedded into it maybe you could use this it is a a little covered but could be useful ;) Quote
