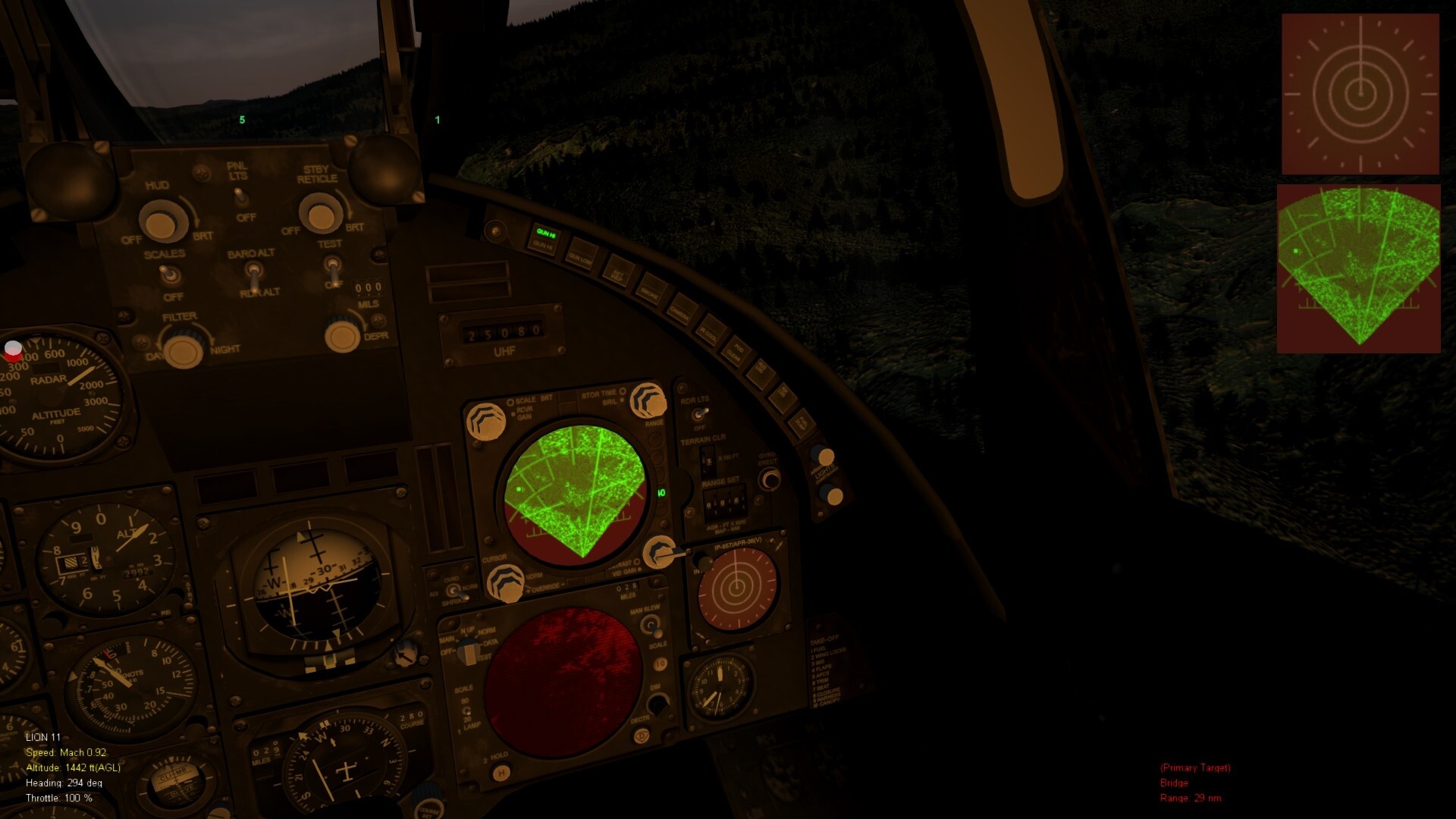

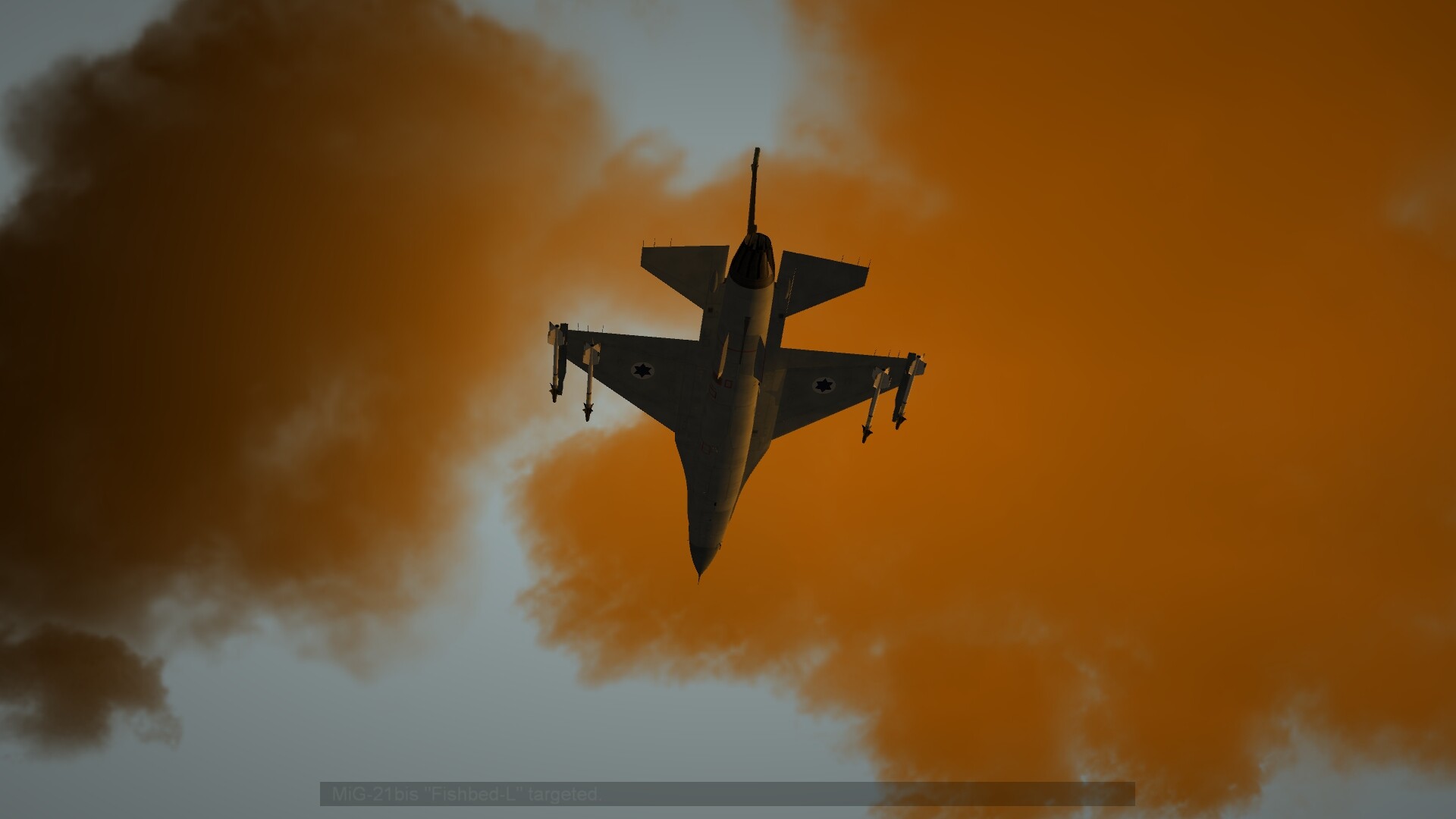

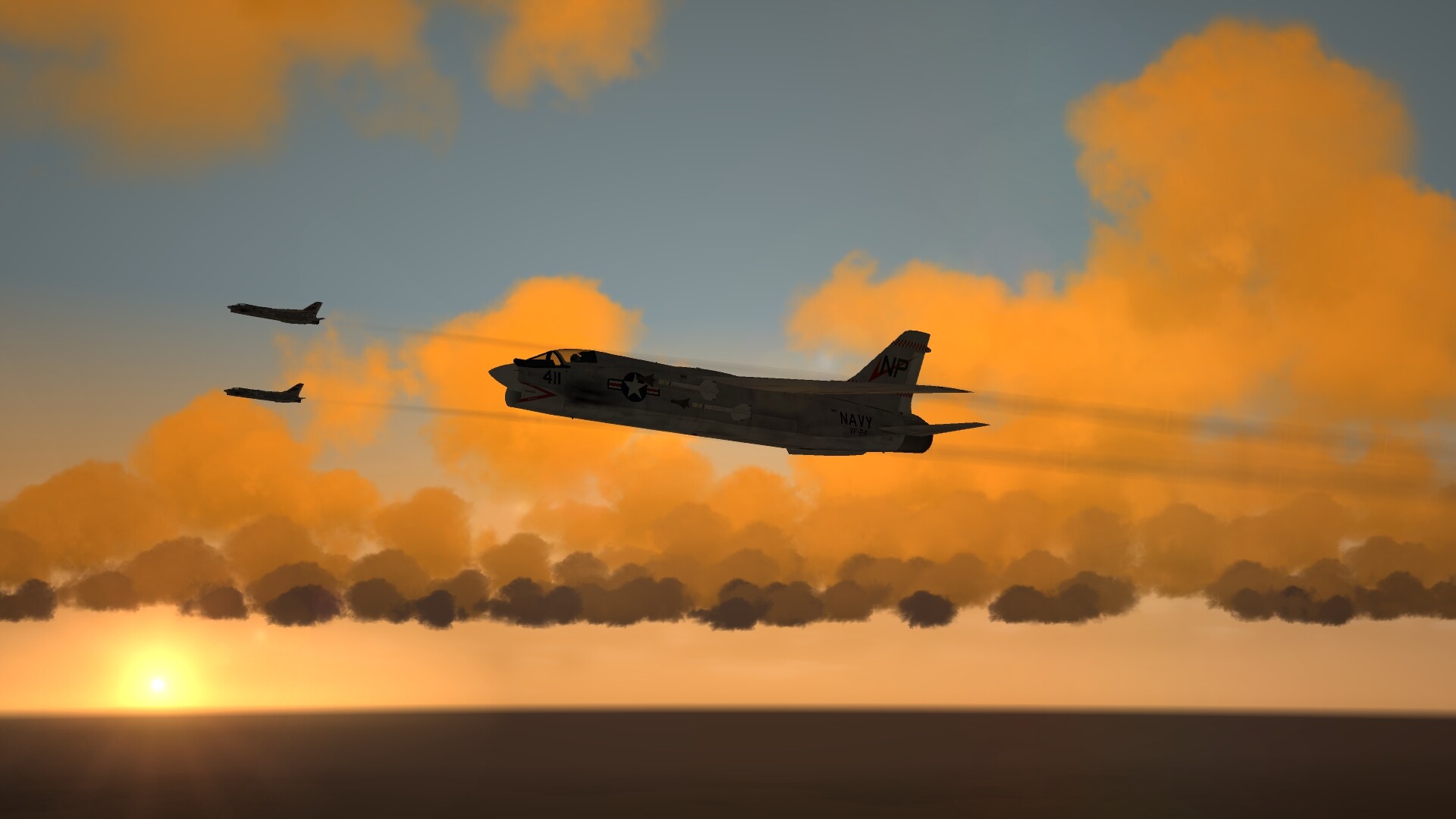

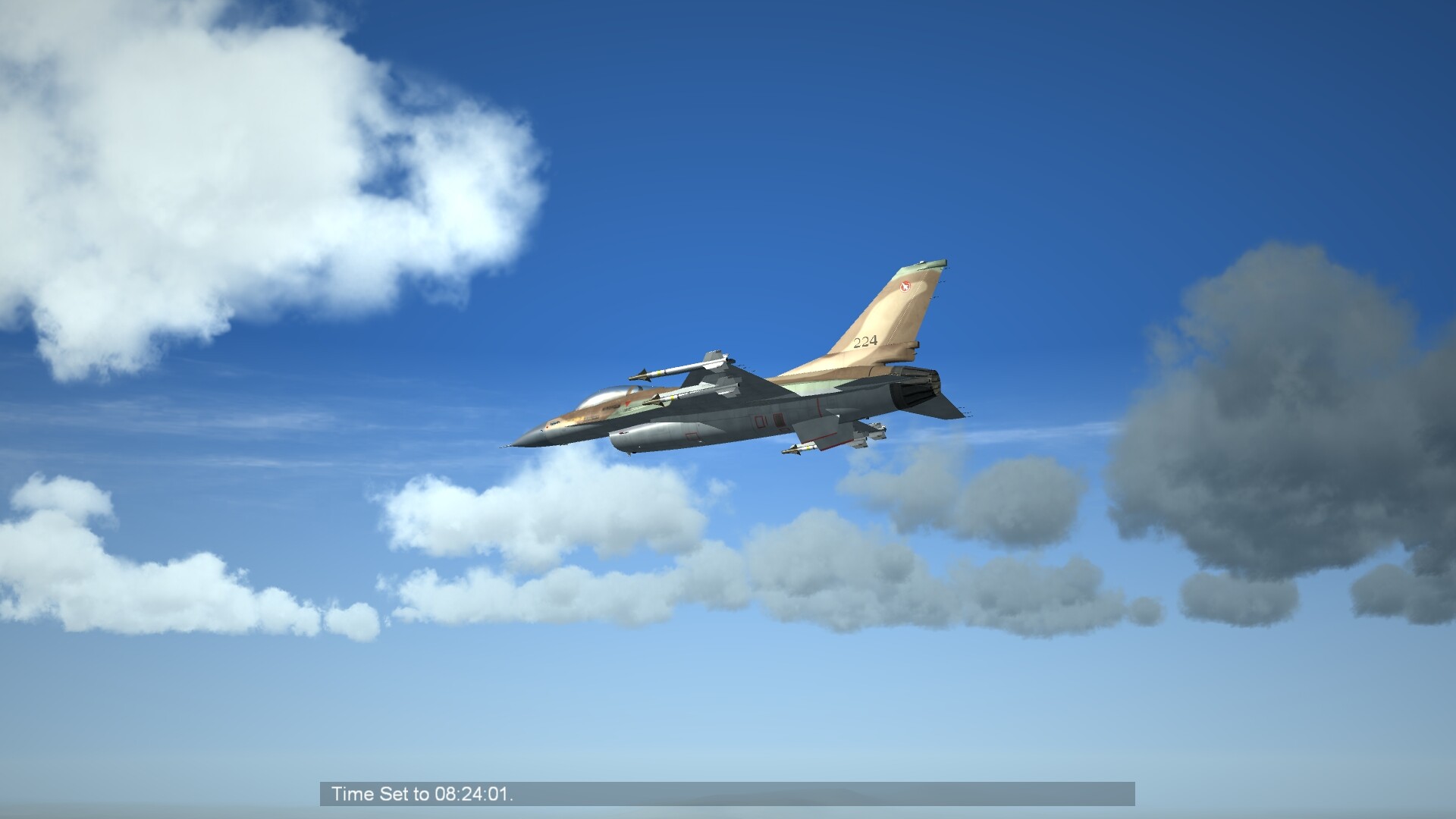

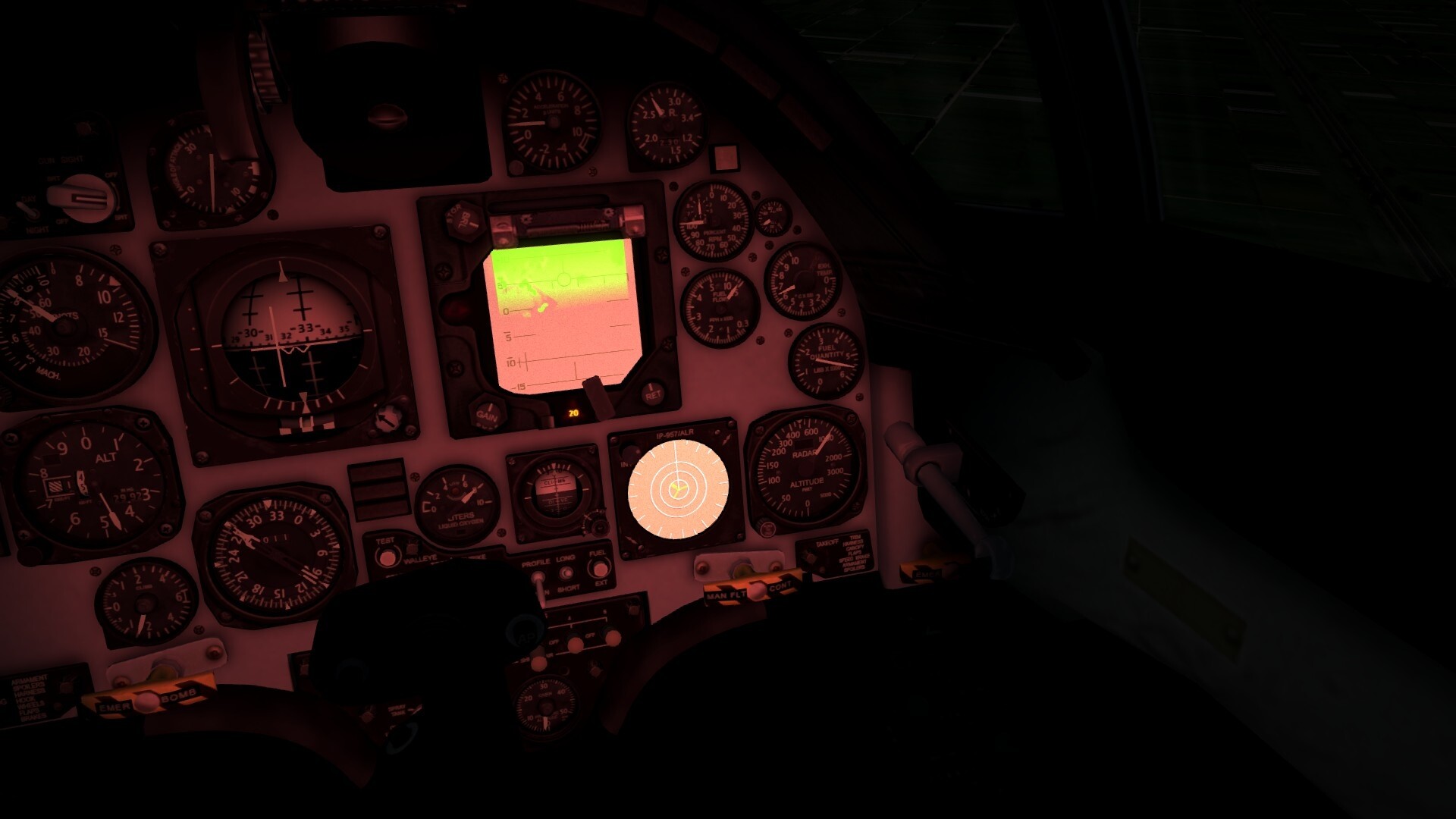

+Stary Posted 16 hours ago Posted 16 hours ago (edited) Hello gang, both old familiar faces and the newer ones. Haven't been much around recently (if 9 years modding hiatus can be described as such...) but to be frank meeting recently again with the very passionate Enoc "Flogger23" -and being introduced by him to intriguing dlls-related work started by Eagle114th- made me somewhat nostalgic for the old days here, thus took few downer rainy days to have a look at the old pre Cat-lockdowns shaders -with the help of AI. Yes, I distrust the prevalence of AI as much as the odd smelly prepper dude everyone has on the edge of his circle but being someone who couldn't calculate own age if his life depended on it, here we are. Man I still can't write a coherent short sentence, can I? As per title, I am attaching some tweaked shaders that my stubborn pal, Chad GPT, helped me refine. SF2 shaders tweaks.zip Given the limitations and bit of artistic license, it's all on a "take it or leave it" basis. Those are focused on 2 key aspects of the SF2 quality of life upgrades that interest me: Flight: -gunsights/HUD rendering and investigations -in-cockpit displays rendering -clouds, stars rendering ThatTerrainYouLoveBombing(tm): -terrain tiles rendering hacks 1) Gunsights/HUD shaders: Flight\FLTGUNSIGHT.FX -the usual gunsights Flight\FLTHUD.FX -HUD with assorted imagery as per aircraft's avionis file setup Flight\TWCOLOR1.FX -all the one-tint alpha-based letters and digits Flight\TWCOLOR2.FX -added as test, have not found the examples but I have not tested all the stock all-in-one aircraft, the shader uses two separate texture slots Flight\TWCOLOR8.FX -same as with TWCOLOR2.FX, expects 8 texture slots Those have now added user-adjustable faint shimmering and jittering to simulate older style cathode ray tube projectors onto phosphorate screen displays Please note: Gunsights use center of screen radial mask to clip the gunsight from the view if the gunsight image moves outside of the mask area; due to the way TK implemented things the mask is a screen space overlay, I was so far (bar one crap example I might look at again) unable to make the mask render as a quad in world space thus stay at pre-set position in cockpit, so if you have your gunsight reticle depressed for example during CCIP mode when moving your viewpoint downwards the mask which is in the center of screen will make the gunsight visible again. 2) Radar displays, TV displays, moving map display: Those are updated to a point engine allows: Flight\FLTCOCKPITMAP.FX -Map displas: fully configurable tint of the map image (the style of original map image -PLANNINGMAP3.xxx being of biggest importance, default style maps look better IMO) with additional noise and scanlines where you can control scanlines intensity, size and scroll speeds, noise dimming factor etc. Flight\TWCOLOR1.FX -Same goes for RADARS/RWR BUT the radar/RWR returns are hard coded into being green, if we were able to hack the blending mode of those we might get better results. Same noise and jittering as with TV/MAP/HUD digits. We CAN decopule the material shaders in avionics inis so one can use different shaders/renamed copies of for on-HUD digits etc and something else with diffferent parameters for RADAR/RWR displays, but that was not the scope of my tests. Flight\FLTDTVFILTER.FX -similar treatment, able to adjust tint and scanlines, flickering etc, but I saw sommunity already did some interesting thigns using various BlendOp= methods, might look intriguing when paired together with this shader (ie. amber LLLTV with negative/whitepoint etc) every shader has a part at the top around constant buffers declarations that allows one to adjust, example from FLTGUNSIGHT.FX shader: // Mask, jitter, flicker, and noise controls cbuffer cbScreenMask { float2 g_ScreenSize; // resolution float g_ScreenRadius; // visible radius [0..1] int g_DebugMode; // 1 = debug overlay float g_FadeWidth; // 0.02 typical float g_JitterAmount; // UV shake amplitude float g_JitterFrequency; // jitter/flicker frequency (Hz) float g_BrightnessAmp; // brightness flicker amplitude (0–0.2) float g_NoiseAmp; // random sparkle intensity (0–0.05) float g_NoiseFreq; // random noise evolution speed (Hz) float _pad; }; // Defaults #ifndef HUD_CONST_OVERRIDES static const float2 HUD_DEFAULT_SCREENSIZE = float2(1920.0, 1080.0); static const float HUD_DEFAULT_RADIUS = 0.25; static const float HUD_DEFAULT_FADEWIDTH = 0.02; static const float HUD_DEFAULT_JITTER = 0.005; static const float HUD_DEFAULT_FREQ = 10.0; static const float HUD_DEFAULT_BAMP = 0.2; static const float HUD_DEFAULT_NOISEAMP = 0.02; static const float HUD_DEFAULT_NOISEFREQ = 50.0; static const int HUD_DEFAULT_DEBUG = 0; #endif 3) Clouds, stars: Flight\ENVSTAR.FX -now shimmer randomly with configurable parameters in the shader, simple thing ENVCLOUDS.FX -AKA The Frustrating One. The one that I spent the most time on and achieved the least. The shading is somewhat improved but needs tons of additional tweaking, decoupled fade distance from fog distance etc but gave up in the end. Also no baked in altitude hacks though there is provision for those (Flight\ENVCLOUDS height offset.FX) as altitude hacks still rely on CPU-provided physical position in scene, so we can not really push them down, only the vertices 4) Terrain visuals shaders that go into desired terrain folder: TERTERRAINEFFECT.FX, TERFARTERRAINEFFECT.FX, TERWATEREFFECT2.FX Basically updated terrain mesh shaders that do 1 thing: take the tile texture and calculate luminosity-based fake normalmap on per-tile basis and applies it on top of the noise normals we all are used to. Blending and derived normal value are adjustable. Just for best visually matching output set the parameter to your tiles resolution: cbuffer cbPseudoNormal { float g_PseudoNormalStrength = 5.0; // bump contrast (default ~3.0) float g_PseudoNormalTexRes = 512.0; // tile texture resolution (default 256) float g_PseudoNormalInvert = 1; // 0 = normal, 1 = inverted height }; Given the nature of TK's wang tiles terrains that means the TERWATEREFFECT2.FX for land-sea and rivers tiles had to be adjusted with the same methods but also then I worked on adding more bells and whistles and looked into adding bits from the SF2NA water mesh shader (not much luck there) to the water branch of the tiles, all parameters are described in the shaders: // Fresnel / reflection float WT_Fresnel_R0 = 0.0204; //0.0204; // water reflectance at normal incidence (~2%) float WT_ReflStrength = 1.0; // overall reflection strength multiplier float WT_ReflDistNear = 0.10; //0.10; // reflection UV distortion near float WT_ReflDistFar = 0.01; //0.010; // reflection UV distortion far float WT_ReflDistGeomScale = 0.05; //0.35; // base geom/distance reflection factor // Water tint float3 WT_WaterTint = float3(0.08, 0.11, 0.14); float WT_WaterTintAmount = 0.55; //0.55; // 0 = use terrain albedo, 1 = full tint // Wave band blend float WT_SecondWaveWeight = SecondWaveWeightD; // default from cbConstant float WT_Unused_pad0; float WT_Unused_pad1; float WT_Unused_pad2; // Sparkle/spec float WT_SparkleStrength = 1.0; // 0 = off, 1 = default float WT_SpecStrength = 1.0; //1.0; // extra gain on specular lobe // --- WHITE CAPS controls --- float WT_WhitecapAmount = 0.40; // overall foam blend amount (default used to be 0.4 in code) float WT_WhitecapExponent = 8.0; //8.0; // how sharp angle-to-sun is before foaming float WT_WhitecapNoiseScale = 4.0; // frequency of noise mask (was *4.0) float WT_WhitecapMaxBlend = 0.85; //0.85; // safety clamp for foam mix [0..1] // Wave strength scaling at shores float WT_WaveAlphaStrength = 1.0; // multiply alpha weighting on wave strength (shore calming) float WT_WaveDistStrength = 0.5; //1.0; // multiply distance fade impact on wave strength float WT_WaveOverallGain = 1.0; // overall normal strength gain (pre-Fresnel) float WT_Unused_pad3; Please note there are already very good mods for ingame environment and user-tweaked water shaders, shoutout to Menrva for his work in sky/water domains! But I decided to roll this one out too so people smarter and more artistically inclined than I am can have a go at those. I mostly tested them with the beautiful new retextured Korea MiG-Alley by Gepard+Lacsap and the extended Desert 4 by PieceMeal. Misc test shaders I included for giggles: extra terrain objects shaders\TERALPHAOBJECT.FX -for TOD trees that are randomly swaying juust a bit, purely visual "can be done? oh" test extra terrain objects shaders\TERSOLIDOBJECT.FX -added derived normalmaps Feel free to do much smarter things with those than I was able to, use as you see fit. Cheers, Stary Edited 16 hours ago by Stary 5 2 Quote
+Menrva Posted 15 hours ago Posted 15 hours ago @Stary fantastic stuff! I look forward to trying your shaders and make the best use out of them! I experimented a lot with shaders during the development of Operation Desert Storm 30th Anniversary Edition, but never got this far. Thank you for your works on Strike Fighters, they are much appreciated By the way, some years ago someone experimented with creating PBR shaders for Strike Fighters 2, they're available on GitHub. Their implementation is rather broken here and there, but they also introduced nice results under specific light conditions, so they may be of your interest: https://github.com/Zackin5/StrikeFighters2-PbrShaders 3 Quote
+Stary Posted 15 hours ago Author Posted 15 hours ago 21 minutes ago, Menrva said: @Stary fantastic stuff! I look forward to trying your shaders and make the best use out of them! I experimented a lot with shaders during the development of Operation Desert Storm 30th Anniversary Edition, but never got this far. Thank you for your works on Strike Fighters, they are much appreciated By the way, some years ago someone experimented with creating PBR shaders for Strike Fighters 2, they're available on GitHub. Their implementation is rather broken here and there, but they also introduced nice results under specific light conditions, so they may be of your interest: https://github.com/Zackin5/StrikeFighters2-PbrShaders Yeah I am familiar with that guy's test but it seems abandoned and also I personally never got them to work wihtout artifacts. That said I am curious what you will come up with using the shaders I uploaded if you ever want to do next real sky environment mod did some tests with alpha-based normalmaps etc but so far nothing worth mentioning but here's the shaderENVCLOUDS rework works no inis exposed.FX 2 1 Quote
+FLOGGER23 Posted 12 hours ago Posted 12 hours ago 3 hours ago, Stary said: Hello gang, both old familiar faces and the newer ones. Haven't been much around recently (if 9 years modding hiatus can be described as such...) but to be frank meeting recently again with the very passionate Enoc "Flogger23" -and being introduced by him to intriguing dlls-related work started by Eagle114th- made me somewhat nostalgic for the old days here, thus took few downer rainy days to have a look at the old pre Cat-lockdowns shaders -with the help of AI. Yes, I distrust the prevalence of AI as much as the odd smelly prepper dude everyone has on the edge of his circle but being someone who couldn't calculate own age if his life depended on it, here we are. Man I still can't write a coherent short sentence, can I? Happy to see you here, Tio Mek! A week back, I was still enjoying the beautiful weather of Krakow, you know I am not lying, hehehe. 2 1 Quote
