+strahi 1,058 Posted January 15, 2016 Does anyone know the node name of the F-14A nose antenna? Share this post Link to post Share on other sites

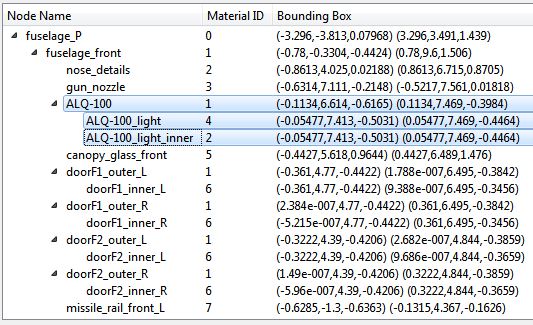

KJakker 884 Posted January 15, 2016 I would recommend getting Mue's Tool Box which includes the LODViewer. http://combatace.com/files/file/15942-mues-toolbox/ These are the nodes in question via the LODViewer. Share this post Link to post Share on other sites
Caesar 305 Posted January 15, 2016 As the LOD viewer shows, it is the ALQ-100 radar warning receiver fairing. Similar fairing is used under the TCS and TCS/IRST pods to house ALQ-126 and ALQ-165 receivers in later model F-14s. Share this post Link to post Share on other sites
+strahi 1,058 Posted January 15, 2016 Thank you for your help and the rapid response, Mue's Tool Box? I did not know that I can see parts without LOD files (it's TW F-14A_77) Share this post Link to post Share on other sites

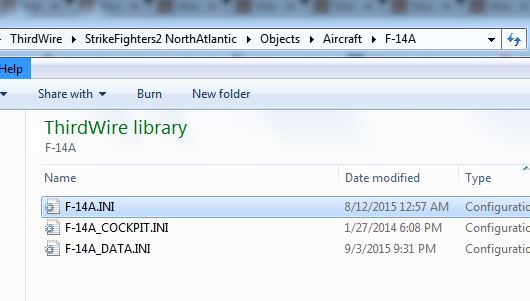

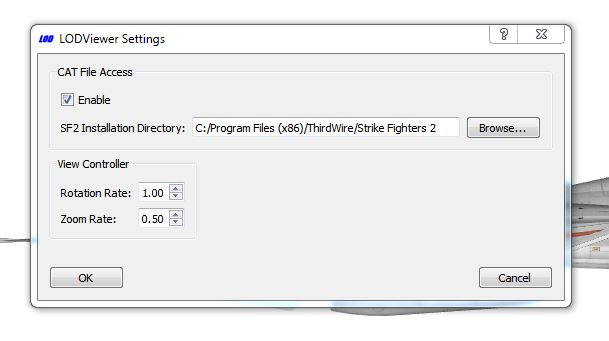

KJakker 884 Posted January 16, 2016 Thank you for your help and the rapid response, Mue's Tool Box? I did not know that I can see parts without LOD files (it's TW F-14A_77) You just have to set it up in setting to see the CAT files. Then just view the stock aircraft or object by opening its main INI file with the LOD viewer. 1 Share this post Link to post Share on other sites
+strahi 1,058 Posted January 16, 2016 You just have to set it up in setting to see the CAT files. Capture2.JPG Then just view the stock aircraft or object by opening its main INI file with the LOD viewer. Capture3.JPG Thank you very much! Share this post Link to post Share on other sites
Wrench 9,728 Posted January 16, 2016 moved to the proper Forum, even though it's been answered Share this post Link to post Share on other sites
Antares81 16 Posted January 16, 2016 Hello folks ... thanks for information I've add the TCS camera on TW F-14A(77) .. there are news about update of TMF F-14 ? Share this post Link to post Share on other sites
KJakker 884 Posted January 17, 2016 Hello folks ... thanks for information I've add the TCS camera on TW F-14A(77) .. there are news about update of TMF F-14 ? I added the TCS camera to my TW F-14A(77) as well. Do your edits look something like the ones below? From my edited "F-14A_77_DATA.INI" [Nose] ParentComponentName=Fuselage ModelNodeName=fuselage_front ShowFromCockpit=FALSE DamageRating=DESTROYED MassFraction=0.277 HasAeroCoefficients=FALSE StructuralFactor=1.5 MinExtentPosition=-0.65, 1.64,-0.39 MaxExtentPosition= 0.65, 9.10, 1.38 CollisionPoint[001]= 0.00, 9.05,-1.33 CollisionPoint[002]= 0.00,10.03,-0.79 CollisionPoint[003]= 0.00, 5.13, 1.09 SystemName[001]=InternalGun SystemName[002]=Pilot SystemName[003]=CoPilot SystemName[004]=NoseGear SystemName[005]=ChinLight SystemName[006]=TCS // TCS --------------------------------------------------------- [TCS] SystemType=EO_CAMERA ModelNodeName=TV CameraFOV=2.500000 SightTexture=avq23sight1.tga CameraPosition=0.0,7.469,-0.4748 CameraYaw=0.000000 CameraPitch=-2.000000 CameraRoll=0.000000 EODisplayFlags=268697600 SeekerRange=30.000000 SeekerGimbleLimit=40.000000 SearchFOV=5.000000 SearchTexture= MinExtentPosition=-0.1134,6.614,-0.6165 MaxExtentPosition=0.1134,7.469,-0.3984 From my edited "F-14A_77_AVIONICS.INI". [RadarData] AvailableModes=SEARCH,TWS,STT,ACM,TV,RWR RangeUnit=NM RangeSetting[1]=25 RangeSetting[2]=50 RangeSetting[3]=100 RangeSetting[4]=200 RangeSetting[5]=400 RadarPosition= MaxElevationAngle=60 MinElevationAngle=-60 MaxAzimuthAngle=65 MinAltitude=15.0 BoresightElevation=0.0 BoresightAzimuth=0.0 MinReturn=0.01 MinimumSpeed=25.72 SearchRange=200 SearchStrength=160 TrackRange=90 TrackStrength=160 AcquisitionSymbolSpeed=2.0 AcquisitionResetPosX=0.0 AcquisitionResetPosY=0.2 AcquisitionResetTime=5.0 DisplayLimitLeft=2 DisplayLimitRight=254 DisplayLimitTop=2 DisplayLimitBottom=250 StartRangeSetting=3 [TVDisplayData] UseRadarTexture=TRUE DisplayLimitLeft=2 DisplayLimitRight=254 DisplayLimitTop=2 DisplayLimitBottom=250 ApplyFilter=TRUE FilterMaterial=DTVFilterMaterial OverlayTexture= [DTVFilterMaterial] EffectShaderName=twColor1.fx DepthBufferCheck=FALSE DepthBufferWrite=FALSE RenderedInOrder=FALSE AlphaTestEnabled=FALSE CullMode=NO_CULL LightEnabled=FALSE SpecularEnabled=FALSE EmissiveEnabled=FALSE FogEnabled=FALSE AmbientColor=1.000000,1.000000,1.000000,1.000000 DiffuseColor=1.000000,1.000000,1.000000,1.000000 ZBufferOffset=0.000000 PriorityLevel=1 BlendOp=MODULATE NumTextureStages=1 TextureStage[01].TextureName=GreenTVFilter.bmp TextureStage[01].MipMap=FALSE TextureStage[01].FilterEnabled=FALSE TextureStage[01].StageColorOp=TEXTURE TextureStage[01].StageAlphaOp=DIFFUSE 1 Share this post Link to post Share on other sites
+strahi 1,058 Posted January 17, 2016 I added the TCS camera to my TW F-14A(77) as well. Do your edits look something like the ones below? From my edited "F-14A_77_DATA.INI" [Nose] ParentComponentName=Fuselage ModelNodeName=fuselage_front ShowFromCockpit=FALSE DamageRating=DESTROYED MassFraction=0.277 HasAeroCoefficients=FALSE StructuralFactor=1.5 MinExtentPosition=-0.65, 1.64,-0.39 MaxExtentPosition= 0.65, 9.10, 1.38 CollisionPoint[001]= 0.00, 9.05,-1.33 CollisionPoint[002]= 0.00,10.03,-0.79 CollisionPoint[003]= 0.00, 5.13, 1.09 SystemName[001]=InternalGun SystemName[002]=Pilot SystemName[003]=CoPilot SystemName[004]=NoseGear SystemName[005]=ChinLight SystemName[006]=TCS // TCS --------------------------------------------------------- [TCS] SystemType=EO_CAMERA ModelNodeName=TV CameraFOV=2.500000 SightTexture=avq23sight1.tga CameraPosition=0.0,7.469,-0.4748 CameraYaw=0.000000 CameraPitch=-2.000000 CameraRoll=0.000000 EODisplayFlags=268697600 SeekerRange=30.000000 SeekerGimbleLimit=40.000000 SearchFOV=5.000000 SearchTexture= MinExtentPosition=-0.1134,6.614,-0.6165 MaxExtentPosition=0.1134,7.469,-0.3984 From my edited "F-14A_77_AVIONICS.INI". [RadarData] AvailableModes=SEARCH,TWS,STT,ACM,TV,RWR RangeUnit=NM RangeSetting[1]=25 RangeSetting[2]=50 RangeSetting[3]=100 RangeSetting[4]=200 RangeSetting[5]=400 RadarPosition= MaxElevationAngle=60 MinElevationAngle=-60 MaxAzimuthAngle=65 MinAltitude=15.0 BoresightElevation=0.0 BoresightAzimuth=0.0 MinReturn=0.01 MinimumSpeed=25.72 SearchRange=200 SearchStrength=160 TrackRange=90 TrackStrength=160 AcquisitionSymbolSpeed=2.0 AcquisitionResetPosX=0.0 AcquisitionResetPosY=0.2 AcquisitionResetTime=5.0 DisplayLimitLeft=2 DisplayLimitRight=254 DisplayLimitTop=2 DisplayLimitBottom=250 StartRangeSetting=3 [TVDisplayData] UseRadarTexture=TRUE DisplayLimitLeft=2 DisplayLimitRight=254 DisplayLimitTop=2 DisplayLimitBottom=250 ApplyFilter=TRUE FilterMaterial=DTVFilterMaterial OverlayTexture= [DTVFilterMaterial] EffectShaderName=twColor1.fx DepthBufferCheck=FALSE DepthBufferWrite=FALSE RenderedInOrder=FALSE AlphaTestEnabled=FALSE CullMode=NO_CULL LightEnabled=FALSE SpecularEnabled=FALSE EmissiveEnabled=FALSE FogEnabled=FALSE AmbientColor=1.000000,1.000000,1.000000,1.000000 DiffuseColor=1.000000,1.000000,1.000000,1.000000 ZBufferOffset=0.000000 PriorityLevel=1 BlendOp=MODULATE NumTextureStages=1 TextureStage[01].TextureName=GreenTVFilter.bmp TextureStage[01].MipMap=FALSE TextureStage[01].FilterEnabled=FALSE TextureStage[01].StageColorOp=TEXTURE TextureStage[01].StageAlphaOp=DIFFUSE Yes, my data are quite similar Share this post Link to post Share on other sites
+Crusader 2,078 Posted January 17, 2016 The TCS data section.... its using the weapondata format. Correct format for aircraft data and avionics ini (yep..) is this : Example from a F-4E TISEO with Dual FOV, with smaller FOV for long distance; 10km+ [TISEO]SystemType=EO_CAMERAModelNodeName=TVCameraFOV=5.000000DualFOV=TRUESearchFOV=2.500000CameraPosition=-2.052,3.488,-0.687CameraAngles=0.0,-2.0,0.0MaxSeekerRange=30.000000SeekerGimbleLimit=30.000000SeekerTrackRate=20.0SightTexture=f-4_tiseo2.tgaSearchTexture=f-4_tiseo.tgaBypassFilter=FALSEIRImage=FALSETrackingGateType=0GimbleAngleDisplayType=1ShowTargetID=TRUE // Tracking Gate options// 0 None// 1 Crosshair// 2 Four Corners// 3 Double Lines// Gimble Angle Display options// 0 None// 1 Pointing Cross// 2 Nose Index Marker 1 Share this post Link to post Share on other sites
