Major Bloodnok Posted August 12, 2019 Posted August 12, 2019 Does anybody know the NodeName of the clock in the Meteor cockpit. I have been trying to place a Radar repeater in the cockpit for the NF11, instead of the clock. I have tried: [RadarScope] Type=RADAR_SCOPE NodeName=Clock And other name combinations, such as Gauge_clock, CLOCK_METEOR8(same name as the bitmap for the gauge), but still no luck. Quote
+dtmdragon Posted August 12, 2019 Posted August 12, 2019 Use mules lod viewer in the downloads section Quote
+russouk2004 Posted August 12, 2019 Posted August 12, 2019 in NF12 its painted on only hands are named...you mean stock F8 ? Quote
Major Bloodnok Posted August 12, 2019 Author Posted August 12, 2019 The M8 stock cockpit LOD is locked, so cannot be accessed in Mue's tool, unfortunately. Quote
+russouk2004 Posted August 12, 2019 Posted August 12, 2019 3 minutes ago, Major Bloodnok said: The M8 stock cockpit LOD is locked, so cannot be accessed in Mue's tool, unfortunately. Yeah I tried Quote
+russouk2004 Posted August 12, 2019 Posted August 12, 2019 all you can do is repaint clock bmp...and u can maybe have model made of your instrument and add as fake pilot..?...dont know.. Quote

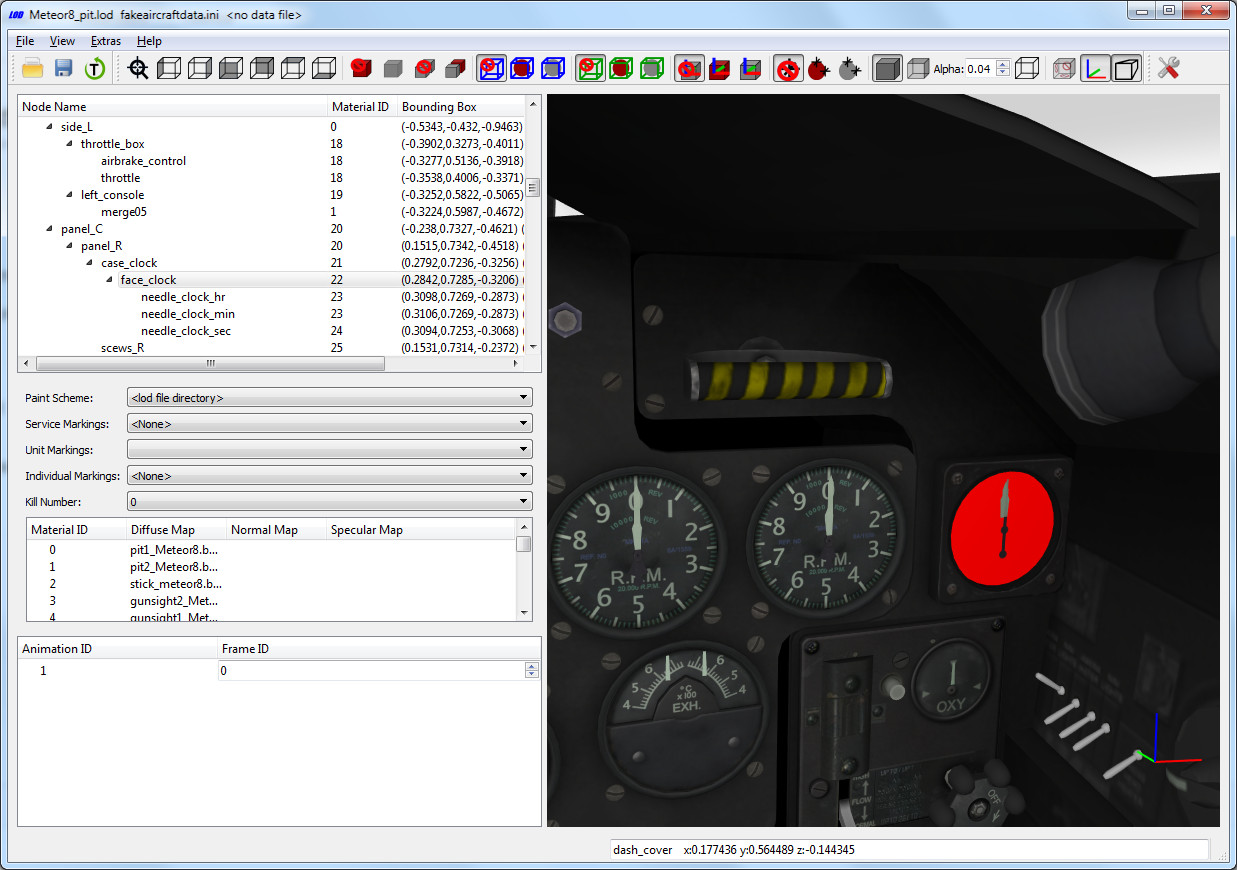

mue Posted August 12, 2019 Posted August 12, 2019 (edited) With a little trick you can view ALL lods contained in the cats: Create a fakeaircraft.ini that contains the following lines: [LOD001] Filename=Meteor8_pit.lod <--- insert lod file name here By opening this fake aircraft ini the LODViewer shows the referenced lod. The meteor clock node name is "face_clock": Edited August 12, 2019 by mue fakeaircraft.ini instead of fakeaircraftdata.ini 4 Quote
Major Bloodnok Posted August 12, 2019 Author Posted August 12, 2019 Brilliant! Thanks Mue, it worked great. 1 Quote
+russouk2004 Posted August 12, 2019 Posted August 12, 2019 I tried that...mue...my error tho was LOD not lod lol glad its sorted Quote
penaratahiti Posted May 11, 2020 Posted May 11, 2020 Hello! How did you removed the lod of the needles ? I have them on top of my radar scope, position 12 o'clock, so the scope is merely useless. Thanks! On 12/08/2019 at 1:18 PM, Major Bloodnok said: Brilliant! Thanks Mue, it worked great. Quote
Major Bloodnok Posted May 11, 2020 Author Posted May 11, 2020 Here are the files to do this: The ini files go in the aircraft's folder and the bmp goes in the cockpit folder. MeteorNF11_COCKPIT.INI Meteor_NF11_AVIONICS.INI RadarScreen.bmp 1 Quote
