can I use this to make rudder pedals also work with rudder key press. ?  also what does itemnumber do ?

[RotorBrake]
Type=EXTERNAL_ANIMATION_LINK
NodeName=brake-1
MovementType=ANIMATION
AnimationID=2
ItemNumber=6

rudders move back n fore as normal...on the H19 the pedals flats (selected red) rotate around the actual frame...would animate way work..?

plus feet will need be animated too


Edited by russouk2004

Share this post


Link to post
Share on other sites

ItemNumber= is the Animation ID # of the external model to which the cockpit animation is linked to

You could use the Type=RUDDER_PEDAL  function to get the pedals moving. With MovementType=POSITION_Y/X/Z

and/or MovementType=ROTATION_Y/X/Z

  • Like 1
  • Thanks 1

Share this post


Link to post
Share on other sites
Quote

ItemNumber= is the Animation ID # of the external model to which the cockpit animation is linked to

duh...ty man now you mention it...makes sense...but I havent any lol

yeah,but needed to have 3 parts move same time....will upload vid of it in a bit.

cheers Cru

Share this post


Link to post
Share on other sites

create  'fake nodes' and link with proper hierarchy then use cockpit ini TYPE= to move or rotate one node (for example rudder pedals) and another  entry TYPE= for another node to use as a brake or something.

  • Thanks 1

Share this post


Link to post
Share on other sites

so I basically  create say,an invisible rudder,with fake animation ...ie...not actually animated but assigned a slot id...

like so

[Rudder Pedal]

Modelnodename=Rudder_Pedal

SystemType=ANIMATION
AnimationTime=3.0

animationid=10

but no actual animation or rudder just maybe an invisible  polygon called rudder and linked to panel like the real rudder pedal in the cockpit. ?

vid of the animated legs,rudders and park and rotor brakes.  cheeeers



  • Like 4
  • Thanks 1

Share this post


Link to post
Share on other sites

Confused .com with Itemnumber?

I can see what people mean...animated gear lever would be

itemnubmer=1  if the gear animation on the plane is animid=1

but heres my query   why is tach itemnumber=1 in starys mig15 cockpit yet the mig15 anim slot 1 is gears not engine ?..

and

[ExhaustTemp2]
Type=EXHAUST_GAS_TEMPERATURE_INDICATOR
NodeName=ENGINE2_EGT_needle
ItemNumber=2  <  what would this link to on plane anim 2 on mig is gears shock anim.....what if cockpit is used for a plane besides mig 15   gauges wont work ?   im scratching my head here   totally confused lol

Share this post


Link to post
Share on other sites

In connection to the Type=EXHAUST_GAS_TEMPERATURE_INDICATOR  function, the ItemNumber= line refers to the EngineID # in the data ini

:smile:

  • Thanks 1

Share this post


Link to post
Share on other sites

item number not always reflect animation

for engine stuff- is usually the no of the engine (in case you have few engines and few gauges for each)

item number for weapon station entry in cockpit represents weapon stations

same as fuel tanks item number=1  is fuel tank no 1 in main aircraft data ini.

as for animation (example canopy of Cobra

aircraft data ini

[Gunner_Canopy]
SystemType=ANIMATION
InputName=ANIMATION_9
AnimationTime=5.0
AnimationID=8

[Pilot_Canopy]
SystemType=ANIMATION
InputName=ANIMATION_10
AnimationTime=5.0
AnimationID=9



cockpit ini

[Canopy-pilot]
Type=EXTERNAL_ANIMATION_LINK
NodeName=Pilot_canopy
MovementType=ANIMATION
AnimationID=9
ItemNumber=9

[Canopy-gunner]
Type=EXTERNAL_ANIMATION_LINK
NodeName=Gunner_canopy
MovementType=ANIMATION
AnimationID=8
ItemNumber=8



but  you can have

door in aircraft animationID=5

and then in the cockpit you can set animation for 1st slot in 3dmax but then in cockpit ini ou have to put:

animation id=1

ItemNumber=5 (represents animation no 5 from an external model)





rudder you do not have to animate or collective or cyclic stick..

Use cockpit ini to give movement

[Throttle]
Type=THROTTLE_CONTROL
NodeName=Throttle
MovementType=ROTATION_Y
Set[01].Position=0.0
Set[01].Value=0
Set[02].Position=-120.0
Set[02].Value=1.0

[StickPitch]
Type=CONTROL_STICK_PITCH
NodeName=Control-pitch
MovementType=ROTATION_X
Set[01].Position=5.0
Set[01].Value=-1.0
Set[02].Position=-5.0
Set[02].Value=1.0

[StickRoll]
Type=CONTROL_STICK_ROLL
NodeName=Control-roll
MovementType=ROTATION_Y
Set[01].Position=-5.0
Set[01].Value=-1.0
Set[02].Position=5.0
Set[02].Value=1.0

[RudderPedal_L]
Type=RUDDER_PEDAL
NodeName=PedalPilot-L
MovementType=ROTATION_X
Set[01].Position=15.0
Set[01].Value=-1.0
Set[02].Position=0.0
Set[02].Value=0.0
Set[03].Position=-15.0
Set[03].Value=1.0

[RudderPedal_R]
Type=RUDDER_PEDAL
NodeName=PedalPilot-R
MovementType=ROTATION_X
Set[01].Position=-15.0
Set[01].Value=-1.0
Set[02].Position=0.0
Set[02].Value=0.0
Set[03].Position=15.0
Set[03].Value=1.0

[Collective]
Type=THRUST_VECTOR_CONTROL
NodeName=Collective
MovementType=ROTATION_X
Set[01].Position=0.0
Set[01].Value=0.0
Set[02].Position=40
Set[02].Value=1.0



  • Thanks 1

Share this post


Link to post
Share on other sites

Thats clearer thanks guys.....got it

yak if I want rudders animated and legs and feet move.....

I have this below...I have the feet move and lower legs move with the rudders...(looks better)   would below work ?

[RudderPedal_PilotLFoot]
Type=RUDDER_PEDAL
NodeName=RudderR01
MovementType=ROTATION_X
Set[01].Position=-10
Set[01].Value=-1.0
Set[02].Position=0.0
Set[02].Value=0.0
Set[03].Position=10
Set[03].Value=1.0

[RudderPedal_PilotRFoot]
Type=RUDDER_PEDAL
NodeName=RudderR02
MovementType=ROTATION_X
Set[01].Position=-10
Set[01].Value=-1.0
Set[02].Position=0.0
Set[02].Value=0.0
Set[03].Position=10
Set[03].Value=1.0

[RudderPedals]
Type=RUDDER_PEDAL
MovementType=ANIMATION
AnimationID=4
Set[01].Position=0.0
Set[01].Value=-1.0
Set[02].Position=1.0
Set[02].Value=1.0



Share this post


Link to post
Share on other sites

do not know. Never tried like this. but looks like this should work.

if not you can also make right leg - type=rudder_pedal and left leg - type=rudder_pedal etc..



  • Thanks 1

Share this post


Link to post
Share on other sites

will let you know when get to test it later in game....going over all the bits to check for typos and any errors....just realised...as my H-19 isnt finished yet....when I try pit...its just a case of checking the helo I test it on...look in data.in for the items to alter....brilliant...yakarov ur  awesome m8 ty

Edited by russouk2004

Share this post


Link to post
Share on other sites

Found answers to most of the problems...last Q...am I correct in thinking the gauge needles pivots axis Y is set to Z axis or am I mixing it up with the way rotors pivots are set to Y axis

as some needles seem not to respond correctly when I use Y axis if  ste at local in max they work in Y axis...

thanks gents...



Share this post


Link to post
Share on other sites

Needles should be fine on Y axis, one thing you need to keep in mind is to rotate the mesh itself so it points to the "0" position on the dial, so the mesh lets say points to 245degree but the pivot Z is matches the environment's Z axis , from there the game will rotate according the settings you give in the cockpit.ini.  If you have that then no rotation issues should happen, the game itself not like when you want to start from 270degree or what ever the position on the left side.


Share this post


Link to post
Share on other sites

Cheers bud yeah...I set all needles to the zero or start of a dial or gauge...as in set pointing at 0 for rpm etc...ty m8

Share this post


Link to post
Share on other sites

how does the reflection entry work...

do I need just map reflection in texture editor as normal or just prepare a texture and just add it via the cpit ini ? as set to tex ed...in lod viwer the texture shows normal not opaque on gauges....not a biggie as I can use refection tex as main glass gauge texture...

cheeeerzzz

Edited by russouk2004

Share this post


Link to post
Share on other sites

you need to map. Like anything else.. So if you want 'reflection' of pilot on canopy top left-right front..you have to map those positions on a bitmap.

Reflection actually, in my opinion, is quite a fuzz in SF2. It is still image....so despite your position and position of the sun...reflection is always the same....

That is why I am not sure if some detailed reflection is good on gauges..etc...just my personal preference. despite the environment, you will have 'reflection' there

Could be better to do just glass with some cool glossiness.



  • Like 1
  • Thanks 1

Share this post


Link to post
Share on other sites

Russ, as Yakarov alluded two - there's basically two scenarios.  One in which the gauge reflection is painted on and remains static and constant no matter what type of lighting hits it.  It absolutely looks cool though.  Another technique is to use a very high specular setting (white) on the glass dials and that will definitely allow the lighting to more dynamically (and realistically) interact - but man it will take a long time and experimentation to get it just right.

  • Like 1

Share this post


Link to post
Share on other sites

Reflections resolved etc...my tga I made wasnt opaque enough etc...

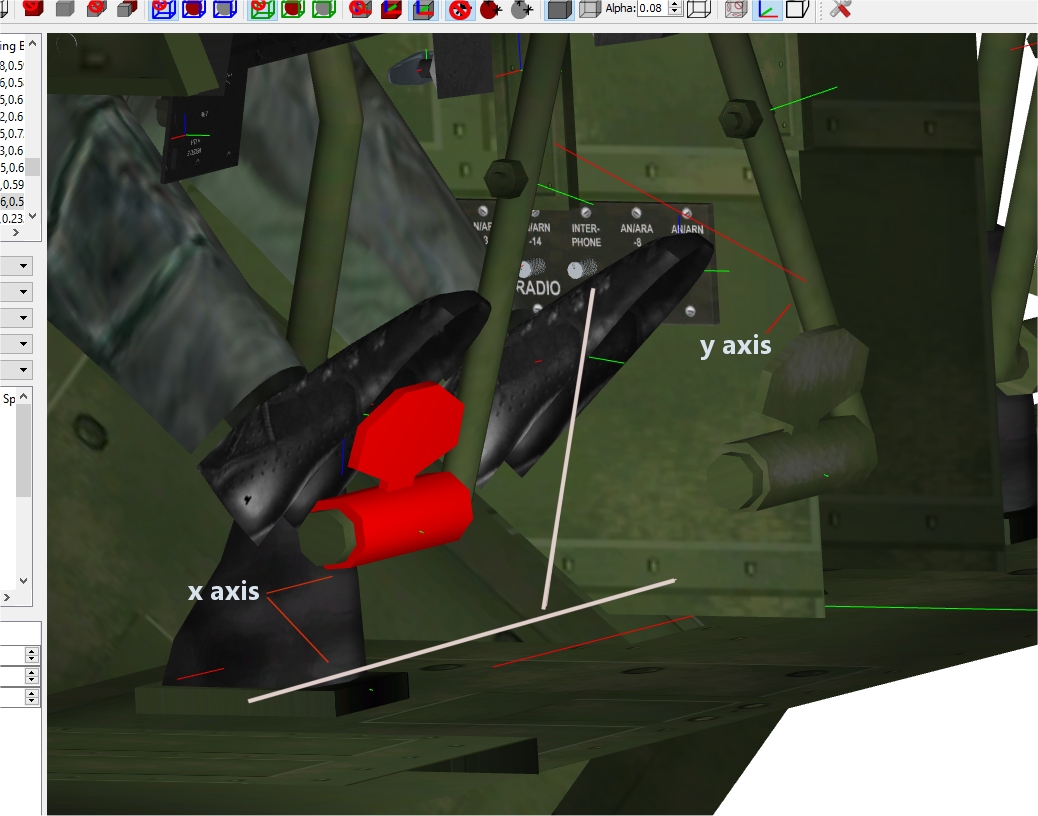

with gauges...I assume from looking at others that rotation is taken as clockwise = Positive number and needle going anti clockwise would be -

even if rotation in max says -25.9 say...if needles rotating clockwise you put  =Position=25.9     if needle rotates anticlockwise its then Position=-25.9

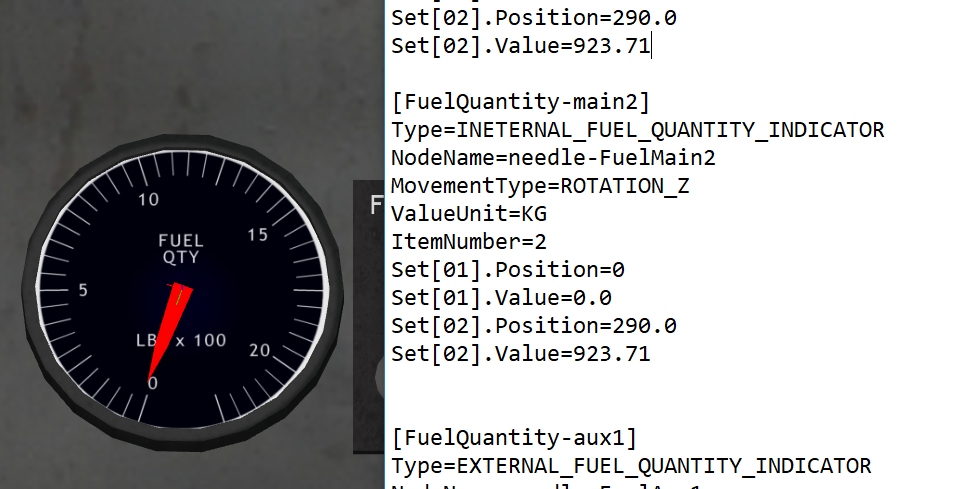

like pic 1..

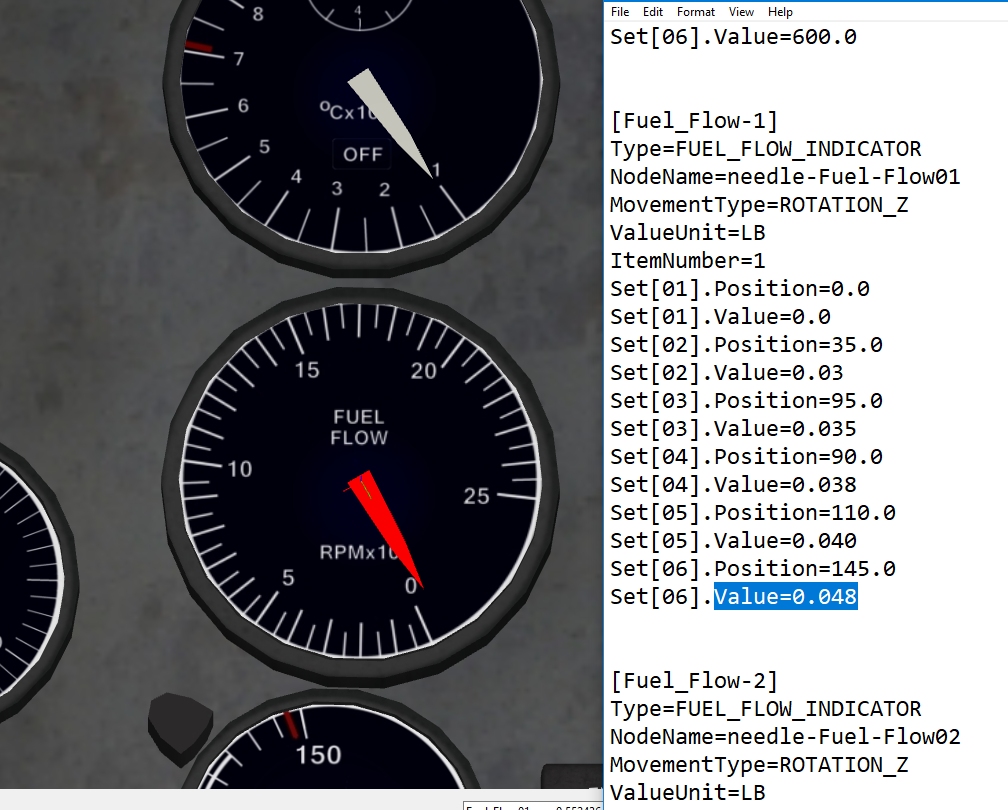

2nd pic...

position I know...how is the value amount worked out blued out in pic ?...as in fuel tank thats easy  amount of fuel a\c has...but this entry ?



Share this post


Link to post
Share on other sites

FuelFlow is usually calculated from what is used up in one hour, divided by 3600 (as 60min*60sec) so lets say the bird at max rate could drink 5000lbs in an hour,  so 5000/3600=1.388
Engines with afterburners could have lot higher values depend on the scale of the dial. F-105 uses 6.667 as last entry (dial value 24000 as last) and the F-15 uses 27.78 (dial value 100000)



  • Thanks 1

Share this post


Link to post
Share on other sites

Yes, correct, if they turn counterclockwise then values would be negative. For example on a verticalvelocityindicator you have both positive and negative values set in the parameters.

[VerticalVelocityIndicator]
Type=VERTICAL_VELOCITY_INDICATOR
NodeName=Climb_needle
MovementType=ROTATION_Y
ValueUnit=MPS
Set[01].Position=-140.0
Set[01].Value=-200.0
Set[02].Position=-80.0
Set[02].Value=-50.0
Set[03].Position=-65.0
Set[03].Value=-20.0
Set[04].Position=0.0
Set[04].Value=0.0
Set[05].Position=65.0
Set[05].Value=20.0
Set[06].Position=80.0
Set[06].Value=50.0
Set[07].Position=140.0
Set[07].Value=200.0


  • Thanks 1

Share this post


Link to post
Share on other sites

" ValueUnit=MPS "   - MPS is not a valid entry. MPS (meters per second) is in fact the default Unit for vertical velocity if no ValueUnit= is specified.

Value Units from the ObjectData dll:

KG
METERS
FEET
FT
YARDS
MILES
NM
KM
FPS
KMPH
MPH
KNOTS
LB
FPM
DEG

  • Like 2

Share this post


Link to post
Share on other sites

Getting the hang of this....some things are obvious after you ask lol....

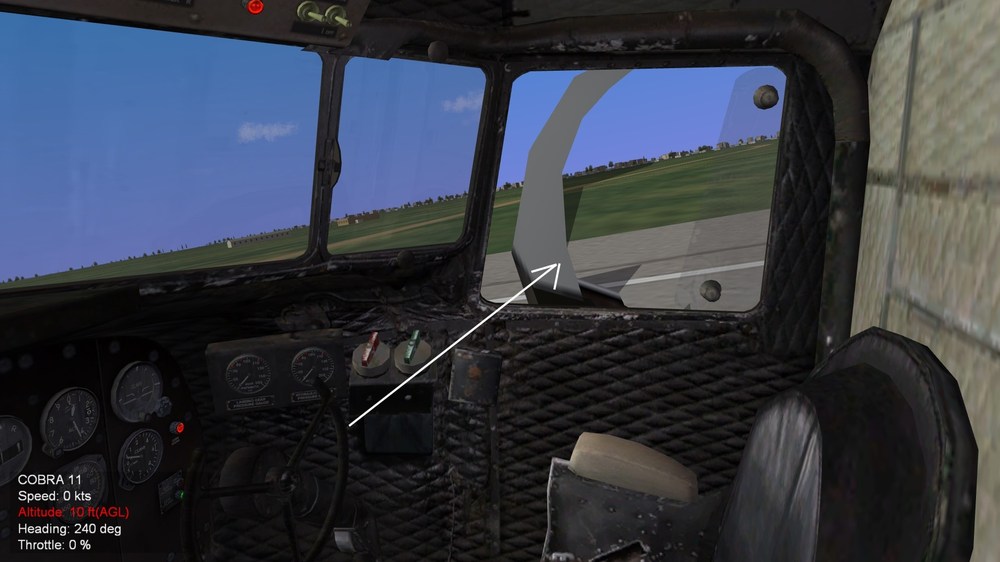

ok tried disabling co pilot in view in the DC3 but he still shows up...his head anyways...I know I can move pit forwards more to hide him....failing removing co pilot from main a\c...anything else I can do to get rid of the pest ?

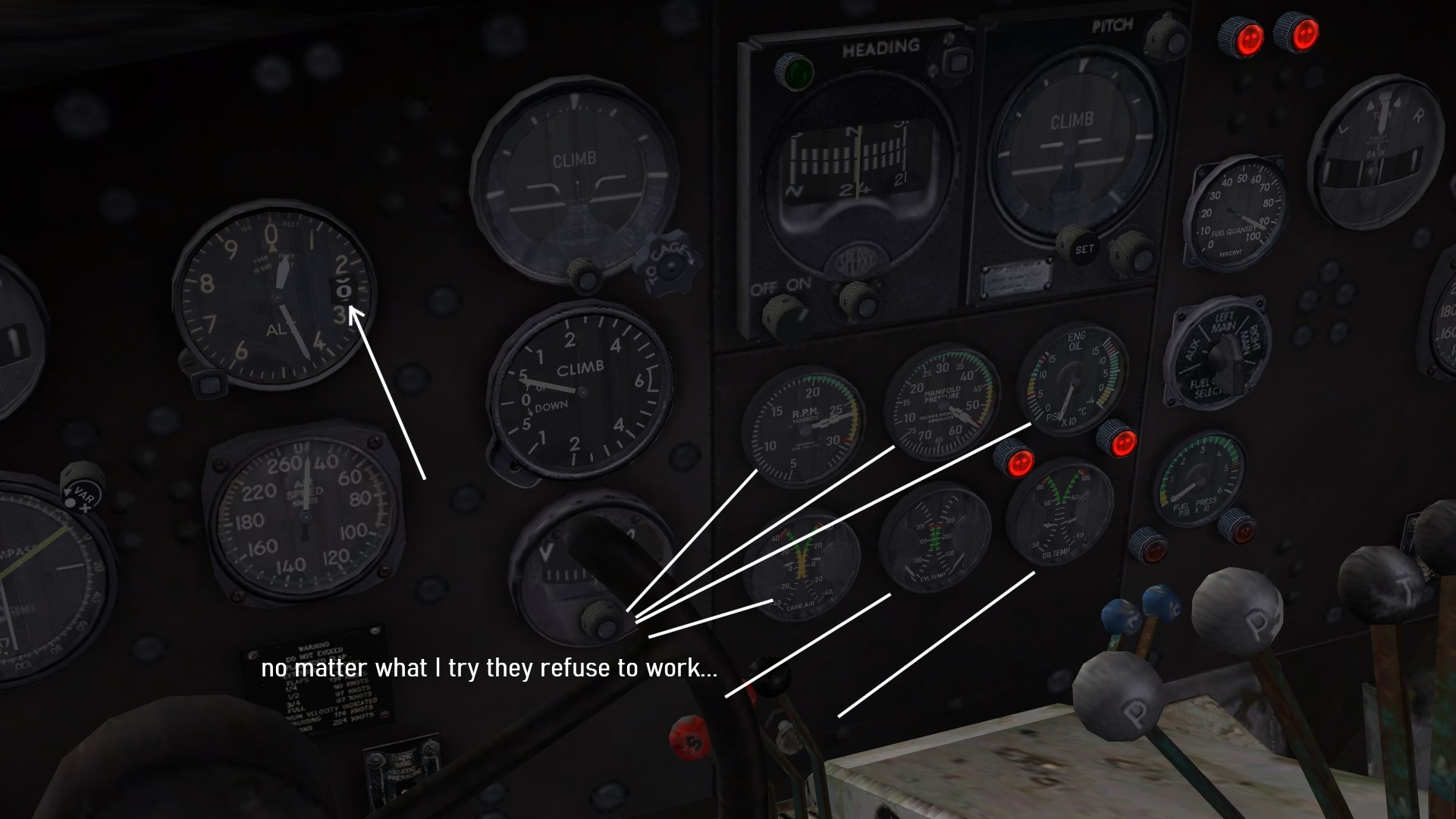

heres my entries for the gauges arrowed...seemno matter what,they refuse to work....every mesh has been checked and reset where needed,and the pivots all aligned to world...(which I know stops some gauges working if its set to X when should be Y)

[TachometerL]
Type=Tachometer
NodeName=RPM_NDL_LEFT
ItemNumber=1
MovementType=ROTATION_Y
Set[01].Position=-150.0
Set[01].Value=0.0
Set[02].Position=80.0
Set[02].Value=1.0

[TachometerR]
Type=Tachometer
NodeName=RPM_NDL_RIGHT
ItemNumber=2
MovementType=ROTATION_Y
Set[01].Position=-170.0
Set[01].Value=0.0
Set[02].Position=80.0
Set[02].Value=1.0

[ManifoldPressureL]
Type=MANIFOLD_PRESSURE
NodeName=Manifold_NDL_LEFT
ItemNumber=1
MovementType=ROTATION_Y
Set[01].Position=70.0
Set[01].Value=0.0
Set[02].Position=250.0
Set[02].Value=1.0

[OilPressL]
Type=Tachometer
NodeName=Oil PressureNDL_LEFT
ItemNumber=1
MovementType=ROTATION_Y
Set[01].Position=0.0
Set[01].Value=0.0
Set[02].Position=30.0
Set[02].Value=1.0



[OilTempL]
Type=Tachometer
NodeName=OIL_Temp_L_NDL
ItemNumber=1
MovementType=ROTATION_Y
Set[01].Position=0.0
Set[01].Value=0.0
Set[02].Position=-70.63
Set[02].Value=150.0

[Cyl head TempL]
Type=INLET_TEMPERATURE_INDICATOR
NodeName=CYL_Temp_L_NDL
ItemNumber=1
MovementType=ROTATION_Y
Set[01].Position=0.0
Set[01].Value=0
Set[02].Position=-94.59
Set[02].Value=350.0

[CarbAirL]
Type=INLET_TEMPERATURE_INDICATOR
NodeName=Carb_Temp_L_NDL
MovementType=ROTATION_Y
ItemNumber=1
Set[01].Position=0.0
Set[01].Value=0.0
Set[02].Position=-72.7
Set[02].Value=100.0

I know im a pest but how to learn this dark art lol

TIA

img00037.thumb.JPG.6636b6230179987a0a728d287e5cc457.JPGimg00038.thumb.JPG.2287ad9baf15c4d18c5bff2df8f18766.JPG

Edited by russouk2004

Share this post


Link to post
Share on other sites

Actually there is a Type=OIL_PRESSURE_INDICATOR in the game, not need to be a tachometer, though should work both ways.

Probably you already checked but any typing error or numbering doubles or missing number in the section of "Instrument[xxx]="?

Pilot is part of the AC .lod or the one that shows from the data.ini? If part of the lod I would arrange the mesh linking so the pit interior could be hidden when in cockpit view through the ac_data.ini. Like bellow:

Component[013]=Hide1

[Hide1]
ParentComponentName=Nose
ModelNodeName=Cockpitinterior
ShowFromCockpit=False
DamageRating=
MassFraction=
HasAeroCoefficients=FALSE
SystemName[001]=Pilot



That analog_counter '0' is for 10000ft? I would try one of these setup

[Altimeter10k]
Type=PRESSURE_ALTIMETER
CounterNodeFormat=counter_alt_%d
MovementType=ANALOG_COUNTER
ValueUnit=FEET
Set[01].Position=0.0
Set[01].Value=0.0
Set[02].Position=360.0
Set[02].Value=100000.0
----------------------------------------------------
or

[Altimeter10k]
Type=PRESSURE_ALTIMETER
CounterNodeFormat=counter_alt_%d
MovementType=ANALOG_COUNTER
ValueUnit=FEET
Scale=10000


  • Thanks 1

Share this post


Link to post
Share on other sites

I have this in my notes for altimeters,  posted by another CA member some time ago

Quote

PRESSURE_ALTIMETER ---> usable for 4 digits altimeter (needle and digits)
PRESSURE_ALTIMETER_1 ---> needle only for 3 needles pressure altimeter (needle only)
PRESSURE_ALTIMETER_2 ---> needles and digits pressure altimeter
PRESSURE_ALTIMETER_3 ---> needle and digits pressure altimeter (1 needle + 3 digits)






I figured out how to get the analog counters to work.
All of the digits must be named according to what they count ie:
alt_dig2,alt_dig1 (named from left to right) for a 2 digit counter as in:

[Altimeter]
Type=PRESSURE_ALTIMETER_2 <----the 2 is for 2 digits
NodeName=needle_alt
CounterNodeFormat=alt_dig%d
MovementType=ROTATION_Y
ValueUnit=FEET
Set[01].Position=0.0
Set[01].Value=0.0
Set[02].Position=360.0
Set[02].Value=1000.0

for a 3 digit altimeter they would be named
alt_dig3,alt_dig2,alt_dig1 (named from left to right)

[Altimeter]
Type=PRESSURE_ALTIMETER_3
NodeName=alt_needle
CounterNodeFormat=alt_dig%d
MovementType=ROTATION_Y
ValueUnit=FEET
Set[01].Position=0.0
Set[01].Value=0.0
Set[02].Position=360.0
Set[02].Value=100.0

the Set[02].Value corresponds to both the position of the needle and the movement of alt_dig1 so it must be 100 for a 3 digit altimeter and 1000 for a 2 digit altimeter. Otherwise the digits won't be in sync with the needle.





  • Thanks 1

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

×

Important Information

By using this site, you agree to our Terms of Use, Privacy Policy, and We have placed cookies on your device to help make this website better. You can adjust your cookie settings, otherwise we'll assume you're okay to continue..
