MiG-21 dual launchers for missiles?

[+Soulfreak]

that means the aircraft's rails may be incorrect.



--------

E German PFM, stock AA-8, stock dual rails

Took me 15 minutes -- 10 minutes longer than it should have, as I forgot to READ one line in the weapons data ini. And they fit right!

Also uses SF2 loadout date switch





Kevin can you pls send me your PFM Data.ini pls?

Can use it for my MiG-21 SPS-K mod...

Edited May 21, 2015 by 7eleven

[+CrazyhorseB34]

Good job Logan!

[Wrench]

Carlo, I took the easy way out -- I cheated!!



I simply cloned the wing hardpoints, but kept them the same Group ID number,  and made them 2IR only



add to left outer wing:



SystemName[004]=LeftWingStation2



add to right outer wing:



SystemName[004]=RightWingStation2



these are the new hardpoint statements:



[LeftWingStation]
SystemType=WEAPON_STATION
StationID=1
StationGroupID=1
StationType=EXTERNAL
AttachmentPosition=-2.10,-0.58,-0.39
AttachmentAngles=0.0,0.0,0.0
LoadLimit=550.0
LengthLimit=3.5
AllowedWeaponClass=BOMB,RCKT,RP,IRM,CGR
AttachmentType=WP,SOVIET
ModelNodeName=WingPylon_L
PylonMass=60
PylonDragArea=0.02
LaunchRailNodeName=MissileRail_L
LaunchRailHeight=0.10
LaunchRailMass=25



[RightWingStation]
SystemType=WEAPON_STATION
StationID=2
StationGroupID=1
StationType=EXTERNAL
AttachmentPosition=2.10,-0.58,-0.39
AttachmentAngles=0.0,0.0,0.0
LoadLimit=550.0
LengthLimit=3.5
AllowedWeaponClass=BOMB,RCKT,RP,IRM,CGR
AttachmentType=WP,SOVIET
ModelNodeName=WingPylon_R
PylonMass=60
PylonDragArea=0.02
LaunchRailNodeName=MissileRail_R
LaunchRailHeight=0.10
LaunchRailMass=25



[LeftWingStation2]
SystemType=WEAPON_STATION
StationID=4
StationGroupID=1
StationType=EXTERNAL
AttachmentPosition=-2.10,-0.58,-0.39
AttachmentAngles=0.0,0.0,0.0
LoadLimit=550.0
LengthLimit=3.5
AllowedWeaponClass=2IR
AttachmentType=WP,SOVIET
ModelNodeName=WingPylon_L
PylonMass=60
PylonDragArea=0.02
LaunchRailNodeName=MissileRail_L
LaunchRailHeight=0.10
LaunchRailMass=25
SpecificStationCode=RACK_AA-8



[RightWingStation2]
SystemType=WEAPON_STATION
StationID=5
StationGroupID=1
StationType=EXTERNAL
AttachmentPosition=2.10,-0.58,-0.39
AttachmentAngles=0.0,0.0,0.0
LoadLimit=550.0
LengthLimit=3.5
AllowedWeaponClass=2IR
AttachmentType=WP,SOVIET
ModelNodeName=WingPylon_R
PylonMass=60
PylonDragArea=0.02
LaunchRailNodeName=MissileRail_R
LaunchRailHeight=0.10
LaunchRailMass=25
SpecificStationCode=RACK_AA-8



and this is what I did in the loadout ini:



[AirToAir_80]
StartDefaultDate=1980
DefaultFor=CAP,INTERCEPT
//Nation=EGermany,Poland,Soviet
Loadout[04].WeaponType=AA-8
Loadout[04].Quantity=2
Loadout[04].RackType=2IR_AA-8
Loadout[05].WeaponType=AA-8
Loadout[05].Quantity=2
Loadout[05].RackType=2IR_AA-8
Loadout[03].WeaponType=GP-9
Loadout[03].Quantity=1



I used 1980, to make sure the Aphids would be 'in service'



It was an experiment that worked very well. It should be possible to use those statement (with modification for specific aircraft) on any other Fishbed. I used something similar on my "what if.." Nigaraguan 21MF.

[+CrazyhorseB34]

Use this Carlo.

PFM Monsun.rar

[+Soulfreak]

Thanks guys!

[Stratos]

I'm not at home right now, so I will ask here before trying it. Is the Crazyhorse PFM Monsun the rack I'm searching for or better wait for Logan to complete his?

[+CrazyhorseB34]

Mine is just a stand in.



Logan's is the proper one.

[Stratos]

Mine is just a stand in.



Logan's is the proper one.



Waiting then! Thanks!

[logan4]

Sorry for the delay guys. I had to travel across the old lady the last day.

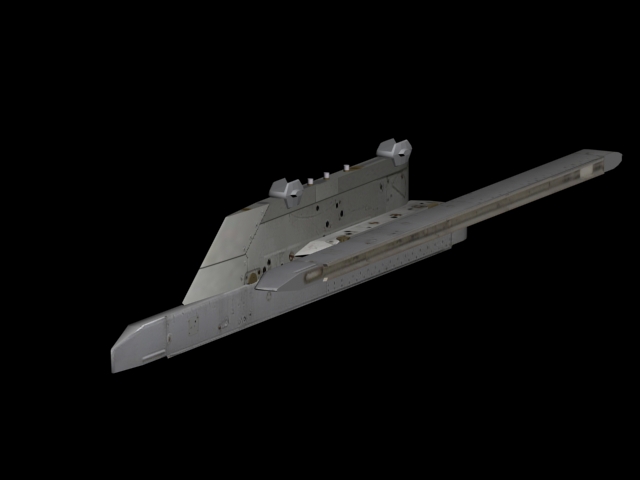

The file is waiting for approval. As soon that is done it should be available here:

http://combatace.com/files/file/15506-pbp-2-3s-monsun-dual-ir-rack/



Edited May 23, 2015 by logan4

[+RAVEN]

Very Nice!

[Heck]

What beautiful detail. The 3d modders here are truly amazing.

[+Crusader]

For 100% accuracy, use only with R-3S

The launchers used are only for that type, not compatible with the advanced R-13M

Perhaps adjust rack weight limits to prevent loading the later (slightly heavier) R-13M..

[logan4]

You are correct. Originally my model was made for the Ye8, weight data was not edited since intended to use it for an other missile type. Will make an option for the R-3S only. Though the PF/PFM loadout.ini-s are set for that, only MF/Bis ini-s set for the R-13M.
