almost done with the mapping but was wondering how do i set the canopy and windows to be transperent and work with the tga file?

Posted

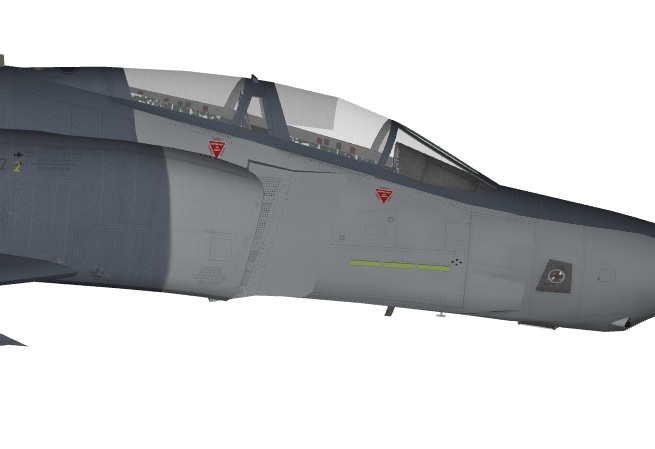

iN 3d max in material editor I am doing like this...

tga  assigned as two-sided material,

specular level 255 (generally between 235-275)

glossiness 50 up to 75

opacity 10

then rest you can play with opacity on tga itself...

and of course, make UV mapping like on any other piece of model.



Posted

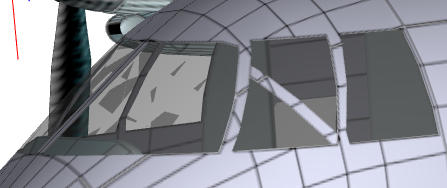

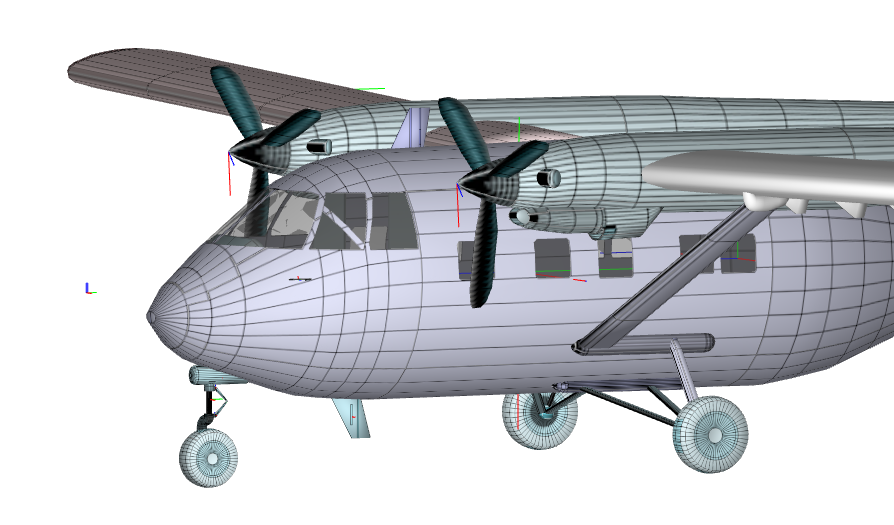

i put the specular to 255 but i have no clue where the other settings are, gonna research a bit. i currently have this problem where spots apear when the glass is seeing more glass in its wayimage.png.2e693d91185310313628d7b313f3853a.png



  • Like 3
Posted

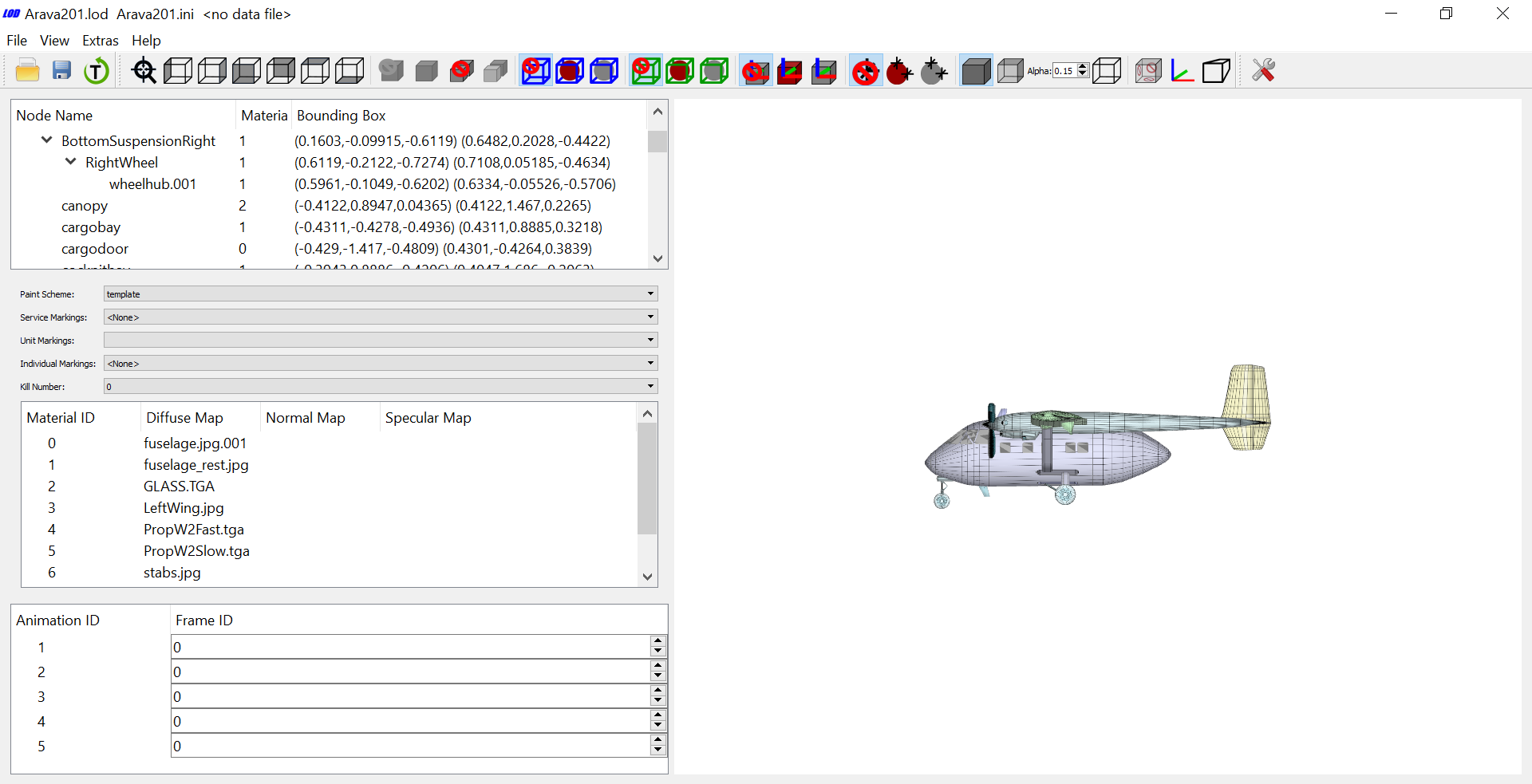

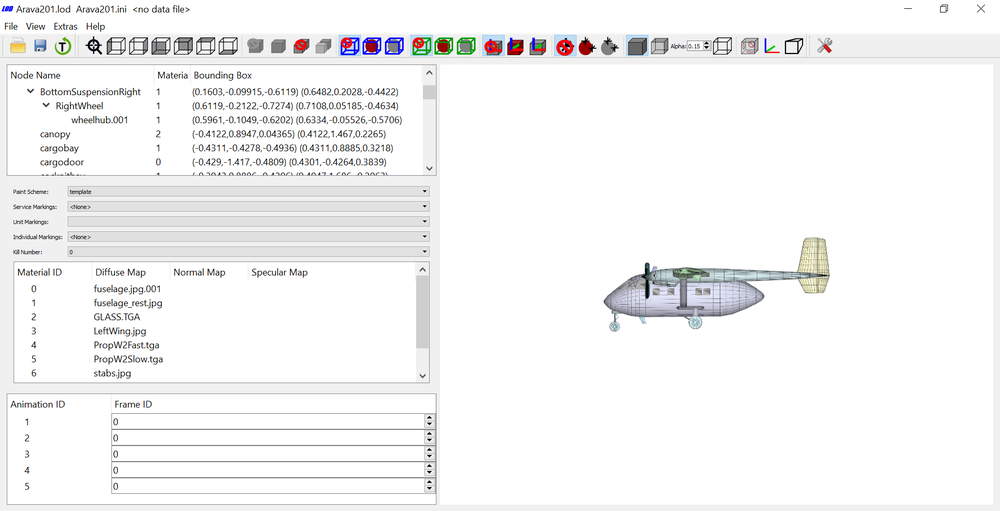

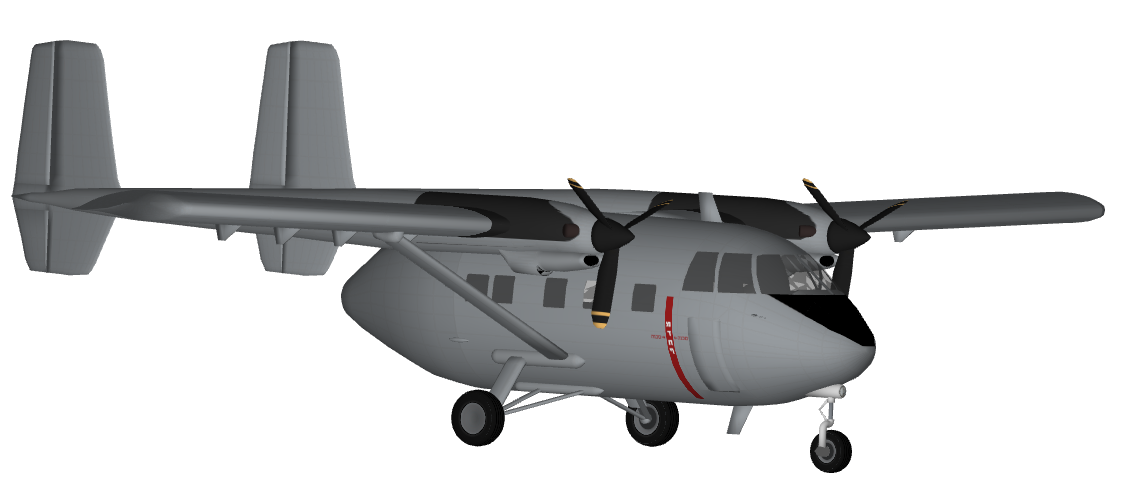

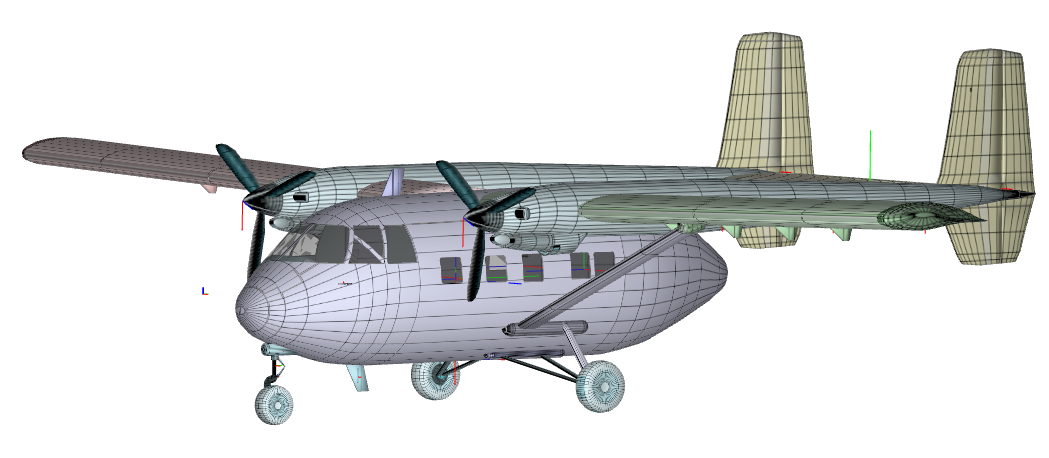

mapping is finally done, However the only problem i still have is the glass looking weird in the lod viewer, if someone can help me take care of that


Posted

are you talking about all the smaller dark spots in background?

it does happen, multiple smaller seems abit different but not majorly odd (only really noticing because of your focus on it

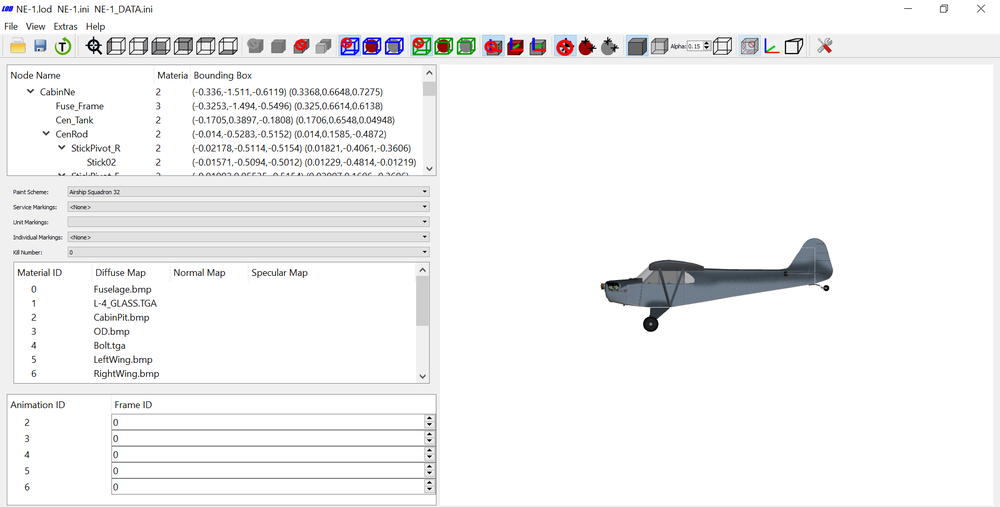

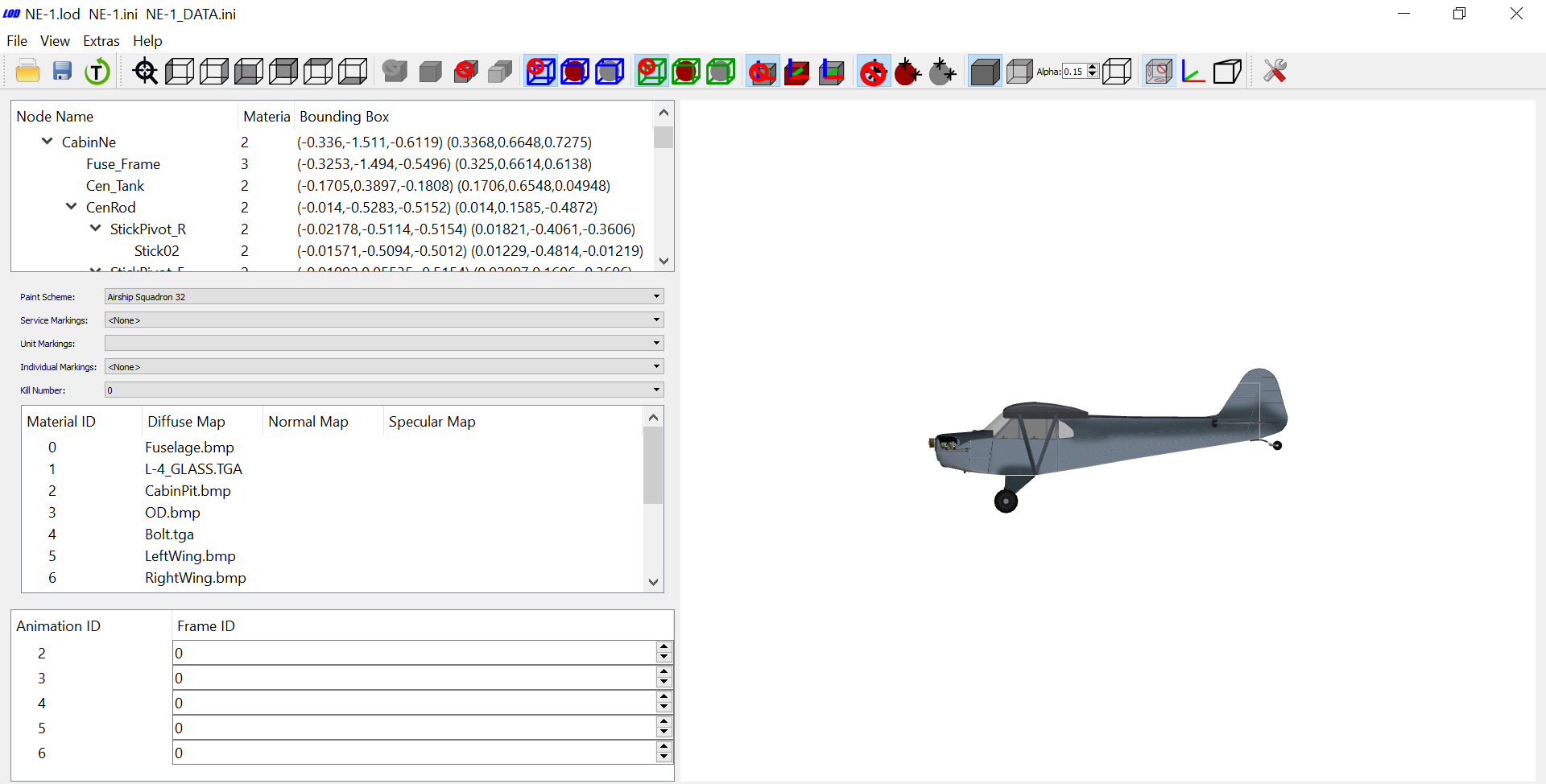

for comparison, here's a ravenclaw/Sundowner class model


big question is not how it looks in lodviewer, how does it look in game? and yes, there can often be subtle differences that highlight more in one than the other

Posted

any chance you can test the lod and see if it's alright ingame? i wont be on my main pc for around 3-4 weeks, only on my laptop which is where ive been making the plane.



Posted

if you can use blender and lodviewer on what youre working with, you can use SF2

i might not run the ODS mod on unlimited setting, but basic settings work just fine. hell, i got started on a Compaq C30,  so whatever you got should be fine

Posted

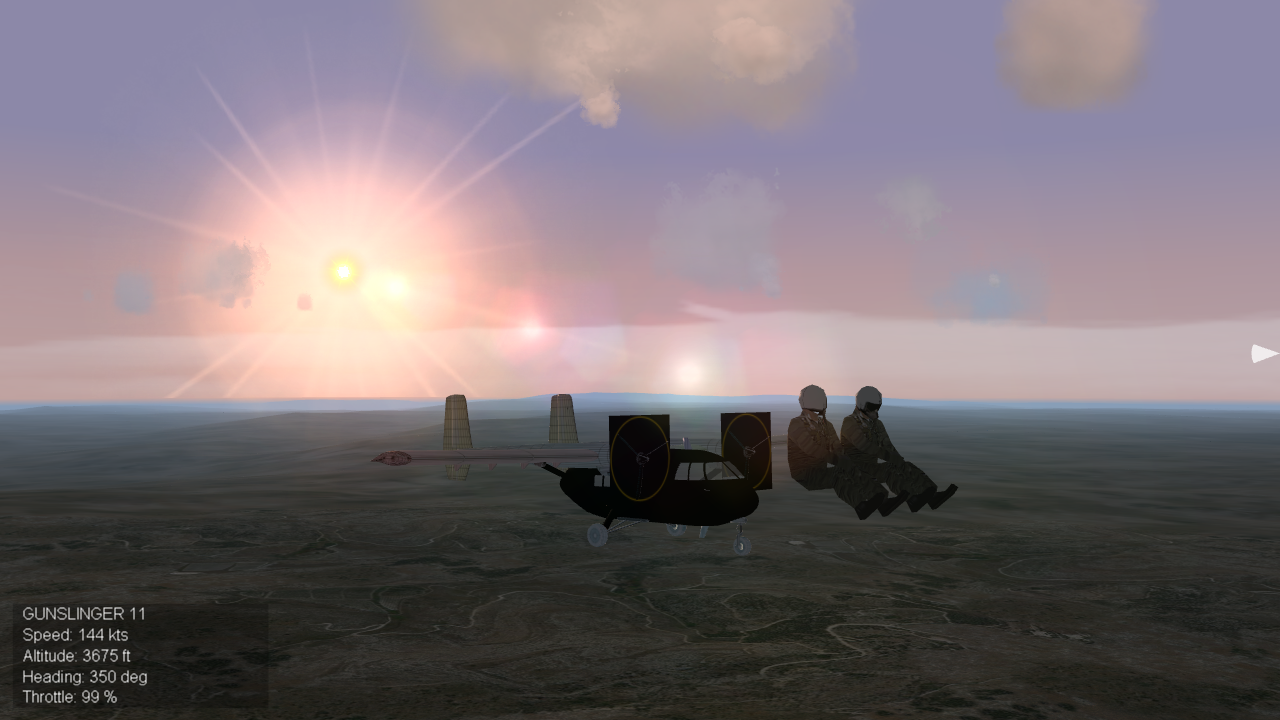

66642e85b6dda_StrikeFighters2Israel08_06_202413_10_58.thumb.png.5340614d5ae2eb3bd42eeaf161c0a320.png

it looked bigger in lodviewer...

is this a game related thing or do i need to make the entire model larger in blender? also for some reason my fuselage texture is missing

  • Haha 2
Posted
2 hours ago, EricJ said:

You should try and resize it, as that looks to be the problem to me.

made it 2x larger in blender but for some reason in lod viewer when i spawn that in it looks the same, might be different if i put it ingame

Posted
12 minutes ago, yakarov79 said:

did you set your blender into "meter" measure units? Not cm, not inches.

ill be totally honest with you i never knew blender had a size setting i just thought it was by the pilot's size

  • Like 1
Posted
57 minutes ago, toot said:

made it 2x larger in blender but for some reason in lod viewer when i spawn that in it looks the same, might be different if i put it ingame

From what I understand that it doesn't matter the actual size of the model, it'll still show it as visible in the viewport. I'm sure @mue can clarify, but more or less that's what I believe happens anyway.

Posted (edited)

Set the "Unit Preset" in Blender to meter and don't ever change the Scaling for a mesh to anything other than "1". That means, if you resize things, do it in Edit-Mode and NOT in Object-Mode. You can also lock the scaling for every mesh, so you don't accidentally change it.

Edited by Nyghtfall
Posted
1 hour ago, Nyghtfall said:

Set the "Unit Preset" in Blender to meter and don't ever change the Scaling for a mesh to anything other than "1". That means, if you resize things, do it in Edit-Mode and NOT in Object-Mode. You can also lock the scaling for every mesh, so you don't accidentally change it.

cant i scale everything and then ctrl-a and press on scaling?

Posted (edited)

I managed to fix the aircraft's size, but when its ingame the plane is missing the interior. I'm guessing its because blender is optimizing models that way (or the game engine). Not sure how to fix, will appriciate tips

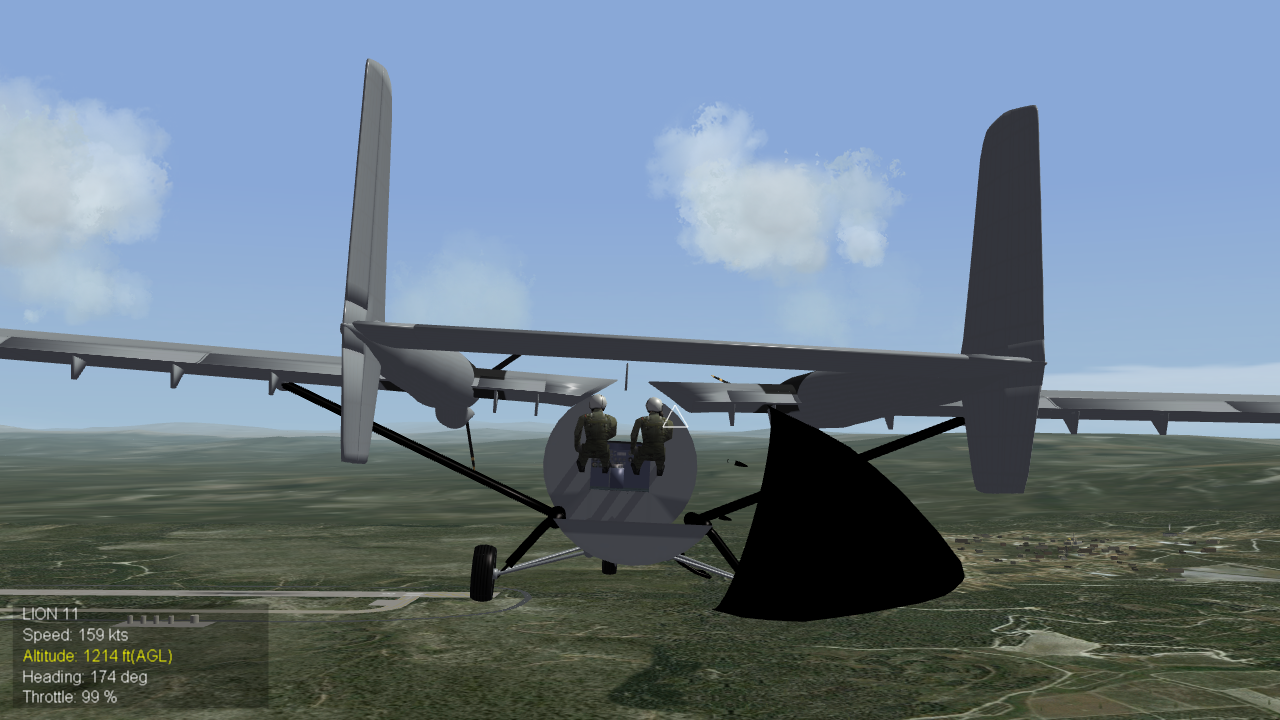

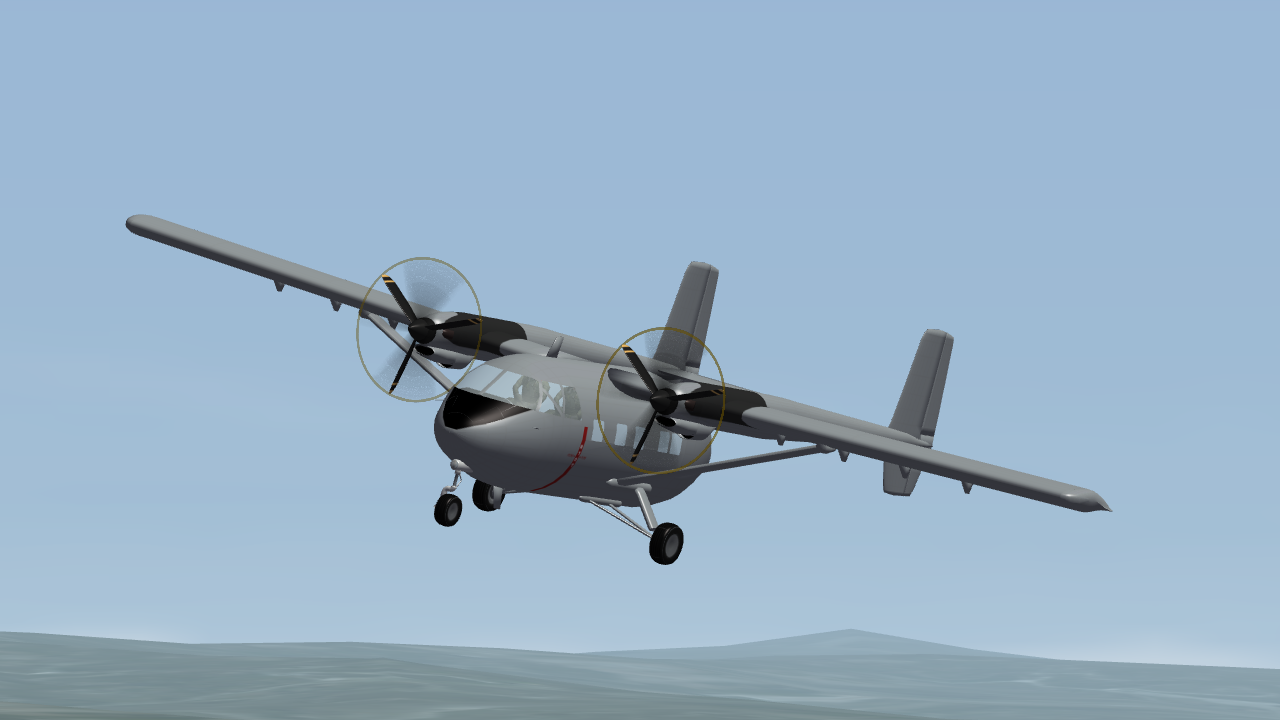

6665fa9d278df_StrikeFighters2Israel09_06_202421_50_33.thumb.png.d1bbf63becf2ad811b4d062bfb19cec3.png6665f57a60384_StrikeFighters2Israel09_06_202421_30_59.thumb.png.d015b5e7b94fceb77a659f7660fab10f.png

Edited by toot
  • Like 1
Posted
1 minute ago, yakarov79 said:

well, I can see the interior in the screenshot above.  I mean floor and guys. what are you referring to?

fuselage walls?

In the screenshot you can see some parts are gone like some of the right wall or the top of the fuselage

In the other screenshot you can't see the interior through the glass too

Posted

but the question is did you do actually interior or are you referring to the "left side" of the fuselage? because to see the interior you need to have one.

you can use two-sided materials, but this is just a mirrored version of the fuselage - so not really good solution in the cargo bay.







Posted

I guess I worded it wrong, what I meant was that I don't see the inner walls in the game

What do you suggest besides mirroring the other side?

Posted

but do you have inner walls or inner walls are made of the fuselage walls

generally, you need to have two meshes (best if they are separate) one representing an outside surface of the fuselage and the interior part

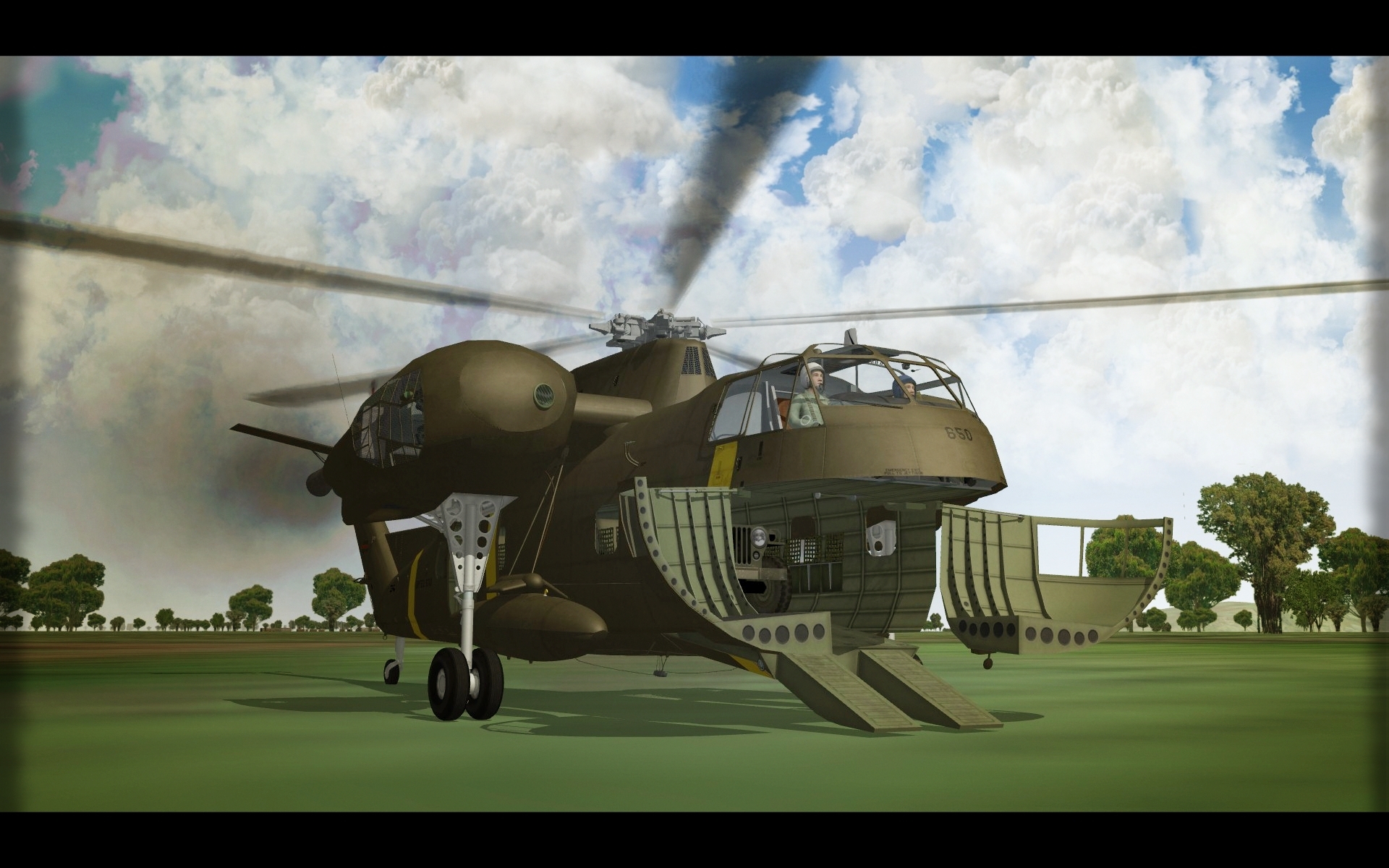

here like this,

otherwise, you will always end up seeing outside (from the inside)
