So with my Triple Head 2 Go my only hiccup is the field of view in the cockpit. Now I can adjust individual cockpit settings so I don't seem like I'm sitting with my nose on the in the radar screen. But that is a pain in the ass. I messed with the view list but can't seem to get it right. I used DO's reference at SimHq but it doesn't seem to work for me. Any ideas on how to make it so sit back farther in the pit? Thanks fellas.

Share this post


Link to post
Share on other sites

In the viewlist there's a FOV entry that you can play with -



[ViewClass002]

ViewClassName=CockpitViewClass

ViewType=FIXED_VIEW

ViewGroupID=1

DefaultView=CockpitFront

AllowFromDiffGroup=TRUE

SnapView=FALSE

InsideView=TRUE

FocusObjectOnly=TRUE

FOV=60.0 <-------------------------------------------------------------------------------------------

PitchControl=CAMERA_PITCH_AXIS

YawControl=CAMERA_YAW_AXIS

RollControl=

ZoomControl=CAMERA_ZOOM_CONTROL

JumpToViewSameGroup=FALSE

JumpToViewDiffGroup=TRUE

SmoothAngleTransition=TRUE

SmoothPositionTransition=FALSE

SmoothFOVTransition=TRUE

RememberAngle=FALSE

RememberFOV=TRUE

LimitPitch=TRUE

LimitYaw=TRUE

LimitRoll=FALSE

ZoomFOV=TRUE

ZoomScale=0.01

PanScale=0.00160

MinSpeed=100.0

MaxSpeed=10000.0

Acceleration=2000.0

AngleRates=480.0,360.0,360.0

FOVRate=60.0

MinAngles=-135.0,-20.0,0.0

MaxAngles=135.0,110.0,0.0

MinFOV=15.0

MaxFOV=120.0

OffsetDistance=0.06

TrackIRUseAbsolutePos=TRUE

Edited by ianh755

Share this post


Link to post
Share on other sites

I tried that and no luck.

Share this post


Link to post
Share on other sites

I seem to recall you saying that you have trackir??.. If so then just sit in a comfortable position then press the center veiw button for your trackir, if that feels to close then just lean forward slightly and hit the button again, when you lean back to your comfortable spot then you will be zoomed out..... Once you get it right then you are ready to throttle up

Unless I am misunderstanding your question???

Share this post


Link to post
Share on other sites

Thanks all I figured it out. Had a brain dump. Thanks all.

Share this post


Link to post
Share on other sites

Hi Dave, I am trying to get the game to run correctly using a Nvidia Surround set up on three screens. I'm having the same "nose up against the windscreen" feeling. Could you please post the settings you used to solve this issue with FOV? Did you change the FOV, MinFOV, MaxFOV or all three? Your help would be appreciated.

Share this post


Link to post
Share on other sites

I messed with all three and its still not great.

Share this post


Link to post
Share on other sites

For 3 Screens,



FoV should be 120/180 (2-3x the normal single screen FoV)(Adjusting that number had side effects on my system when zooming).



MaxFOV should be 240, which presented with the same level of zoom facing forward as a single screen. across all the screens.



also make sure your aspect ratio is correct in the .ini File.



http://simhq.com/forum/ubbthreads.php/topics/3271921/Spliff.html#Post3271921

Share this post


Link to post
Share on other sites

I am going to have to ask an embarrassingly dopey question.. . . . . Where exactly is the viewlist file? I searched through all the folders and can't seem to find it. I assume it is supposed to be in the "flight" folder, but is not present. Does it have to be generated somehow?

Share this post


Link to post
Share on other sites

I am going to have to ask an embarrassingly dopey question.. . . . . Where exactly is the viewlist file? I searched through all the folders and can't seem to find it. I assume it is supposed to be in the "flight" folder, but is not present. Does it have to be generated somehow?



It has to be extracted from the flightdata.cat, and then placed in the flight folder, prior to editing.

Share this post


Link to post
Share on other sites

Is there a general guide available on how to do this?

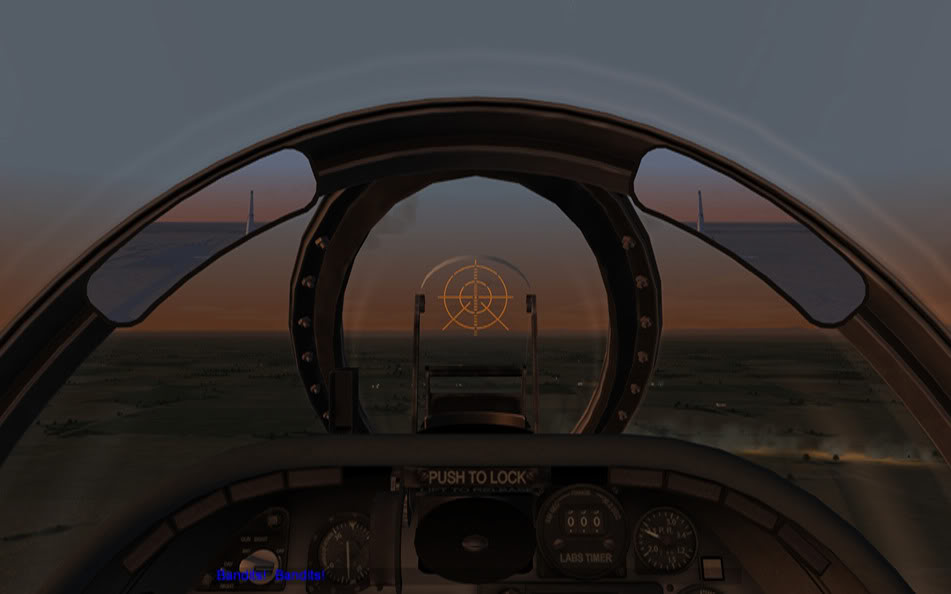

Regular 16:10, Resolution/FoV Both Correct:




Incorrect Aspect Ratio Screen, FoV is Wrong, The Default Zoom is Correct, Image is being Rendered 16:10 and Stretched to 48:10

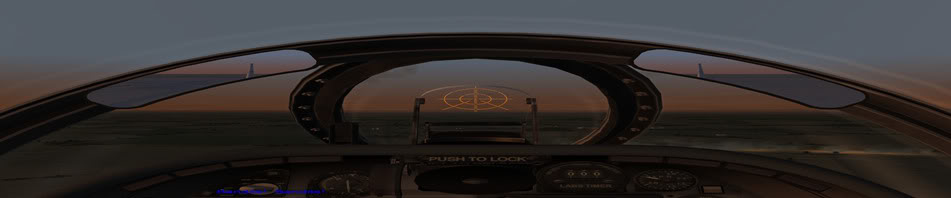

Correct Aspect Ratio Screen, FoV is Tight, Default Zoom is Too Far Forward, Image being Rendered 48:10 @ 5760x1200

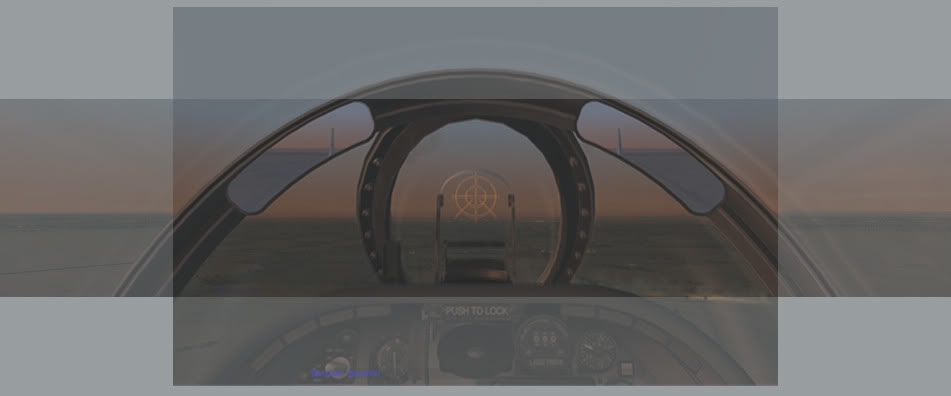

Mixed View of 16:10 and 48:10 using Default Viewlist FoV settings.




Correct Aspect Ratio Screen with Edited FoV Settings, Aspect Ratio is Rendered Correctly at 48:10, Max FoV has been increased from 120 to 240:








This worked for SFP1 in Win7, as well as SF2 Through Exp2, Havent tried with SF2:NA.



Update: First Make Sure your Total Aspect Ratio in your options.ini is correct (not in the ingame options menu)



Options.ini



[GraphicsOptions]

DisplayWidth=

DisplayHeight=

AspectRatio=



For Figuring out your aspect ratio (in case people run different resolutions),



Aspect Ratio = Total Horizontal Resolution Divided By Vertical Resolution.

So,

1920x1200 x3 Screens = 5760x1200, 5760/1200=4.8

1920x1080 x3 Screens = 5760x1080, 5760/1080=5.333

1680x1050 x3 Screens = 5040x1050, 5040/1050=4.8

1280x 960 x3 Screens = 3840x 960, 3840/ 960=4.0

1024x 768 x3 Screens = 3072x 768, 3072/ 768=4.0



Basically:

16:10 Screens= 4.8,

16:9 Screens = 5.33,

4:3 Screens = 4.0



Second, The Default FOV is 60, Max is 120 (2x FOV), Runnign 3 Screens is 3X FOV, so I Had to change the Max FOV to 180 from 120, which allowed the Cockpit to display w/ close to the default Zoom and the Correct Aspect Ratio, To have it Zoomed Out to where the Whole Radar Scope Display is Visible at Default Level, I Had to Set it to 240



So,



1. Extract the Viewlist.ini from the FlightData.CAT



2. Open Viewlist.ini



3. Goto ViewClass2,



Change:

MaxFOV=120.0



To:

MaxFOV=240.0



Repeat for ViewClass3



4. Save The Viewlist.ini to the user Mods Folder:

-Win7 /Users/<UserName>/Saved Games/Thirdwire/<StrikeFighers2 Game Folder>/Flight/

-WinXP /Documents And Settings/<UserName>/My Documents/Thirdwire/,StrikeFighters2 Game Folder>/Flight/



Double Check to Make Sure Your resolution is Correct and your Aspect Ratio as well.

Share this post


Link to post
Share on other sites

Thanks for your help, but I am still having problems. I have extracted the viewlist file from the flight.cat, placed it in the "flight" folder in the "Mods" folder found on the C drive. I am pretty sure it's in the correct place, but the altered viewlist file does not appear to change or affect the game in any way. I experimented with a range of settings, but I get the same field of view. Can you suggest what I might be doing or not be doing for the game to be unable to read the viewlist file? Should I try for a complete re-install from scratch and see if that improves things? I am out of my depth with this but would very much like to see the game running on three screens. The external views look fabulous, but as it is, the FOV in the cockpit is too narrow to be playable. Thanks in advance for your suggestions.

Share this post


Link to post
Share on other sites

well i dont have all 3 of my displays (i only have 2 of my older 1680x1050 LCDs until i finish moving stuff from storage this summer).



So:



Eyefinity w/ 2 Screens in SF2:NA.

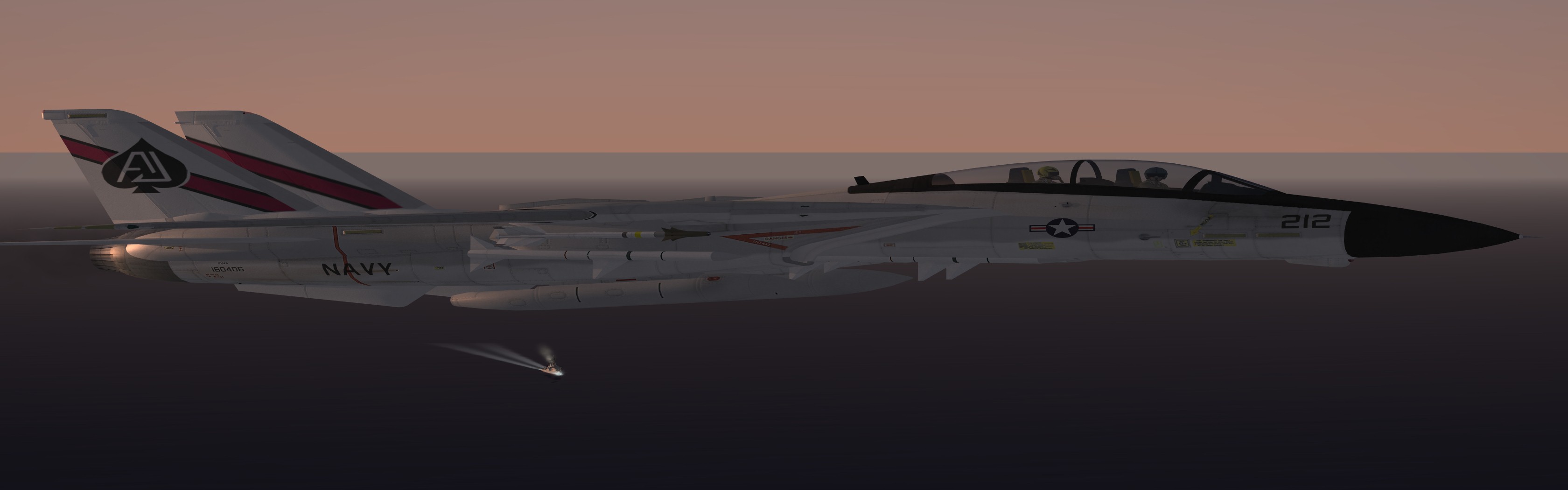

Boot SF2NA, goto options, Set Resolution to the Eyefinity Res. (3360x1050), Didnt touch the Aspect Ratio Menu (it was defaulted to 16:9 i think), resulting image below.

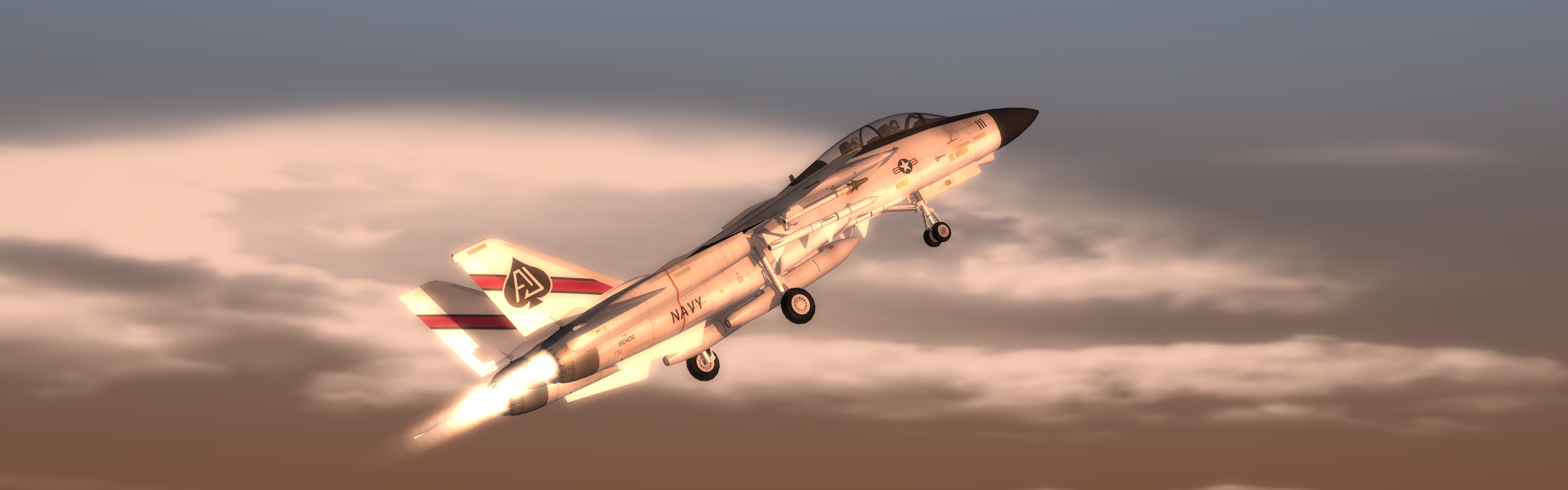

Now, I Opened the Options.INI located in <x:\Users\Saved Games\Third Wire\Strike Fighters 2 North Atlantic\, and Changed my Aspect Ratio from 1.77 (1920 Divided by 1080) to 3.2 (3360 Divide by 1050), resulting Image Below:

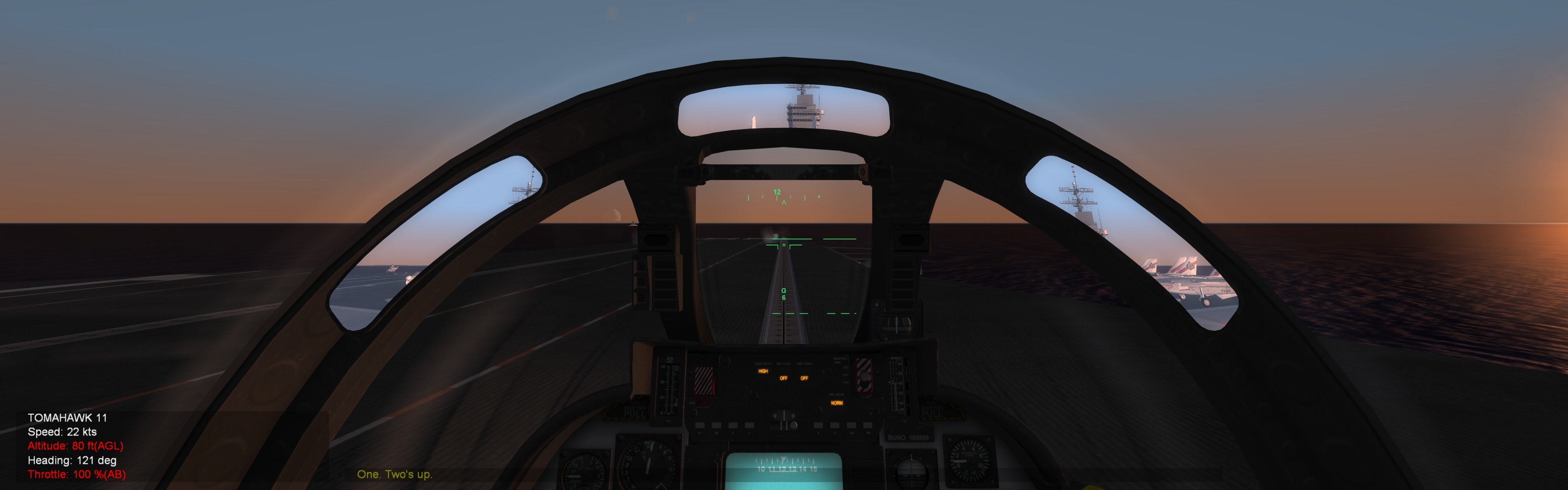

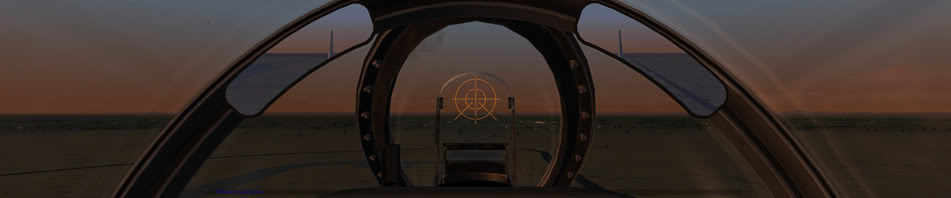

Now In Cockpit view looked like this w/ Default Viewlist Settings:




Opened Extractor, Extracted the Viewlist.ini from the FlightData.CAT, Moved it from the /Extracted Files/ Folder to <x:\Users\Saved Games\Third Wire\Strike Fighters 2 North Atlantic\Flight\>

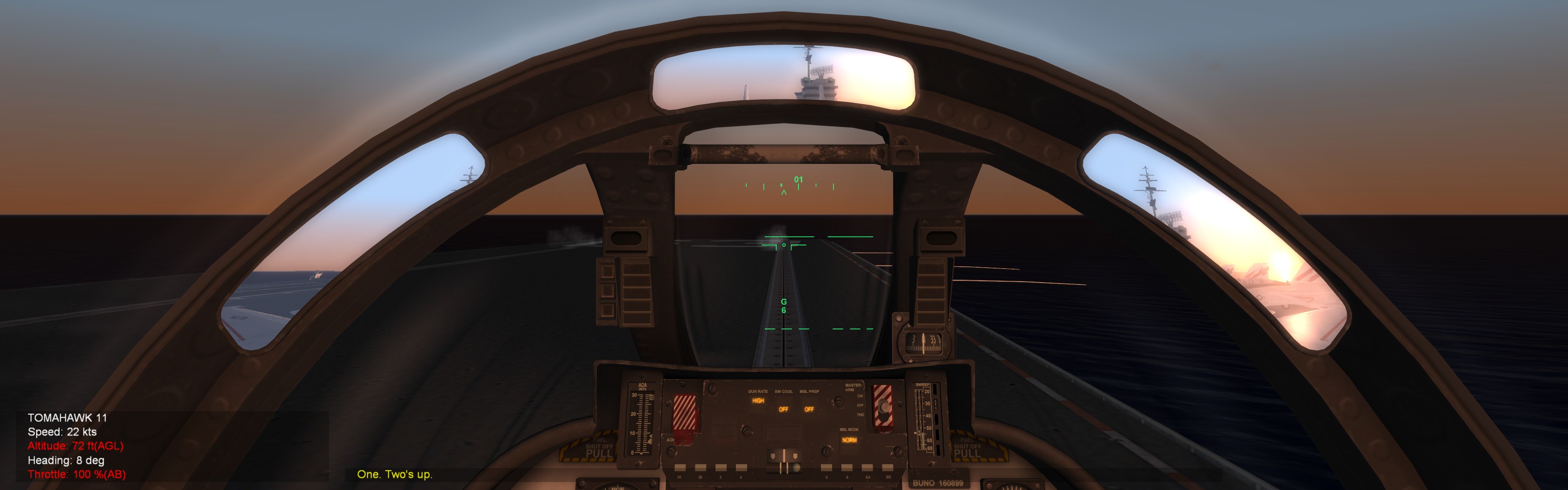

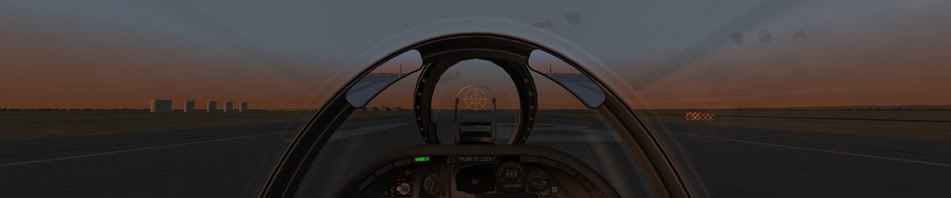

Went to View Class 2, and Changed Max FOV from 120 to 240, And this is what the Pit looked like:




and this is the Default Single Screen Pit:










This is My Viewlist for Cockpit View:

[ViewClass002]

ViewClassName=CockpitViewClass

ViewType=FIXED_VIEW

ViewGroupID=1

DefaultView=CockpitFront

AllowFromDiffGroup=TRUE

SnapView=FALSE

InsideView=TRUE

FocusObjectOnly=TRUE

FOV=60.0

PitchControl=CAMERA_PITCH_AXIS

YawControl=CAMERA_YAW_AXIS

RollControl=

ZoomControl=CAMERA_ZOOM_CONTROL

JumpToViewSameGroup=FALSE

JumpToViewDiffGroup=TRUE

SmoothAngleTransition=TRUE

SmoothPositionTransition=FALSE

SmoothFOVTransition=TRUE

RememberAngle=FALSE

RememberFOV=TRUE

LimitPitch=TRUE

LimitYaw=TRUE

LimitRoll=FALSE

ZoomFOV=TRUE

ZoomScale=0.01

PanScale=0.00160

MinSpeed=100.0

MaxSpeed=10000.0

Acceleration=2000.0

AngleRates=480.0,360.0,360.0

FOVRate=60.0

MinAngles=-135.0,-20.0,0.0

MaxAngles=135.0,110.0,0.0

MinFOV=15.0

MaxFOV=240.0

OffsetDistance=0.06

TrackIRUseAbsolutePos=TRUE



if you can, post a camera phone video or something of you loading the game and running, and i'll look and see what you did wrong.

Edited by SkateZilla

Share this post


Link to post
Share on other sites

i should have all my screens back by this weekend for 3 screen eyefinity, I'll write up a guide with pictures this weekend,.

Share this post


Link to post
Share on other sites

the settings for 3x1 eyefinity have definately changed, i will post a guide soon,



as soon as i activate the 3rd screen in the group with the above settings i get what you got Aggressor Blue.



I got the Aspect Ratio Part fixed, just working on the Pit FOV/Zoom.

Edited by SkateZilla

Share this post


Link to post
Share on other sites

OK Eyefinity Peoples Here's My Setup:



Creating the Eyefinity:

1. Create Eyefinity Group

2. Give Center Screen the Deferred (minimizing center screen tearing)

3. Set Triple Buffering

4. Force VSync ON.



(i still get some tearing on the left screen, but im running everything maxed and it likes to dip from 60 Fr/Sec to 45 when panning).



Configuring Strike Fighters 2: (if you have a Custom Viewlist.ini, Skip to Step 7)

5. Extract the Viewlist from the FlightDATA.CAT

6. Place Viewlist.ini in <C:/Users/<UserName>/Saved Games/Thirdwire/<StrikeFighers2 Game Folder>/Flight/> Folder

7. Open Viewlist.ini, Goto ViewClass2, OffsetDistance=0.06 To Change OffsetDistance=-.175, Also Change MaxFOV to 240

8. Repeat for ViewClass3 if you want the Snap Views to be pulled back as well.

9. Launch Strike Fighters 2

10. Goto Options

11. Goto Graphics

12. Choose the Eyefinity Resolution from the Drop Down Menu.

13. Choose the Aspect Ratio Of Your Center Monitor (16:9, 16:10, whatever, disregard what i said earlier about changing aspect ratio and resolution in the Options.ini).

14. Start a Single Mission and Test.





My Aspect Ratio is Set to "WideScreen: 16:9", with a Resolution of 5760x1080. All set from the options screen.



In 3 Screens Mode, if i change the Aspect Ratio in the Options.ini your face is against the windscreen and everything is stretched vertically.

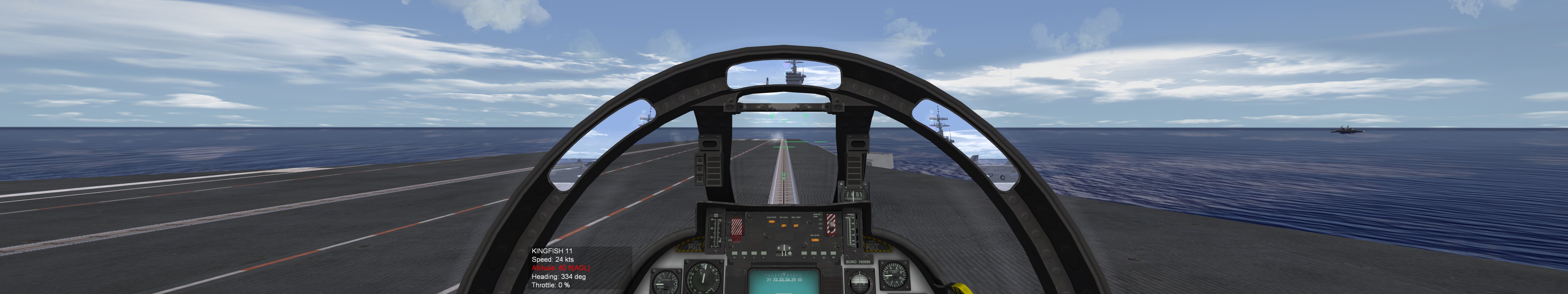

This is what I got right now for my Cockpit View:

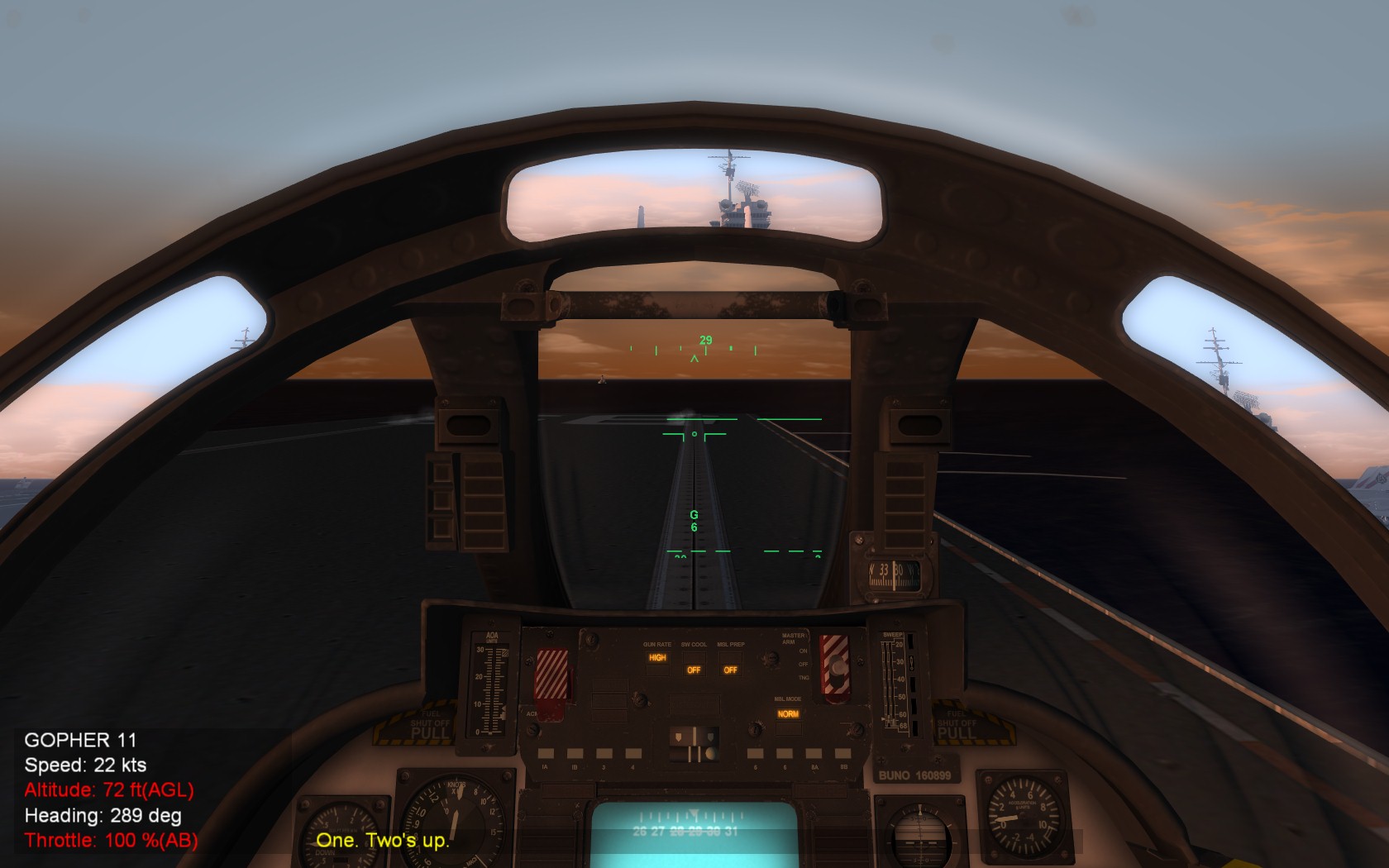

Compared to Normal Single Screen:


Edited by SkateZilla

Share this post


Link to post
Share on other sites

Hi Again, Skatezilla. I will endeavor to borrow BACK my video camera (Was borrowed by a friend months ago for a family event by a friend) and will have a video of what is happening. Thanks for you kind offer to help.

Share this post


Link to post
Share on other sites

Hi Again, Skatezilla. I will endeavor to borrow BACK my video camera (Was borrowed by a friend months ago for a family event by a friend) and will have a video of what is happening. Thanks for you kind offer to help.



Did you see my last post on the 1st page?
