I've been trying to get information, detailed pics of the Matra Super 530 missile series, but have been truly unable.



A generous pointing hand who want to help me please?



Thanks in advance.



Enoc.

Share this post


Link to post
Share on other sites

this are the pictures and data i use to make my models R530-IR/R530-SARH/R530F/R530D , all my models are done but i´m so busy with the Rafale that i was not able to make the skins yet



Matra R530.7z

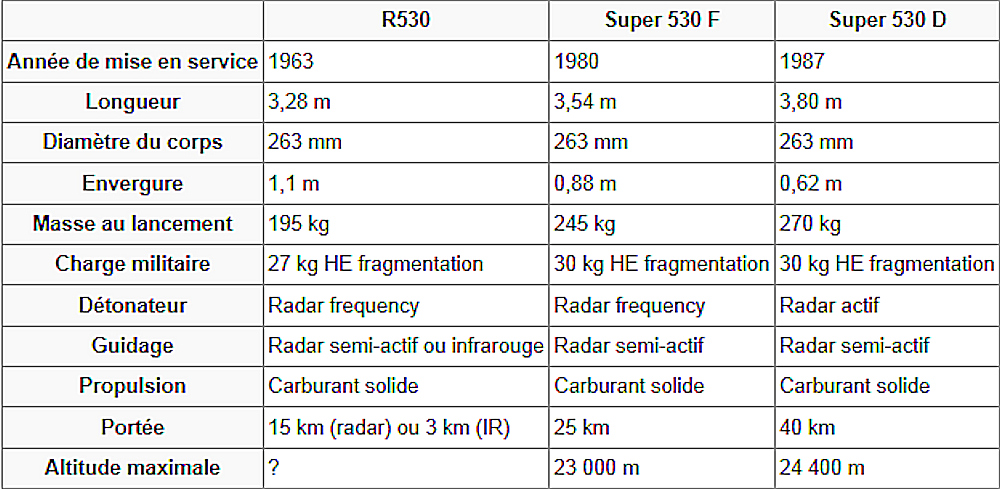

the data i have for the R530 Super is from more than one source , i just use them as reference and check if it fits with the meassurments i get from the pictures



MATRA R530 SUPER

• Length: 3.81 metres

• Body Diameter: 263 mm

• Wing Span: 0.62 metres (0.88 other source)

• Launch Weight: 275 kg

• Warhead: 31 kg HE-FRAG

• Fuse: Active radar

• Guidance: Semi-active radar

• Propulsion: Solid propellant

• Range: 40 km

• Speed: Mach 4.5

Edited by ravenclaw_007
  • Like 1

Share this post


Link to post
Share on other sites

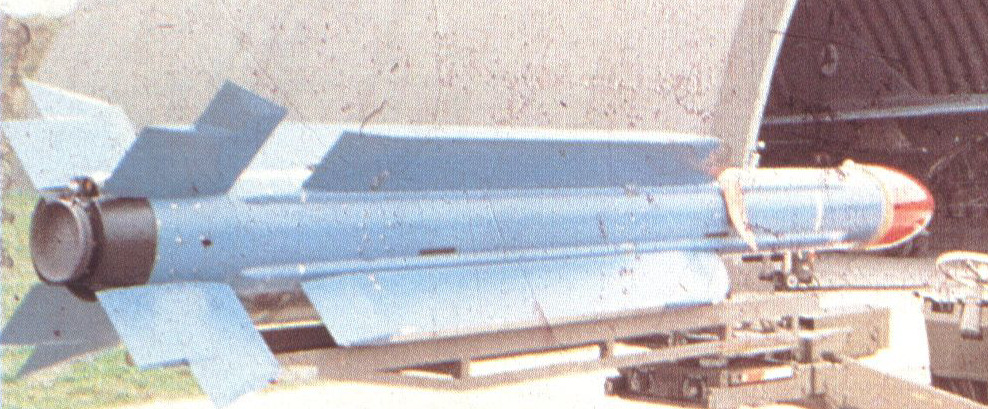

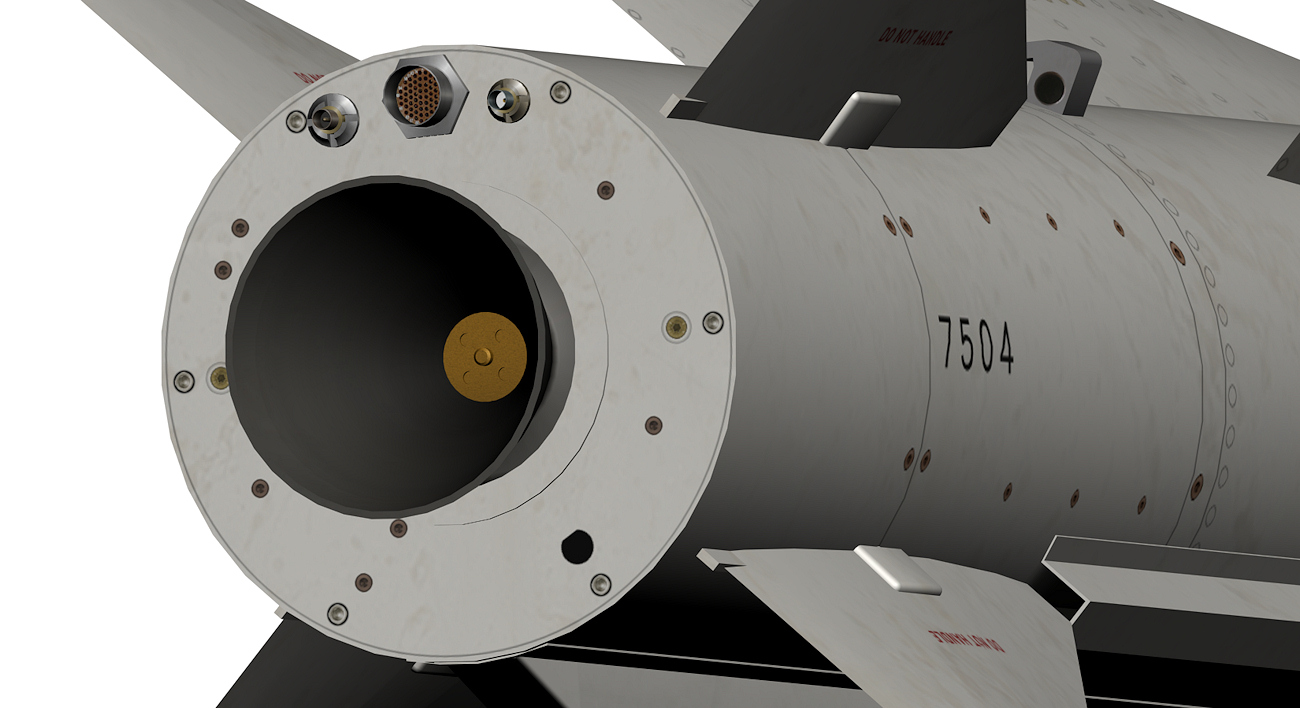

i´m almost done with the R/S530 family my only problem is that i dont have any picture of the Matra S530 F tailsection and nozzle , the only pictures of a Matra S530 F i could sind are this and i realy like to know how this guy gets 2 of this missiles and is able to put them in to his garage :yikes: the other missile picture is from a museum

-





-

this are the ones i could finish sofar



Matra R530 , SARH , finish and working in game




-

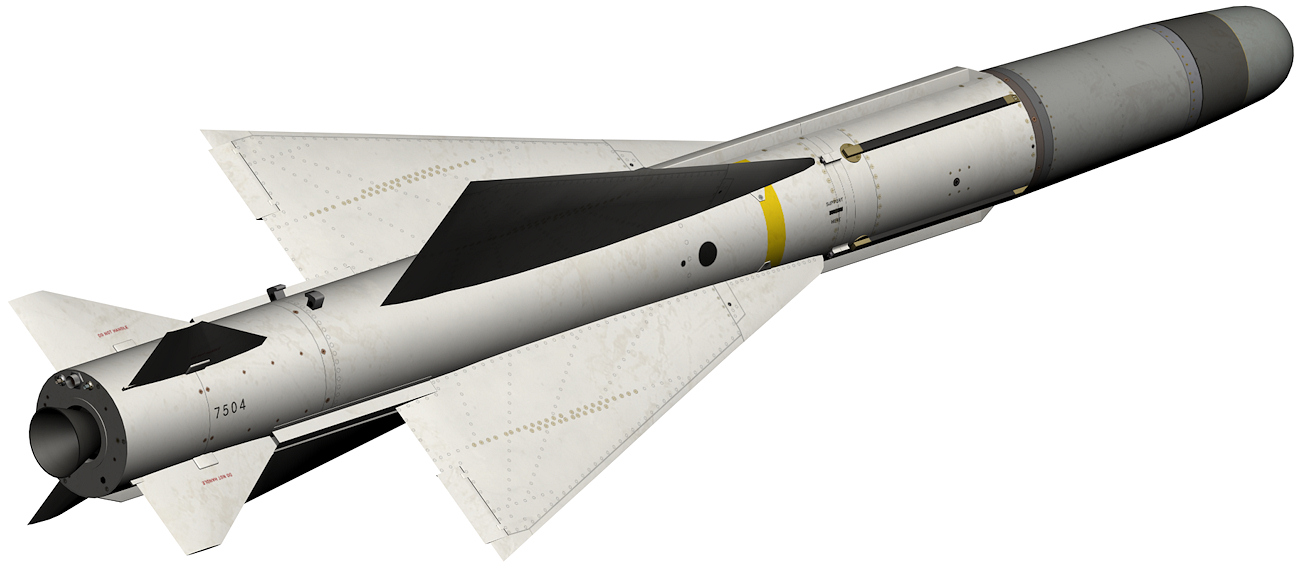

Matra R530E , IR , finish and working in game




-

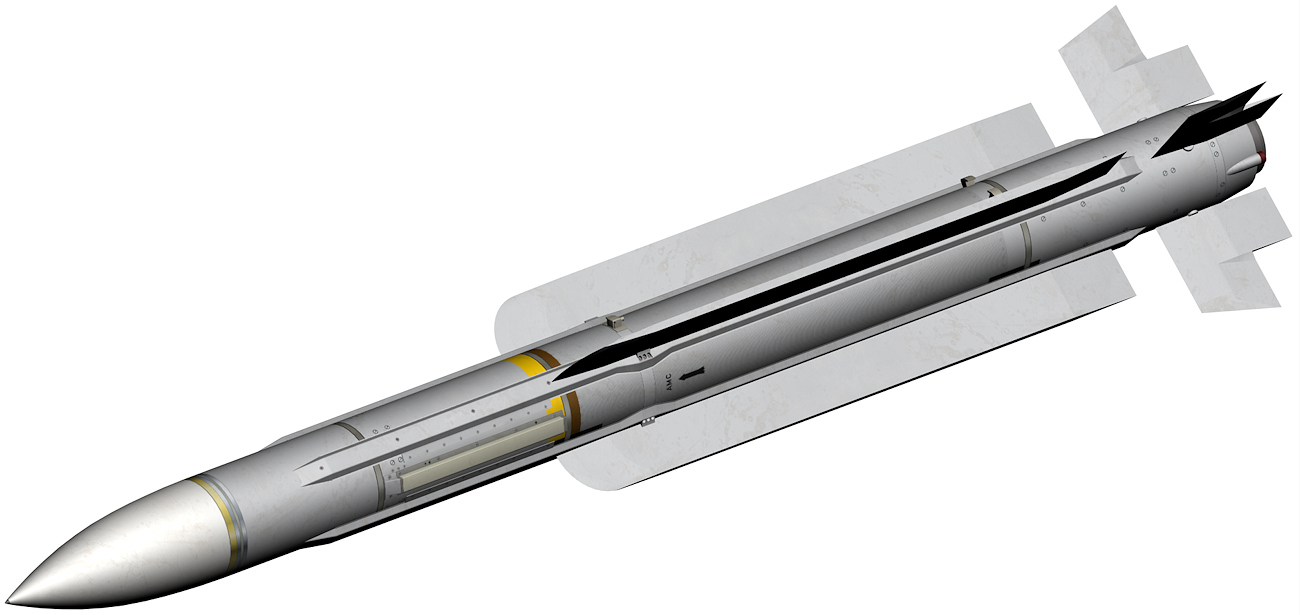

Matra / MBDA  Super 530 D , 3d model is finish skin is in work the D is done (except the tailsection) but no skin yet










Edited by ravenclaw_007
  • Like 9

Share this post


Link to post
Share on other sites

gave a look at the r-530 banidos team that is next to the mirage IIIEA


Share this post


Link to post
Share on other sites

here are some french missiles for testing   French Missiles.7z



- AM39

- AM39_B2

- AM39_B2m2

- ASMP

- ASMP-A

- Matra 530

- Matra 530E



please delete or remove any existing weapon with the same name

  • Like 2

Share this post


Link to post
Share on other sites

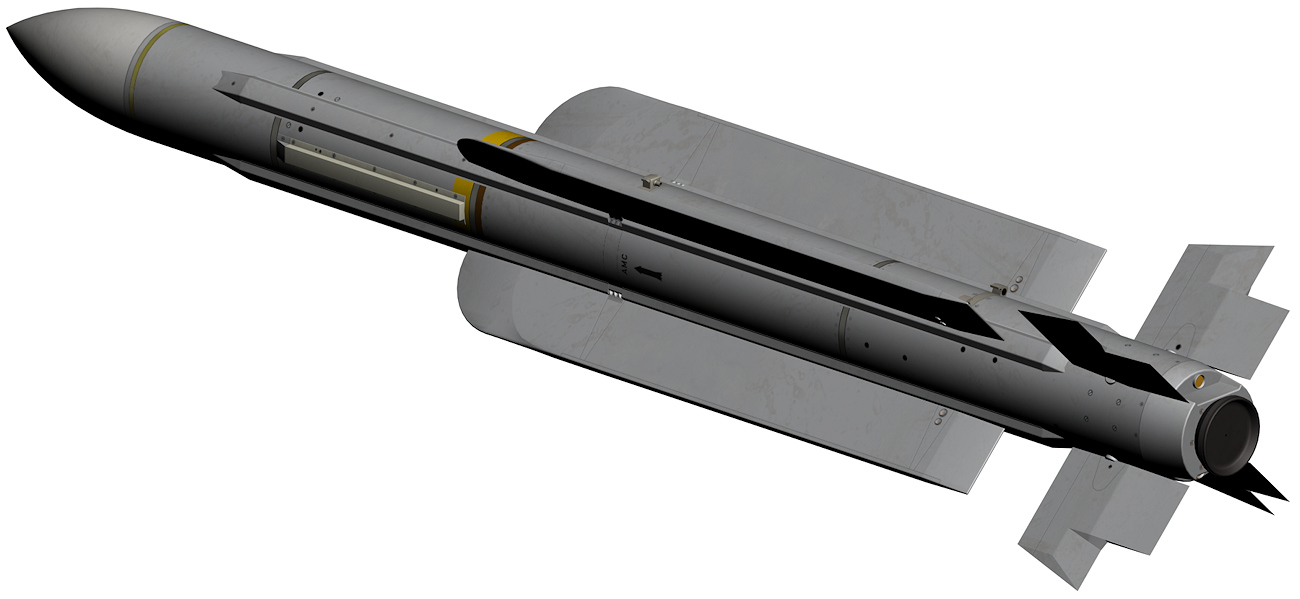

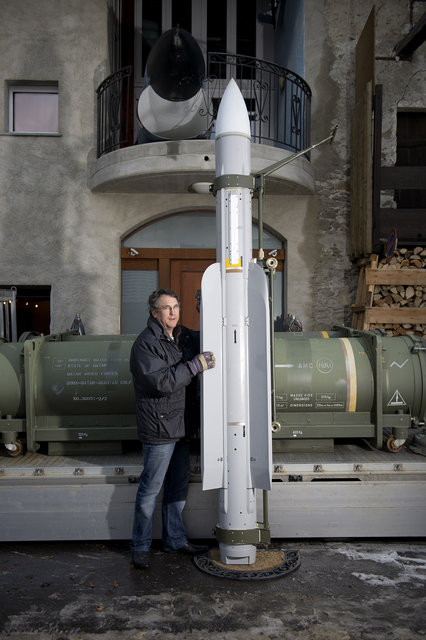

i just finish the S530 F  , the tail is based on the only picture i found and the rest of the missile is based on the picture from the gentleman above who proudly owns 2 of this missiles

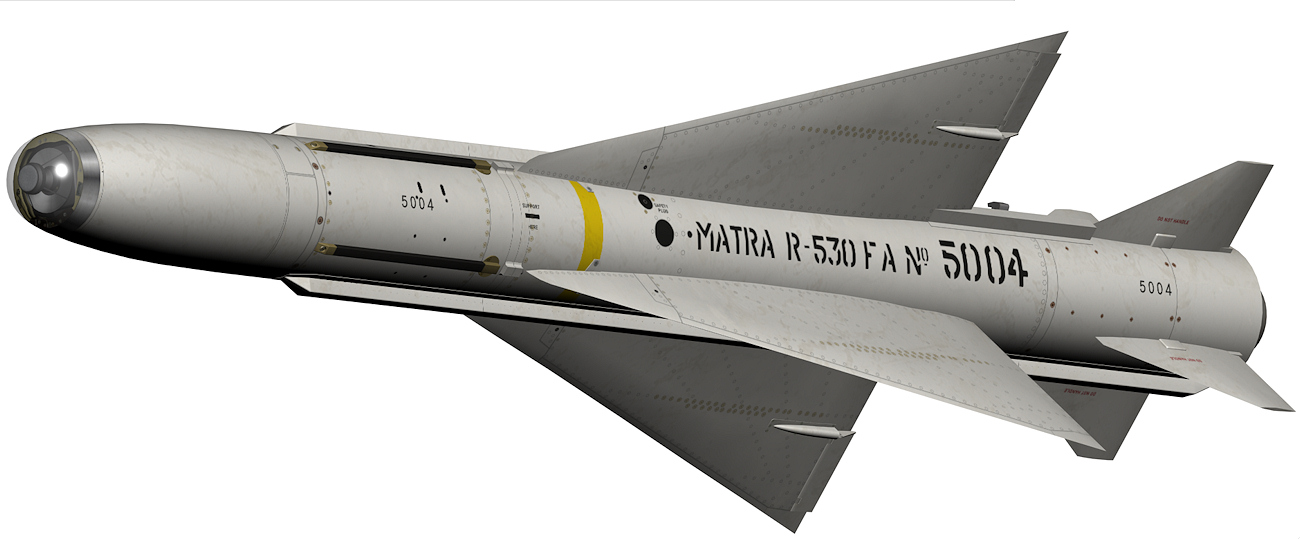

there are at least 2 versions of the S530 F the one i made shows the late version , i have pictures of both versions and both are called F20


-

Matra Super 530 F_D.7z

-



  • Like 6

Share this post


Link to post
Share on other sites

Volker do you intend to keep the SpecificStationCode=R530 statement for the 530 and 530E? If so, we in the mirage f1 team need to plan for that. The 530F and D do not have this statement, intentional?

Thanks for awesome missiles btw!

Share this post


Link to post
Share on other sites

i did not put any station code to the S530F or D because i did not see any need for it , the stationcodes for the R530 and 530E are original from TW thats why i keep them



if you need a specific missile with stationcode for the Mirage F1 please let my know

Share this post


Link to post
Share on other sites

Ok that's good to know, nah no need to do anything special for us we will adapt to this situation!

Share this post


Link to post
Share on other sites
