+Wrench Posted February 12, 2016 Posted February 12, 2016 ya know, I don't remember the cause, or the fix we did in Korea3!!! maybe height field smoothing? (but ALWAYS do that last!!) Quote
+Stary Posted February 12, 2016 Posted February 12, 2016 I think the trick would be to be applied AS THE VERY VERY LAST thing to be done to such map EVER -after all the heightmap and tilemap adjustments/placements etc (targetareas and such not counting as these have zero impact o nthe terrain mesh) I think that would require exporting the heightmap to bitmap via Gerwin's tool (NOT! the Thirdwire Terain Editor) and -> reimporting in Gerwin's editor&save Quote
+Menrva Posted February 12, 2016 Posted February 12, 2016 Hmm, could the issue be caused by the _hm.bmp files? In some occasions I've seen that they create such problems, unless some edits are made in the terrain's _data.ini. Anyway we'll surely find a fix and Height Field smoothing is an option, but only when the terrain is complete. Keep up the good work, krfge! Quote
krfrge Posted February 12, 2016 Posted February 12, 2016 All, I was thinking it had something to do with the land-to-sea transition tiles (specifically the *.tga's) Quote
+Wrench Posted February 13, 2016 Posted February 13, 2016 out of curiosity, what color are the transition hm_bmps?? I've been using solid black ones for years, and have the scale set as... HeightMapScale=2.000000 don't know if that makes any difference or not...???? Quote
krfrge Posted February 13, 2016 Posted February 13, 2016 Wrench, My hm_bmps are black. HeightMapScale is set to 2.000000. Quote
+Menrva Posted February 13, 2016 Posted February 13, 2016 Check these values in the _data.ini, most likely they are going to create more problems or not: [HeightField] DetailScale=1.0 DetailFrequency=1.0 MaxHeight=1000 MinHeight=0 BumpAmount=100 [HeightOffset] LowDetailMesh=-25 WaterMesh=0.8 (sometimes I have also tried LowDetailMesh=0.0 on stock terrain size, not your case indeed) Quote
krfrge Posted February 13, 2016 Posted February 13, 2016 blaze95, Here is are my current settings: [HeightField]DetailScale=1.0DetailFrequency=1.0MaxHeight=1000MinHeight=0[HeightOffset]LowDetailMesh=-1.5WaterMesh=1.8\\LowDetailMesh=-1.0\\WaterMesh=0.8 Quote
+Menrva Posted February 13, 2016 Posted February 13, 2016 Experiment with my values, probably nothing will change, but it's better to have a try. BTW did you change the WaterMesh value on purpose? The stock 0.8 should do okay, hence why you might be getting such Height Field issues where there are water .tga files. This is just a guess though... Quote

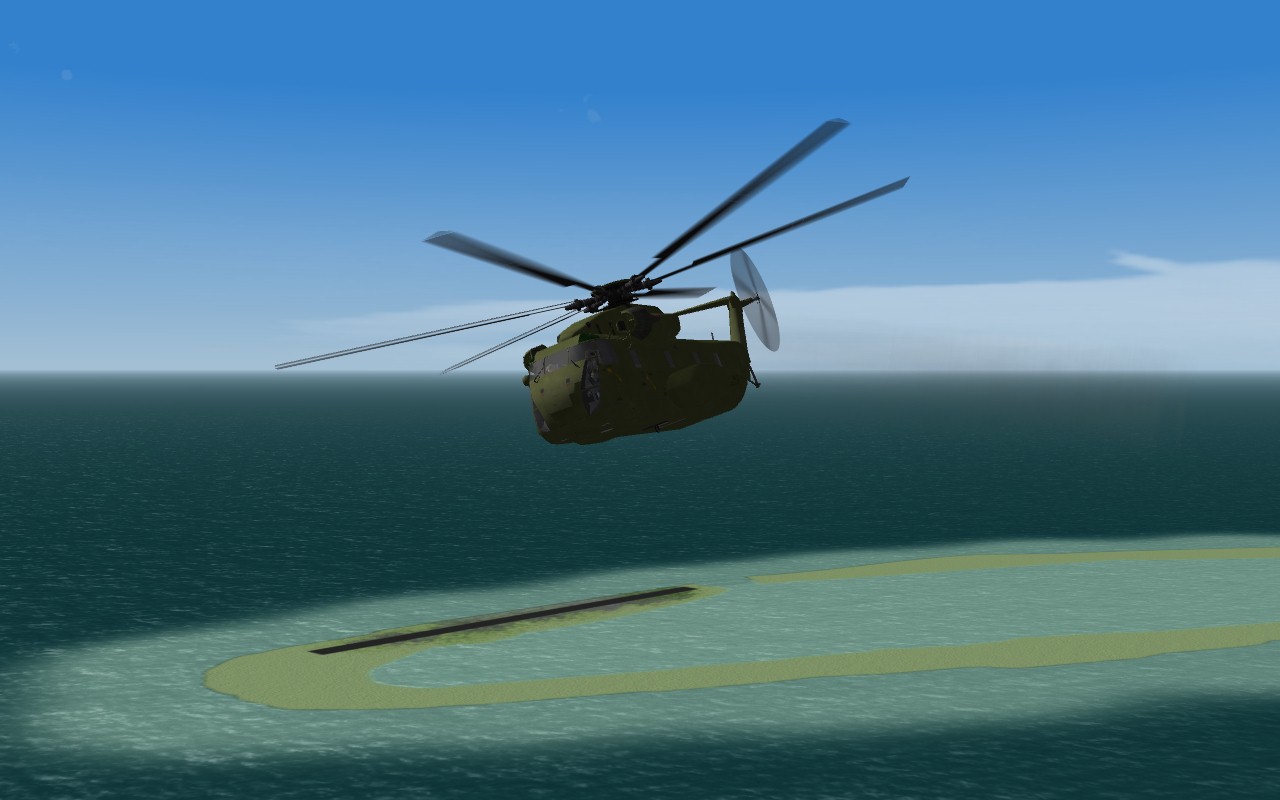

krfrge Posted February 13, 2016 Posted February 13, 2016 blaze95, Can't remember who but someone recommended water mesh level to get my boats to "sink" into the water. All - Quick update. Got the bug today to dig into the navies around the area. Currently working Royal Malaysian Navy. Have sent a request to AleDucat to repurpose his ARA_Salta. Station Lima. (Swallow Reef early days) A quick fly by. Hey look there's an airstrip down there. Lining up. 2 Quote
+Menrva Posted February 13, 2016 Posted February 13, 2016 (edited) Hmm, I do know that bug of the boats that sort of "fly" over water, but I think that there was another working fix, I'll make some searches here in the old threads. BTW did you try the values I posted? EDIT: Look here (check post #6 and post #7), Wrench encountered the same bug in one of his terrains: http://combatace.com/topic/66343-waterworld-terrain/ If it does solve that problem, you may want to restore the WaterMesh value back to the stock value. Edited February 13, 2016 by blaze95 Quote
TheWarrior Posted February 13, 2016 Posted February 13, 2016 In the terrain DATA file, make sure for the WaterTextureMaterial, that the below stats are marked TRUE. If their not, the ships will still float on top of the water even if the height is set to 2.000000. DepthBufferCheck=TRUEDepthBufferWrite=TRUE 1 Quote
+Menrva Posted February 13, 2016 Posted February 13, 2016 Good call, The Warrior. I forgot about the Material settings, now I think we got rid of all the known bugs once and for all. krfge, please copy all the following statements and overwrite the ones you have in your _data.ini (make a backup first). This is what I use in all the terrains of my personal mod folder, it's a combinations of statements that Stary and others have suggested during the years, for SF2, and I have no issues with the ships and the Height Field: [HeightField] DetailScale=1.0 DetailFrequency=1.0 MaxHeight=1000 MinHeight=0 BumpAmount=100 [HeightOffset] LowDetailMesh=-25 WaterMesh=0.8 [NormalTextureMaterial] EffectShaderName=terTerrainEffect.fx DepthBufferCheck=TRUE DepthBufferWrite=TRUE RenderedInOrder=TRUE AlphaTestEnabled=FALSE CullMode=CLOCKWISE LightEnabled=TRUE SpecularEnabled=FALSE EmissiveEnabled=FALSE FogEnabled=TRUE AmbientColor=1.000000,1.000000,1.000000,1.000000 DiffuseColor=1.000000,1.000000,1.000000,1.000000 ZBufferOffset=0.000000 BlendOp=ONE NumTextureStages=1 TextureStage[01].TextureName= TextureStage[01].MipMap=TRUE TextureStage[01].FilterEnabled=TRUE TextureStage[01].StageColorOp=TEXTURE_MODULATE_DIFFUSE TextureStage[01].StageAlphaOp=NO_OP [WaterTextureMaterial] EffectShaderName=terWaterEffect.fx DepthBufferCheck=TRUE DepthBufferWrite=TRUE RenderedInOrder=FALSE AlphaTestEnabled=FALSE CullMode=CLOCKWISE LightEnabled=TRUE SpecularEnabled=TRUE EmissiveEnabled=FALSE FogEnabled=TRUE AmbientColor=1.000000,1.000000,1.000000,1.000000 DiffuseColor=1.000000,1.000000,1.000000,1.000000 SpecularColor=1.000000,1.000000,1.000000,1.000000 SpecularPower=10.000000 Reflectivity=0.00000 ZBufferOffset=0.000000 BlendOp=ONE NumTextureStages=1 TextureStage[01].TextureName= TextureStage[01].MipMap=TRUE TextureStage[01].FilterEnabled=TRUE TextureStage[01].StageColorOp=TEXTURE_MODULATE_DIFFUSE TextureStage[01].StageAlphaOp=NO_OP [backgroundMaterial] EffectShaderName=terFarTerrainEffect.fx DepthBufferCheck=TRUE DepthBufferWrite=TRUE RenderedInOrder=FALSE AlphaTestEnabled=FALSE CullMode=CLOCKWISE LightEnabled=TRUE SpecularEnabled=FALSE EmissiveEnabled=FALSE FogEnabled=TRUE AmbientColor=1.000000,1.000000,1.000000,1.000000 DiffuseColor=1.000000,1.000000,1.000000,1.000000 ZBufferOffset=0.000000 BlendOp=ONE NumTextureStages=1 TextureStage[01].TextureName= TextureStage[01].MipMap=TRUE TextureStage[01].FilterEnabled=TRUE TextureStage[01].StageColorOp=TEXTURE_MODULATE_DIFFUSE TextureStage[01].StageAlphaOp=NO_OP [solidObjectTextureMaterial] EffectShaderName=terSolidObject.fx DepthBufferCheck=TRUE DepthBufferWrite=TRUE RenderedInOrder=TRUE AlphaTestEnabled=FALSE CullMode=CLOCKWISE LightEnabled=TRUE SpecularEnabled=FALSE EmissiveEnabled=FALSE FogEnabled=TRUE AmbientColor=1.000000,1.000000,1.000000,1.000000 DiffuseColor=1.000000,1.000000,1.000000,1.000000 ZBufferOffset=2.000000 BlendOp=ONE NumTextureStages=1 TextureStage[01].TextureName= TextureStage[01].MipMap=TRUE TextureStage[01].FilterEnabled=TRUE TextureStage[01].StageColorOp=TEXTURE_MODULATE_DIFFUSE TextureStage[01].StageAlphaOp=NO_OP [AlphaObjectTextureMaterial] EffectShaderName=terAlphaObject.fx DepthBufferCheck=TRUE DepthBufferWrite=FALSE RenderedInOrder=TRUE AlphaTestEnabled=FALSE CullMode=NO_CULL LightEnabled=TRUE SpecularEnabled=FALSE EmissiveEnabled=FALSE FogEnabled=TRUE AmbientColor=1.000000,1.000000,1.000000,1.000000 DiffuseColor=1.000000,1.000000,1.000000,1.000000 ZBufferOffset=2.000000 BlendOp=BLEND_SRC_ALPHA NumTextureStages=1 TextureStage[01].TextureName= TextureStage[01].MipMap=TRUE TextureStage[01].FilterEnabled=TRUE TextureStage[01].StageColorOp=TEXTURE_MODULATE_DIFFUSE TextureStage[01].StageAlphaOp=TEXTURE [NoiseTexture] Size=256 MinColor=229 MaxColor=255 Frequency=1.7 ResolutionFactor=4.0 StartFadeDistance=200.0 EndFadeDistance=500.0 1 Quote

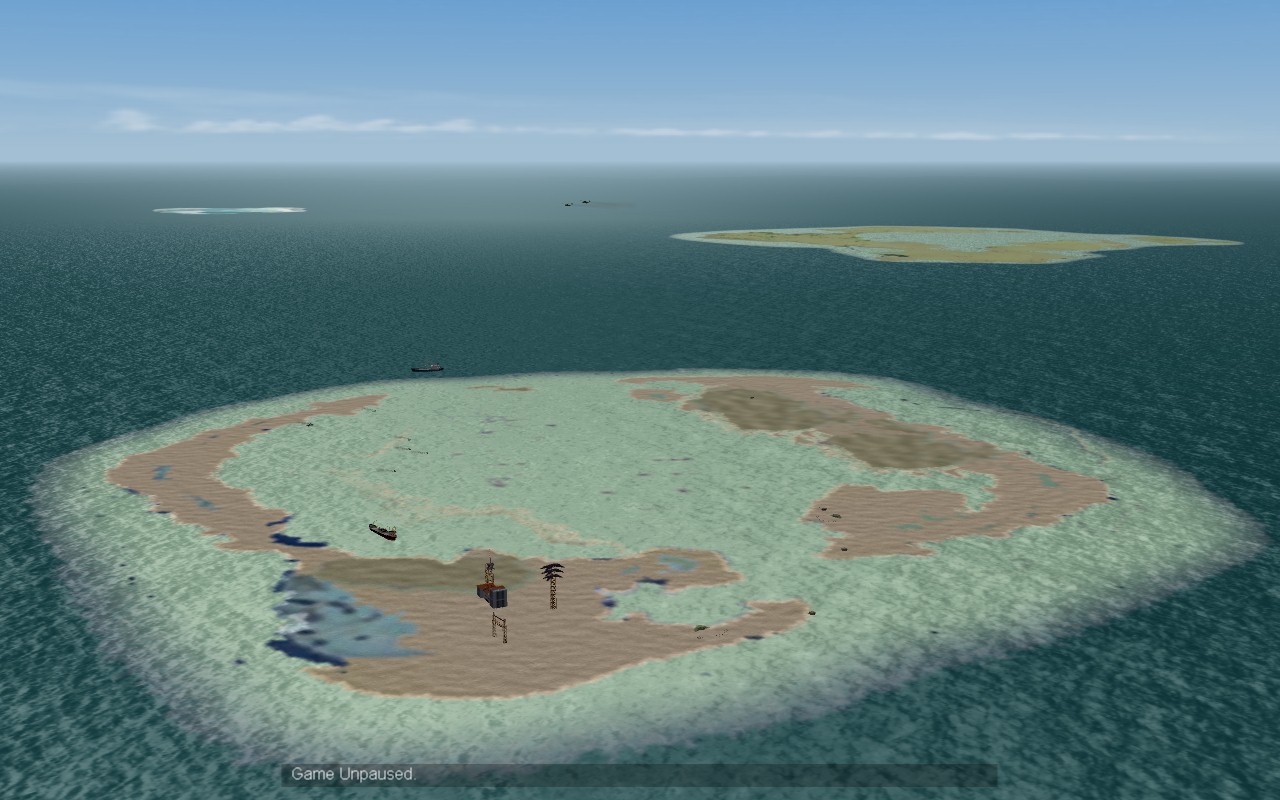

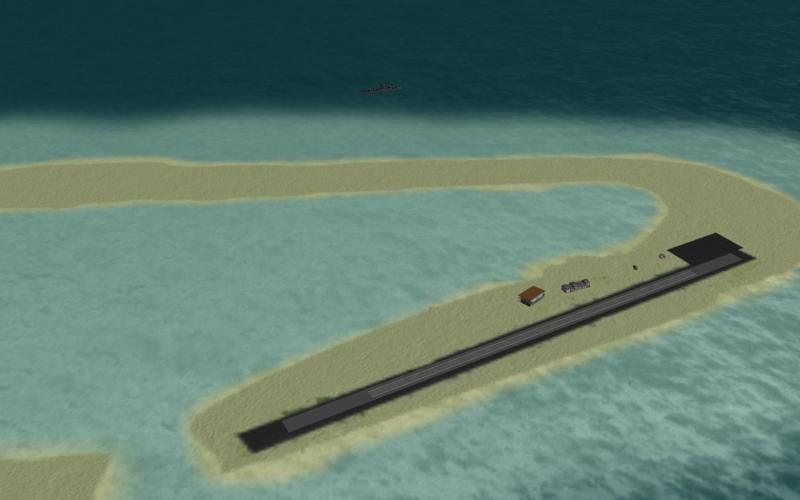

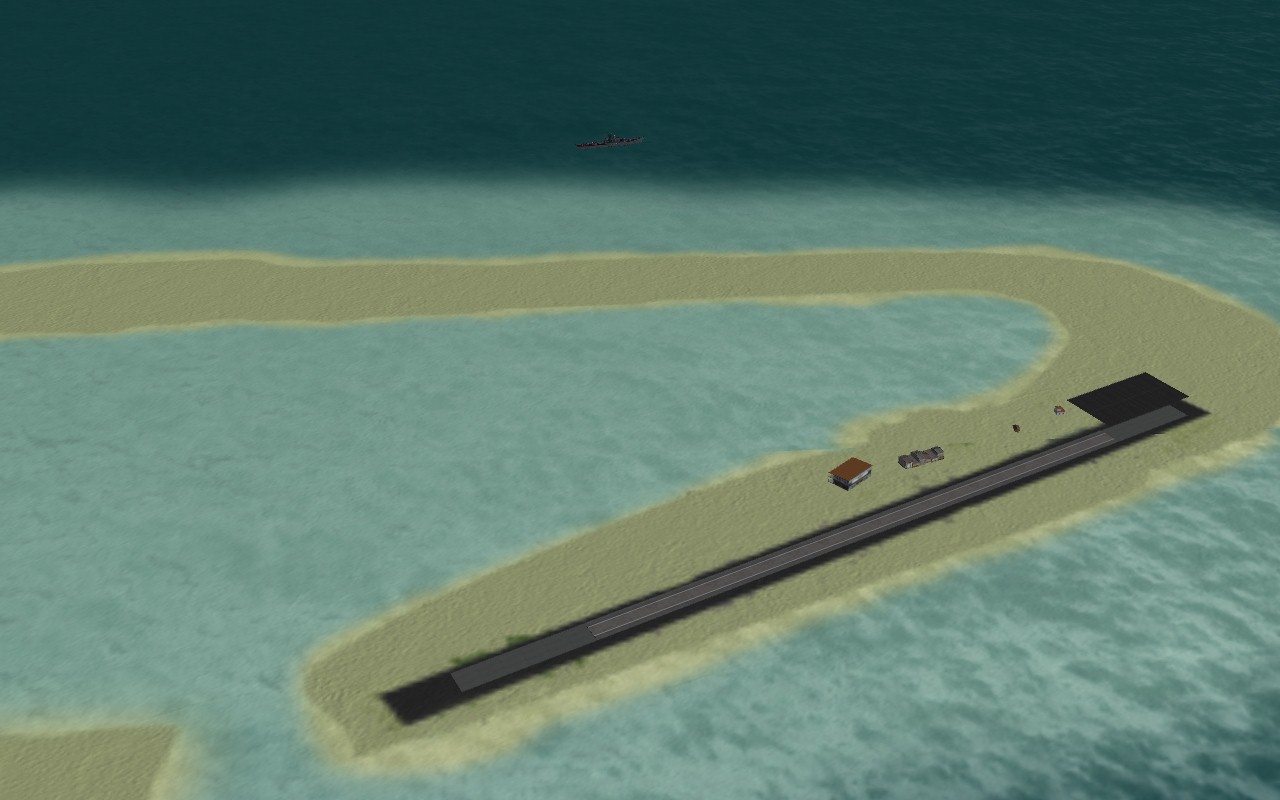

krfrge Posted February 14, 2016 Posted February 14, 2016 The Warrior and blaze95, Thanks for the assistance. That did the trick. Here are a few screenshots (Danang Harbor, Crow Reef Tgt Area, Wrench Island, etc.). Looks better. The ships have settled into the water. May have to make a minor adjustment as I have some signs on the islands "sinking". The anomaly of terrain "tear" near the coastal areas appears to be gone. I will fly Lake Toba and provide results. Crow Reed Target Area Danang Harbor Wrench Island ships Nameless Island 3 Quote
+Menrva Posted February 14, 2016 Posted February 14, 2016 I'm glad to be helpful, krfge. Your terrain really deserves all the attention it can get. Good job with the islands, that's some very fine texturing work! 1 Quote
krfrge Posted February 14, 2016 Posted February 14, 2016 Gents, Many Thanks Kindest Regards - Krfrge Quote
krfrge Posted February 15, 2016 Posted February 15, 2016 The Warrior and blaze95, Gents - my signs are sinking on the islands. Any recommendations on adjustments to the data.INI? All - Below is Boustead Heavy Ironworks. Any ideas on how I can make a ship show it's exposed hull in the drydock area? I plan to build a wall around the area to simulate the drydock perimeter. Quote
+Wrench Posted February 15, 2016 Posted February 15, 2016 that's been bothering me too, for awhile (have some drydocks on other terrains). I just left mine flooded.... the only answer I've come up with is "need a ship model that the world center is the keel, not the waterline" Quote
krfrge Posted February 15, 2016 Posted February 15, 2016 Wrench, I know there has to be a way. Some of the great ships here at CA have great looking hulls and I think it would be pretty good eye candy. I will keep tinkering with this until I come up with something. BTW, Lake Toba was looking good early this morning. 3 Quote
+Menrva Posted February 15, 2016 Posted February 15, 2016 (edited) The Warrior and blaze95, Gents - my signs are sinking on the islands. Any recommendations on adjustments to the data.INI? I have no idea actually as to why this is happening. Are the other objects in the same island sinking a little more too? If not, just try to move the signs into other positions. Also, make sure that that particular tile of the island has a proper black _hm.bmp and the usual 2.000 value. Let's see if The Warrior has some suggestions. I was thinking about the ZBufferOffset values in the _data.ini, but they simply alter the rendering of the .TOD objects, not the .LODs Edited February 15, 2016 by blaze95 Quote
krfrge Posted February 15, 2016 Posted February 15, 2016 blaze95, Roger that! more experimentation to follow. Krfrge Quote
