By KJakker, in Military and General Aviation

Recommended Posts

KJakker    875

KJakker
Posted

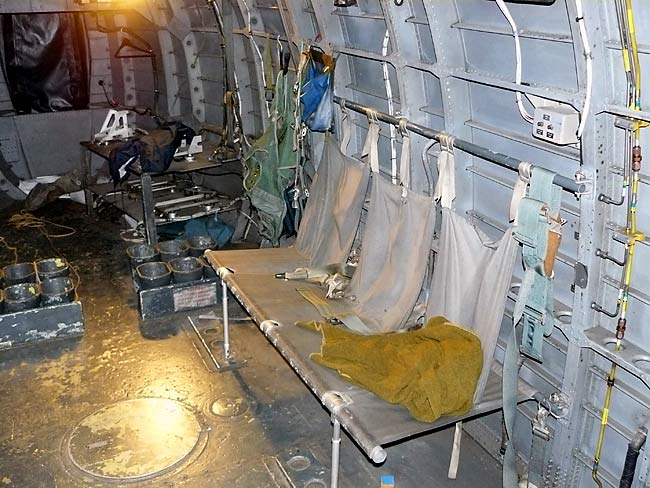

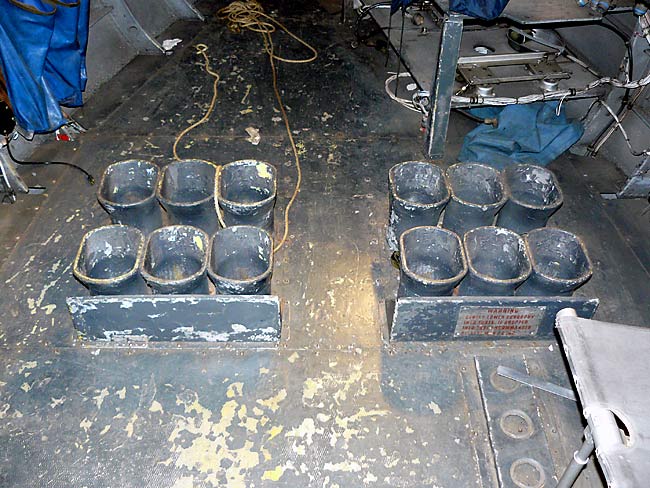

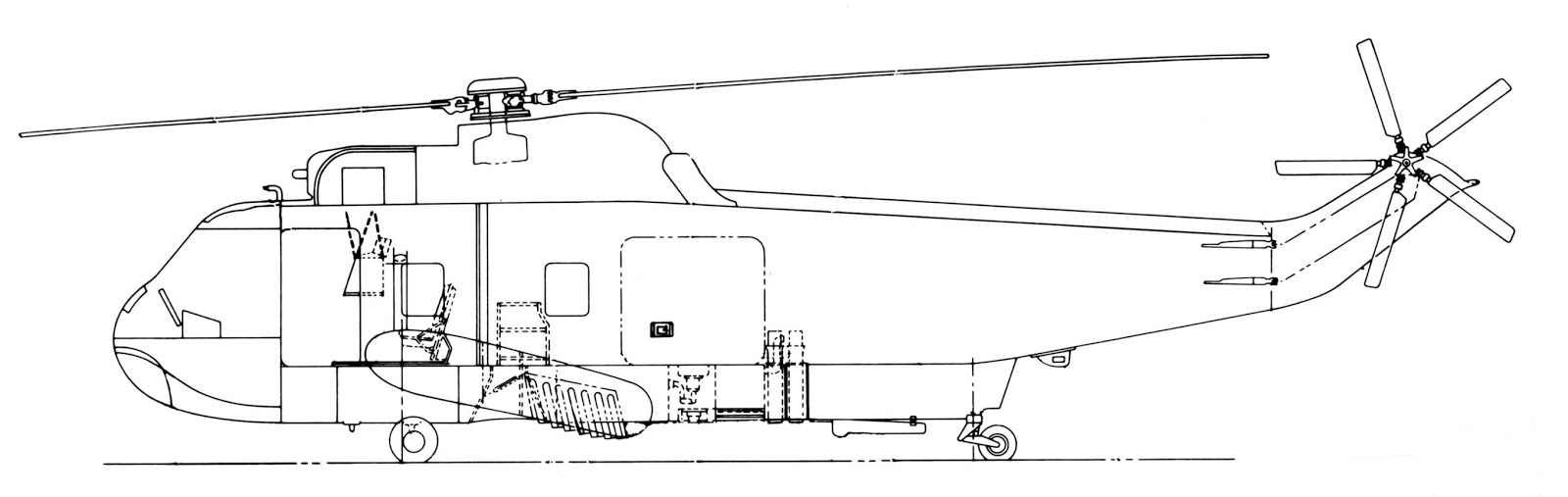

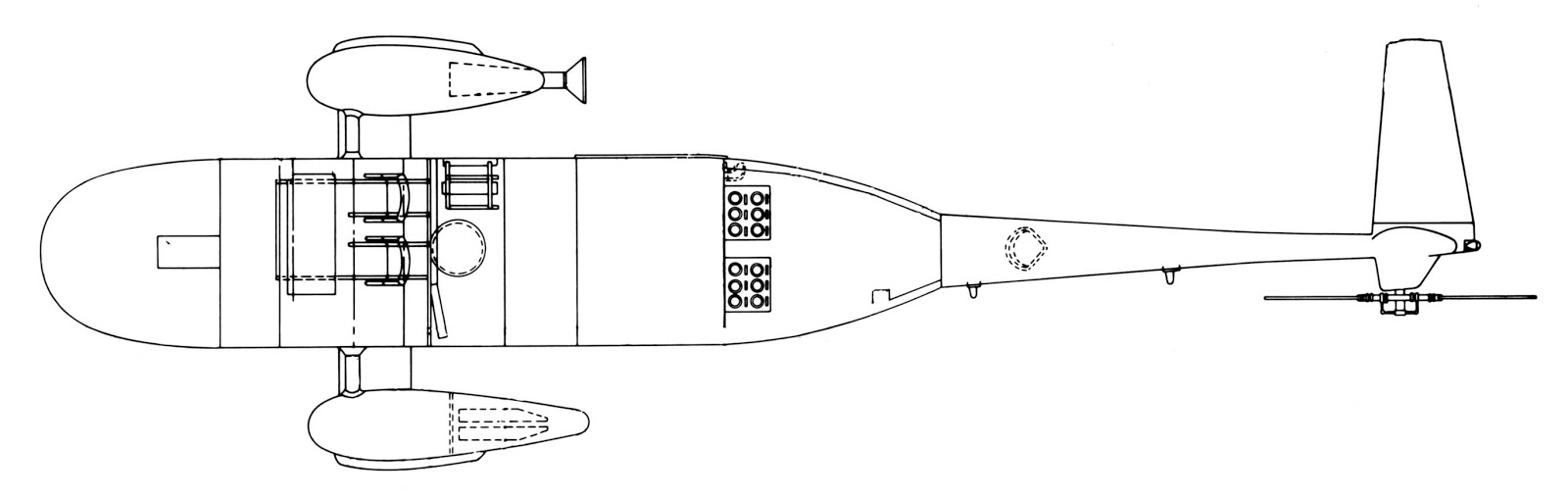

I need some help finding out how many sonobuoys an SH-3 Sea King could carry. I know that originally sonobuoys were manually launched through the cabin door and that the later SH-3H had twelve dispensers tubes however in the photos below it appears that the dispensers could be reloaded from inside the aircraft which means that twelve sonobuoys may only be the minimum load carried. Ideally if anyone has the NATOPS Flight Manuals for the SH-3A/D and SH-3H that would be a great help.

15SonobouyTubes.jpg.b58e928c8af8dd45bd0805eae6d22275.jpg           14SeaKingHelicopterAftCabin.jpg.d18ea82404b91caf2e178fb488d3133f.jpg



  • Like 1

Share this post

Link to post
Share on other sites

+Erik    1,731

Erik
Posted

This guy in Murietta California is selling a CD copy of a circa '93. You possibly could turn it into a paper manual depending on the quality of the copies. Maybe contact the guy and see what he can do for you.

https://www.ebay.com/itm/SH-3H-Sea-King-Helicopter-NATOPS-Flight-Manual-Pilots-Handbook-CD-Version-/322111376683?_trksid=p2385738.m2548.l4275



Share this post

Link to post
Share on other sites

charlielima    328

charlielima
Posted

If we thought we needed more then 12 we would carry more then 12 since we could reload the tubes in flight.

CL

Share this post

Link to post
Share on other sites

KJakker    875

KJakker
Posted
19 minutes ago, charlielima said:

If we thought we needed more then 12 we would carry more then 12 since we could reload the tubes in flight.

CL

charlielima, what did you typically carry while on ASW patrol or while conducting ASW training? I am modding my Cold Waters install because the Soviet Campaign mod has a lot of inaccurate weapon and search stores data for US ASW aviation assets. I have S-2, S-3, P-3, SH-2, and SH-60 primary source documentation but I only have partial stores info for the SH-3.

Share this post

Link to post
Share on other sites

charlielima    328

charlielima
Posted (edited)

The smoke launcher in the sponson full of mk-25s. A working MAD bird on the other side. 12 or more passive sonobouys. I don't think I remember a whole lot of extra bouys. another 12 would not be hard to stow. The dipping sonar was our main sensor. It had 3 frequencies so 3 helos could work an area or target. Our Airwing had no S-3s. If we did have bouys out for a contact the smallboys, destroyers and frigates would most certainly charge thru our pattern. I don't remember how many channels the bouys had but we unlike an S-3 or P-3 could only monitor 1 at a time.

CL

Edited by charlielima
  • Like 2

Share this post

Link to post
Share on other sites
