Geary

Does anyone know how to animate the tailhook on the TW F-15A

Recommended Posts

Does anyone know how to animate the tailhook on the TW F-15A?



There's one on the lod but no entries in the *data_ini.





TIA,



Geary

Share this post


Link to post
Share on other sites

i believe the animation has to be done in the original max file.  if TK didnt animate it,  your SOL.  i'm sure i will get corrected if wrong



suspecting what you're upto,  why not use the C and D models from  FCs superpack instead?  the extra lumps and bumps would be justified given the Navy likes internal jammers vs the AF liking podded. extra bulk due to beefing up for carrier ops.   not a solution to your question,  but hopefully  a helpful observation

Share this post


Link to post
Share on other sites

I'm wanting to do this to the TW F-15A cause I've already done a skin for that plane for the USN.

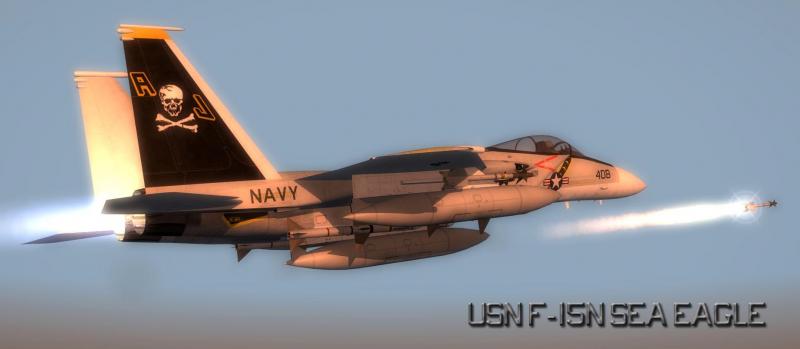

USN F-15N-4.jpg

  • Like 2

Share this post


Link to post
Share on other sites

tailhook is one of the items that you can animate in the Data.ini , all you need is the name of the hook object , no need of anemating it in 3ds max



all you have to do is to add the entry below the gear entrys

-

[Tailhook]
SystemType=ARRESTER_HOOK
MaxDeflection=60.0
Retractable=TRUE
DeployTime=2.0
ModelNodeName=tailhook______________________  you may have to change this to the correct name
HookArmLength=2.16 _________________________ may need adjustment
AttachmentPosition=0.0,-6.19,-0.79 _______________ may need adjustment



and dont forget to add the Tailhook entry in the Fuselage section

-

SystemName[015]=Tailhook

Share this post


Link to post
Share on other sites

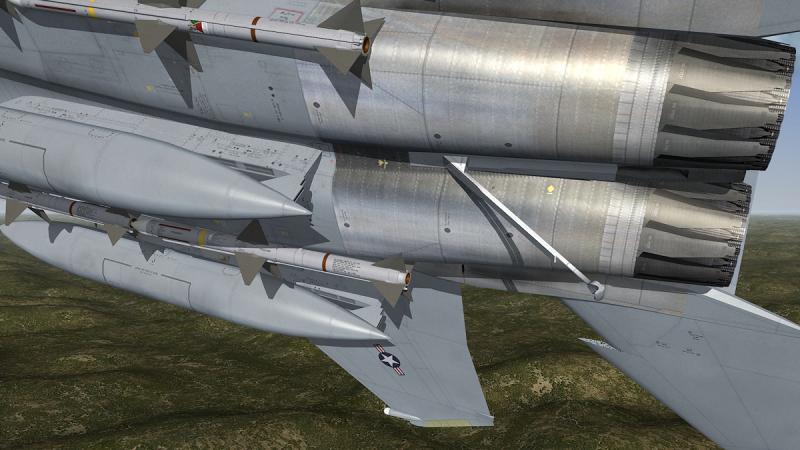

i just check my TW F-15A , the tailhook entry is in the Data.ini and it works in game



dont know if this is a original Data.ini , i may have changed the ejection seat and some missile possition / angle , but the hook works  F-15A_DATA.7z

-




Edited by ravenclaw_007
  • Like 3

Share this post


Link to post
Share on other sites

ravenclaw_007,



Thanks, your data did the job.  Works fine now.



It's not part of my original TW F-15A data.ini.



Now I can tail hook with the worst of them.

Share this post


Link to post
Share on other sites

My two cents, Crusader squadrons would be a better fit for Seagles. Esp a VF -194 carrying the Ferris zig zag scheme over from the last Phantom cruise

Share this post


Link to post
Share on other sites

ravenclaw_007,



Thanks, your data did the job.  Works fine now.



It's not part of my original TW F-15A data.ini.



Now I can tail hook with the worst of them.



Dude as much as I've trapped.... I'd be kicked out of flight school.  I trap don't get me wrong, but never have done a "real" flight profile at all.
