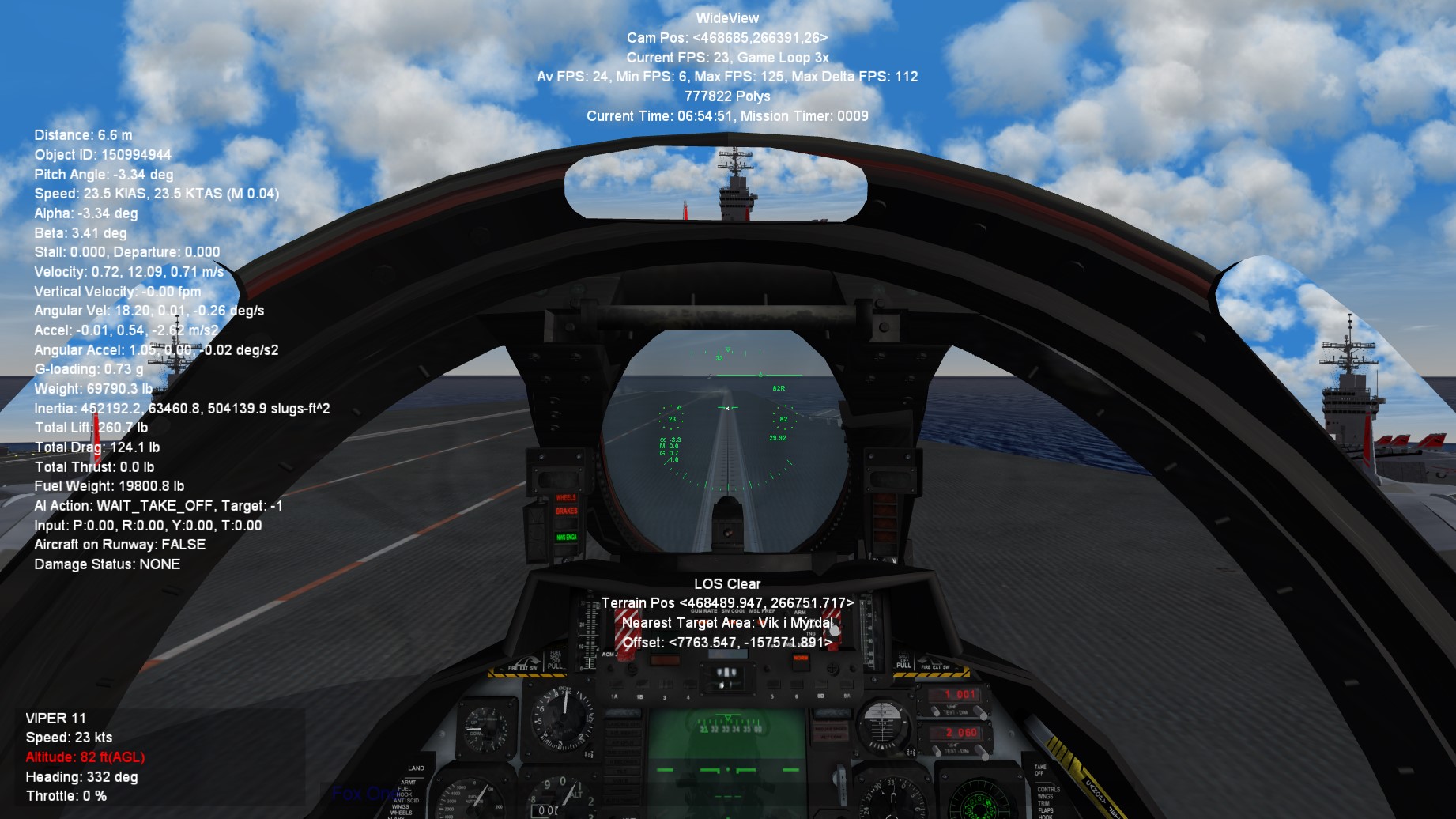

saisran Posted October 5, 2016 Posted October 5, 2016 I have recently retired my trusted laptop and built a new mATX PC with an I7-3770, 8GB of RAM and a GTX 1070. Admittedly, the only new thing here is the GTX 1070 and the rest are just a collection of bits. But it performs well and runs All of my games at 100+FPS except SF2 which runs at 60+FPS, but even so its smooth and i just think the reason why it doesn't reach 100FPS is because Stary made all that excellent Visual Mods! (i'm not complaining Stary! I love your work to bits!) I was enjoying it until i decided to run a mission on NA and this happens... 23 FPS? I have all settings on highest they'll ever go I also have the pre-rendered Frames Set to 1 and fade set to False I might just be the nature of the game being hard to run and i may just be able to fix it by setting the horizon distance to far instead of very far but the thing is i don't want to really turn down the graphic settings. So is there any further tweaks that i should know that will enable constant high frame rates even on the deck of a carrier on the stock North Atlantic Terrain? The thing is as soon i left the deck the frame rate jumped and even reached 77 FPS with 16 strong F-14B flying in front of me and three more being rendered in the mirror. Thanks for the advice guys! Quote
GodsLt Posted October 5, 2016 Posted October 5, 2016 I have the exact same issue. I'm running a highly overclocked GTX960M (laptop card) with this game on "unlimited" settings. Most of the time the framerates are stable, but the moment flak opens up or I'm taking off a carrier or open the TV screen my framerates run into the ground. I've tracked my GPU usage throughout extended gaming sessions in both SF2 (modded and unmodded) and WarThunder. WarThunder has a much higher Visual Fidelity, and is definitely more taxing on a system. On "high" settings my GPU will be pushed to 95+% usage CONSTANTLY. No drops, no hiccups, nothing. This will keep my framerate locked solidly at 60FPS regardless on what's being rendered. However, the story changes for SF2. After hours of simming, my GPU usage sits happily at around 30%. If I crank up the AA to 8x, MSAA 2x, FXAA 8x and Anisotropic filtering to 8x my usage goes up 5% but my frames still take a dip. If I then render SF2 at 4K (My laptop has a 4K screen), I get a solid 30FPS but my GPU usage hovers around the 40% mark... All of this with ForceVSyncOff=TRUE and Vsync off in the Nvidia control panel. I don't know what gives! Quote
Gunrunner Posted October 5, 2016 Posted October 5, 2016 It's not the GPU guys, it's the code, I'm having the same problem but considering that : - I'm between 12 and 15 percent total CPU usage when allowing the use of all cores. - When dedicating a single core to SF2, I'm never above 70% core usage and lose a maximum of 5 FPS over allowing all cores to be used. - I'm well below in total memory usage, as well as below the memory allocation for a 32 bits process and data transfers are not reaching any bottleneck. - Even at full load, I'm at most at 50% GPU usage. - Even at full load, memory usage, memory controller load and bus interface load are never above 40%. - With my configuration and settings, below 1680x1050 the lower the resolution, the higher the max and average FPS, above 1680x1050 average and max FPS are about the same until at least 2560x1440, but the higher the resolution, the lower the minimum FPS. The only possible conclusion is that the code/engine is the limiting factor. You can grab a handful of FPS with a beefier GPU, but this has quickly diminishing returns. You can grab a handful of FPS with a CPU with higher single core performance, but once again, it has quickly diminishing returns (and in your case, an i7 3770, the improvements would be in the single digits realm, all other things being equal). You can avoid FPS drops by replacing some image formats. You can increase your FPS by going for lower AA and AF settings or removing custom shaders and configs. The only true benefit of a GPU upgrade is the ability to increase the resolution and have better AA and AF settings (in fact, curiously, with the GTX 970 I have almost the same performance - within the margin of error - whether I play at 1920x1200 or 2560x1440). We are dealing with a 14 years old game engine last seriously updated 4 years ago. Quote
+daddyairplanes Posted October 5, 2016 Posted October 5, 2016 whatcha you all running for RAM (saisran exluded, saw yours)? tried my new toy out overland Iceland to compare to my old one. I7-6700, GTX1070, and 32 GB RAM and had a wicked drop in fps after dropping Snakes on a hot target..... from 102 down to 77. while i dont think anyone else here is gonna be running 32GB, 16 could be a decent goal. i updated my usual system few years back from 8 to 16GB and am typing this on a desktop taht needs to be updated (6GB installed, slightly over 3 usable). Iceland is the screwiest of the stock terriains and the more memory available the more stable. i havent messed with edits like forceVsync in a long time btw, just set high items important to me (mostly outside world) with exception to teh desktop. for the record on my RAM theory desktop 3.5GB ram integrated card 30-40 fps norm drops to single digits HP dv6 16GB ram radeon card 50-60 norm drops to high teens low 20s at worst xidax XM-10 32 GB ram nVidia 1070 100 norm dropped 25 pts just my thoughts on the matter. Quote
GodsLt Posted October 5, 2016 Posted October 5, 2016 The thing is, on my older laptop (an Asus VivoBook running a GT740M) I had much more stable framerates. My GPU usage was reasonable ~90% as were my temperatures. Here is my current system for reference: Time of this report: 10/5/2016, 14:34:44 Machine name: WINDOWS-ULBDE0P Machine Id: {E6E516C0-2793-4AE0-A7AE-BD3D8FFC59BA} Operating System: Windows 10 Home 64-bit (10.0, Build 14393) (14393.rs1_release.160915-0644) Language: English (Regional Setting: English) System Manufacturer: Dell Inc. System Model: XPS 15 9550 BIOS: 01.02.00 Processor: Intel® Core i5-6300HQ CPU @ 2.30GHz (4 CPUs), ~2.3GHz Memory: 8192MB RAM Available OS Memory: 8048MB RAM Page File: 7732MB used, 5317MB available Windows Dir: C:\WINDOWS DirectX Version: DirectX 12 DX Setup Parameters: Not found User DPI Setting: Using System DPI System DPI Setting: 240 DPI (250 percent) DWM DPI Scaling: UnKnown Miracast: Available, with HDCP Microsoft Graphics Hybrid: Supported DxDiag Version: 10.00.14393.0000 64bit Unicode --------------- Display Devices --------------- Card name: Intel® HD Graphics 530 Manufacturer: Intel Corporation Chip type: Intel® HD Graphics Family DAC type: Internal Device Type: Full Device Device Key: Enum\PCI\VEN_8086&DEV_191B&SUBSYS_06E41028&REV_06 Device Status: 0180200A [DN_DRIVER_LOADED|DN_STARTED|DN_DISABLEABLE|DN_NT_ENUMERATOR|DN_NT_DRIVER] Device Problem Code: No Problem Driver Problem Code: Unknown Display Memory: 4151 MB Dedicated Memory: 128 MB Shared Memory: 4023 MB Current Mode: 3840 x 2160 (32 bit) (60Hz) Monitor Name: Generic PnP Monitor Monitor Model: unknown Monitor Id: SHP143E Native Mode: 3840 x 2160(p) (59.997Hz) Output Type: Internal Driver Name: igdumdim64.dll,igd10iumd64.dll,igd10iumd64.dll,igd12umd64.dll Driver File Version: 20.19.0015.4454 (English) Driver Version: 20.19.15.4454 DDI Version: 12 Feature Levels: 12_1,12_0,11_1,11_0,10_1,10_0,9_3,9_2,9_1 Driver Model: WDDM 2.0 Graphics Preemption: Triangle Compute Preemption: Thread Miracast: Supported Hybrid Graphics GPU: Integrated Power P-states: Not Supported Driver Attributes: Final Retail Driver Date/Size: 5/3/2016 5:00:00 PM, 39859696 bytes WHQL Logo'd: Yes WHQL Date Stamp: Unknown Device Identifier: {D7B78E66-5A5B-11CF-FE62-EB26BAC2D935} Vendor ID: 0x8086 Device ID: 0x191B SubSys ID: 0x06E41028 Revision ID: 0x0006 Driver Strong Name: oem45.inf:5f63e5340a14bf6c:iSKLD_w10:20.19.15.4454:pci\ven_8086&dev_191b&subsys_06e41028 Rank Of Driver: 00D10001 Video Accel: ModeMPEG2_A ModeMPEG2_C ModeWMV9_C ModeVC1_C DXVA2 Modes: DXVA2_ModeMPEG2_VLD DXVA2_ModeMPEG2_IDCT DXVA2_ModeVC1_D2010 DXVA2_ModeWMV9_IDCT DXVA2_ModeVC1_IDCT DXVA2_ModeH264_VLD_NoFGT DXVA2_ModeH264_VLD_Stereo_Progressive_NoFGT DXVA2_ModeH264_VLD_Stereo_NoFGT DXVA2_ModeH264_VLD_Multiview_NoFGT DXVA2_ModeHEVC_VLD_Main DXVA2_ModeHEVC_VLD_Main10 Deinterlace Caps: {BF752EF6-8CC4-457A-BE1B-08BD1CAEEE9F}: Format(In/Out)=(YUY2,YUY2) Frames(Prev/Fwd/Back)=(0,0,1) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend DeinterlaceTech_EdgeFiltering {335AA36E-7884-43A4-9C91-7F87FAF3E37E}: Format(In/Out)=(YUY2,YUY2) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend DeinterlaceTech_BOBVerticalStretch {5A54A0C9-C7EC-4BD9-8EDE-F3C75DC4393B}: Format(In/Out)=(YUY2,YUY2) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend {BF752EF6-8CC4-457A-BE1B-08BD1CAEEE9F}: Format(In/Out)=(UYVY,YUY2) Frames(Prev/Fwd/Back)=(0,0,1) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend DeinterlaceTech_EdgeFiltering {335AA36E-7884-43A4-9C91-7F87FAF3E37E}: Format(In/Out)=(UYVY,YUY2) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend DeinterlaceTech_BOBVerticalStretch {5A54A0C9-C7EC-4BD9-8EDE-F3C75DC4393B}: Format(In/Out)=(UYVY,YUY2) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend {BF752EF6-8CC4-457A-BE1B-08BD1CAEEE9F}: Format(In/Out)=(YV12,YUY2) Frames(Prev/Fwd/Back)=(0,0,1) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend DeinterlaceTech_EdgeFiltering {335AA36E-7884-43A4-9C91-7F87FAF3E37E}: Format(In/Out)=(YV12,YUY2) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend DeinterlaceTech_BOBVerticalStretch {5A54A0C9-C7EC-4BD9-8EDE-F3C75DC4393B}: Format(In/Out)=(YV12,YUY2) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend {BF752EF6-8CC4-457A-BE1B-08BD1CAEEE9F}: Format(In/Out)=(NV12,YUY2) Frames(Prev/Fwd/Back)=(0,0,1) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend DeinterlaceTech_EdgeFiltering {335AA36E-7884-43A4-9C91-7F87FAF3E37E}: Format(In/Out)=(NV12,YUY2) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend DeinterlaceTech_BOBVerticalStretch {5A54A0C9-C7EC-4BD9-8EDE-F3C75DC4393B}: Format(In/Out)=(NV12,YUY2) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend {BF752EF6-8CC4-457A-BE1B-08BD1CAEEE9F}: Format(In/Out)=(IMC1,YUY2) Frames(Prev/Fwd/Back)=(0,0,1) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend DeinterlaceTech_EdgeFiltering {335AA36E-7884-43A4-9C91-7F87FAF3E37E}: Format(In/Out)=(IMC1,YUY2) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend DeinterlaceTech_BOBVerticalStretch {5A54A0C9-C7EC-4BD9-8EDE-F3C75DC4393B}: Format(In/Out)=(IMC1,YUY2) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend {BF752EF6-8CC4-457A-BE1B-08BD1CAEEE9F}: Format(In/Out)=(IMC2,YUY2) Frames(Prev/Fwd/Back)=(0,0,1) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend DeinterlaceTech_EdgeFiltering {335AA36E-7884-43A4-9C91-7F87FAF3E37E}: Format(In/Out)=(IMC2,YUY2) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend DeinterlaceTech_BOBVerticalStretch {5A54A0C9-C7EC-4BD9-8EDE-F3C75DC4393B}: Format(In/Out)=(IMC2,YUY2) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend {BF752EF6-8CC4-457A-BE1B-08BD1CAEEE9F}: Format(In/Out)=(IMC3,YUY2) Frames(Prev/Fwd/Back)=(0,0,1) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend DeinterlaceTech_EdgeFiltering {335AA36E-7884-43A4-9C91-7F87FAF3E37E}: Format(In/Out)=(IMC3,YUY2) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend DeinterlaceTech_BOBVerticalStretch {5A54A0C9-C7EC-4BD9-8EDE-F3C75DC4393B}: Format(In/Out)=(IMC3,YUY2) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend {BF752EF6-8CC4-457A-BE1B-08BD1CAEEE9F}: Format(In/Out)=(IMC4,YUY2) Frames(Prev/Fwd/Back)=(0,0,1) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend DeinterlaceTech_EdgeFiltering {335AA36E-7884-43A4-9C91-7F87FAF3E37E}: Format(In/Out)=(IMC4,YUY2) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend DeinterlaceTech_BOBVerticalStretch {5A54A0C9-C7EC-4BD9-8EDE-F3C75DC4393B}: Format(In/Out)=(IMC4,YUY2) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend D3D9 Overlay: Supported DXVA-HD: Supported DDraw Status: Enabled D3D Status: Enabled AGP Status: Enabled MPO Caps: Not Supported MPO Stretch: Not Supported MPO Media Hints: Not Supported MPO Formats: Not Supported Card name: NVIDIA GeForce GTX 960M Manufacturer: NVIDIA Chip type: GeForce GTX 960M DAC type: Integrated RAMDAC Device Type: Render-Only Device Device Key: Enum\PCI\VEN_10DE&DEV_139B&SUBSYS_06E41028&REV_A2 Device Status: 0180200A [DN_DRIVER_LOADED|DN_STARTED|DN_DISABLEABLE|DN_NT_ENUMERATOR|DN_NT_DRIVER] Device Problem Code: No Problem Driver Problem Code: Unknown Display Memory: 6042 MB Dedicated Memory: 2018 MB Shared Memory: 4023 MB Current Mode: Unknown Driver Name: C:\WINDOWS\System32\DriverStore\FileRepository\nvdmi.inf_amd64_86f2ae812568c59a\nvd3dumx.dll,C:\WINDOWS\System32\DriverStore\FileRepository\nvdmi.inf_amd64_86f2ae812568c59a\nvwgf2umx.dll,C:\WINDOWS\System32\DriverStore\FileRepository\nvdmi.inf_amd64_86f2ae812568c59a\nvwgf2umx.dll,C:\WINDOWS\System32\DriverStore\FileRepository\nvdmi.inf_amd64_86f2ae812568c59a\nvwgf2umx.dll Driver File Version: 21.21.0013.7290 (English) Driver Version: 21.21.13.7290 DDI Version: 12 Feature Levels: 11_0,10_1,10_0,9_3,9_2,9_1 Driver Model: WDDM 2.1 Graphics Preemption: DMA Compute Preemption: DMA Miracast: Not Supported by Graphics driver Hybrid Graphics GPU: Discrete Power P-states: Not Supported Driver Attributes: Final Retail Driver Date/Size: 9/15/2016 5:00:00 PM, 17621512 bytes WHQL Logo'd: Yes WHQL Date Stamp: Unknown Device Identifier: Unknown Vendor ID: 0x10DE Device ID: 0x139B SubSys ID: 0x06E41028 Revision ID: 0x00A2 Driver Strong Name: oem8.inf:0f066de379c1b3f2:Section190:21.21.13.7290:pci\ven_10de&dev_139b&subsys_06e41028 Rank Of Driver: 00D10001 Video Accel: Unknown DXVA2 Modes: DXVA2_ModeMPEG2_VLD DXVA2_ModeVC1_D2010 DXVA2_ModeVC1_VLD DXVA2_ModeH264_VLD_Stereo_Progressive_NoFGT DXVA2_ModeH264_VLD_Stereo_NoFGT DXVA2_ModeH264_VLD_NoFGT DXVA2_ModeHEVC_VLD_Main DXVA2_ModeMPEG4pt2_VLD_Simple DXVA2_ModeMPEG4pt2_VLD_AdvSimple_NoGMC Deinterlace Caps: n/a D3D9 Overlay: Unknown DXVA-HD: Unknown DDraw Status: Enabled D3D Status: Enabled AGP Status: Enabled MPO Caps: Not Supported MPO Stretch: Not Supported MPO Media Hints: Not Supported MPO Formats: Not Supported Quote
Spudknocker Posted October 5, 2016 Posted October 5, 2016 Well one big thing that can help is converting cockpit and aircraft skins to JPG's this is rather time consuming and annoying but it can help...another thing that can help is by putting effects to high instead of unlimited...while the sun wont look so amazing most effects remain unchanged especially if you have a unified effects package from stary. Also going into the options ini and forcing V sync off can add a little bit of a boost to the FPS 1 Quote
Fubar512 Posted October 6, 2016 Posted October 6, 2016 (edited) First off, there's a couple of misconceptions here. The series is CPU-bound if one sets the horizon draw distance too far. Pull that back to "normal" and check again. Also, being a 32-bit game, SF2 is limited to a 4 GB block of memory. To be truthful, I have never seen it exceed 2.5 GB. Also, you will not see any gain in FPS with more than 8 GB of system RAM, even under Windows 10. Search on Youtube, and you'll find videos that will bear this out. I run 16 GB in my system because I encode video and audio, and the apps that I use for both are 64-bit, so they are not subject to the 32-bit, 4 GB memory space limitation. In performing experiments with various overclocks (CPU speeds), I've come to the conclusion, that to avoid massive slowdowns in frame rate, one needs in the neighborhood of 4 gHz of processor speed when running the more intensive scenarios (heavy SAM & triple AAA activity over Hanoi, etc), and a bare minimum of 1 GB of dedicated video RAM on either an Nvidia or AMD graphics card. 2 GB is better, and 4 GB of VRAM is probably the maximum that the game will utilize in its current state of development. Another issue, that was brought up, was Anti-aliasing, Anisotropic filtering, and other settings. I can get away with maxing all these out on a GTX 1070, and I suspect that those with (6 GB) GTX 1060s will be able to this, as well. However, there are settings in the Nvidia control panel that will adversely effect your framerates, without providing any real benefits, or worse yet, no benefits at all. We should perform a test on all these, and then compare results. As Gunrunner mentioned, we're also looking at code that was already old several years old when the series was released in 2003, and upgraded in 2008 to use DX10 (SF2). Edited October 6, 2016 by Fubar512 1 Quote
saisran Posted October 6, 2016 Author Posted October 6, 2016 (edited) Thanks for the feed back everyone. I Guess it's really a software thing. I have a surplus of RAM Sticks but unfortunately none of the combination runs well on Dual Channel on my board. I have to get a dual channel package if im going for 16GB. But honestly, i haven't seen any improvement from 8GB single stick to 16GB dual. Guess its really with the software. It's funny how an old game is harder to run than the latest AAA Title. Guess a bunch of Testing is in order. While the low framerates in deck isn't that much of a problem. Its a different story when actually flying. Hopefully i dont get FPS drops in that regard.\ I forgot to mention that i'm playing on an HD TV instead of a Monitor. I mostly Play SF2, Racing Games and Some RPG. Edited October 6, 2016 by saisran Quote
GodsLt Posted October 8, 2016 Posted October 8, 2016 Alright guys, I think I've made some headway.I lowered my Horizon distance from unlimited to normal...and wow. Full 60fps in flight and ~50fps in target-rich environments. However, selecting the brimstone's TV display lowers frames to 30fps. Oddly enough, the SBD TV display does not exhibit the same amount of slowdown, averaging ~40fps. No idea why though. Quote
Emp_Palpatine Posted October 8, 2016 Posted October 8, 2016 Alright guys, I think I've made some headway. I lowered my Horizon distance from unlimited to normal...and wow. Full 60fps in flight and ~50fps in target-rich environments. However, selecting the brimstone's TV display lowers frames to 30fps. Oddly enough, the SBD TV display does not exhibit the same amount of slowdown, averaging ~40fps. No idea why though. Does this works with the extended horizon tricks? Quote
GodsLt Posted October 10, 2016 Posted October 10, 2016 Hey Emp!I don't know if it does...I'm using it in the various campaigns available here such as ODS, OD, NA EXP, I EXP, A&G EXP etc. Quote
+baffmeister Posted October 22, 2016 Posted October 22, 2016 I found this site useful when trying to optimize my graphics card. Interesting reading. Here's a link: http://www.tweakguides.com/NVFORCE_6.html Quote
Spudknocker Posted October 22, 2016 Posted October 22, 2016 to keep from getting a huge FPS slowdown when launching brimstones and mavericks etc lower the sight FOV in the weapons data file to 1.50000 and the problem should be solved Quote
