I mean RP-3 60 lb rockets with napalm warhead like Meteors used during Korean War?






If not, maybe someone could make a 3d model.  Should be very fun to shoot them ahead of aircraft...

Share this post


Link to post
Share on other sites

Nice to see you're interested in Volker. I know you are a perfectionist, but i didn't find too much information. The rocket was popularly called "Flaming onion". Above photo is the best & closest one...

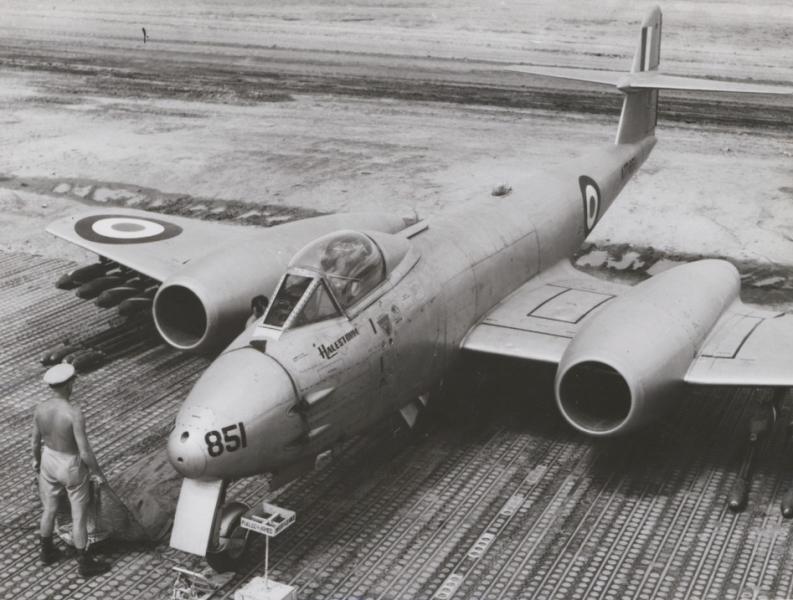

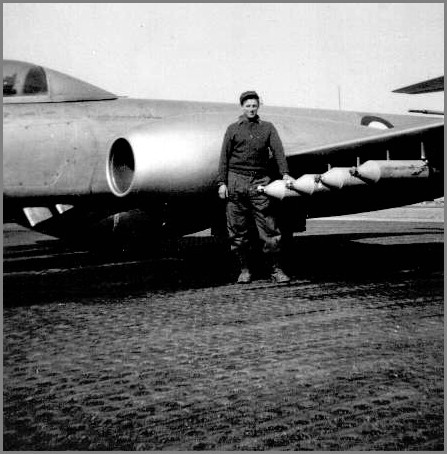

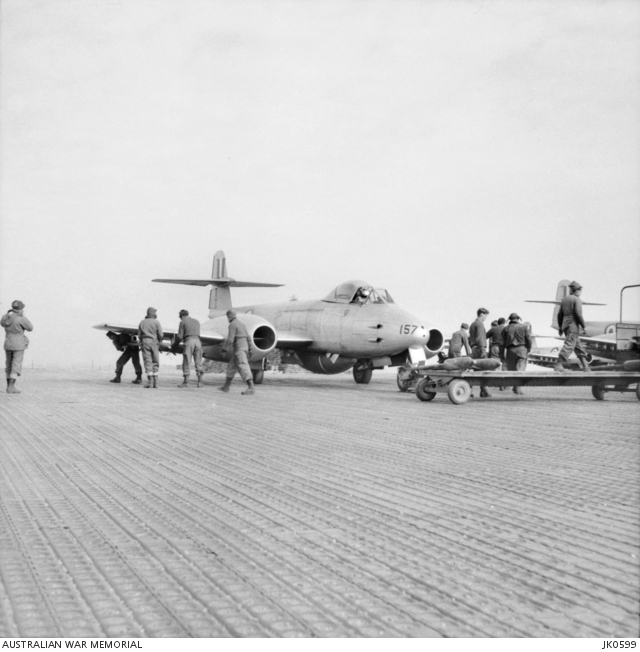

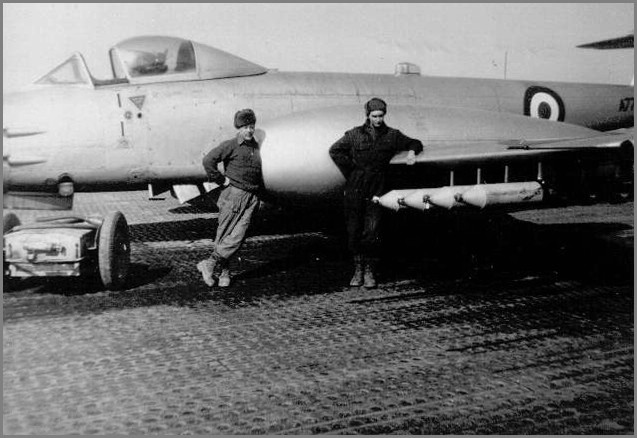

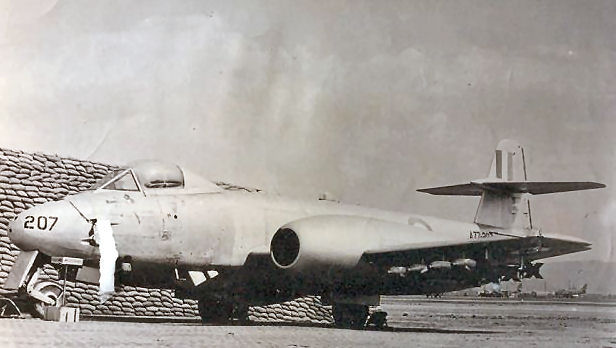

Few photos:

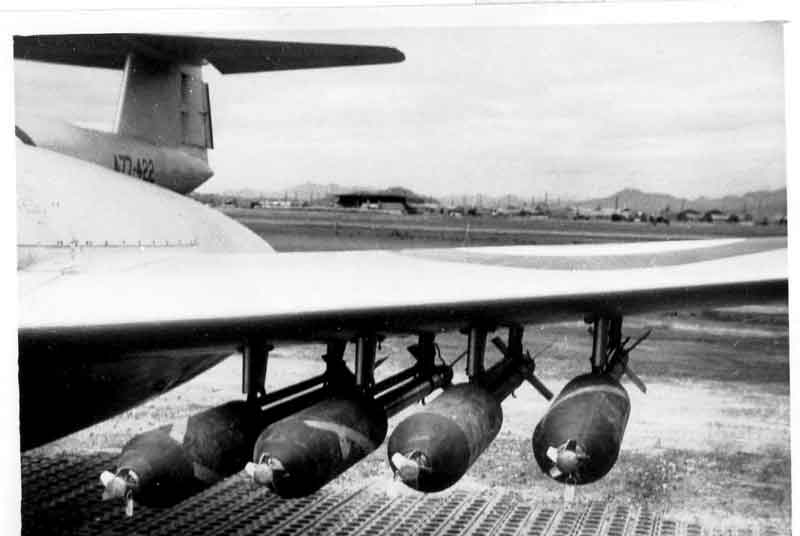

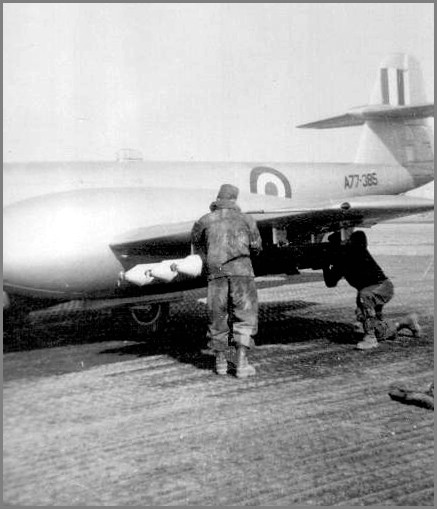

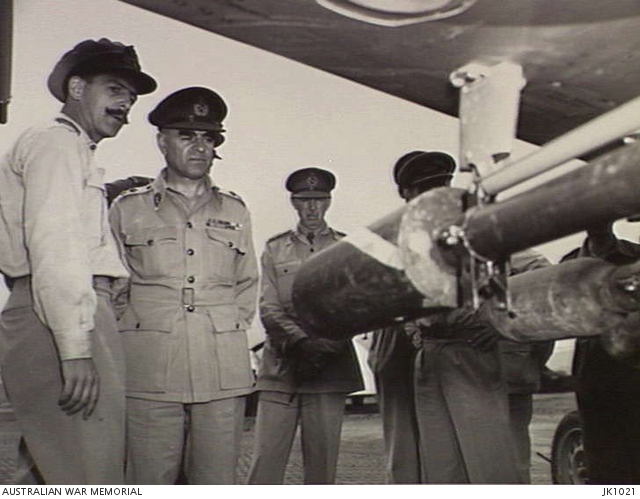

Back side of the napalm warhead

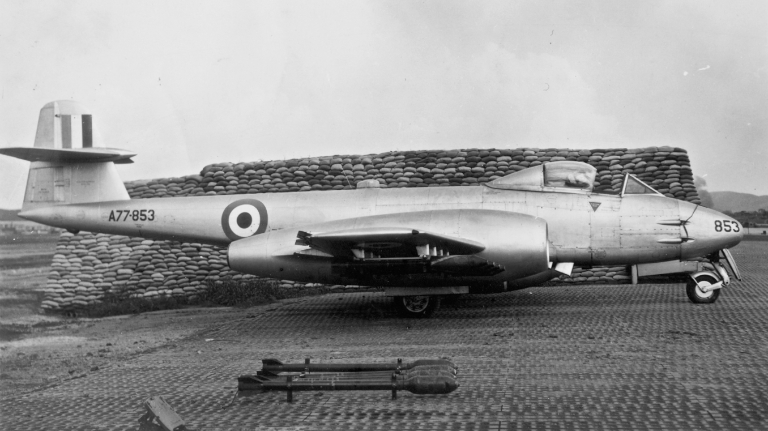

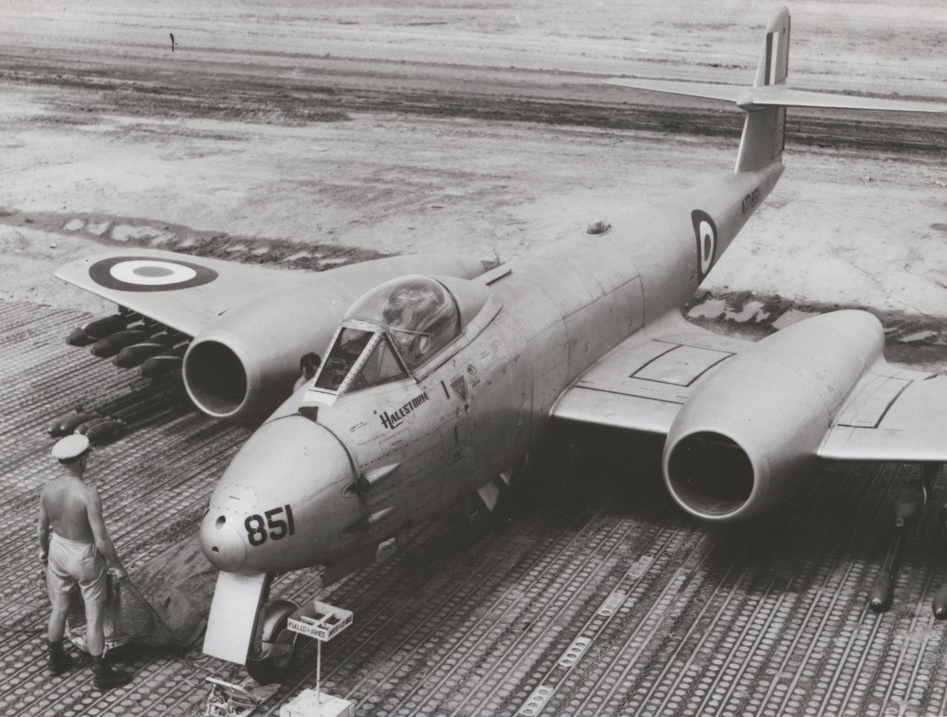

From distance

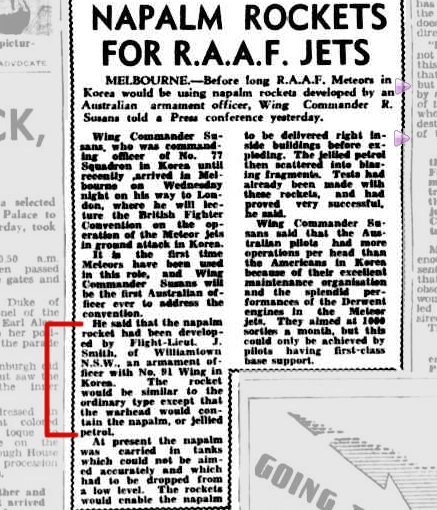

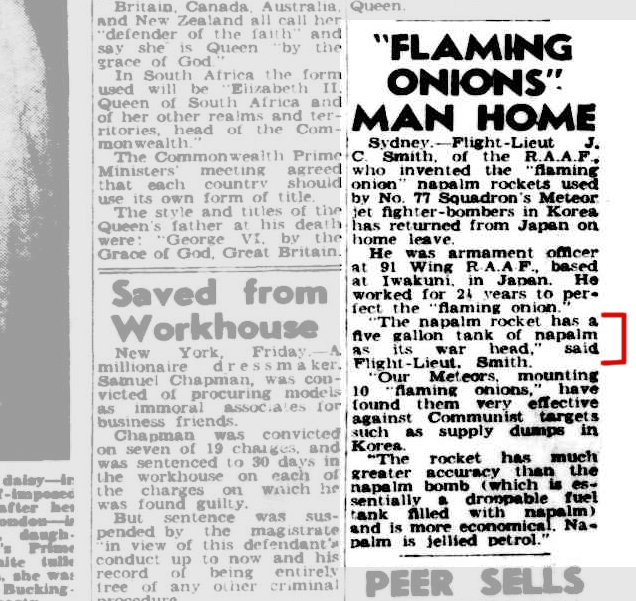

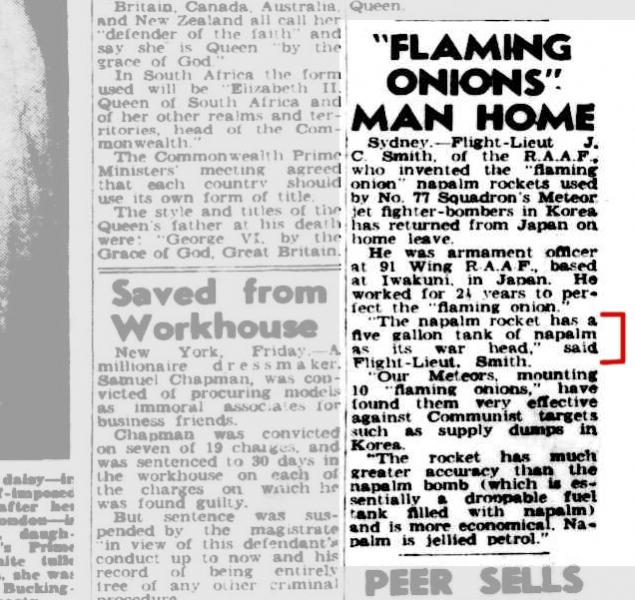

I also found two articles in the old press explaining some things. First one is saying that the rocket has a 5 galon tank of napalm in as it's war head






And second: that the rocket is similar to the ordinary type except the warhead






So i think it means the rocket is classic RP-3 60lb with it's engine.

Measurements of RP-3 rockets with SAP projectile:



Weight of the complete rocket: 44,2 kg

Weight of motor: 16,3 kg

Weight of projectile: 27,9 kg

Diameter of motor: 83 mm

Diameter of 60Lb. S.A.P projectile: 152 mm -> (napalm warhead is a little bit thicker)

Length of the complete rocket: 1876 mm   ---> (napalm warhead is a bit longer)

Length of the rocket without warhead: 1400 mm

Wing span: 340 mm

Burning time of motor : 1,5 seconds at 15,6 degr. celcius

Fuzes used: No.878 or No.865

Vo: 480 mtrs/sec

Range: appr 1600 mtrs (1 mile)

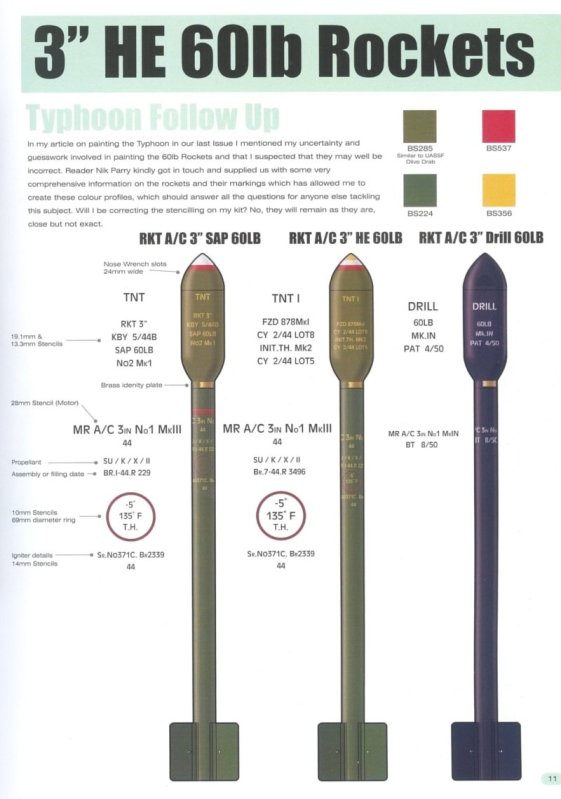

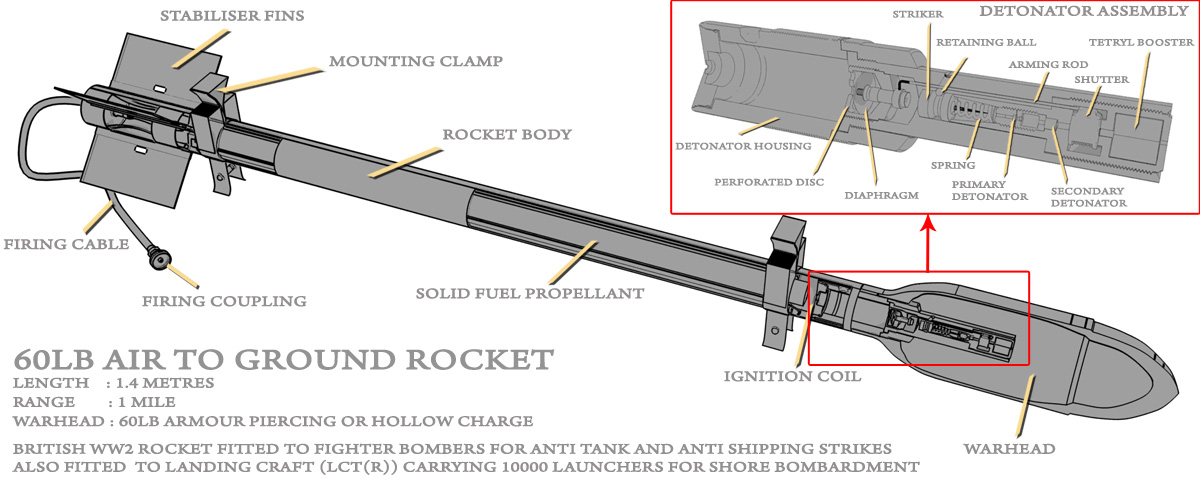

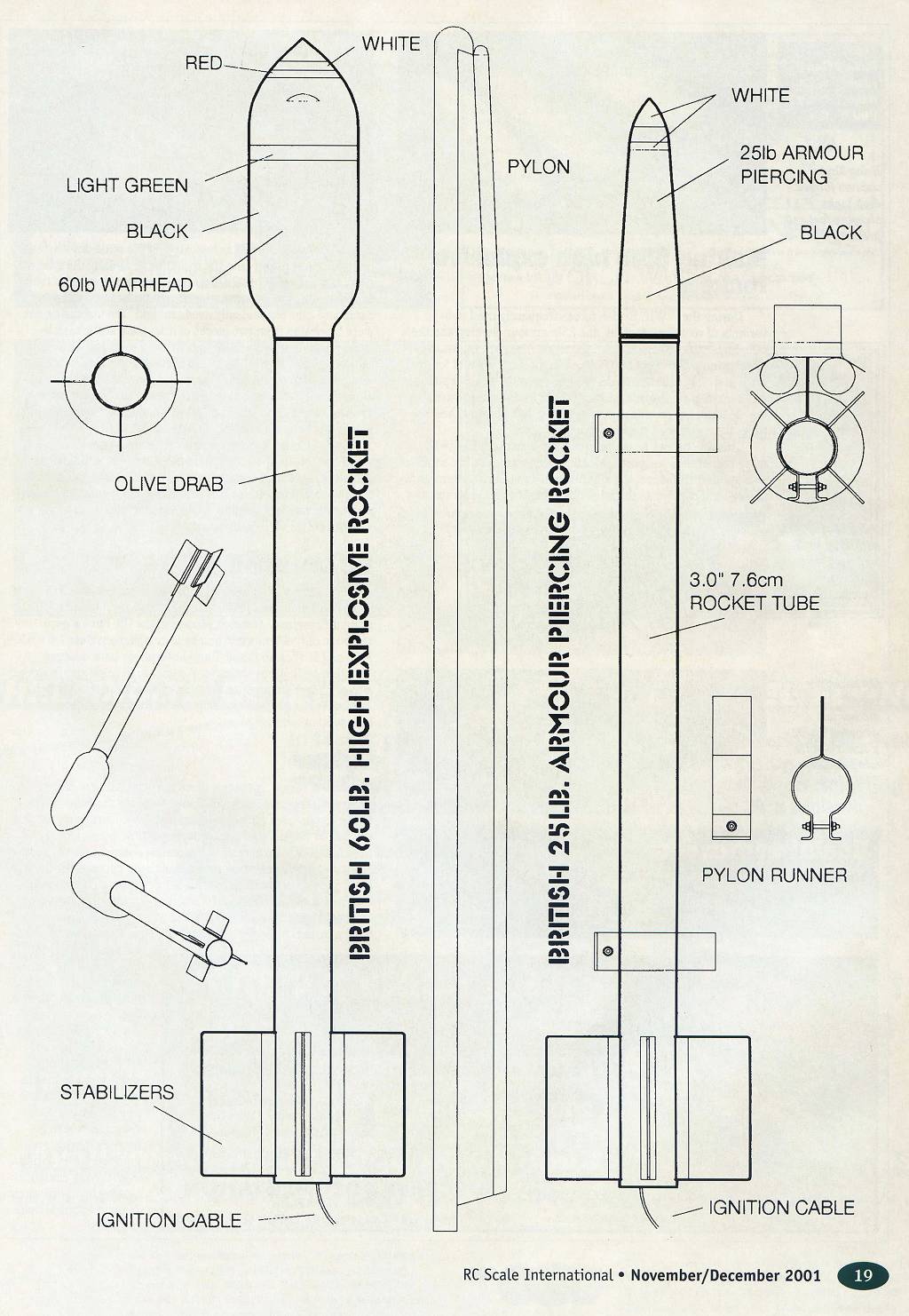

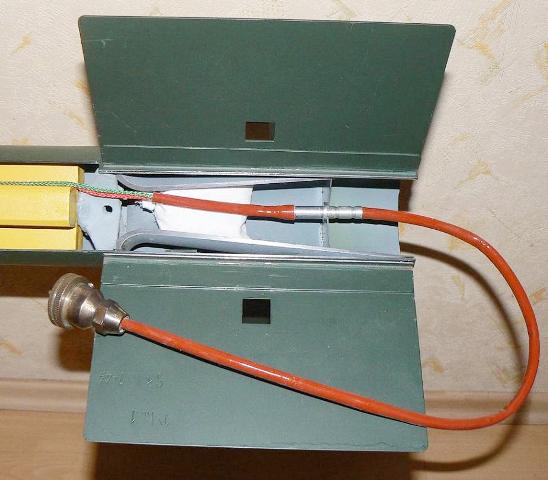

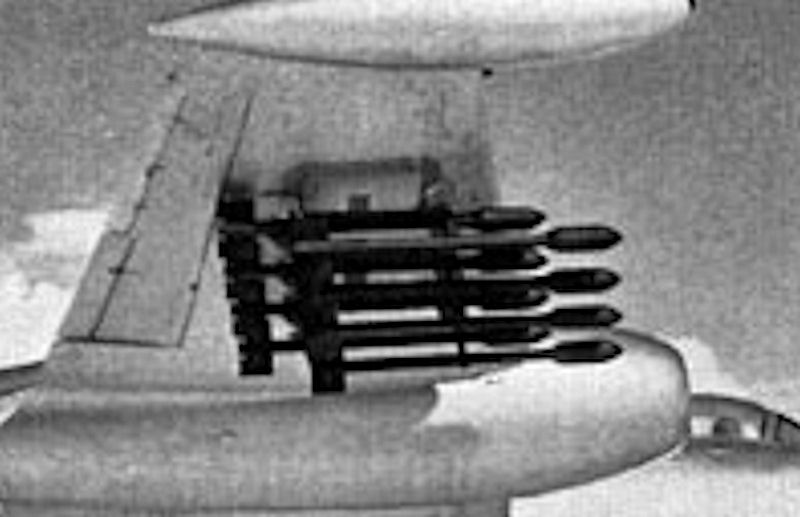

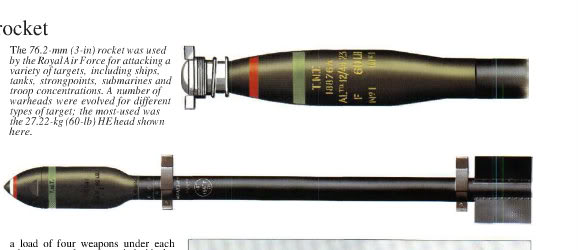

Few draws and photos:










Thats all i have.





Share this post


Link to post
Share on other sites

Thank you i will use that info

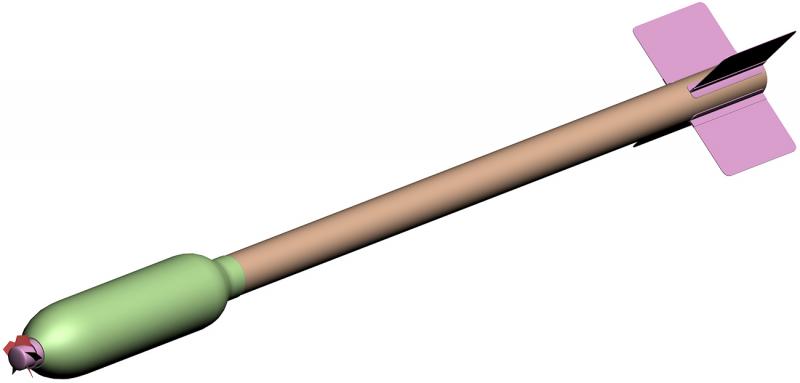

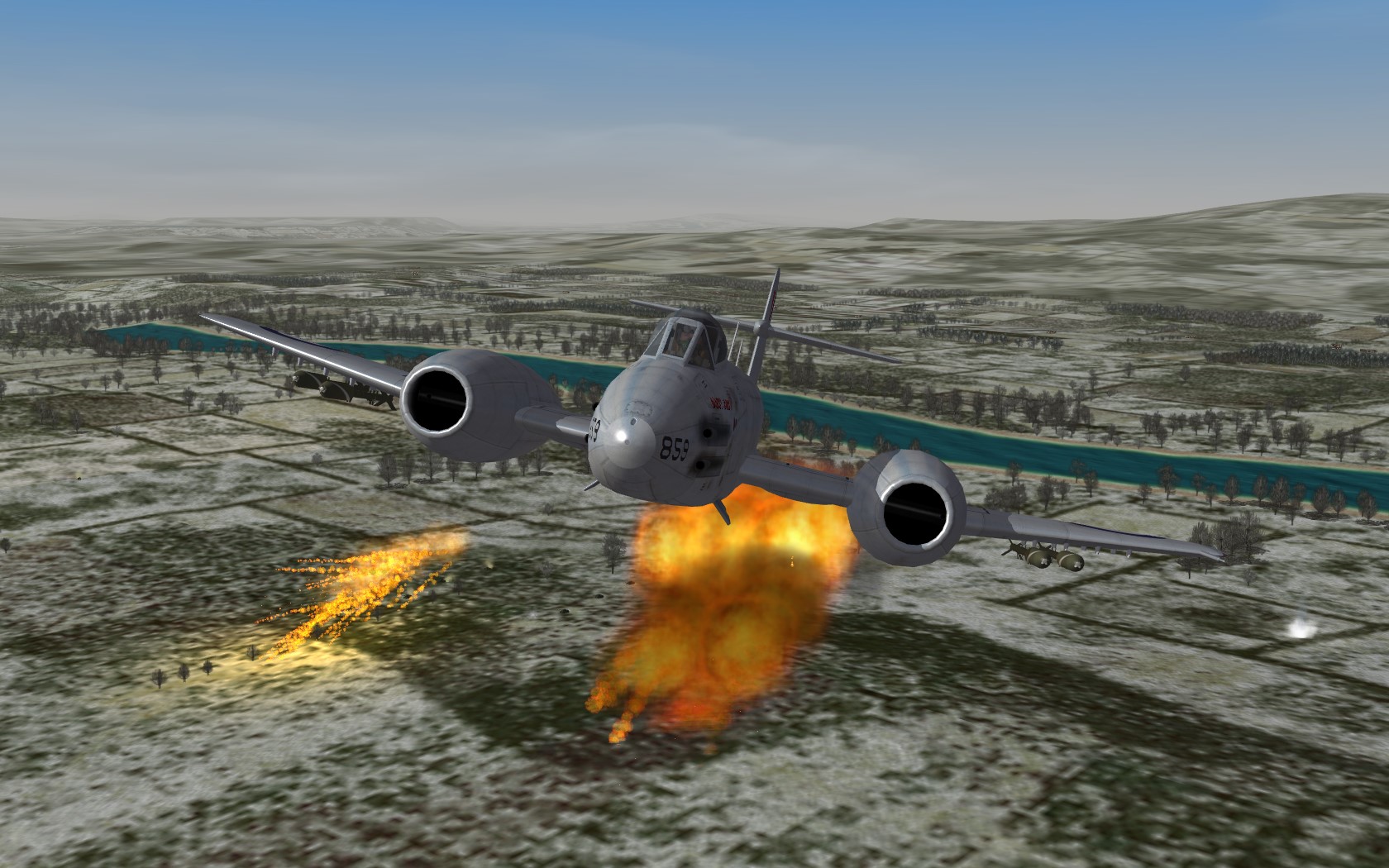

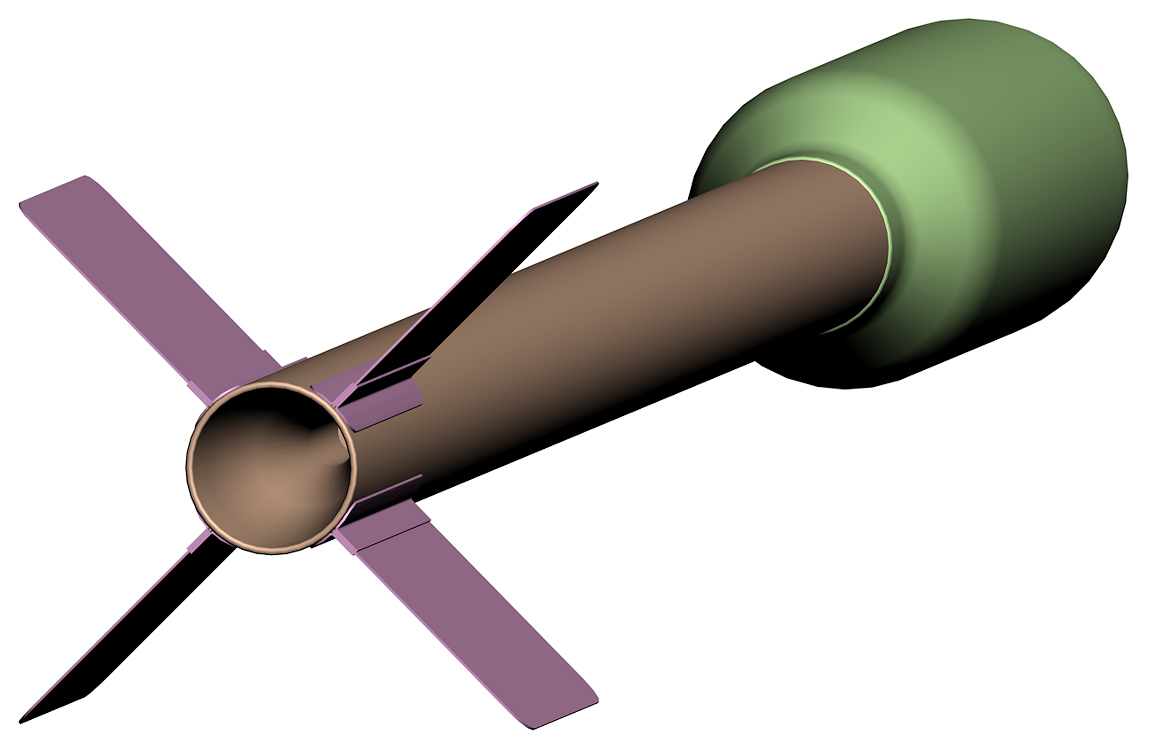

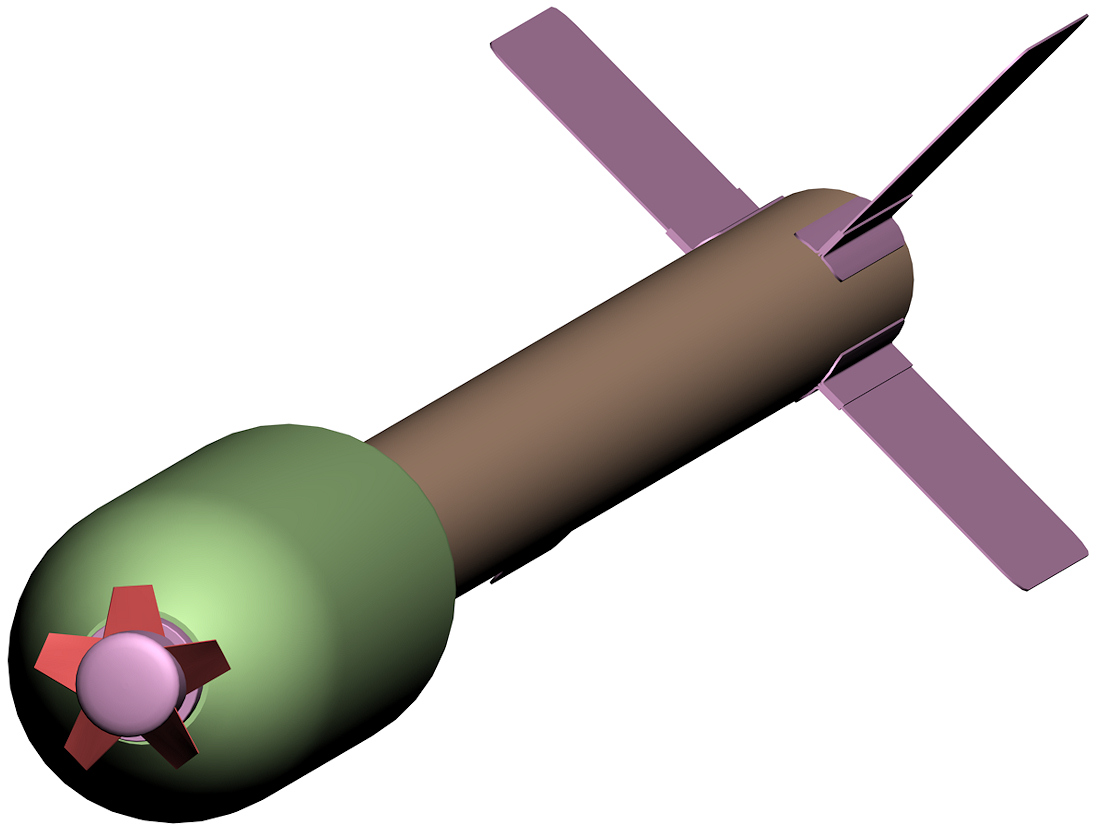

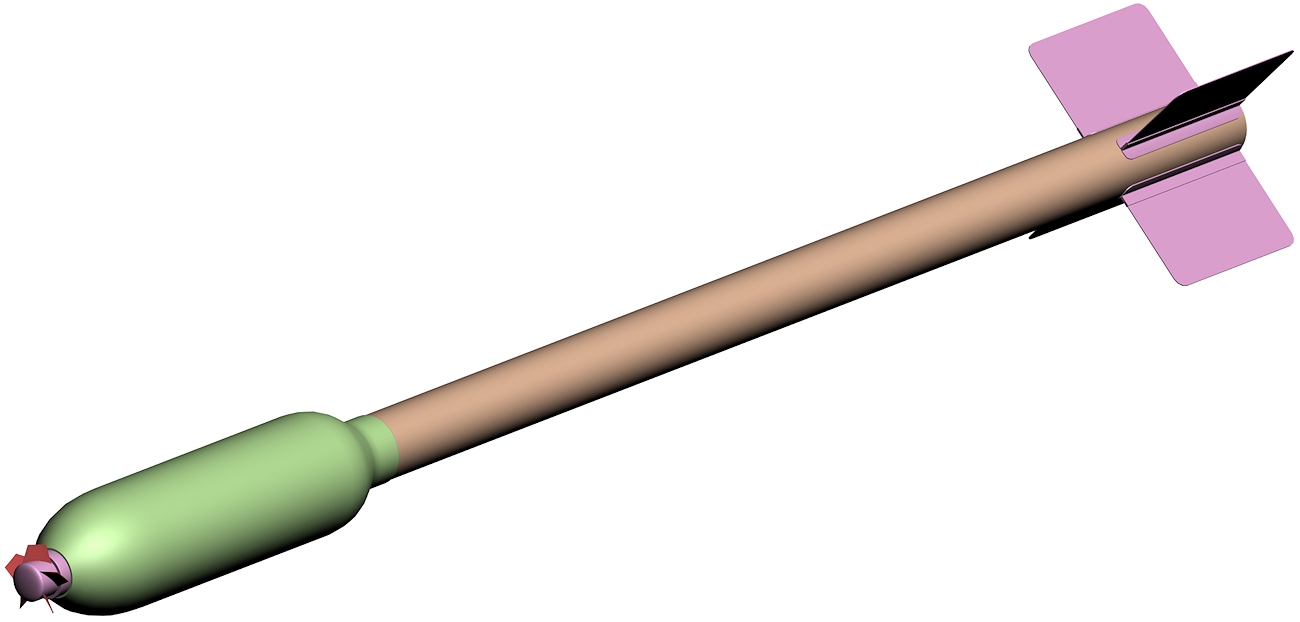

this is what i have , almost done

-








unfortunatley i dont have the single seat Meteor , so i can not fit the weapon to the rails

  • Like 6

Share this post


Link to post
Share on other sites

any of these stock birds should do for testing:

Hunter 6, Hunter 9, Vampire, even the Mustang for testing (it calls for them in the stock loadout inis)



DLC 29s Spit 14, 18, 22 all carry them



add-ons:



Seahawk, Venom

Share this post


Link to post
Share on other sites

Superb! High quality as always. :good:

Maybe warhead could be a little bit thicker.



Fast Cargo and I are finishing new RAAF Meteor F.8 for KAW, i'll ask him and maybe share with you for testing.

Edited by Kulbit80

Share this post


Link to post
Share on other sites



Fast Cargo and me are finishing new RAAF Meteor F.8 for KAW





oh, thank the gods!!!!

(now, one wonders if that F.8 can be rebuilt into the earlier mk.3???)

Share this post


Link to post
Share on other sites

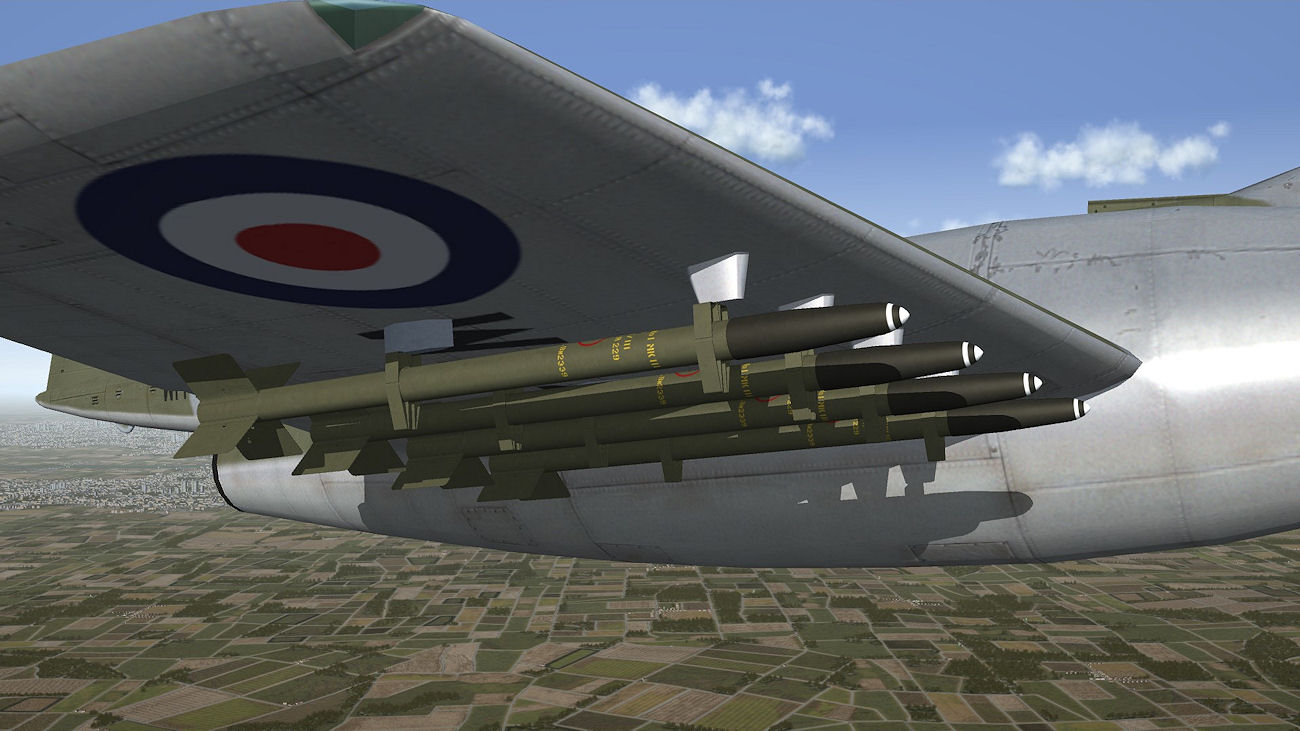

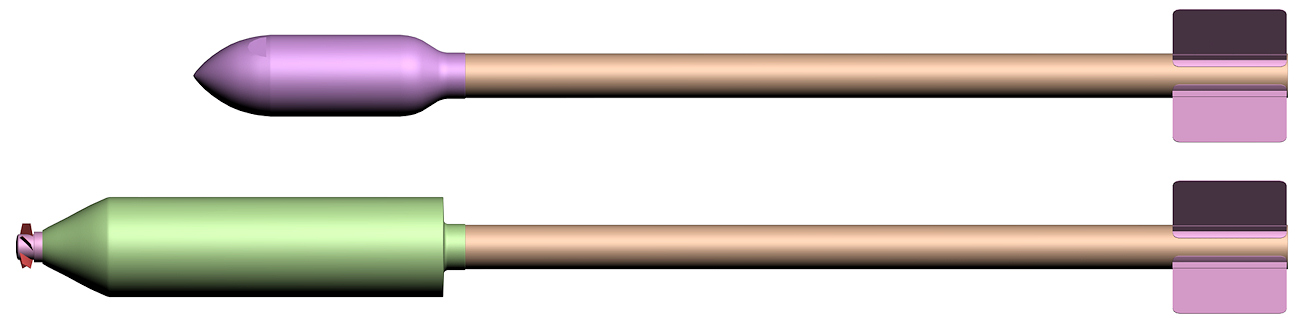

based on the pictures from Kulbit this is how they should look like



on top the standard HE and below the Napalm one

-






if the shape and size is ok i could finish this rockets an armor piercin version would be included

  • Like 4

Share this post


Link to post
Share on other sites

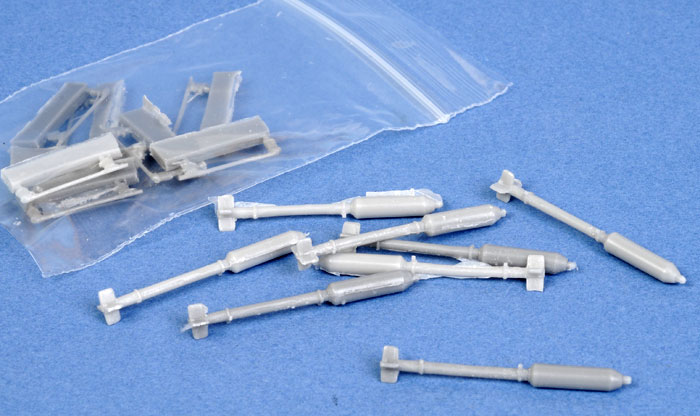

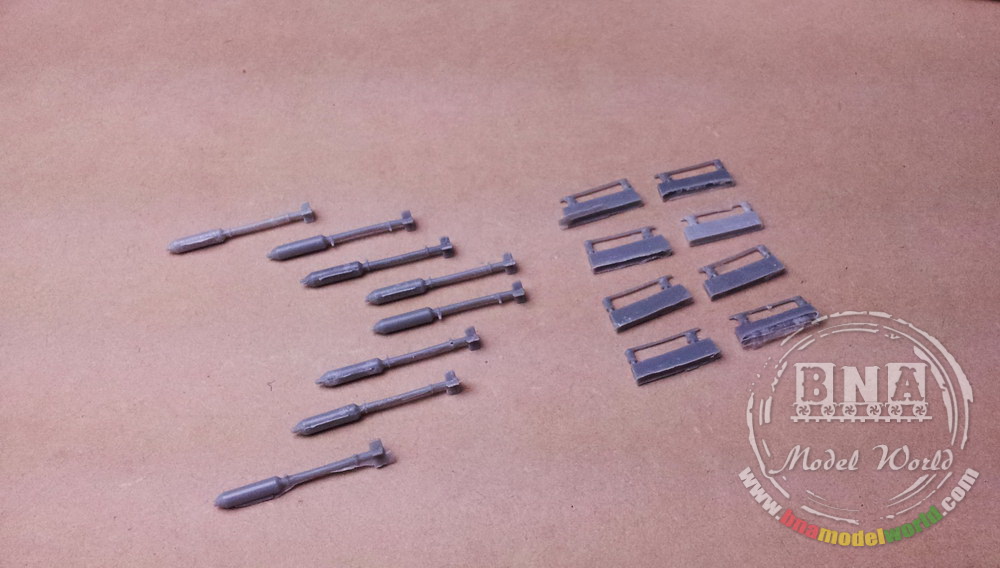

I think the shape of back side of the napalm warhead is a bit different. I found this by Red Roo Models, maybe it helps:





Edited by Kulbit80

Share this post


Link to post
Share on other sites

Just thought I'd mention this in case you have a rail fit problem. When I did the 60lb rockets for the Hurricane's I had to set the weapon diameter to the rocket motor (3in.) in the weapons editor. Nice rockets. I'll have to do a napalm for my 'What if' Mk.5b.

Share this post


Link to post
Share on other sites

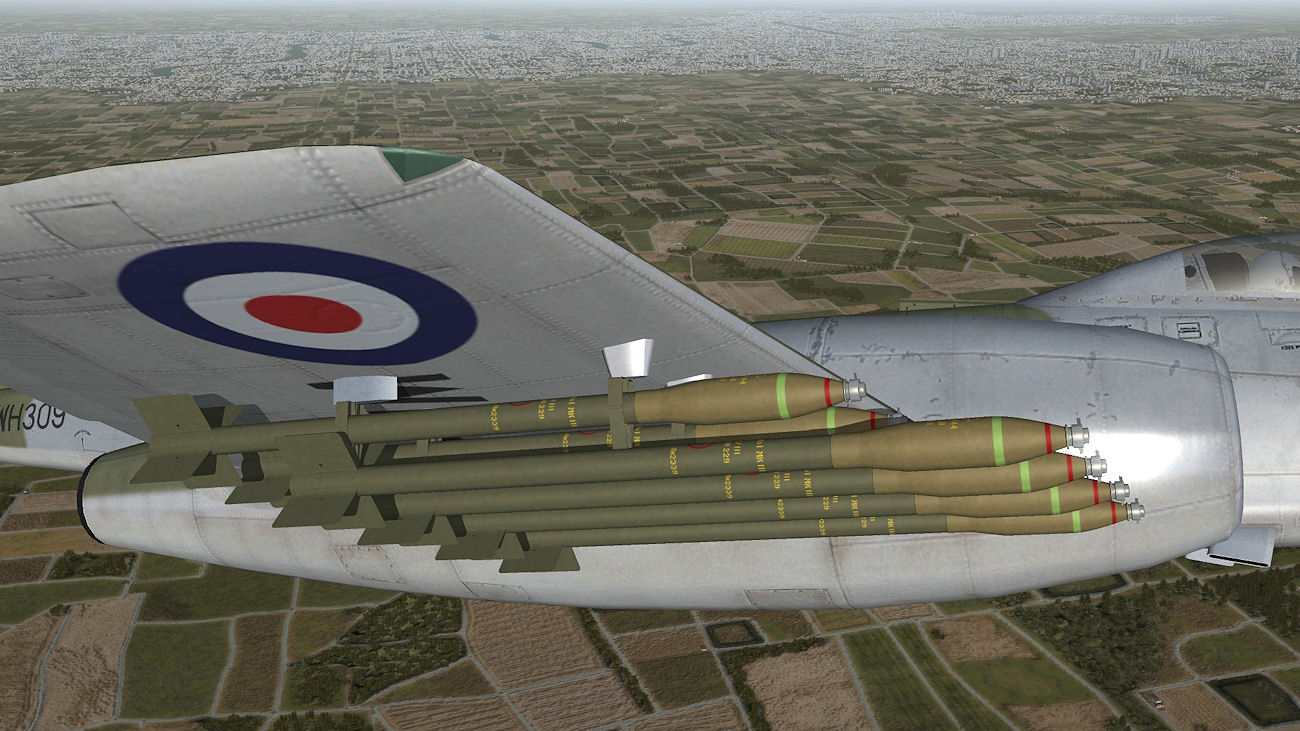

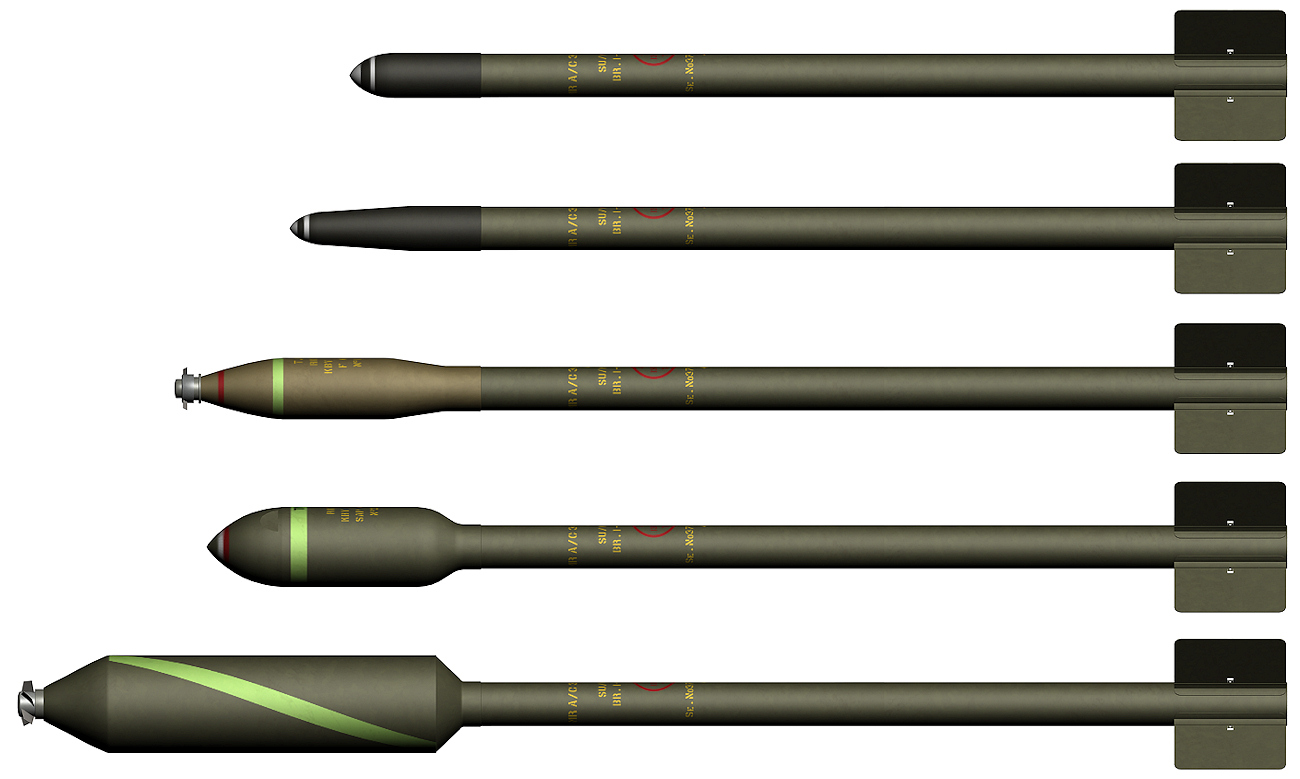

this what i have now , should be the most common versions of the 3inch rocket , but do sombody know the correct color coding for the napalm warhead

there are 2 versions the olive drab with 2 light colored stripes and the all over grey one , which version do you want to have and what color are the  2 light colored stripes ???



from top to bootom

RP-3 25Lb SAP

RP-3 25Lb AP

RP-3 60Lb FRAG

RP-3 60Lb SAP

RP-3 Napalm

-




if you like to have the practice version with the grey concret warhead let me know

Edited by ravenclaw_007
  • Like 4

Share this post


Link to post
Share on other sites

OMG! New family of the RP-3 rockets! :salute:



The shape of the napalm warhead (and others) is almost perfect now in my opinion. Colour is good as is, even the stipes (maybe they are light grey). I better like this one than all over grey.



Thank you very much Volker.

Edited by Kulbit80

Share this post


Link to post
Share on other sites

life can be so frustrating , i thought to fit the new rockets would be easy but guess what



the original TW rockets are way to short and as result of this the hardpoints are on the wrong place , now i have to figure out how to fix this

- the hardpoints are fixed Part of the TW model

- the position of the lower mounted rockets has to be moved forward and down





- original




- TW




- my new model


Edited by ravenclaw_007
  • Like 1

Share this post


Link to post
Share on other sites

How about removing  fixed hardpoints from plane and add them as fake rocket pod  that can carry RP rockets ?



edit:



This will cause of course adding them as group in RP, not as single RCKT but should be ok for external model view.

Edited by yakarov79

Share this post


Link to post
Share on other sites

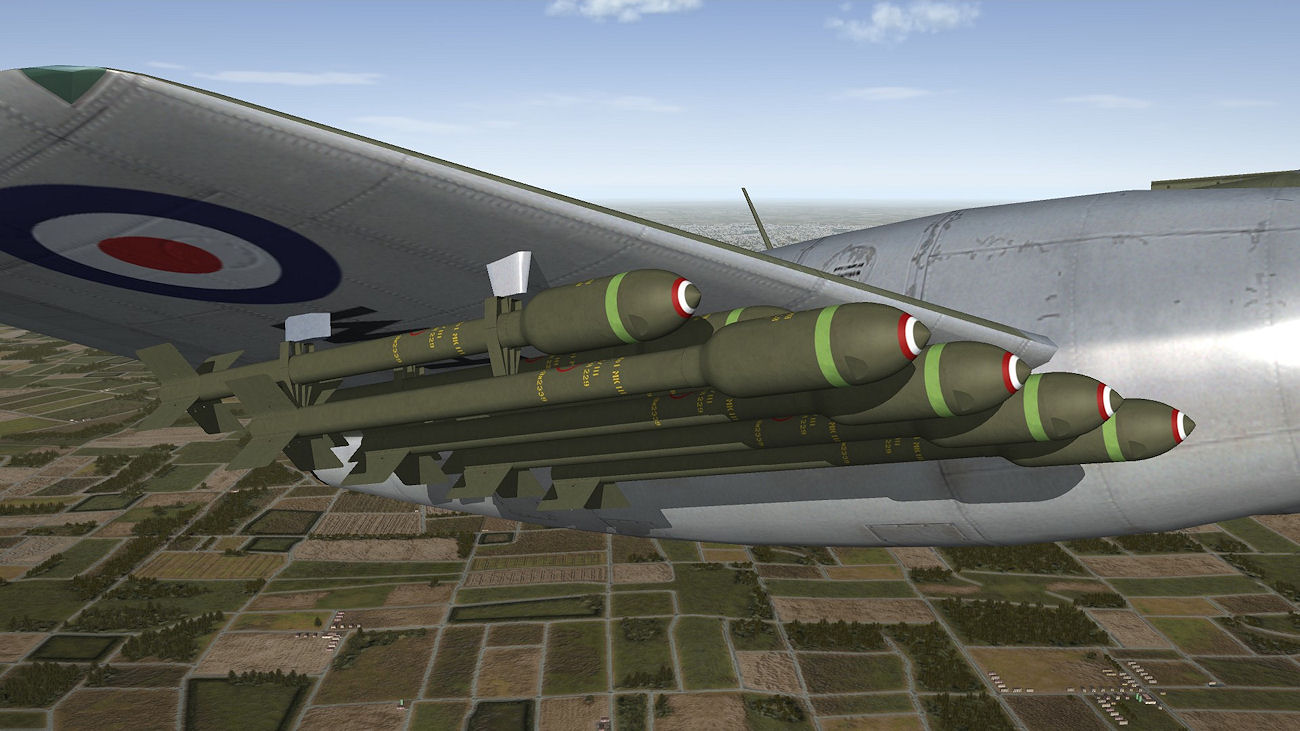

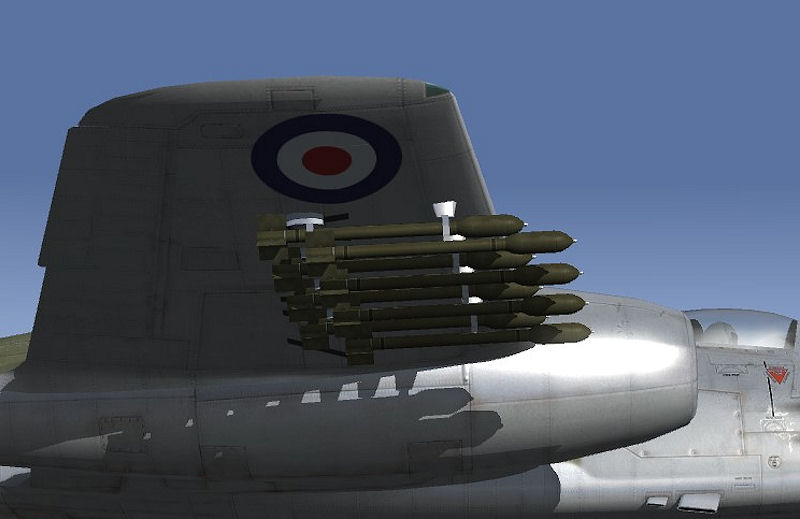

i think i have it now , i removed the TW adapter for the lower rockets and added a SpecificStationCode = TM for the lower rocket possitions



- there are now 2 types of rockets the one mounted to the pylons with the the mounting adapter and the one for the twin mount , the twin mount versions do not have the mounting adapter

- you can now fly with 8 or 16 rockets or even with a mix load if you like to

- if you use the napalm version dont use any twin mount options , because of the larger warhead all twin mount rockets will collide with the napalm warhead



this is still a BETA , i will add some more details to the rockets and make the training version with concrete warhead

RP-3.rar



this are the modified Data.ini and Loadout.ini , with out this ini`s the rockets will not work , please replace the existing one with this new ones

Meteor8 ini.rar

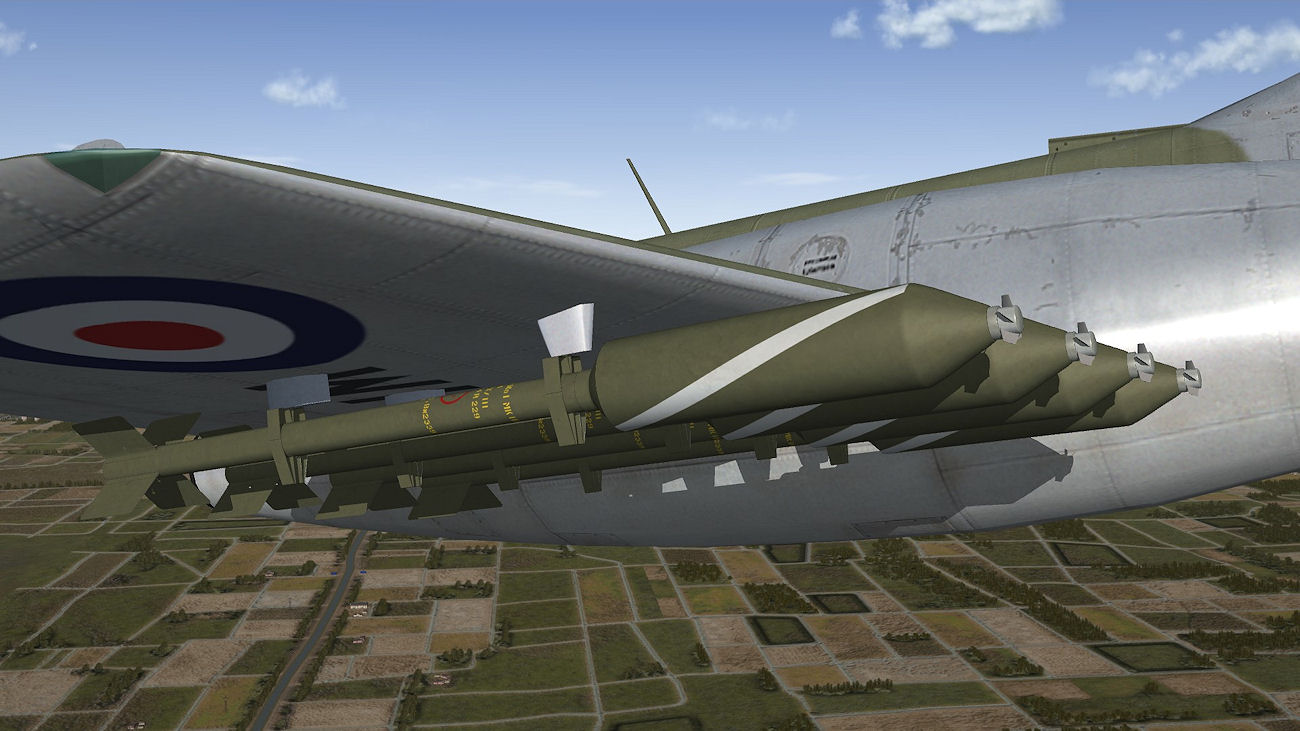

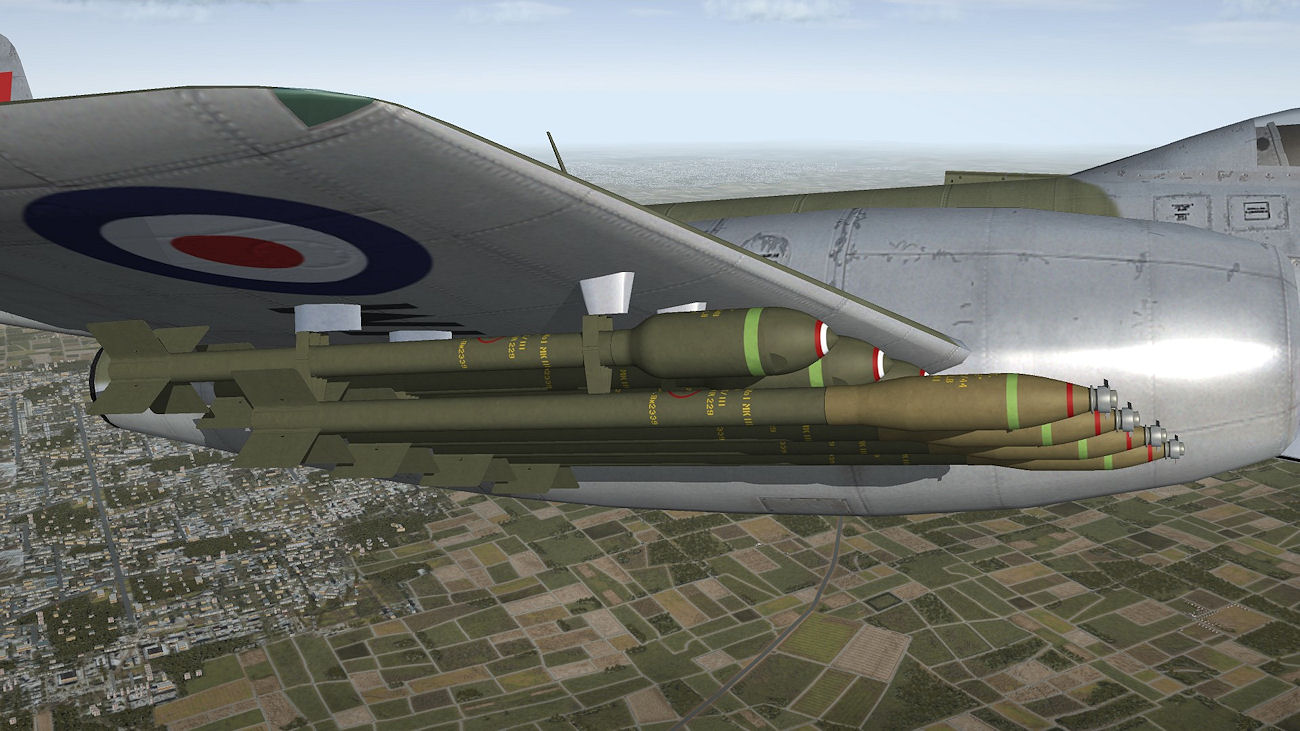

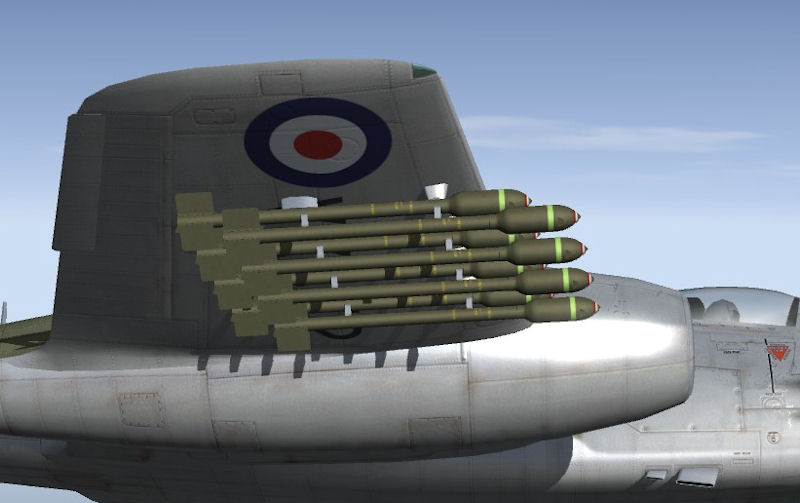

this is how it looks like now

-








if you find any error or if you have any suggestions please let me know , as i mention above this is still BETA version and your hint´s , suggestions or wishes  can still be added

- i did not find any info on how many fragments the FRAG warhead has , i set it to 50 clusters and a fuzing distance of 15 meters

- i also set the napalm rocket with a fuzing distance of 15 meters let me know if this is ok for you



have fun , Volker

Edited by ravenclaw_007
  • Like 4

Share this post


Link to post
Share on other sites

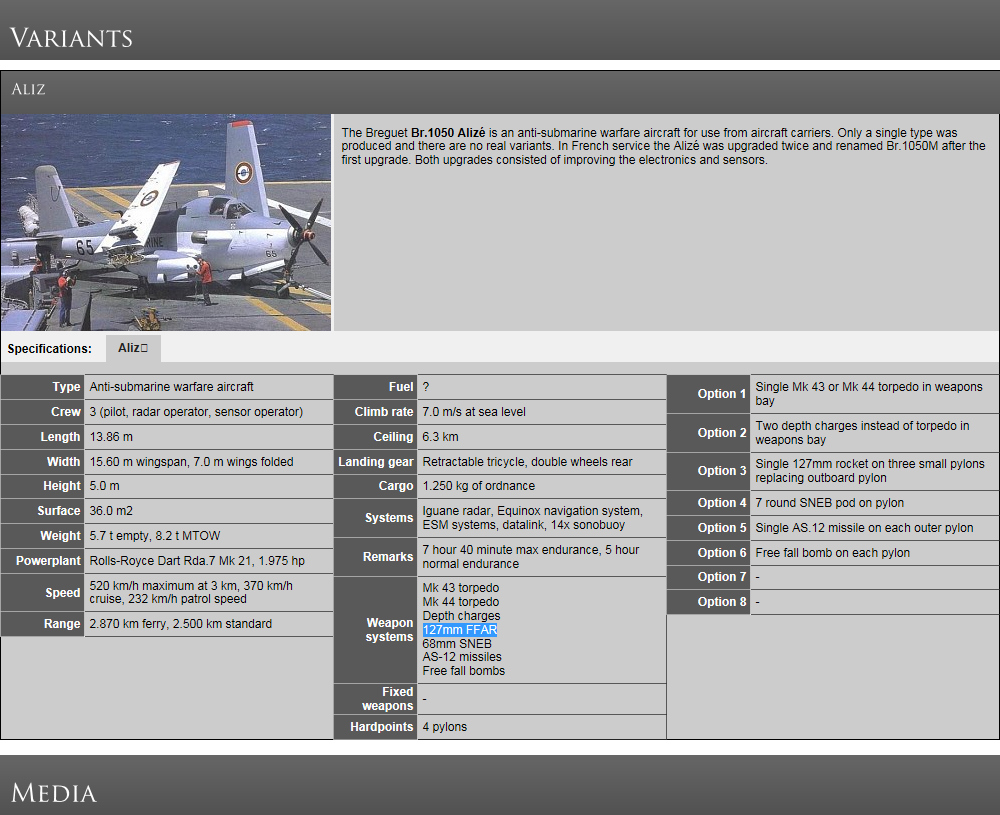

The French Navy seem to use only the RP-3 25Lb AP model for Anti Ship purpose aboard their Br.1050 & 1050M Alizés from 1961 to 1991 (6 Rockets on outboard wings pylons, single mount)

My wish now : can we have the a RP-3 25Lb AP rocket model without the mounting adapters, main body paint in white and the Warhead in red colors?.



Thank you in advance



no problem , do you have a picture of this rocket , the color seems a bit strange

Share this post


Link to post
Share on other sites

HEHE napalm rockets...... MUAHAHAHAHHAHAHAHAHAHAHAHAHA MUHAHAHAHAHAHAHAHAHAHH

Share this post


Link to post
Share on other sites

Raven did a bunch of RP-3 25 #ers for his Hurricanes. IIRC, they do have the rail "built in" (or on?). His RP-3 25 Mk.II-3 is an AP unit



might want to have a look at them maybe?



I can post the weapons folders, if anyone wants to check them out. I know one is just the rocket itself

Share this post


Link to post
Share on other sites

Eole this is not a RP-3 this is a larger 127mm FFAR (5 inch rocket ) , tis rocket is listet as weapon for the Alize



check for "Type T 14 de MATRA" maybe this is a derivative from it



i can make them but i would need some more info , are this US rockets or are they french made ??? how long are they ???



-


Edited by ravenclaw_007

Share this post


Link to post
Share on other sites
