Trying to graft GBU-40s to the JAS-39 Gripen

[JosefK 911]

Really doing my damndest to put GBU-40s on the Gripen.  First, let me show you why:



With that for inspiration first, I programmed this loadout in the JAS39_LOADOUT.INI:

Quote

[Small Diameter Bomb Self-Escort]
Loadout[01].WeaponType=IRIS-T
Loadout[01].Quantity=1
Loadout[02].WeaponType=IRIS-T
Loadout[02].Quantity=1
Loadout[04].WeaponType=Meteor
Loadout[04].Quantity=1
Loadout[08].WeaponType=Meteor
Loadout[08].Quantity=1
Loadout[11].WeaponType=GBU-40
Loadout[11].Quantity=4
Loadout[11].RackType=BRU-61
Loadout[16].WeaponType=GBU-40
Loadout[16].Quantity=4
Loadout[16].RackType=BRU-61
Loadout[21].WeaponType=LiteningIII
Loadout[21].Quantity=1
Loadout[22].WeaponType=Gripen_Tank
Loadout[22].Quantity=1

Second, I went into the JAS39_DATA.INI and made a few changes:

Quote



[Station11]
SystemType=WEAPON_STATION
StationID=11
StationGroupID=3
StationType=EXTERNAL
AttachmentPosition=-1.833,-0.80,-0.44
AttachmentAngles=0.0,-0.05,0.0
EjectVelocity=0.0,0.0,-5.0
LoadLimit=1250
AllowedWeaponClass=BOMB,LGB,EOGB,MER,TER,TLR,LGR,EOGR,FT,ARM,ASM,ATR,DLP,NP
AttachmentType=SWEDEN,NATO,USAF,UK,USN,ISRAEL
ModelNodeName=L_PylonIn
PylonMass=72.58
PylonDragArea=0.02
LaunchRailNodeName=L_In_mrail
LaunchRailHeight=0.15

. . .

[Station16]
SystemType=WEAPON_STATION
StationID=16
StationGroupID=3
StationType=EXTERNAL
AttachmentPosition=1.833,-0.80,-0.44
AttachmentAngles=0.0,-0.05,0.0
EjectVelocity=0.0,0.0,-5.0
LoadLimit=1250
AllowedWeaponClass=BOMB,LGB,EOGB,MER,TER,TLR,LGR,EOGR,FT,ARM,ASM,ATR,DLP,NP
AttachmentType=SWEDEN,NATO,USAF,UK,USN,ISRAEL
ModelNodeName=R_PylonIn
PylonMass=72.58
PylonDragArea=0.02
LaunchRailNodeName=R_In_mrail
LaunchRailHeight=0.15



So I'm a little, er, shocked I'm not seeing BRU-61 racks like above!

FYI @TempestII @viper63a @Stipe @JuanchoGomez @JonathanRL

Edited November 9, 2018 by JosefK
Tagging a few interested souls

[+daddyairplanes 10,137]

did you check nations in the BRU-61? it may help just to have it set with Sweden included

also whats the math on the bombs plus pylon? (looking at load limit)

sorry if not helpful, will check back later when can give more than a cursory glance (after work)



Edited November 15, 2018 by daddyairplanes

[Wrench 9,801]

also, is the bomb set to EXPORTED=TRUE?

[JosefK 911]

19 hours ago, daddyairplanes said:

did you check nations in the BRU-61? it may help just to have it set with Sweden included

also whats the math on the bombs plus pylon? (looking at load limit)

sorry if not helpful, will check back later when can give more than a cursory glance (after work)



Thanks @daddyairplanes I just added Sweden and the math is below the mass limit.



12 hours ago, Wrench said:

also, is the bomb set to EXPORTED=TRUE?

Thanks @Wrench, the GBU-40 bomb set was.  I changed the BRU-61 rack to such.

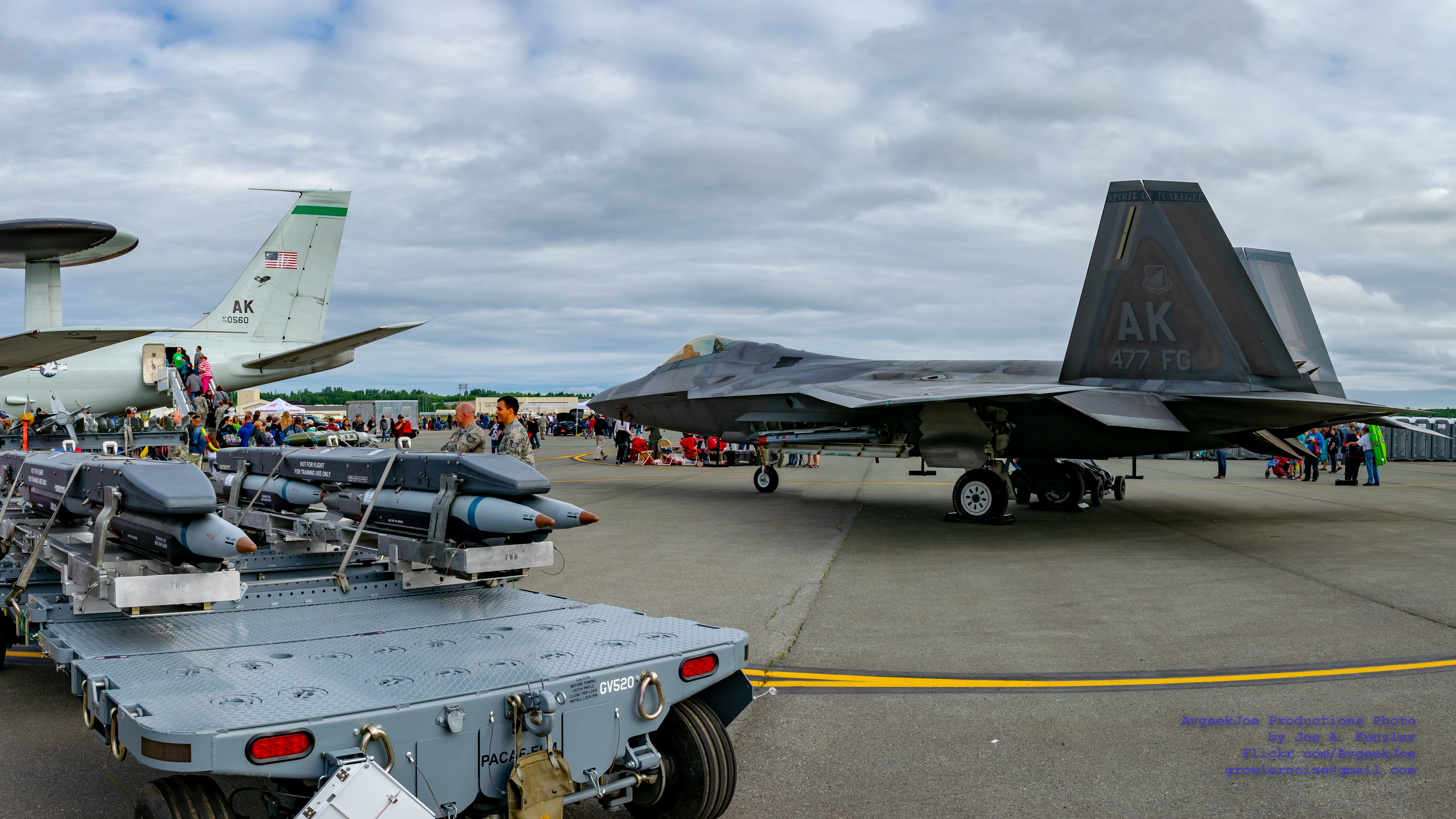

Really obvious the rack should always be available when the SDBs are too since I've never seen a single Small Diameter Bomb stuck to a jet but always with the rack.  See my panorama from an airshow with the F-22...



[JosefK 911]

OK guys, I got somewhere close - heckfire I got an 85% answer to the problem.  Helps when I browsed the extensive forums some more... and found this thread with @FastCargo's answer to give me some ideas:

So from there first, I went into JAS39_LOADOUT in Notepad and added this:

[Small Diameter Bomb Self-Escort]
Loadout[01].WeaponType=IRIS-T
Loadout[01].Quantity=1
Loadout[02].WeaponType=IRIS-T
Loadout[02].Quantity=1
Loadout[04].WeaponType=Meteor
Loadout[04].Quantity=1
Loadout[08].WeaponType=Meteor
Loadout[08].Quantity=1
Loadout[11].WeaponType=GBU-40
Loadout[11].RackType=BRU-61
Loadout[11].Quantity=4
Loadout[16].WeaponType=GBU-40
Loadout[16].RackType=BRU-61
Loadout[16].Quantity=4

Second, I went into the JAS39_DATA and made a few changes...

[Station12]
SystemType=WEAPON_STATION
StationID=12
StationGroupID=3
StationType=EXTERNAL
AttachmentPosition=-1.833,-0.80,-0.46
AttachmentAngles=0.0,-0.05,0.0
EjectVelocity=0.0,0.0,-2.0
LoadLimit=1134
AllowedWeaponClass=ARM,EOGR,LGR,TLR
AttachmentType=SWEDEN,NATO,USAF,UK,USN,ISRAEL
ModelNodeName=L_PylonIn
PylonMass=72.58
PylonDragArea=0.02
LaunchRailNodeName=L_In_mrail
LaunchRailHeight=0.15

. . .

[Station17]
SystemType=WEAPON_STATION
StationID=17
StationGroupID=3
StationType=EXTERNAL
AttachmentPosition=1.833,-0.80,-0.46
AttachmentAngles=0.0,-0.05,0.0
EjectVelocity=0.0,0.0,-2.0
LoadLimit=1134
AllowedWeaponClass=ARM,EOGR,LGR,TLR
AttachmentType=SWEDEN,NATO,USAF,UK,USN,ISRAEL
ModelNodeName=R_PylonIn
PylonMass=72.58
PylonDragArea=0.02
LaunchRailNodeName=R_In_mrail
LaunchRailHeight=0.15

Third, I went into the rack BRU-61 folder in Objects-Weapons to get the SDB rack.  Went in and added "SWEDEN" to attachment type:

AttachmentType=NATO,USAF,USN,SWEDEN



The final result as of 17 November 2018 that clearly at a later date requires some fine tuning:
