About This File

July 2020
===============

Hellenic Air Force F-5A Freedom Fighter Volume I VERSION 1.0
------------------------------------------------------------

F-5A variants included in the Package:

HAF F-5A standard version (1965 - 1974)
HAF F-5A with Martin Baker IRQ-7a ejection seat  (1975 - 1999)
HAF Rf-5A reconnaissance variant with 4 K-92a cameras

We are proud to present the F-5A HAF Volume I, the first of many to come, focusing on one of the most enduring American military aircraft designs ever produced during the Cold War period. This first Volume depicts the following Hellenic Air Force variants; the HAF F-5A standard, the HAF F-5A with the Martin Baker IRQ-7a ejection seat, and the HAF RF-5A reconnaissance variant. It has been our goal to provide to the simmer a highly detailed model and texture base which preserve the beautiful lines of this aircraft; and to engineer flight files and a cockpit/gauge file-set that are authentic and add to the immersion of the flying experience within the Strike Fighters 2 series.



INSTALLATION INSTRUCTIONS:
--------------------------

1. Copy the contents of the "To Mods Folder(S)" to your SF2 Mod directory.
Allow directory merging and overwrites, provided the overwrites pertain to "fake pilot" entries, as well as weapons made by ravenclaw_007, which are included in this and many other releases.

2. Add the entries of "ADD_TO_SOUNDLIST.txt" to your SOUNDLIST.INI (located in the "user\Saved Games\ThirdWire\StrikeFighters2\Flight" folder).If one does not exist, then you will need to extract it using the 3rdWire CAT extract utility.  You are simply required to substitute the "XXX"s  with the next sequential number in the sound file section of the file.

  NOTE    1:
------------

Both Regular and Higher resolution cockpit textures are included in their own distinct folders in the package.
The user may alternate between the two by "commenting out"
the relevant line in the F-5A_STANDARD_COCKPIT.ini


[CockpitData]
//Directory=cockpit
Directory=cockpit_Lo-Fi    <---This is the default


In order to "activate" the higher resolution textures
you would decomment the previous line and comment out
the next line, thus:


[CockpitData]
Directory=cockpit          <---This is now Hi-Res
//Directory=cockpit_Lo-Fi


  NOTE    2:
------------

Another frame-rate friendly option for those with older hardware is to use the Next level of Detail Model as the primary external model. This simply involves changing the first line in the F-5A_HAF.ini  from this..

[LOD001]
Filename=F-5A_STANDARD.LOD

to this..

[LOD001]
Filename=F-5A_STANDARD_002.LOD

Much effort was made to provide those with lower end systems an alternative lower poly-model to be able to enjoy the F-5a,  so please take advantage of this _002.LOD model should you experience frame-rate issues.  While not as "rounded" as the Higher poly version, it is nonetheless just as detailed and extensive.

 NOTE    3:
------------

For those who may find loading times excessive, the .jpg files in the texture folders can be reduced to 50% of their size without sacrificing too much surface detail.

 Keys:
-------
SHIFT+0 -> canopy open



CREDITS:

sophocles          - 3D Model, Cockpit, textures
ravenclaw_007  - 3D Modeling, Animations, Weapons,textures
baffmeister        - Flight model, testing
crusader             - Avionics and data tweaks, Beta testing
Guuruu                - Sounds and Afterburner effects, Beta testing

Guest contributors:

Alfa2                  - Loadouts and a wealth of info on the HAF variants.
gkabs                 - pilot figure


Special Thanks to the staff and members of Combatace.com whose passion and efforts have enabled this game to endure, and to provide so much fun and excitement!
Additionally, many thanks to the following Combat-Ace Modders, who either actively contributed to the project over the years, or who invested their time either providing much needed hints and help, or researching various aspects of the model.

Brain-32             - Modeling advice, initial cockpit.cfg + more
NeverEnough    - Initial work on the Flight model
Russouk2004    - Always answering questions when I needed help..Cheers!!
Dag                      - RoNAF textures and research (to be included in a dedicated  future RoNAF F-5a module)
Derk                     - Many, many references!!!
Blade                   - Excellent mini-tutorial on damage textures

Finally, thanks to TK and Thirdwire for creating such a fantastic game.



****************************************************************

FEATURES:

* Three model set including the HAF F-5A standard version (1965 - 1974), the  HAF F-5A with Martin Baker IRQ-7a ejection seat  (1975 - 1999), and the  HAF RF-5A reconnaissance variant with 4 K-92a cameras; each with their own custom loadouts.

* Three, highly detailed external 3d models, including the RF-5A, whose nose was graciously modeled by ravenclaw_007.

* Specular color and Normal (bump) maps on all models

* Seven Level of Detail models (LODs) for each model, providing an almost seamless transition from distance to distance; and perhaps more importantly, ensuring that the frame-rate "impact" of the aircraft is as low as possible.

* Two sets of highly detailed external Fuel Tanks by ravenclaw_007; both the Factory variety and the Sargent Fletcher variants.

* Fine-tuned flight parameters in three distinct aircraft data configuration files  for all 3-D models, emphasizing the F-5A's agile and highly maneuverable characteristics - courtesy of  Baffmeister.

* 8 high resolution texture sets; thoroughly researched historic depictions of the Aircraft fielded by many HAF Wings and Squadrons.

* Quality sound-set included. Base sounds, by Guuruu, were sourced from existing recordings of various aircraft at air-shows and were modified  to match the prominent characteristics of the F-5A General Electric turbojets, the "buzz" of the M39 Pontiac 20mm machinegun, and the flap/Air-brake, undercarriage deployment and retraction sequences of the Freedom Fighter.

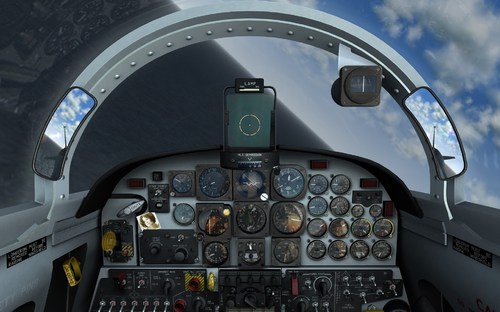

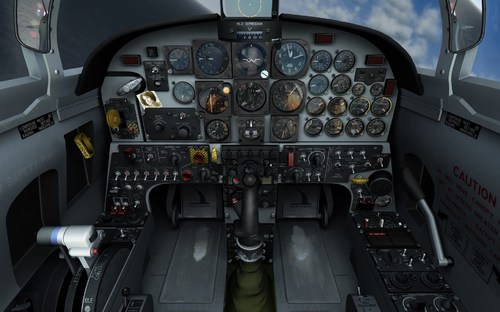

* Super detailed  'Virtual Cockpit'  with animated throttle control, rudder pedals, control stick,  landing gear lever, canopy, canopy lever, drag-chute lever, weapons selectors and weapon station arming flick switches.

*Accurate and functional representation of the Norair F-5A gun sight, with animated Mils selector and accompanying animated combining glass. (Mechanics by Crusader)

* A full complement of highly (or should I say "insanely" detailed  HAF weapons carried by the HAF F-5A, all by ravenclaw_007.

* Complex animation of canopy opening mechanism, and animated Turbine blades; both thanks to ravenclaw_007

* GKAB's superb highly detailed crew figure with authentically modeled oxygen mask and flight helmet.

* All new afterburner, emitter, and engine smoke effects by Guuruu.


******************************************************

PILOT NOTES
-----------


F-5A Limit and Reference Speeds. [Indicated Airspeeds]

FLAPS: 300kts for both leading and trailing edge.

       NOTE: The F-5A uses full flaps for take off but due to a game bug you must manually select full flaps for take off when player flown. The        AI will use full flaps although you can hear the flap sound cycling between flap 1 and flap 2.

LANDING GEAR: 240kts

DRAG CHUTE: 165kts

CANOPY: 50kts

NOSE WHEEL STEERING: 65kts

MAXIMUM INDICATED AIRSPEED: 710kts [redline]

MAXIMUM MACH: 1.72 Mach design limit but thrust/drag limited to about mach 1.50 in a 60deg dive from 50,000ft.

--------------------------------------------------------------------------------------------------------------------------------

TAKE OFF ROTATION SPEEDS

    13500lbs: 155kts [full internal fuel and two sidewinders]

    20500lbs: 195kts [about the maximum weight possible with included stores]

    NOTE: Use full flaps for take off! Adding 6kts for every 1000lbs above 13500lbs should give good aft stick/rotation speeds.

--------------------------------------------------------------------------------------------------------------------------------

CLIMB SPEEDS

Military Power

    13500lbs: 375kts with a transition to mach 0.89

    20500lbs: 310kts with a transition to mach 0.74

Maximum Power

    13500lbs: 595kts with a transition to mach 0.93

    20500lbs: 480kts with a transition to mach 0.85

-------------------------------------------------------------------------------------------------------------------------------

FINAL APPROACH SPEEDS

    With 500lbs fuel remaining and some empty racks use 160kts. Add 5kts for every additional 500lbs of fuel.

    NOTE: Target touch down speed is 20kts less than final approach speed.

-------------------------------------------------------------------------------------------------------------------------------



*************************************************************

THIS AIRCRAFT MOD OR ANY PART OF IT ARE TO BE EXCLUSIVELY HOSTED BY COMBATACE.COM AND MUST NOT BE HOSTED OR POSTED FOR DOWNLOAD ON ANY OTHER WEB SITE. THIS PACKAGE AND ANY PARTS HEREIN MAY NOT BE UPLOADED AS PART OF ANOTHER MOD NOR MUST THEY BE SOLD OR OFFERED FOR SALE EITHER IN PART OR AS A WHOLE WITHOUT MY EXPRESS PERMISSION.

*************************************************************

Sophocles
July 2020






User Feedback

Recommended Comments

The general mods existing today, let me astonished.
Nice LODs, HQ textures, a lots of passion involved, change completely the SF2 experience.

Thanks to all!

  • Like 1
  • Thanks 1

Share this comment


Link to comment
Share on other sites

nice skins, nice model, nice detailed cockpit. BRAVO!

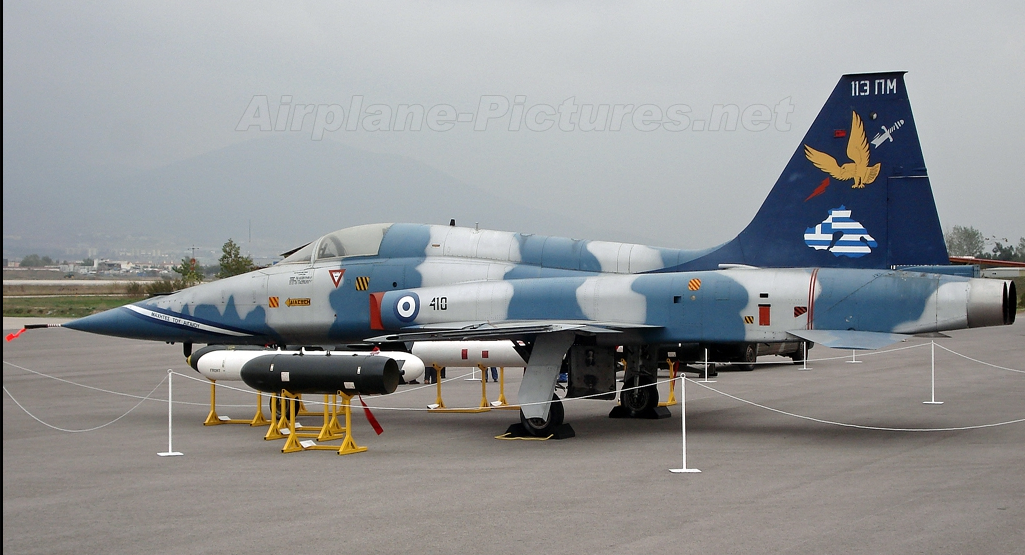

Can you do this beautiful Greek skin in the future?
