Recommended Posts

Posted

i wonder if it's possible to link deployment of the refueling hoses to airspeed, as opposed to gear retraction??? Say, have them extend around 200 knots??

  • Like 1
Posted
On 2/23/2021 at 5:52 PM, Wrench said:

i wonder if it's possible to link deployment of the refueling hoses to airspeed, as opposed to gear retraction??? Say, have them extend around 200 knots??

possible yes, the KC-135As boom is set by airspeed


[Refuel]
SystemType=HIGHLIFT_DEVICE
DeploymentMethod=AUTOMATIC_MACH
CD0=-0.0010
Setting[1].Angle=0.0
Setting[1].DeployValue=0.00
Setting[1].RetractValue=0.32
Setting[2].Angle=90.0
Setting[2].DeployValue=0.240<<<<<<<<<
Setting[2].RetractValue=0.235<<<<<<<<<
MaxDeflection=90.0
MinDeflection=0.0
ControlRate=0.5
AnimationID=8
//ReverseModelOrientation=TRUE

i set the particular arrowed values on mine because of the hose drogue attachment (a "gunpod set many feet below the tanker"), it gets the boom lined up with the hose and drogue quickly

but if the hose and drogue animation are part of the model, no sweat and the speed can be bumped up some if a hose and drogue pod is used, then not so much. but responses are limited

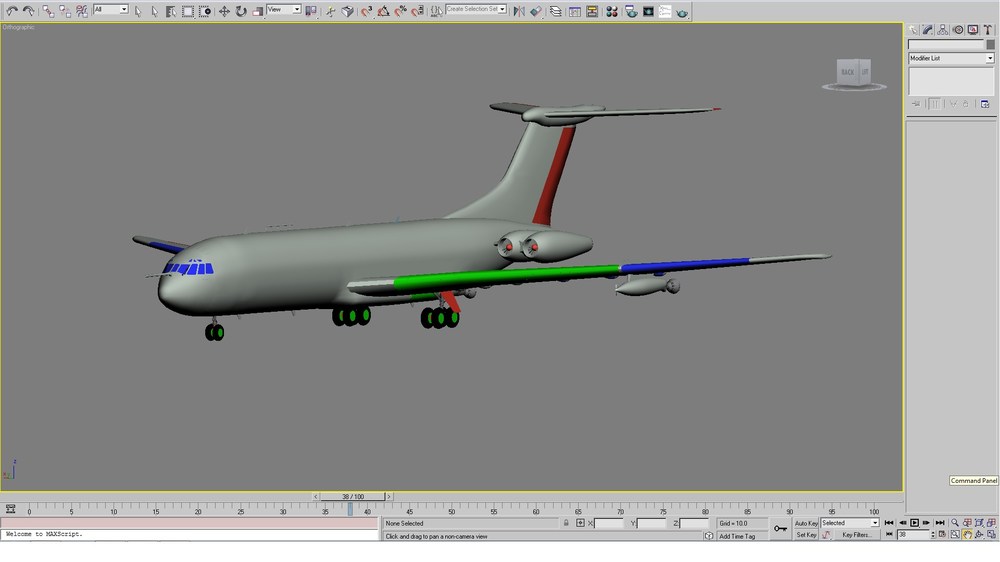

V2K, will the hose be a part of teh model, and set to airspeed? That, detective, is the right question

  • Like 1
Posted

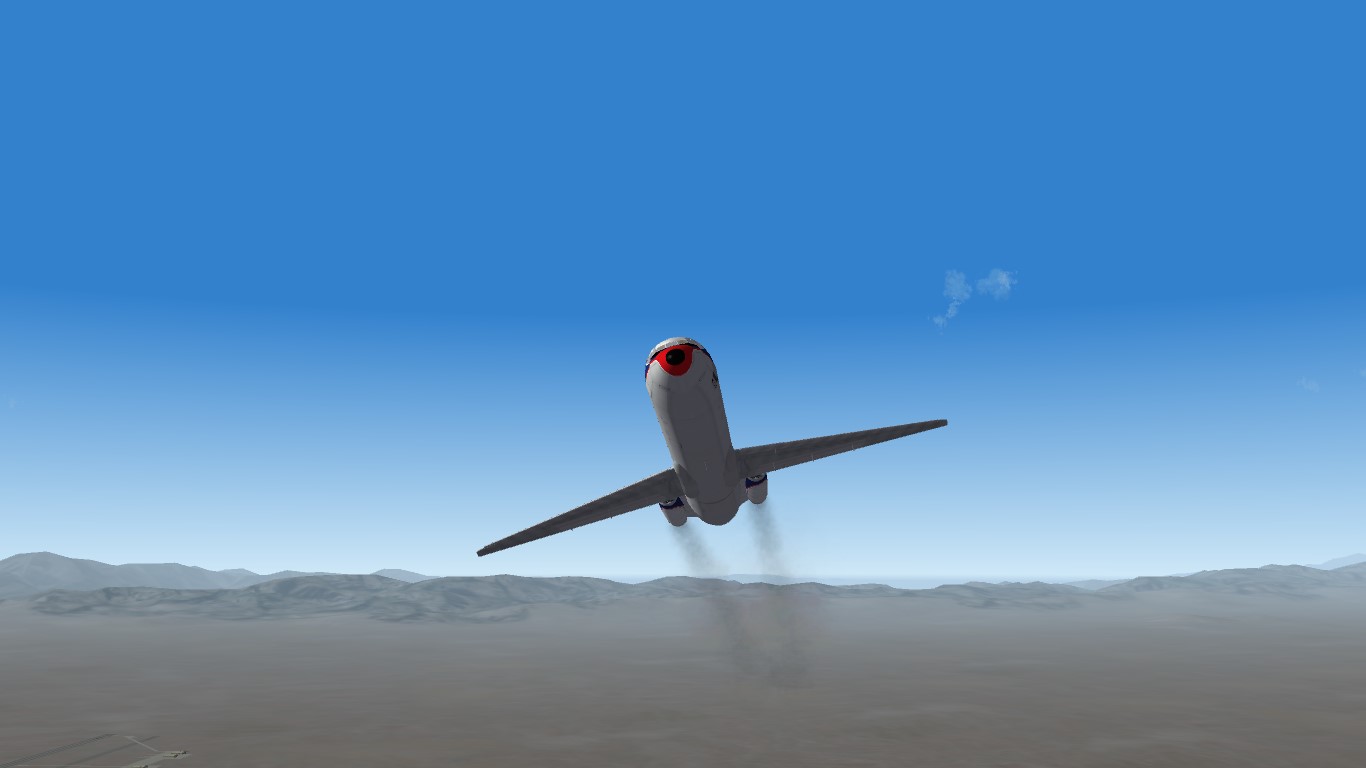

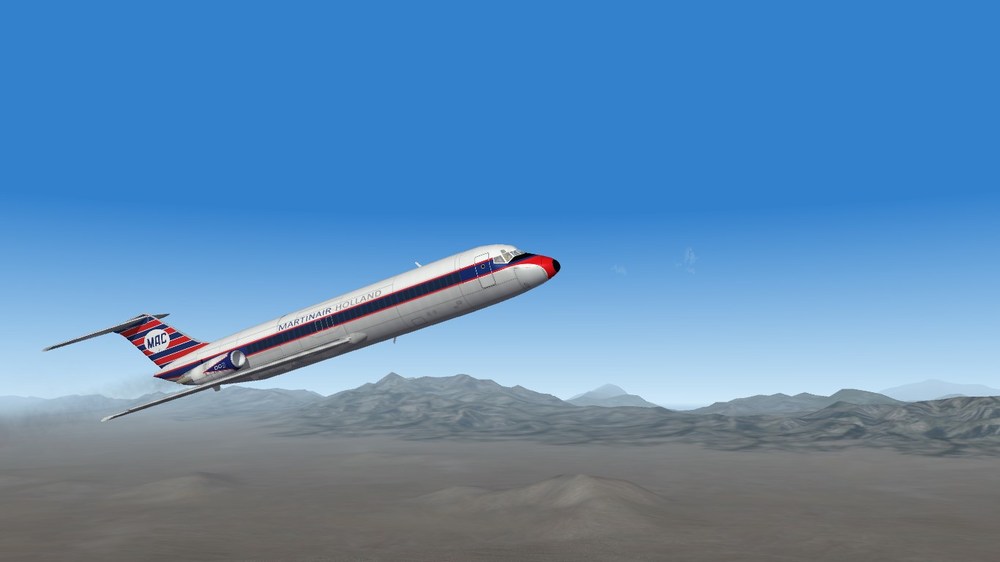

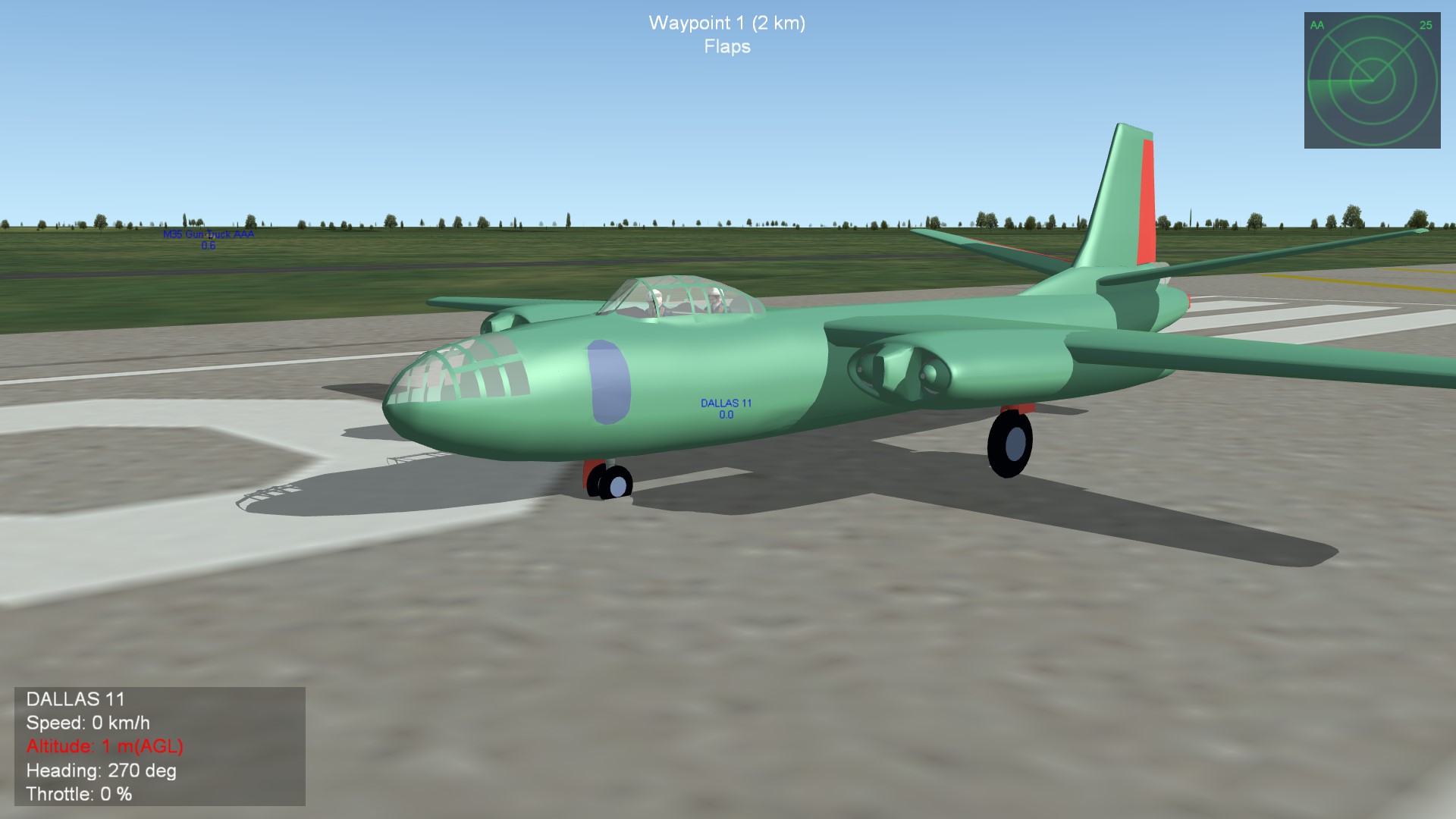

was a pain gettin there, but this is the sharpest one yet imo.  lotta scratch- ish detail work




if this modding thing doesnt work out, might want to try making obscure airline decal sheets before getting the number to that truck driving school on tv



  • Like 5
  • Thanks 1
  • Haha 1
Posted

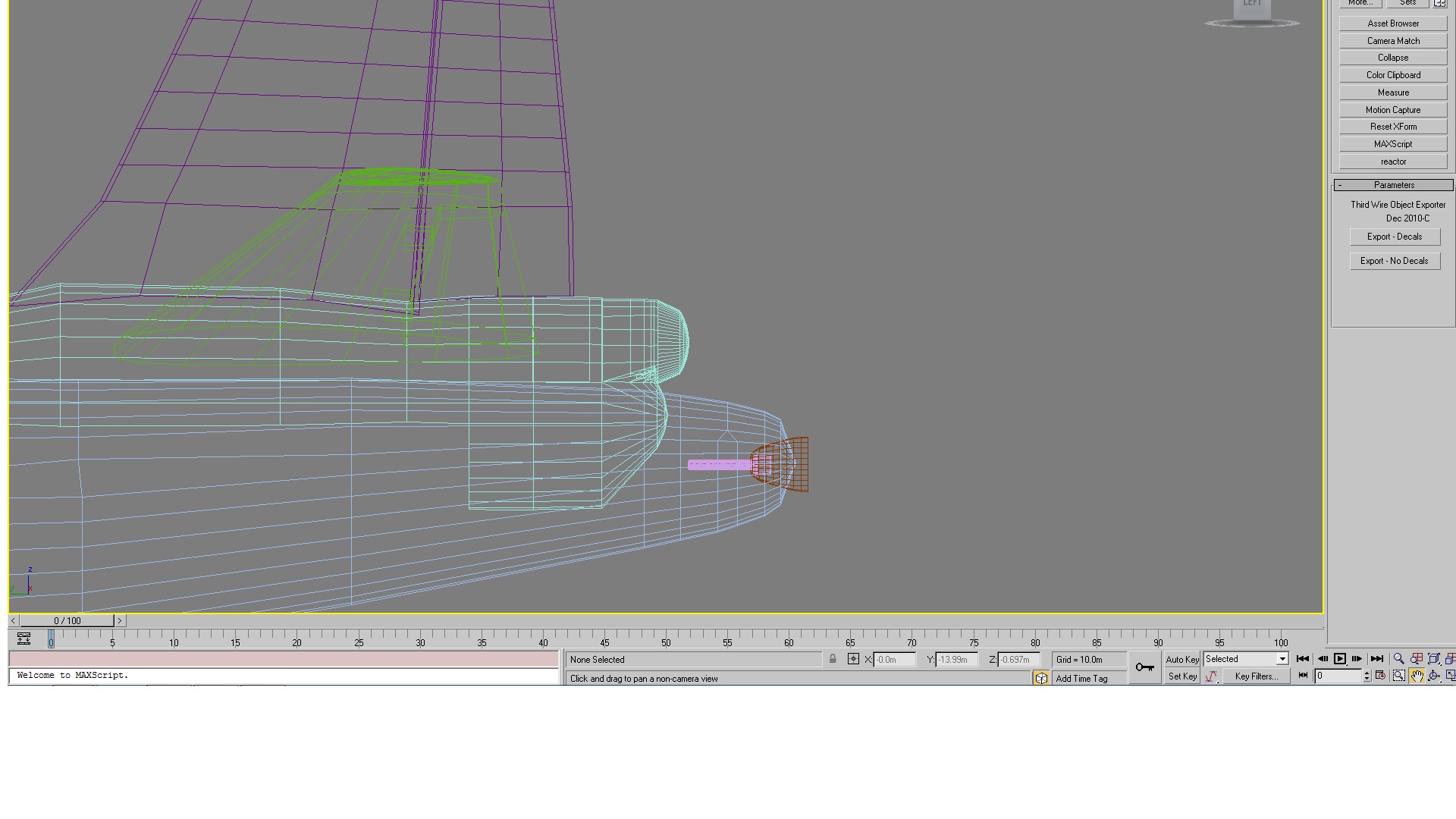

rear turret is acting funny, i do have it backwards in the mesh

[tailGunner]
SystemType=GUNNER_STATION
PilotModelName=
SeatID=4
GunnerID=1
SetCockpitPosition=FALSE
Position=-0.100,-19.799,0.438
PitchModelNodeName=TTUrret
YawModelNodeName=TTUrret
GunRange=2500
PitchAngleRate=45
MaxPitch=50
MinPitch=-40
DefaultPitchAngle=10
YawLimited=TRUE
YawAngleRate=45
MaxYaw=237
MinYaw=123
DefaultYawAngle=180



  • Like 2
Posted (edited)
2 hours ago, russouk2004 said:

not sure but iirc you have to swap pivot around like a helo rotor not 100% sure tho

Thanx Russ,,,the answer was in front of my face all the time and didn't think of it " old age is a bitch "  :stars: :drinks:

Edited by Veltro2k
