Decals positioning !

[Lacsap]

Hello everyone

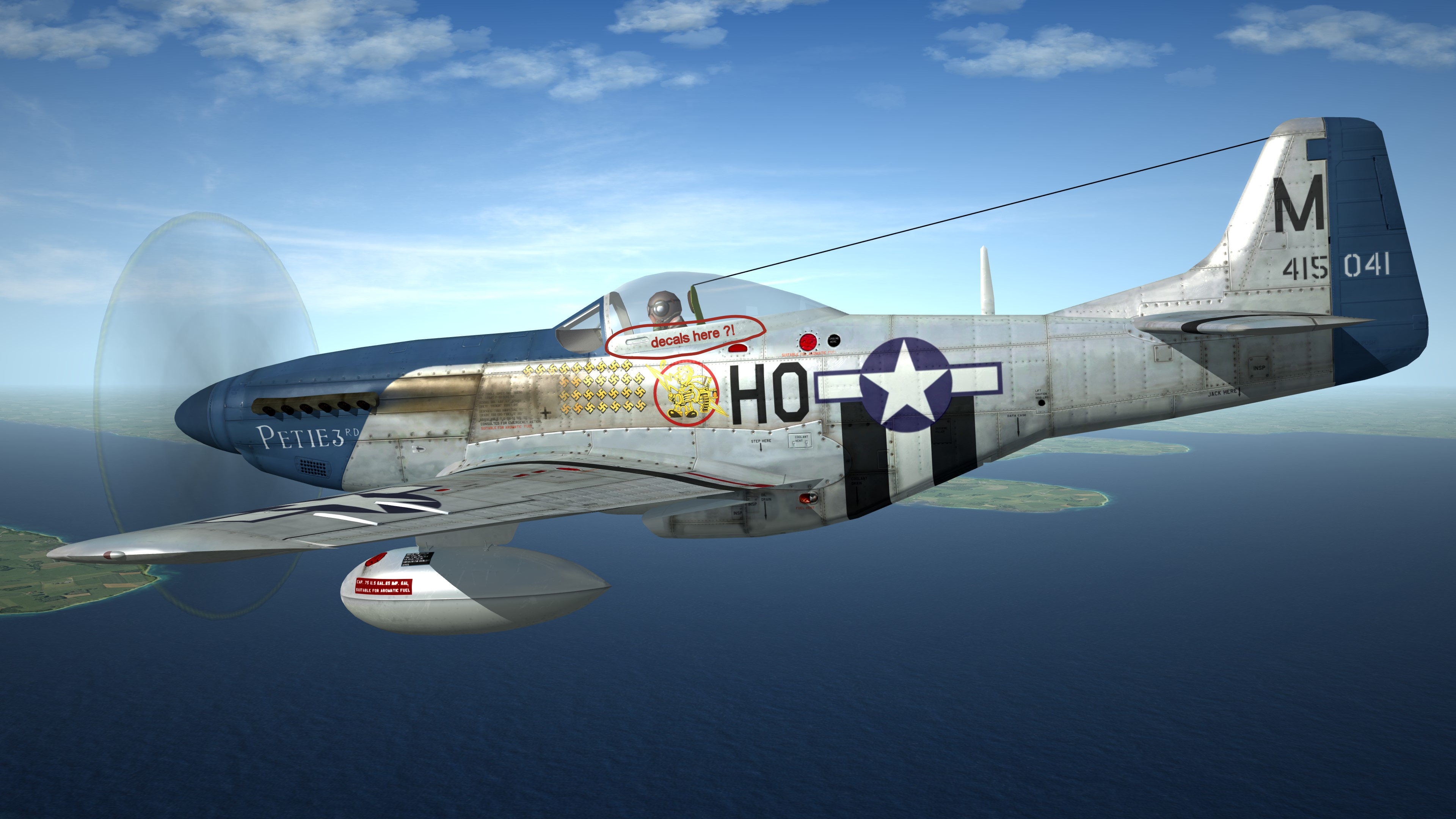

Please, need a little help, i can't find the right coordinates for the positioning of decals on the canopy F-51D from FastCargo.

Thank you in advance for your reply.

[+daddyairplanes]

presuming the kill markings are decals, work your way backwars from there

however, are you putting int the correct mesh name? that is even more common for a side decal not to show than coordinates being off

[+Soulfreak]

You should use Mue´s lodviewer.

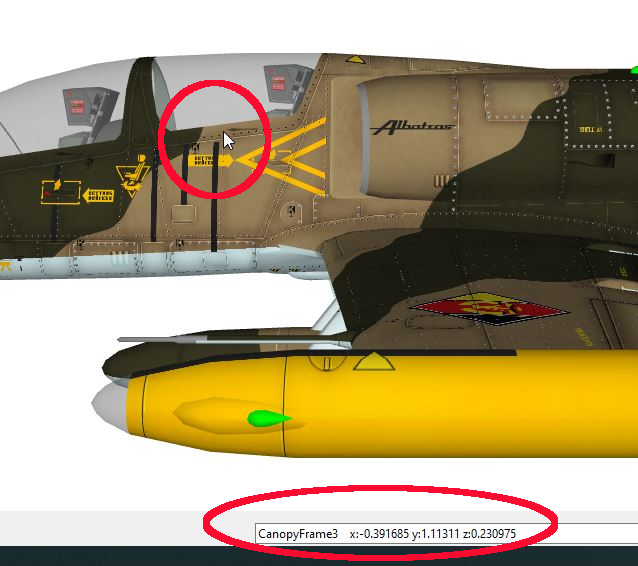

if you go with the mouse on the point, it shows you on bottom of the program the mesh name & coordinates!

See the red marked parts of the pic.



Edited August 14, 2024 by Soulfreak

[Wrench]

Yes, get the lod viewer!!! It's a mind saver! Once you start, you'll never stop using it. #1 tool for texture artists.

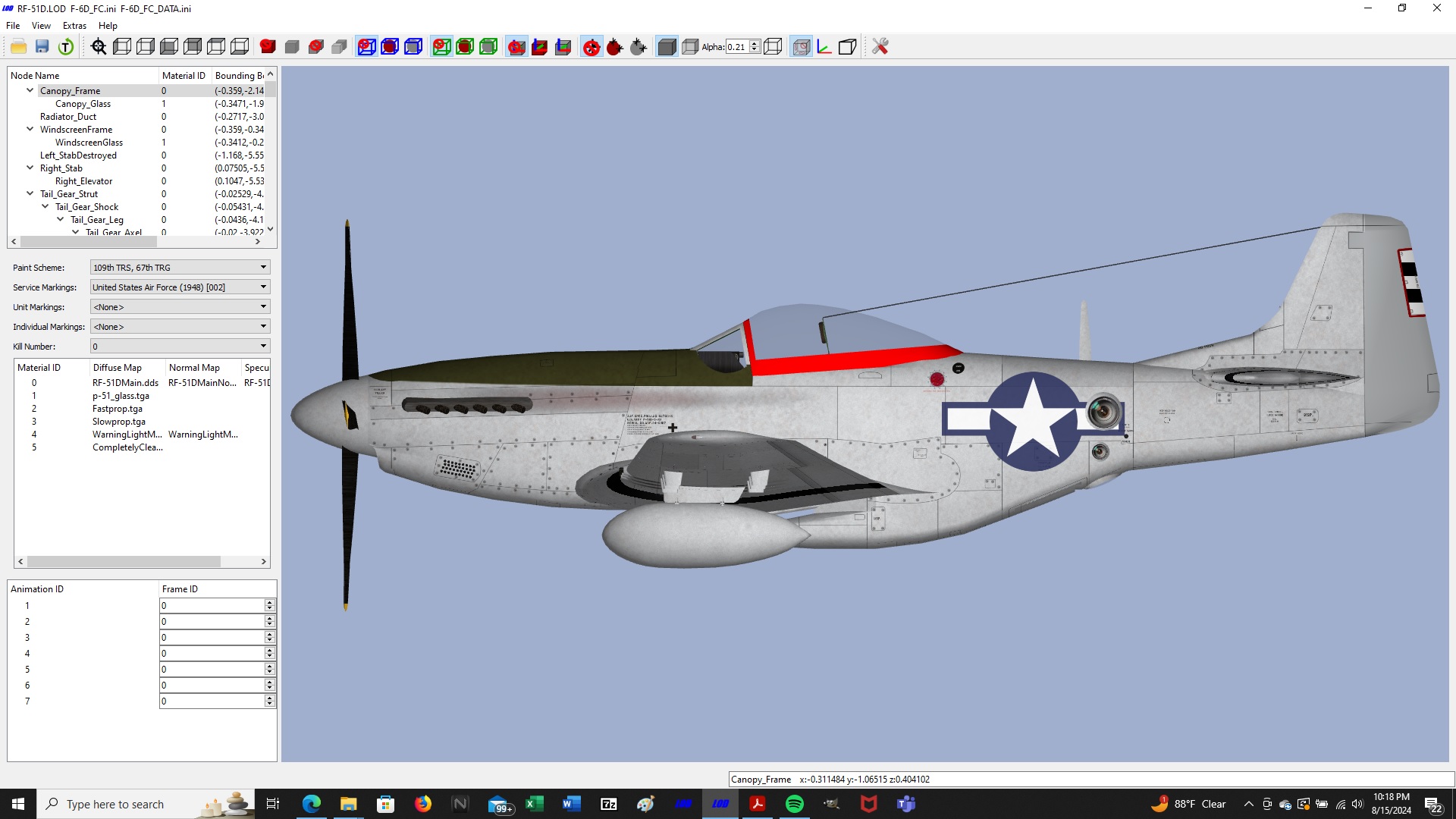

Canopy_Frame  is the mesh name

also, remember that 'crew names' are Level=2 decals, linked to the serial or plane-in-squadron number/letter

[Lacsap]

Thank you all very much for your answers. I'll try Mue´s lodviewer !!! :)

[PeacePuma]

it's a good time to remember the heroic jobs that were done without Mue's LOD viewer... a real challenge to the mind, calculate the coordinates, scales, discover the blessed meshes, annotate on paper, edit the file and start the game again and again just to say.... D'oh !

[Wrench]

I was the king of that, for a long time!!!

[PeacePuma]

Once I increased so much the scale of a zero that the eye (counter) was in the center of the mesh, it was at least 2 hours that I did not understand where the decal was, I had not understood that it was giant and it was around... the search for perfection took quite a long time, in which many times I fell asleep waiting to start the game and overcome that 45% load to only see that the serial number was finally well placed...   Mue's tools have been a relief to that hard process... when they invent the Combatace awards, I'll give my vote to give you a well deserved trophy!



Edited August 14, 2024 by PeacePuma

[+daddyairplanes]

i mean i've made some big decals, and scaled some up pretty big. but damn......

personally (myself and helping others) i find small errors are what zonk decals most often. calling for a mesh duselage rather than fuselage. forgeting to swap the minus sign when doing wings. having two entrys for say Decal007 (i often have one style "tailNum" then an alternate "bossTail" in the exact same spot using the same size tga)

[amariani]

Try these:  y:-1.06515  z: 0.404102.

Keep in mind that for the side views you only need y and z coordinates. Also, usually, just 2 decimals are enough for most applications. AND remember to use the proper mesh name, in this case, "Canopy_Frame".

[ValAstur]

On 14.8.2024 at 8:36 PM, PeacePuma said:

it's a good time to remember the heroic jobs that were done without Mue's LOD viewer... a real challenge to the mind, calculate the coordinates, scales, discover the blessed meshes, annotate on paper, edit the file and start the game again and again just to say.... D'oh !



On 15.8.2024 at 12:25 AM, Wrench said:

I was the king of that, for a long time!!!

I also did most of skins with paint and check ingame. Man! That was a time-consuming thing back then! And even with the Lodviewer existing, I kept doing that for a while. It was @Stratos who told me to use the LODviewer for improving my skinning skills and time.

[+daddyairplanes]

6 hours ago, ValAstur said:

I also did most of skins with paint and check ingame. Man! That was a time-consuming thing back then!

i know that pain. imagine doing this

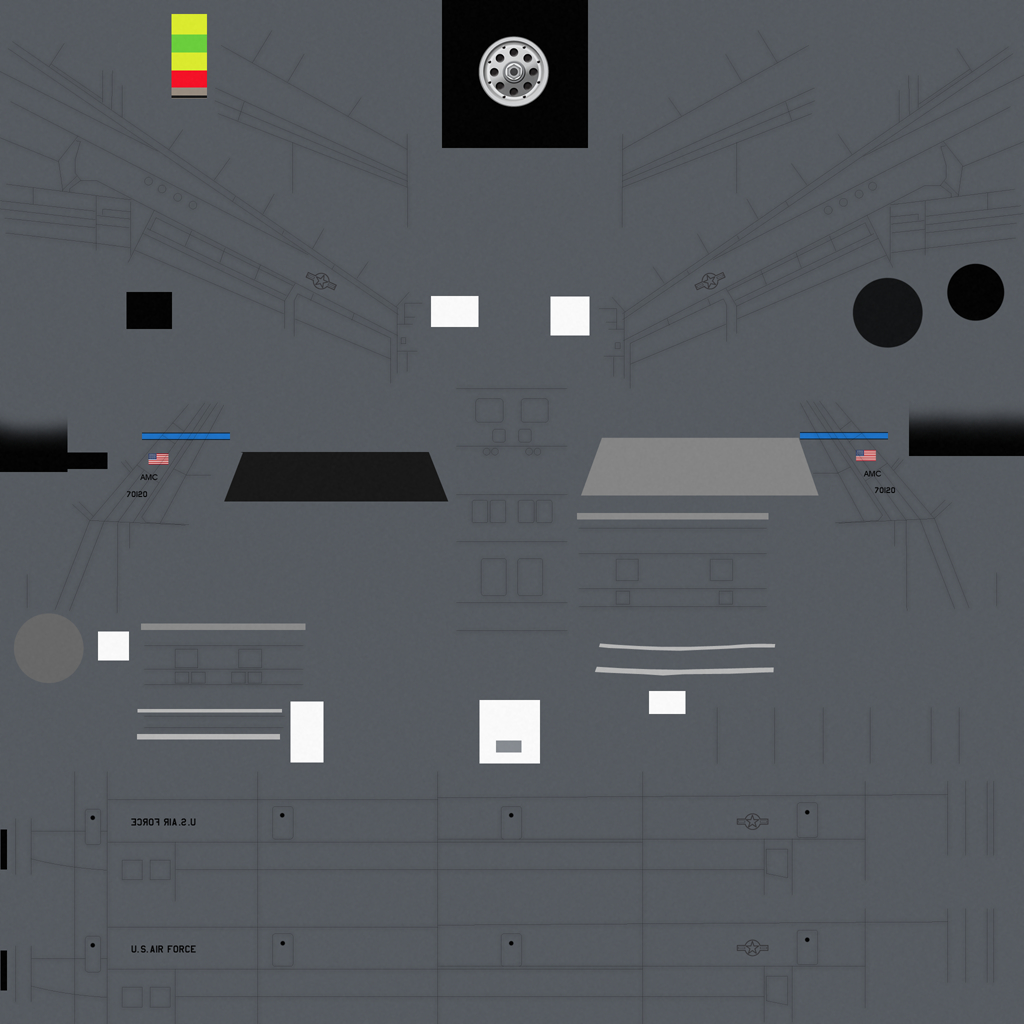

but starting from this, with very little reference points

[EricJ]

41 minutes ago, daddyairplanes said:

i know that pain. imagine doing this

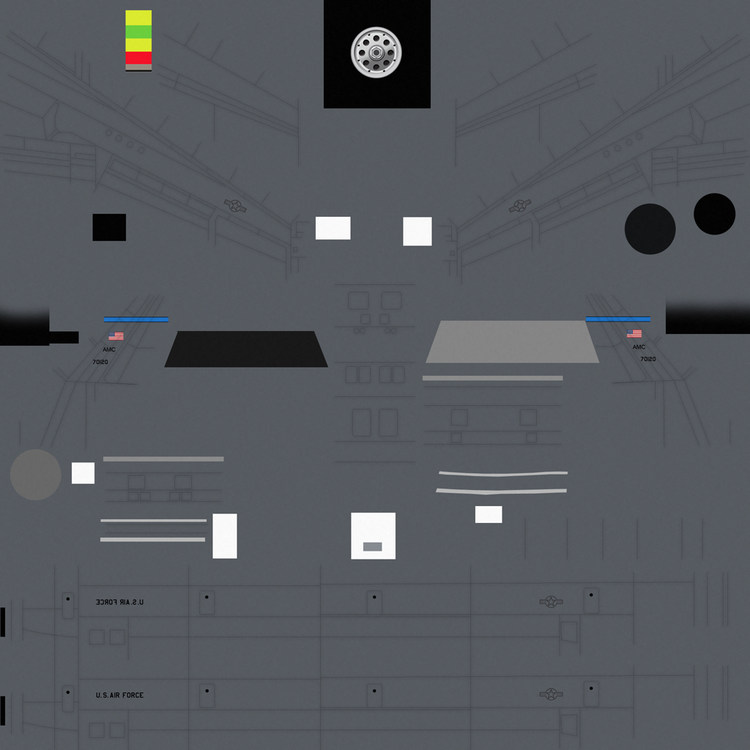

but starting from this, with very little reference points



That's why I like FastCargo's work when making a template, when able with any template, but I feel you when you start out trying to figure it all out when you don't have a template. That's why I always search for one for a project.

[+daddyairplanes]

FastCargo, ravenclaw_007, Sundowner, Dels and yakarov79 all do excellent templates, stuff that has fairly clearly defined layers and you can tell what parts were what. others have made good ones too but those cats' temps are typically the least problematic to work with. even when you go to add your own new details, its minor tweaks rather than reinventing the wheel

i did alot of skin and template work for veltro2k, typically doing alot of stuff from scratch. but he always got me started with a texture that had different color on each of the major parts groupings  so you had an idea of what you were looking at. was trippy to look at the start of any project with him tho

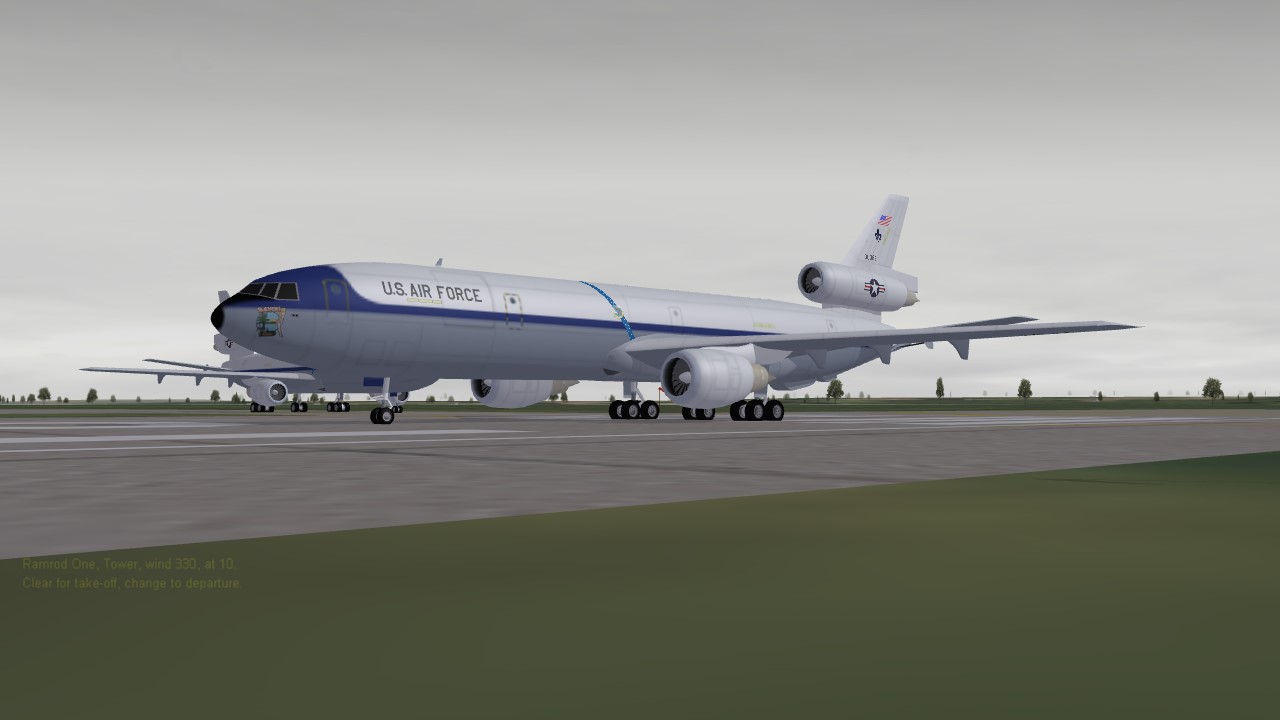

the KC-10 posted above was from Marcfighters and originally in the SF1 ODS mod, in the grey that you see.
