Su-37 'Flounder-A' and Naval F-104N 'Starfighter'

[TeaAndScones]

Hello.

Last year, I posted a thread here to ask anyone if they had any information on a possible Su-37 'Flounder-A'; an enemy that appears in the 1994 flight sim 'US Navy Fighters'.  It was apparently, an A-10-like CAS aircraft, designed to support Russian troops against US forces in-game.  No one did have any info.  But since then, I have managed to find a small number of images that point to the aircraft's possible existence as a design concept, under the Su-37 designation.





As you can see, it employs a cranked-delta wing design, not unlike the ground-oriented F-16XL.  This allows lower stall speeds than a pure-delta design.  However, the engine appears to be a standard turbofan, like those employed on fighter aircraft, rather than the turbofans employed on the A-10.  Wouldn't this make slow-speed a bit troublesome?





And here is the virtual depiction in US Navy Fighters, pointing to its intended role as an A-10-like CAS platform.



If this sparks anyone's memories or knowledge of this aircraft, sharing it would be greatly appreciated.



On a second note, did there ever exist a Naval version of the F-104 'Starfighter'?

The above image is the depiction is US Navy Fighters.  Despite saying U.S.A.F. on the wings, in-game, it is operated by the US Navy, under the F-104N designation, complete with CATOBAR gear.



Any help on this would be great too.



DatBritish.

[logan4]

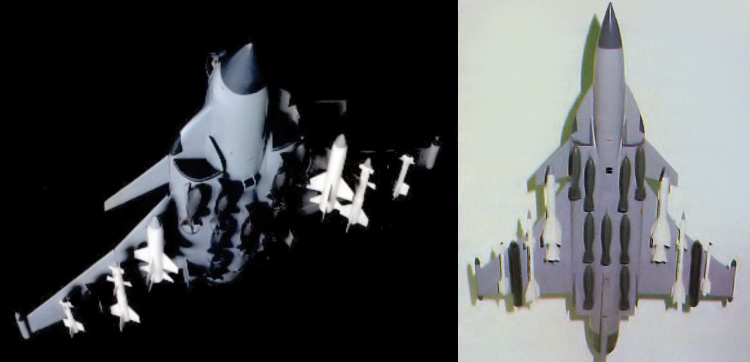

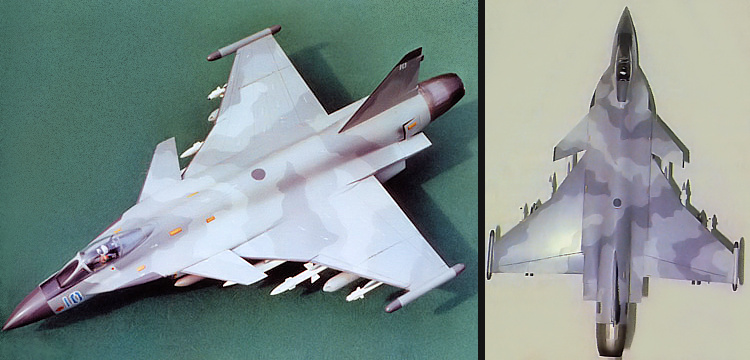

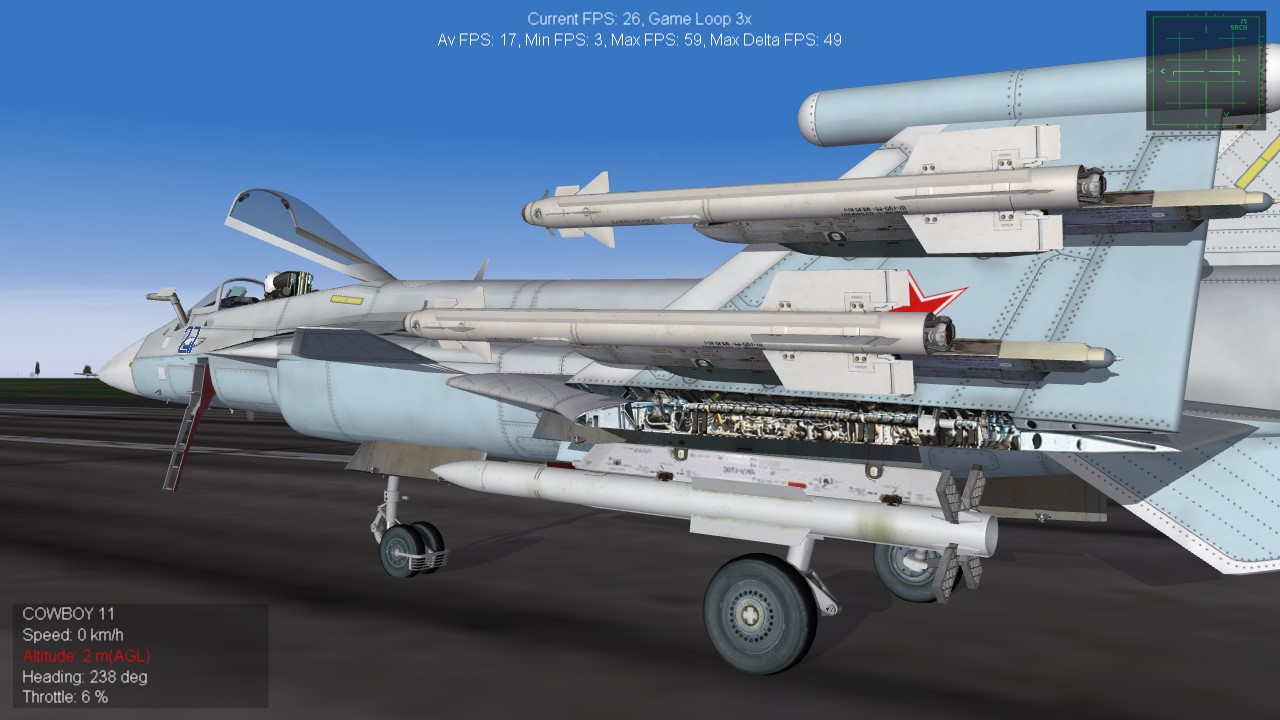

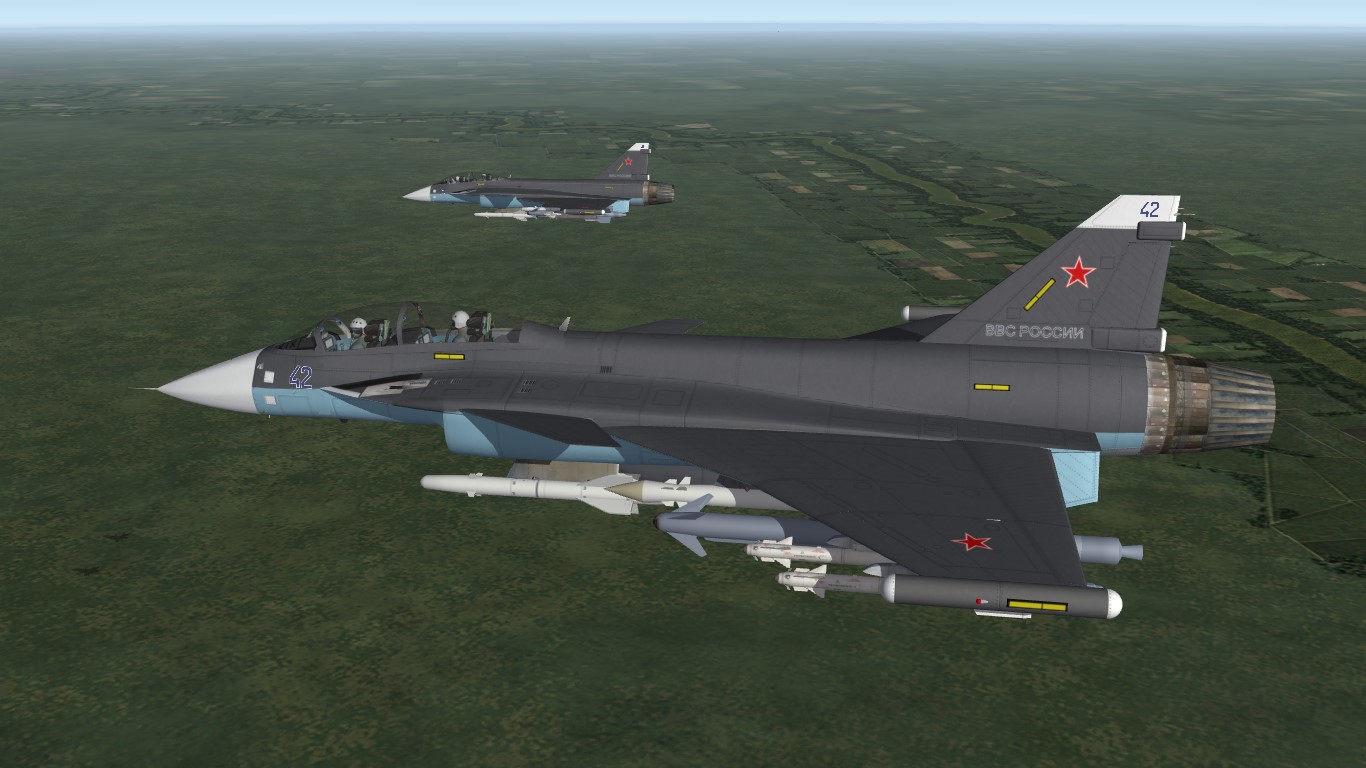

In real world that AC was Sukhoi's S-37 project proposal, the one before the later famous S-37 Berkut.

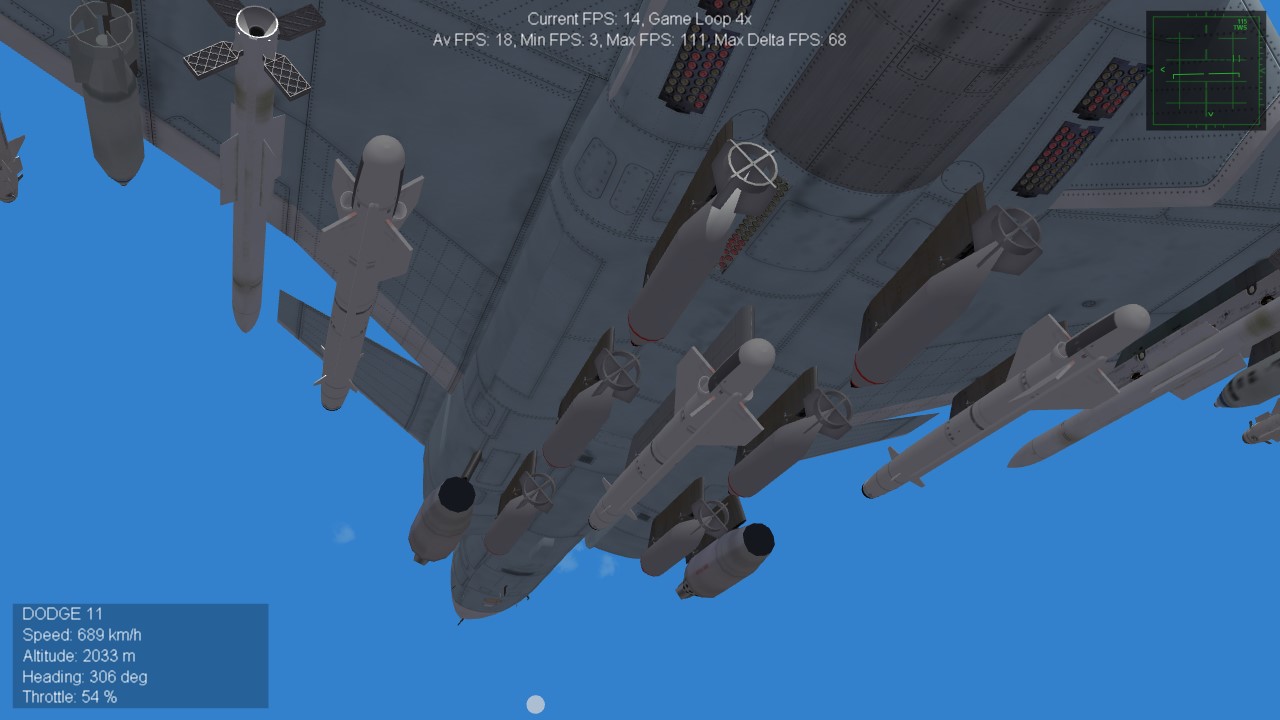

The AC actually had a total of 17 planed hardpoints and its engine was the same as on the Yak-41 stovl main engine. Quite powerful beast.



Here are some info on it, but probably you already found these. Also the "secrectprojects" forum has quite a topic on it.



S-37 Project



Length: 17.65m (Bedretdinov), 17.5m (Butowski)

Wingspan: 12.08m (Bedretdinov), 11.8m (Butowski) (8.64m folded)

Wing Area: 50 sq m

Height: 5.74m



Maximum speed: 1500km/h at low level, Mach 2.0 at height

Maximum altitude: 17000m

Range, 3000kg payload: 800km (low level) 1,500km (high level)

G load: +9/-3g

Supersonic G load: 8g

Acceleration from 600km/h to 1100km/h at 1000m altitude: 14 secs

Acceleration from 1100km/h to 1300km/h at 1000m altitude: 7.2 secs



Engine: 1 x R-79M turbofan

Thrust: 18,143kg



Weight, Maximum: 24,970kg

Weight, Normal takeoff: 16-18,000kg

Weight, empty: 12000kg

Internal fuel capacity: 8,300kg

Normal combat payload: 5000kg

Maximum combat payload: 8000kg







[+Fubar512]

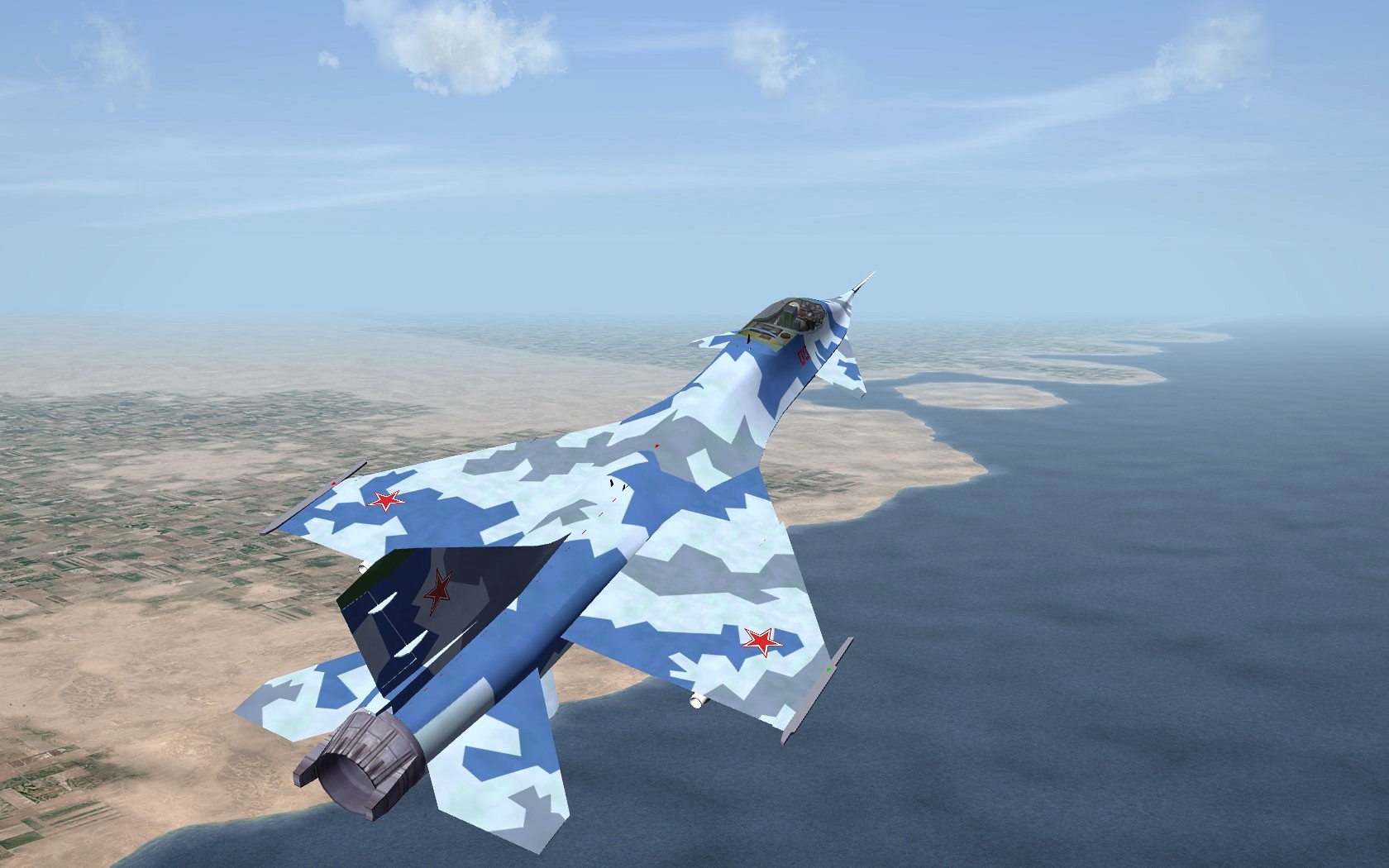

Interesting.  Reminds me of this little model by Russ.









[+KnightWolf45]

Logan show our SU-37 also please!

[Emp_Palpatine]

Wow. That was not in Fighters Anthology!

[+Gepard]



In real world that AC was Sukhoi's S-37 project proposal, the one before the later famous S-37 Berkut.



The designation S-37, sometimes S-47, was only for internal use in OKB Sukhoi. S stands for "swept wing" while T stands for "delta wing". (Similar to the isdelije numbers of OKB Mikoyan.) It has nothing to do with later service designations. For instance the Su-27 was developed under the index T-10.

If i look to the Flounder, so it is rather a delta wing design, than a swept wing design. So i doubt, that it would have a "S-something" index. It would have had a "T-something" index.



For me the Flounder looks a little bit like a modified SAAB-39 Gripen.



In real life the Su-37 is one of the latest Su-27 versions which got the NATO Code: Flanker-F





The F-104N is not a Navy version of the Starfighter, but a NASA version of the F-104G. 3 F-104N were built.



If you want a carrierborn NAVY Starfighter. So the modding is simple. Add a tailhook and the line: CarrierBased=TRUE

and it should run.

Edited November 21, 2015 by Gepard

[ignacioc91]

Nice fighter!! It resembles a Su-27 merged with a Grippen

[logan4]

Logan show our SU-37 also please!

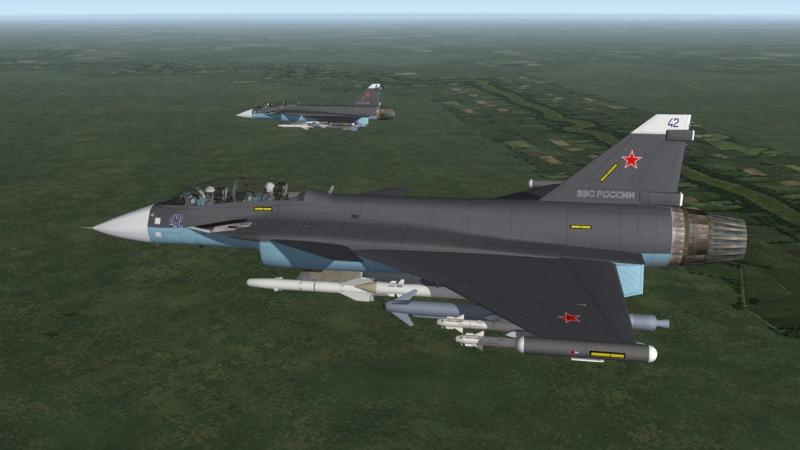

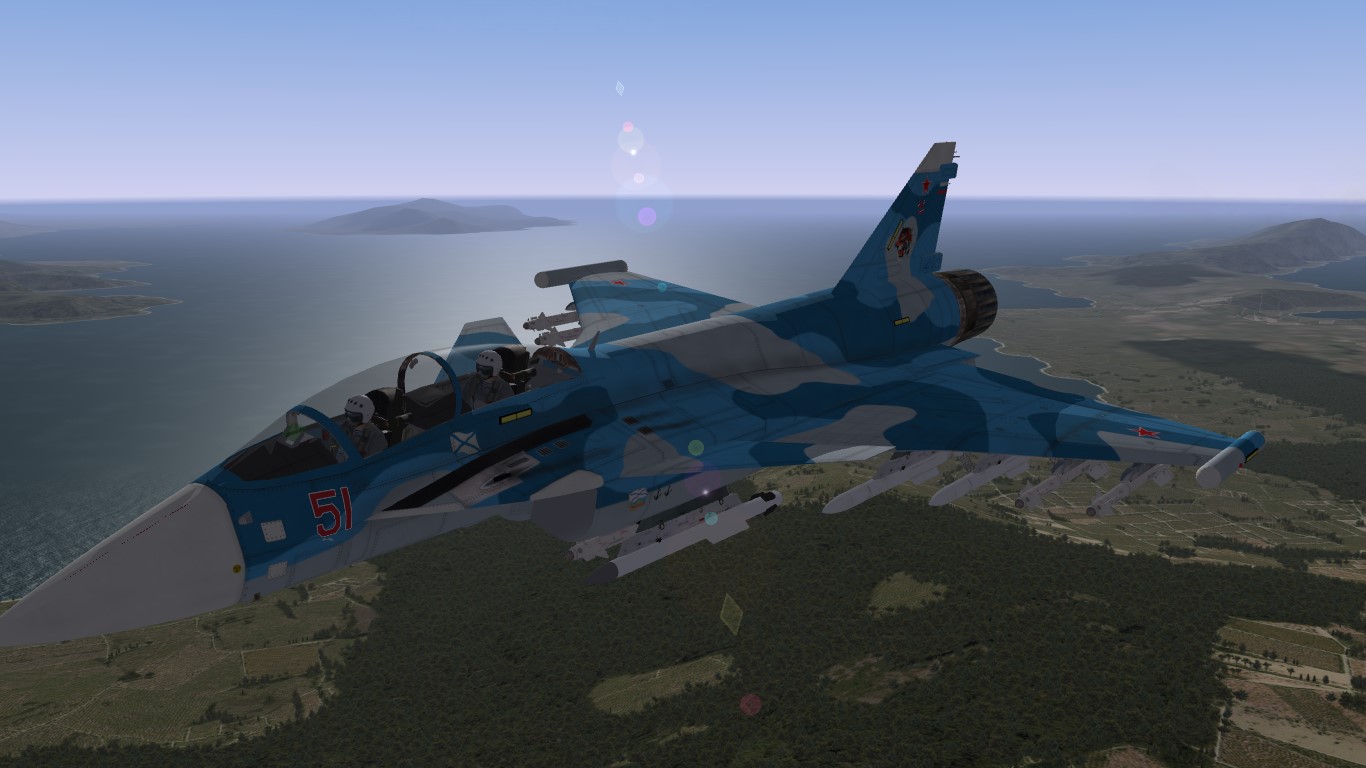

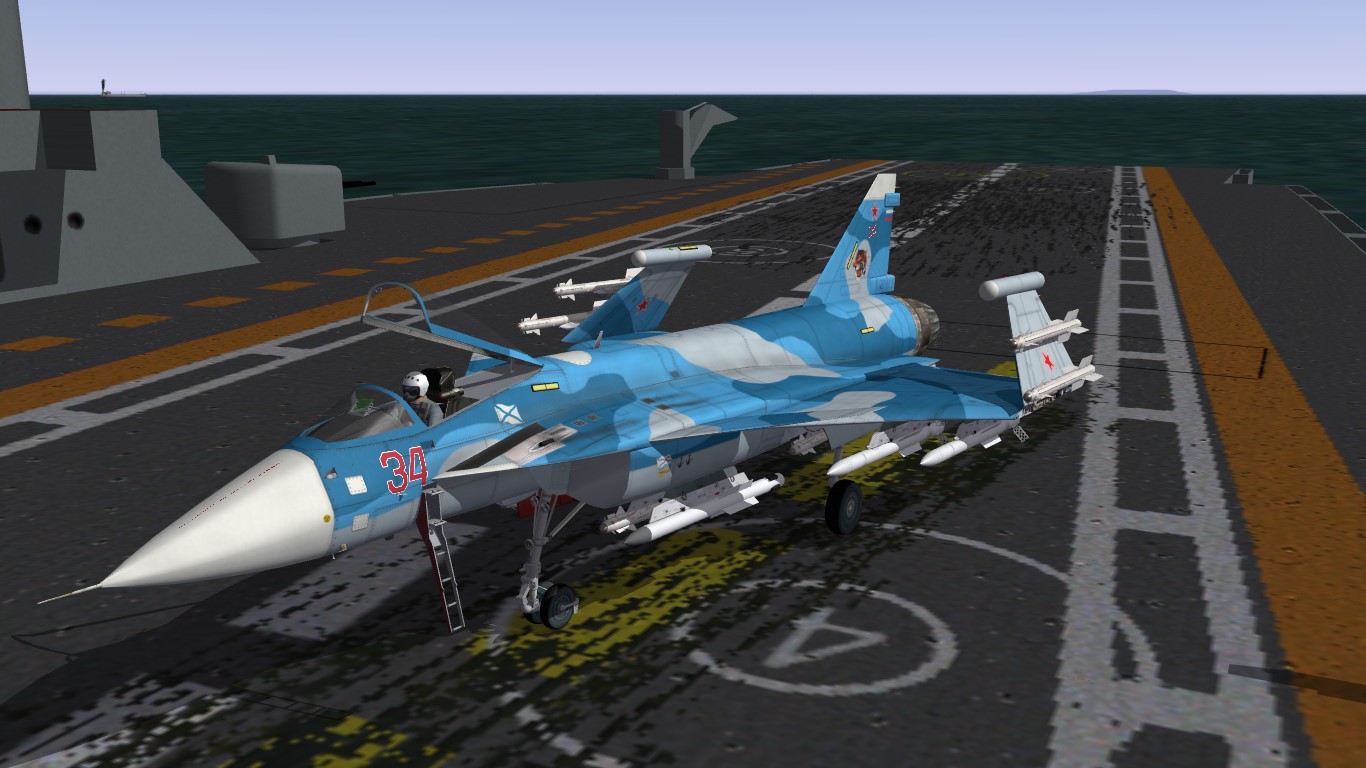

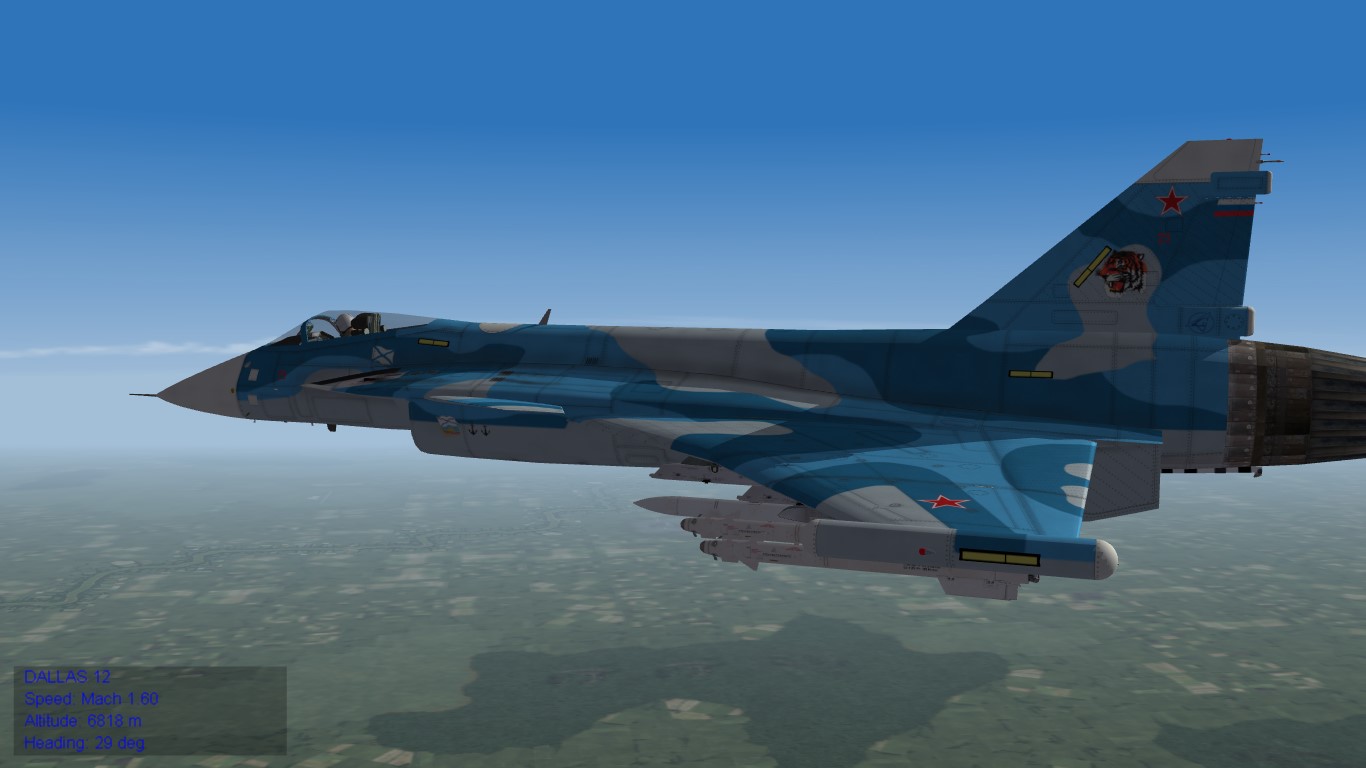

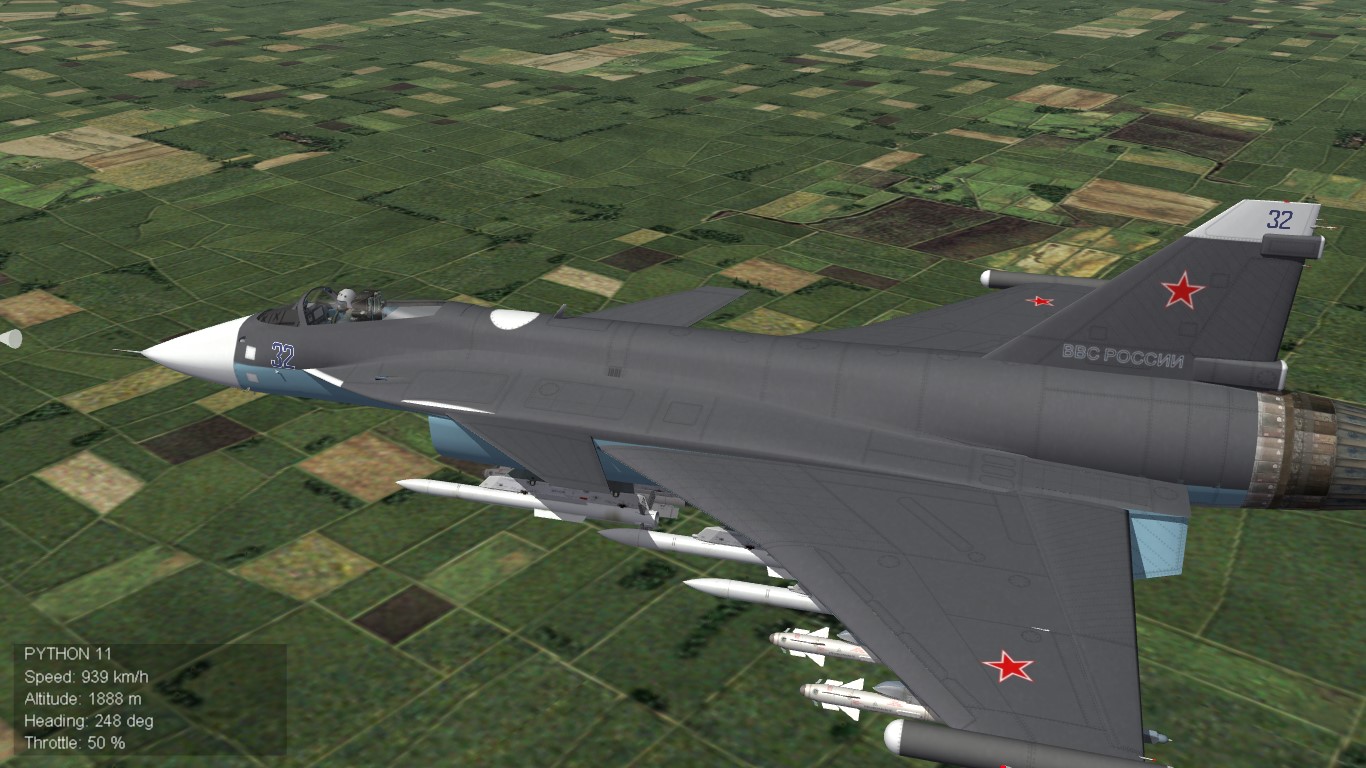

Sure.







-------



Certainly Gepard, though on cyrilic sites I only found referring to it as "C-37".

[+Gepard]

Cool bird. I like it!

[dsawan]

That's WIP for sf2?





cocas, on 21 Nov 2015 - 07:45, said:

Logan show our SU-37 also please!

Sure.


[logan4]

Yes, dsawan. Few things to fix though. Unfortunately we do not have a dedicated cockpit for it so it will use a stand-in one for the time being.

[+KnightWolf45]

just a beauty after you laid your hand on her......and thanks for the show off!

[+76.IAP-Blackbird]

Looks realy nice! Like it



Just an idea, round the front canopy bar abit more like the Su-27 one, so the pilot can look forward   it`s far to flat on the top

[logan4]

Actually, that is one of the few things to fine tune on them.

[+Coupi]

Yes, dsawan. Few things to fix though. Unfortunately we do not have a dedicated cockpit for it so it will use a stand-in one for the time being.



Hello,



The cockpit could be this beautiful one created by EYEYEY:



http://combatace.com/files/file/15045-modern-flanker-cockpit/



I like your project!!!



Coupi

[dsawan]

Logan, is there an eta for the sf2 release? No rush just curious.Thx.

[+Gepard]

Bump.

Hi Logan, is there a chance to release this bird?

[logan4]

Yes, as soon I can get to wrap up the last few bits. I know its been extremely long , but had been busy with life and other projects that slipped up on the priority lane.



[+russouk2004]

On 7/22/2019 at 11:09 PM, logan4 said:

Yes, as soon I can get to wrap up the last few bits. I know its been extremely long , but had been busy with life and other projects that slipped up on the priority lane.



know the feeling...ive so much left do do after a break from it all..hard to remember what ive got
