+dtmdragon Posted December 28, 2024 Posted December 28, 2024 Best wishes and hope you are well soon my friend! 1 Quote

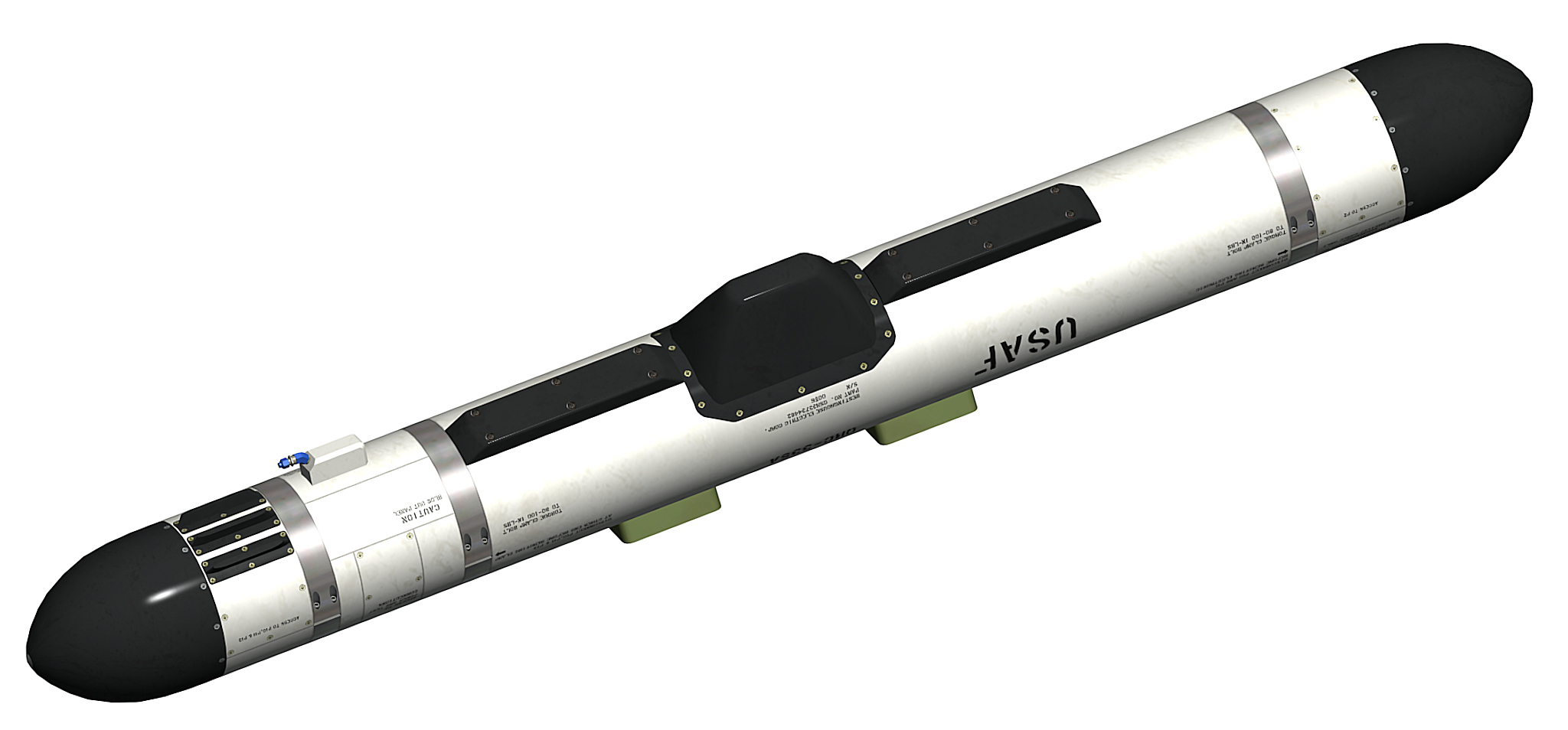

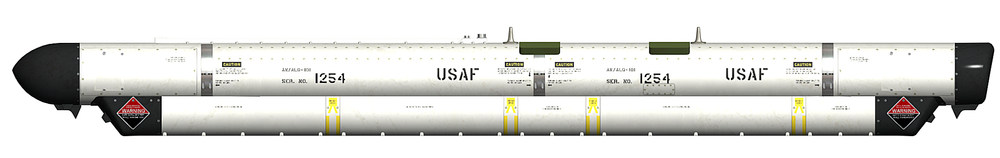

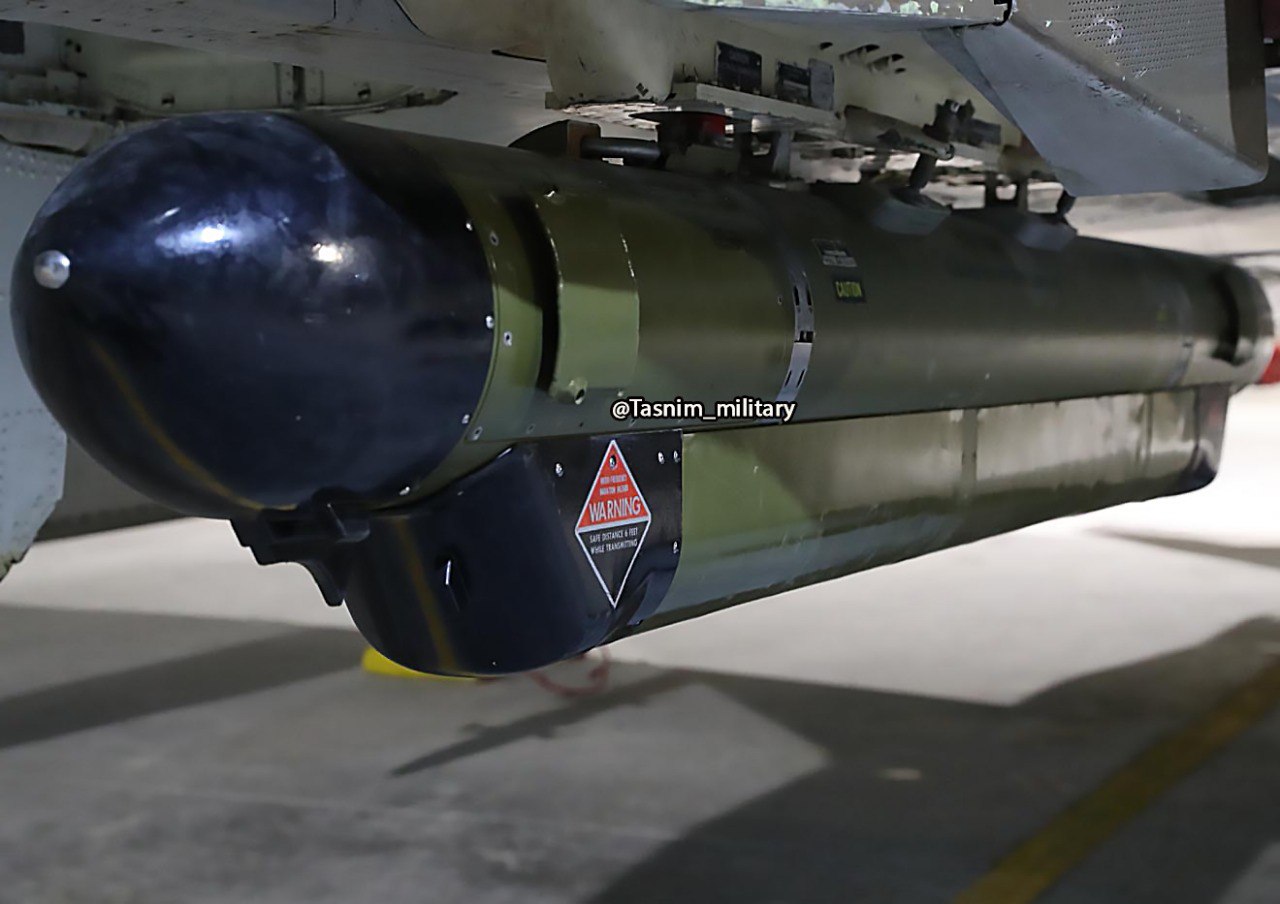

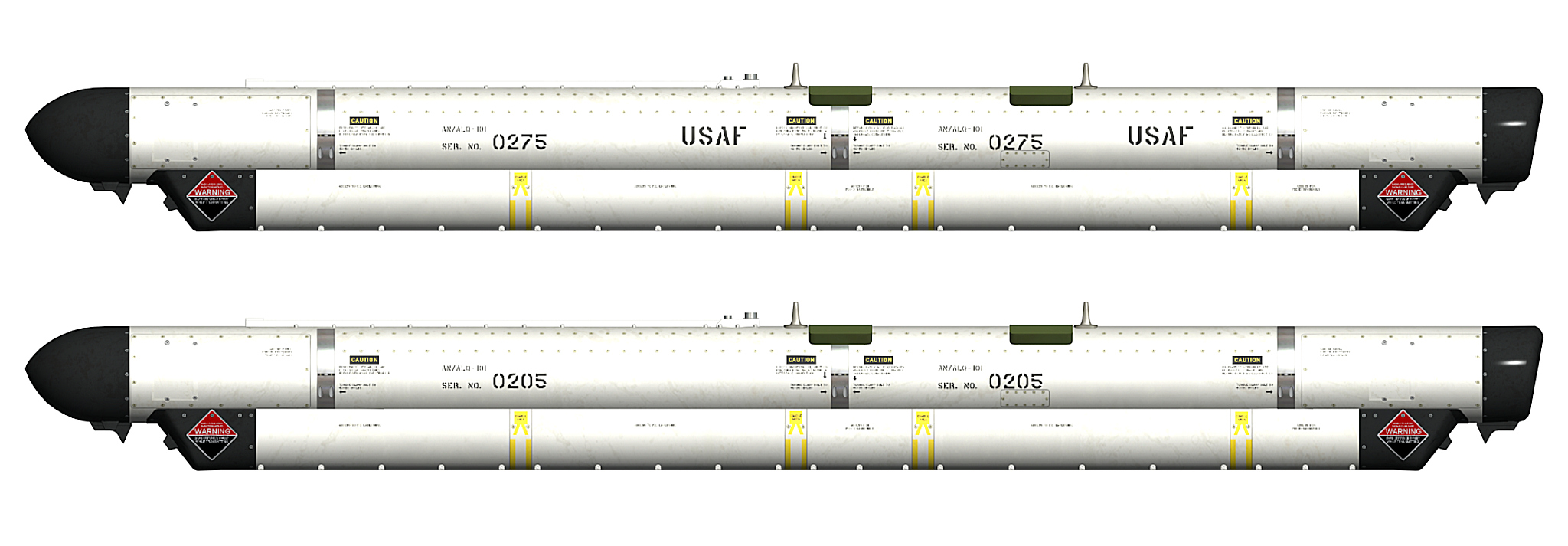

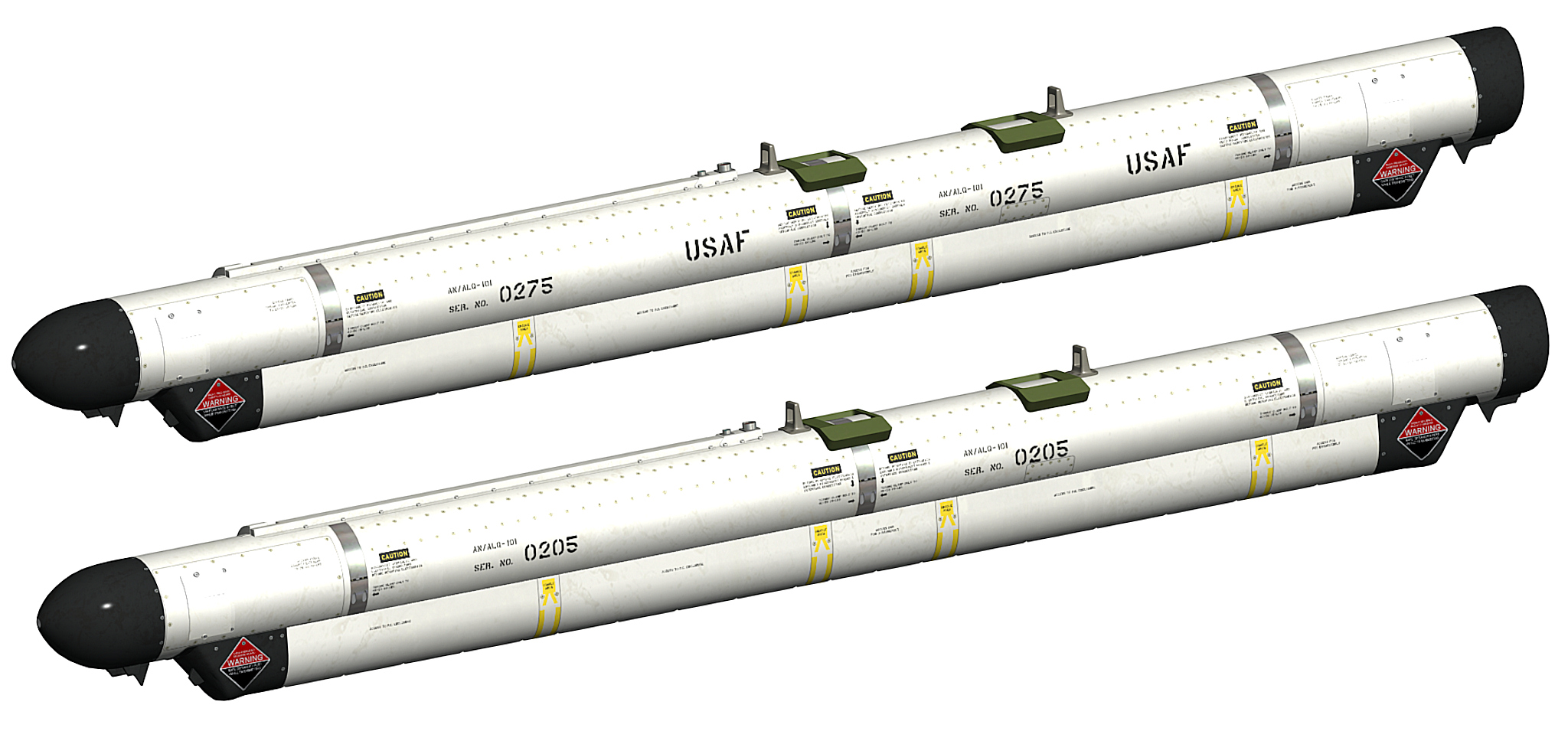

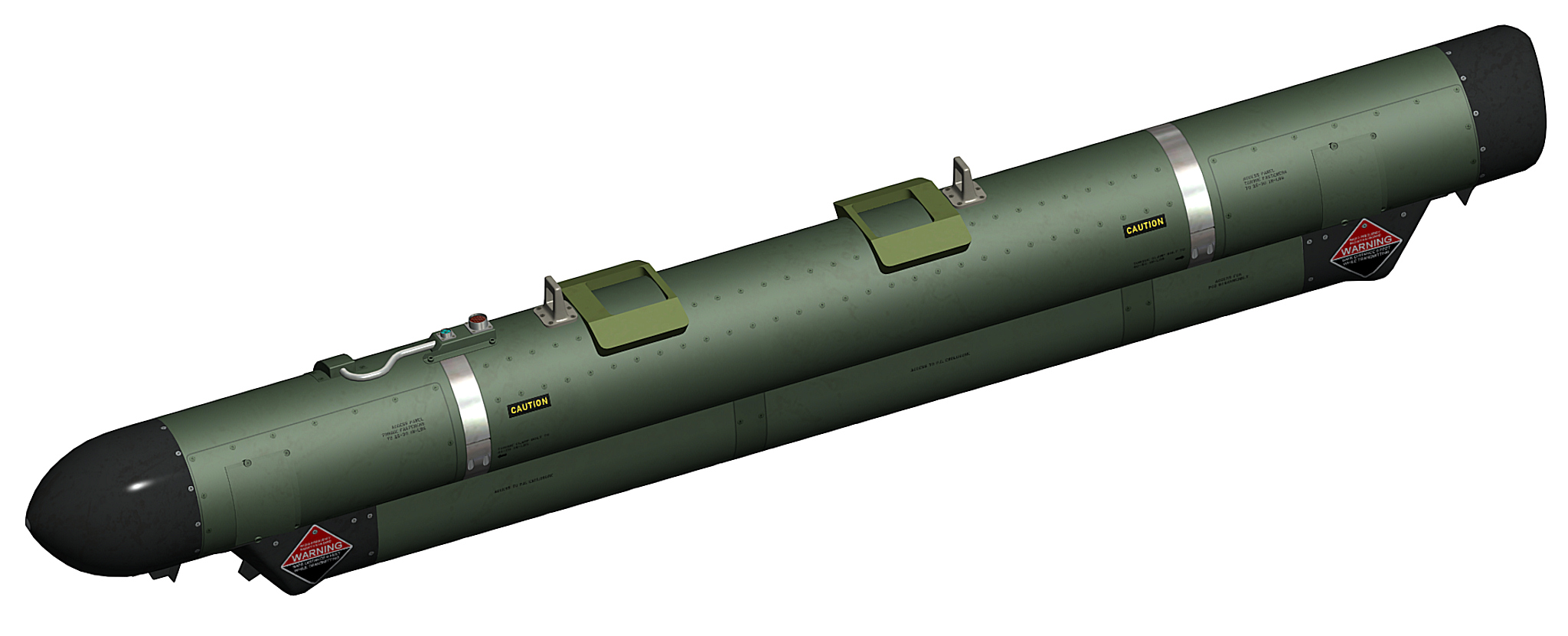

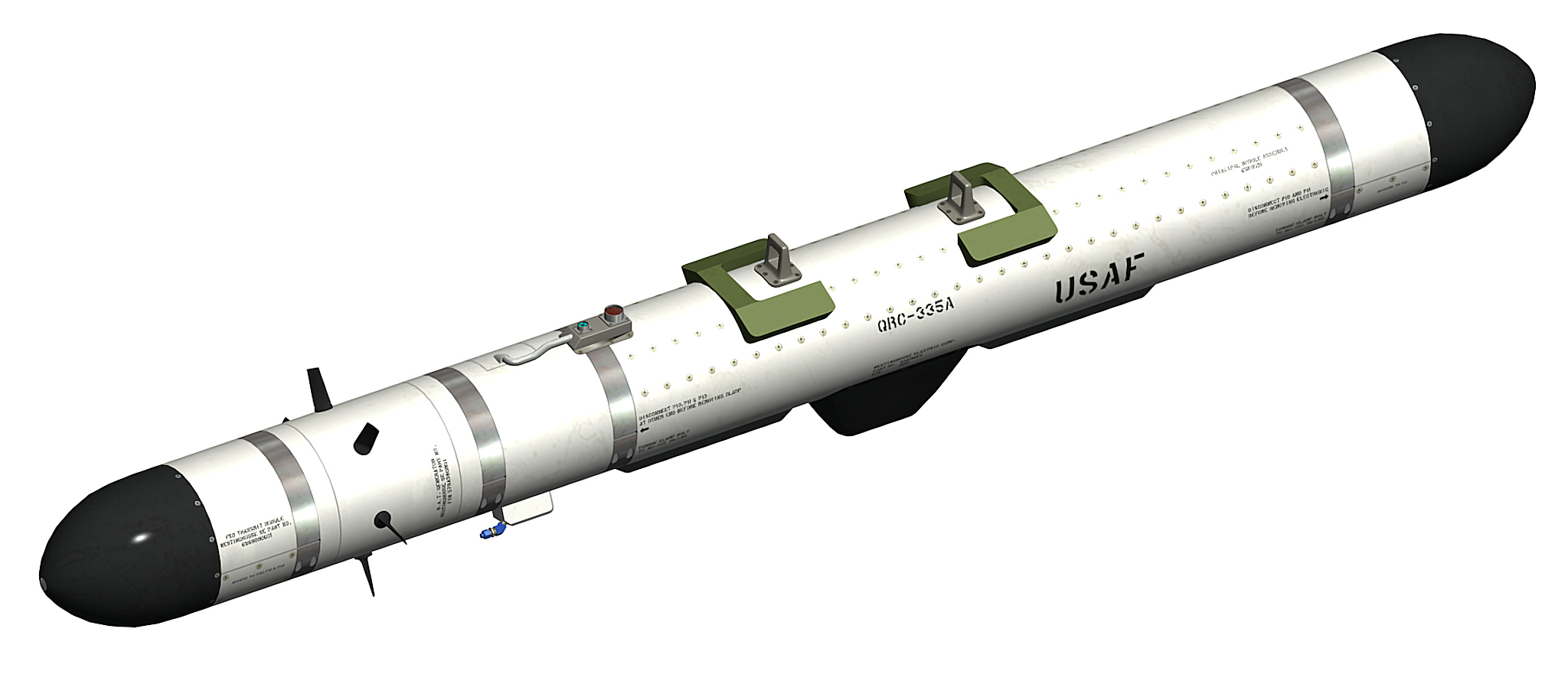

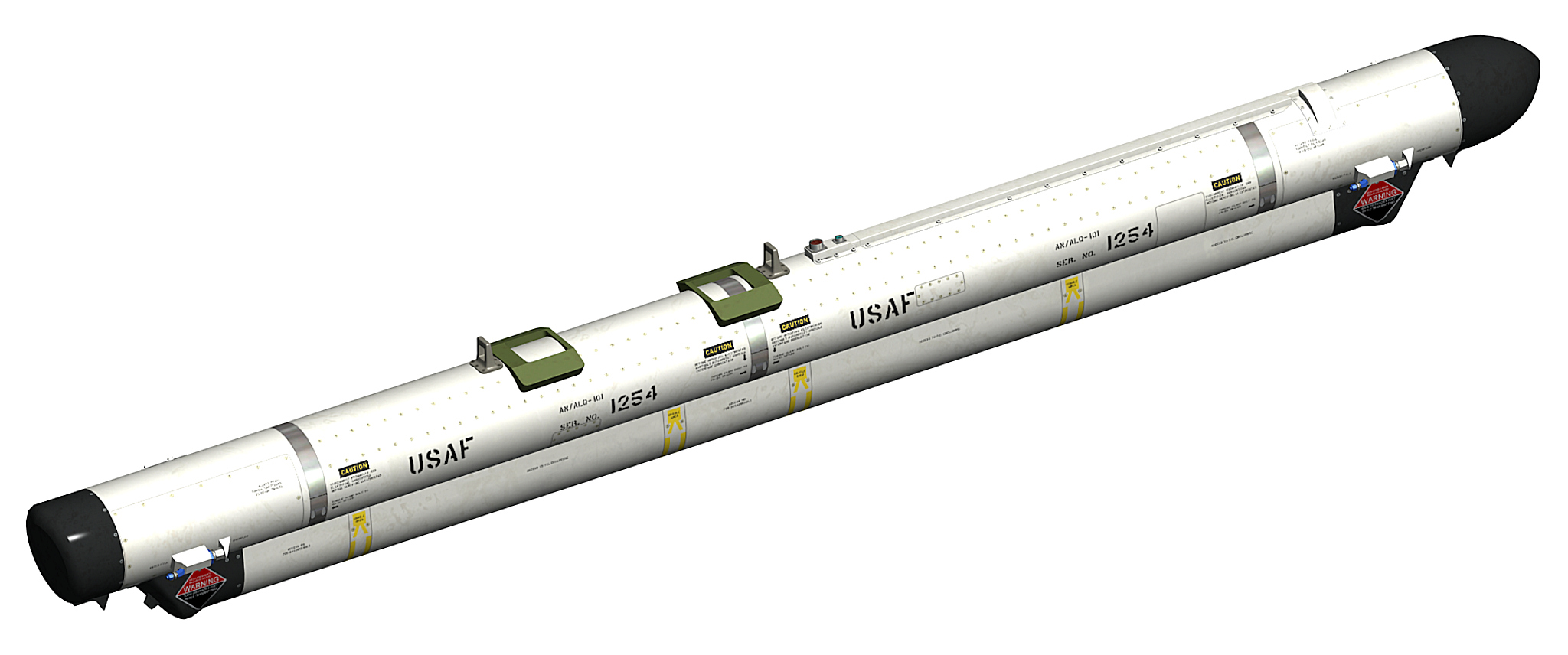

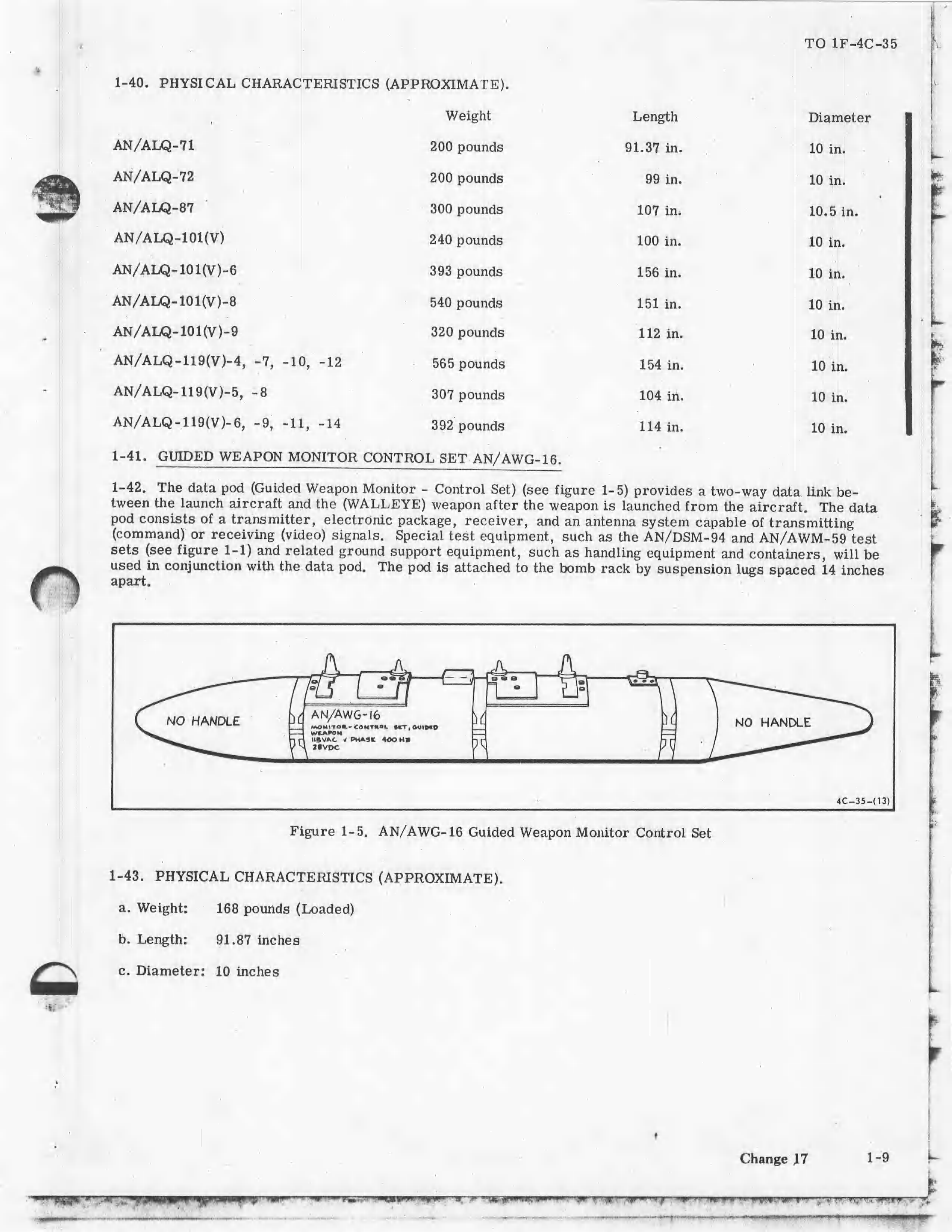

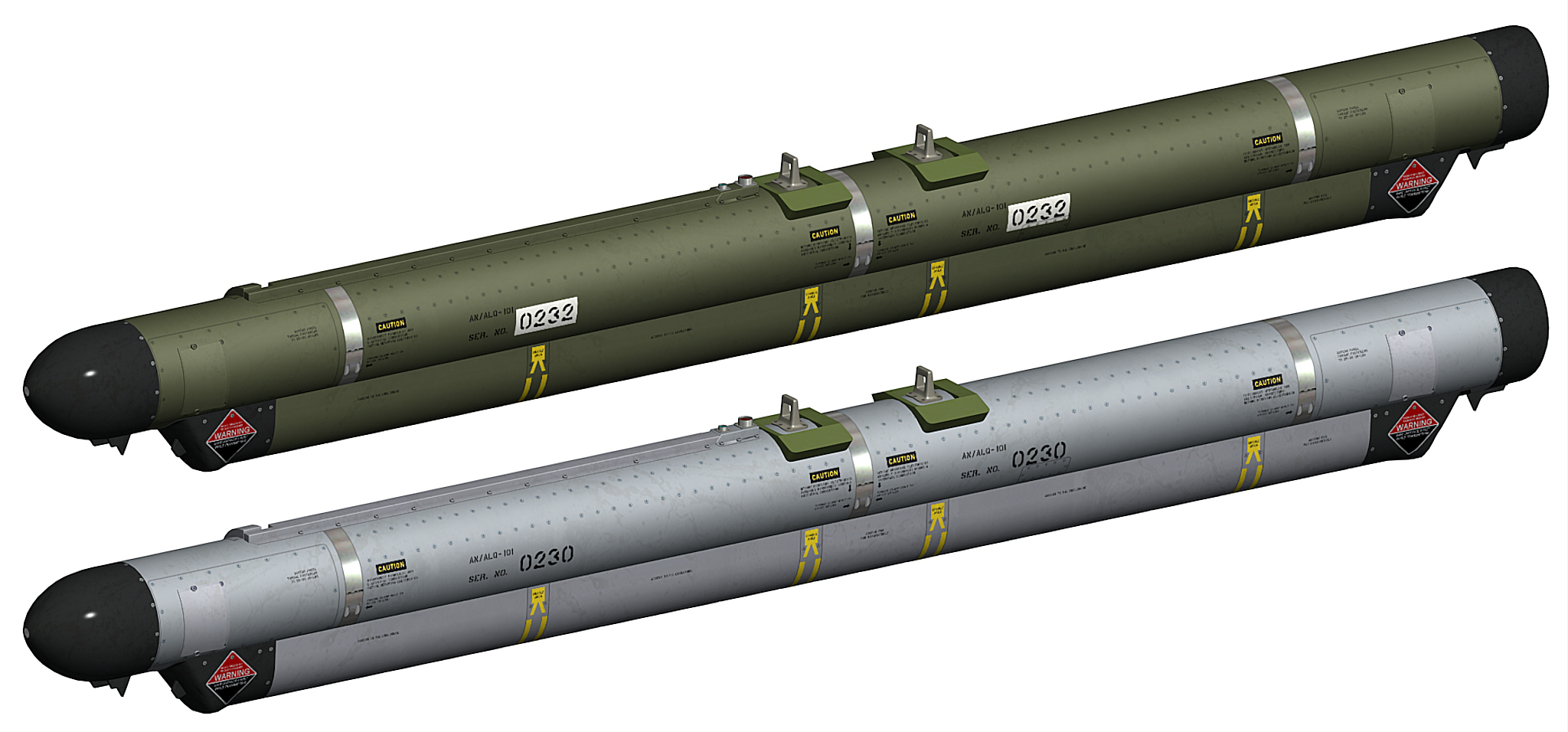

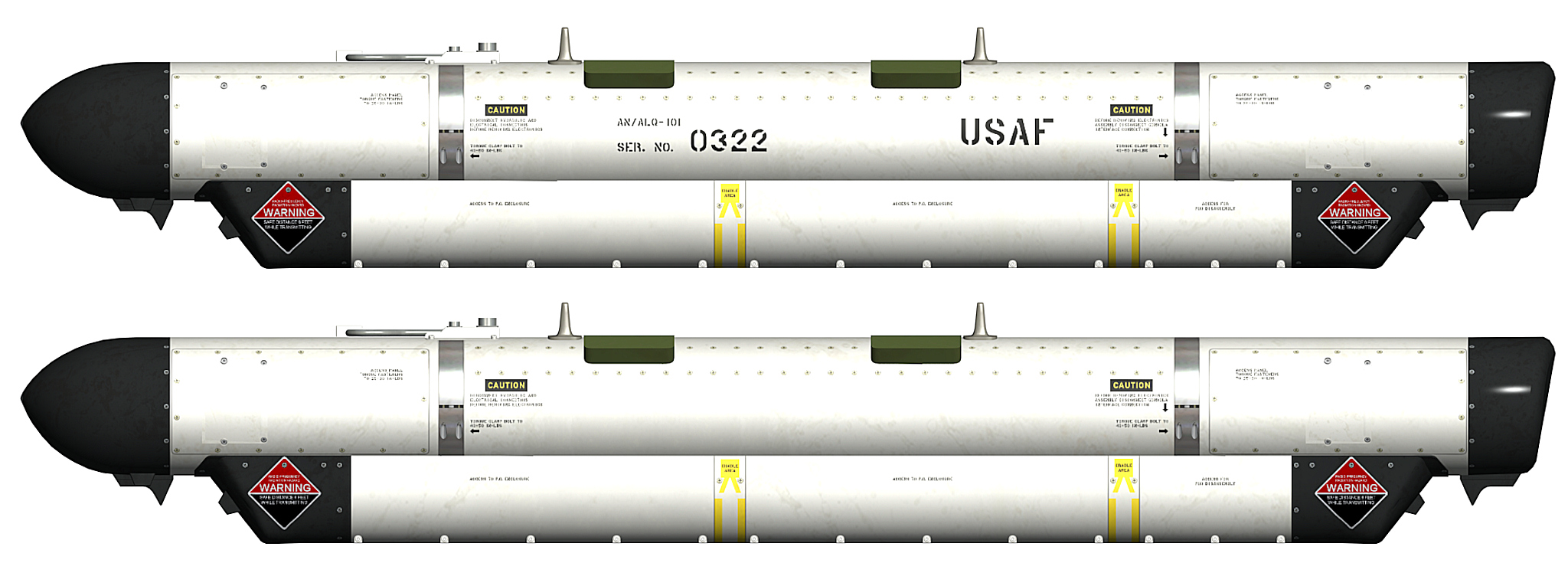

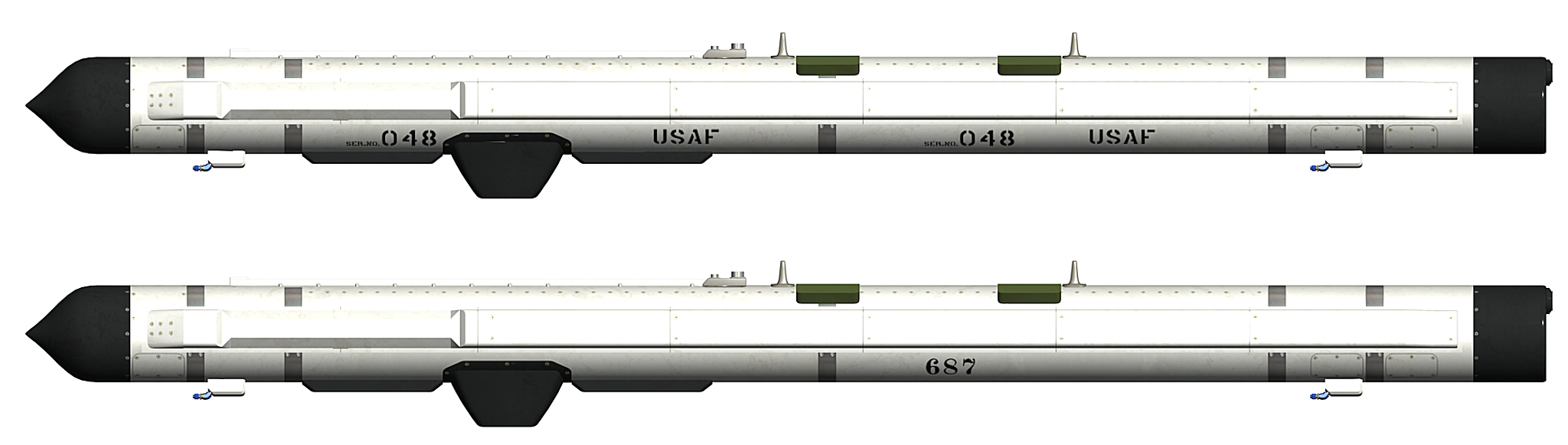

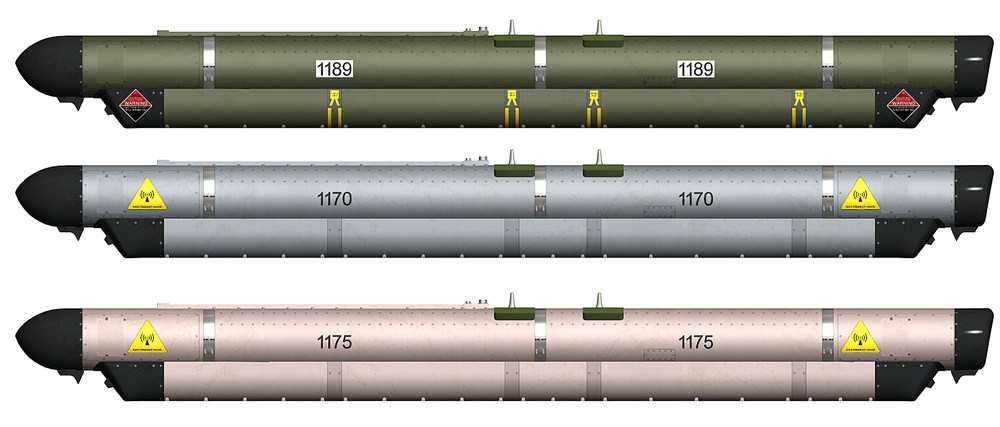

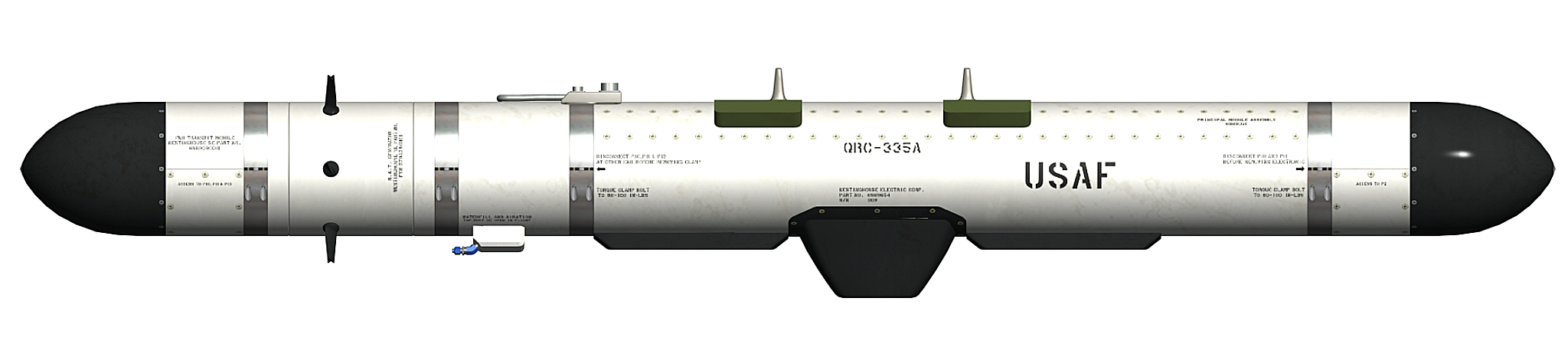

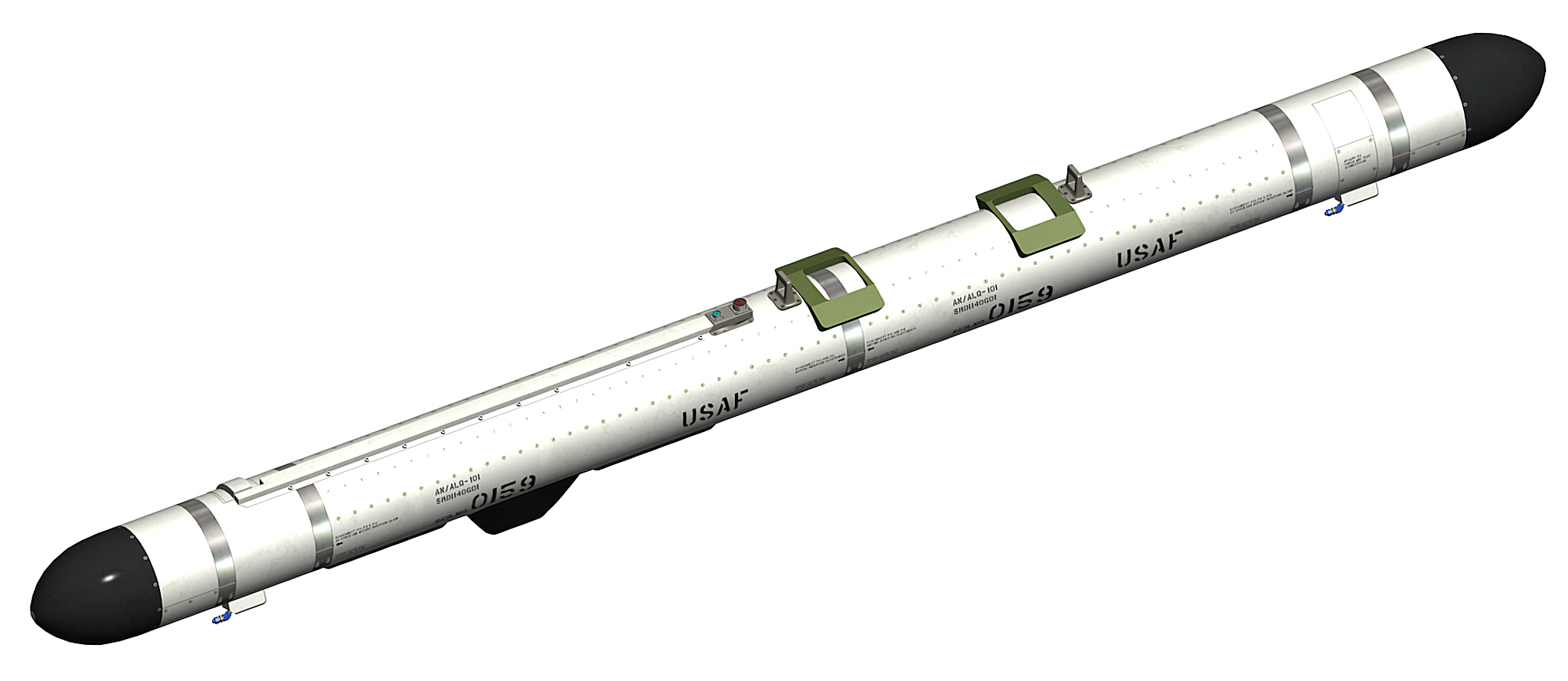

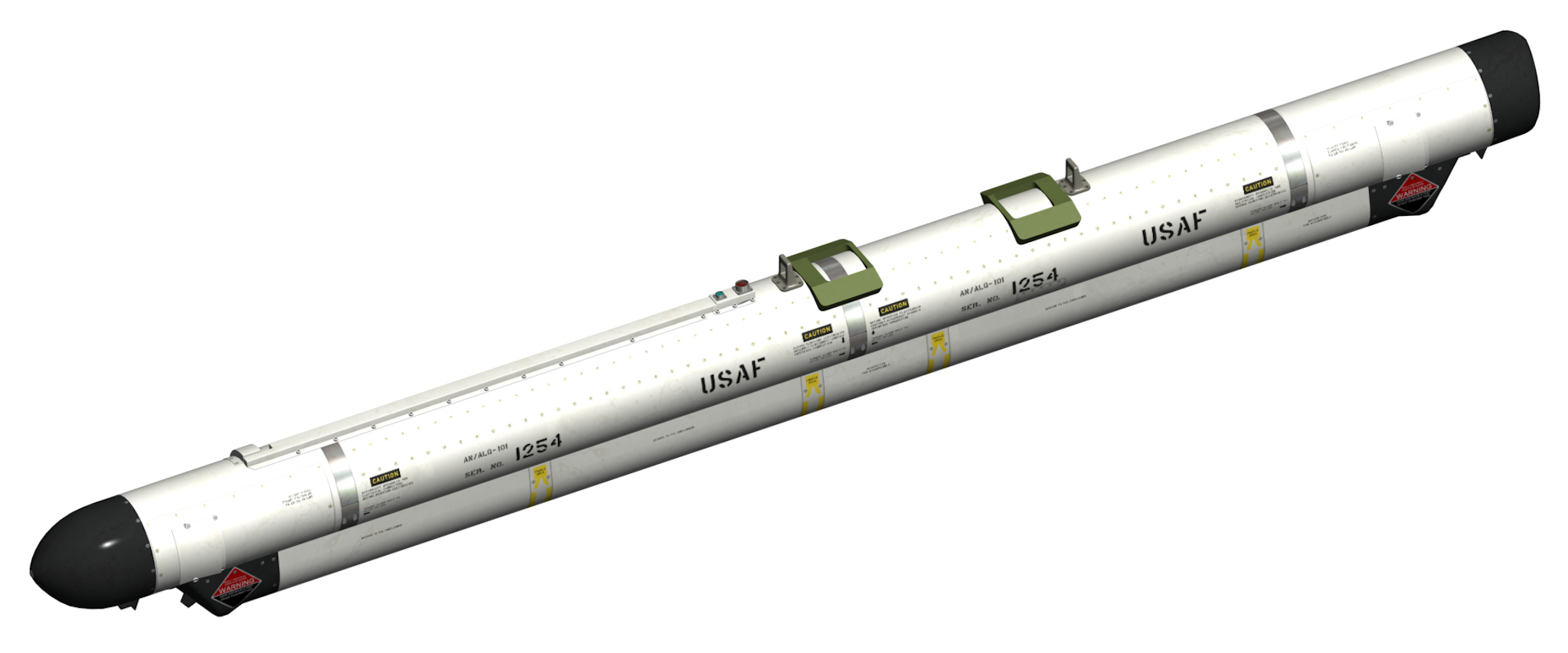

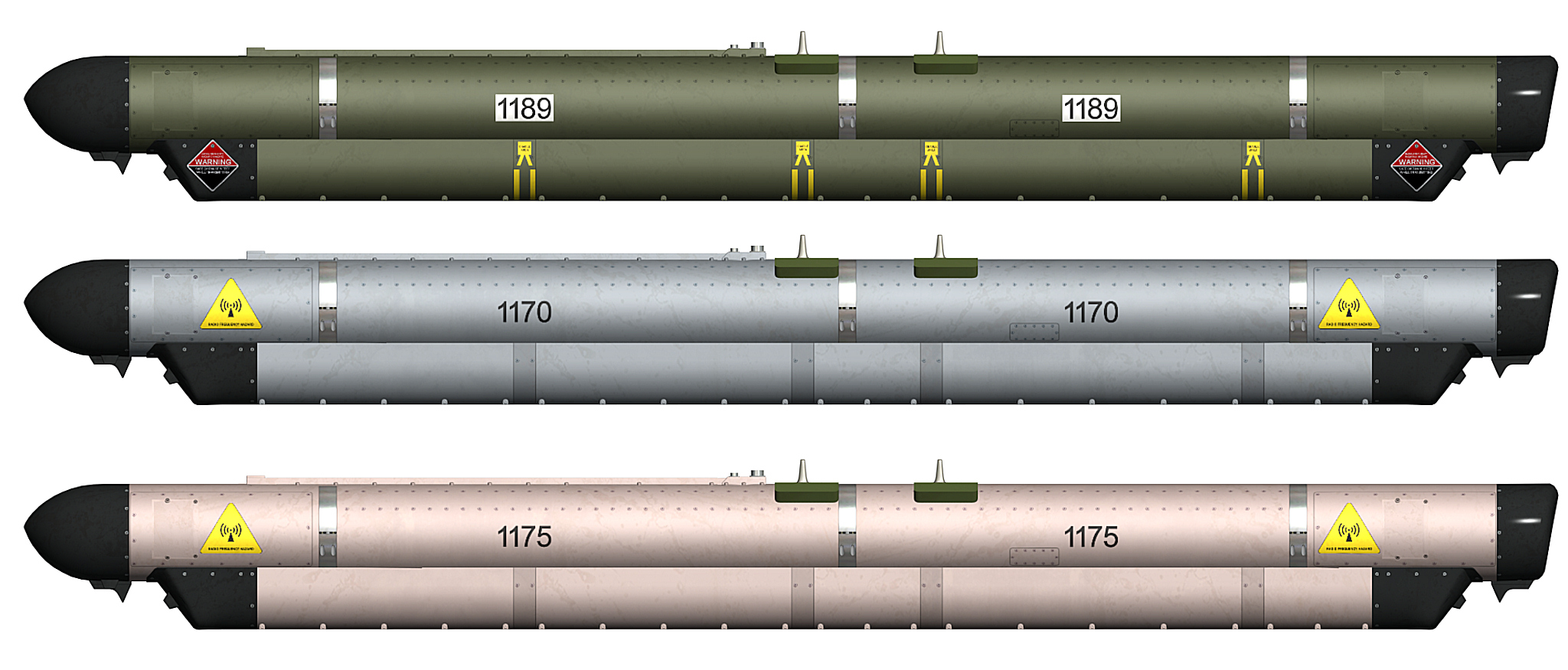

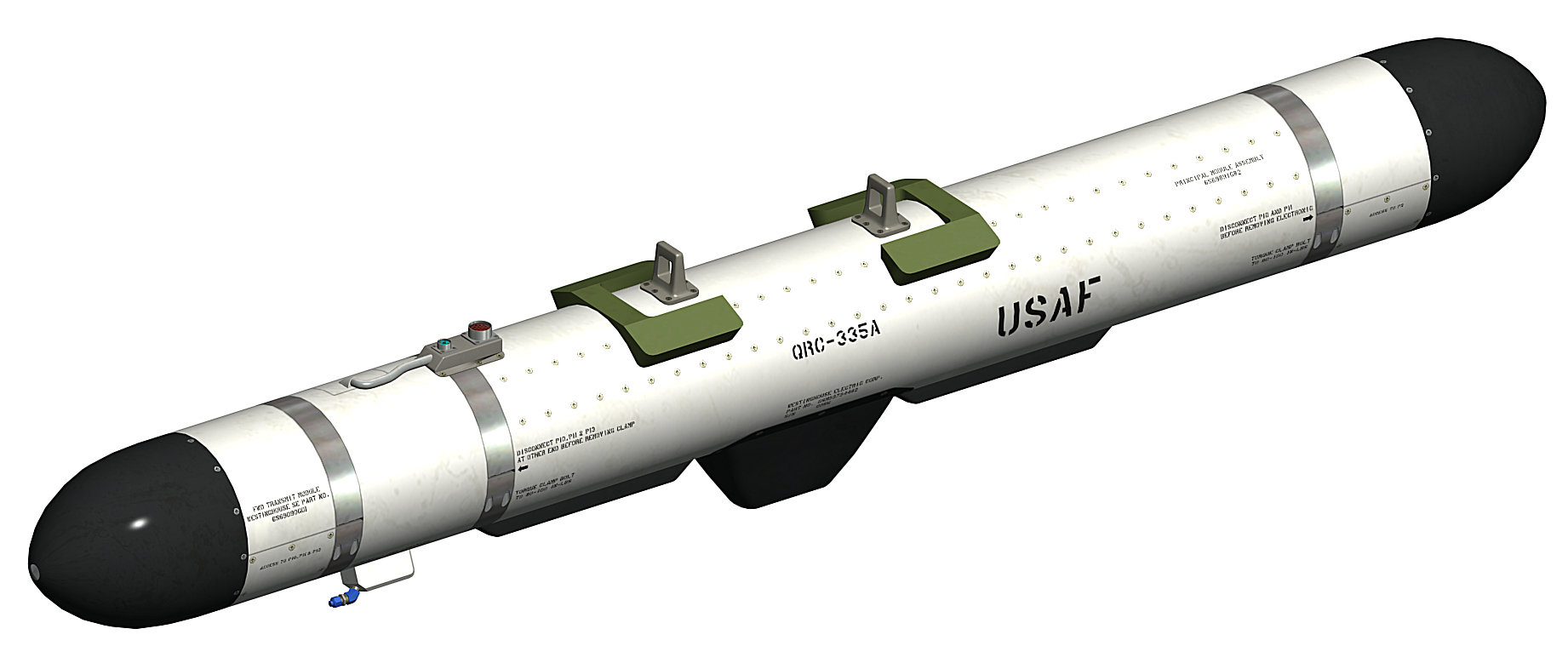

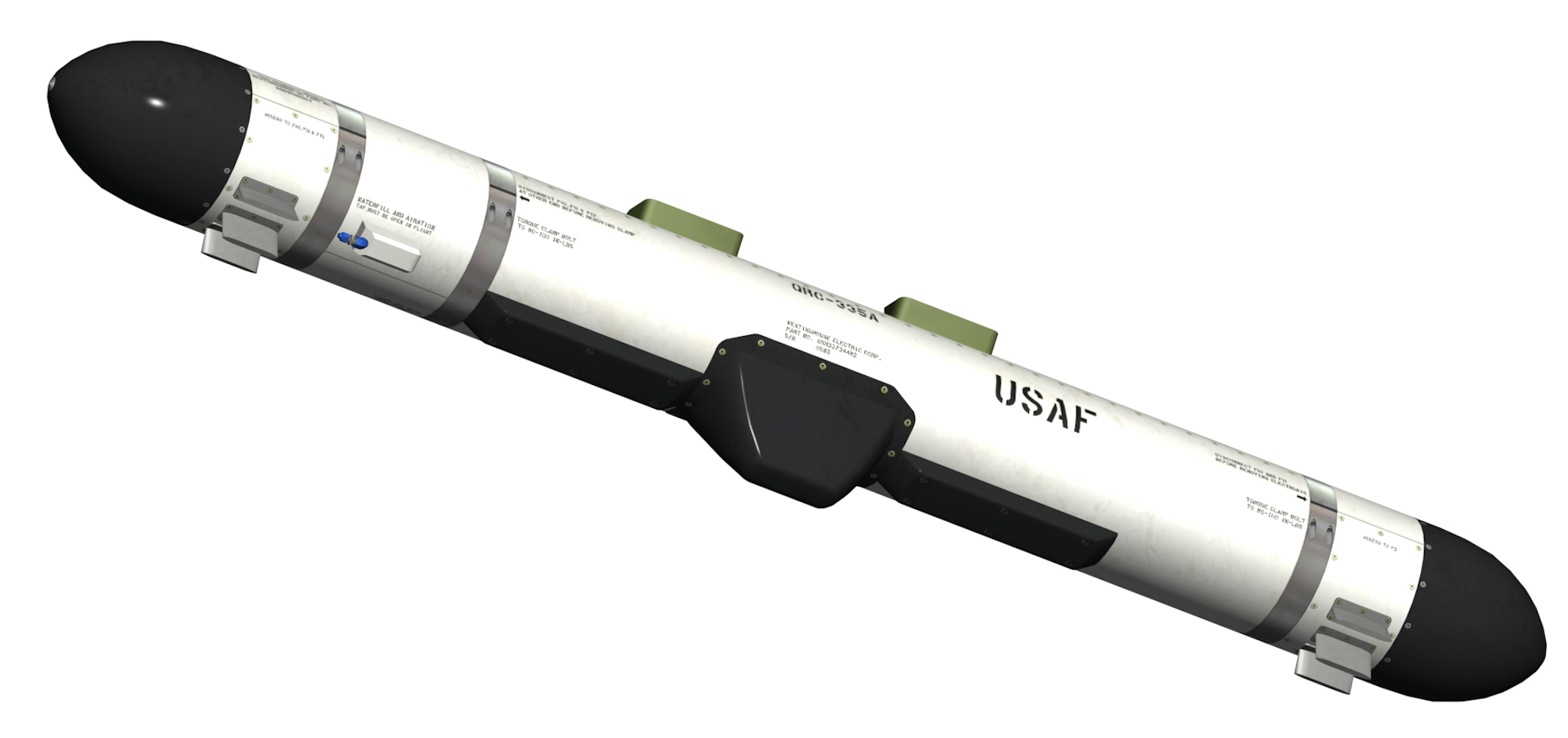

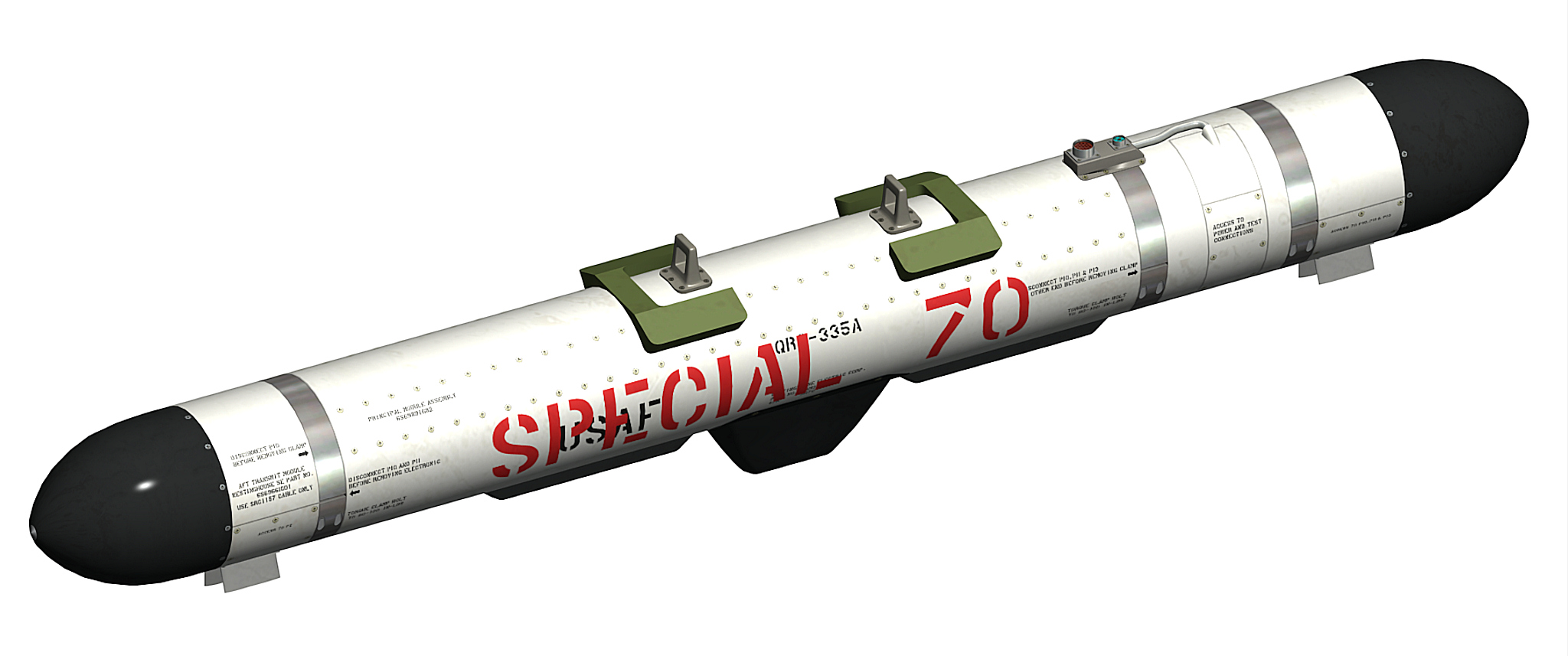

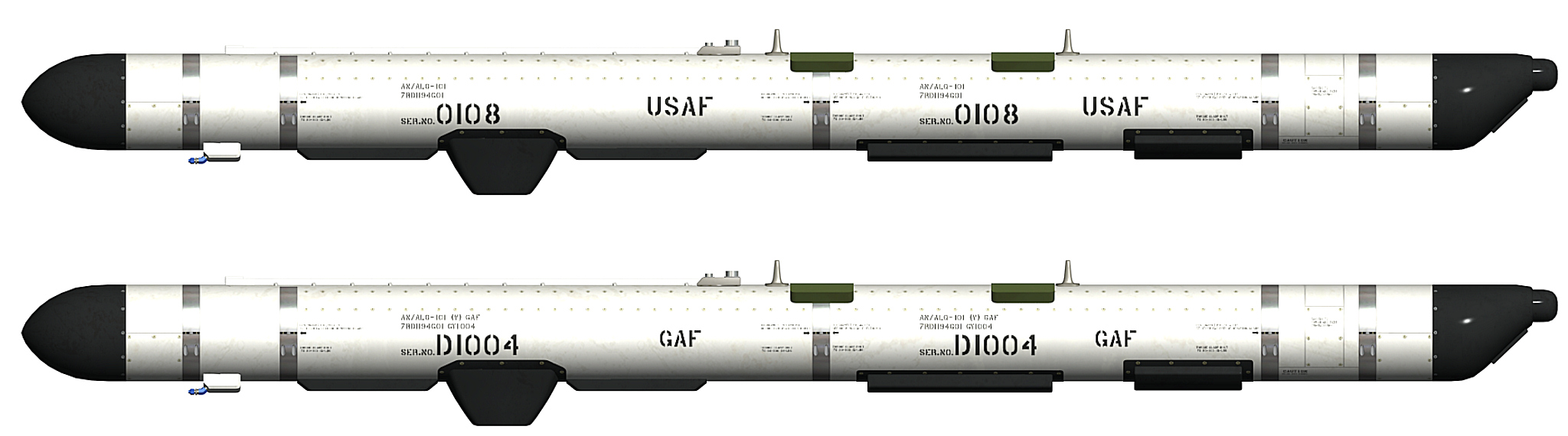

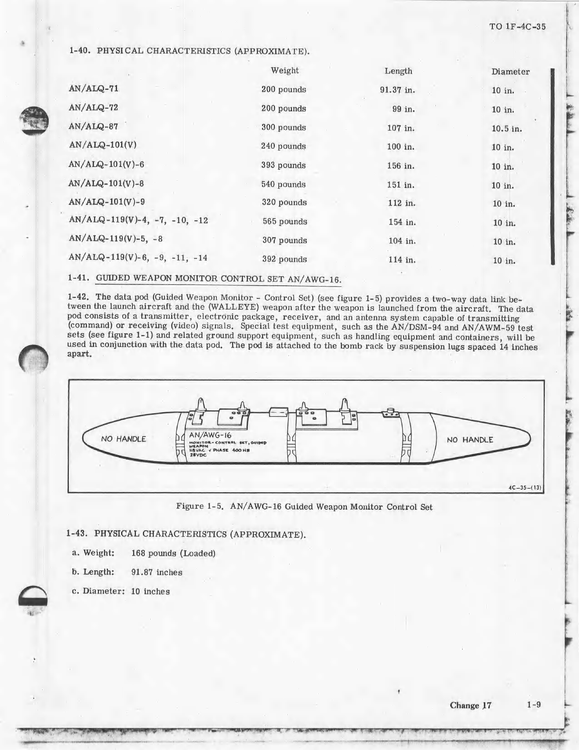

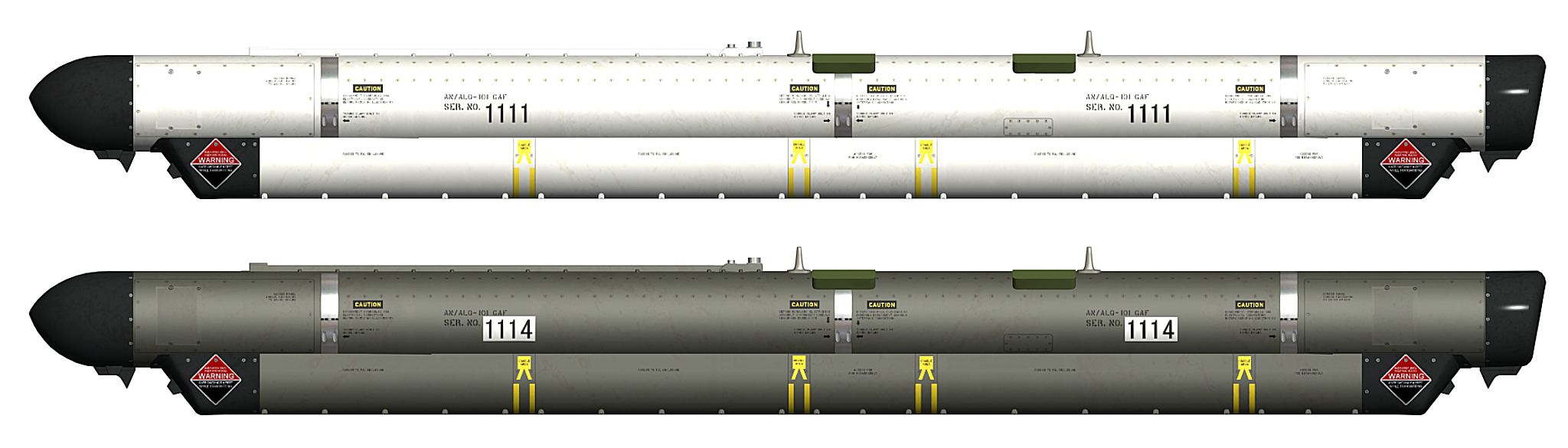

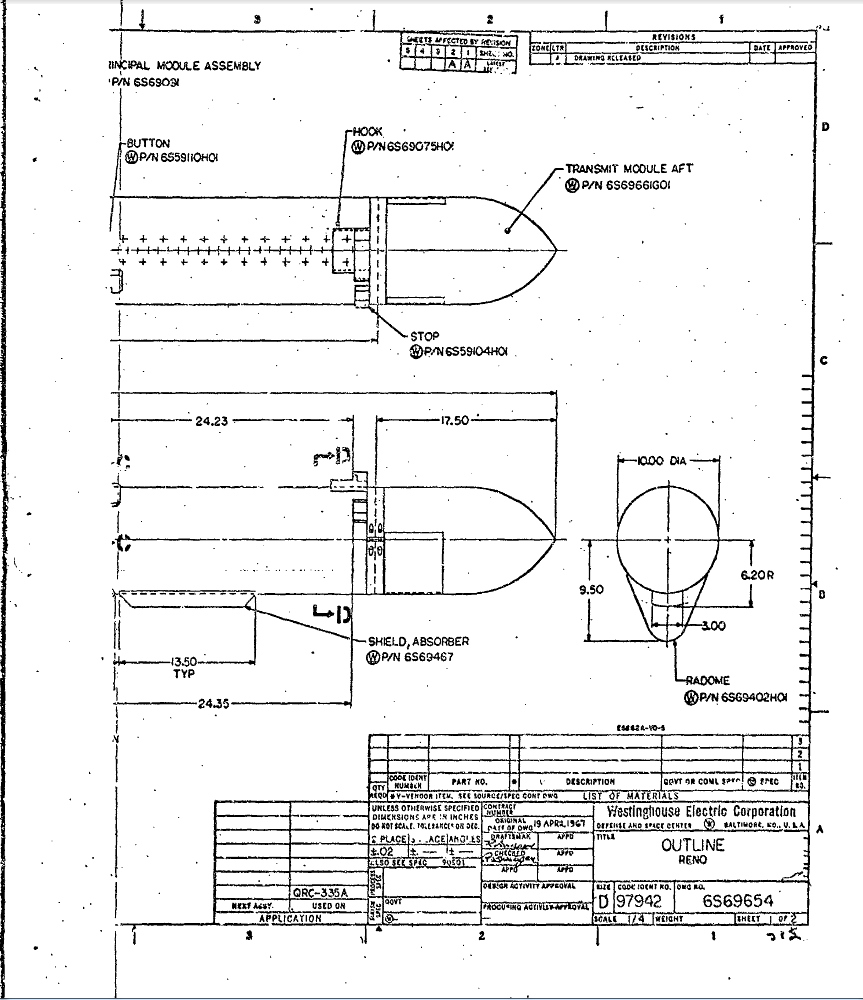

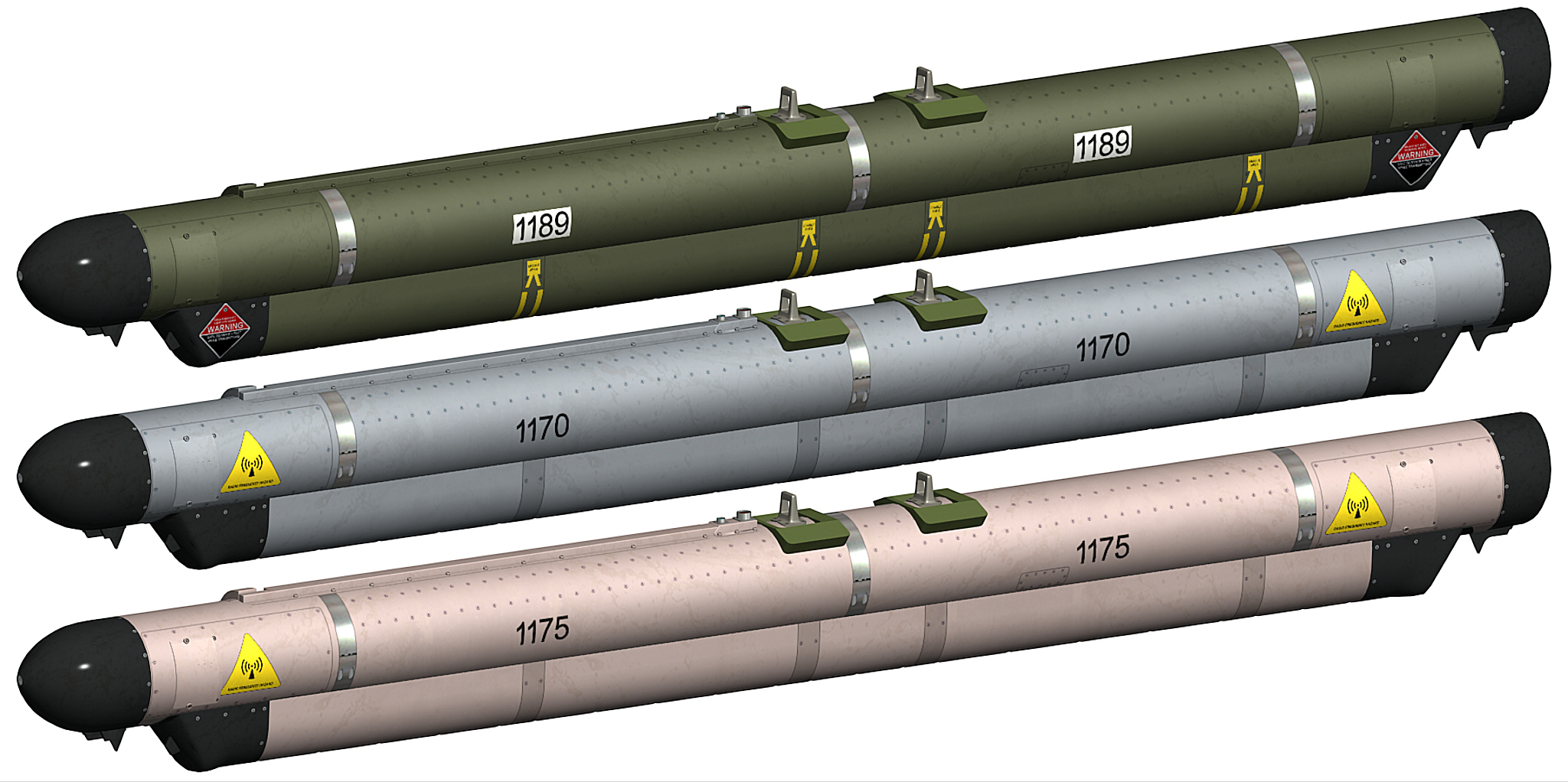

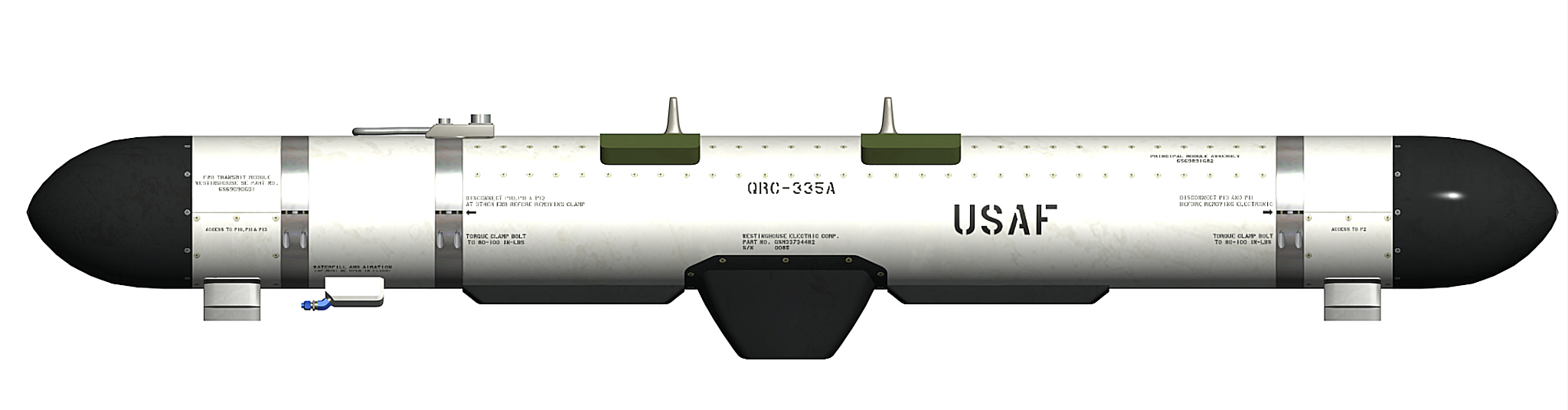

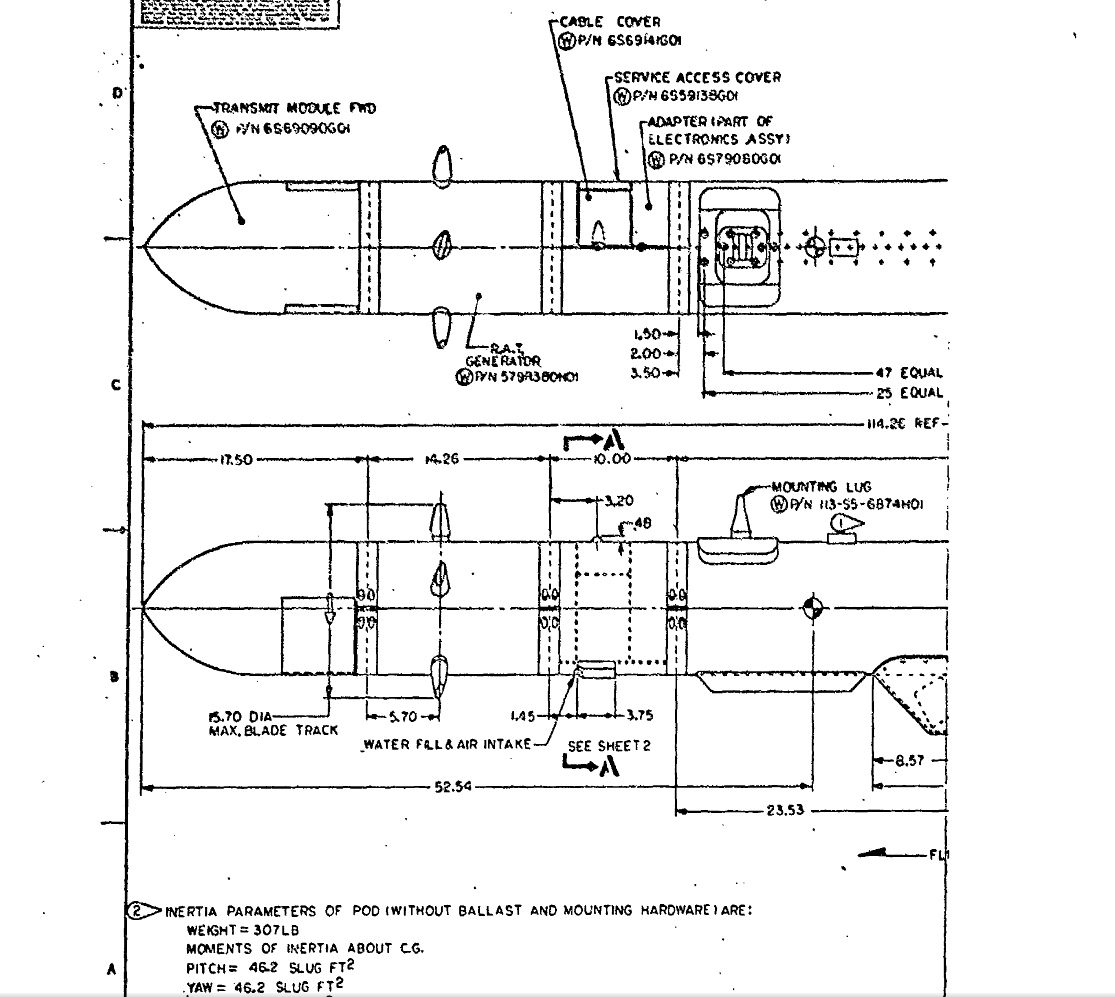

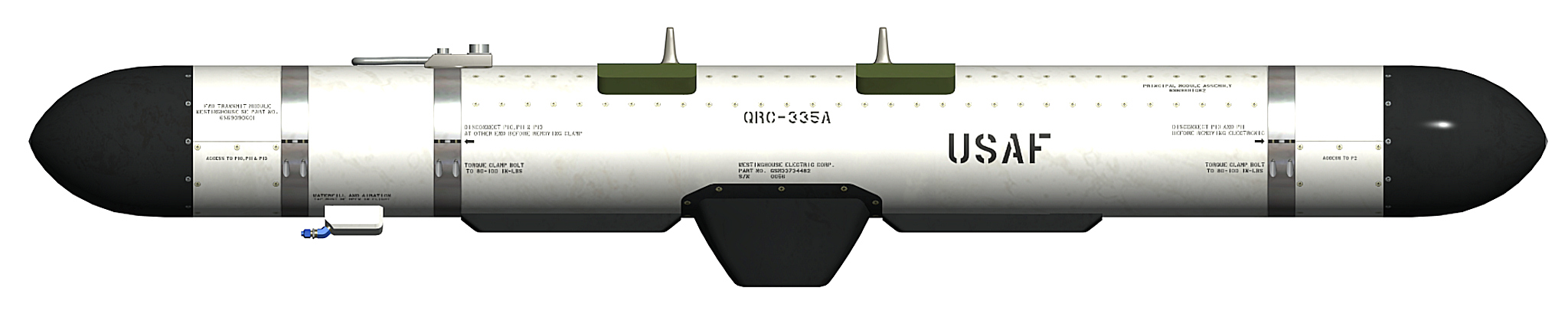

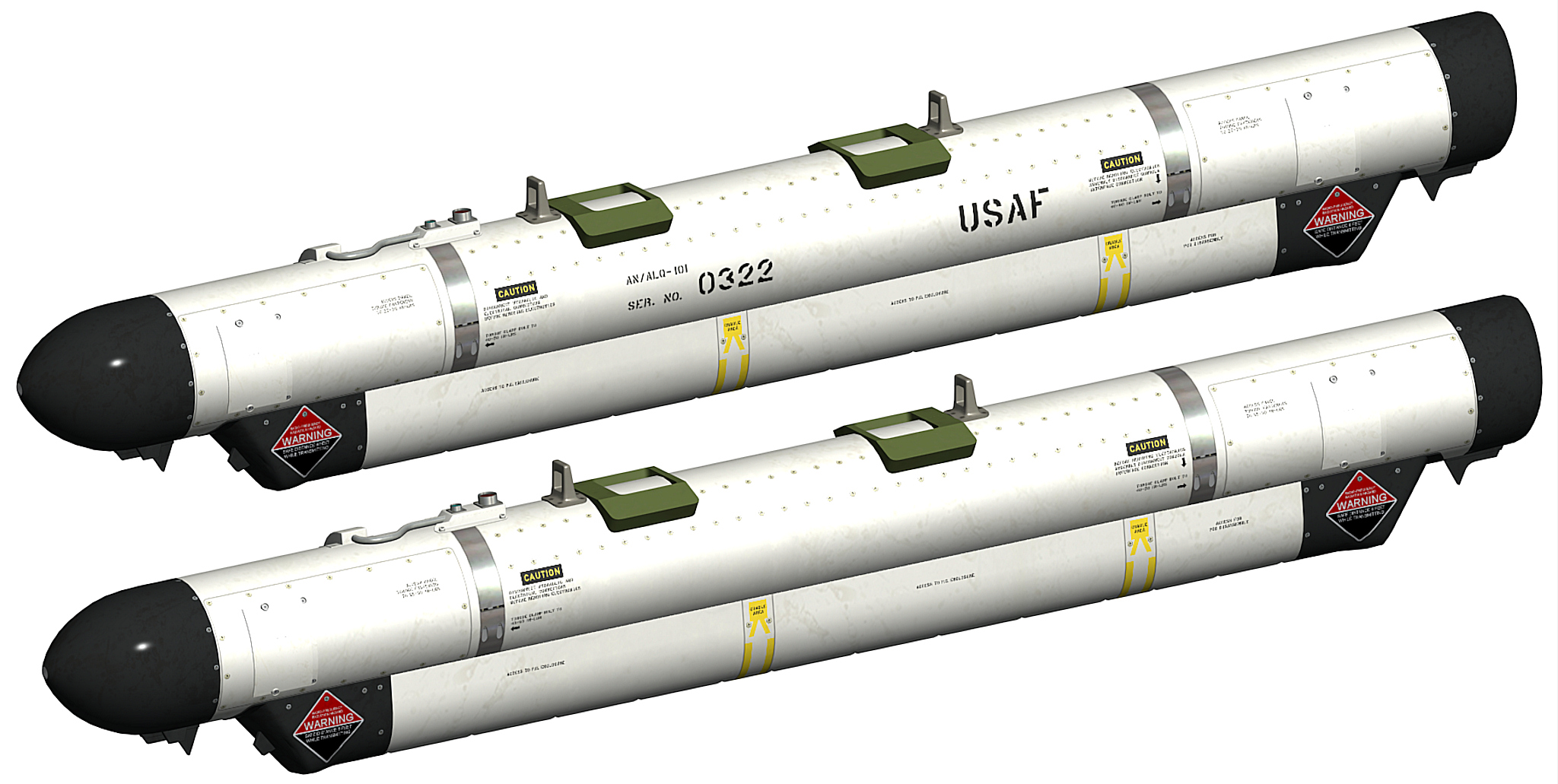

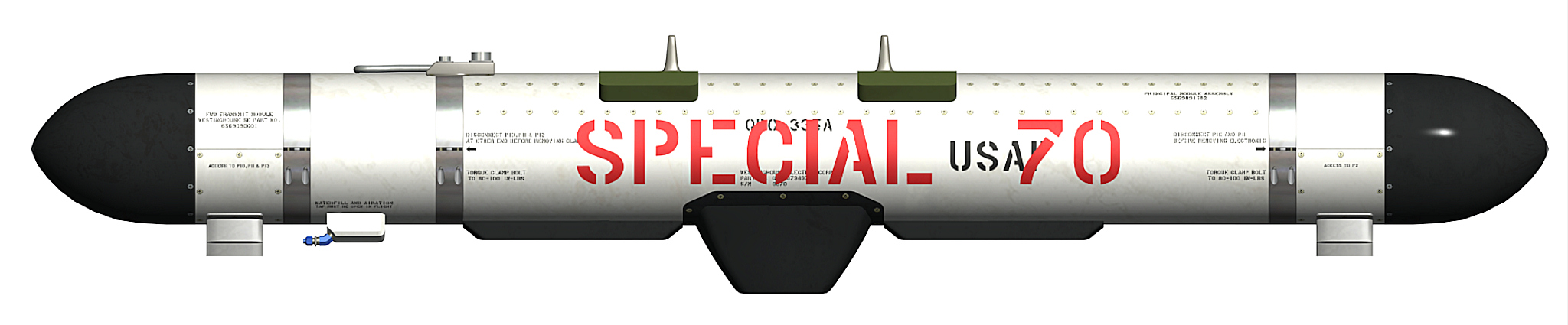

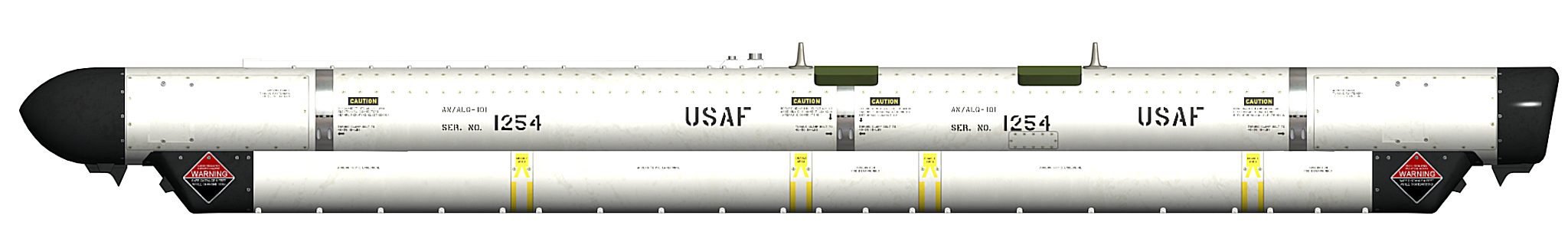

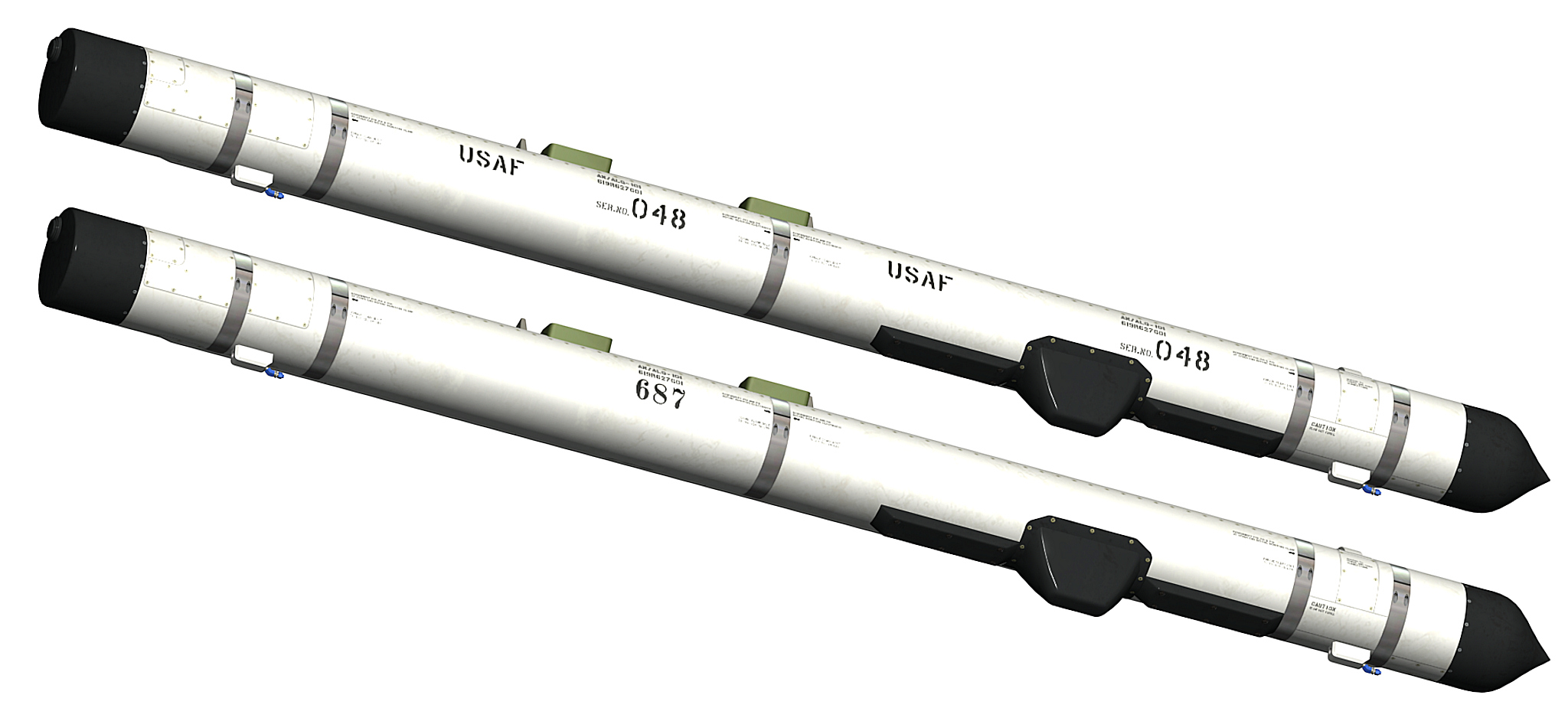

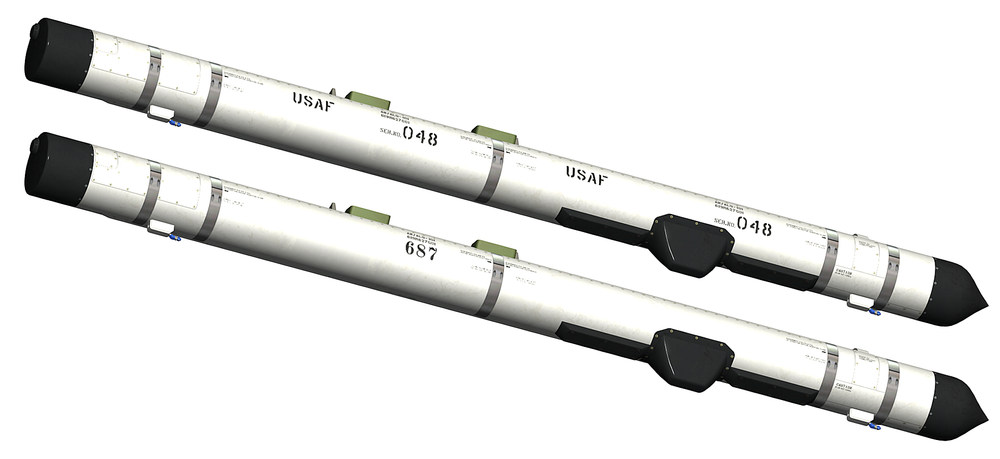

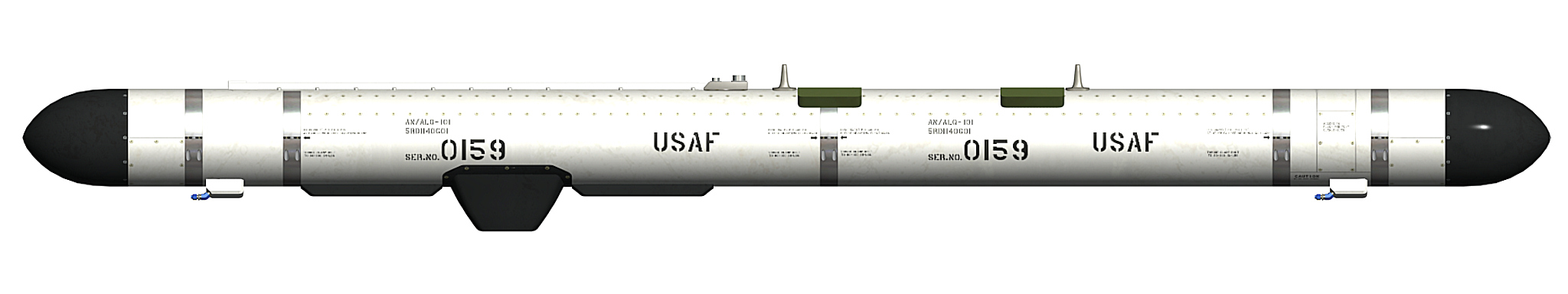

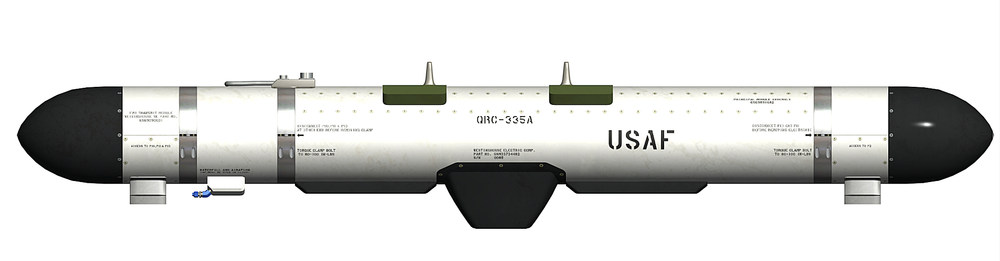

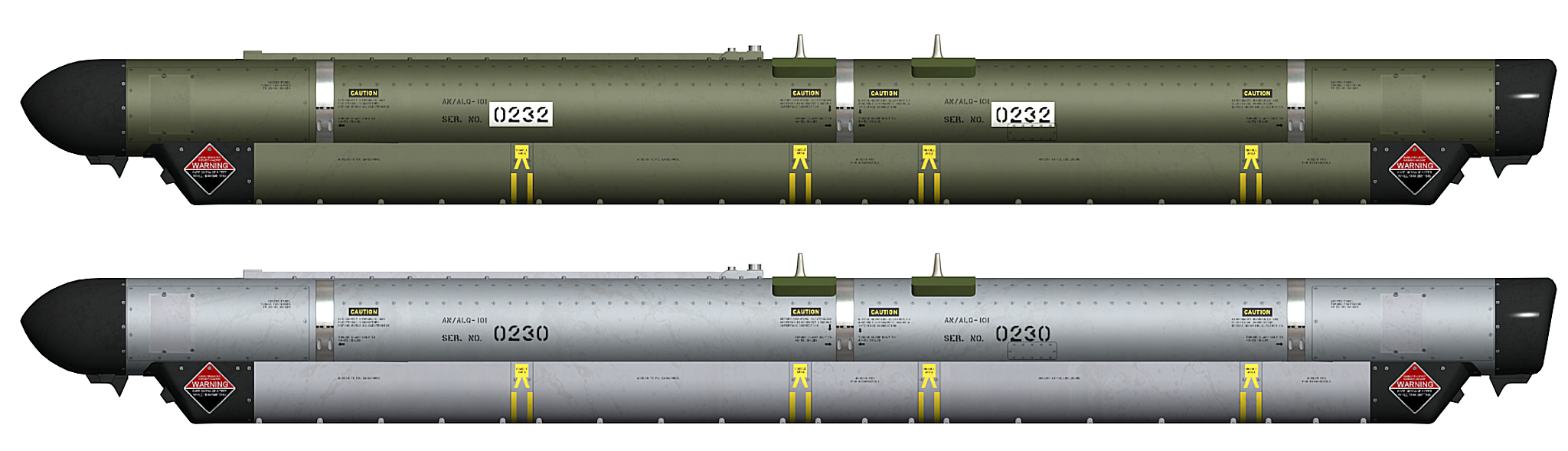

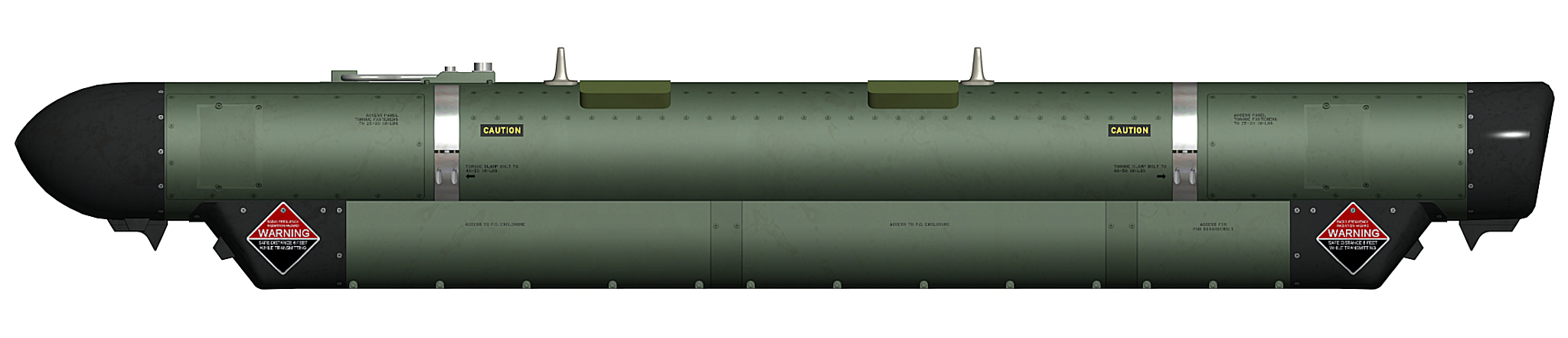

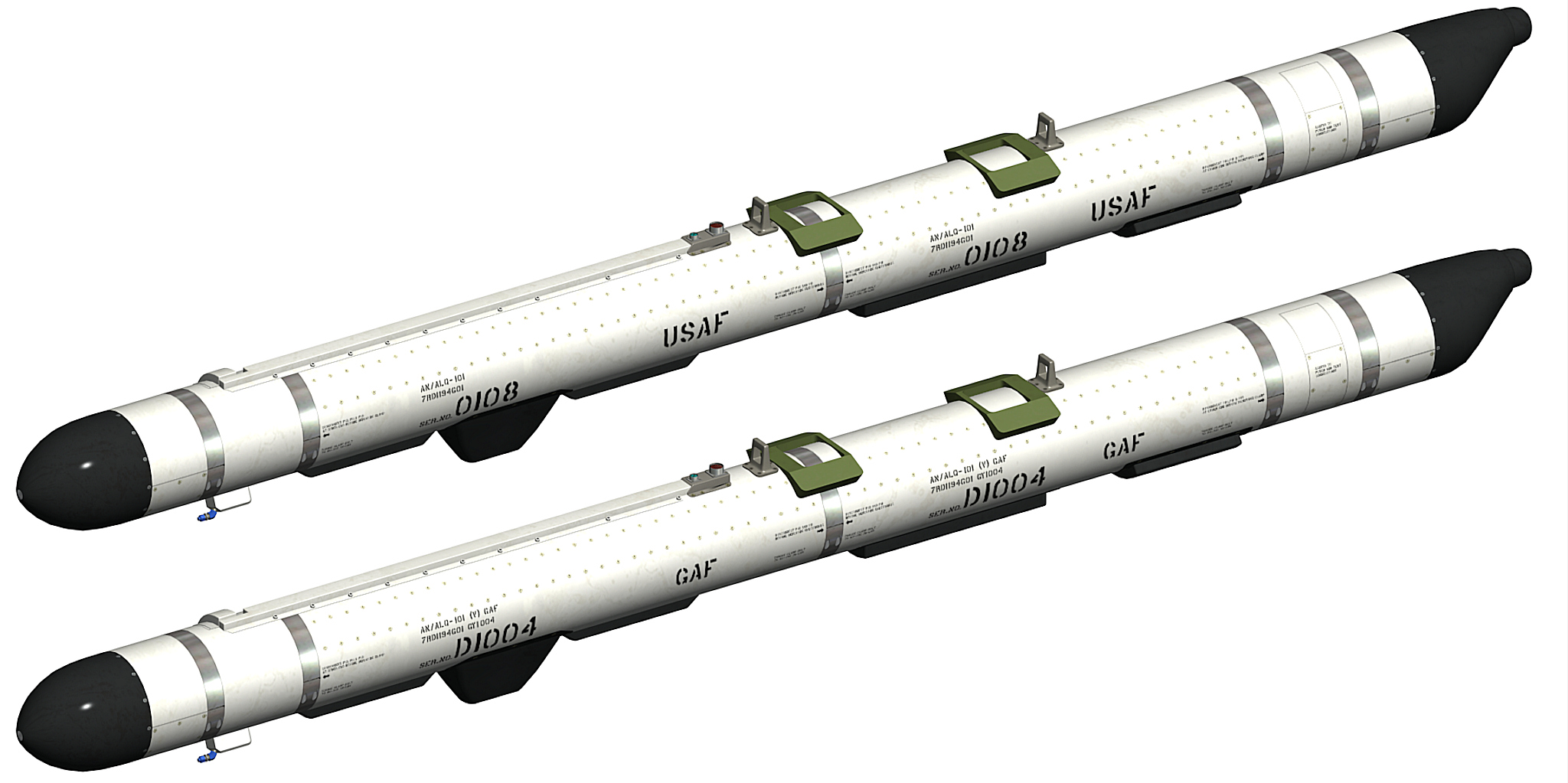

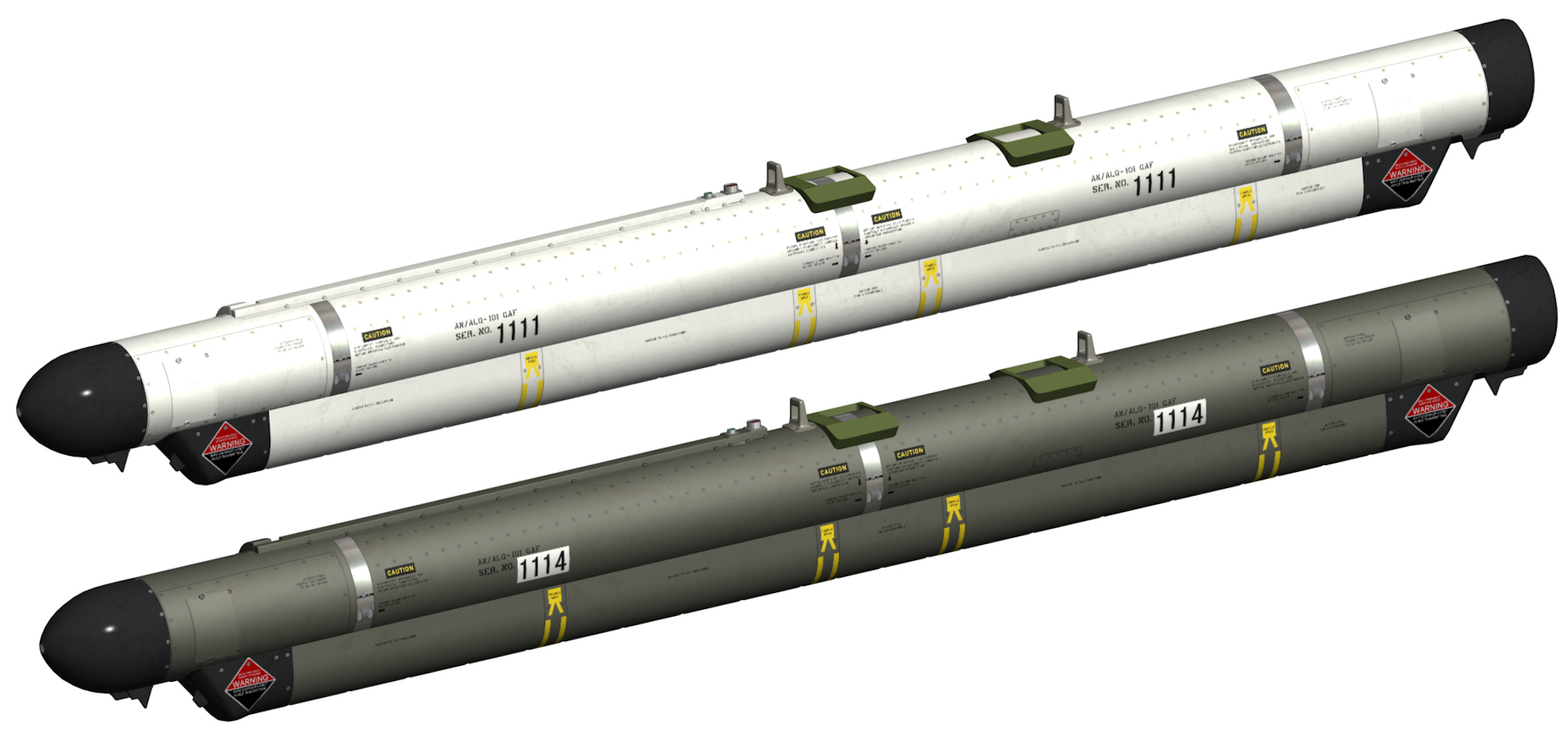

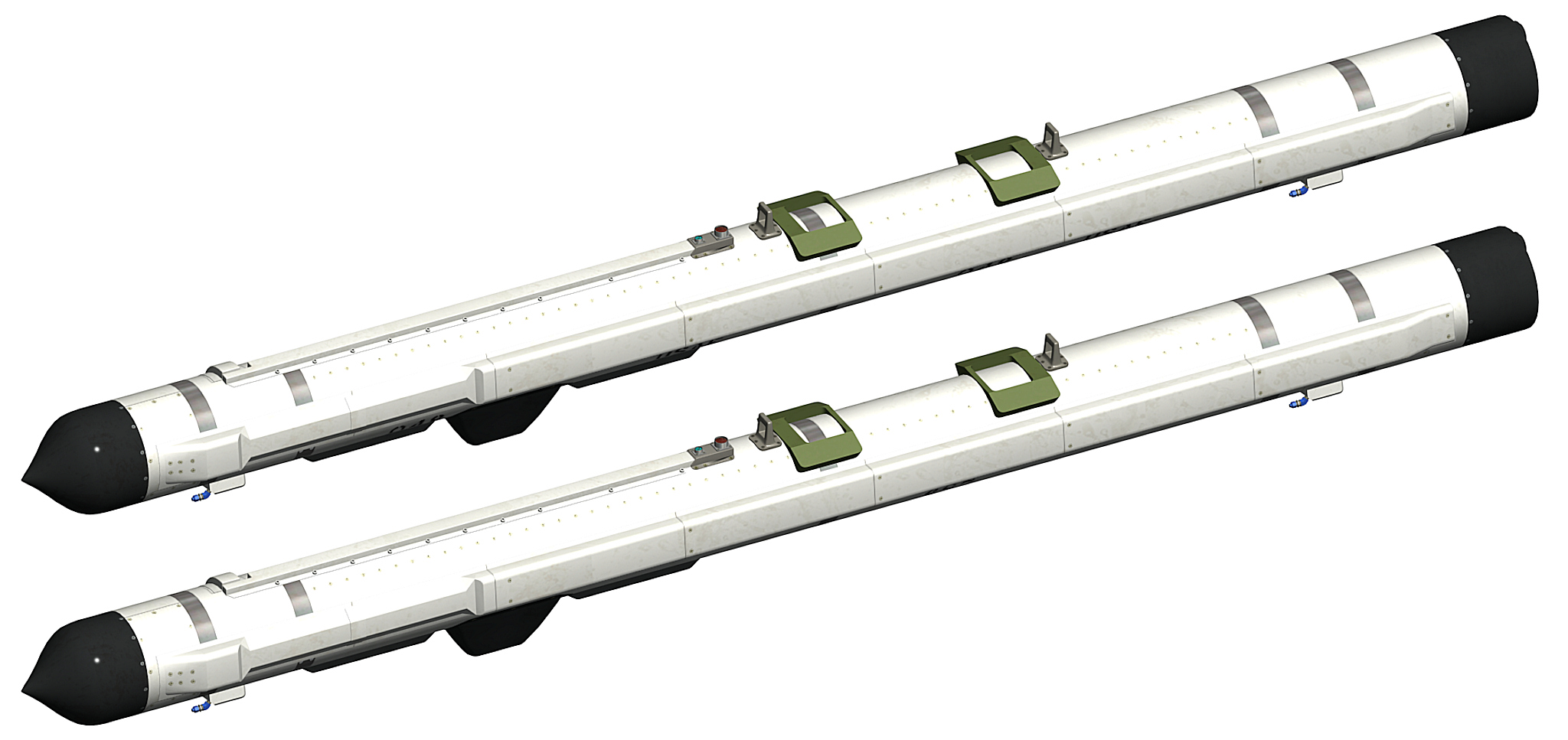

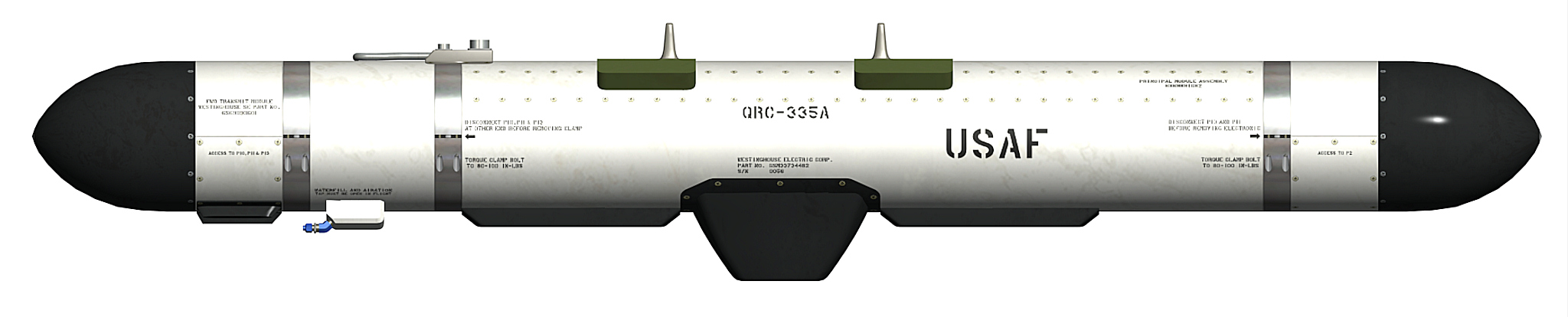

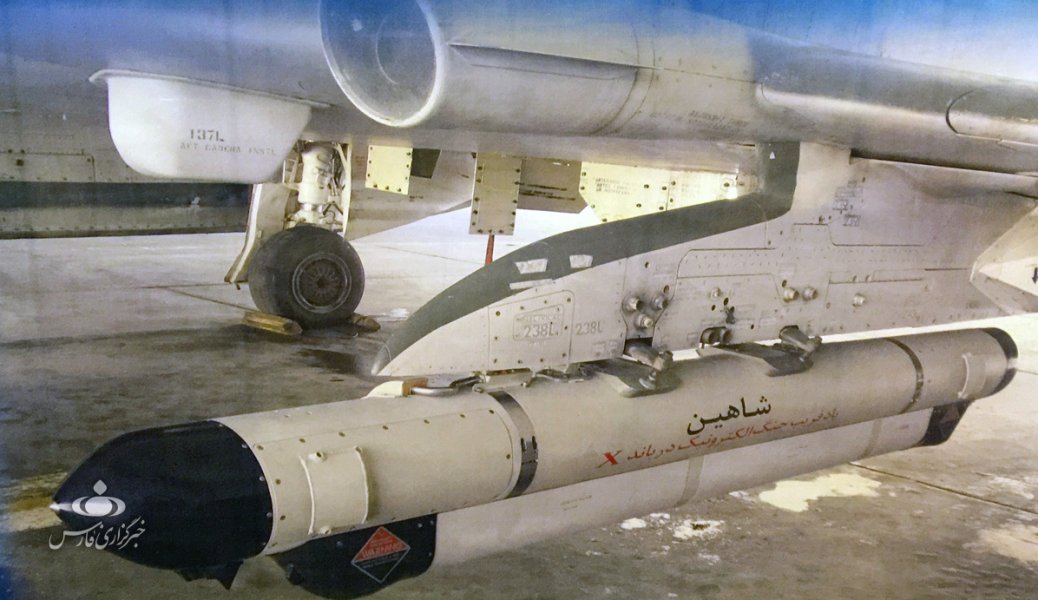

+ravenclaw_007 Posted January 20 Author Posted January 20 i´m not able to work on any mods right now but i thought that i can share something i did last year when i made my first AN/ALQ-101 ecm pod some years ago i did not have any of the reference material i have today , like manuals and original blue prints and pictures , so the first ALQ-101 pods i made are wrong by the dimensions and as well as the type names for it , that was the reason i started last year and made some new AN/ALQ-101 ecm pods thiis is what i came up with QRC-335A / AN/ALQ-101 AN/ALQ-101A with RAT AN/ALQ-101 (V)2 early version AN/ALQ-101 (V)2 late version AN/ALQ-101 (V2 Special , this are ecm pods for a specific threat expected on the mission the red markings are painted over the existing ones , this pods where always carried in a pair with an normal AN/ALQ-101 (V)2 pod ( early or late ) AN/ALQ-101 (V)3 AN/ALQ-101 (V)4 , USAF and German Air Force AN/ALQ-101 (V)6 , USAF and Israeli Air Force AN/ALQ-101 (V)8 , USAF and Iran Air Force AN/ALQ-101 (V)8 , Royal Air Force AN/ALQ-101 (V)9 , USAF and Iran Air Force AN/ALQ-101 (V)10 , USAF AN/ALQ-101 (V) 10 , German Air Force AN/ALQ-101 (V)10 , Royal Air Force all this ecm pods are in this pack , includet are new Loadout.ini for the Buccaneer because of new names for the UK pods , just drop them in to the respective folder and let overwrite if ask to PLEASE remove or delete any existing AN/ALQ-101 pods before you install this new ones ALQ-101 Pack.7z some reference material an F-4D with to AN/ALQ-101 (V)2 pods , the one in front is the one marked special original blue print from westinghouse by going true my Iran Air Force picture i came across this ecm pod , it is clearly an AN/ALQ-101 like the (V)8 but a short version of it , so i start searching for info material on a short version (V)8 and found this page in an T.O. !F-4C-35 manual and there is an AN/ALQ-101 (V)9 listed with a total lenght of 112 inches , so i found the short version pod , i just had no clue that this pod existed and that the Iranian Air Force got them the Iranian Air force modified this ecm pod to an X-Band pod around 2015 with a frequency range from 6.2 to 10.9 Ghz , the call it the Shahin X Band electronic warfare pod this pod is includet in the pack , picture is below Shahin X Band ecm pod have fun with the pods , ravenclaw_007 9 8 Quote
EricJ Posted January 20 Posted January 20 If you're sharing you may need to post the link to the pods. If not they look great as usual man... Quote
+ravenclaw_007 Posted January 20 Author Posted January 20 3 hours ago, EricJ said: If you're sharing you may need to post the link to the pods. If not they look great as usual man... check above the F-4D picture , there is the pack for download Quote

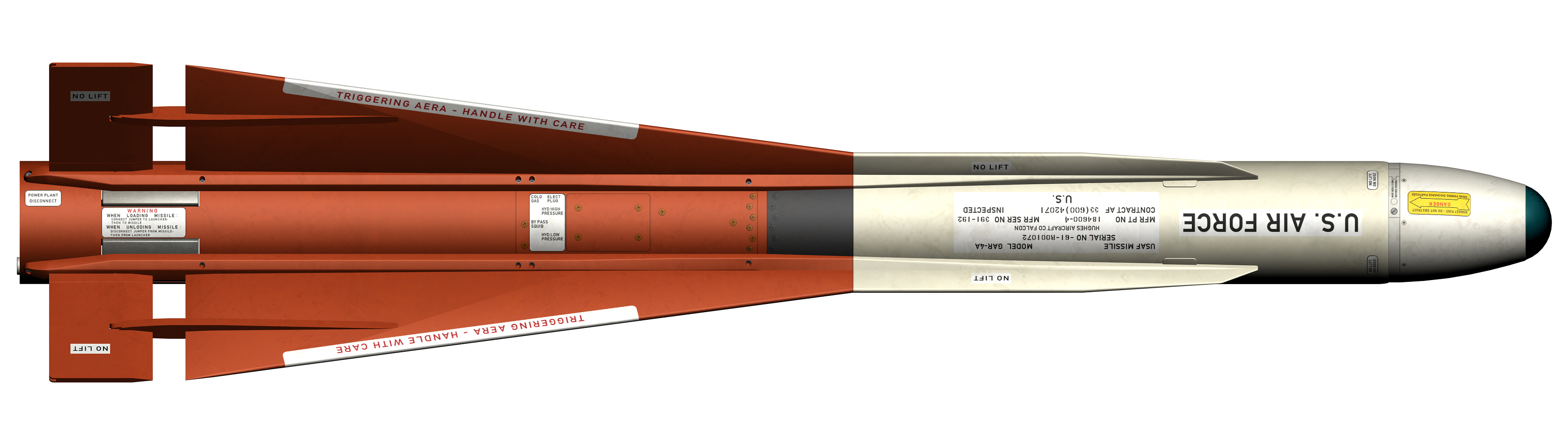

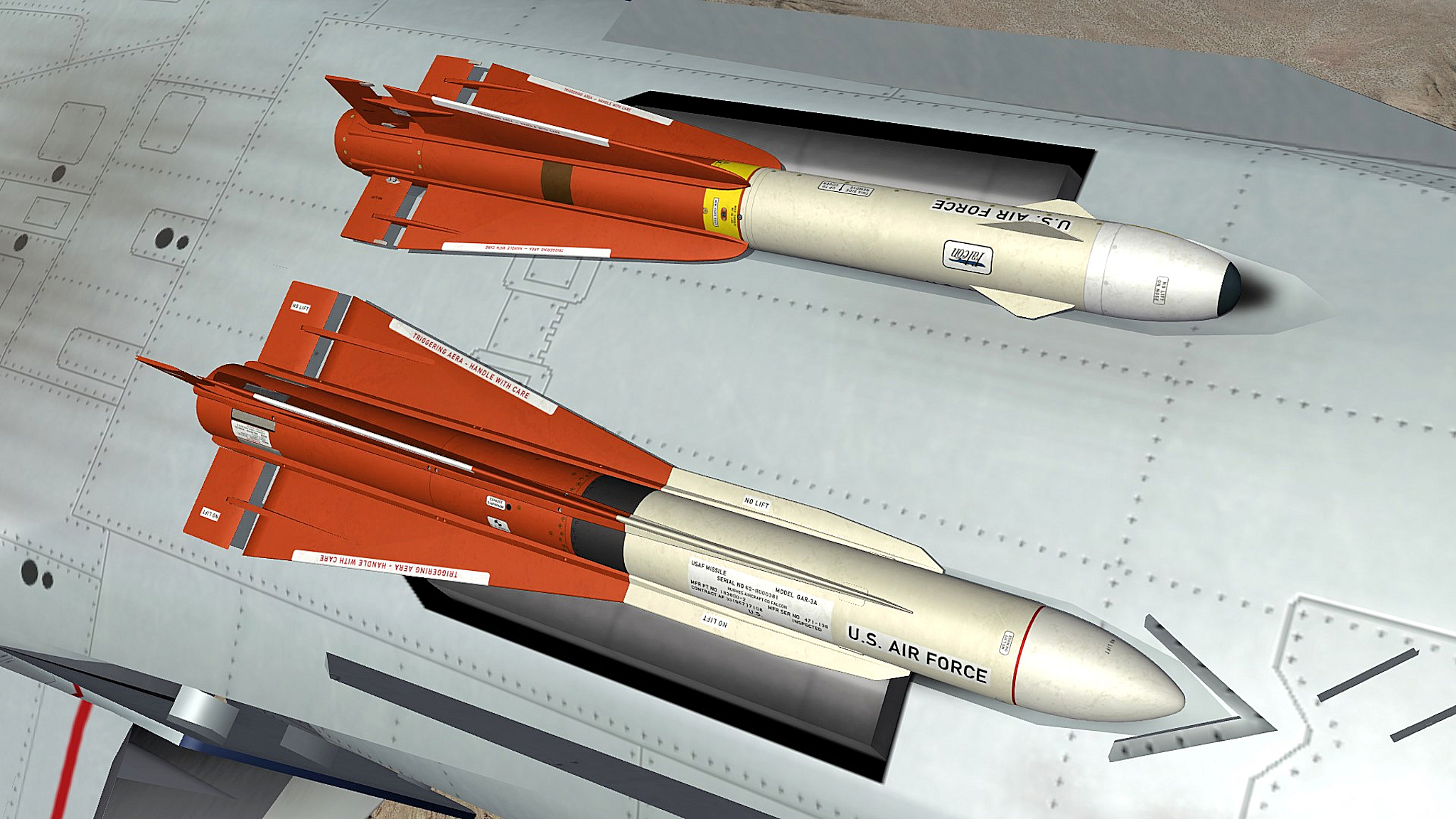

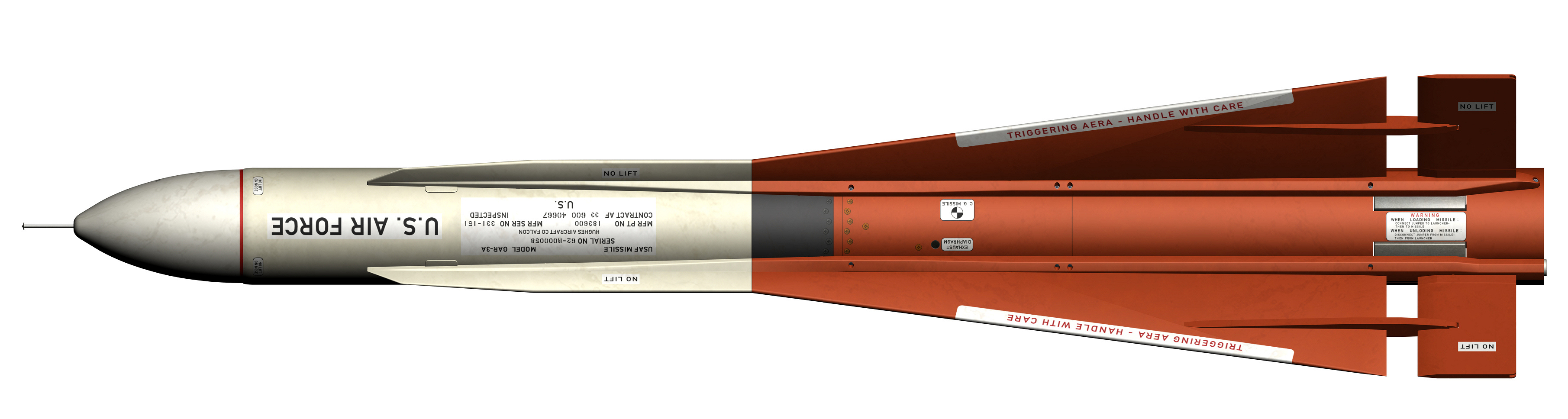

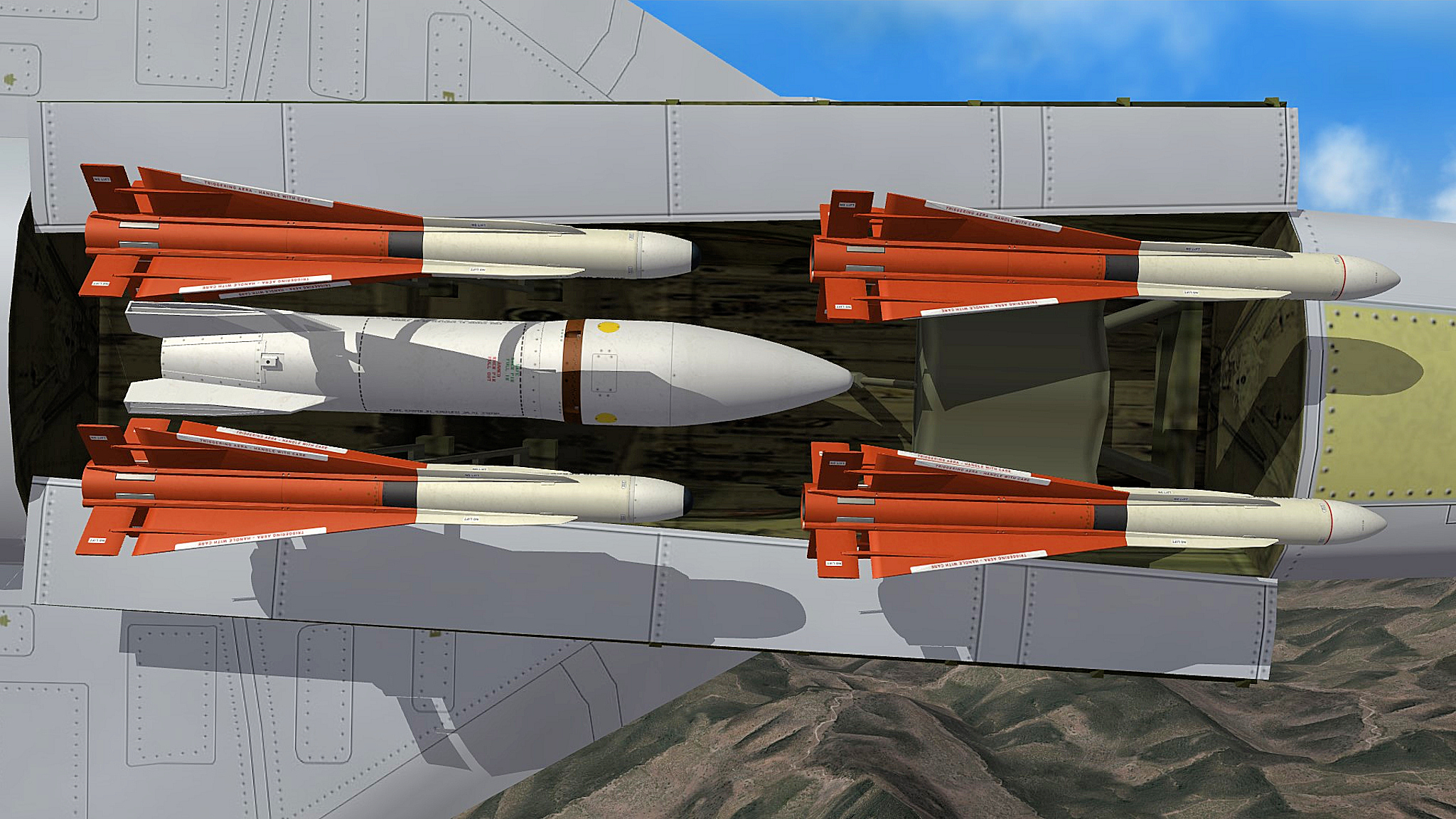

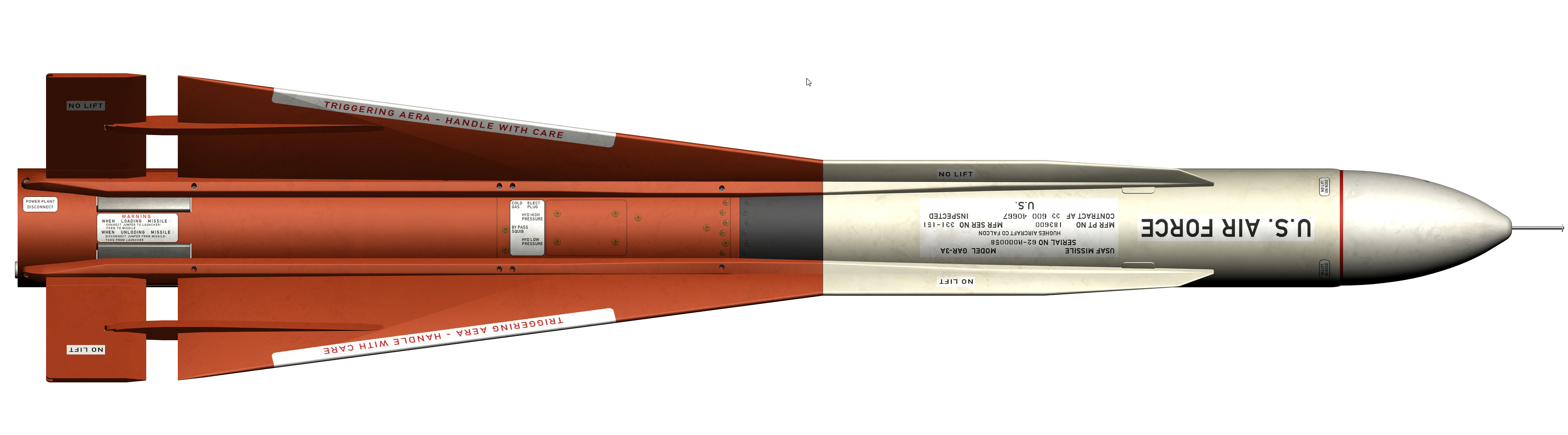

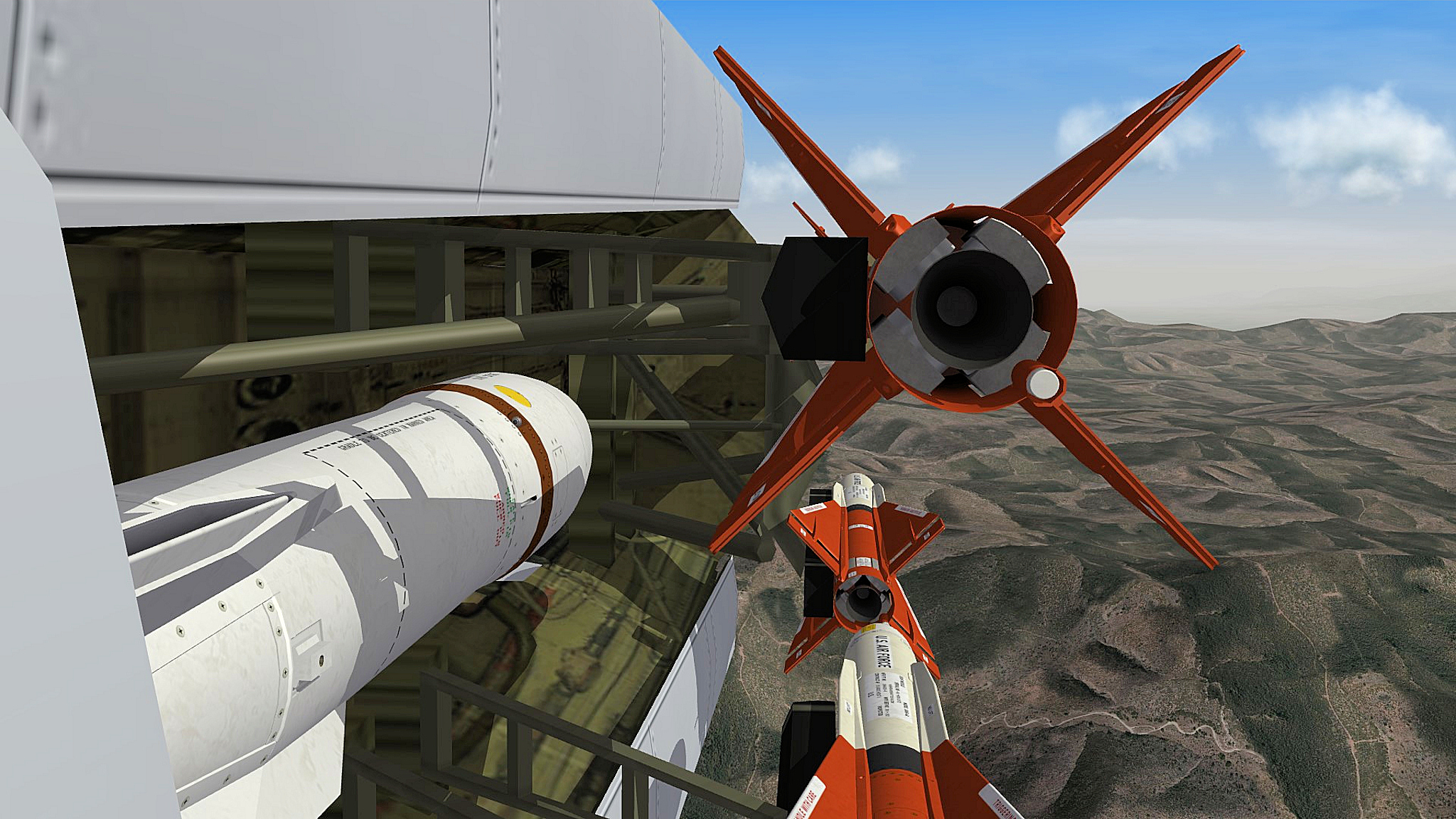

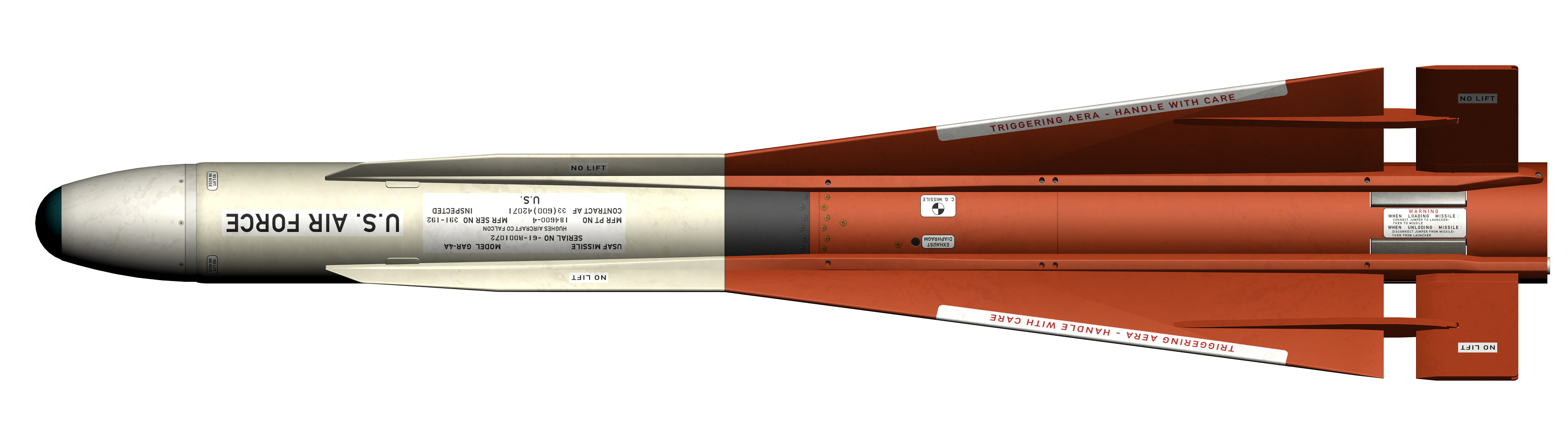

+ravenclaw_007 Posted March 6 Author Posted March 6 here is the final AIM-4 pack includet are the AIM-4F and AIM-4G AIM-4 Falcon Missiles.7z here is the AIR-2A Genie AIR-2A.7z here are the ini´s for the F-101B Voodoo and the F-106A and F-106A_72 , i includet a manual and an automatic version of the ini´s but the automatic ini´s are not working the way they should so you launch some missiles with the bomb bay closed , i personally use the manual version this way i´m sure the missiles getting launched with the bomb bay open for all other aircrafts you like to use this AIM-4 missiles and AIR-2A you may have to change the positions on the weaponstations your self F-101_&_F-106_INI_Updates.7z NOTE: Please make a backup from your ini´s befor using the new ones above ingame pictures with the new missiles and the updated ini´s F-106A F-101B the AIM-4F early and late and AIM-4G missiles AIR-2A Genie 10 10 Quote
EricJ Posted March 6 Posted March 6 We should give out some kind of award for stuff like this, sorta like a community thank you for such quality weapons. Nobody has done so well with this stuff. I'm sure have done good but wow, this is impressive. 5 1 Quote
+dtmdragon Posted March 8 Posted March 8 (edited) Awsome work @ravenclaw_007 Just one small detail for the Genie. The missiles with a brown band like you have done had no warhead but a live rocket motor. These are the ones you will see in most photos of the Genie being fired. A Genie with a live nuclear warhead is completely white with no colored bands, even though it does have a live rocket motor. This was how a live nuclear weapon was identified and differentiated from other weapons. This information is from the same F-106 Facebook group as before. Edited March 8 by dtmdragon 1 Quote

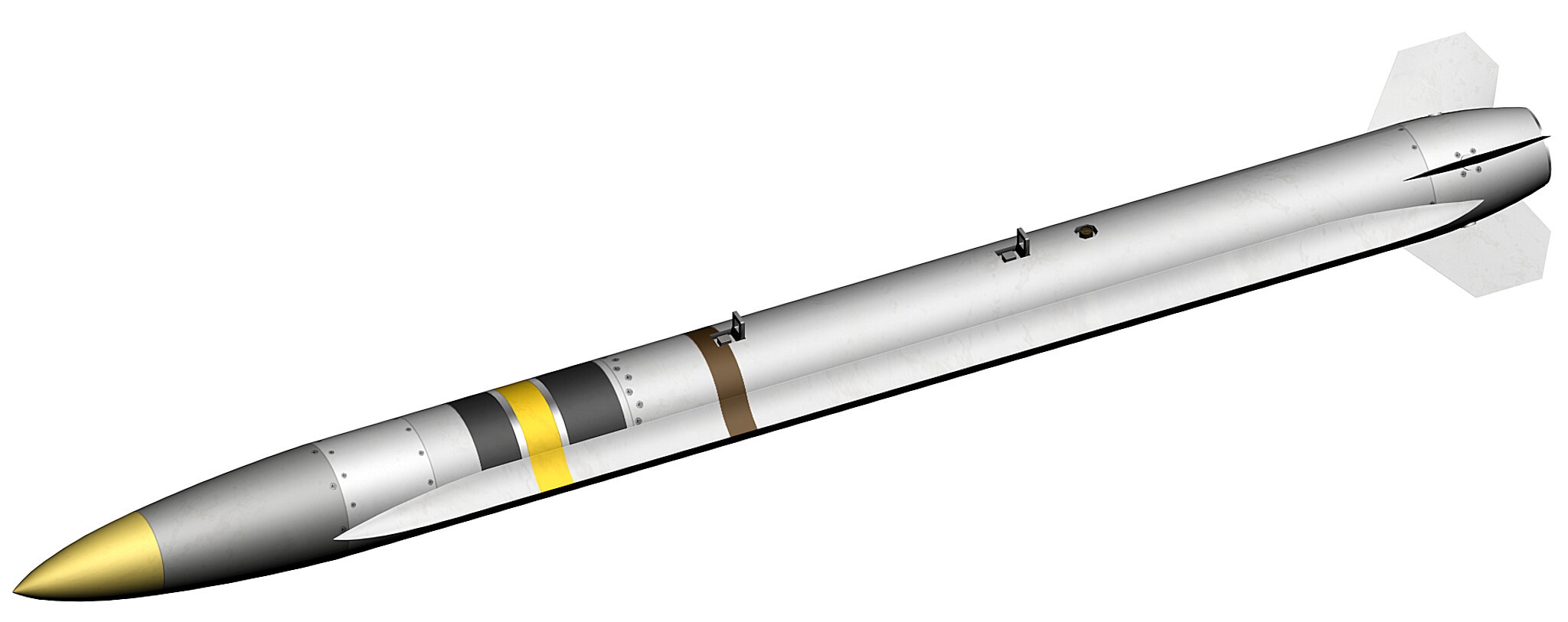

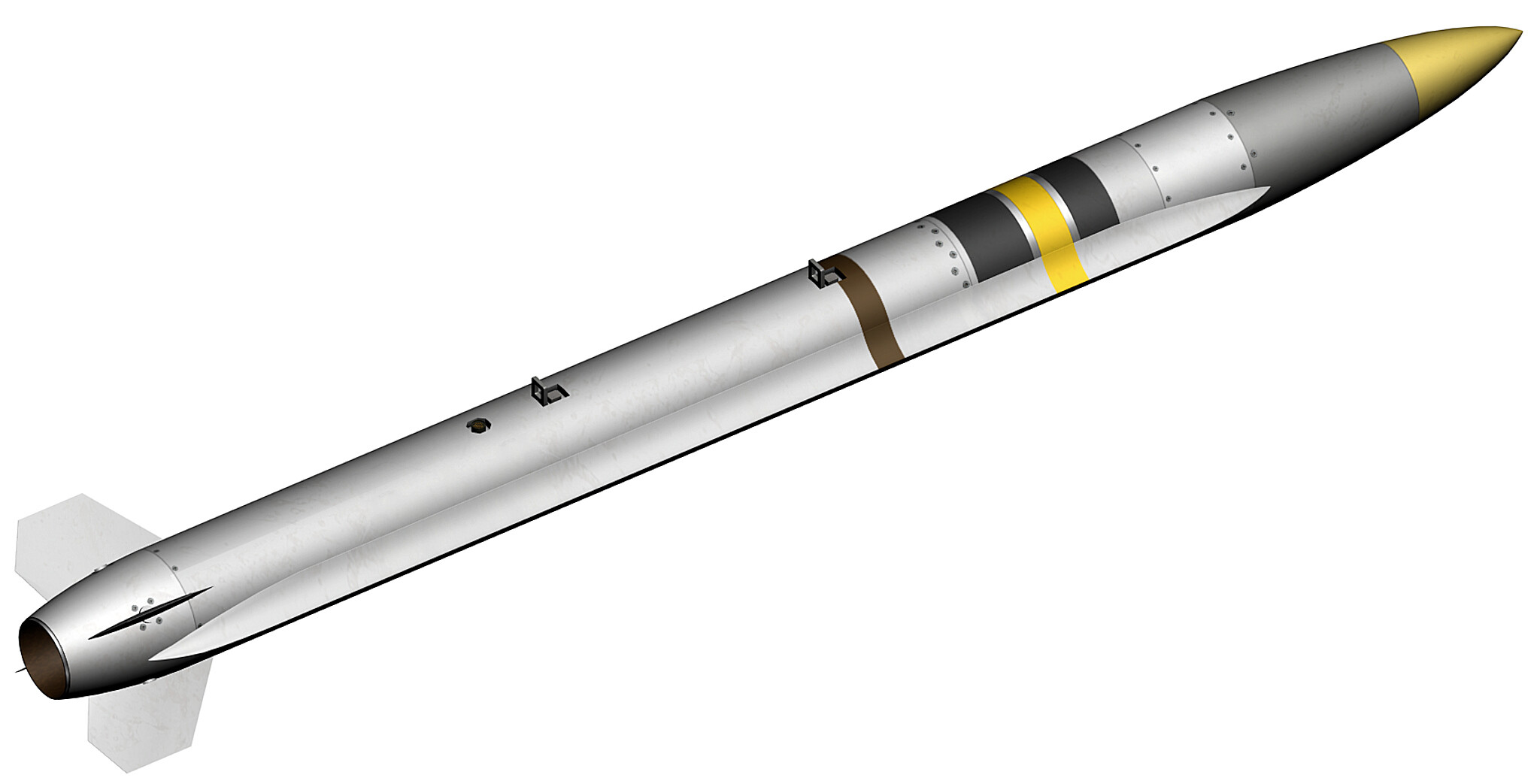

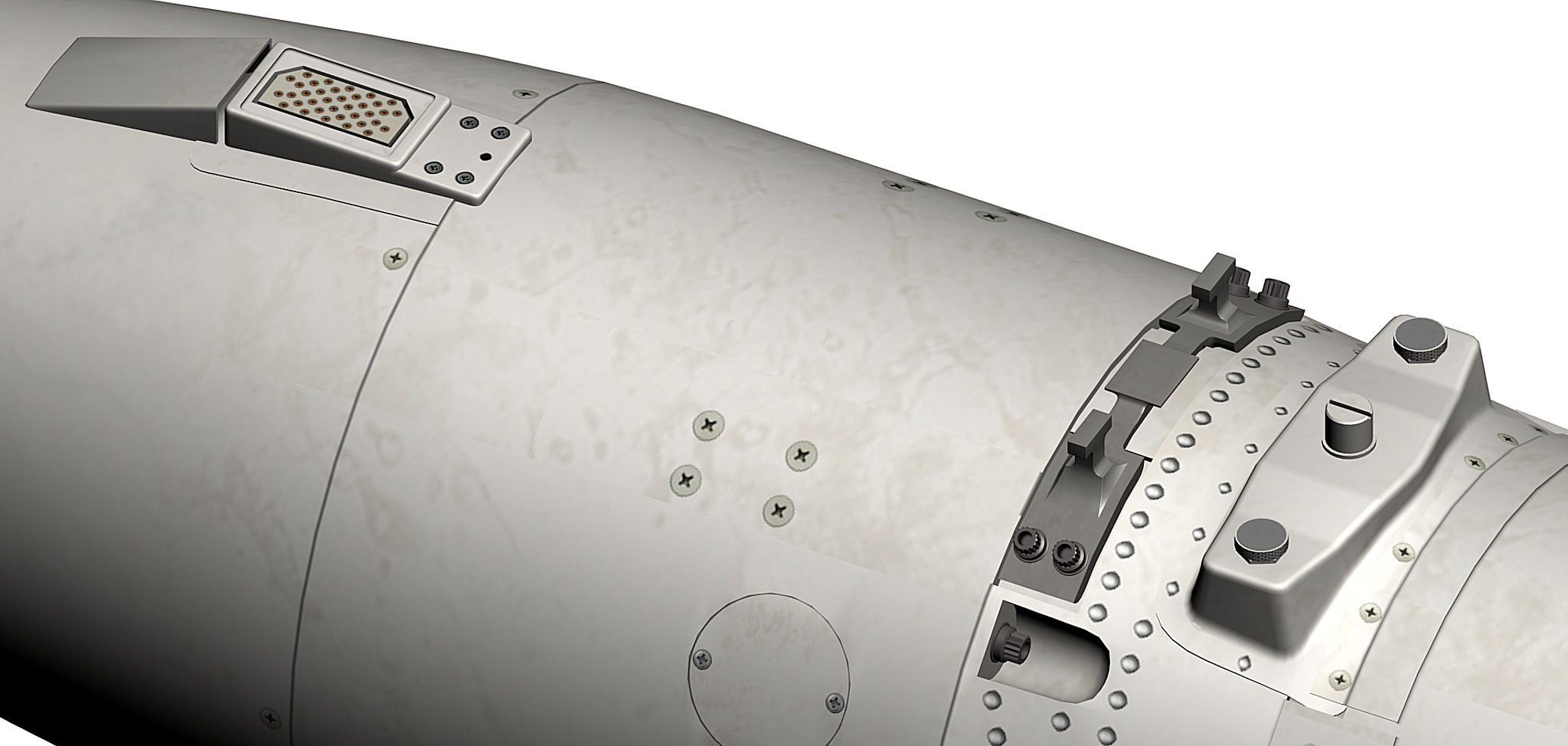

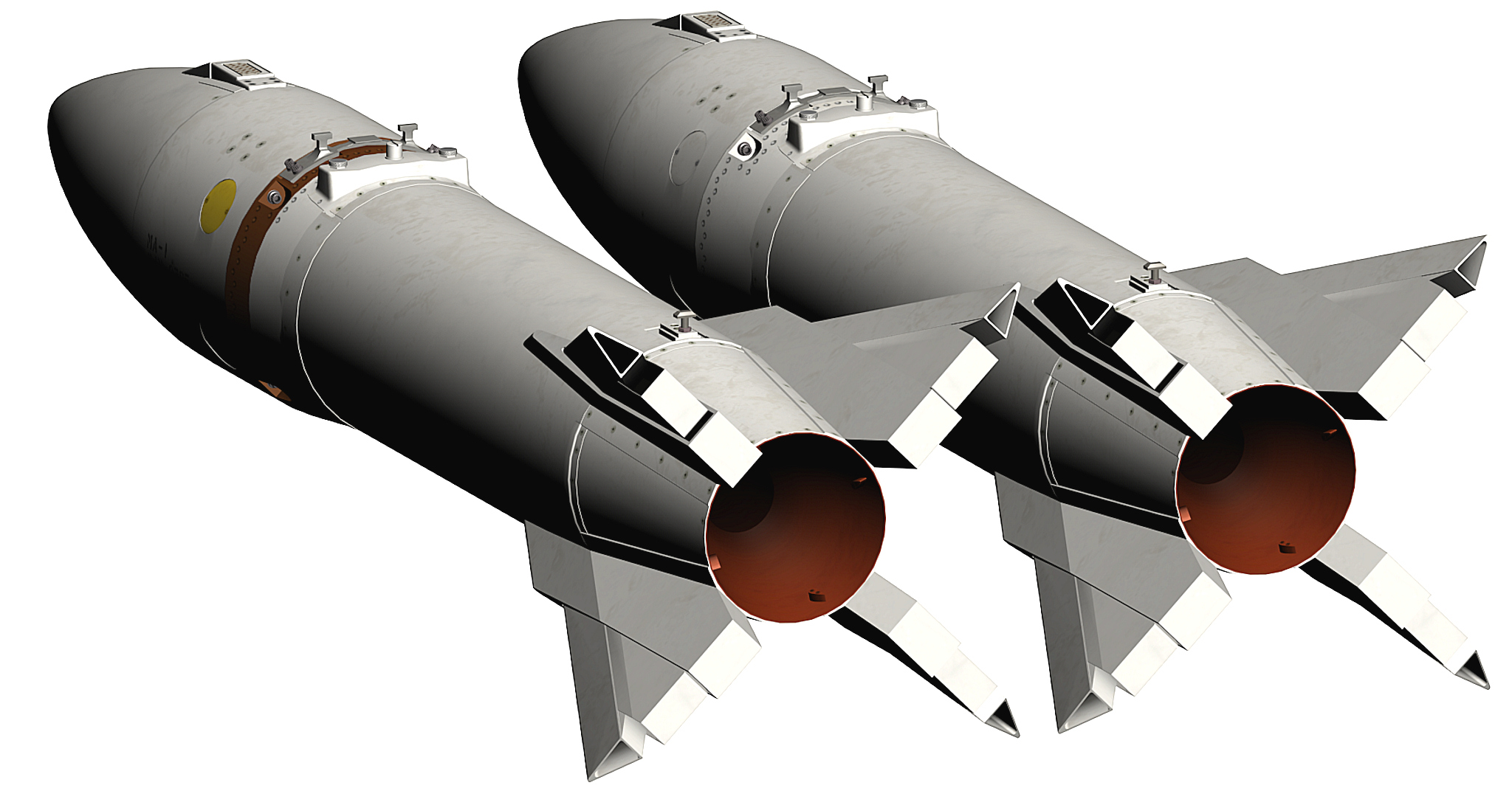

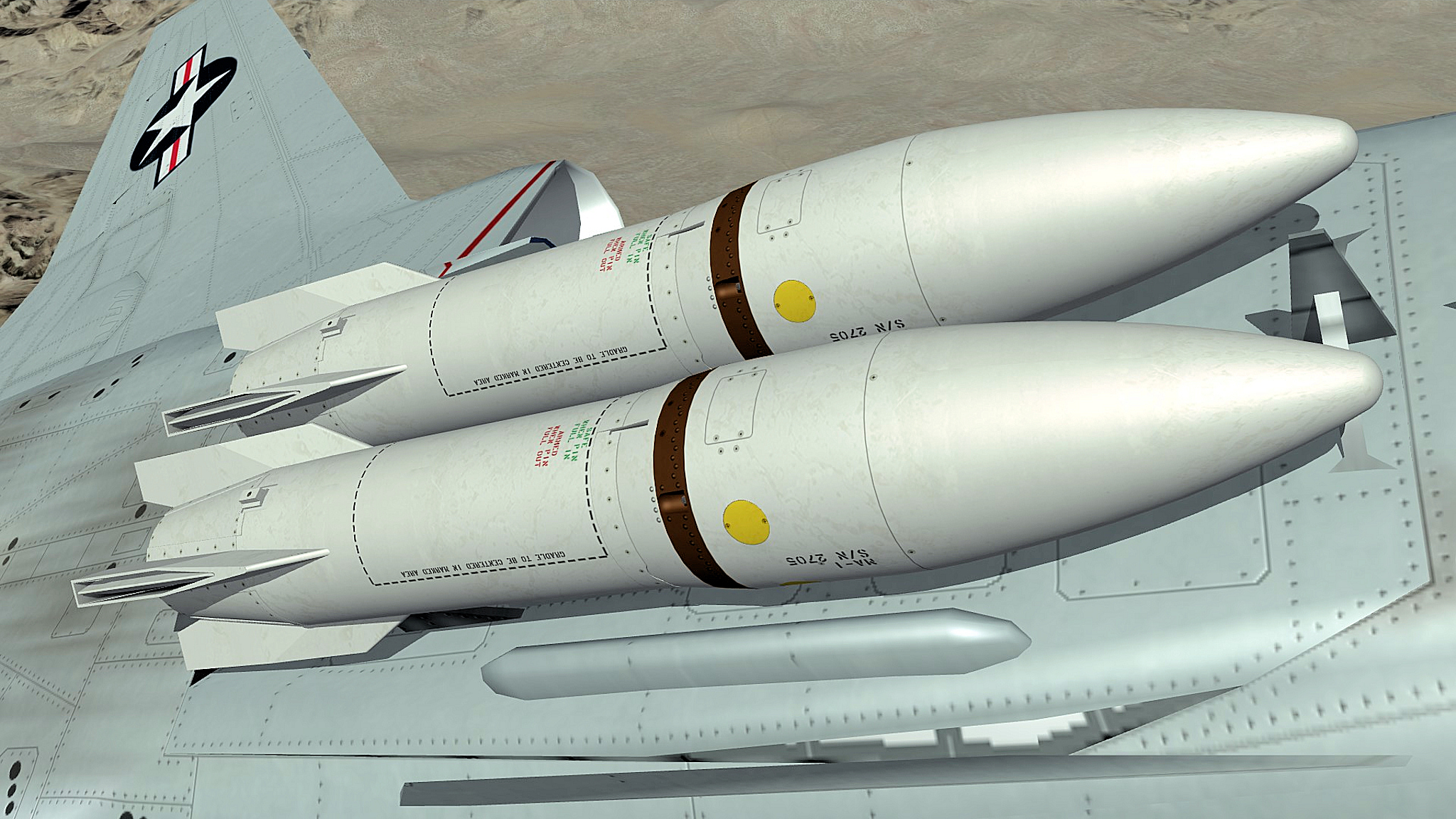

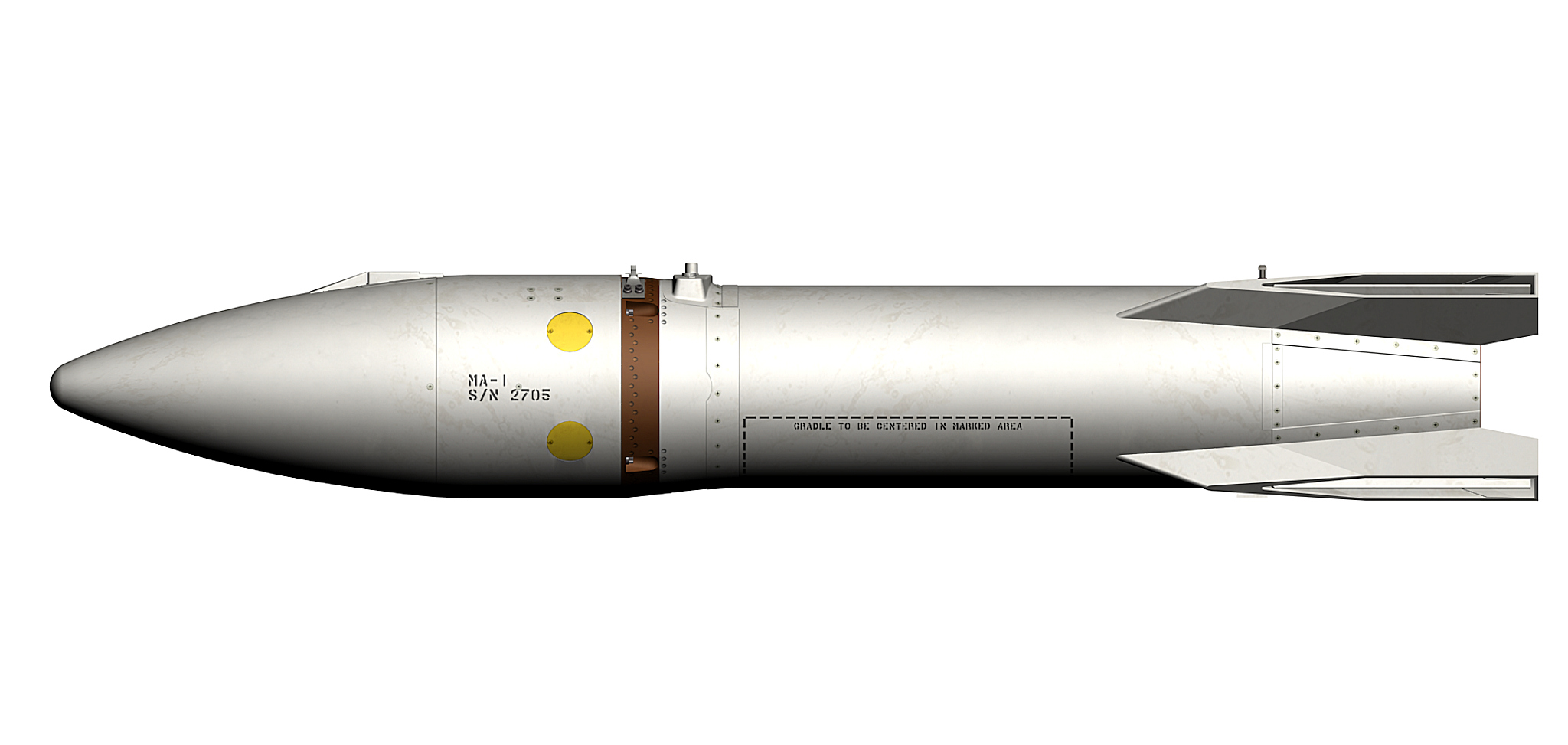

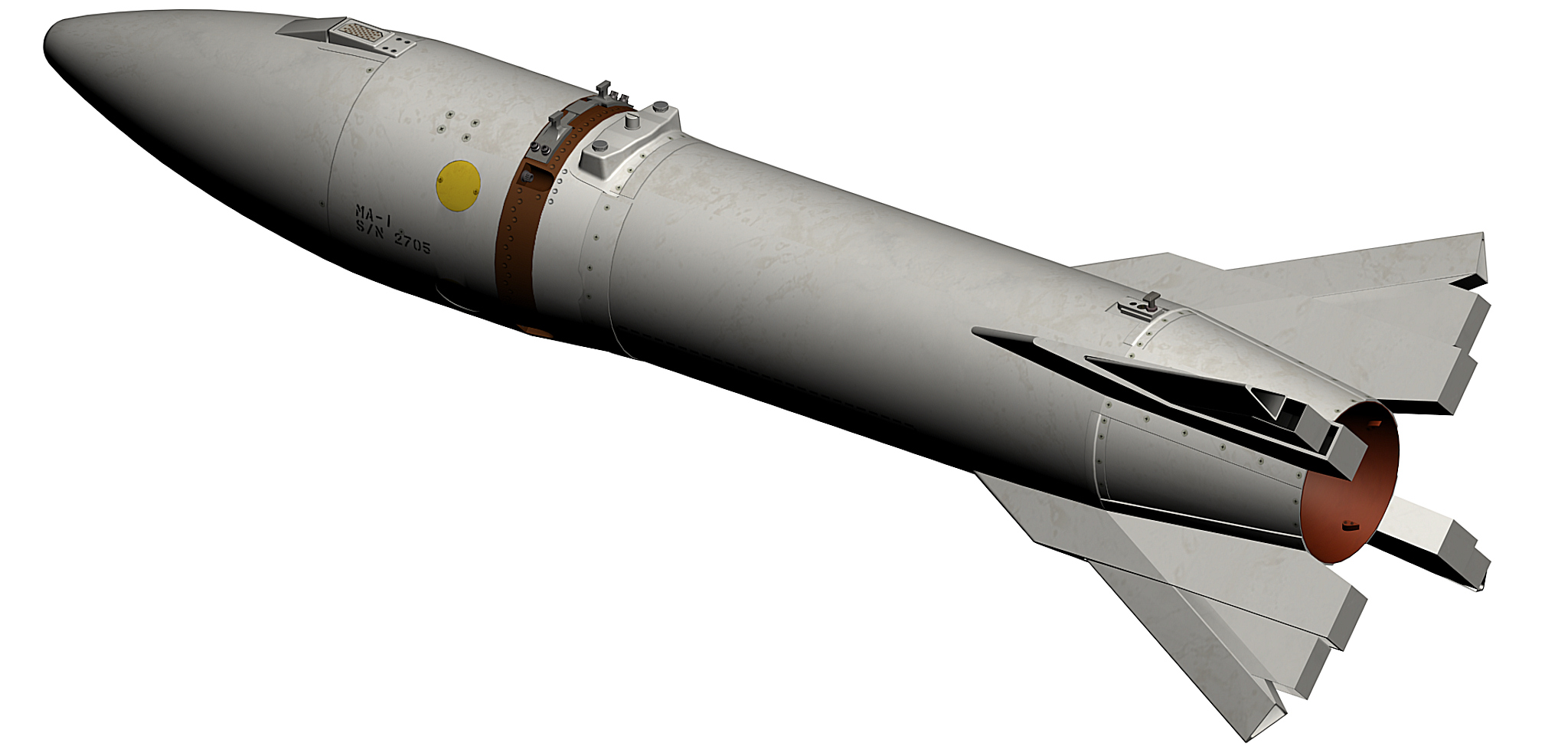

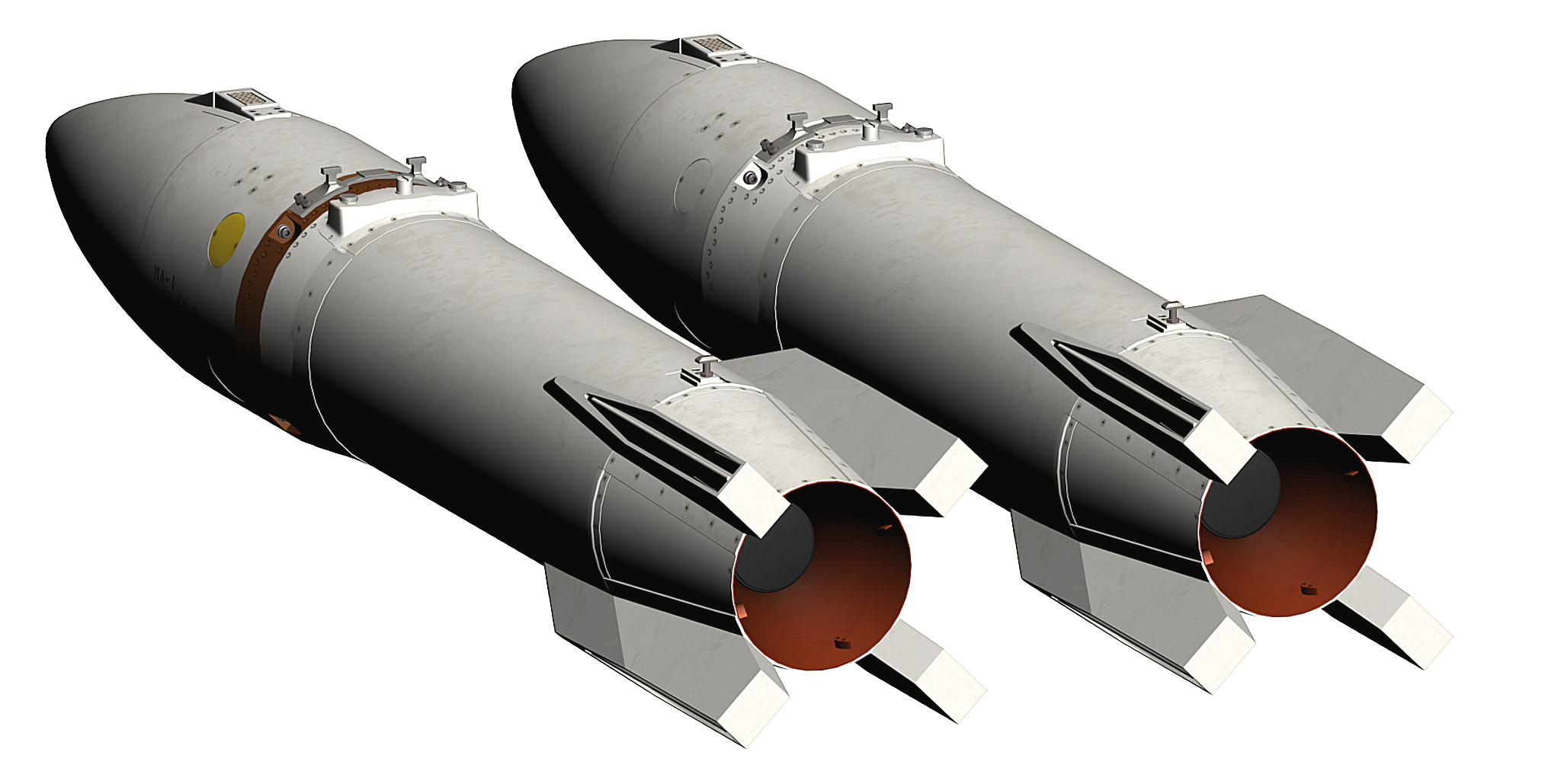

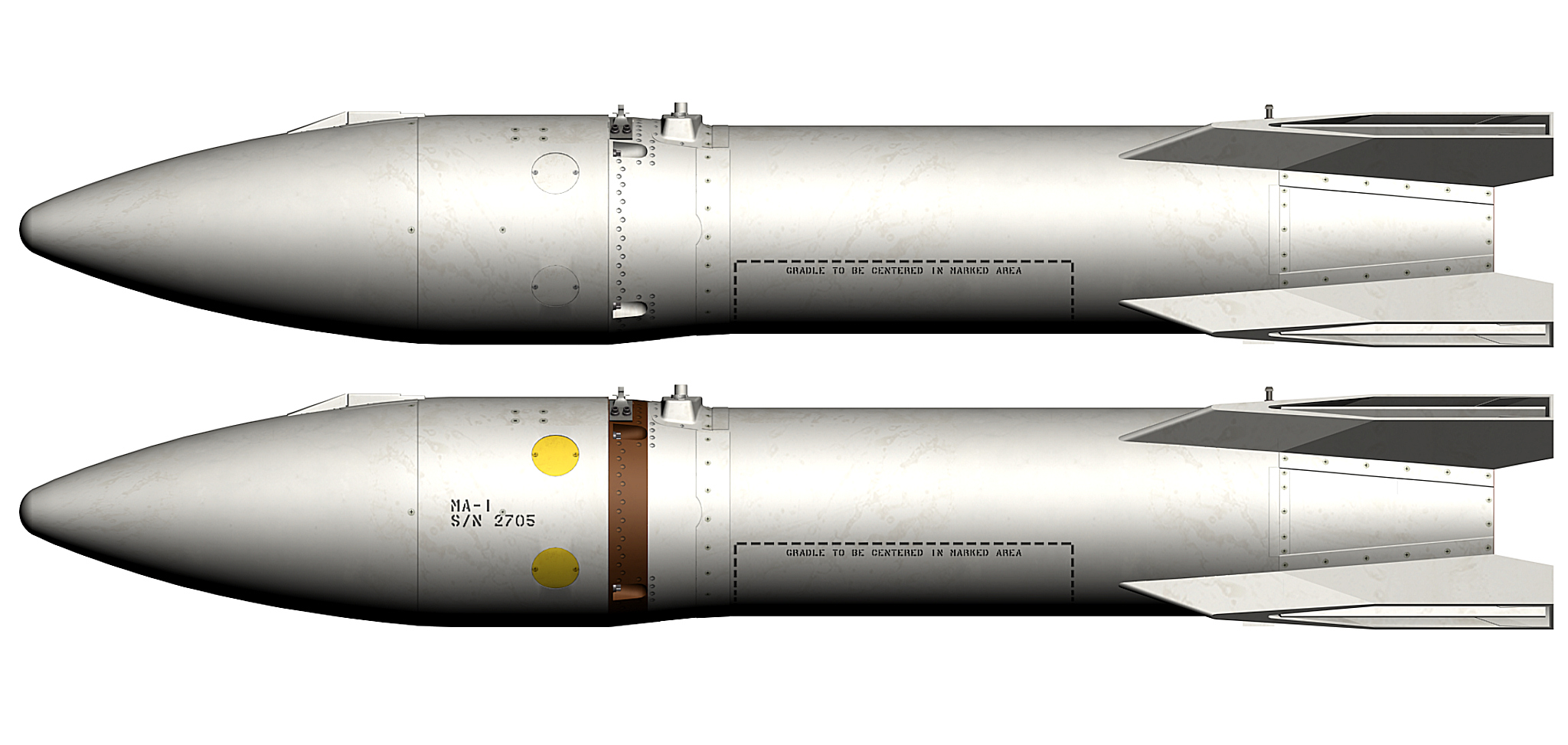

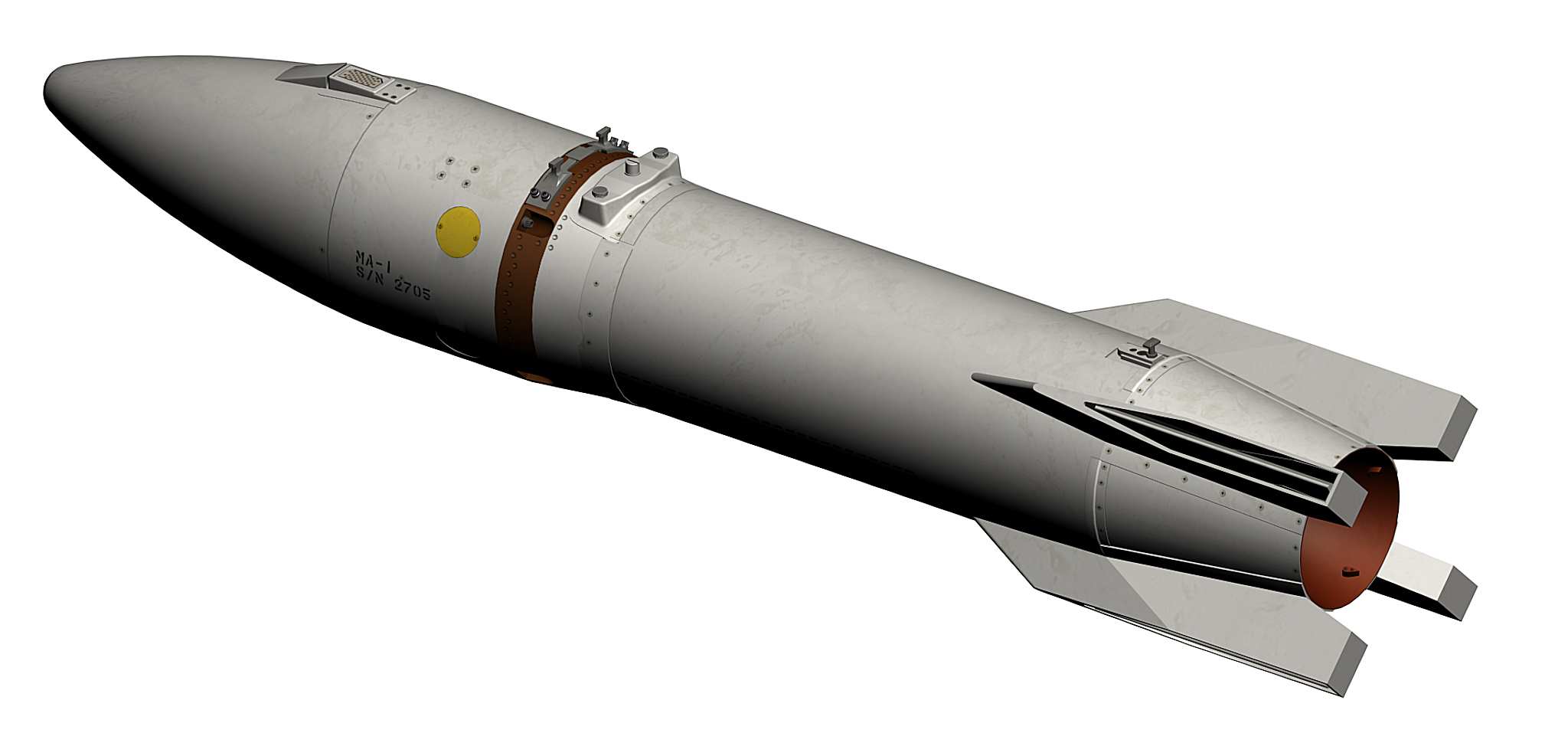

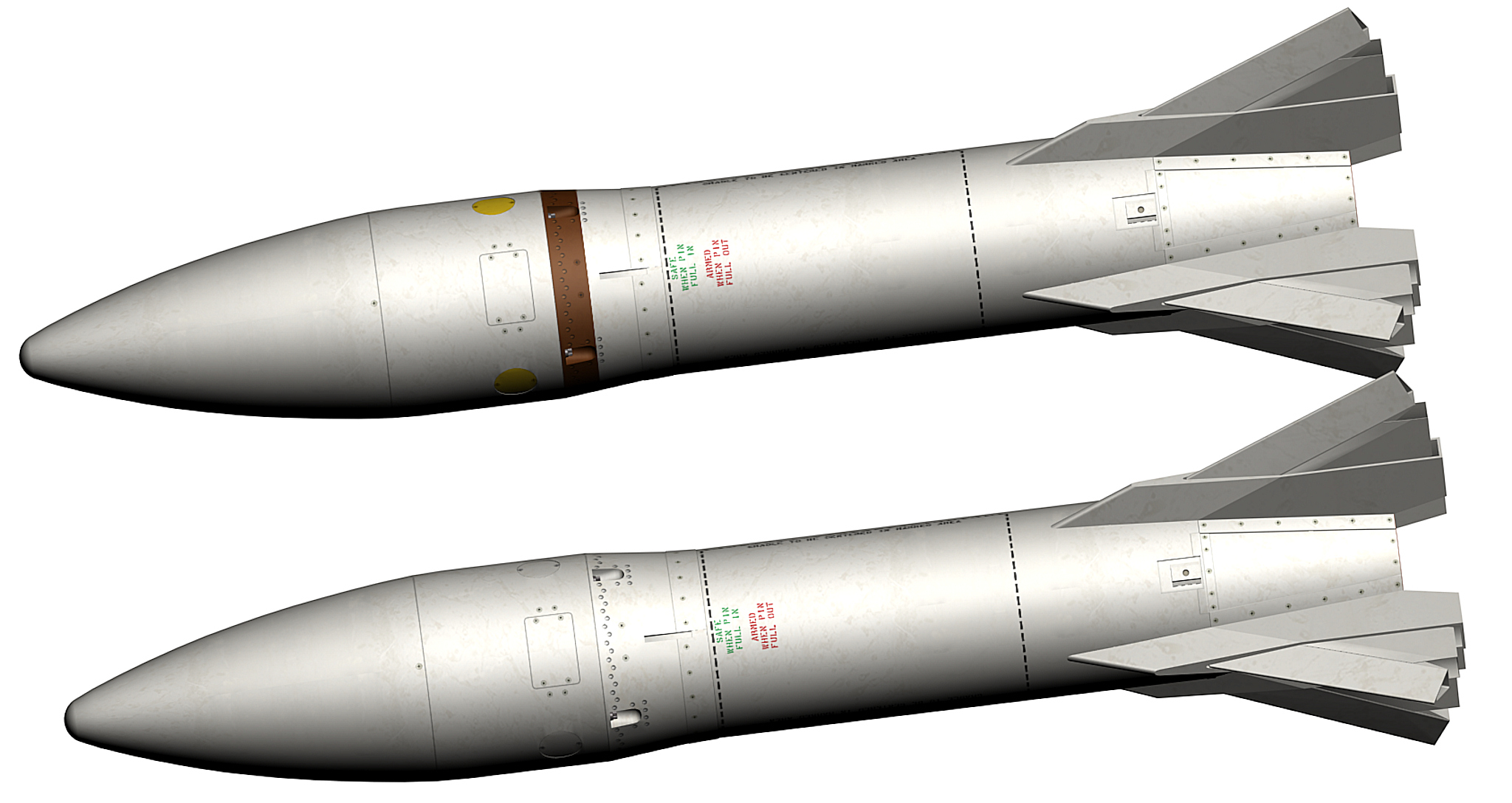

+ravenclaw_007 Posted March 8 Author Posted March 8 2 hours ago, dtmdragon said: Awsome work @ravenclaw_007 Just one small detail for the Genie. The missiles with a brown band like you have done had no warhead but a live rocket motor. These are the ones you will see in most photos of the Genie being fired. A Genie with a live nuclear warhead is completely white with no colored bands, even though it does have a live rocket motor. This was how a live nuclear weapon was identified and differentiated from other weapons. This information is from the same F-106 Facebook group as before. Thanks for that info i found some info on that AIR-2A with the brown stripe they had a WP ( WP Smoke ) warhead so the pilot could see if the rocket was close enough to the target when it explodes i made now 2 AIR-2A Genie a nuclear version and a inert version with a WP warhead , in case you have the effects than there is no need to copy them , for the rockets just put them in your weapons folder and let overwrite if ask to AIR-2A Pack.7z thats how they look like now 11 7 Quote
