Recommended Posts

Posted (edited)
7 hours ago, jeanba said:

Will there be a dedicated cockpit ?

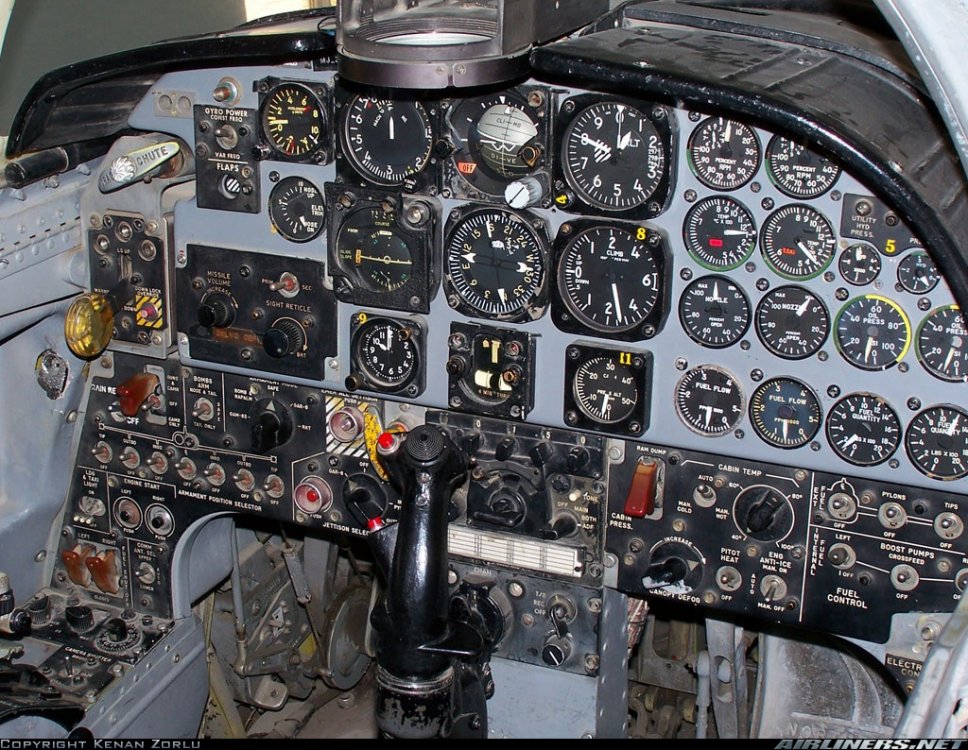

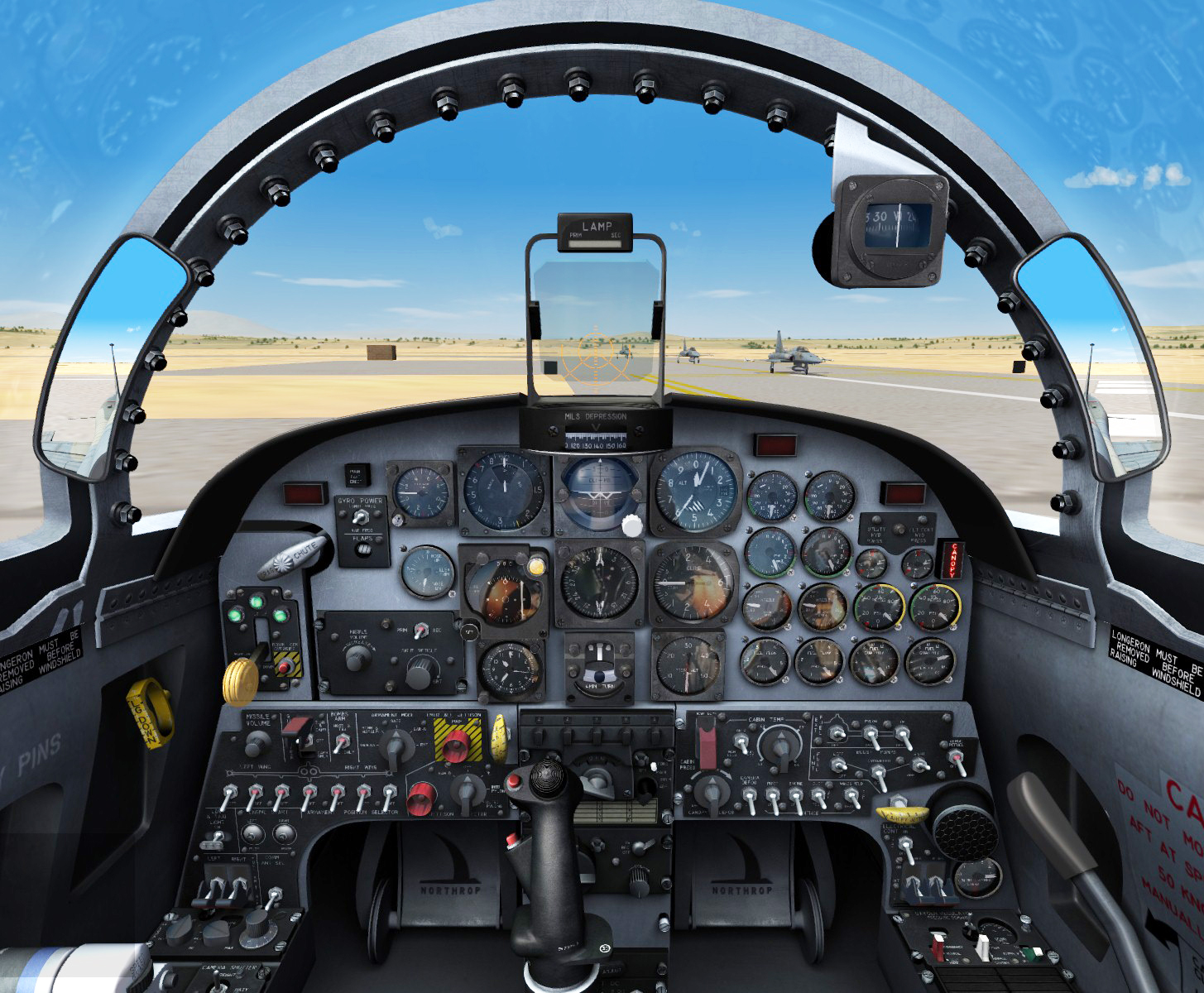

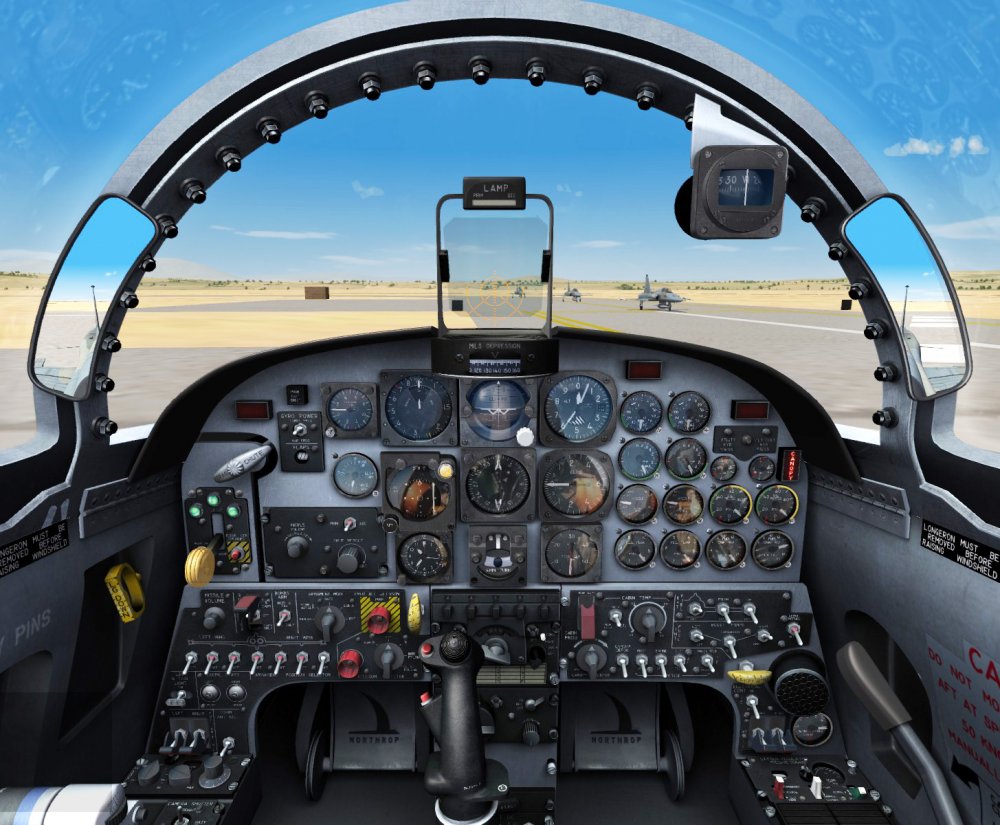

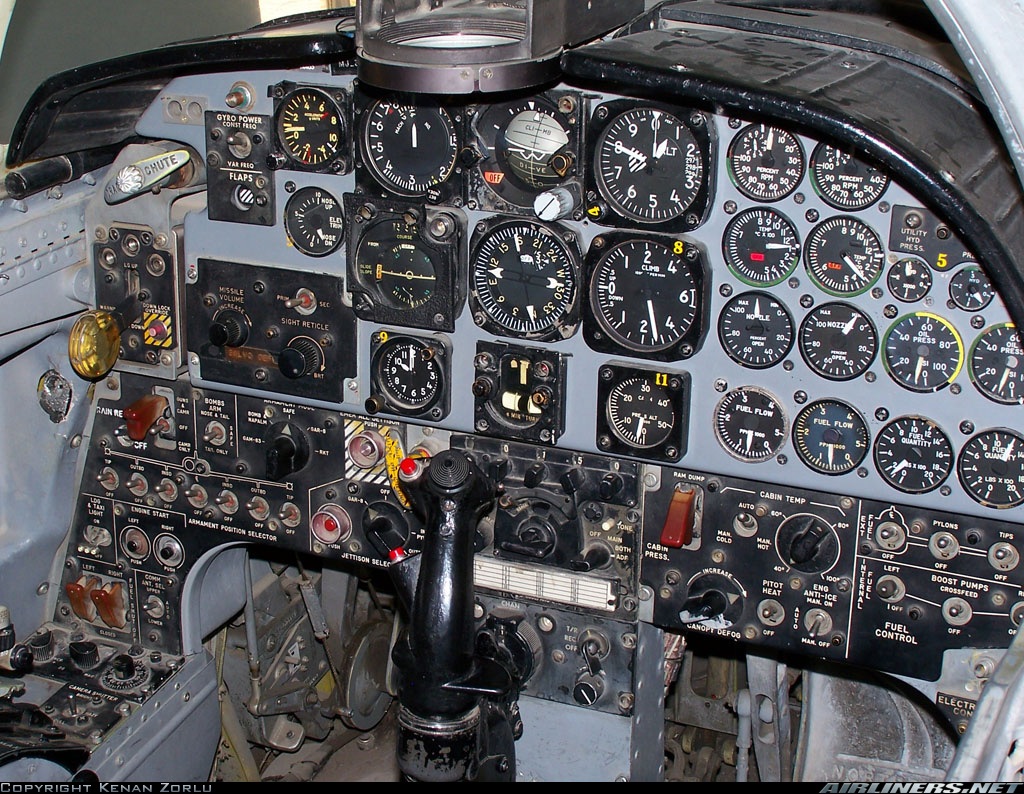

You mean as opposed to this one ..?

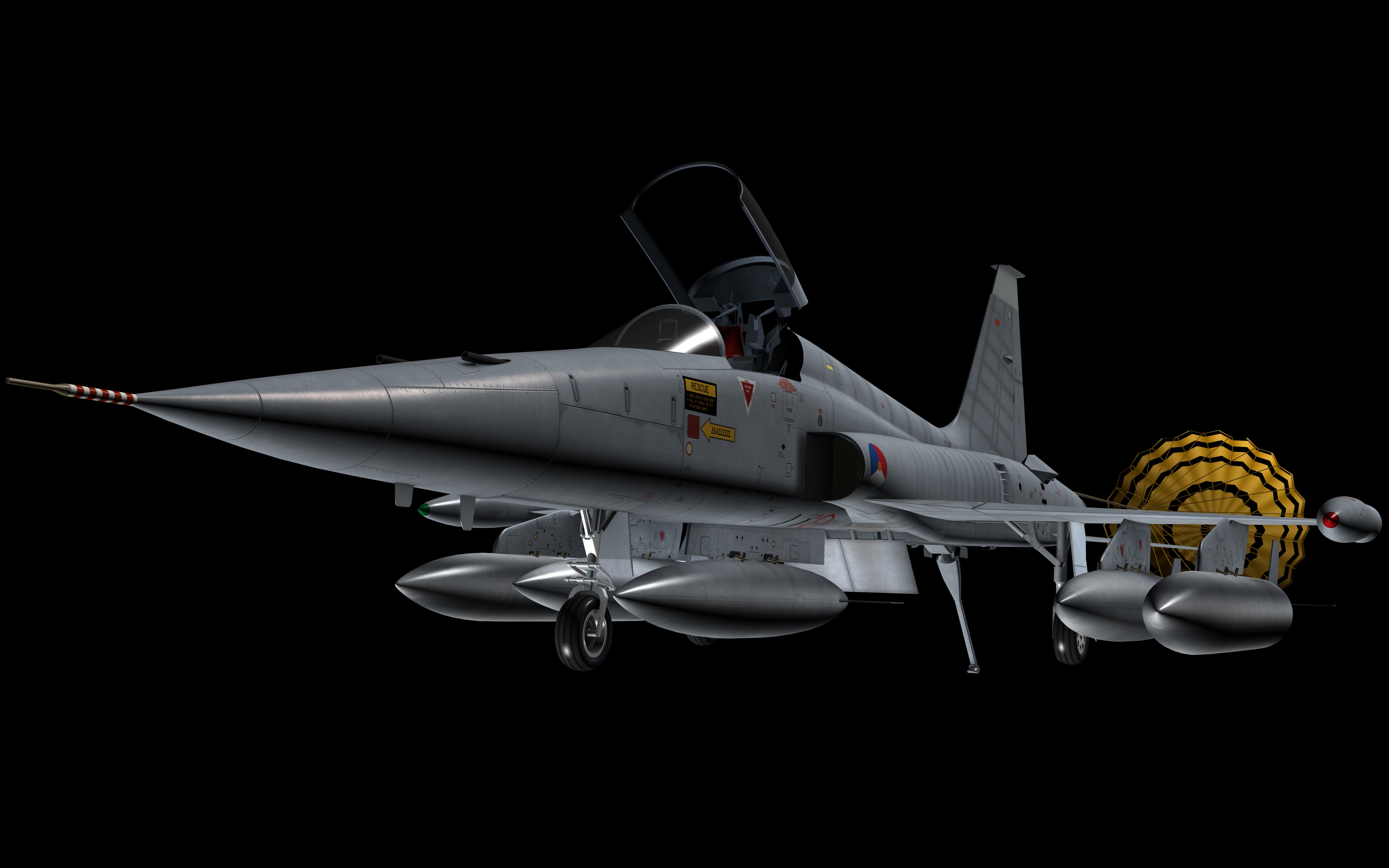

Actually yes, there are already different cockpits for the RNoAF versions and maybe I'll do a dedicated one for the NF-5a ..







Edited by sophocles
to crop image
  • Like 13
  • Thanks 3
Posted
12 hours ago, strahi said:

What about  RF-5, are there plans? :brr:

It's in the pipeline, I'll be making a second .. third .. fourth .. fifth (you get the idea :)  ) attempt to get the nose right later after I've completed the other versions.

  • Like 4
  • Thanks 1
Posted
19 hours ago, sophocles said:


I am... speechless. My eyes are delighted to see all these details, it's fantastic! I must be dreaming :lol:

My thanks to you for such dedication to this project. The F-5 is really a beauty!

  • Like 2
Posted (edited)

Guys I'm stuck, I'm trying to figure out the data entries for the chaff/flare dispensers on the NF-5a.  The physical dispensers are built into the model (as are the fuel tanks - no problems with those thank God!!) and I've set up them up in their own little weapon folders; the problem is finding the correct entries for them in the weapon stations part of the data file. Here's what i've got - which is not working ..

[Dispenser pod 1]
SystemType=WEAPON_STATION
StationID=8
StationGroupID=5
StationType=EXTERNAL
AttachmentPosition=0.56,-4.4,0.58
AttachmentAngles=0.0,0.0,-40.0
LoadLimit=100
AllowedWeaponClass=EP
AttachmentType=NATO
SpecificStationCode=Flare
ModelName=
ModelNodeName=
PylonMass=
PylonDragArea=
ExternalPodName=F5a_Flare
ExternalPodNodeName=Dispenser_L

[Dispenser pod 2]
SystemType=WEAPON_STATION
StationID=9
StationGroupID=6
StationType=EXTERNAL
AttachmentPosition=-0.75,-4.4,0.35
AttachmentAngles=0.0,0.0,220.0
LoadLimit=100
AllowedWeaponClass=EP
AttachmentType=NATO
SpecificStationCode=Chaff
ModelName=
ModelNodeName=
PylonMass=
PylonDragArea=
ExternalPodName=F5a_Chaff
ExternalPodNodeName=Dispenser_R

Any help would be greatly appreciated

Edited by sophocles
spelling
Posted
3 hours ago, jeanba said:

Hello



Check what was done with the F1CT, crusader did something siimilar

Thanks for the reply, from what I can see, the Phimat chaff dispenser on the Mirage is a separate model.  I'd be looking for data entries for one that is incorporated into the aircraft model .. sigh!  It's these little things that cause so much trouble!!!

Posted


ModelNodeName= did you try this ?



F5a_Chaff    /  Dispenser_R

F5a_Flare /  Dispenser_L

how these two are related in 3 d model? how do you want it to be shown.. because that part I don't understand... If its just pack with chaffs/flares why not use model node name....same as with any other pod...

unless I don't understand how chaffs flares work on tiger



Posted

Yakarov 79, thanks for your time :)

Here are the data entries for the dispensers..

[WeaponData001]
TypeName=F5a_Chaff
FullName=F5a_Chaff
ModelName=F5a_Chaff
ModelNodeName=Dispenser_R
Mass=25.000000
Diameter=0.300000
Length=0.500000
SubsonicDragCoeff=0.200000
SupersonicDragCoeff=0.770000
AttachmentType=NATO
SpecificStationCode=Chaff
NationName=NETHERLANDS
StartYear=1970
EndYear=2020
Availability=3
BaseQuantity=2
Exported=TRUE
ExportStartYear=1970
ExportEndYear=2020
ExportAvailability=3
WeaponDataType=4
StoreType=2
NumChaff=30                                                                                                                                                                                                                                                                                                                                                   NumFlare=0
EjectPosition=0.000000,-0.800000,0.000000
EjectVelocity=0.000000,-10.000000,0.000000



and for the Flares ..

[WeaponData001]
TypeName=F5a_Flare
FullName=F5a_Flare
ModelName=F5a_Flare
ModelNodeName=Dispenser_L
Mass=25.000000
Diameter=0.300000
Length=0.500000
SubsonicDragCoeff=0.200000
SupersonicDragCoeff=0.770000
AttachmentType=NATO
SpecificStationCode=Flare
NationName=NETHERLANDS
StartYear=1970
EndYear=2020
Availability=3
BaseQuantity=2
Exported=TRUE
ExportStartYear=1970
ExportEndYear=2020
ExportAvailability=3
WeaponDataType=4
StoreType=2
NumChaff=0
NumFlare=15
EjectPosition=0.000000,-0.800000,0.000000
EjectVelocity=0.000000,-10.000000,0.000000

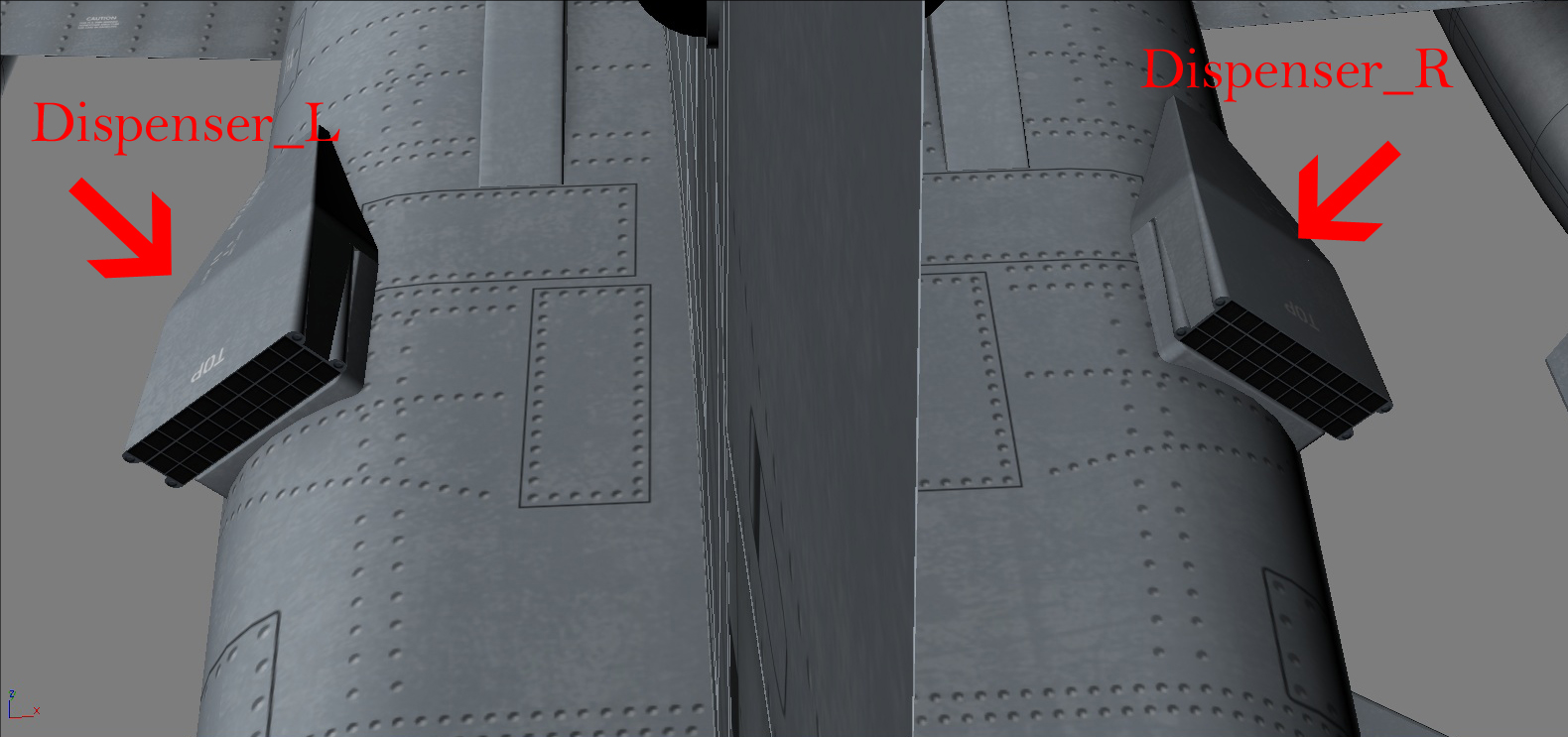

And here are the dispensers on the model ..


  • Like 1
Posted
33 minutes ago, yakarov79 said:


... If its just pack with chaffs/flares why not use model node name....same as with any other pod...

unless I don't understand how chaffs flares work on tiger



I tried using modelNodeName as well, but I still can't get the chaff/flares to show up as options (weapon stations in the loudout screen in the game

Posted (edited)
On ‎13‎.‎06‎.‎2018 at 5:24 PM, Stratos said:

Pure beauty...

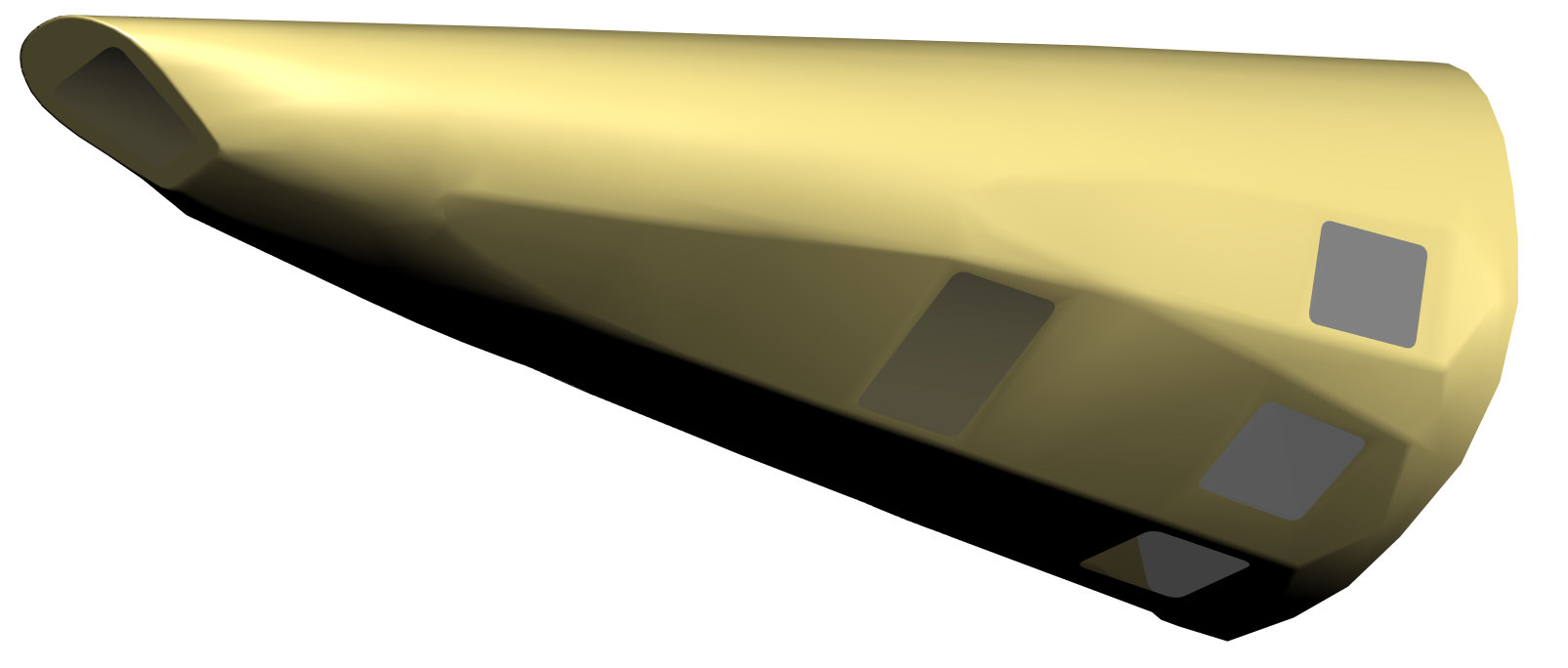

we do have a RF nose but the dimensions of it are wrong , i´m currently working on a shorter more correct nose

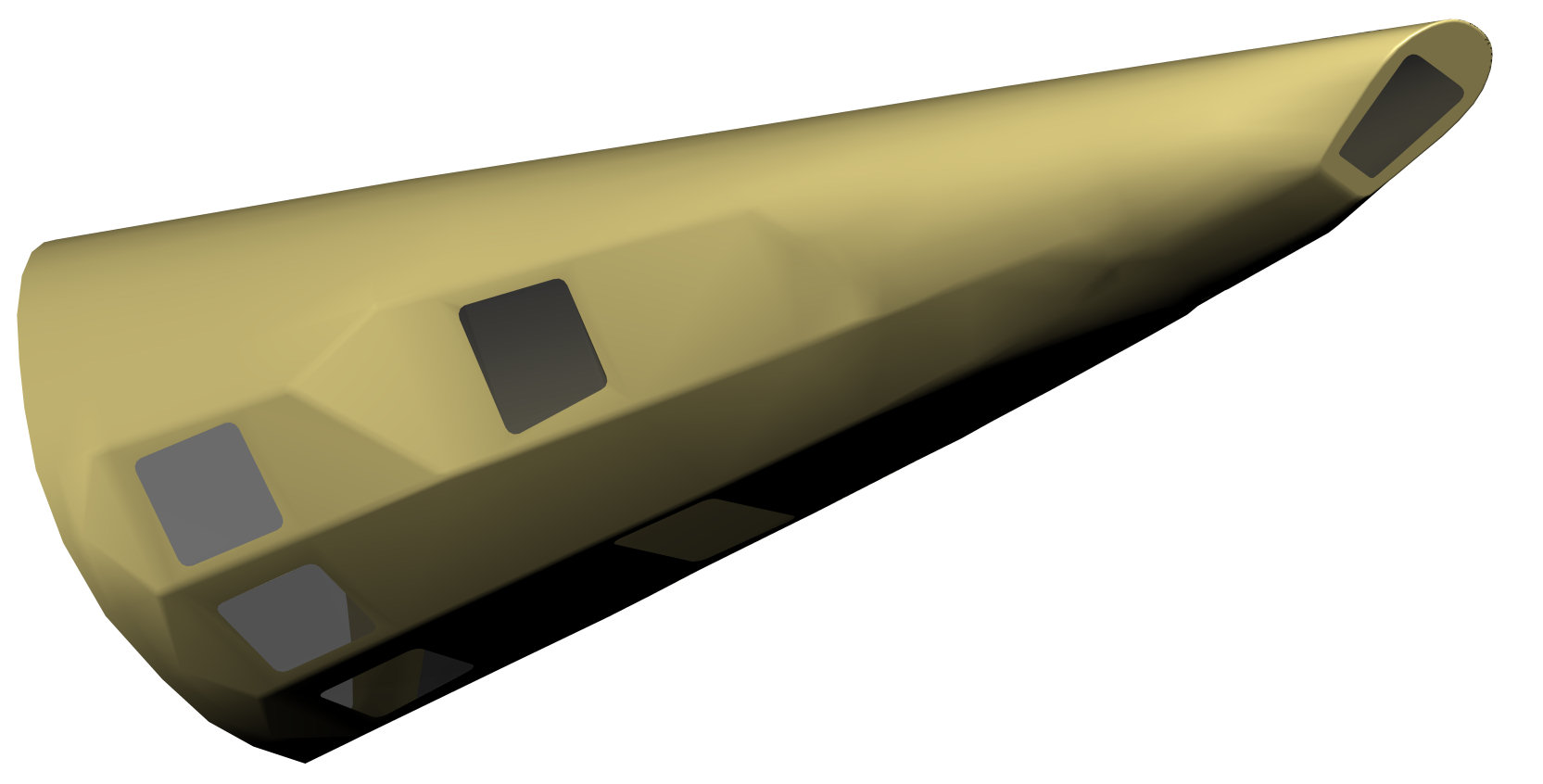

this is the old nose we have , the new one will look much better ( i hope )





Edited by ravenclaw_007
  • Like 4
  • Thanks 1
