i´m reworking my RF-4E pit and make a F-4E AUP pit out of it , what i still need are pictures of the left and right side-panels i can not find any from a F-4E AUP



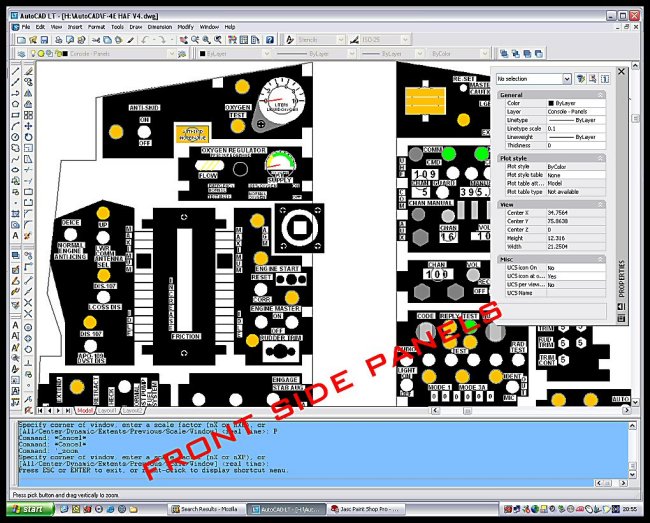

in particular this views are what i need , this are still the RF-4E panels but i dont think that i have to change alot





any help is welcome , if you have some high detail pictures of cockpit instruments or side-panels please send them over





  • Like 9

Share this post


Link to post
Share on other sites

we could if i have more time :grin: but i have to focus on the immediate items , so probably not



and if i would make the rear cockpit like i do the front cockpit you would have a real problems to get the thing working in game , the amount of poly´s would be to much i assume





but could we get back to the topic , any pictures of the side panels ?????? pleeaase



or can some body tell me what panel this is ???


Share this post


Link to post
Share on other sites
or can some body tell me what panel this is ???

its for tape cassesttes ,especially those for wagners "Ride of the Valkerie." lol

Edited by russouk2004
  • Like 1
  • Haha 1

Share this post


Link to post
Share on other sites



its for tape cassesttes ,especially those for wagners "Ride of the Valkerie." lol



do you know the name of that part , so i can find some better picture

Share this post


Link to post
Share on other sites

Just a guess,is it a DTM,



Copied:

"Data Transfer Module Receptacle - The DTM is used to enter pre-designed mission information to the aircraft's onboard computers. The DTM cartridge is prepared on mission planning computers during the mission planning phase and should be inserted into this receptacle before the mission."





Share this post


Link to post
Share on other sites

Just a guess,is it a DTM,



Copied:

"Data Transfer Module Receptacle - The DTM is used to enter pre-designed mission information to the aircraft's onboard computers. The DTM cartridge is prepared on mission planning computers during the mission planning phase and should be inserted into this receptacle before the mission."



I don't see anywhere on the panel to accept DTU/DTM's. That's probably just a control panel and the tapes with OFP on them are most likely stored with the LRU box

Share this post


Link to post
Share on other sites

i´m searching for that part but i dont find a thing , i have now pictures for the HUD and the main panel but still nothing for the side panels



if i´m not finding any picture that show some detail of that part i may just go and make the side panels for normal F-4E

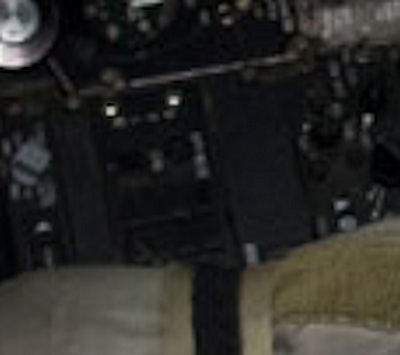

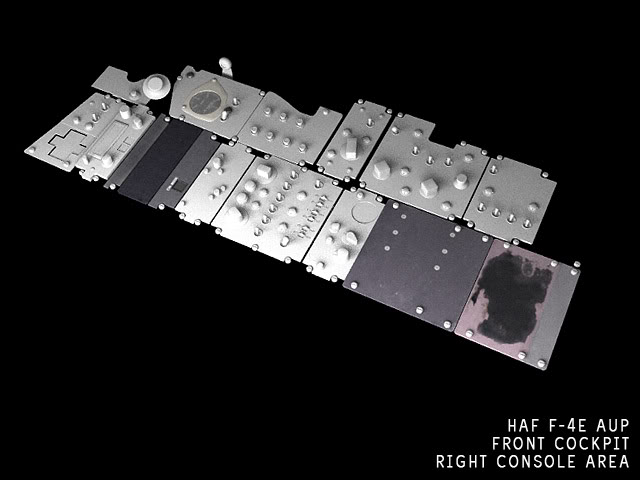

i found this one here but unfortunately no textures are assigned to it

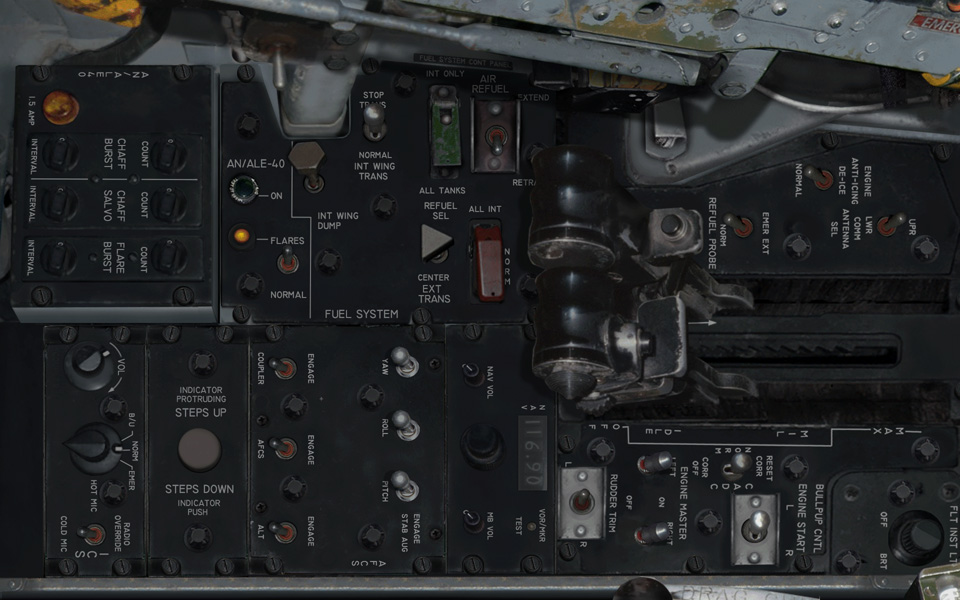

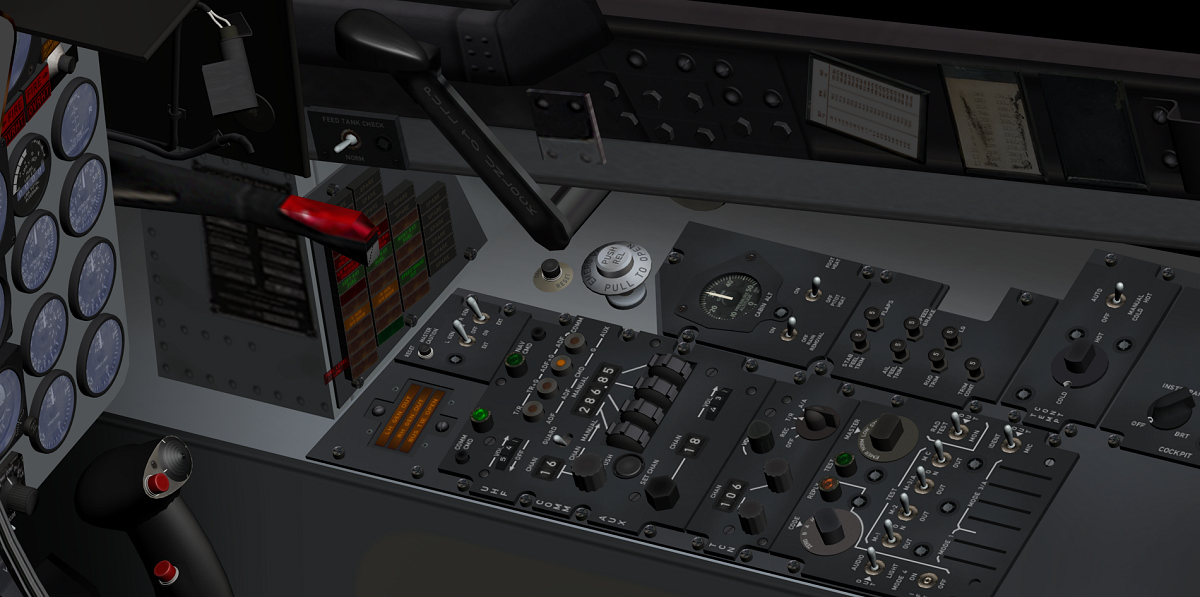

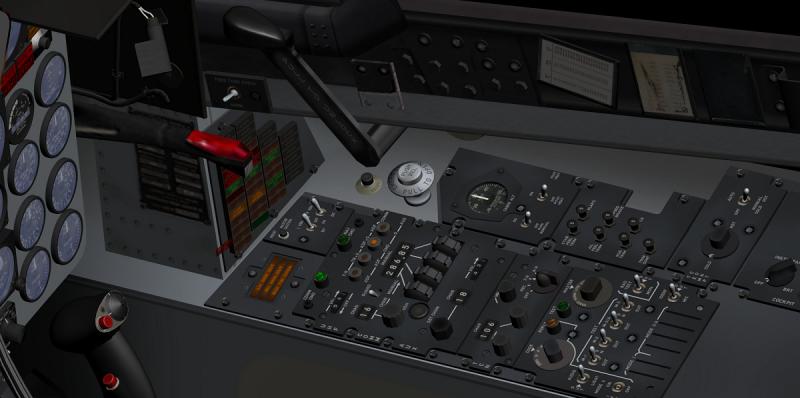

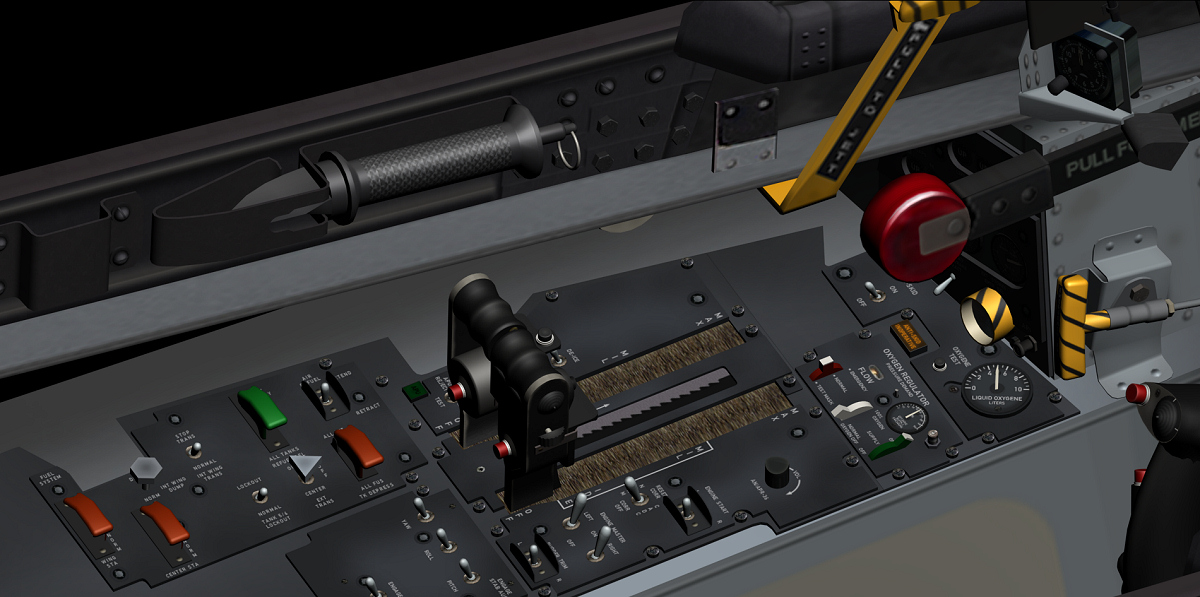

and the left side panel will be like this here , it is almost the same as the RF-4E layout that i´m using


Share this post


Link to post
Share on other sites

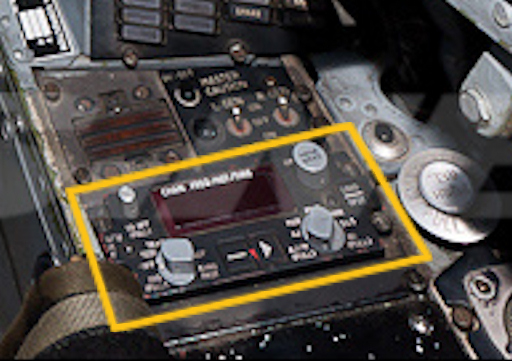

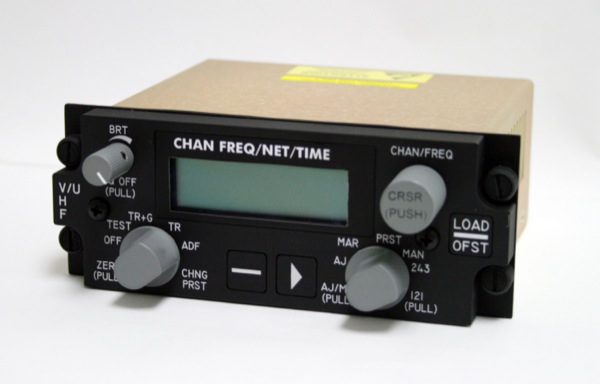

after some long research i found the missing panel it is a Rockwell Collins TALON VHF/UHF control panel

-

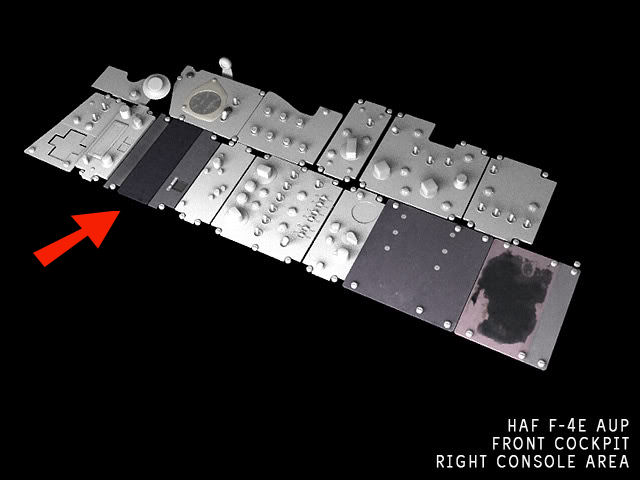

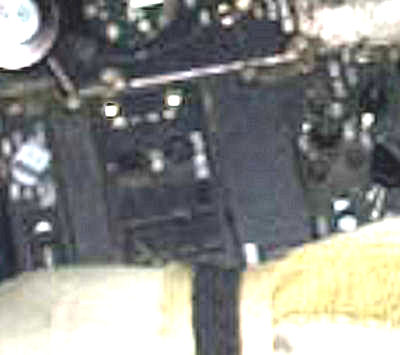

now i need some help on an other panel , it is located between the VHF/UHF and the TACAN panel (red arrow ) i could not find anything that comes close to this panel all i can see are 8 indicator ligths and no switches this sub panel is attached to the larger panel with 4 screws

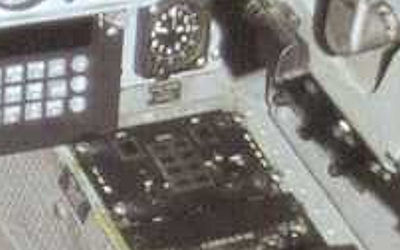

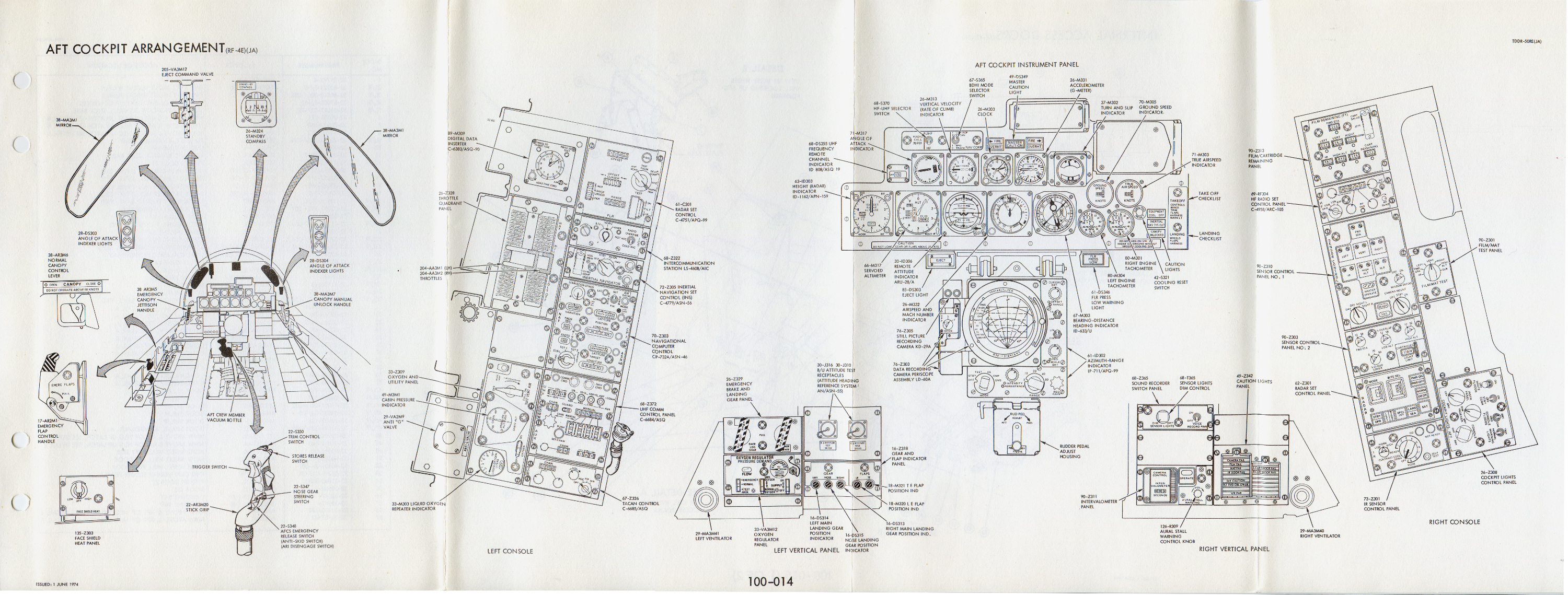

i found a similar panel in the rear cockpit of the AUP it has 2 more large buttons but it is mounted the same way with 4 ordinary screws it has 4 letters on the rigth and 3 letters on the left




mounting position red arrow




if anybody has an idea or knows this panel please let me know i realy like to finish this cockpit







Edited by ravenclaw_007
  • Like 1

Share this post


Link to post
Share on other sites

Part of the AN/ADD-4/5 IRS System Package for "RF" Phantoms and F-4's that can carry a Recon Pod.





The film could be developed in flight and film cassettes could be ejected at low altitude so that ground commanders could get aerial intelligence as rapidly as possible.



Backseater has one too in the USAF/USMC RF Phantoms. Phantoms that run "Pods", have just one Panel up front.





The Cassettes are High Viz Orange so they can be seen......





331KillerBee

Edited by 331Killerbee

Share this post


Link to post
Share on other sites

Looks to Me as the ADD-4. It has the "Stop" which is the "-" Button and the "Record", the ">" Button. On a ADD-5 has the "Hud" or "HDD" which records the Hud View with it's Information.........Check Me, But I'm pretty sure that's it. But it's the Radio UHF or all Phantoms other than that. The Radios changed as time went. I think the last was a updated Rockwell Unit.







Doh! Nevermind, You found it up top. Just goes to show You how blind I'm getting..........Also ichin' to play a round of Golf.

Edited by 331Killerbee

Share this post


Link to post
Share on other sites

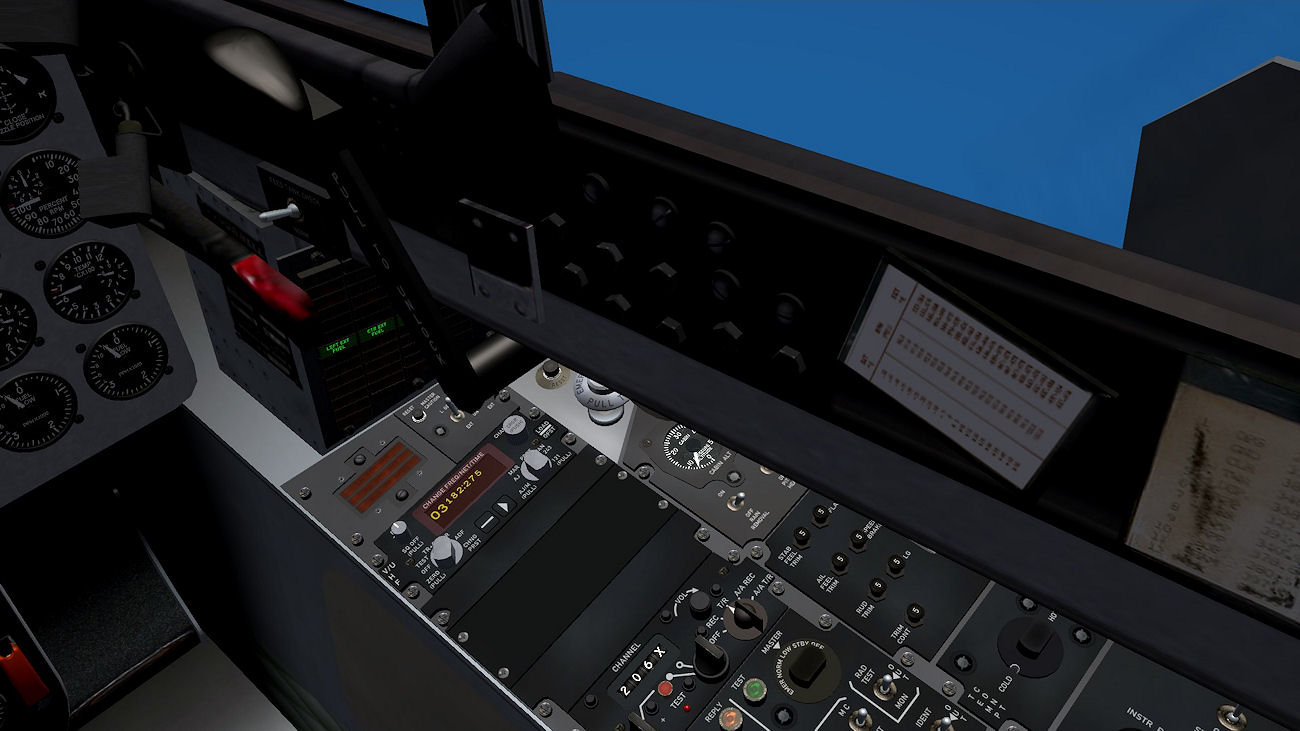

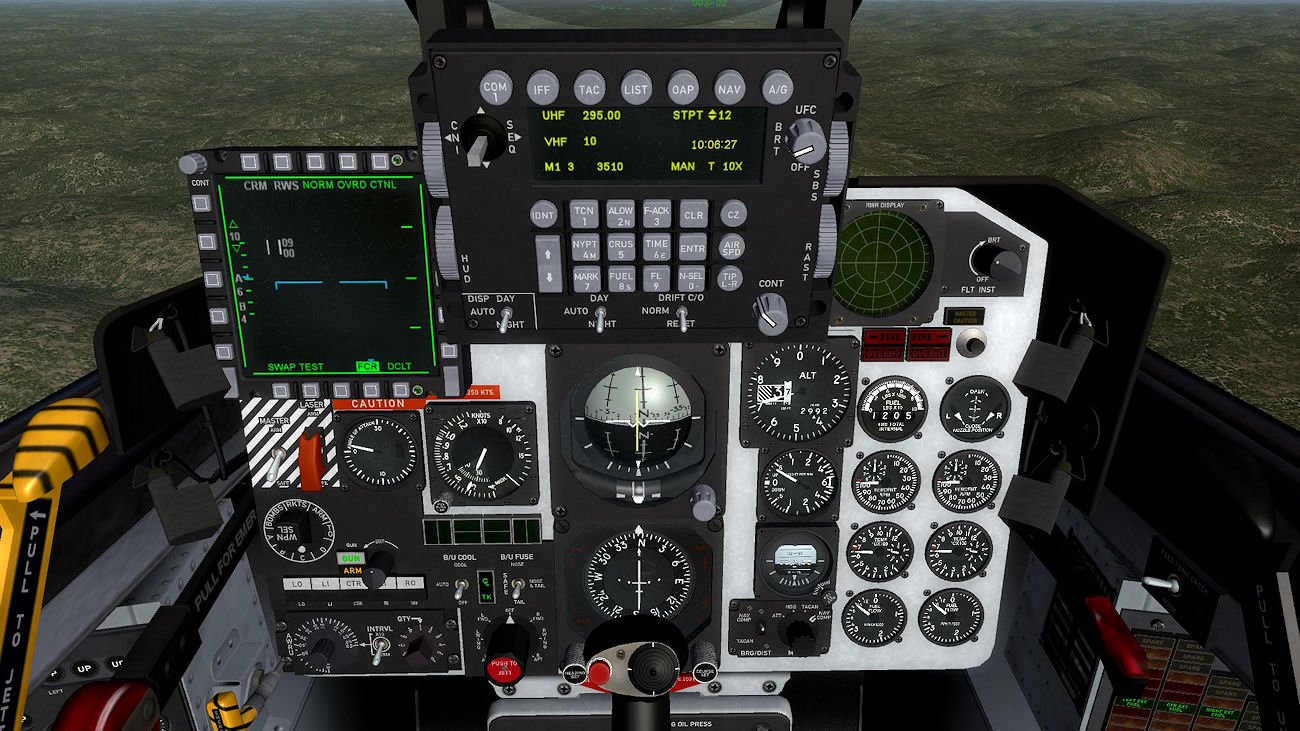

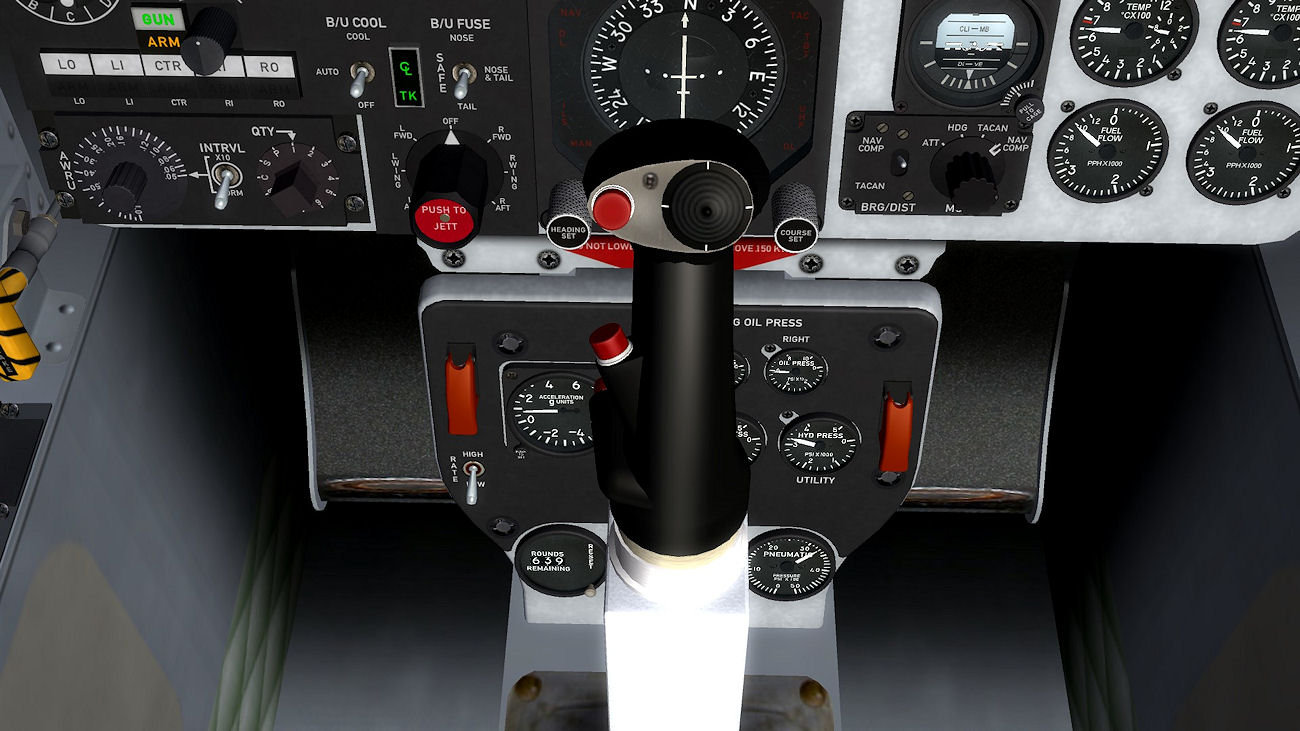

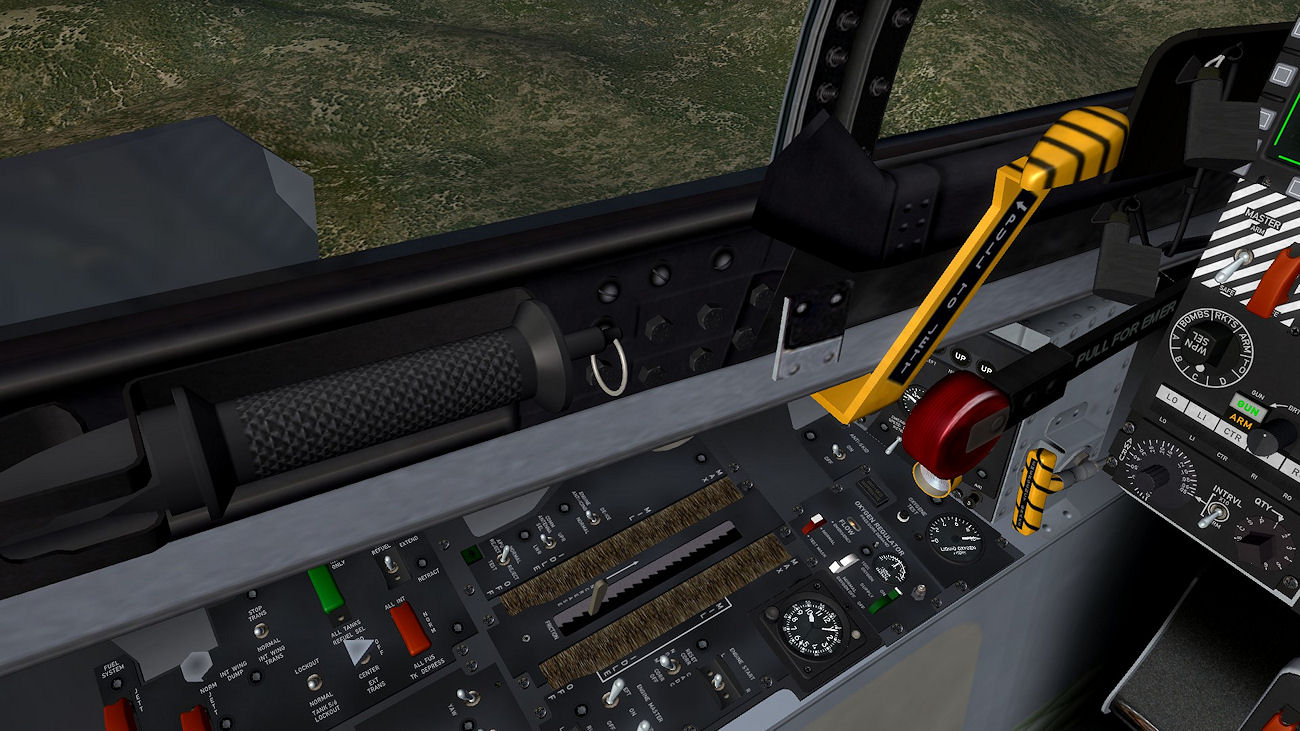

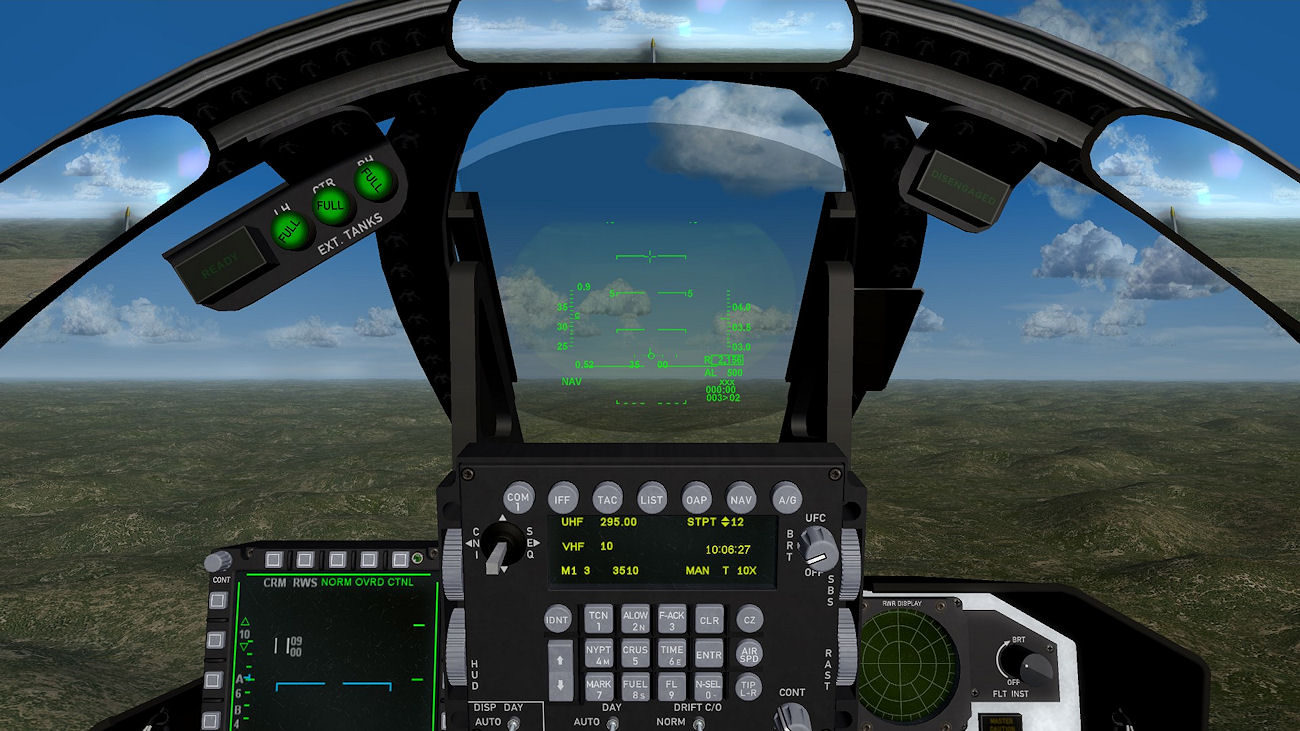

just a status update , all instruments are working and most of the work is done



the unknown instrument on the right side panel is one thing i like to solve and the missing lettering on the pedestal panel especialy the one for the 2 covered toggle switches

but to get this fixed i need some good pictures or the phone number of a greek pilot :grin:

i called airbus already and wait for an answer , i was thinking to contact the greek air force but i think the greeks are not in mute to talk to a german

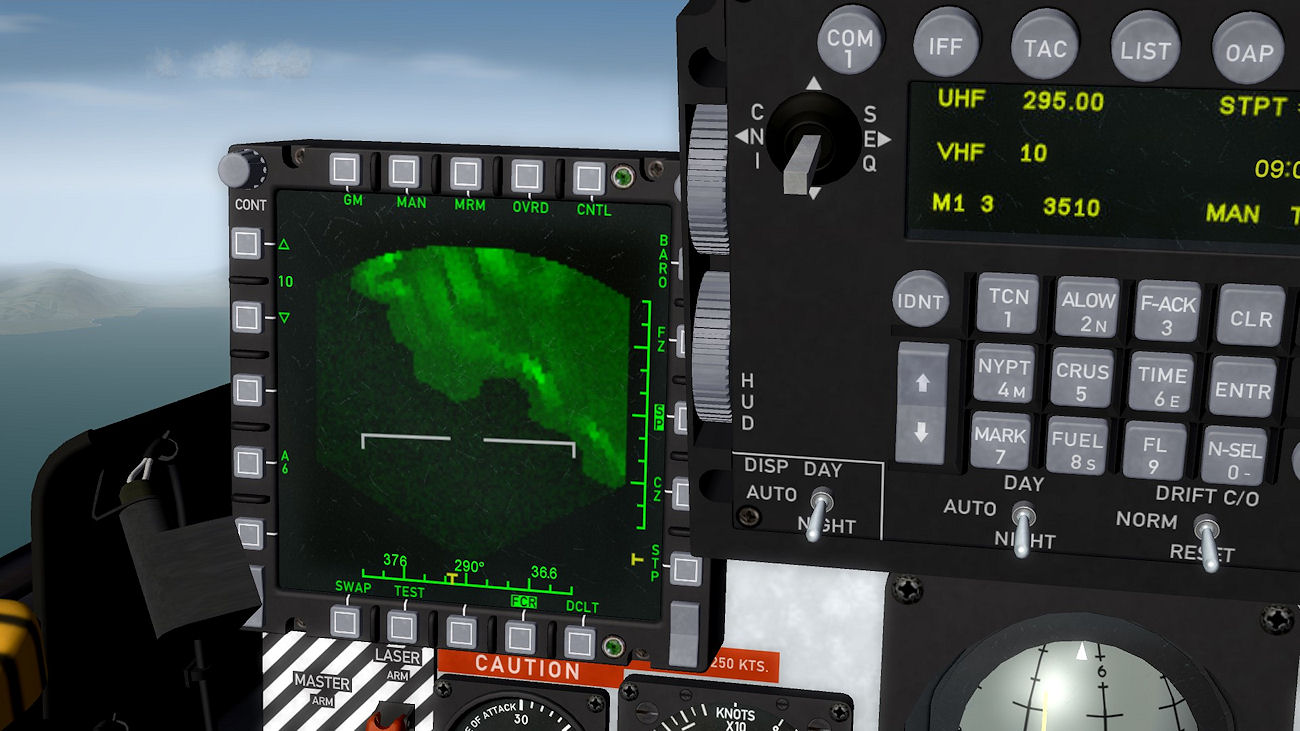

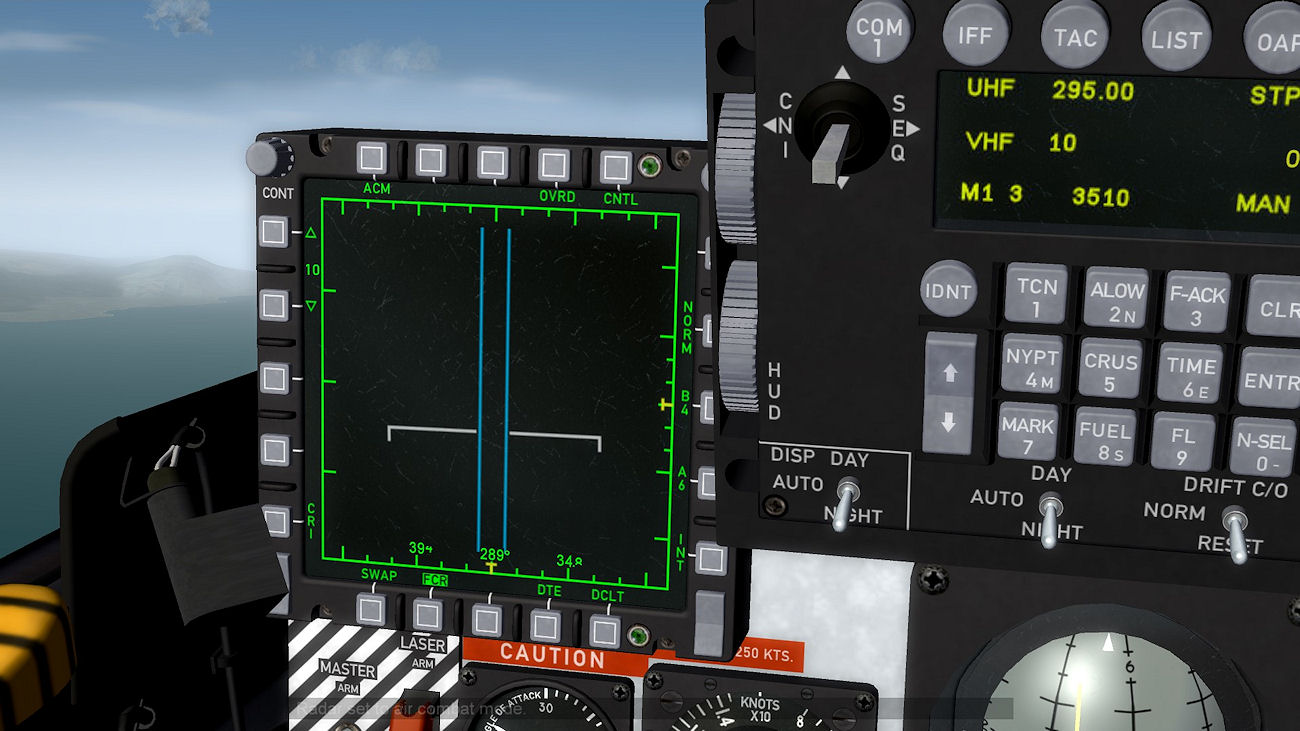

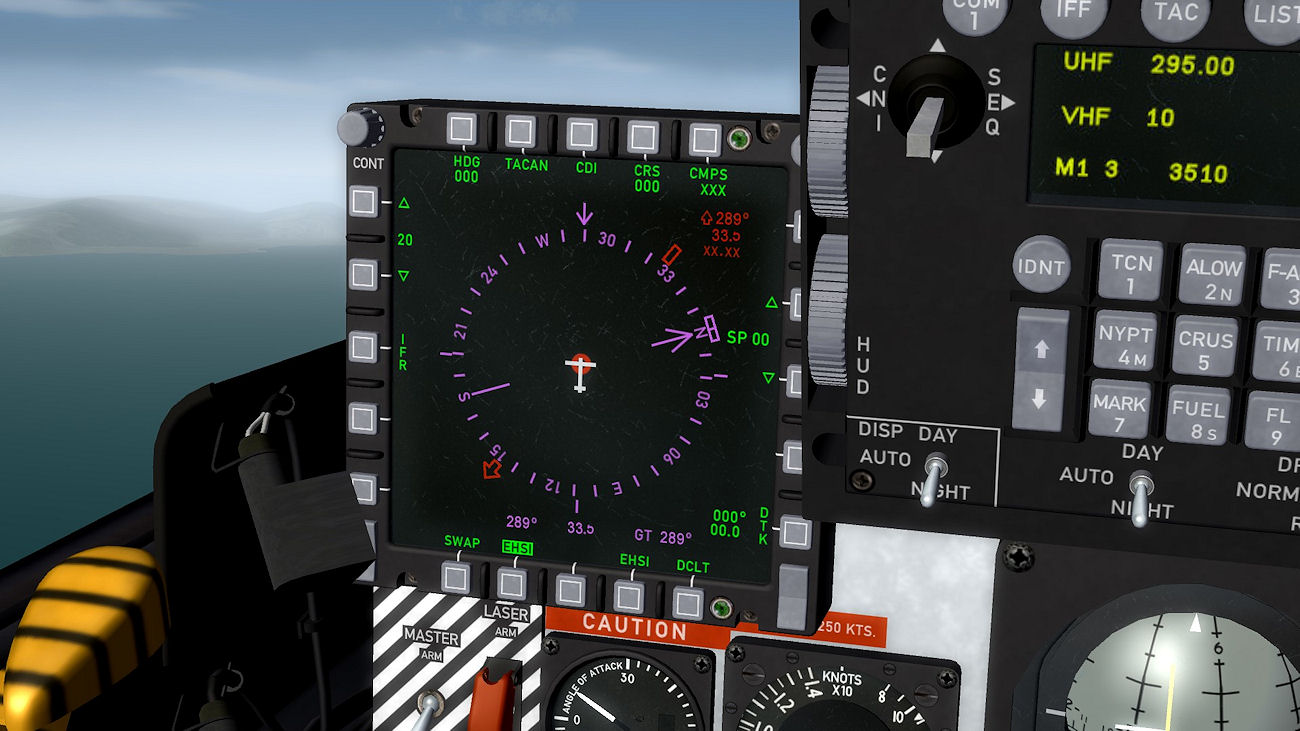

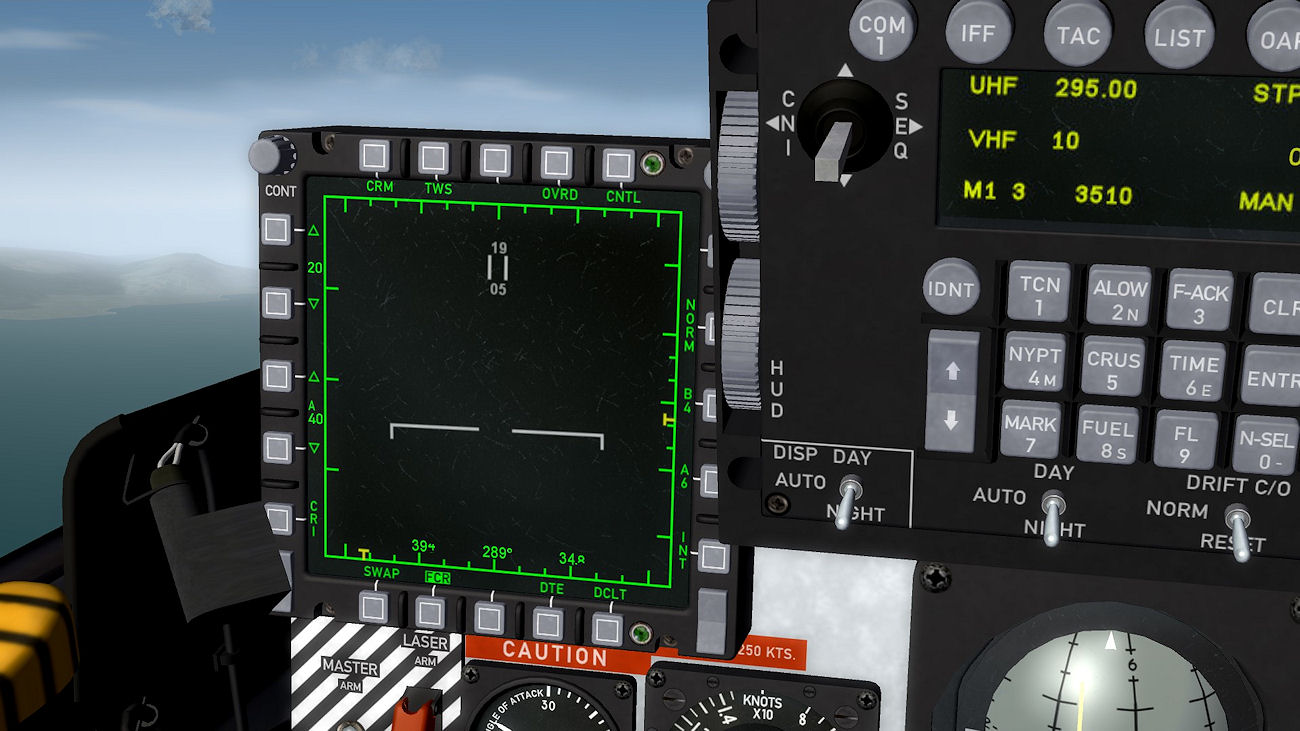

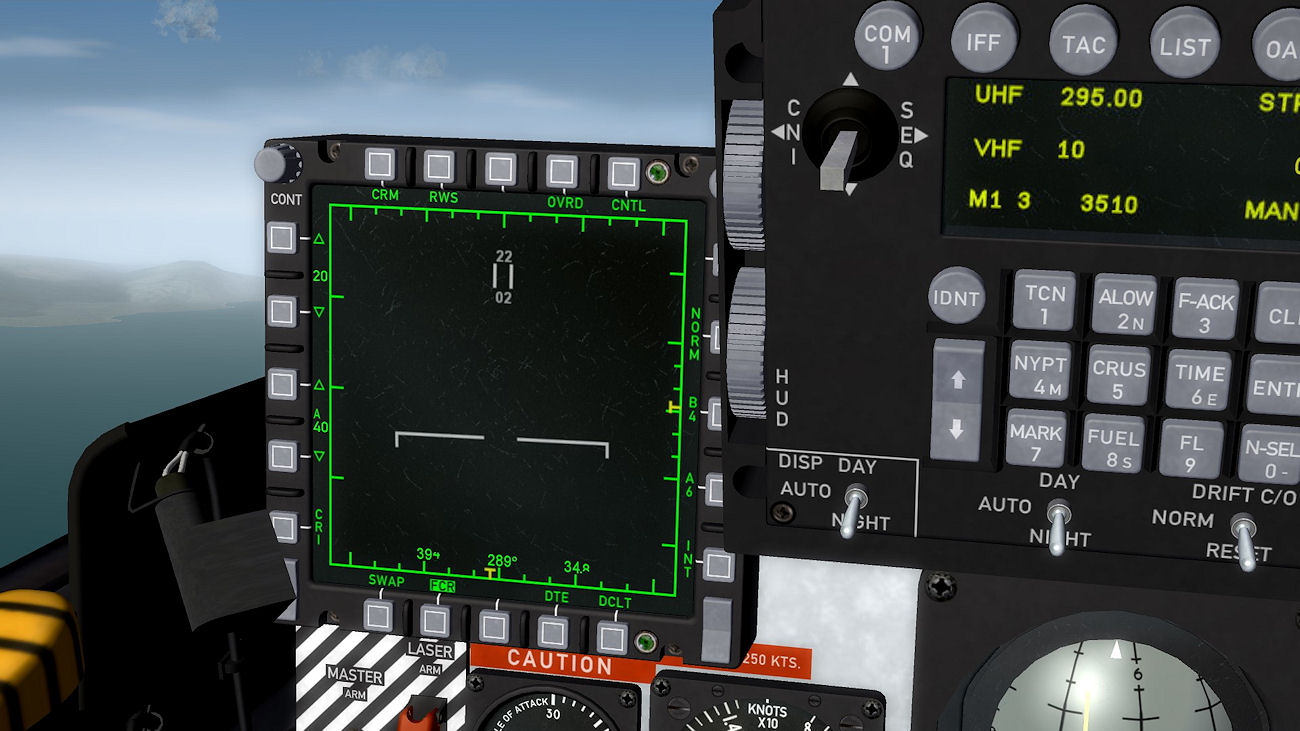

for the MFD screen i got now some very good pictures so this will be next to be changed



-






  • Like 12

Share this post


Link to post
Share on other sites

HOLLY **** Volker!!!!



that is yhour new masterpiece, well redo of older still fabulous masterpiece so it's masterpiece^2 :smile:

Share this post


Link to post
Share on other sites

Sorry, I eceeded my quota of "like" for today, have to write it manually :



LIKE !

Edited by jeanba

Share this post


Link to post
Share on other sites
