I don't suppose there's anyway to get it work?? Just curious.

one could always "fake it" with a green-tinted LLTV, maybe??

Share this post


Link to post
Share on other sites

My understanding is IRST systems don't necessarily display an IR image but show azimuth and altitude (no range) of a detected target on the Radar scope. Can be used to cue the radar range gate to sweep out in a narrow beam towards it from range 0 until lock on.

Share this post


Link to post
Share on other sites

I'll check it out later, but wasn't there a way to use the targeting pod functions to lock on air contacts already, or did I dream we had TISEO?

Share this post


Link to post
Share on other sites

funny thing about TISEO,  was developed for a2a work but most utilized for a2g work by the Phantom units that had them. would have been for visual target ID in any case not so much for targeting (you had to get the  camera on target for it to be effective, not the camera got pilot eyes on target)

Share this post


Link to post
Share on other sites
2 hours ago, daddyairplanes said:

funny thing about TISEO,  was developed for a2a work but most utilized for a2g work by the Phantom units that had them. would have been for visual target ID in any case not so much for targeting (you had to get the  camera on target for it to be effective, not the camera got pilot eyes on target)

that is what i found out when i try to get the TISEO working , for air to ground missions it can be a big help especially when you going to use the gun , it works very limited on air to air mission because the TISEO is not locking on to a target and to hold a moving target in the scope is not easy

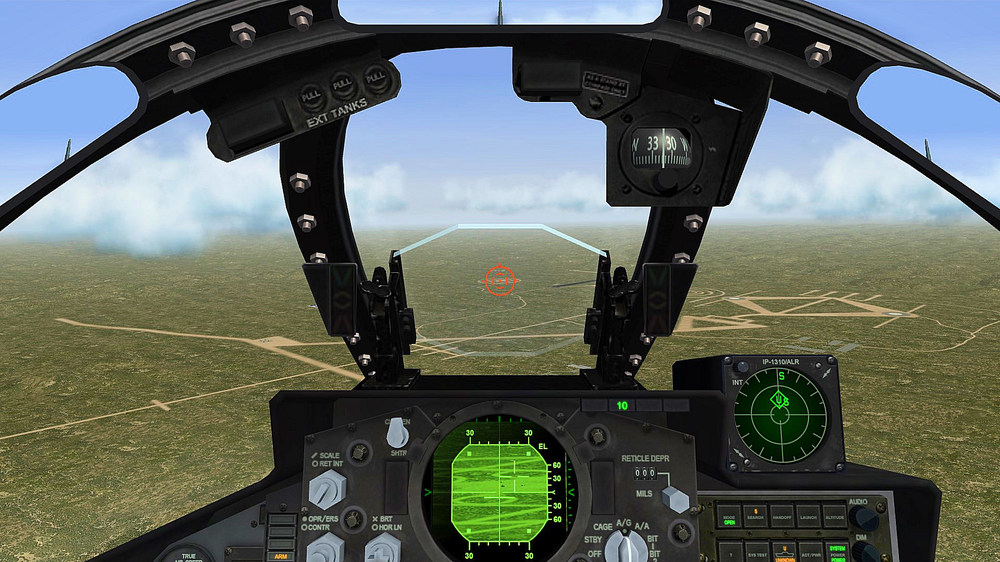

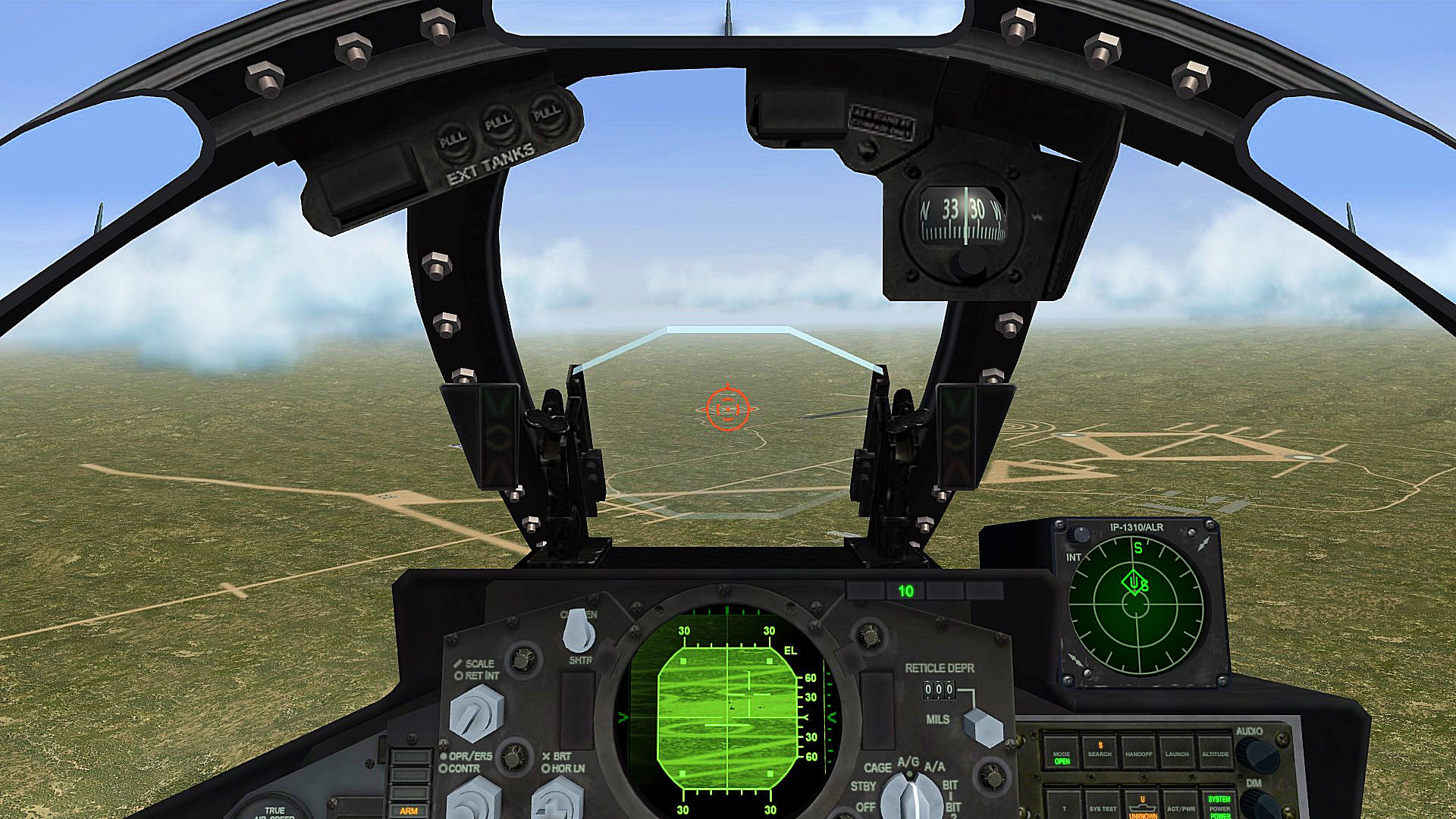

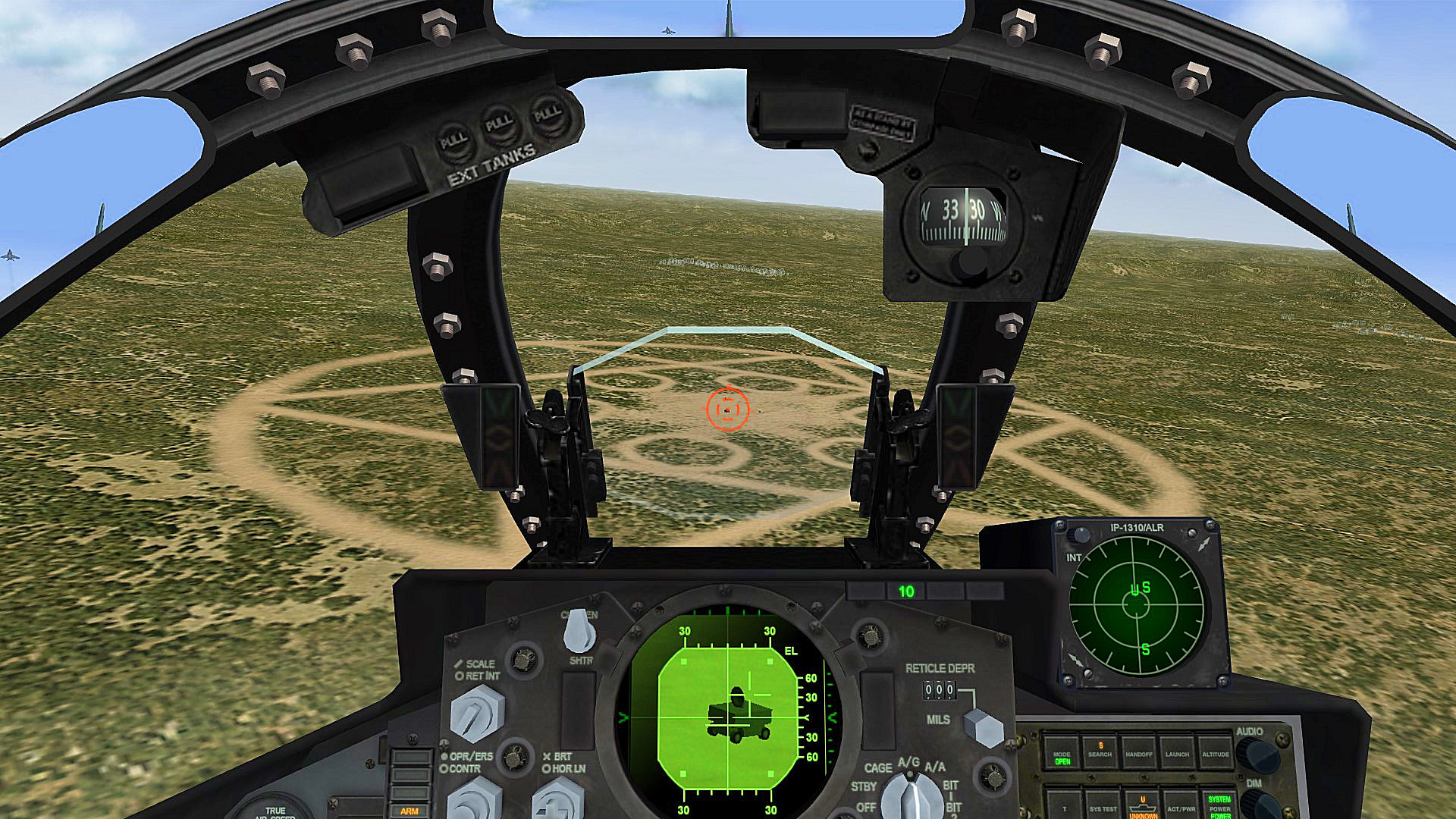

F-4E_78 with TISEO





Edited by ravenclaw_007
  • Like 8

Share this post


Link to post
Share on other sites

Wow! The Range with it's original tileset!!! Haven't seen that in years!!!!

(iirc, the TMF Phantoms had a working TISEO in 1stGen games)

Share this post


Link to post
Share on other sites

I'm kinda surprised that TK didn't implement an IRST on the NA Tomcat. It would have been cool to have that implemented for missions

  • Like 3

Share this post


Link to post
Share on other sites
10 hours ago, EricJ said:

I'm kinda surprised that TK didn't implement an IRST on the NA Tomcat. It would have been cool to have that implemented for missions

The fact that he didn't makes me feel as if there is some technical issue preventing him from doing so, it seems like it would have been simple otherwise to enable something like the targeting pods-TV bombs for air targets.

  • Like 1

Share this post


Link to post
Share on other sites

You can fake a IRST by mounting a non- lauching IRM in the nose. Just select it like a any other weapon. If you have a HUD it will show up as IRM LOCK icon. Other than that the  only other cue you will get is the IRM Audio CUE. On your "Fake ISRT/IRM" you have too extend the seeker range too match the detection range of your IRST. I have done this before. It does work but using your radar is better.

  • Like 4

Share this post


Link to post
Share on other sites

But IRST is totally passive, while radar is not. Nice method to add it into the game Crazy!

  • Like 2

Share this post


Link to post
Share on other sites
On 09/07/2021 at 3:24 PM, Stratos said:

But IRST is totally passive, while radar is not. Nice method to add it into the game Crazy!

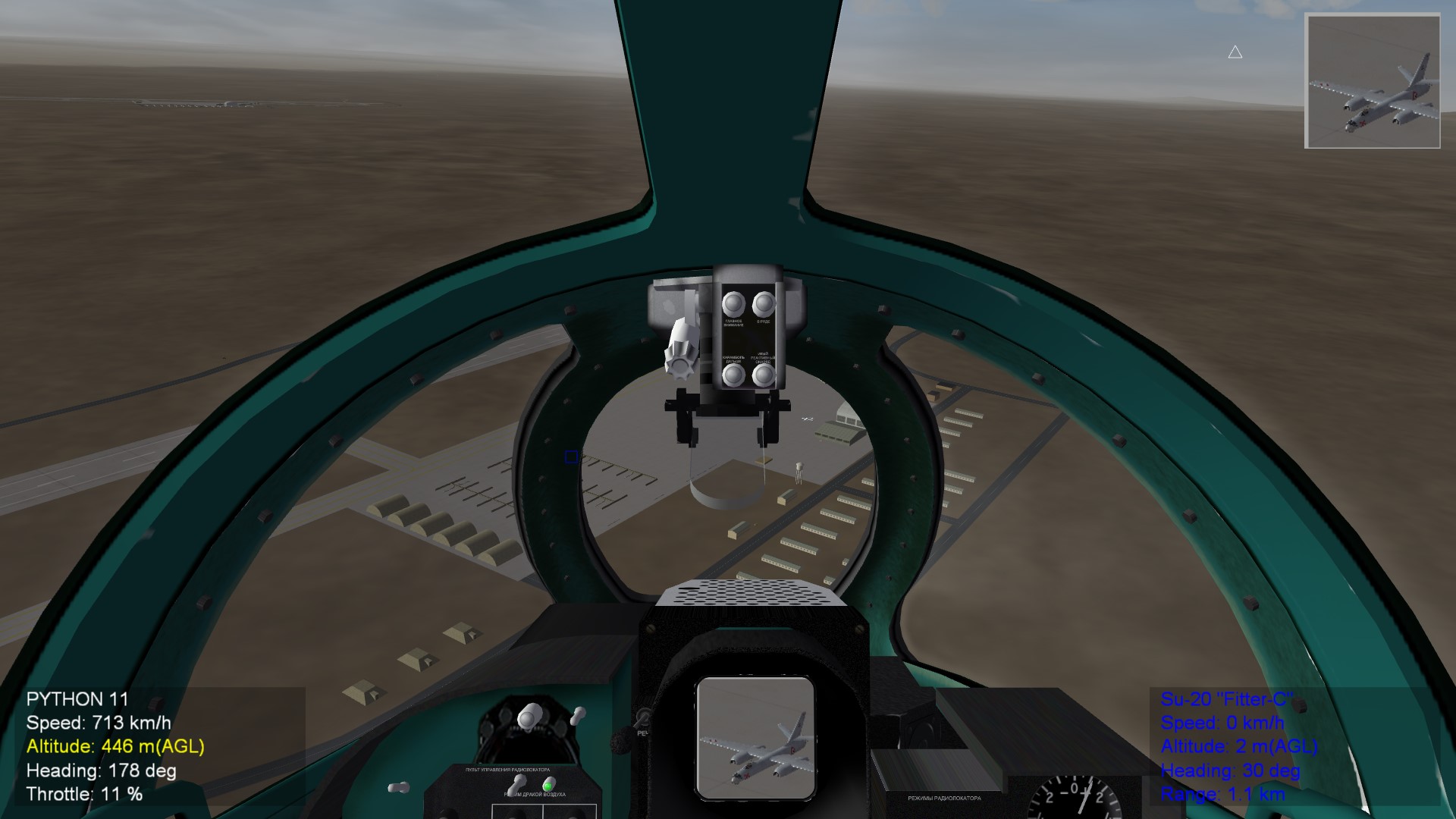

I'm testing the IRST function with the MiG-29UB. I started from the Crazy method. Basically these are the data of the AA-8. I've created a fake IRST Loadout.

I need to increase the IR detection range...



Edited by Coupi
  • Like 2

Share this post


Link to post
Share on other sites

Hi everyone. Some years ago i "made my own" IRST.






Into data.ini :



[Chin-Station]
SystemType=LASER_DESIGNATOR
ModelNodeName=AN/AAQ-14
CameraFOV=1.650000
SightTexture=DTVTADS_LOCK.TGA
CameraPosition=-0.800000,0.125000,-1.00000
CameraYaw=0.000000
CameraPitch=0.000000
CameraRoll=0.000000
//EODisplayFlags=268697600
EODisplayFlags=268763136
SeekerRange=13.000000
SeekerGimbleLimit=150.000000
DualFOV=TRUE
SearchFOV=5.870000
SearchTexture=DTVTADS_SEARCH.TGA

[FLIR]
SystemType=EO_CAMERA
ModelNodeName=RadarScope
CameraFOV=0.7000
SightTexture=DTVTADS_LOCK.TGA
SeekerRange=10.000
SeekerGimbleLimit=50.000000
SearchFOV=15.00000
CameraYaw=15.000000
CameraPitch=15.000000
SearchTexture=DTVTADS_SEARCH.TGA


[LANTIRNSensor]
SystemType=GUNNER_STATION
SeatID=3
GunnerID=1
PilotModelName=
Position=0.0,0.0,0.0
PitchModelNodeName=BallSensor
YawModelNodeName=SensorCollar
GunRange=10000
PitchAngleRate=45
MaxPitch=90
MinPitch=10
DefaultPitchAngle=0
YawLimited=TRUE
YawAngleRate=45
MaxYaw=90
MinYaw=-90
DefaultYawAngle=0





Into avionics:

[TVDisplayData]
UseRadarTexture=true
DisplayLimitLeft=4
DisplayLimitRight=251
DisplayLimitTop=4
DisplayLimitBottom=251
ApplyFilter=FALSE
FilterMaterial=DTVFilterMaterial
OverlayTexture=cockpit\F-16C_EO.tga

[DTVFilterMaterial]
IRImage=TRUE
DepthBufferCheck=FALSE
DepthBufferWrite=FALSE
RenderedInOrder=FALSE
AlphaTestEnabled=FALSE
CullMode=NO_CULL
LightEnabled=TRUE
SpecularEnabled=FALSE
EmissiveEnabled=FALSE
FogEnabled=FALSE
AmbientColor=1.000000,1.000000,1.000000,1.000000
DiffuseColor=1.000000,1.000000,1.000000,1.000000
ZBufferOffset=0.000000
PriorityLevel=2
BlendOp=MODULATE
NumTextureStages=1
TextureStage[01].MipMap=TRUE
TextureStage[01].FilterEnabled=FALSE
TextureStage[01].StageColorOp=TEXTURE
TextureStage[01].StageAlphaOp=DIFFUSE


Can´t track and lock, but "it work"
