Home built cockpits

[+hi ho silver]

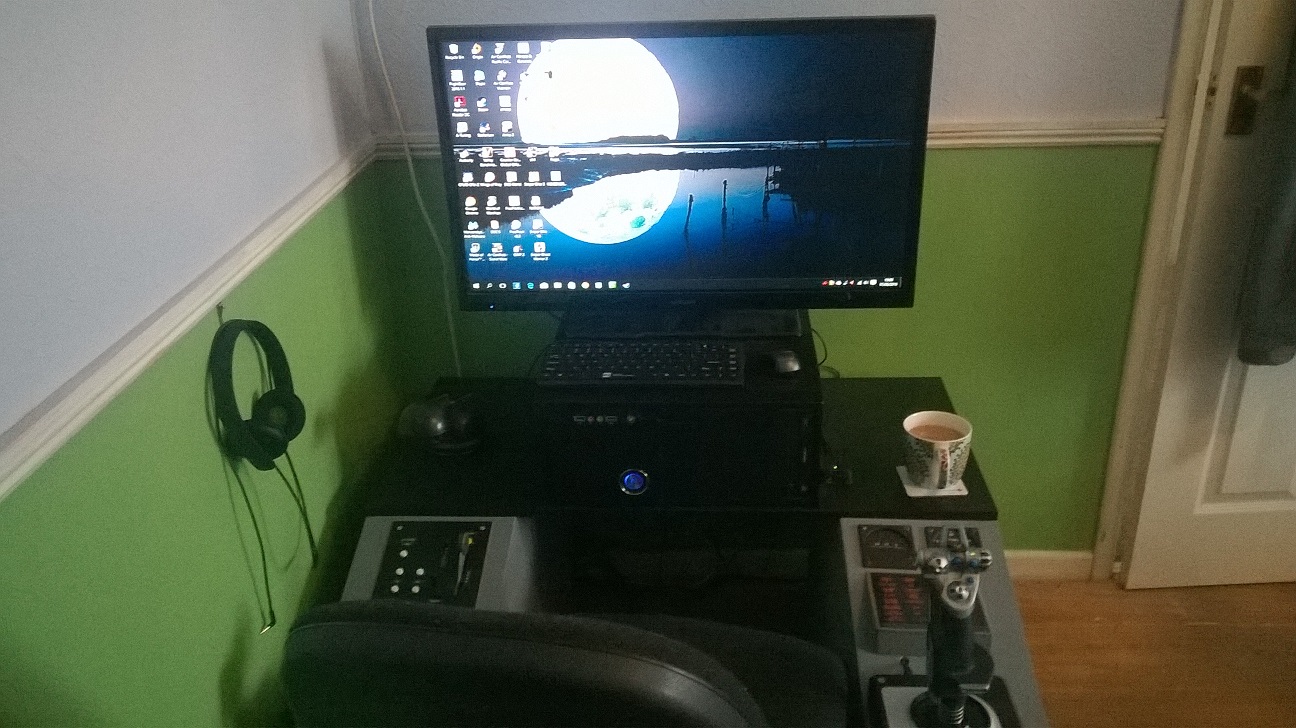

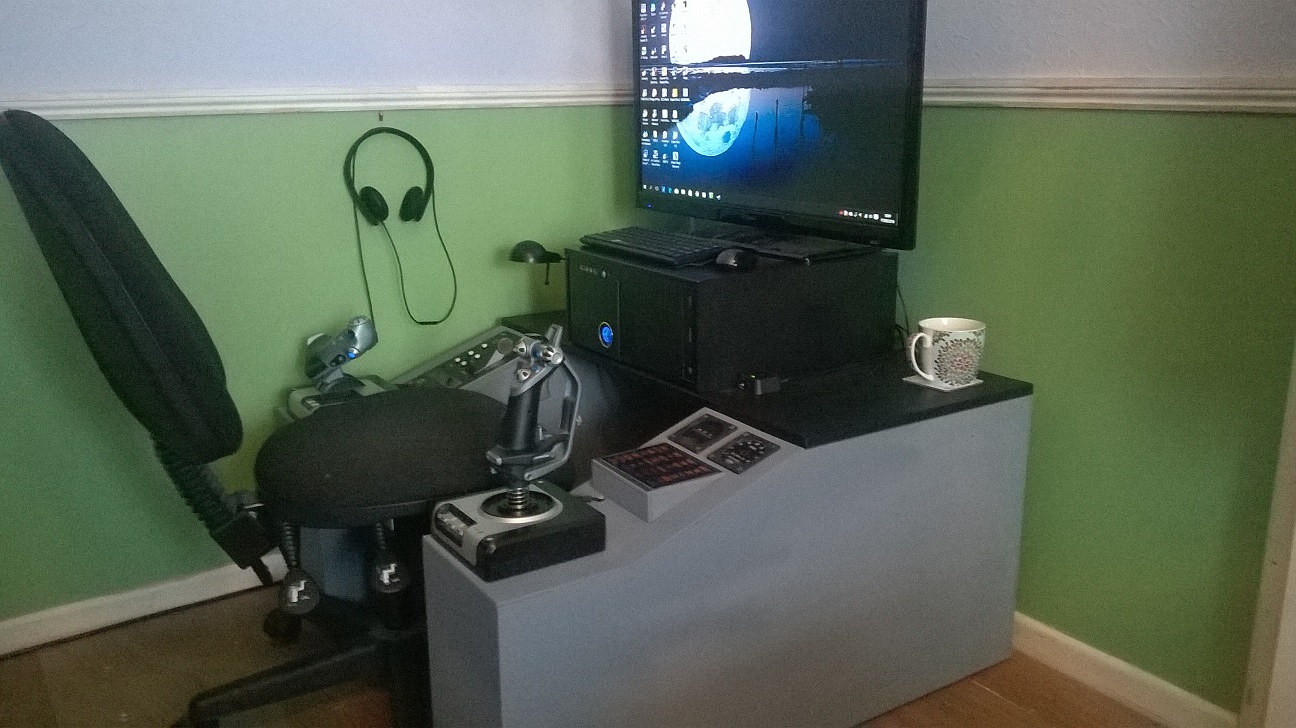

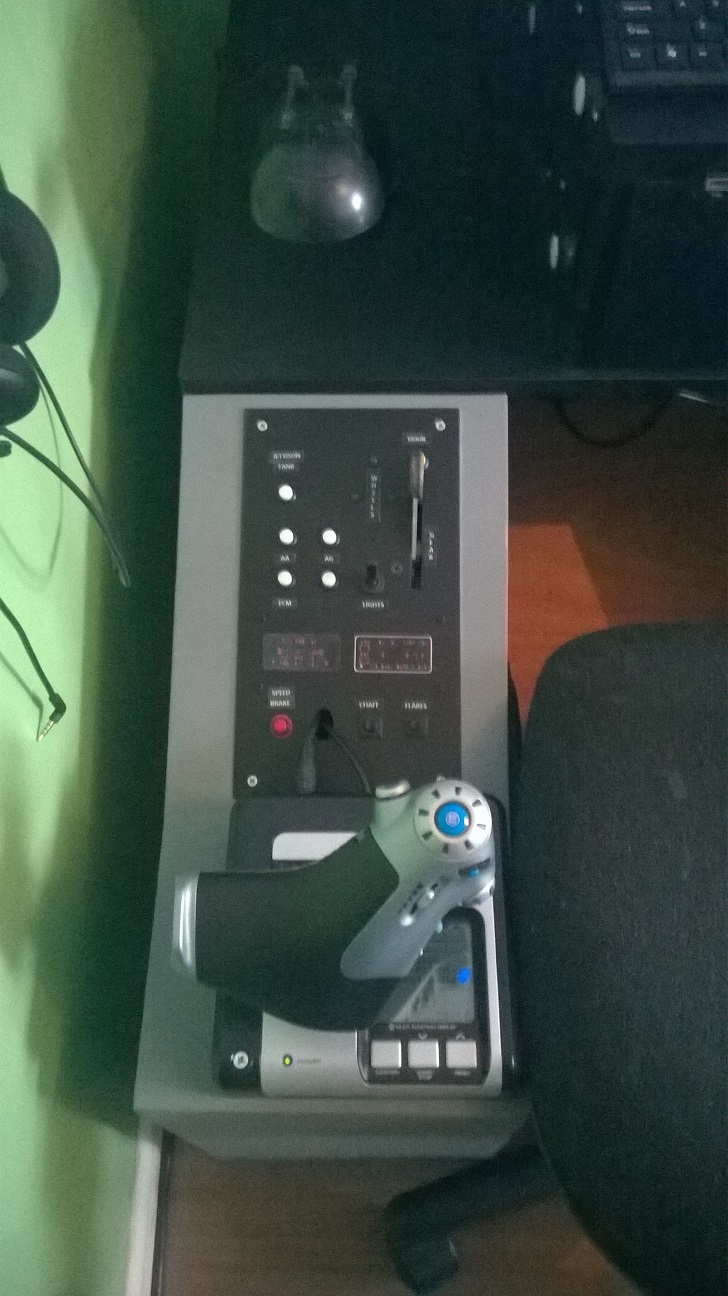

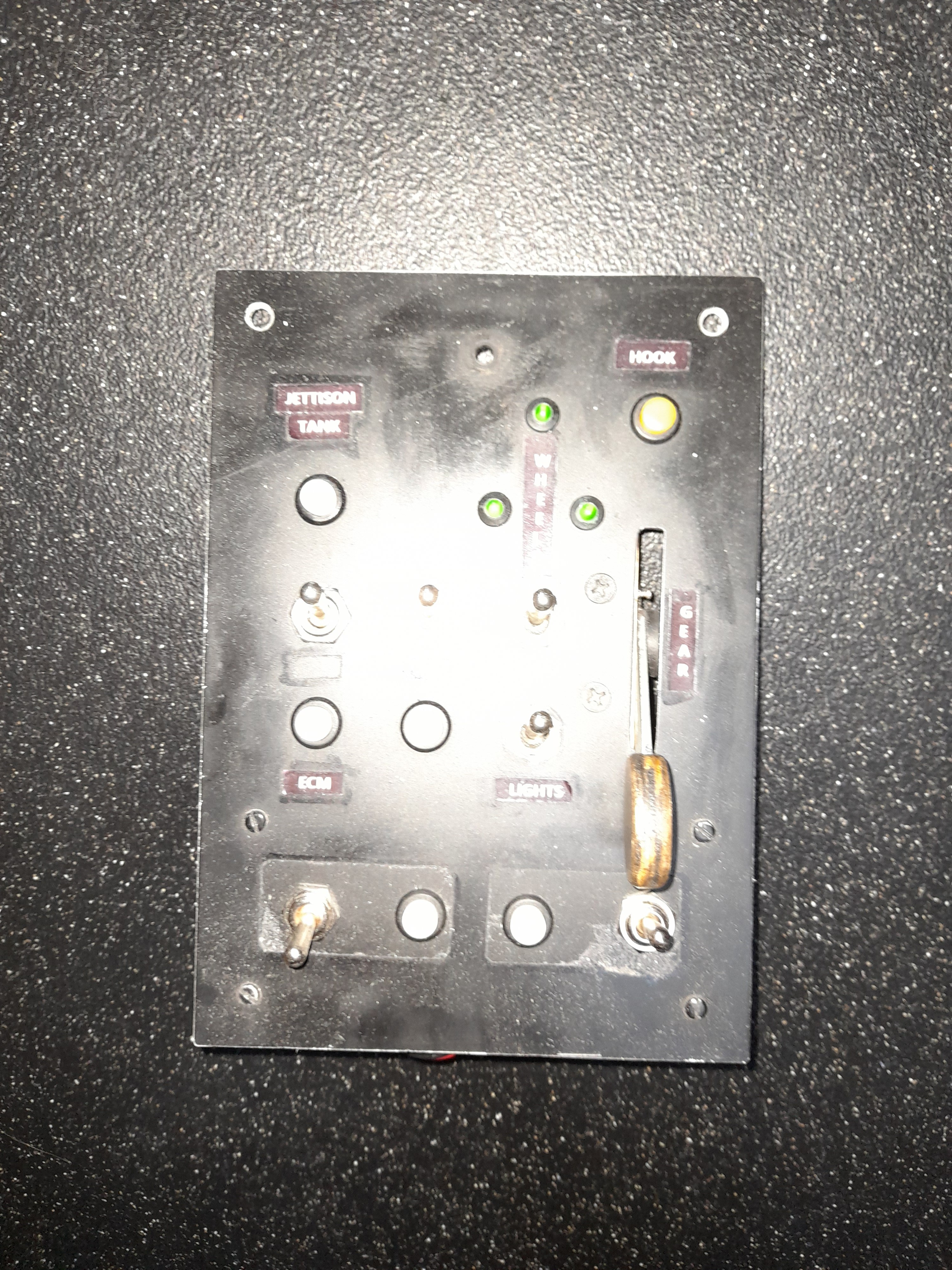

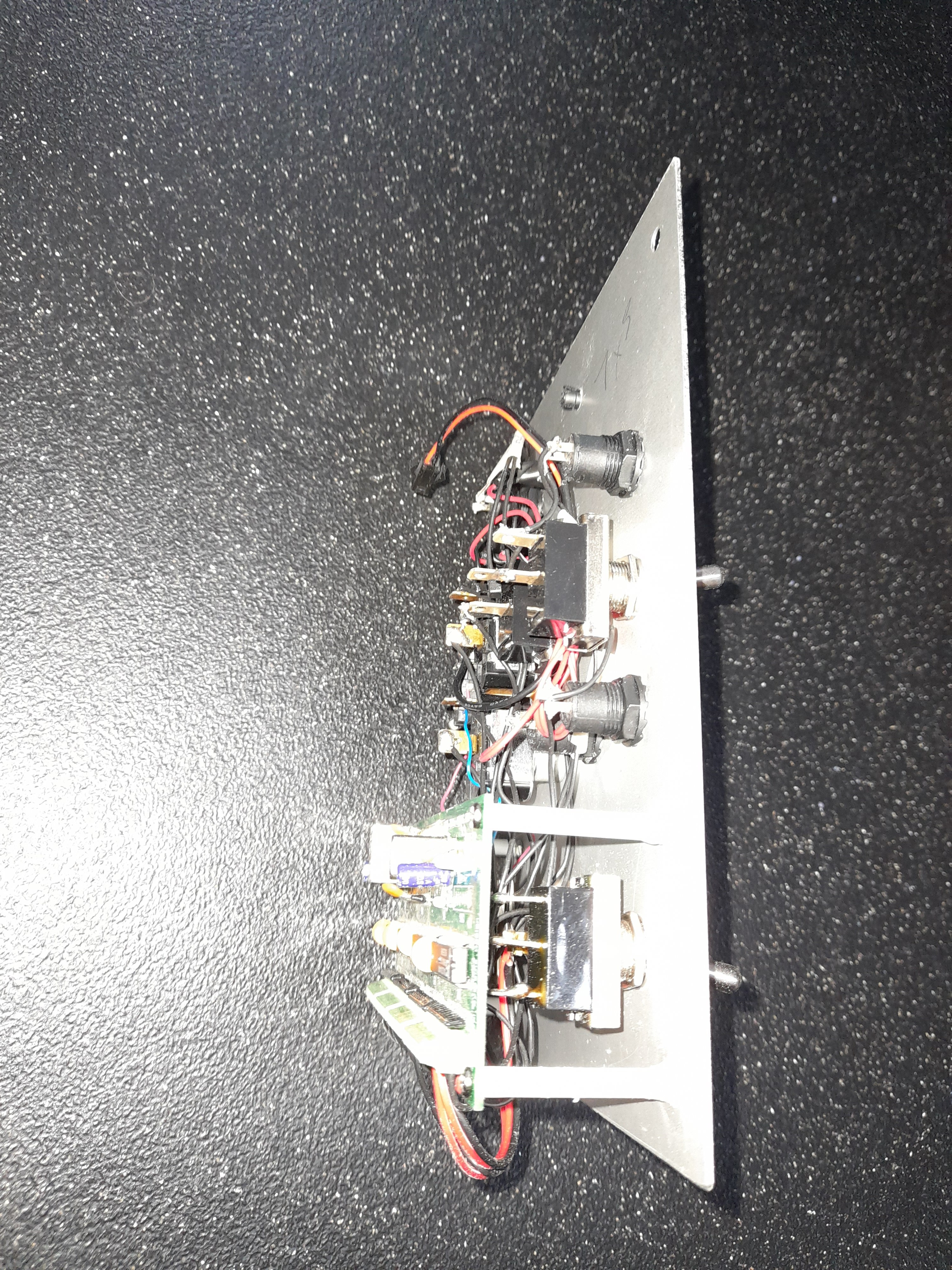

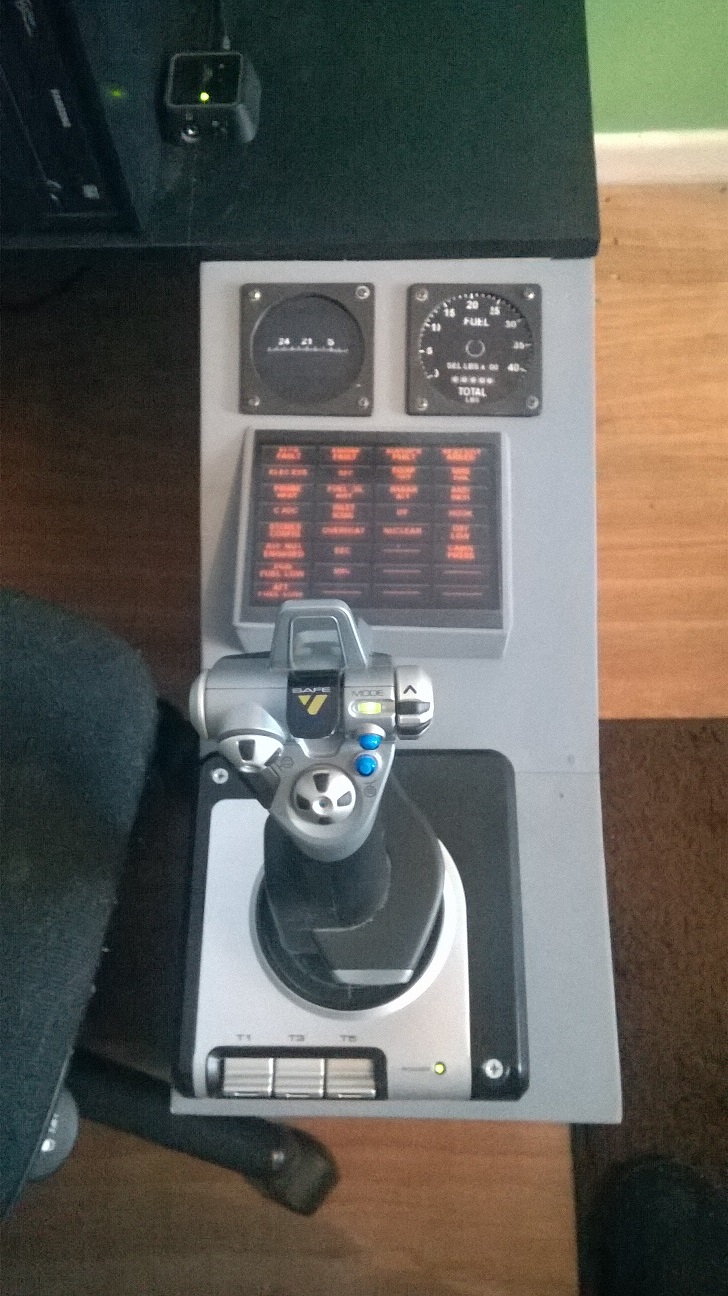

Hi everyone thought i'd start a topic about home made (build) cockpits has i've  just updated mine .So some info on mine it's modular the sides and the top interlock there a bass speaker fixed under front . Two 6x9 speakers mounted one each side 32 inch screen 1920x1080 at 75hz .The right panel is fake photo's laminated and stuck down The left panel is a real working panel i made myself .This panel has working gear lever and lights buttons for jettison tanks ,AA AG weapons ,emc ,brakes ,lights,speed brake ,hook ,chaff and flares...hope you like it

[DoctorQuest]

That's pretty cool!



Is it strictly sidestick? Have you ever thought about some sort of pull out platform to allow it to switch to center stick?

[Stratos]

Cool work. Wish I had some kinf of handcrafting habilities so I can replicate something like that.

[Muesli]

The cuppa Joe completes it!

[+Sundowner]

Nice work m8, I wish I had the space to something like it.

[Platinum Rogue]

The cuppa Joe completes it!

I wonder what the G-limit is on that ;)

[Z09SS]



I tried to keep mine simple, so just mounts for the HOTAS on a board I can move under the desk.

[+hi ho silver]

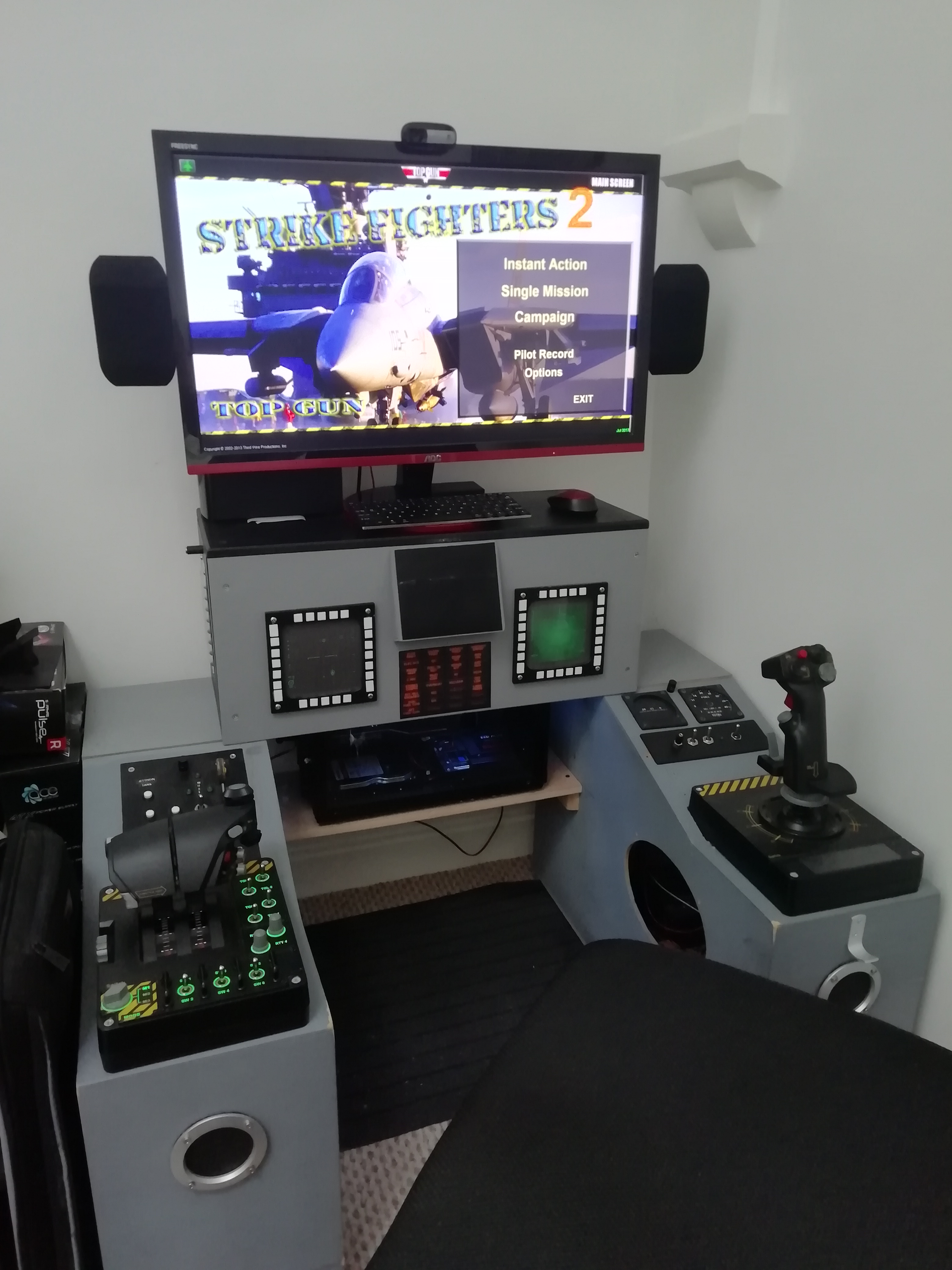

The  latest build of my cockpit .New x-55 rhino and on-board audio right side .Left panel updated new switches.. :)

[+hi ho silver]

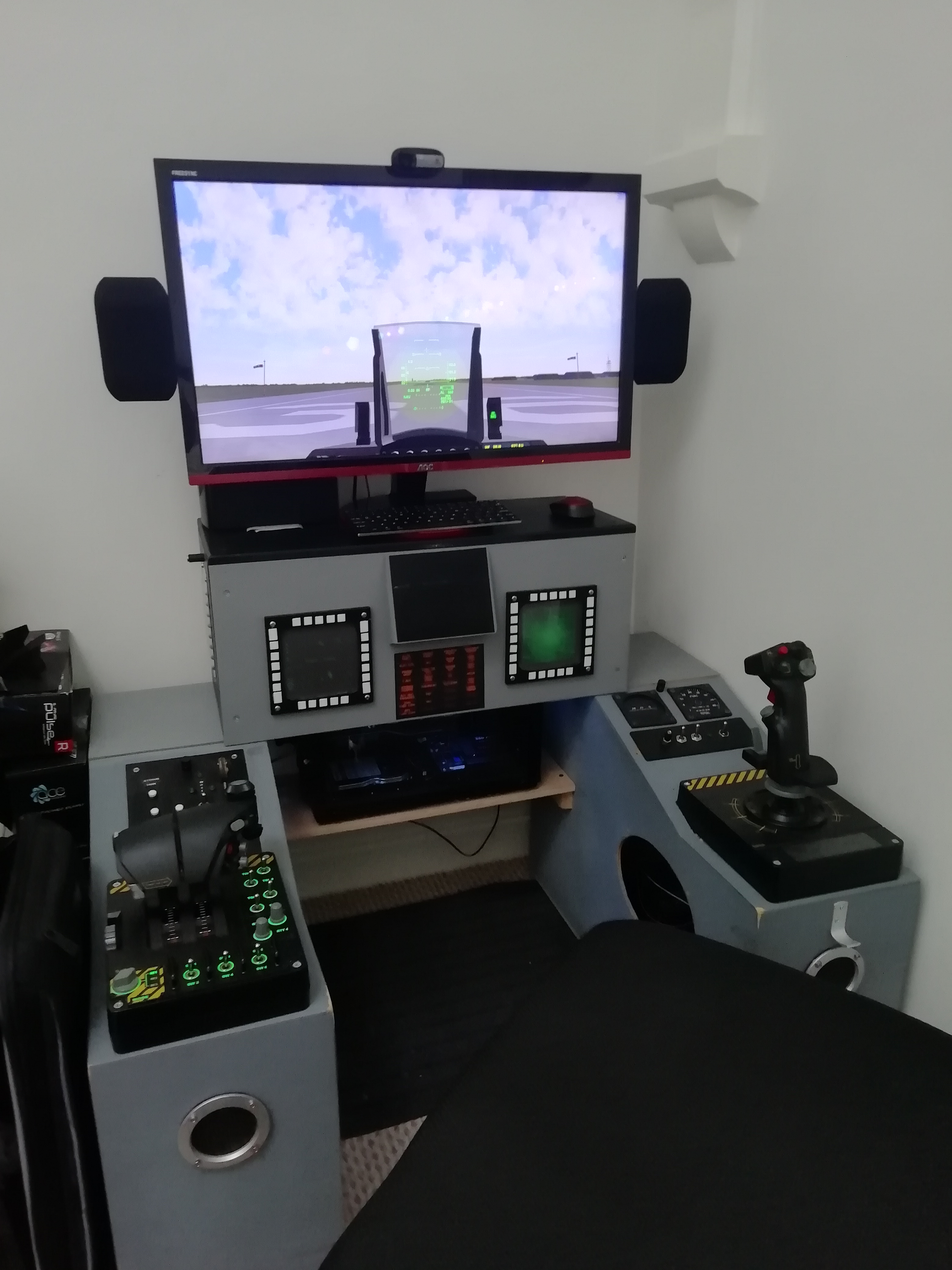

Hi here the latest update on my pit 9" chopped off back new mfd's new clocks and dials coming soon made a vesa mount for speakers..

[+baffmeister]

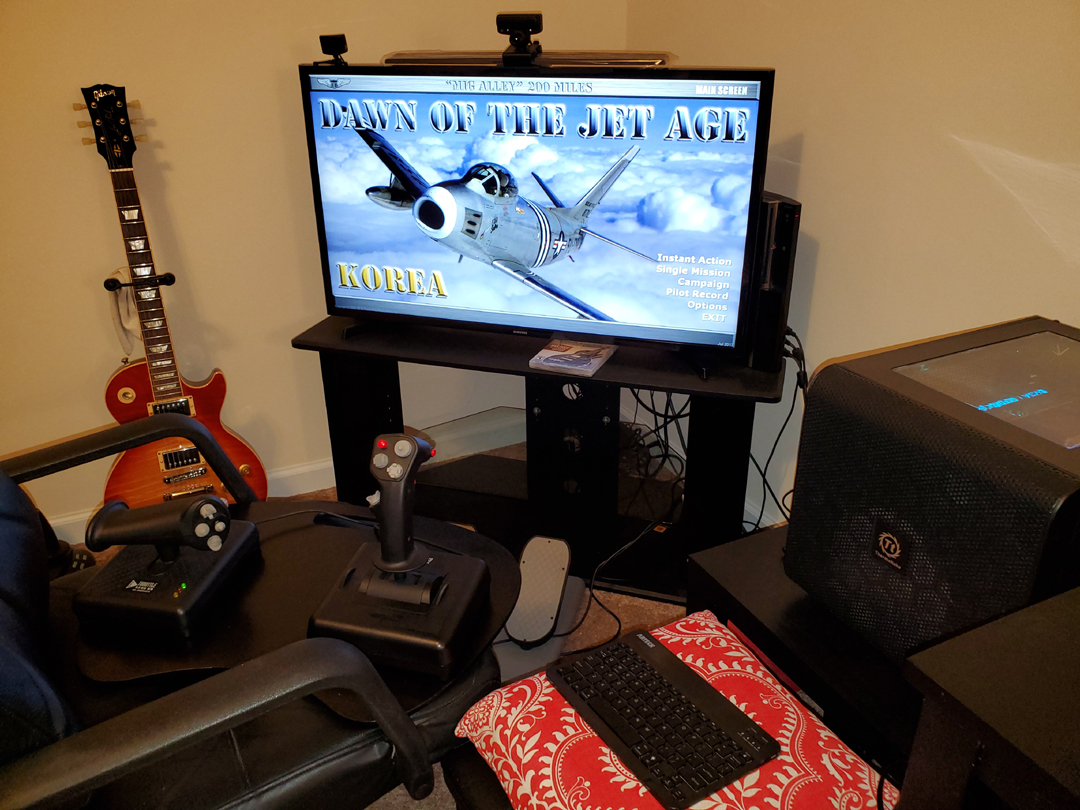

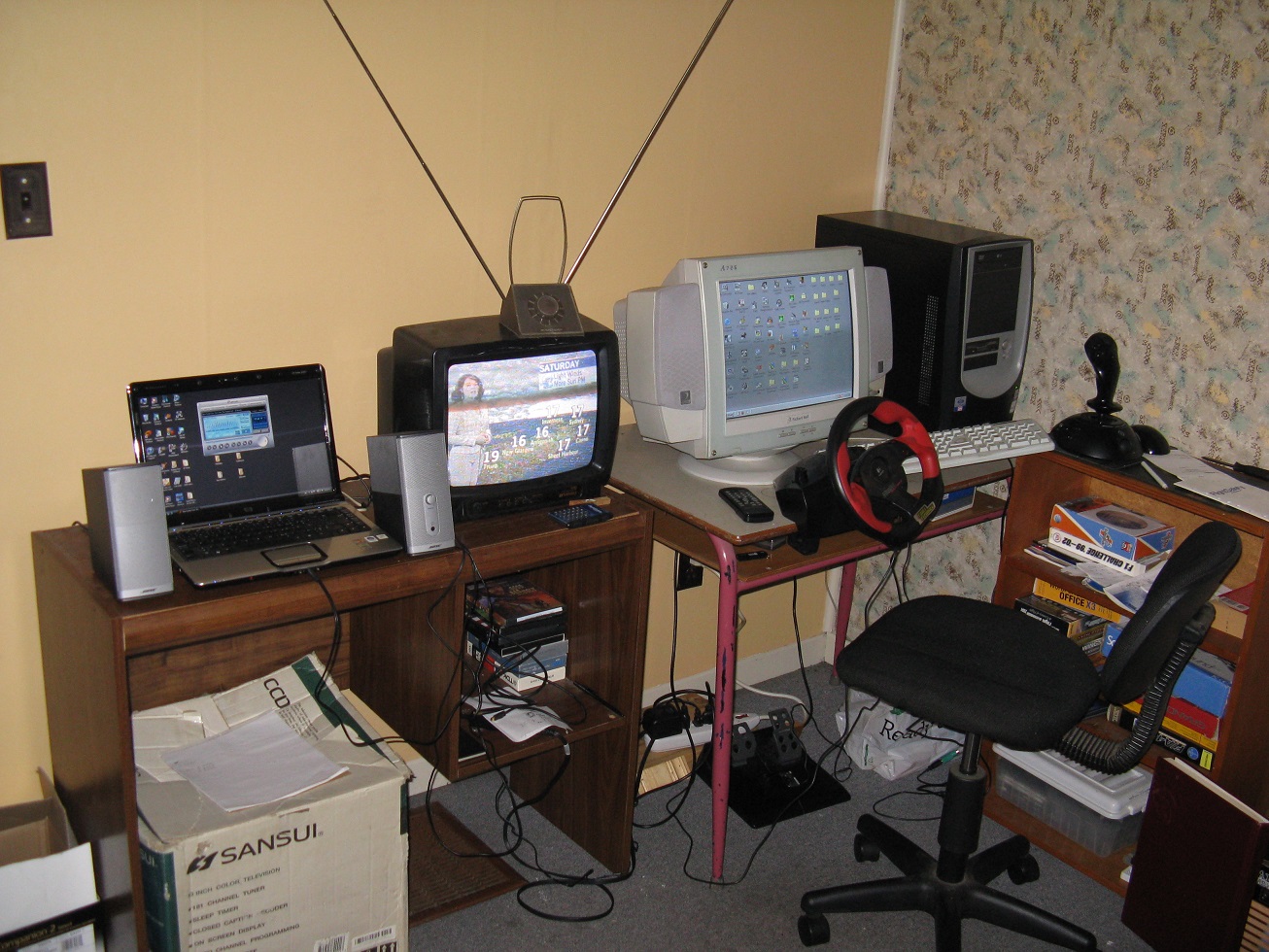

I had all those cockpits beat way back in 2008. The combination "Entertainment Console" had it all but took up too much space so I had to downsize. It's much more modest now.



[+russouk2004]

14 minutes ago, baffmeister said:

I had all those cockpits beat way back in 2008. The combination "Entertainment Console" had it all but took up too much space so I had to downsize. It's much more modest now.



wheres that monitor from ?...NASA old stock lol ?

[+baffmeister]

2 minutes ago, russouk2004 said:

wheres that monitor from ?...NASA old stock lol ?

Nothing but the best! The rabbit ears have been upgraded with a directional high def antenna, probably NASA gear as well.

[+russouk2004]

primary is laptop ? didnt spot that lol

[+hi ho silver]

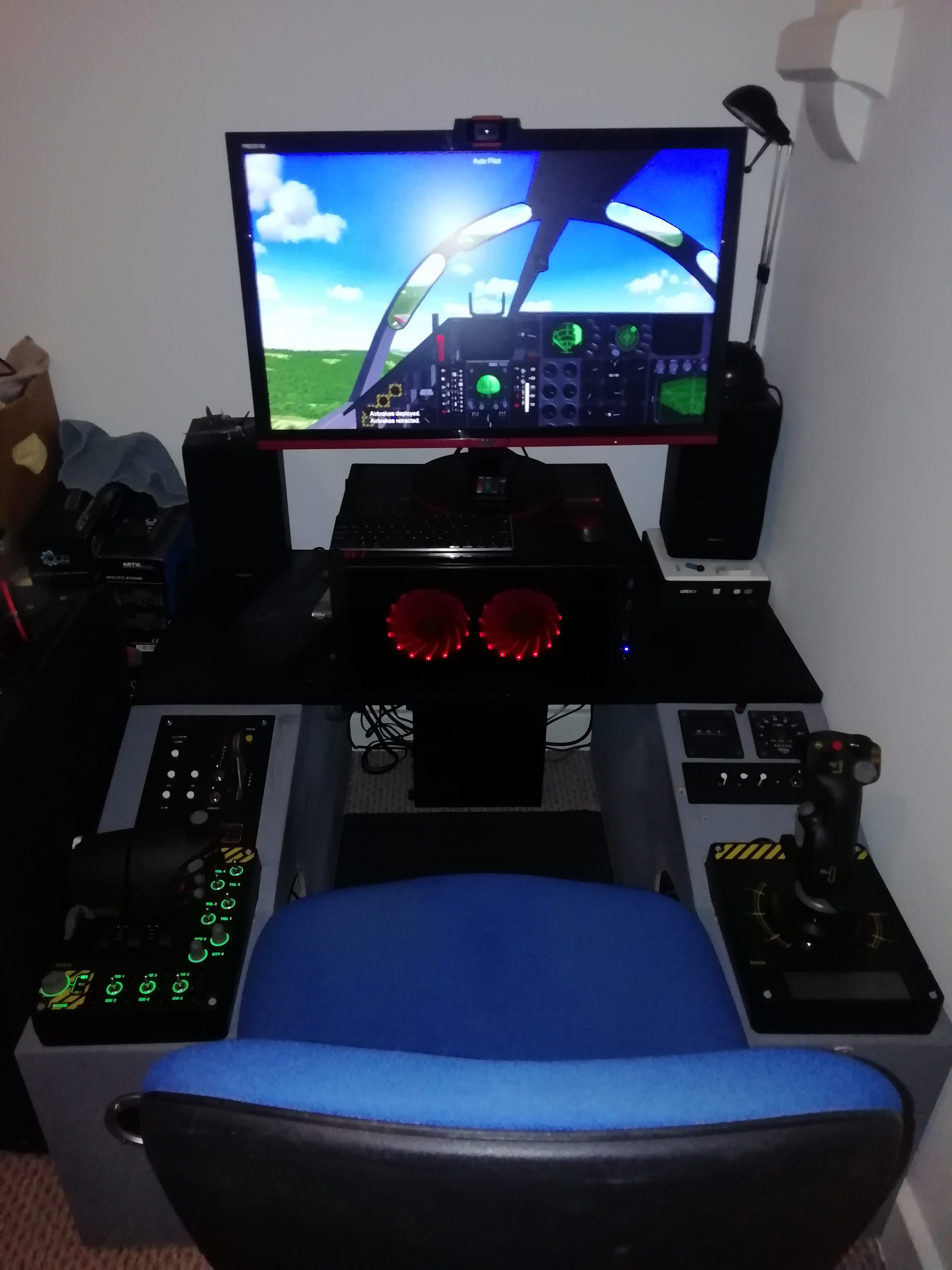

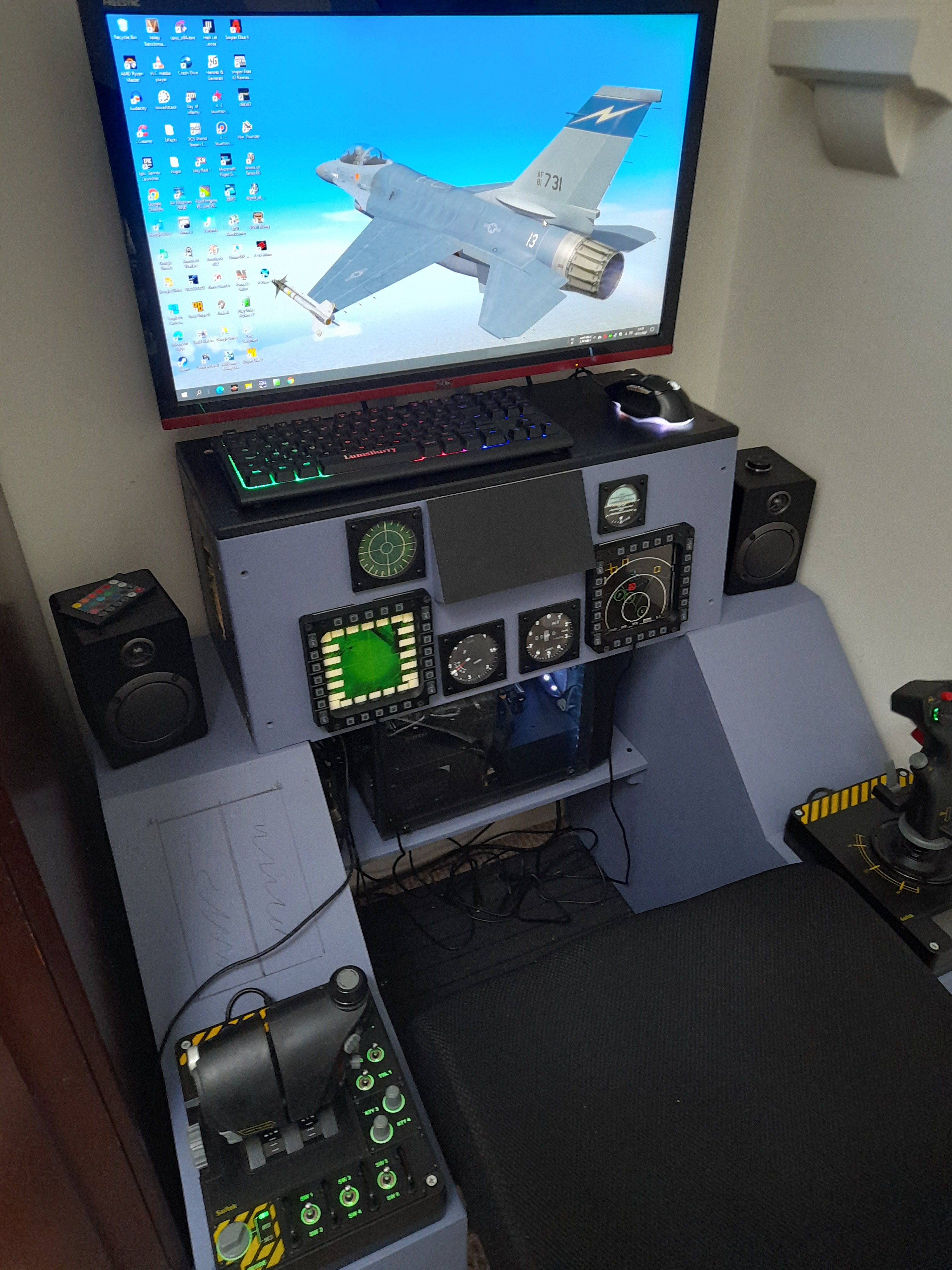

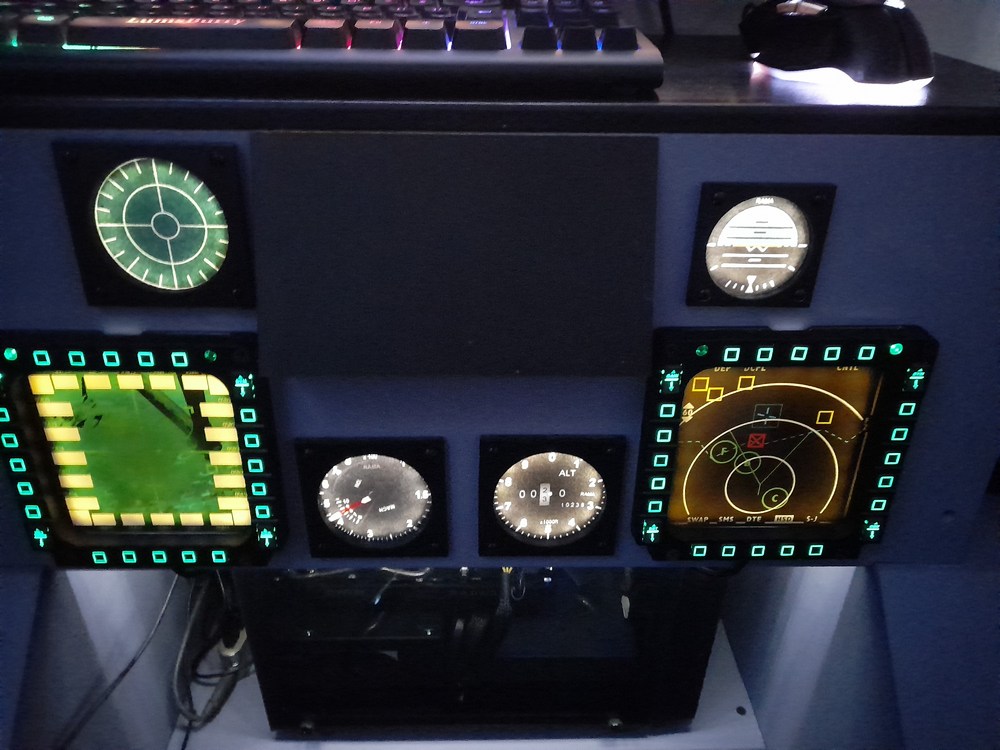

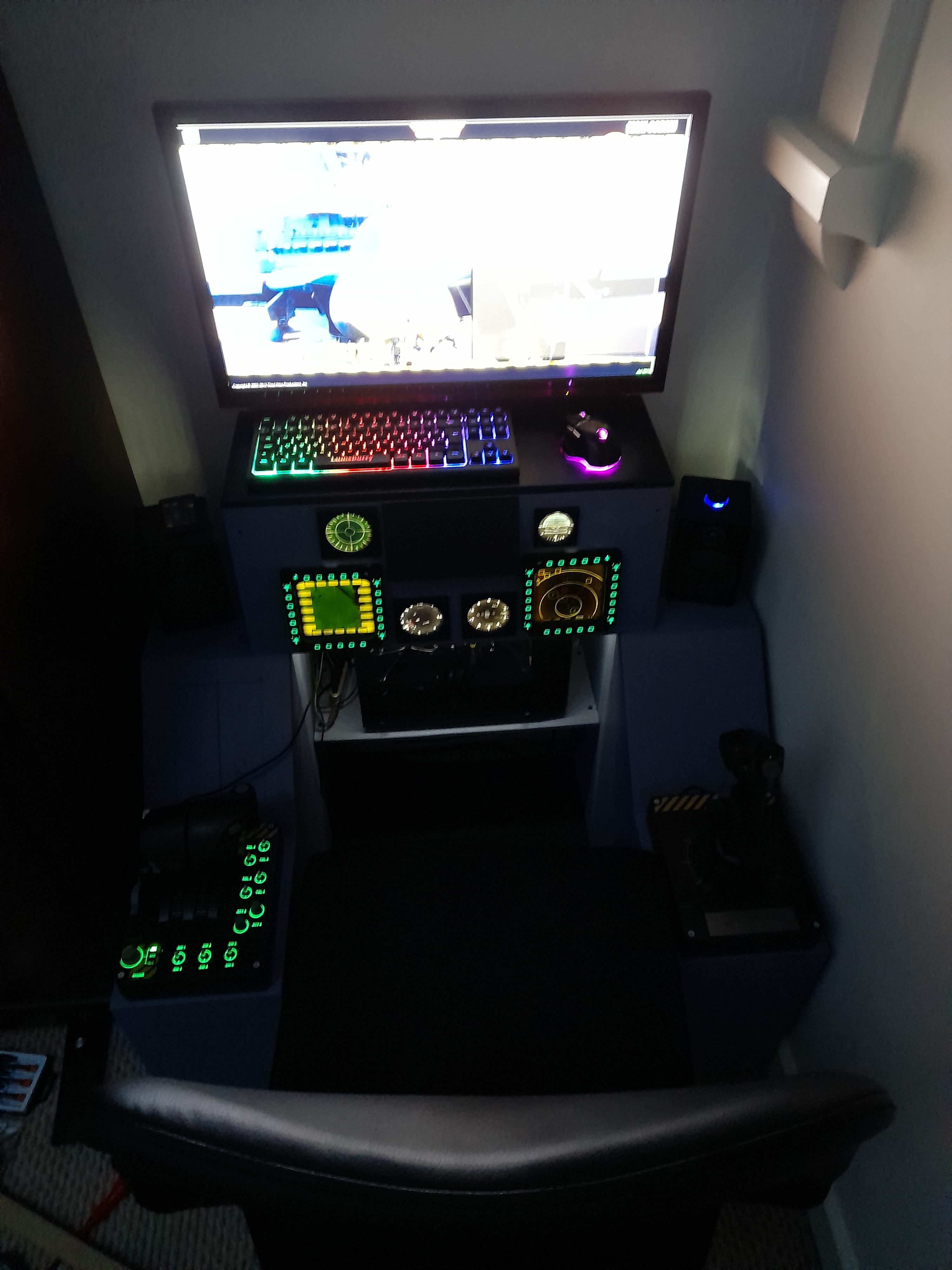

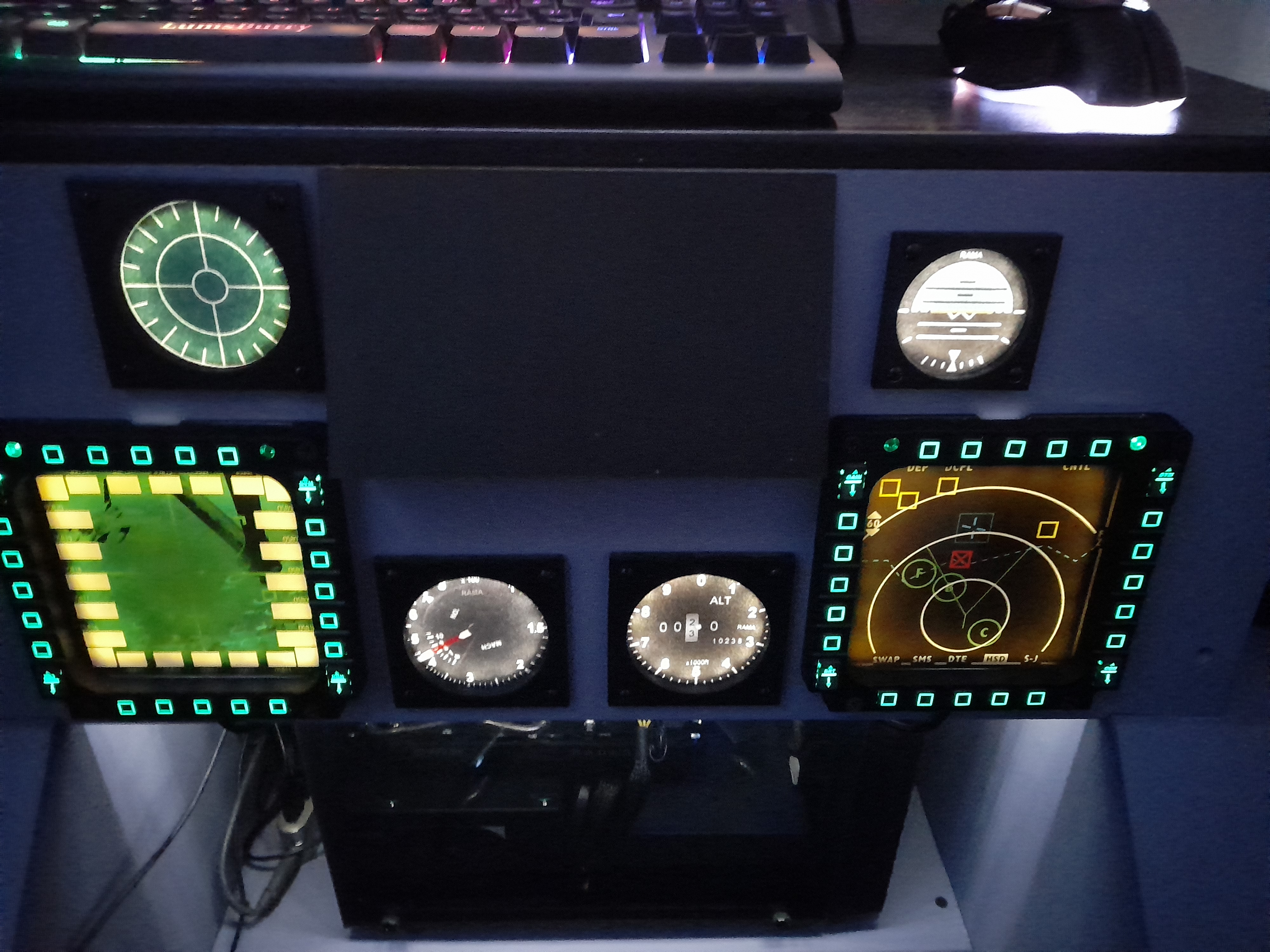

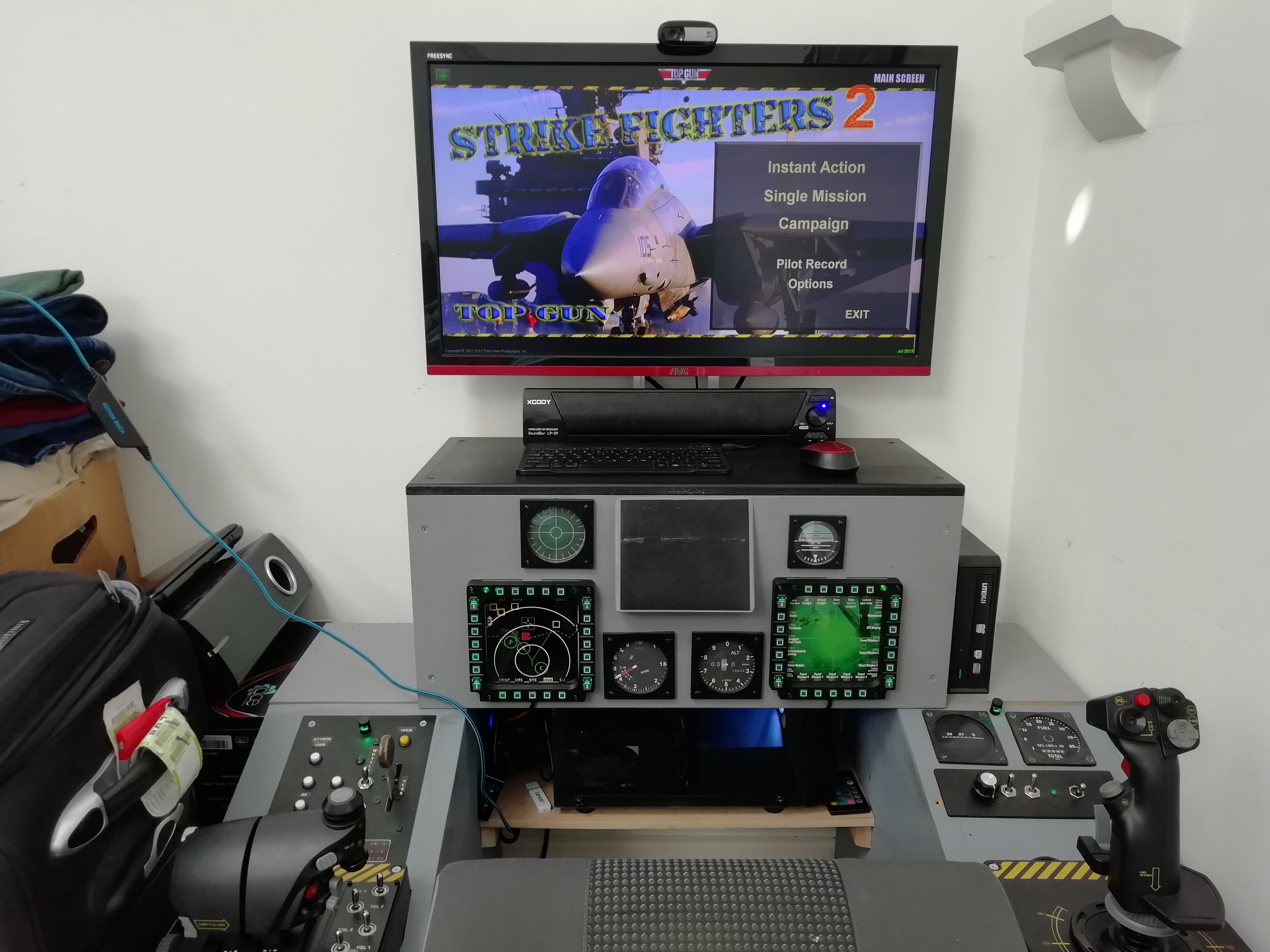

The latest update  thrustmaster mfd's and a sound bar hope to rebuild cockpit frame when the world gets back to normal :)

[Geary]

On ‎3‎/‎20‎/‎2016 at 5:13 PM, Z09SS said:



I tried to keep mine simple, so just mounts for the HOTAS on a board I can move under the desk.

Z09SS,

   Aren't you afraid you'll loose your beer in that mess?

   Nice idea for mounting your throttle and joystick.  I've been considering using pvc for a frame system but not quite as big as your pipes.

[+Viper63a]

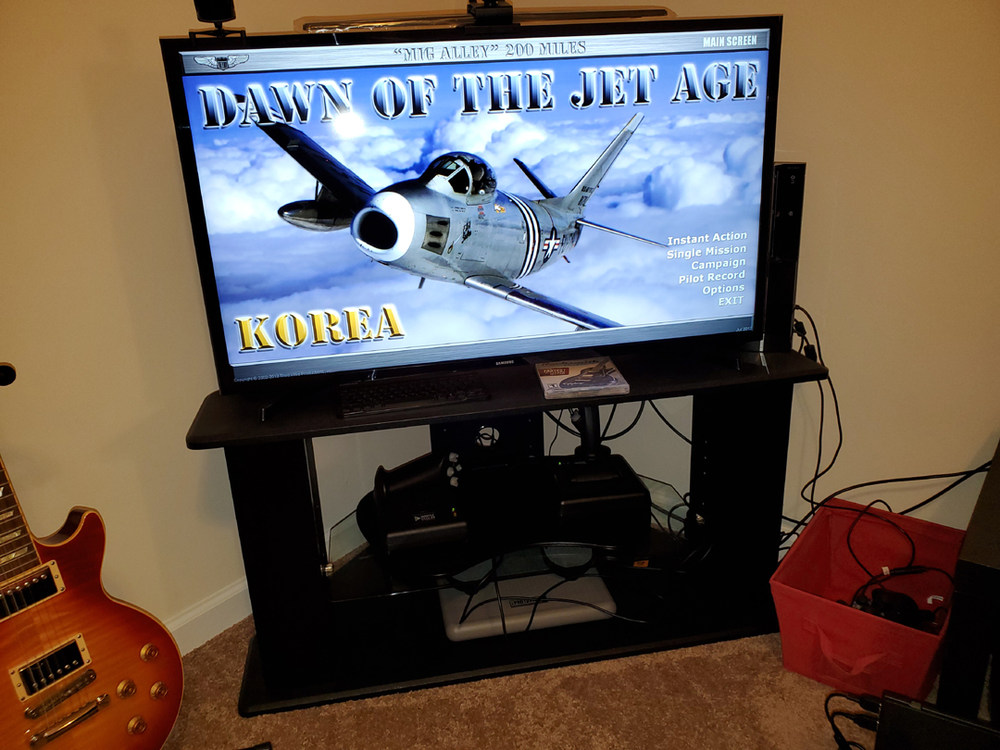

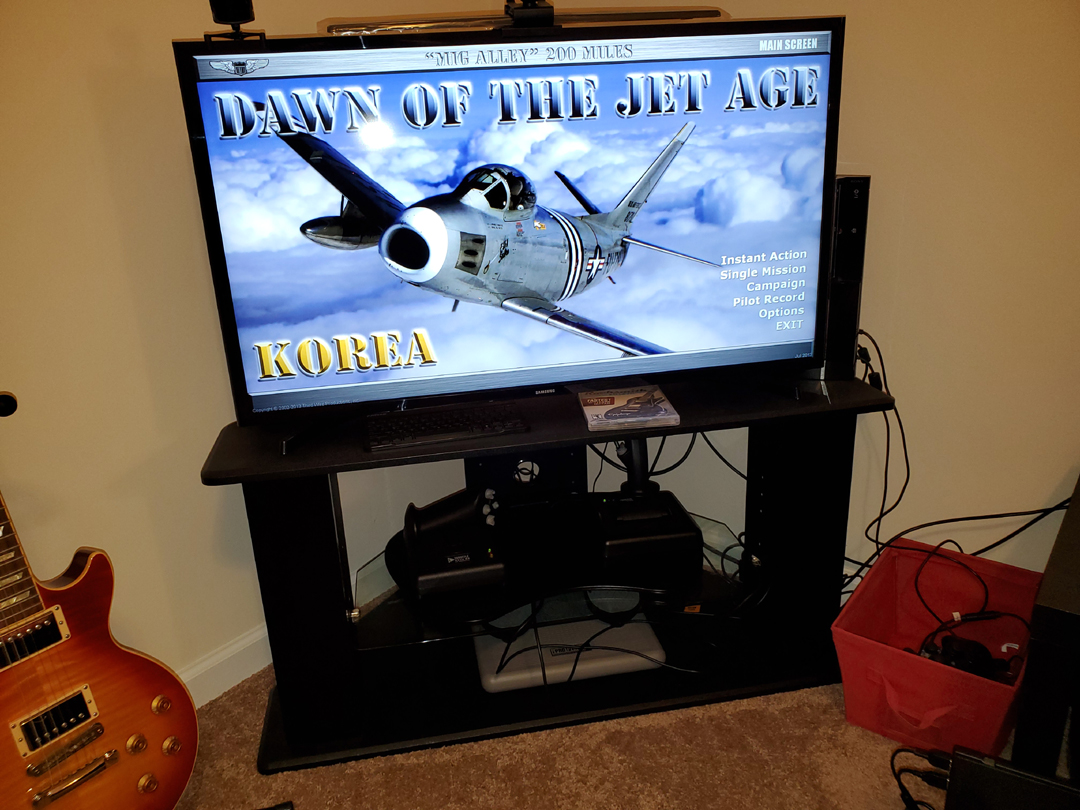

Spent alot of time trying to create an efficient cockpit I can put away when done flying. Until I can build a true cockpit, this is what I got...

Edited June 6, 2020 by viper63a

[+hi ho silver]

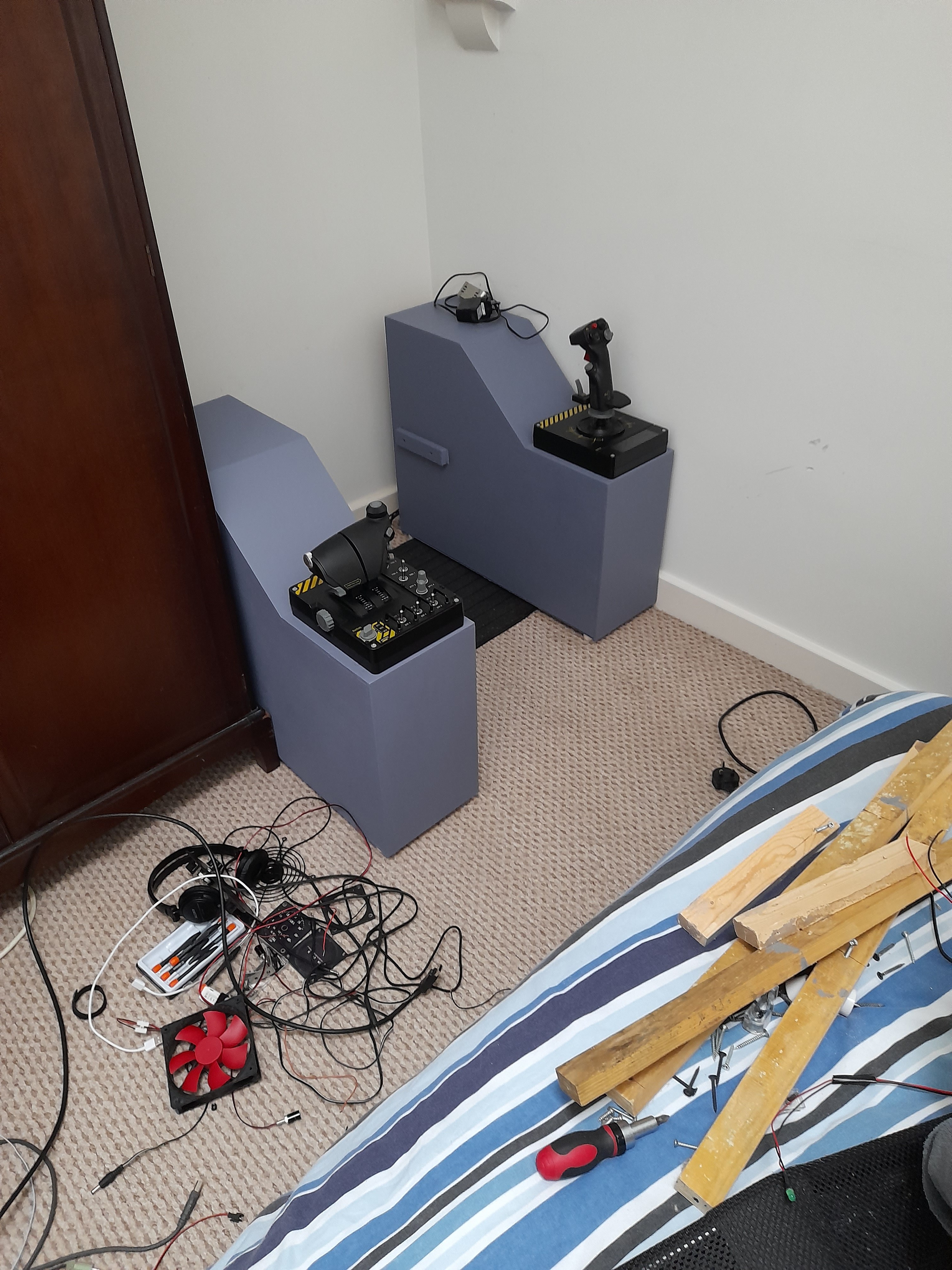

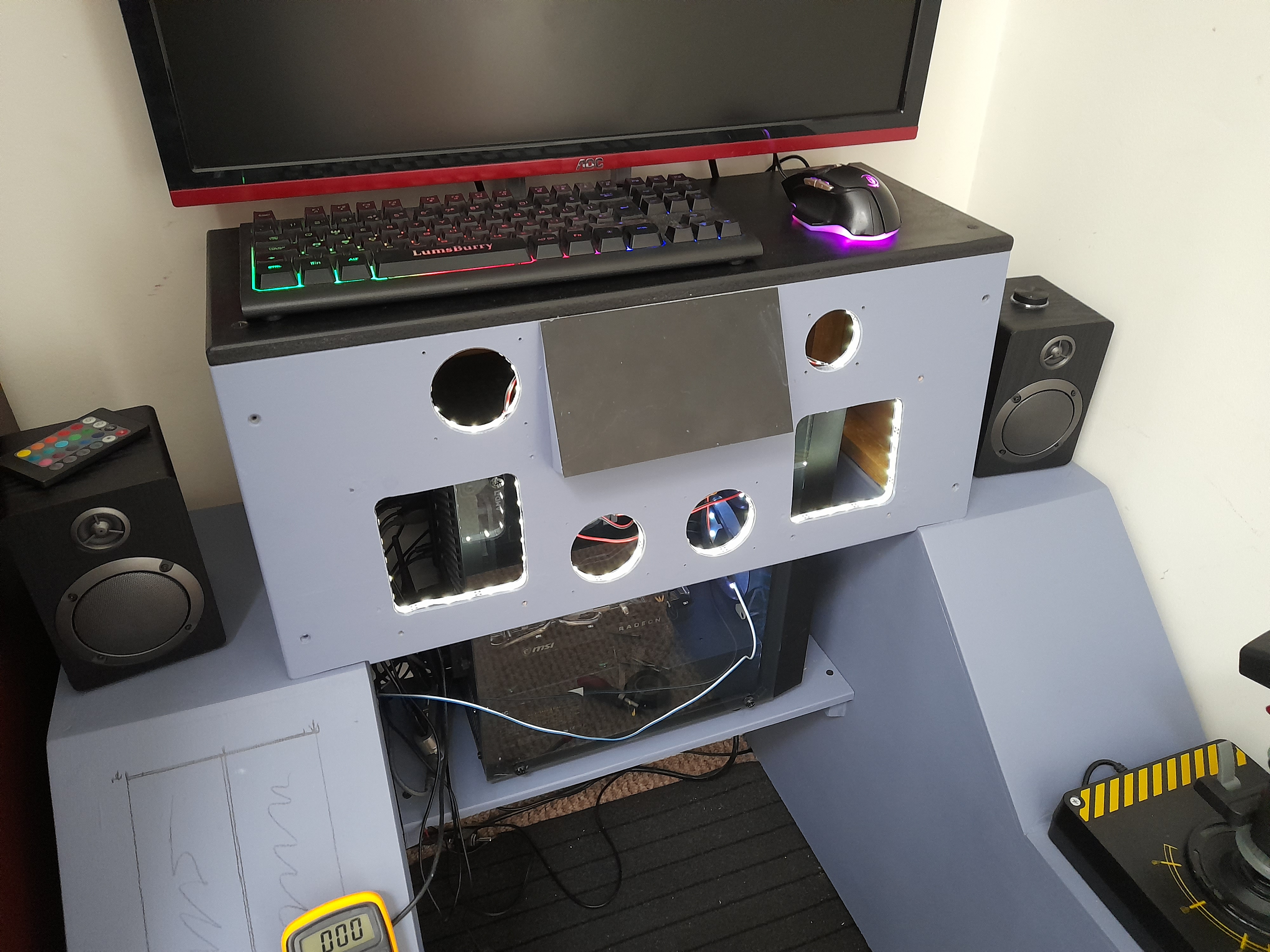

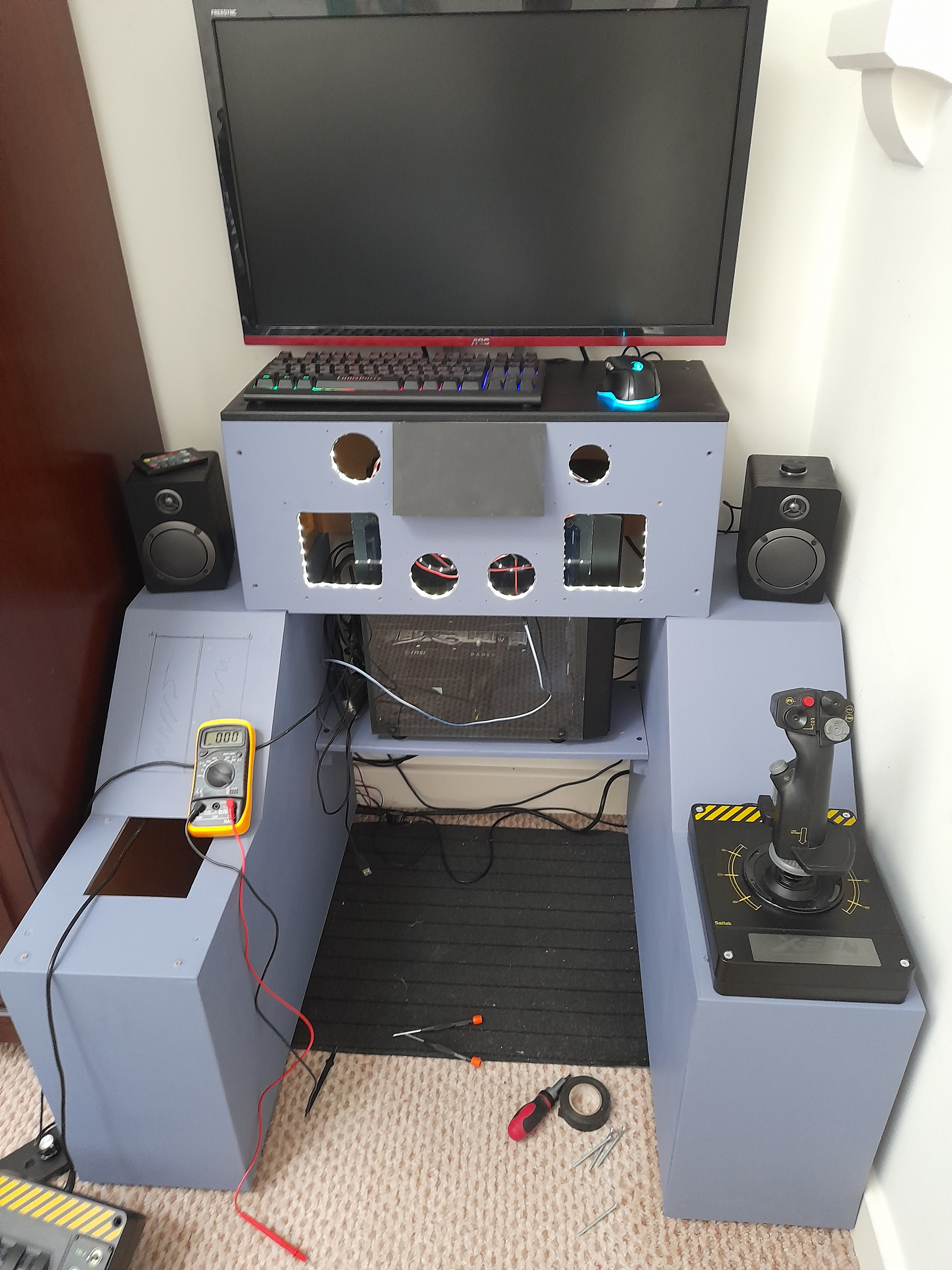

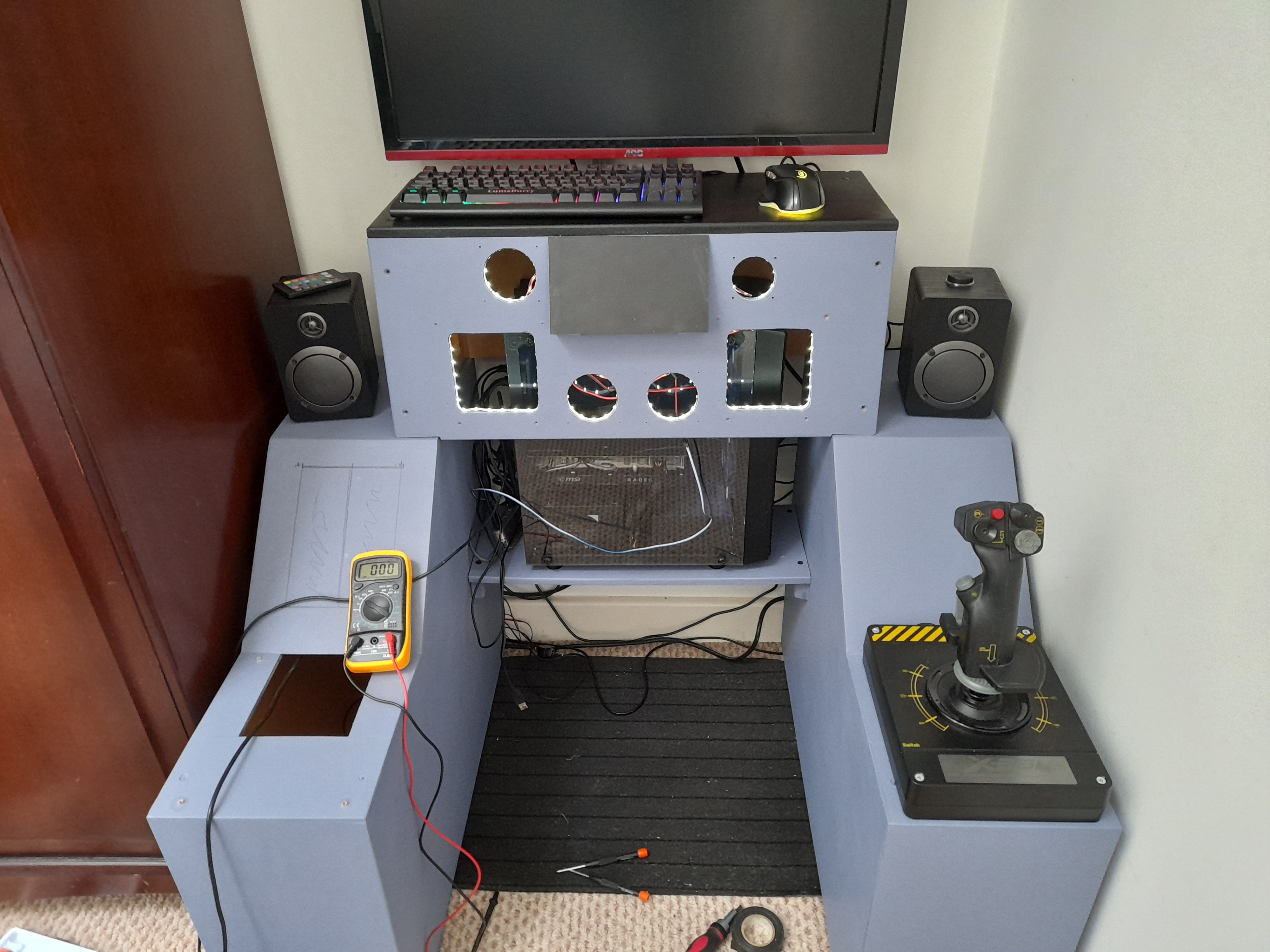

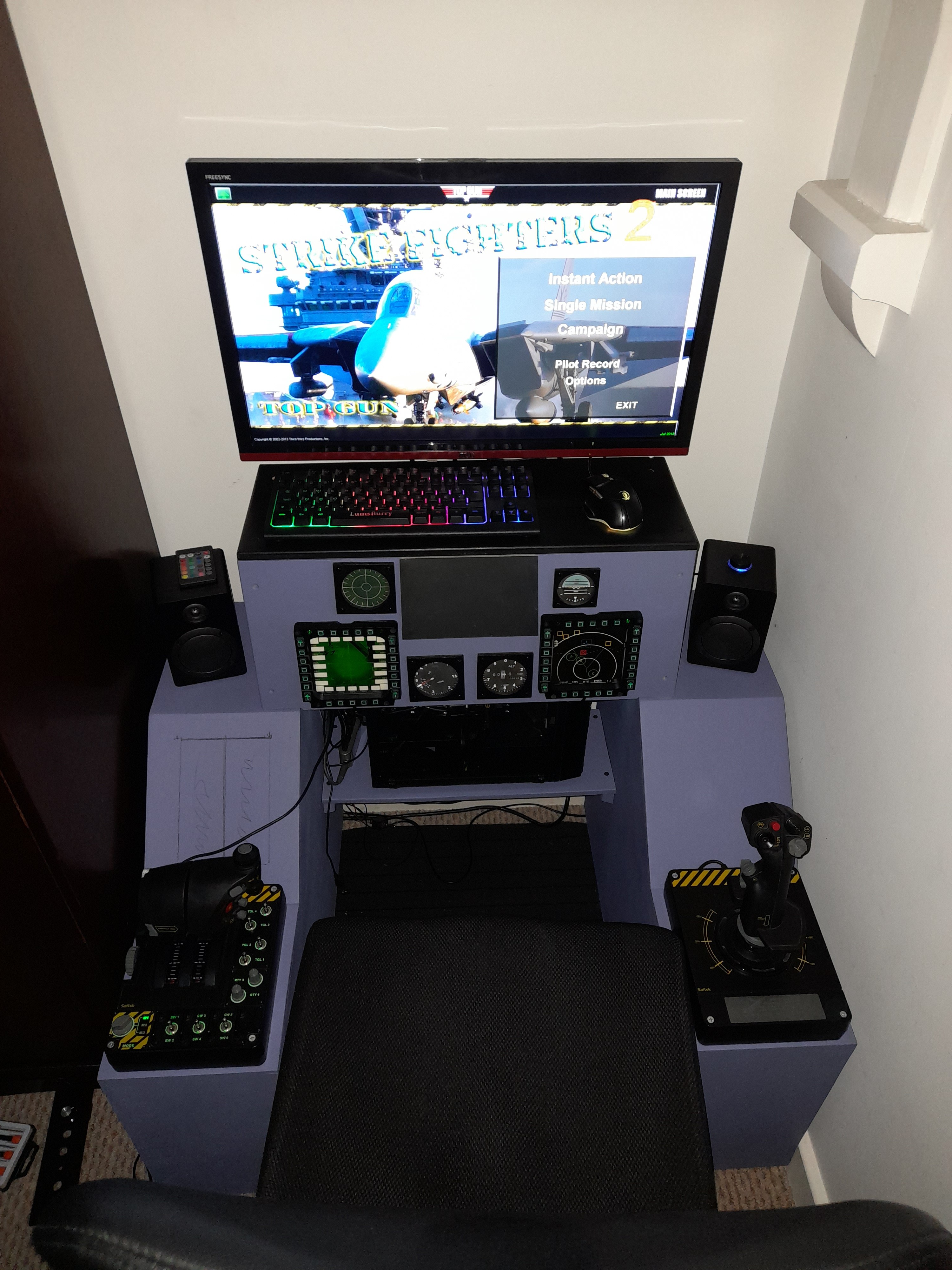

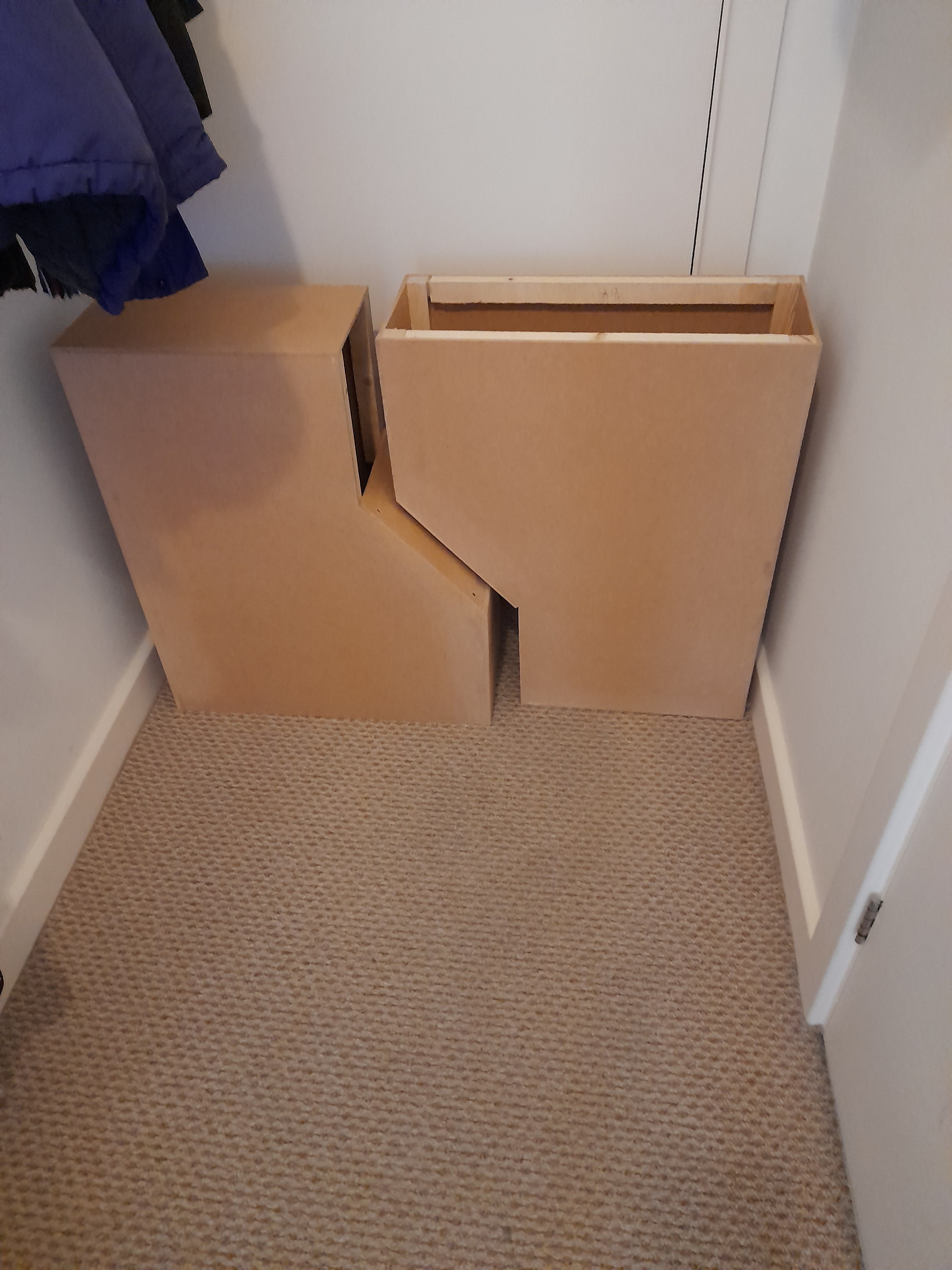

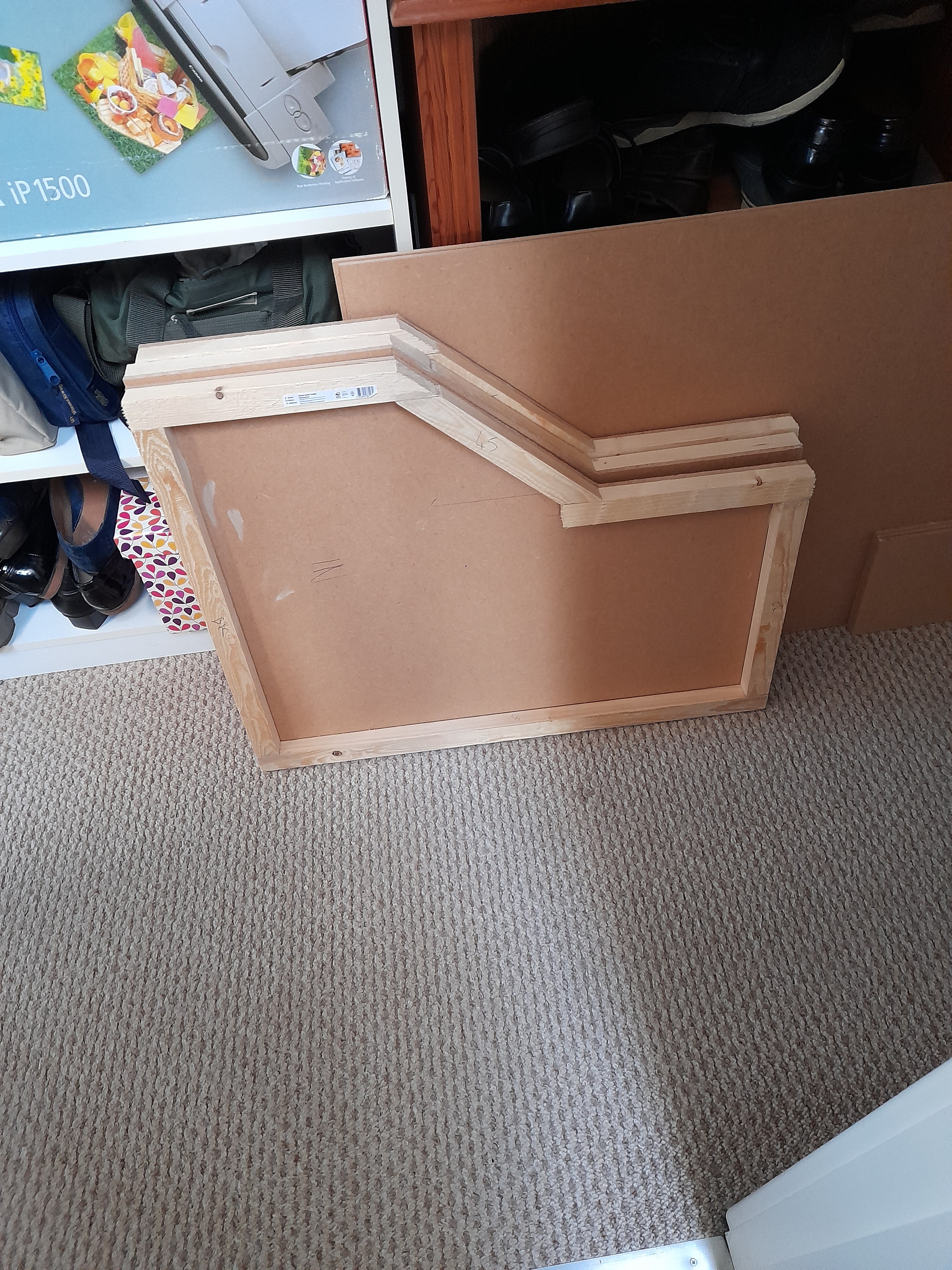

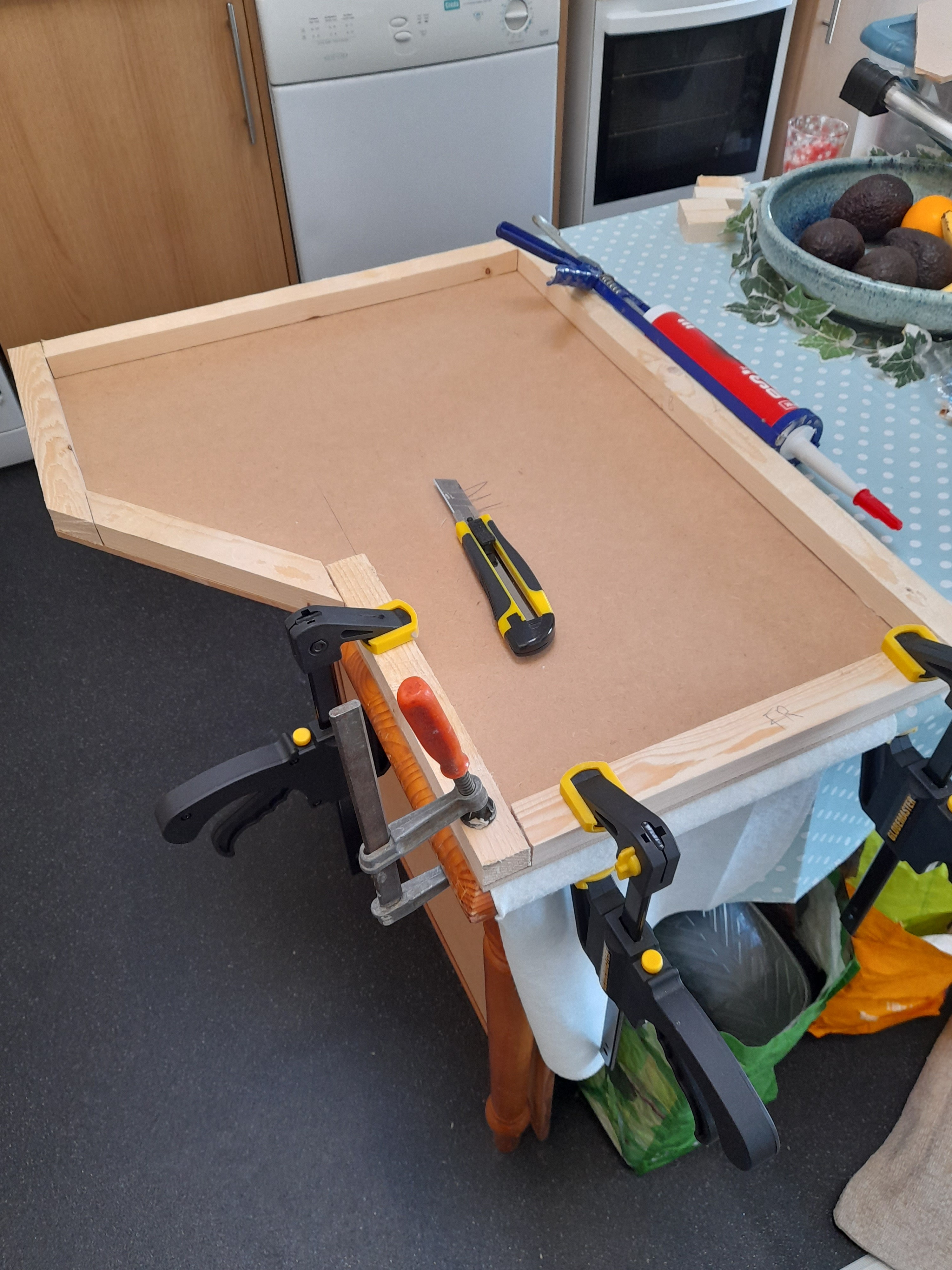

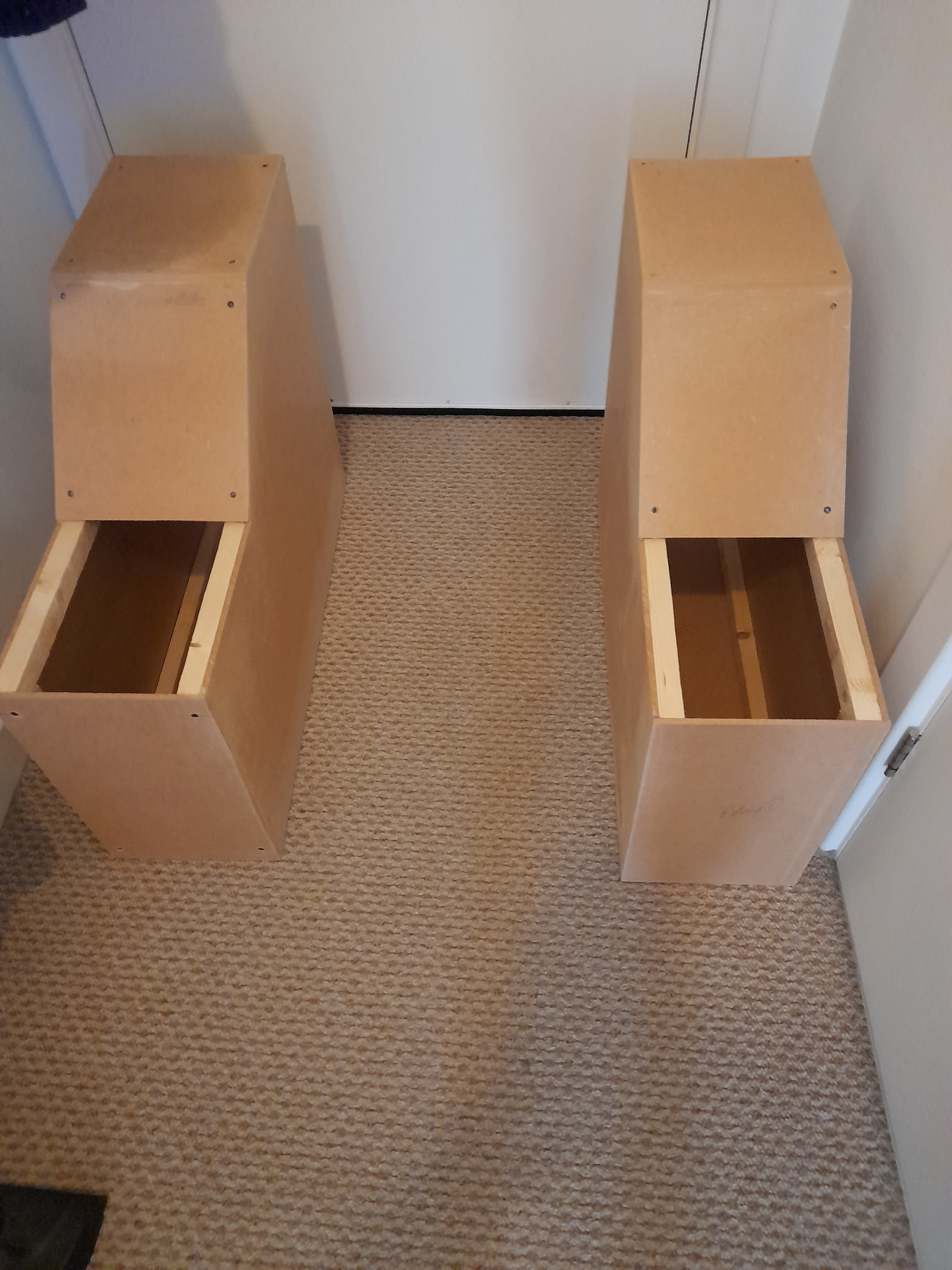

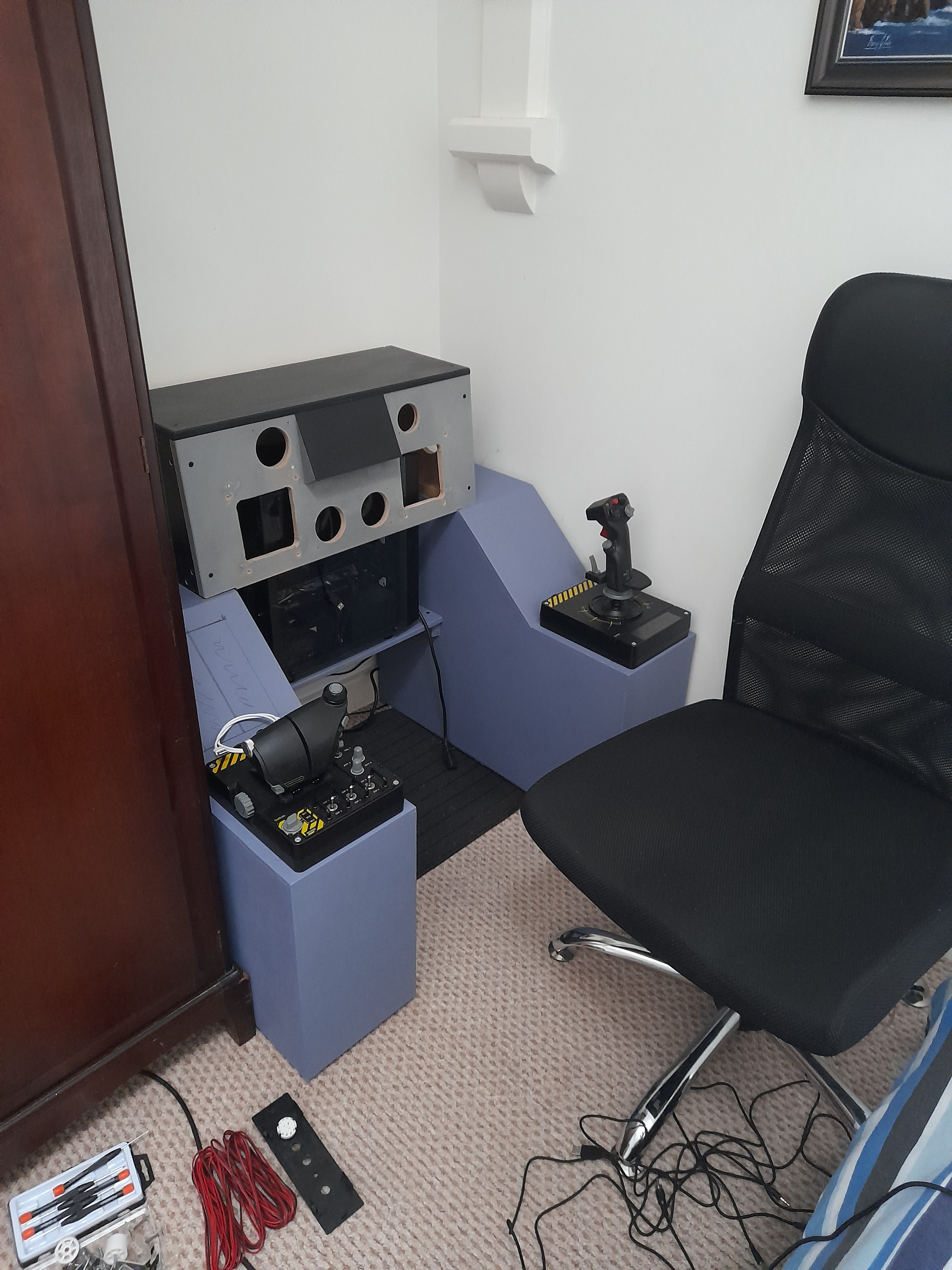

Lock down boredom has meant I have  been working on the new cockpit..

[+hi ho silver]

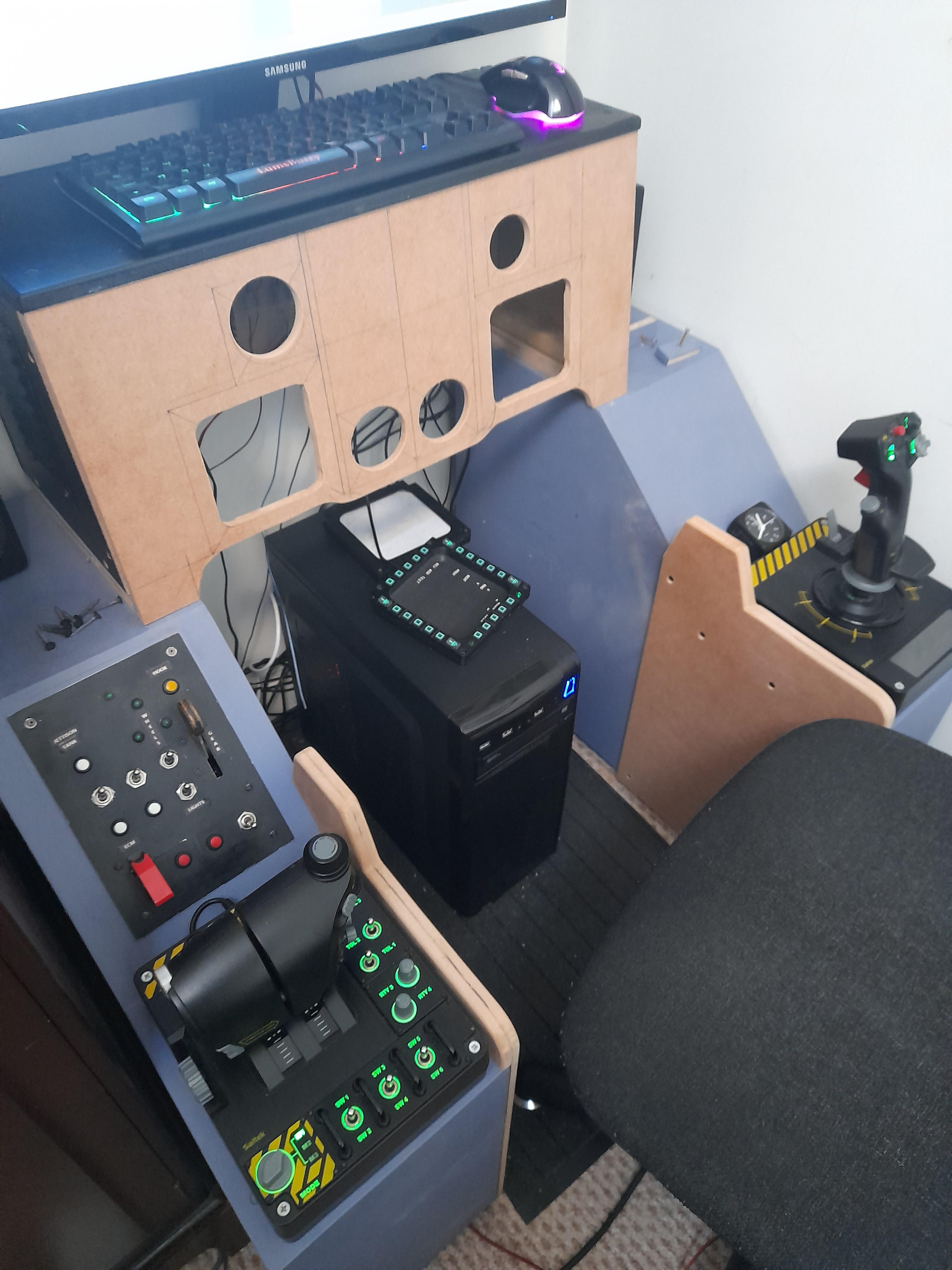

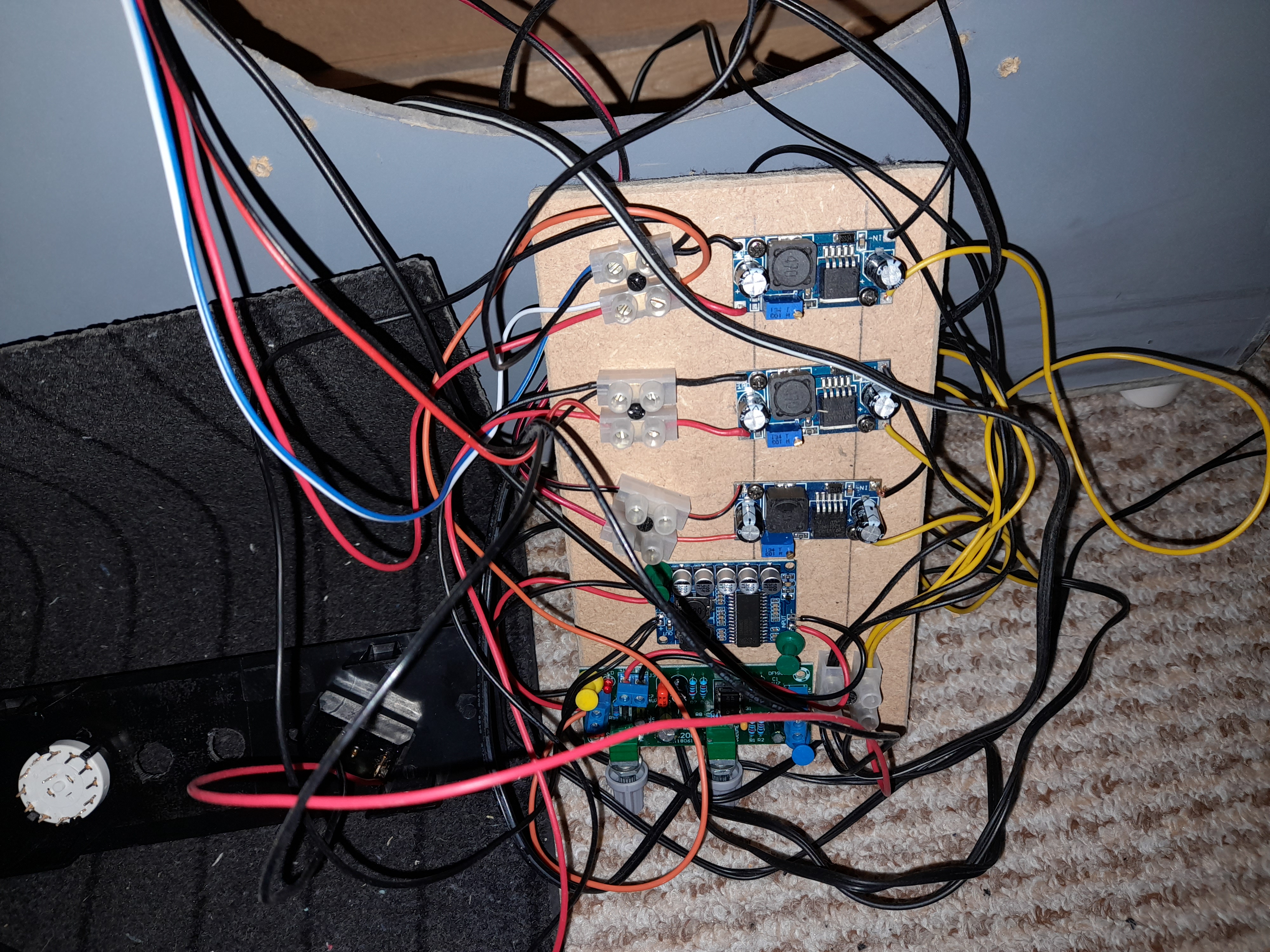

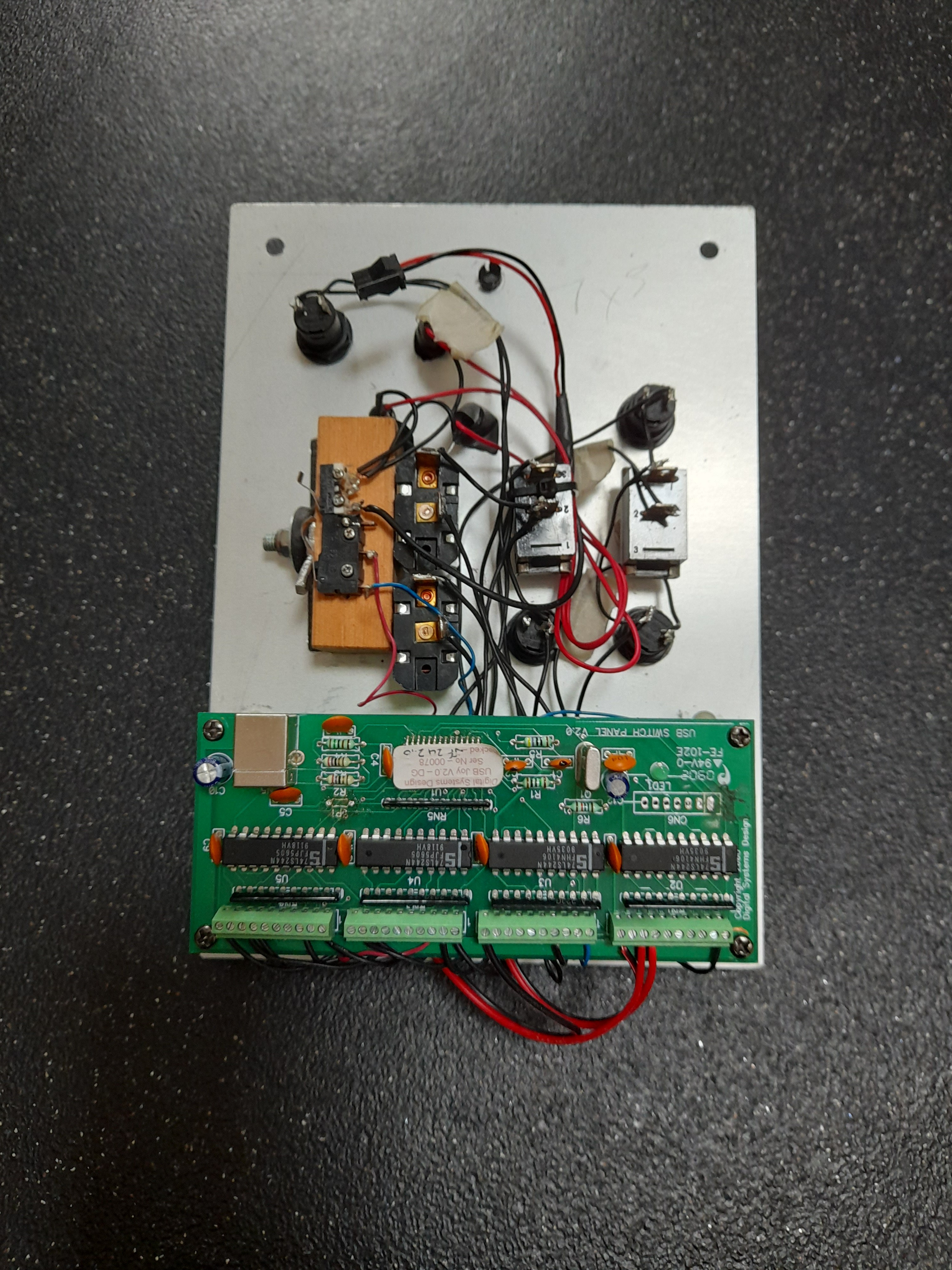

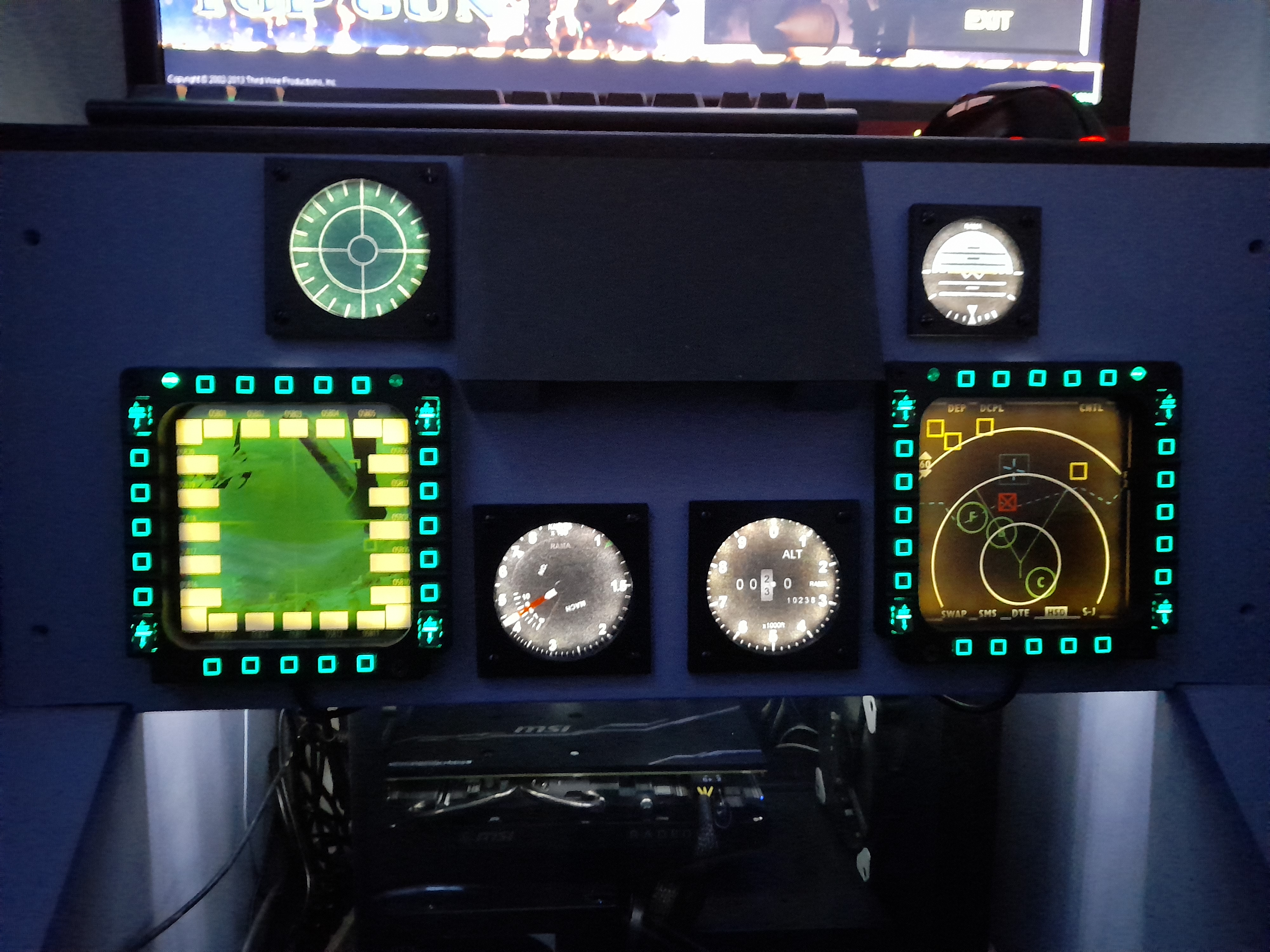

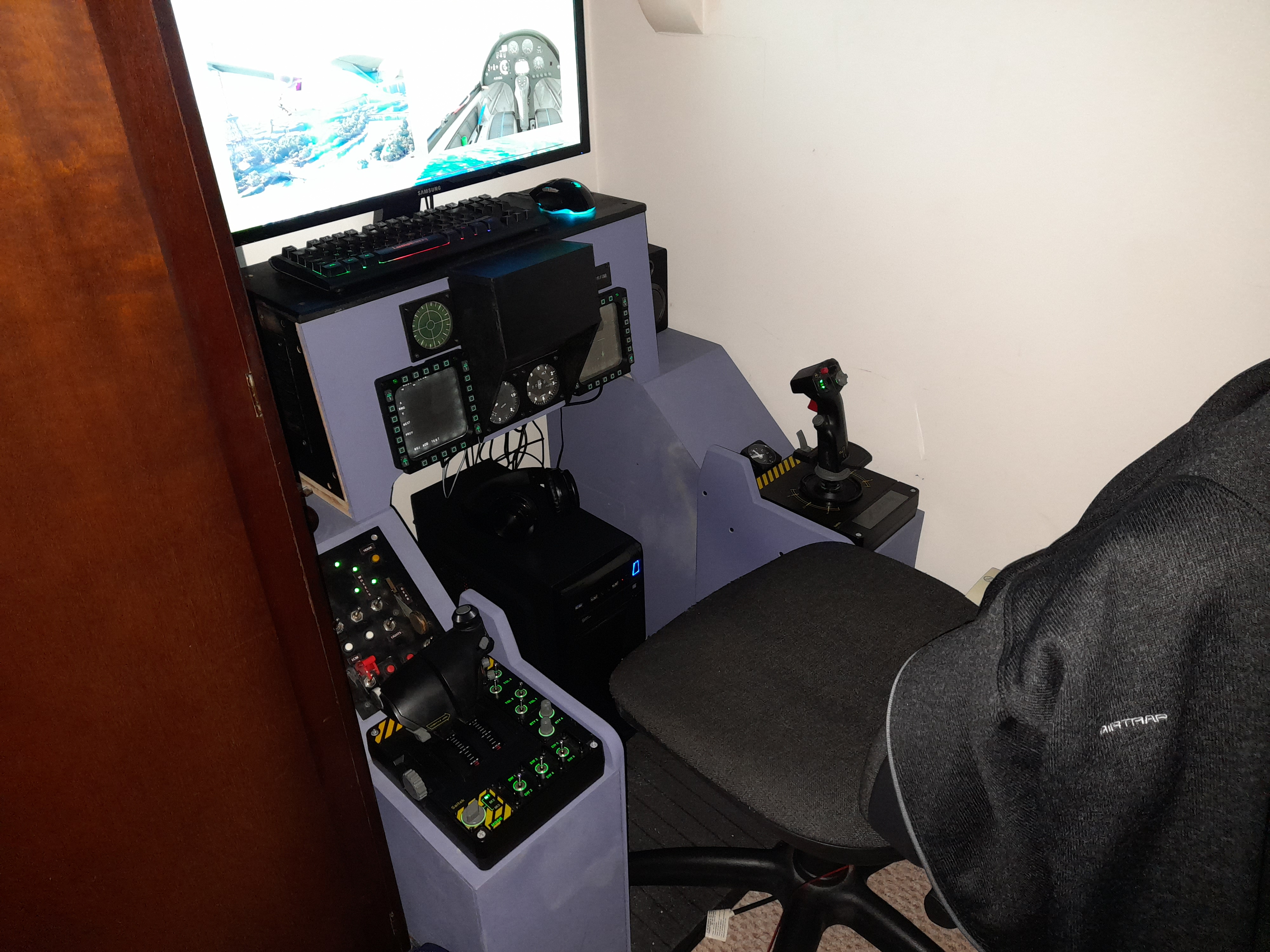

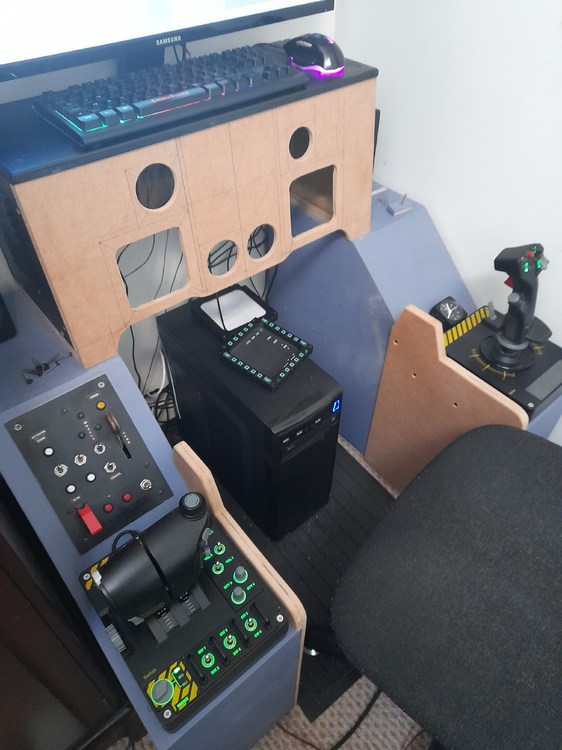

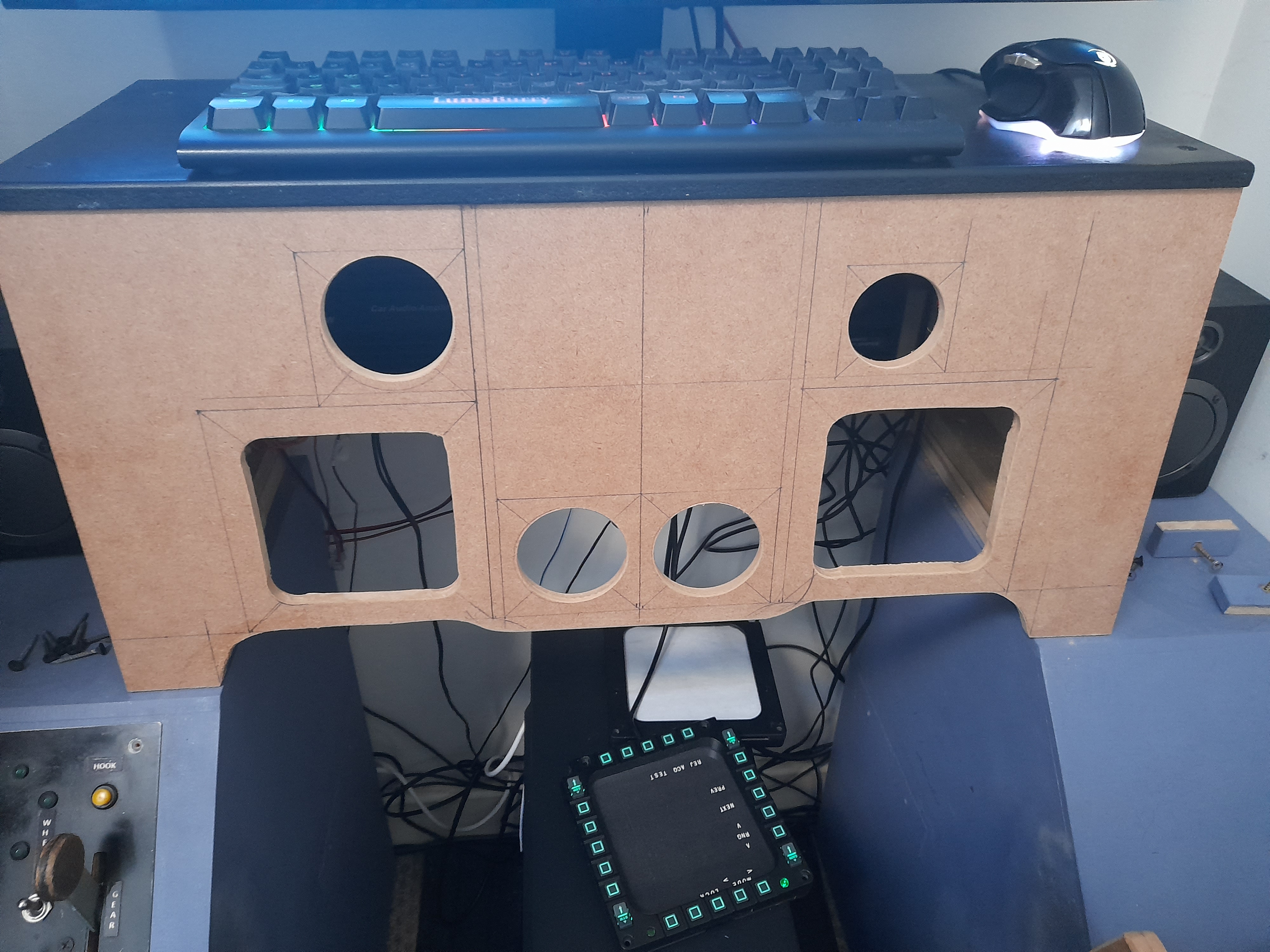

A bit of an update work still on going . New front panel ,leg guards and all the electronics moved .

[NIELS]

Nice work!

[NIELS]

MAN AT WORK!  I always could tell difference between the true 'Grinders' and the 'Slackers'

Edited January 12, 2023 by NIELS
add more comment
